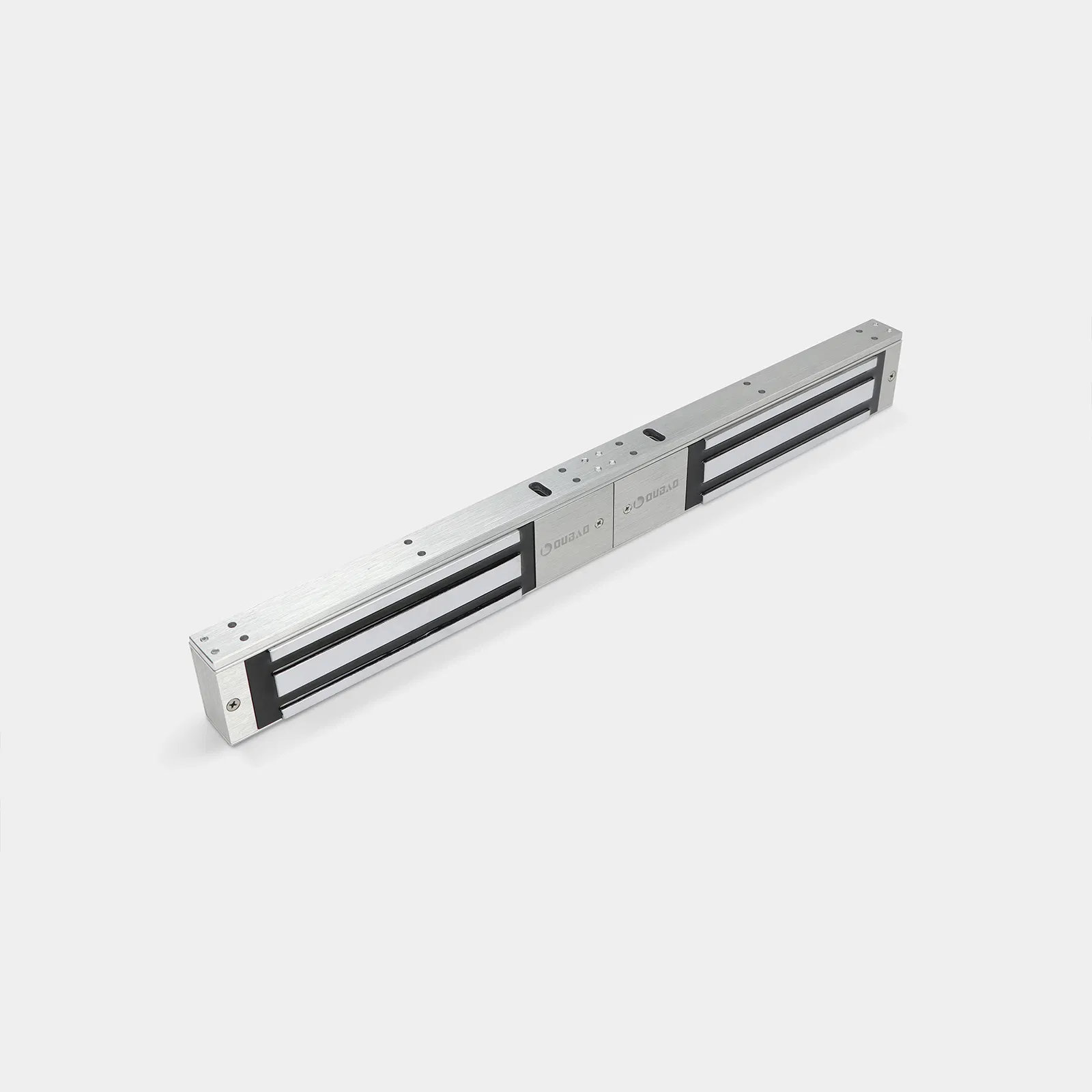

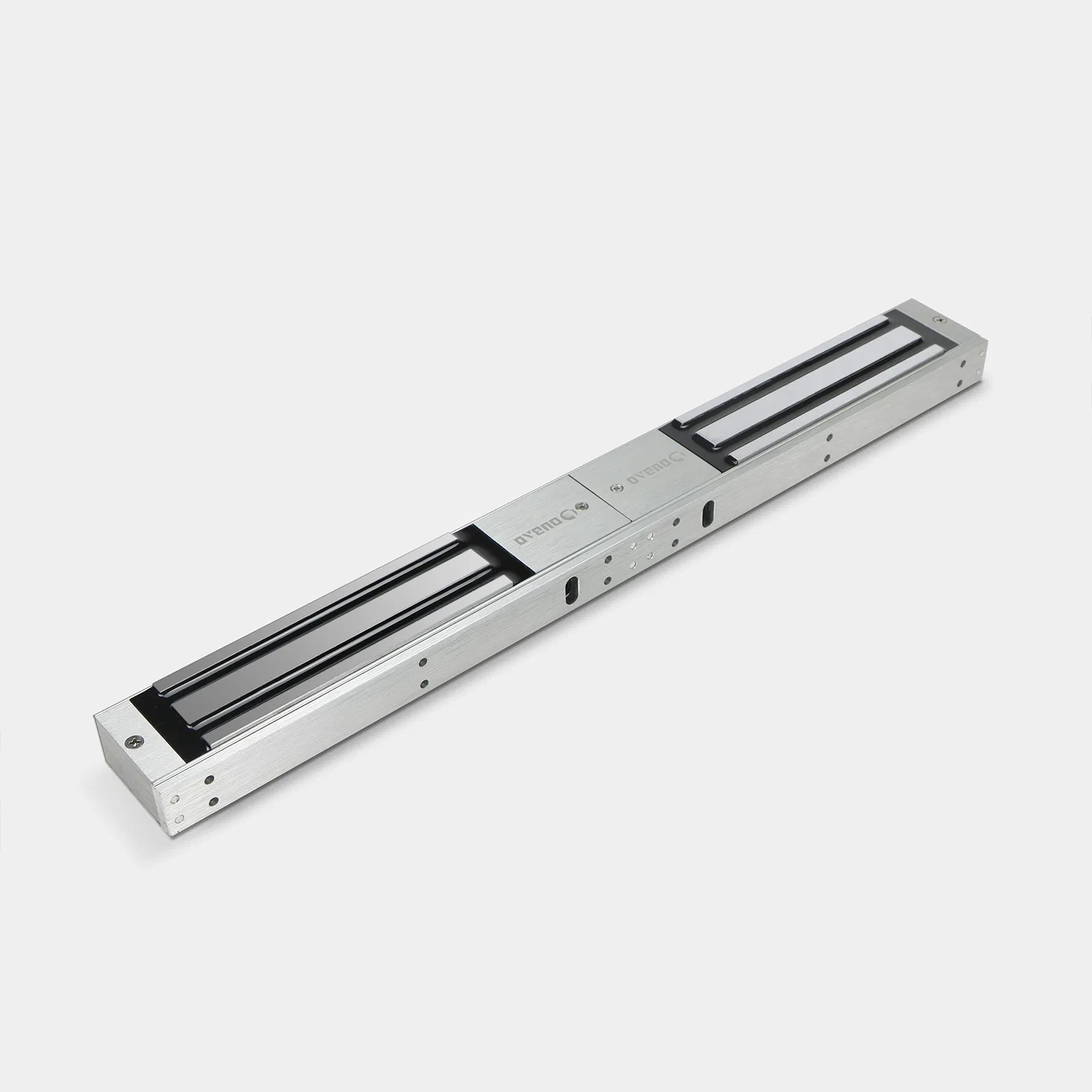

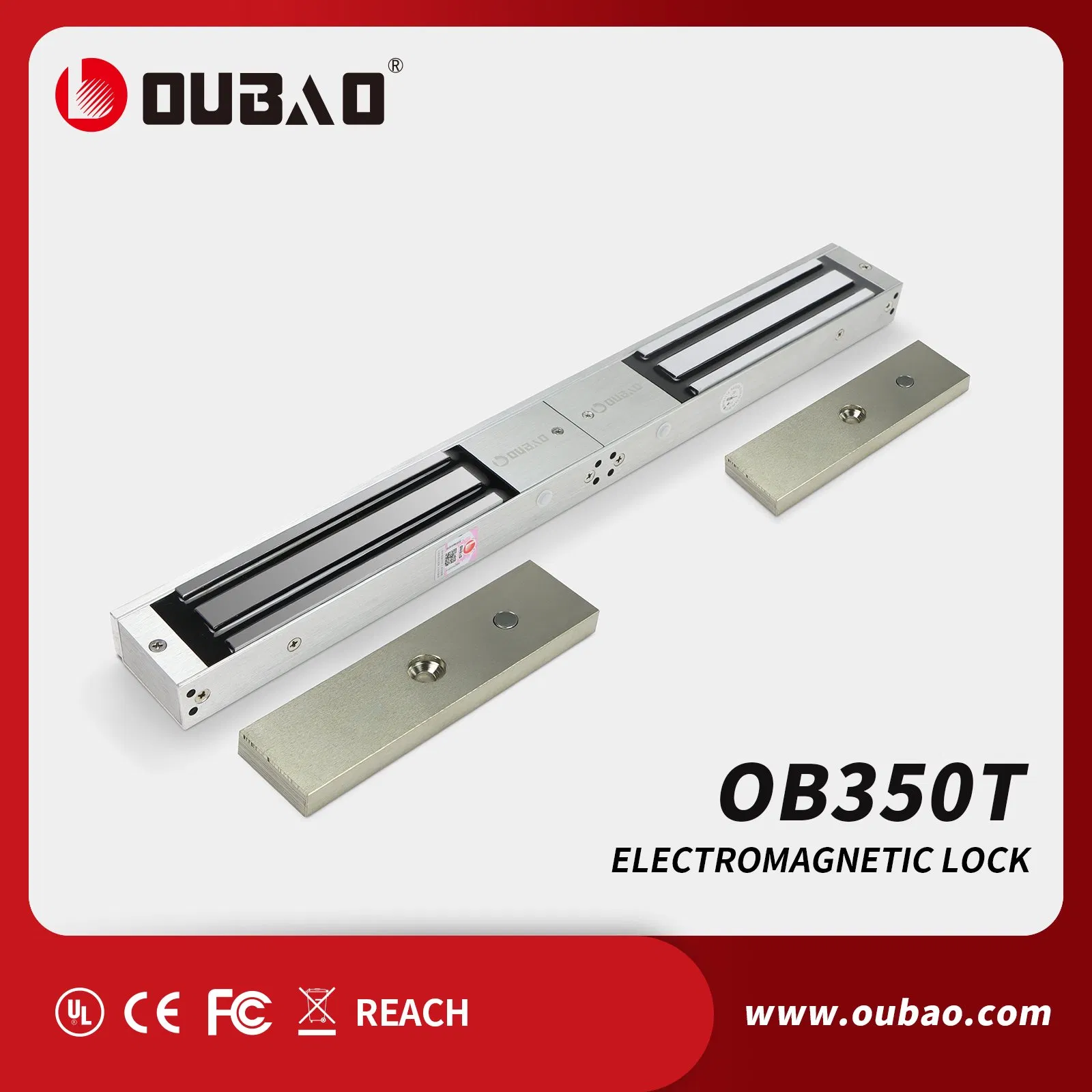

Double Door Magnetic Electromagnetic Lock Electric Door Strike DC12V
Product Description
📋 Basic Information
Model NO.
OB350T
Material
Iron & Steel
Type
Key Lock
Style
Modern
Shape
Mortise Door Lock
Standard
Anti-theft A
Backset
60mm
Door Fits
35-50mm
Cylinder
65mm
Usage
Household, Bedroom, Channel
Capacity
50,000 PCS /Year
HS Code
85318010
🛠️ Technical Specifications
| Holding Force | 350KG x 2 ±10% (800LBS x 2) |
| Operating Voltage | 12VDC (24VDC optional) |
| Working Current | 400mA x 2 |
| Operating Temp | -25 ºC ~ 60 ºC |
| Working Humidity | 10% ~ 90% RH |
| Way of Unlock | Power on to lock (Fail safe) |

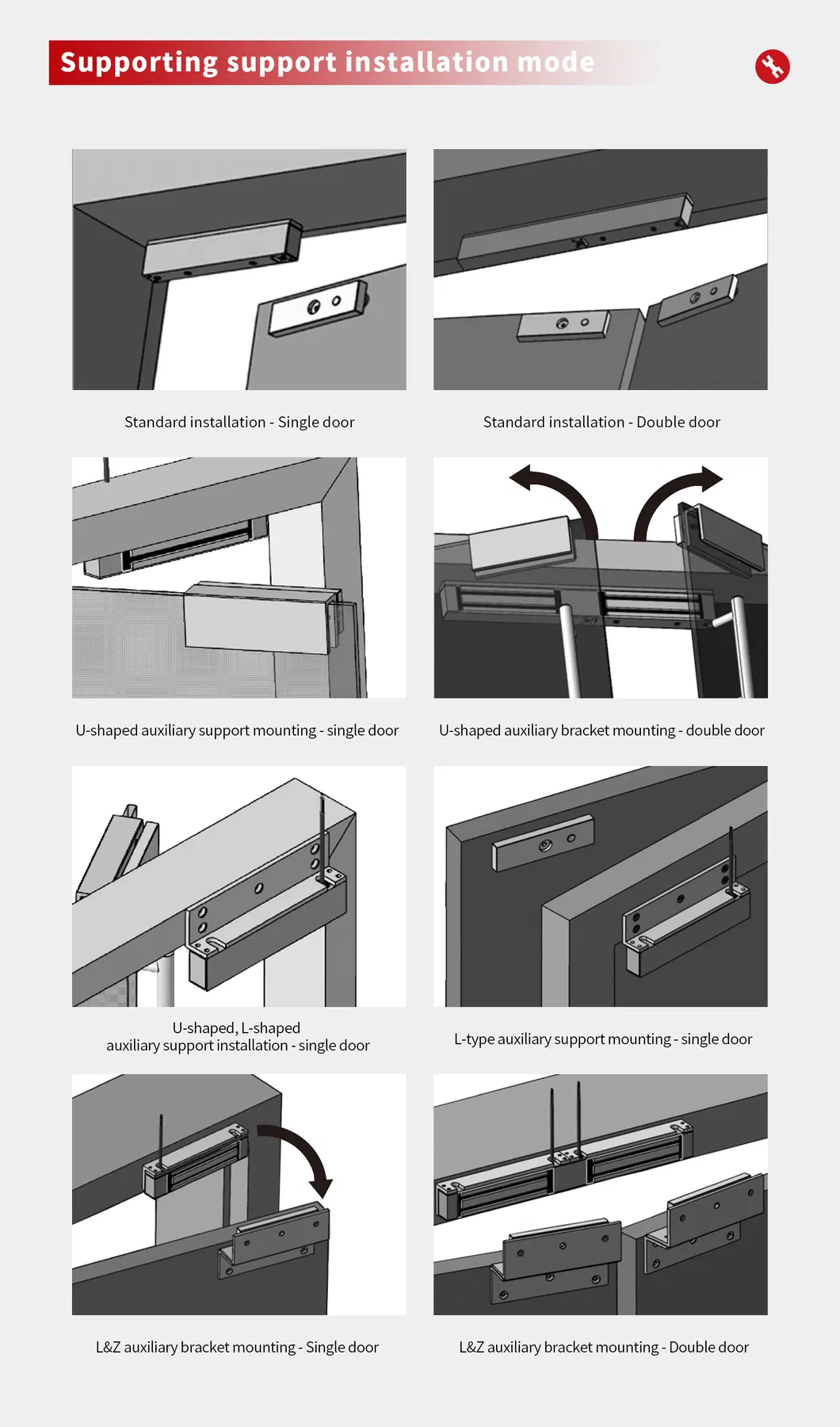

| Installation | Hanging / Surface installation |
| Opening Angle | 90° |
| Panel Material | High strength aluminum alloy |
| Finish | Oxidation & brushed finishing |
| Indicator Light | Red LED |

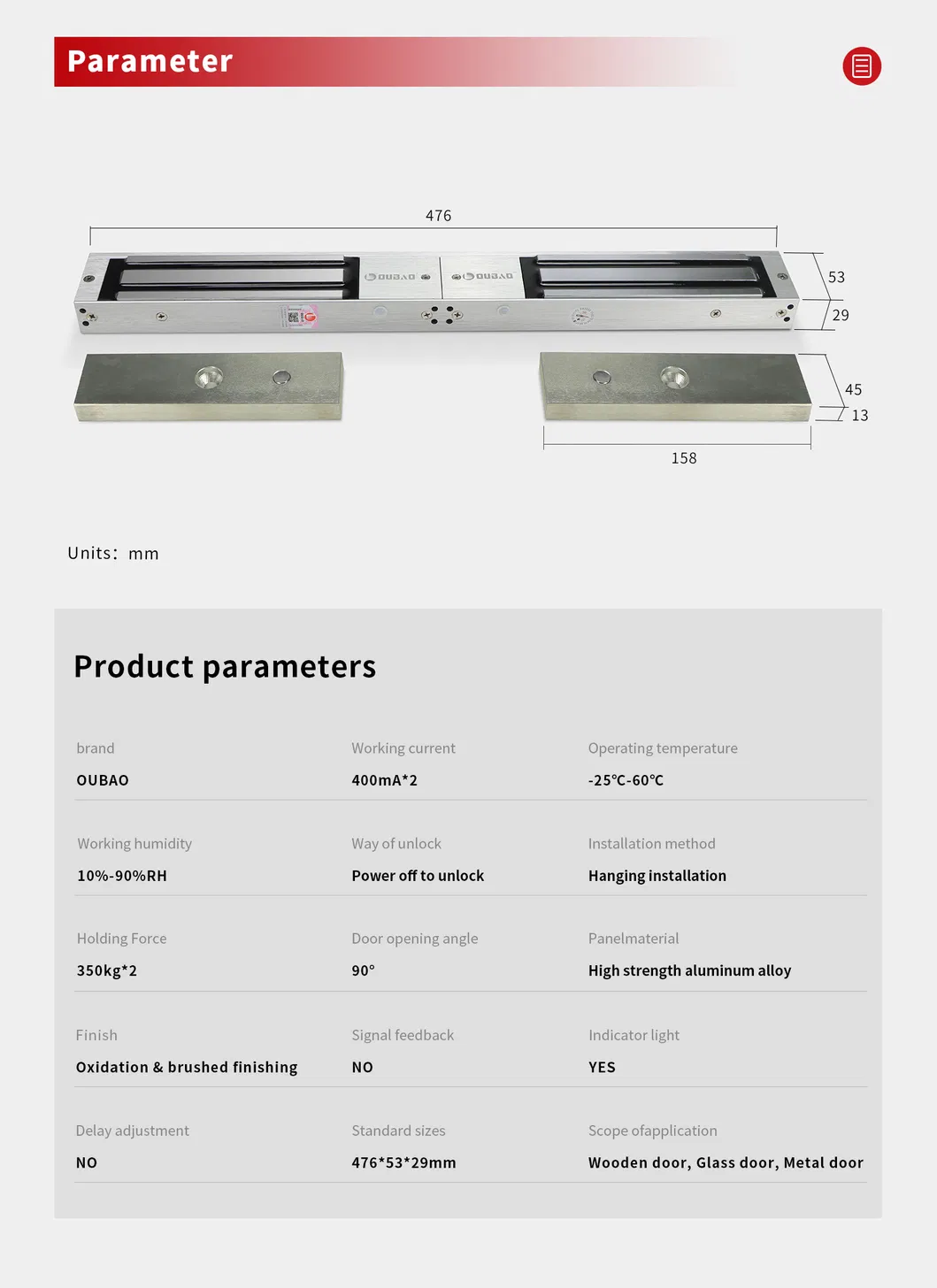

| Magnetic Size | 476 * 53 * 29 mm |
| Armature Plate | 158 * 45 * 13 mm |
| Service Life | More than 500,000 times |
| Certifications | UL, ROSH |
🔍 Product Features
Electromagnetic locks are a popular choice among security installers for being simple to install, durable, reliable, and highly resistant to interference.

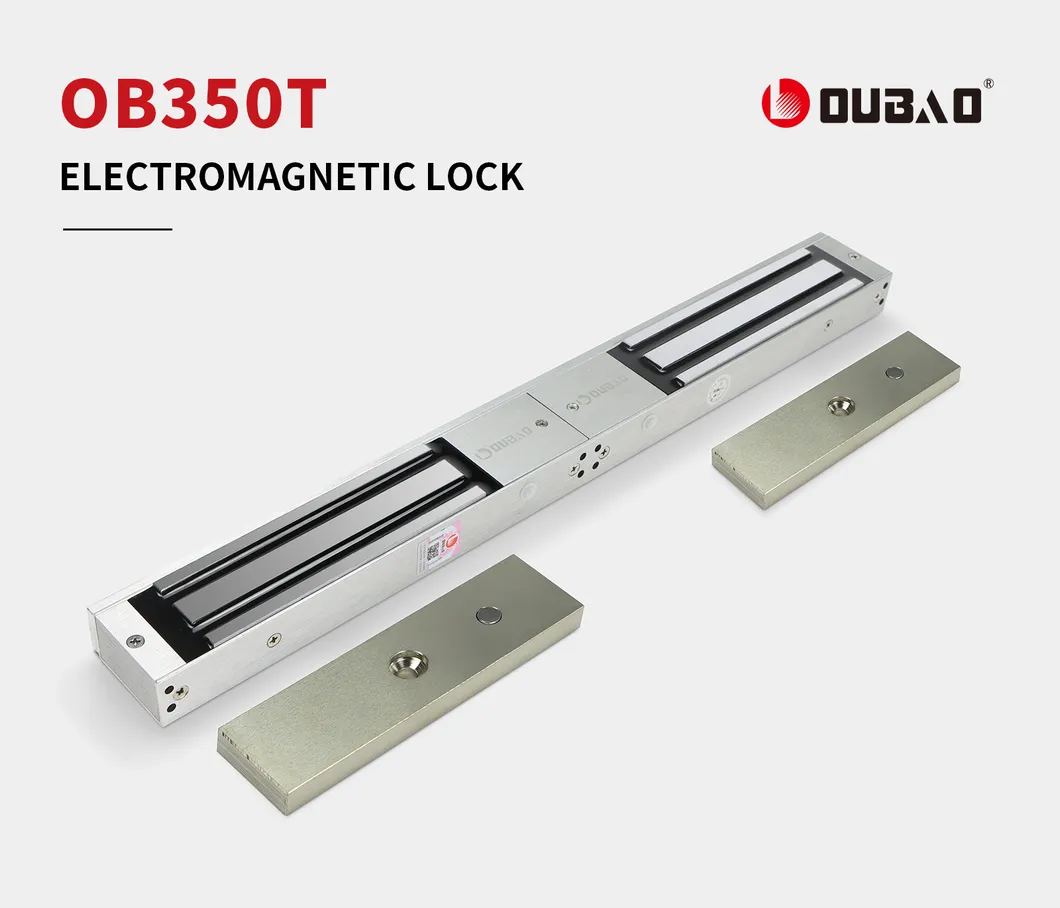

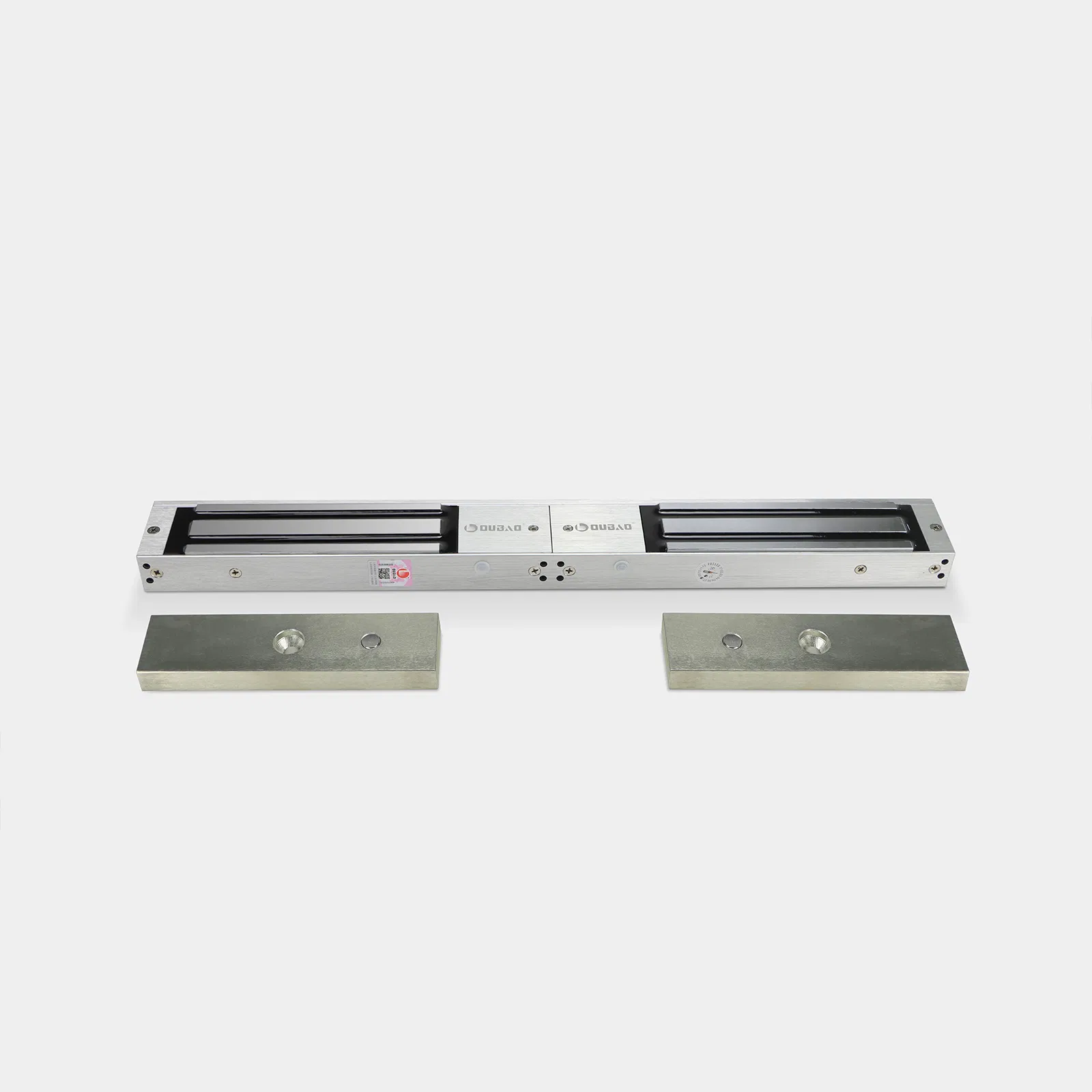

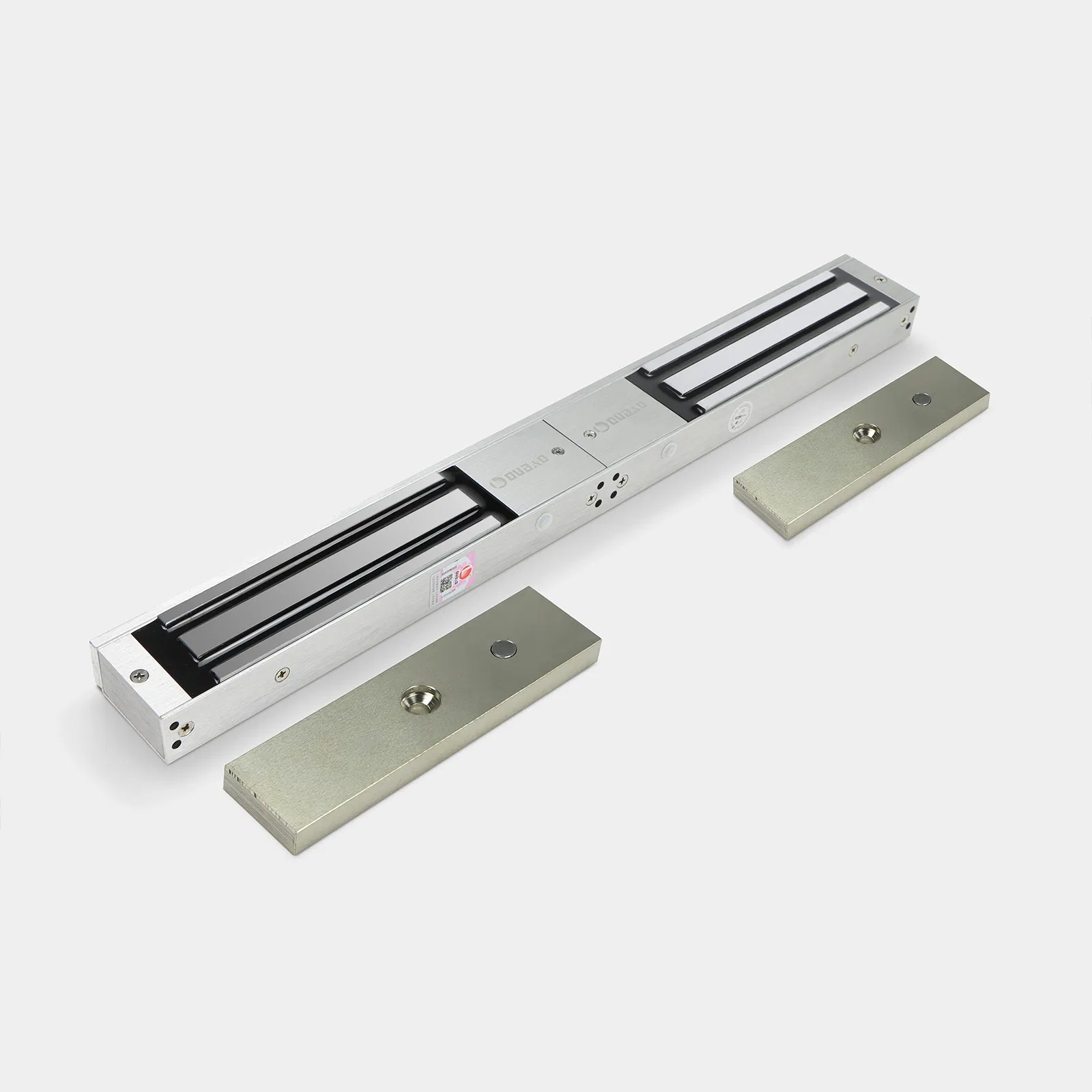

A large electromagnet is mounted on the door frame and the armature plate is mounted on the door. When the magnet is powered and the door is closed, the armature plate is held fast to the magnet. To satisfy various security requirements, these locks provide high-holding forces and are suitable for multiple door types.
Scope of Application: Wooden doors, Fireproof doors, Glass doors, and Metal doors.
📸 Product Gallery
❓ Frequently Asked Questions
Do you accept OEM or ODM orders?
Yes, we fully support both OEM and ODM services to meet your specific branding and design requirements.
What is the Minimum Order Quantity (MOQ)?
For retail or express orders, we can process any quantity. For wholesale orders, the standard MOQ is usually 300 pieces. You can also mix different items for sea shipments.
Can I get a sample before placing a bulk order?
Yes, samples are available. While the sample itself is free, the express shipping costs are to be covered by the customer.
How long is the warranty period for this lock?
We offer professional warranty periods ranging from 2 to 5 years depending on the specific product model and application.
What is the production capacity for this model?
We maintain a robust production capacity of approximately 50,000 pieces per year to ensure stable supply for large projects.
Is this lock suitable for fireproof doors?
Yes, this electromagnetic lock is designed for various applications, including wooden, glass, metal, and specifically fireproof doors, with a service life of over 500,000 cycles.
