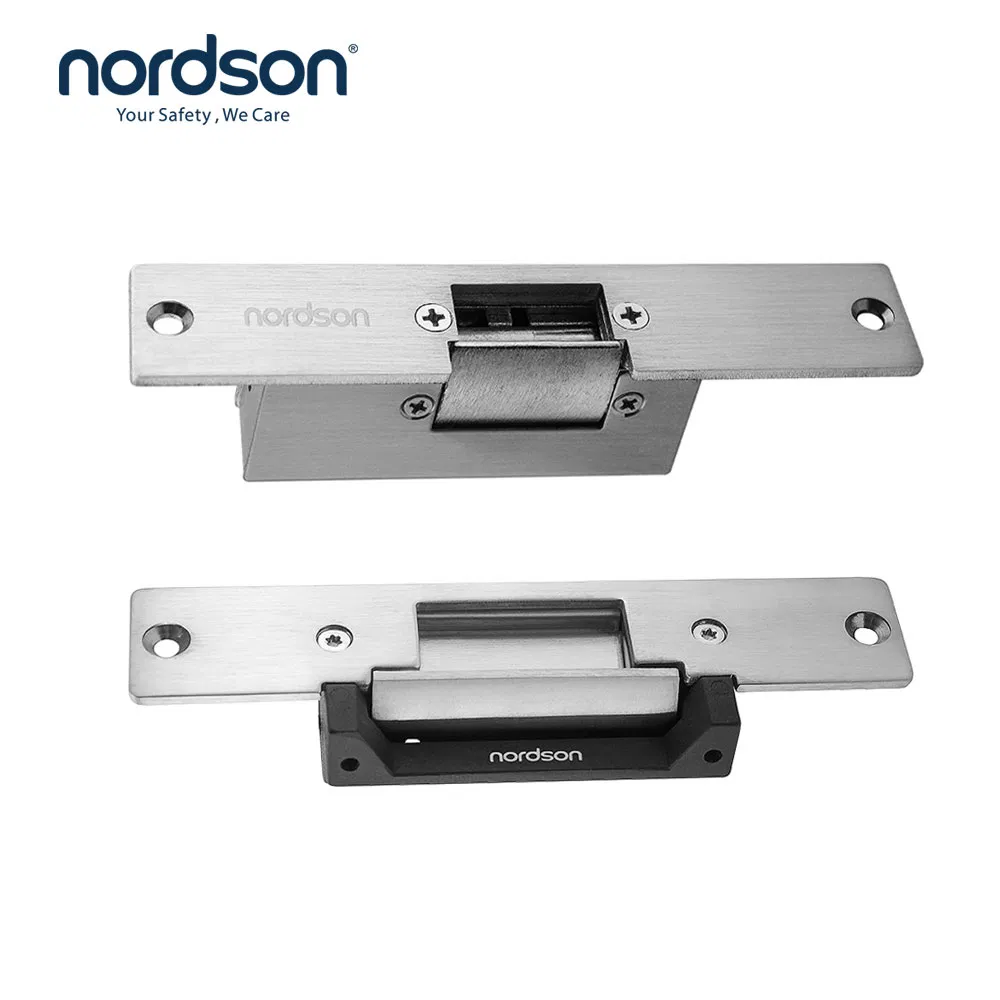

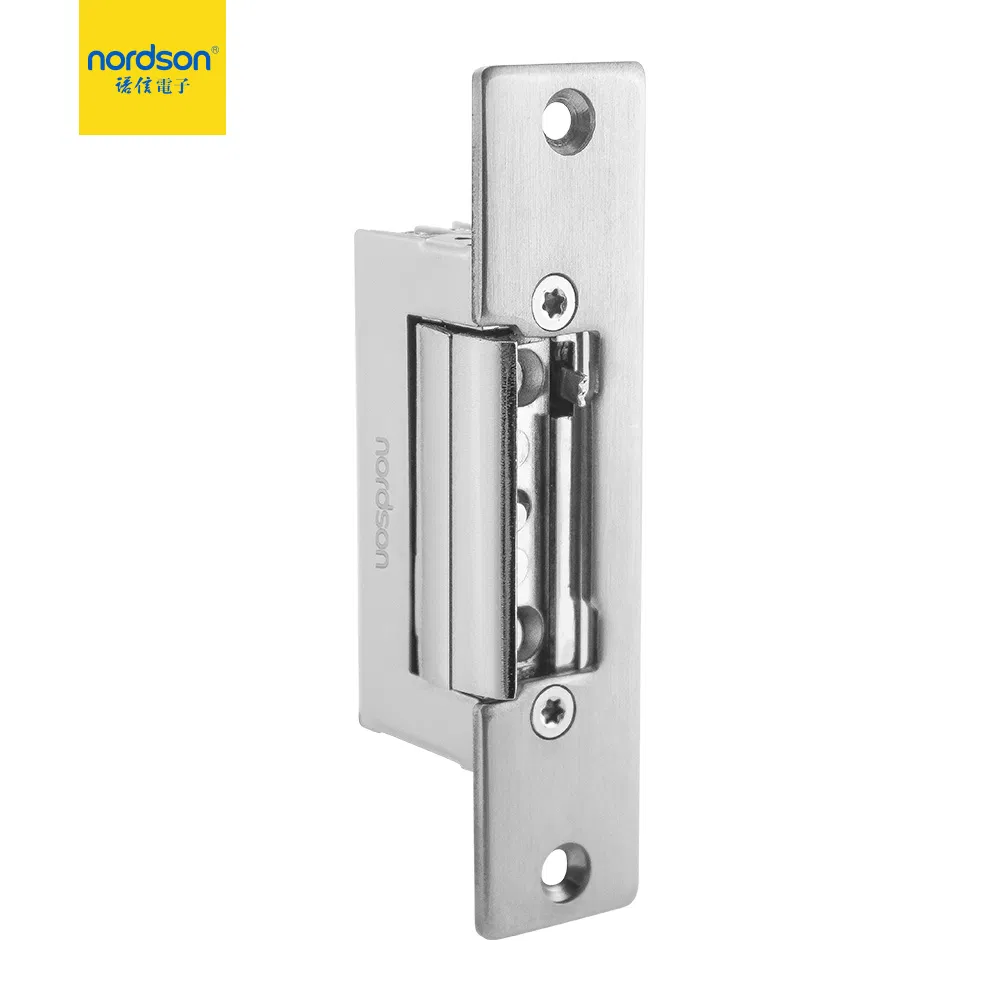

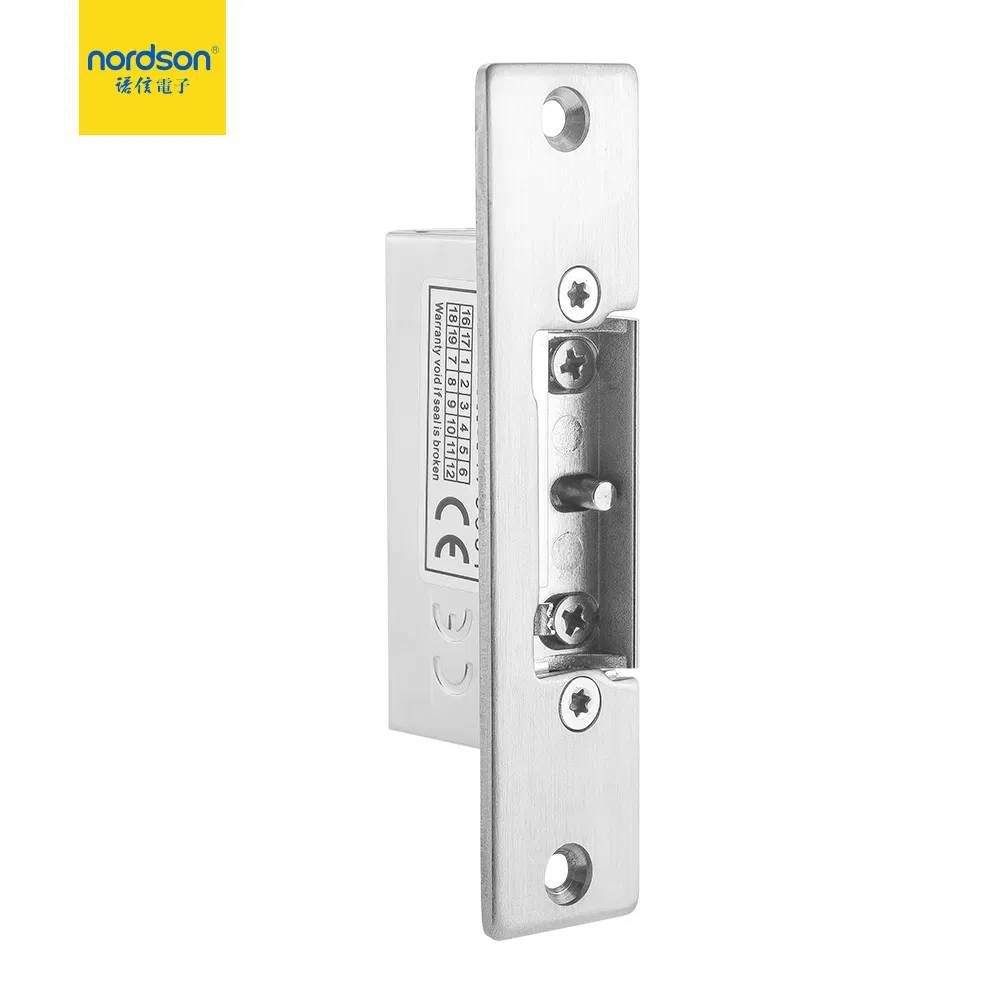

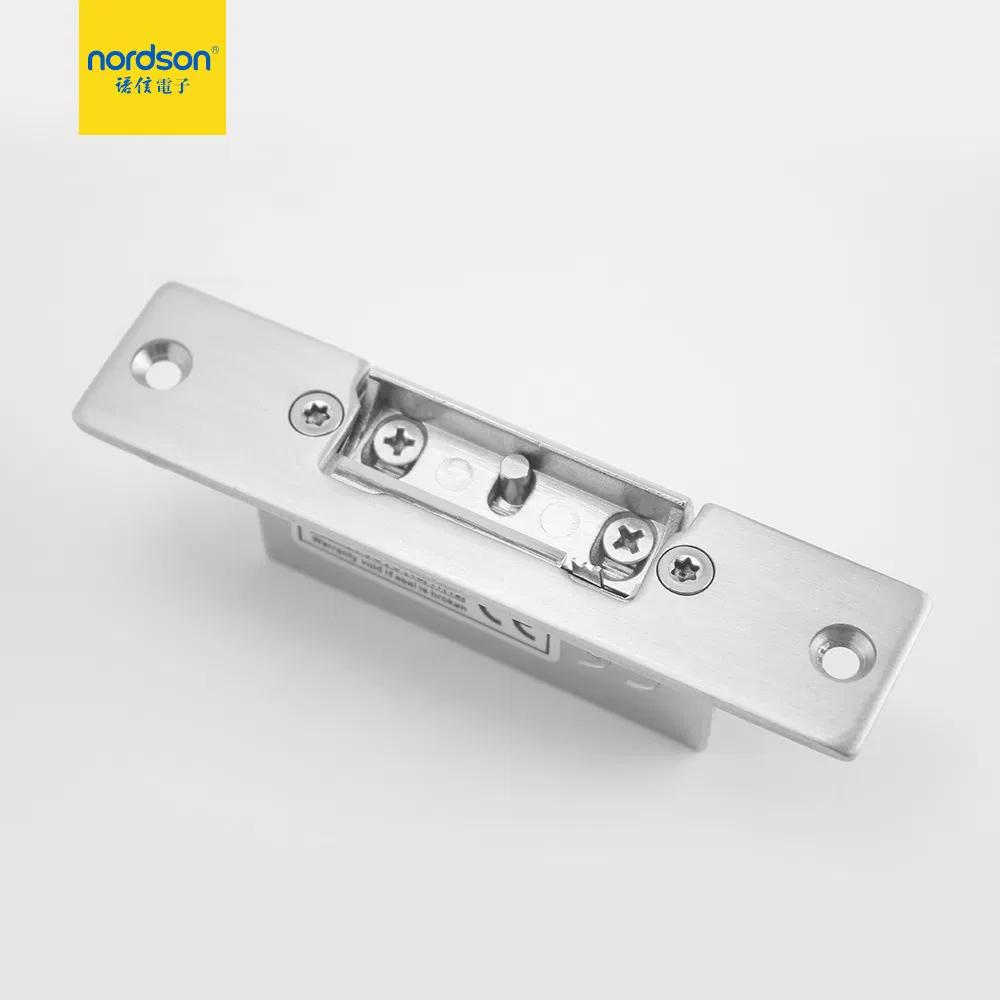

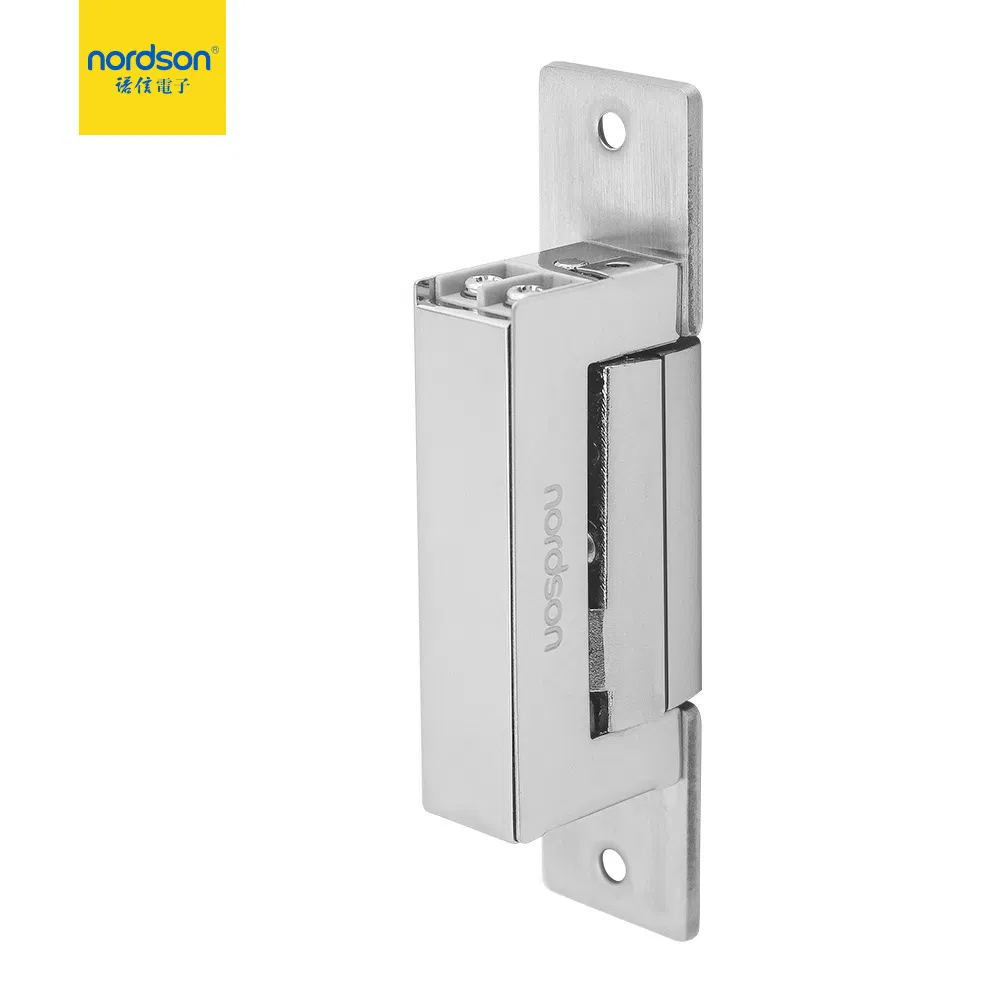

Ten-Year Lifespan Adjustable Lock-Tongue Security Standard European Electric Strike Door Lock
Product Description
🔒
Product Overview
Ten-Year Lifespan Adjustable Lock-Tongue Security European Stand Cabinet Handle Remote Door Lock

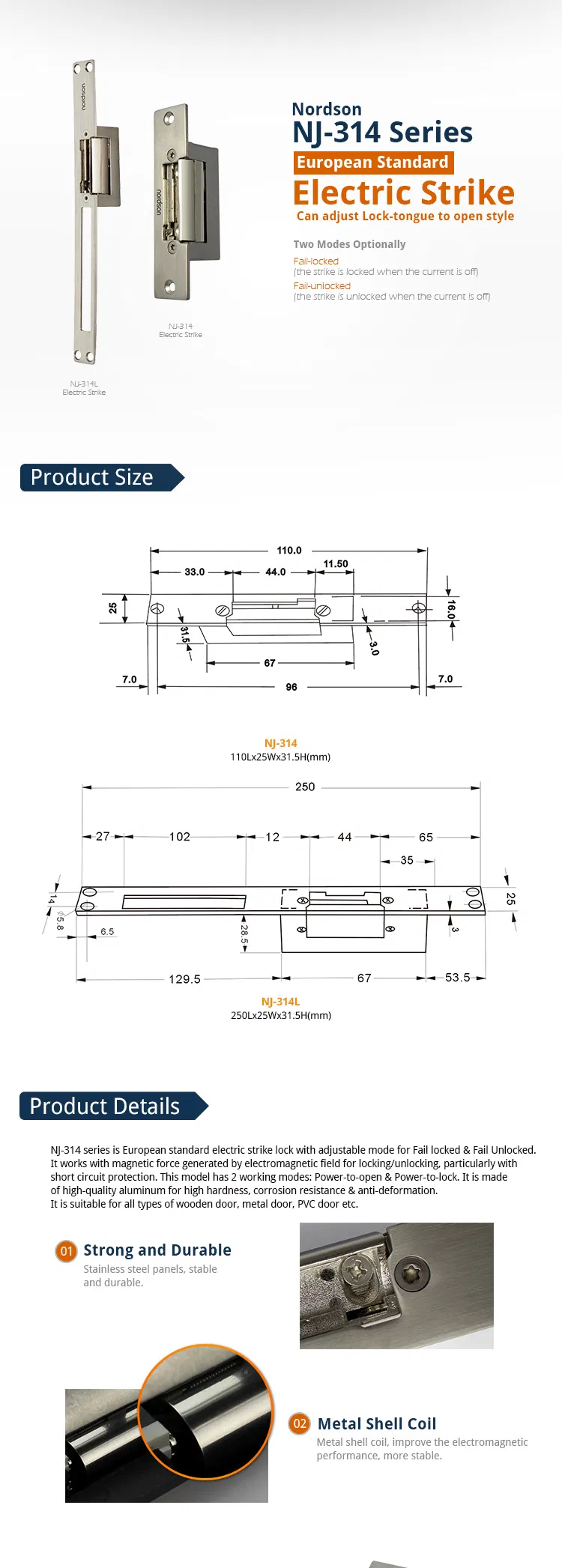

NJ-314 is a European standard electric strike lock featuring an adjustable mode for Fail Locked & Fail Unlocked. It operates using magnetic force generated by an electromagnetic field for locking and unlocking, specifically designed with short circuit protection. This model supports two working modes: Power-to-open and Power-to-lock. Constructed from high-quality aluminum, it offers high hardness, corrosion resistance, and anti-deformation properties. It is perfectly suitable for all types of wooden doors, metal doors, and PVC doors.
📋
Basic Specifications
Model NO.
NJ-314 strike lock
Certification
RoHS, CE
Working Principle
Electronically Controlled Lock
Function
Fail-Safe, Fail-Secure
Shear Strength
1000lbs (500kg)
Rated Voltage
DC 12V
Standby Current
650mA
Face Plate
High Aluminum
Dimensions
110L*25W*31.5H (mm)
Application
Public Passage, Enterprise, Campus, Hospital, Hotel, Warehouse
⚙️
Technical Parameters
| Feature | Details |
|---|---|
| Version | Fail-unlocked (Adjustable to Fail-locked style) |
| Surface Temp | Low Temperature |
| Ambient Temperature | -10°C - +55°C |
| Suitable for | European standard Narrow Wooden, Aluminum, Glass, Fireproof & Metal doors |
| Weight | 0.3kg |
| Lock Status Sensors | Optional |
📦
Packaging & Warranty
Packaging Details: Neutral Package. Size: 55.00cm * 22.00cm * 32.00cm. Gross Weight: 10.000kg.
Shipping: Small quantities within 1-5 working days; large quantities within 14 working days after receipt of remittance.
Shipping: Small quantities within 1-5 working days; large quantities within 14 working days after receipt of remittance.
Warranty Policy:
- Three-year warranty for electromagnetic locks, access control panels, electric bolts, and electric strikes.
- One-year warranty for exit buttons, brackets, and power supplies.
- Warranty covers non-human factor quality issues.
❓
Frequently Asked Questions
What is the shear strength of the NJ-314 electric strike?
The NJ-314 electric strike lock has a shear strength of 1000lbs (approximately 500kg), providing robust security for various door types.

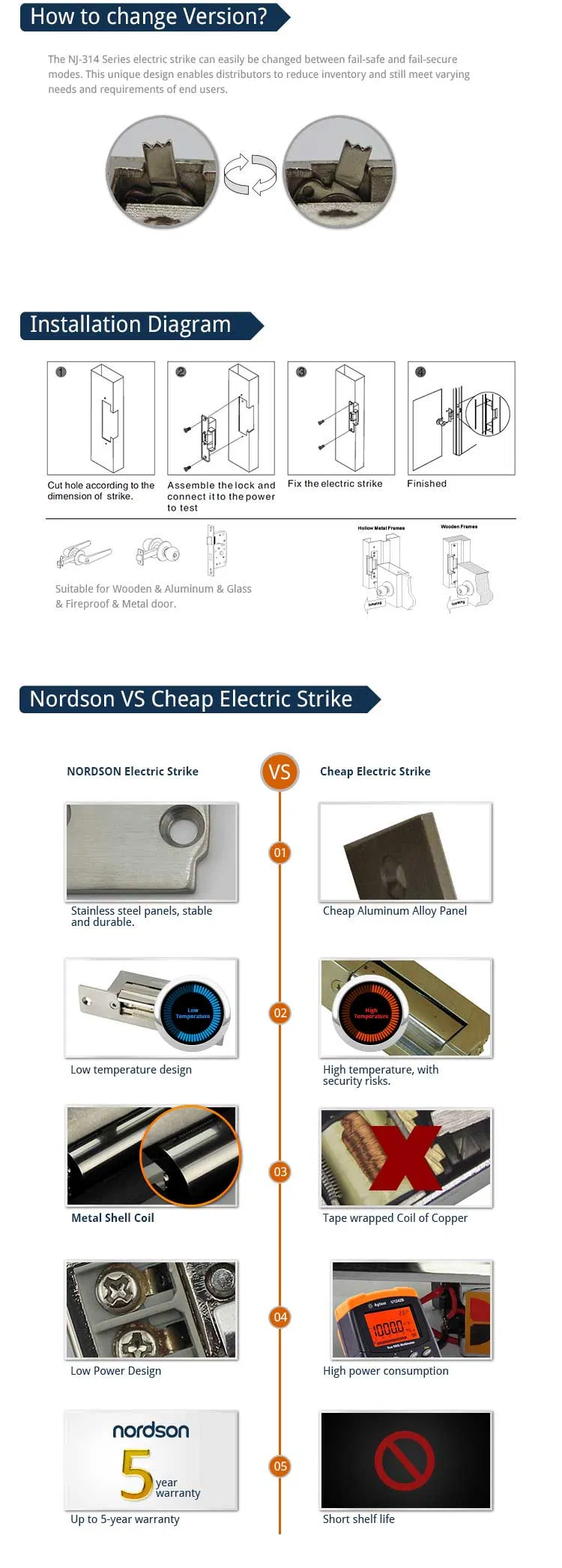

Can I switch between Fail-Safe and Fail-Secure modes?

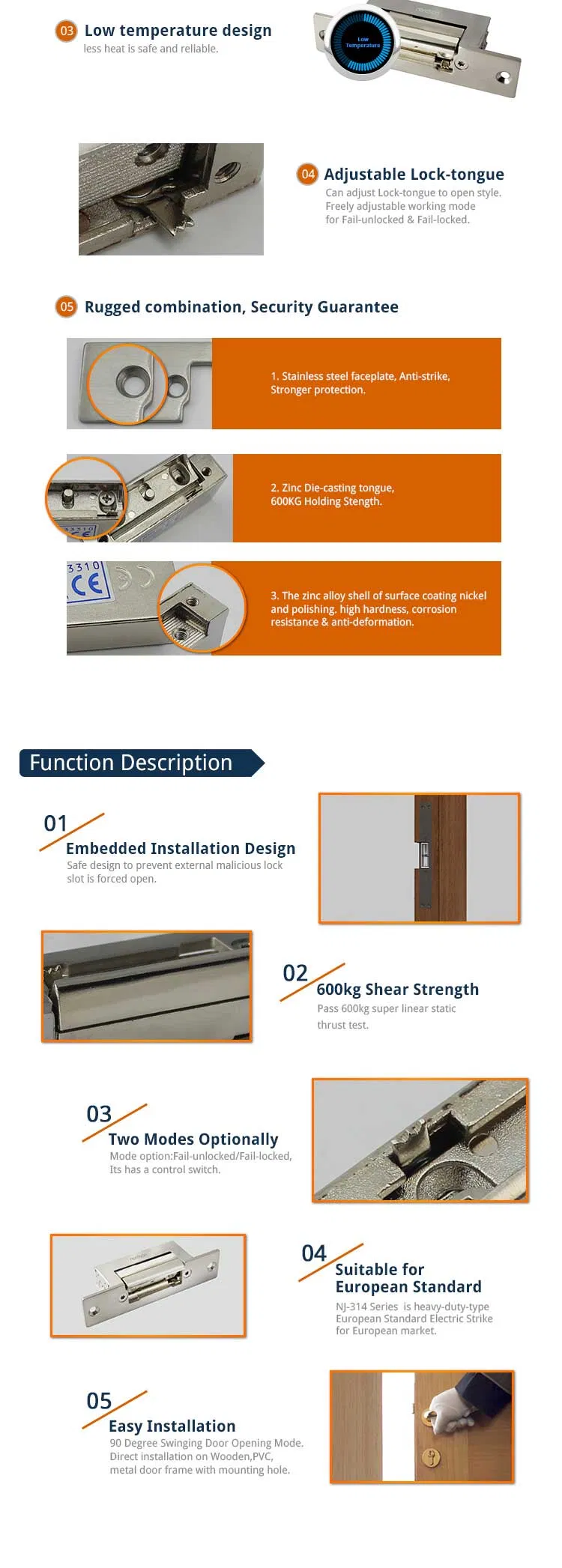

Yes, this model features an adjustable lock-tongue design that allows you to switch between Fail-Unlocked (Fail-Safe) and Fail-Locked (Fail-Secure) styles to suit your security needs.
What types of doors is this lock compatible with?
It is designed for European standard narrow doors and is suitable for wooden, aluminum, glass, metal, and fireproof doors.
What are the power requirements for this device?
The lock operates on a rated voltage of DC 12V with a standby current of 650mA.
What material is used for the lock construction?
The lock is made of high-quality aluminum, which ensures high hardness, excellent corrosion resistance, and protection against deformation.
Does the lock include status sensors?
The standard model does not include lock status sensors, but they are available as an optional function upon request.
