Smart Wireless Online RFID Card Reader Real-Time Hotel Access Control System WiFi with 3.5 Inch Touch Screen
Product Description
i
Basic Information
Model NO.
CT9 PRO
Reading Distance
10cm-15m
Product
Access Control Terminal
Operating System
Linux OS
Display
3.5" Touch Screen
Identification
RFID, NFC, BLE, Pin Code, QR
Interfaces
4G, WiFi, TCP/IP, RS485, Wiegand
Power
12-24V DC; PoE IEEE 802.3af
IP Protection
IP65 Waterproof
Certification
CE, FCC
✓

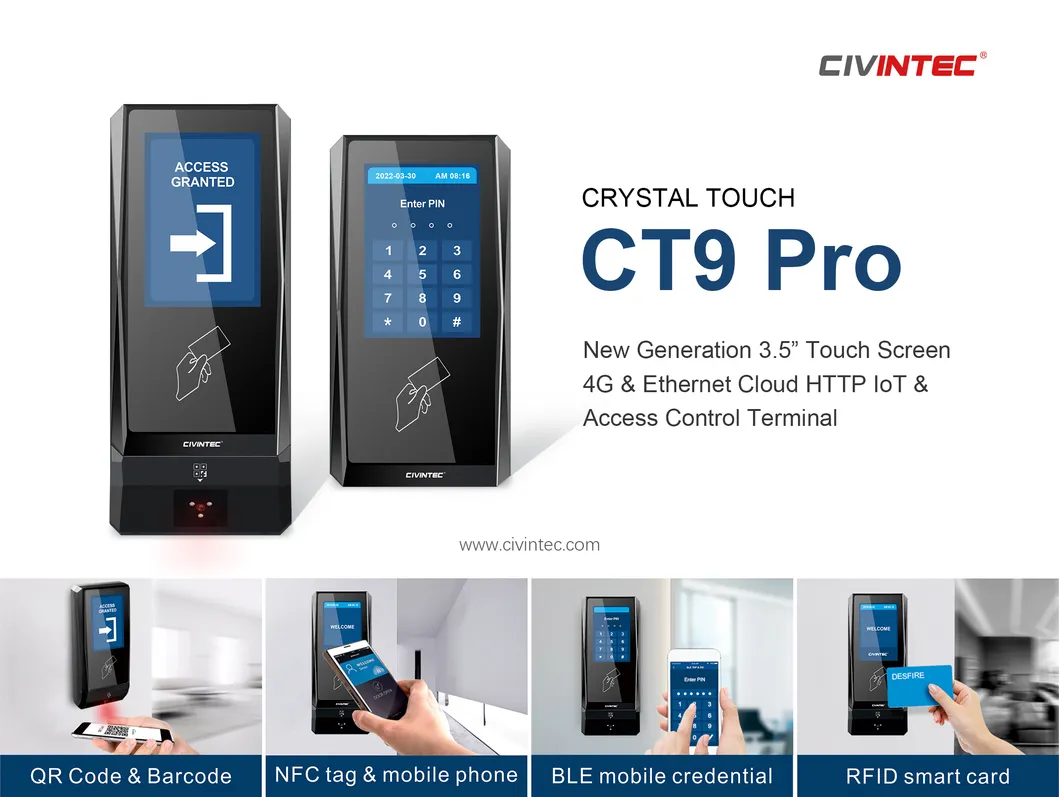

Product Overview

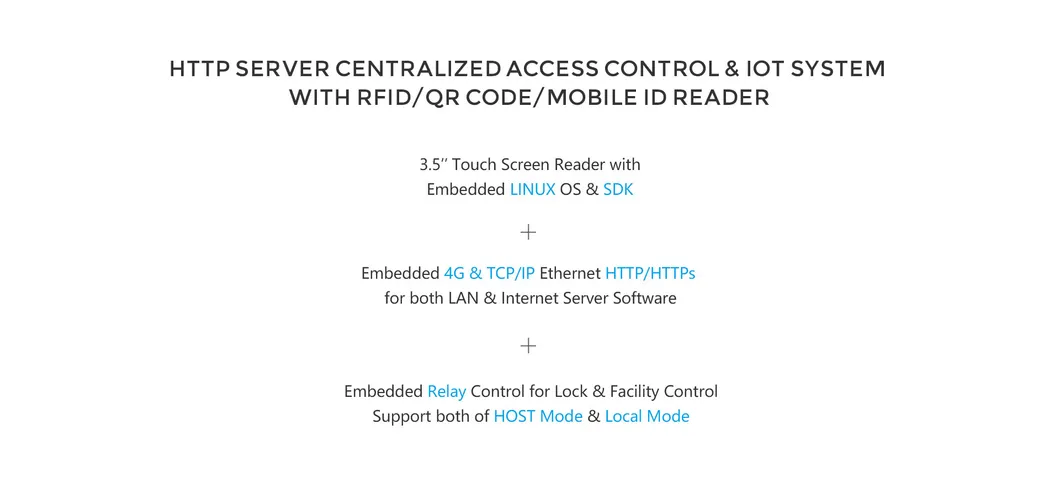

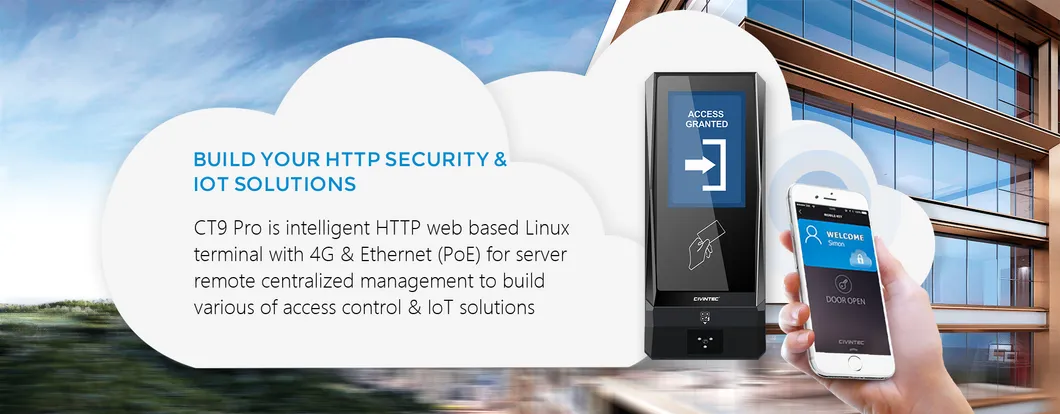

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning.
| Display | 3.5" capacitive touch screen |
| QR code | QR Code, Micro QR, PDF417, Code 128, Code 39, and mainstream 1D/2D barcodes. |

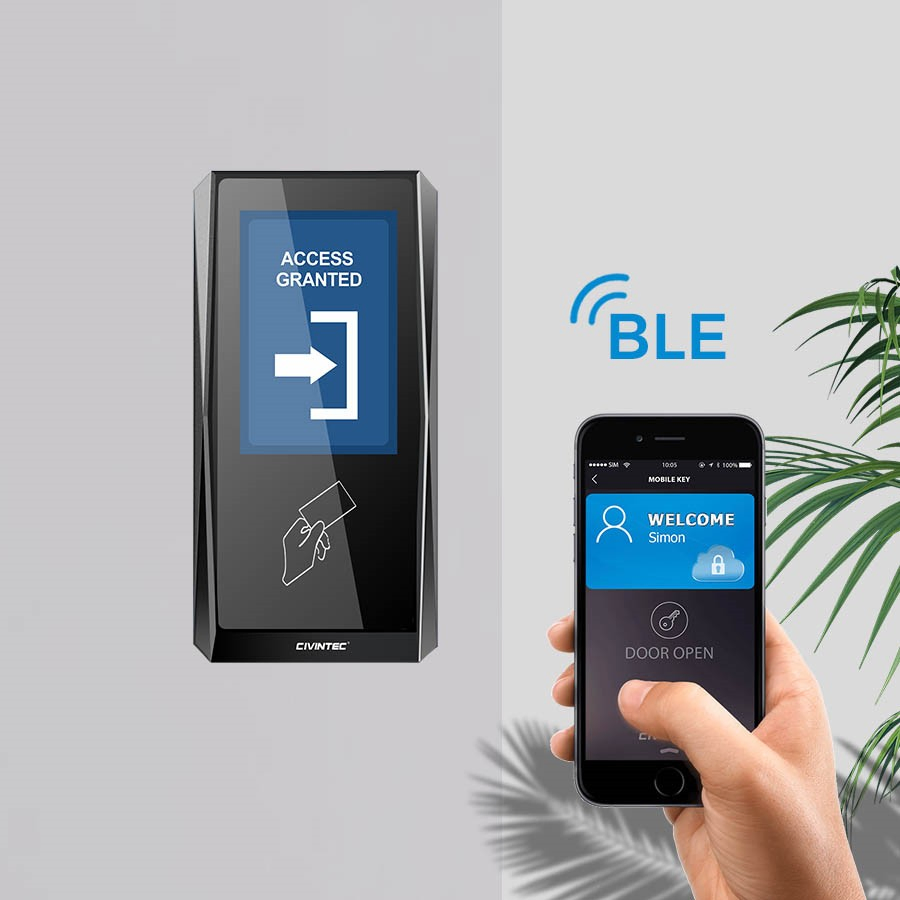

| Mobile ID | BLE, NFC (iOS and Android supported) |
| RFID Smart Card | 125KHz, 13.56MHz ISO14443A/B, Mifare Classic/Plus, DESFire EV1/EV2/EV3, iCLASS Seos. |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit. |
| Offline Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |
★
Key Features

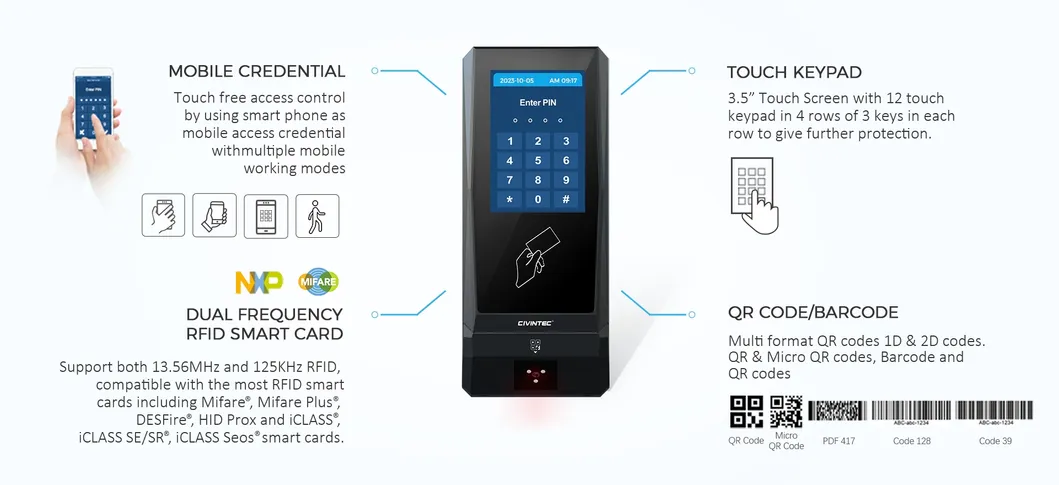

Multiple Access Credentials: Incorporates 5-in-1 technologies including touch keypad, dual-frequency RFID, BLE/NFC mobile access, and QR code scanning for comprehensive visitor management.

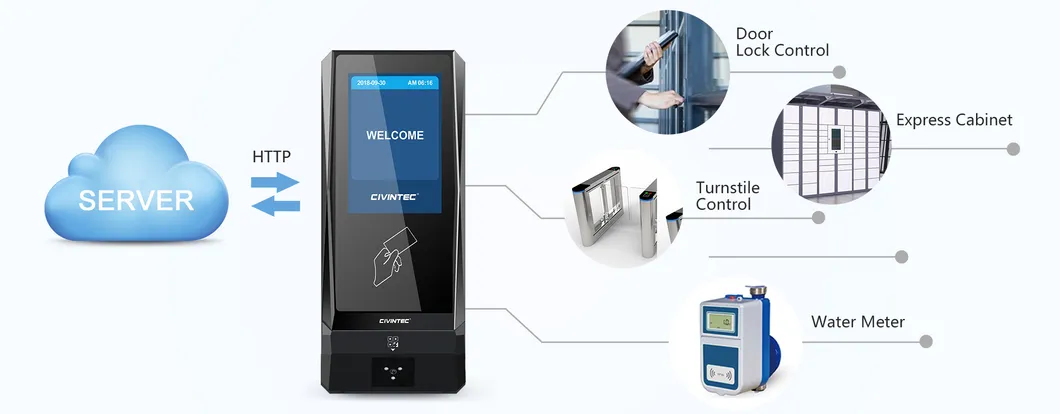

Cloud Server Remote Control: Bi-directional communication via standard HTTP & HTTPs between the terminal and server to remotely control door locks and various IoT facilities.

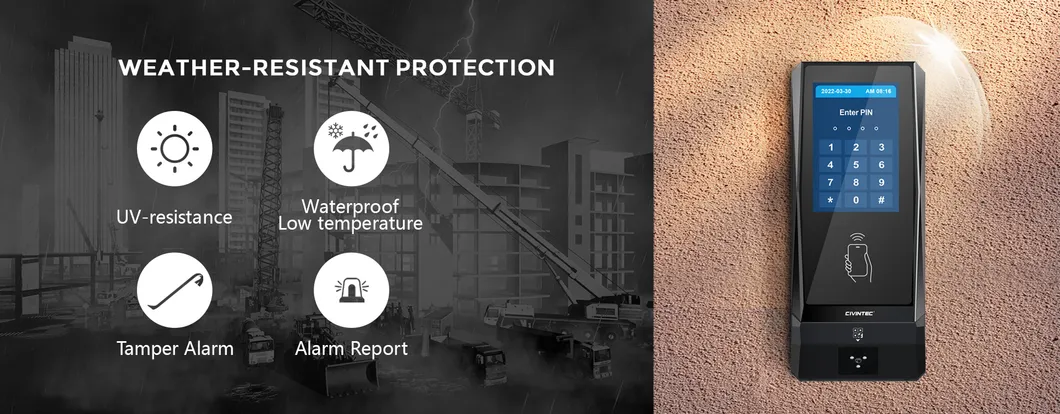

Weather-Resistant Protection: With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
⚙

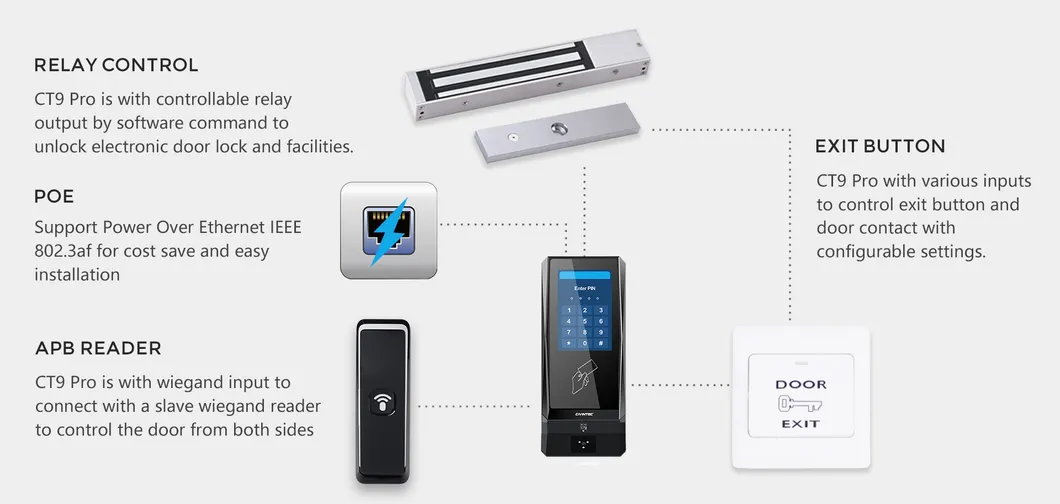

System Configuration & Service

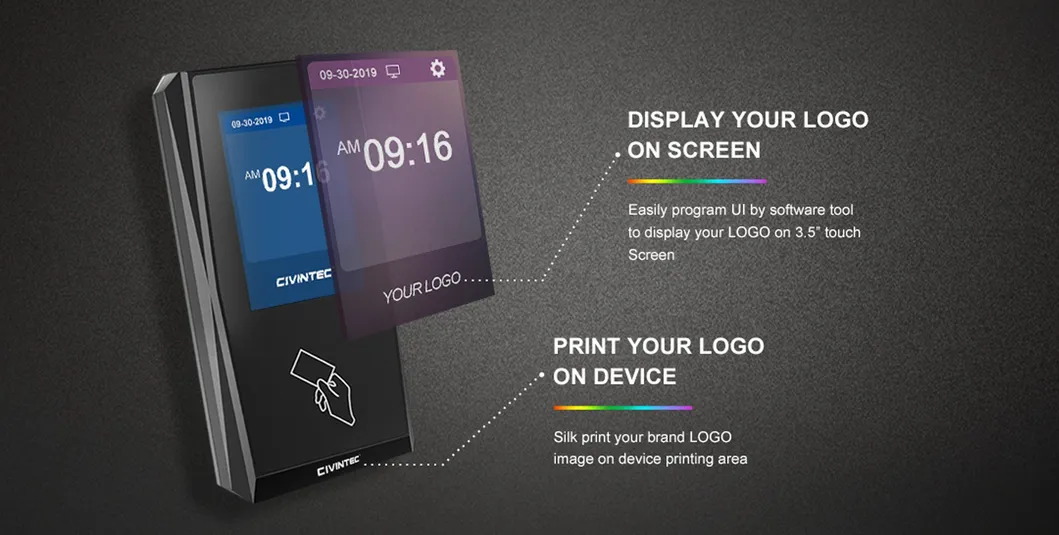

We offer ODM customization on hardware, housing, firmware, and software design. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
▤
Related Products
?
Frequently Asked Questions
What types of access credentials does the CT9 PRO support?
The CT9 PRO supports 5-in-1 credentials: RFID (125KHz & 13.56MHz), Mobile Access (NFC & BLE), QR Code/Barcode scanning, and a touch Pincode.
Can this terminal be used outdoors?
Yes, it features an IP65 waterproof rating and UV resistance, making it suitable for both indoor and outdoor environments.
Does the device support Power over Ethernet (PoE)?
Yes, the terminal supports PoE IEEE 802.3af, as well as a standard 12-24V DC power supply.
How does the terminal communicate with the server?
It uses encrypted HTTP or HTTPs protocols for real-time bi-directional communication via 4G, WiFi, or TCP/IP Ethernet.
Is it possible to customize the display?
Absolutely. The 3.5" touch screen allows users to program and display their own custom logo and interface.
What is the user and log capacity for offline mode?
The standard configuration supports up to 10,000 users and 50,000 event logs, with more available upon request.
