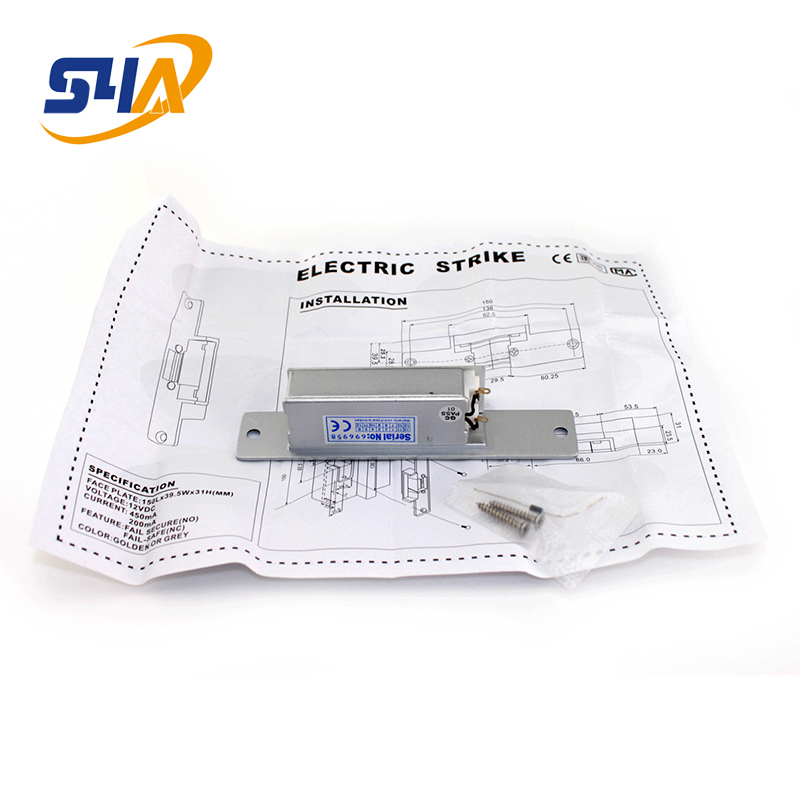

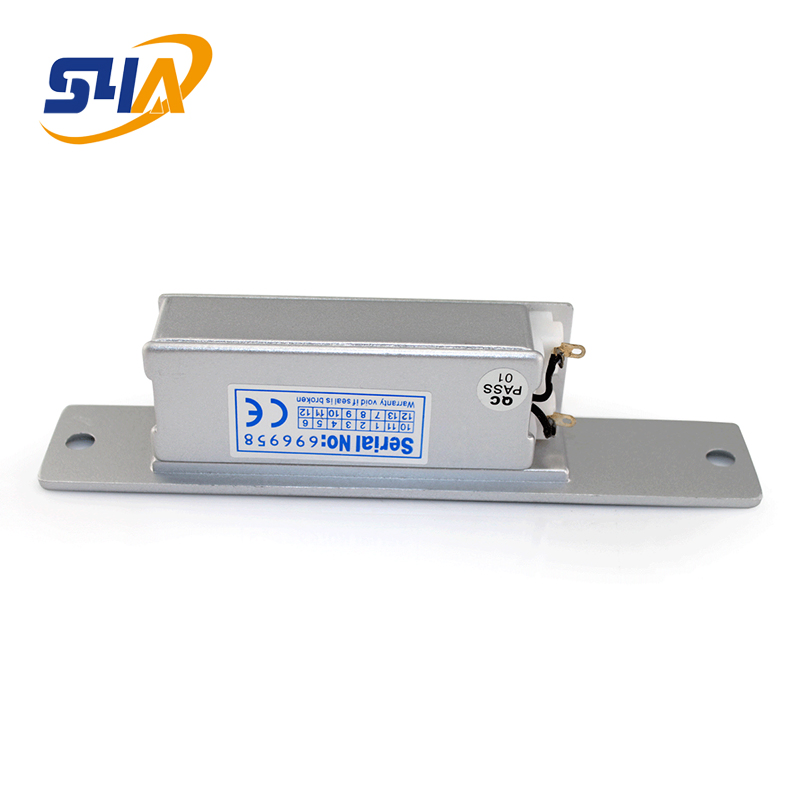

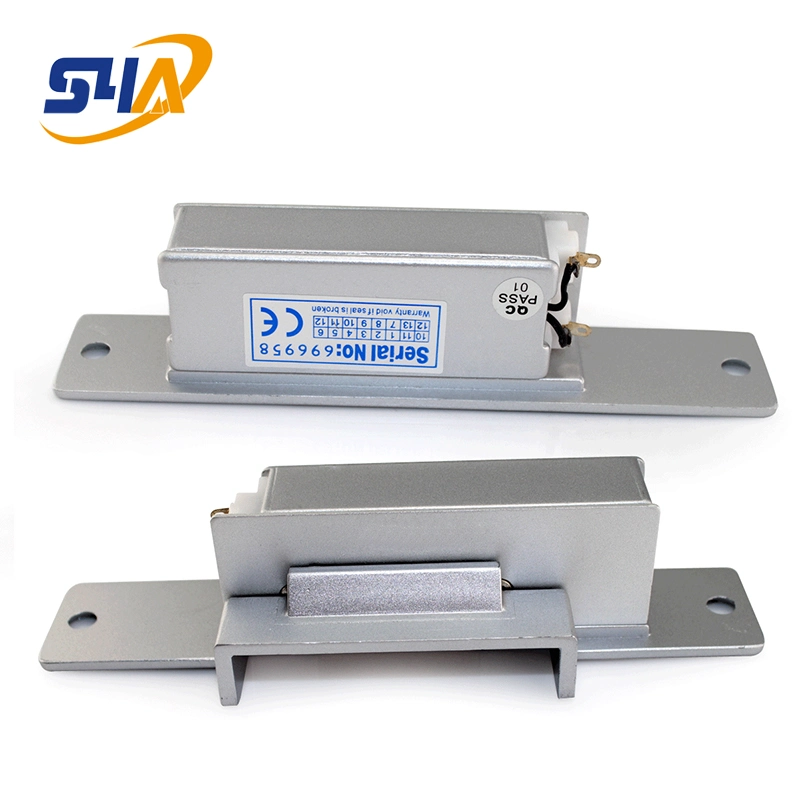

S4a Standard-Type Electric Strike Lock DC12V Cathode Lock for Access Control System
Product Description
Model NO.
ES-100
Working Principle
Electronically Controlled Magnetic
Type
Electric Strike
Holding Strength
800kg
Bolt Structure
Stainless Steel
Voltage
12VDC
Current
450mA(ES-100A) / 200mA(ES-100B)
Bolt Housing
Stainless Steel, Polished Silk Finish
Suitable for
Wooden, Metal, PVC Doors
Opening Mode
90 Degree Swinging Door
Weight
0.3kg
Packing
60PCS/Box
Dimensions
150x39.5x28mm
Origin
China
HS Code
8301400000
Standard-Type Electric Strike Lock DC12V Cathode Lock for Access Control Systems
Model Options: ES-100A, 100B
- ES-100A: Fail-secure type (Power to unlock) - Stays locked when power is cut.
- ES-100B: Fail-safe type (Power to lock) - Unlocks automatically when power is cut.
| Lock Size | 150x39.5x28mm |
| Holding Strength | 800kg |
| Bolt Structure | Stainless Steel |
| Voltage | 12VDC |
| Current | 450mA(ES-100A) / 200mA(ES-100B) |
| Surface Temperature | Within +20°C |
| Operating Temperature | -10°C ~ 25°C (14°F-131°F) |
| Function | Built-out MOV (Surge Protection) |
What is the difference between ES-100A and ES-100B?
ES-100A is a Fail-secure lock, meaning it requires power to unlock. ES-100B is a Fail-safe lock, which remains locked while powered and unlocks when the power is disconnected.
What is the maximum holding force of this lock?
This electric strike lock is designed with a robust stainless steel bolt structure providing a holding strength of up to 800kg.
Can this lock be installed on any type of door?

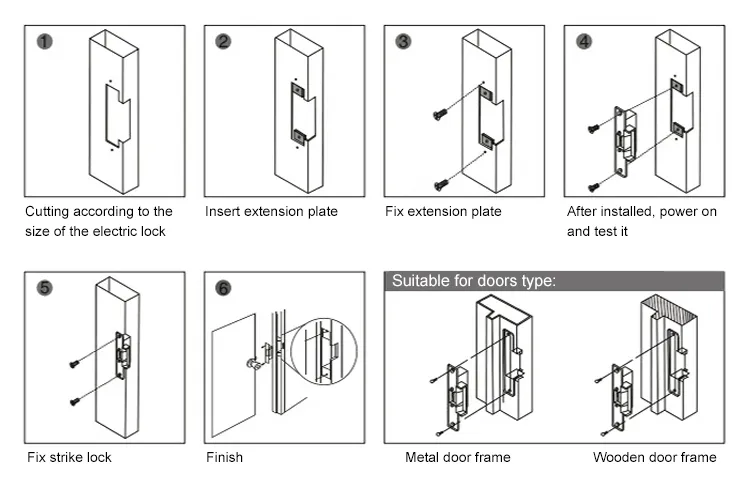

It is highly versatile and suitable for wooden doors, metal doors, and PVC doors with a 90-degree swinging mechanism.
Does the lock require a specific voltage?
Yes, the device operates on a standard 12VDC power supply. The current draw varies between 200mA and 450mA depending on the specific model (A or B).
Is the lock protected against power surges?
Yes, the lock features a built-out MOV (Metal Oxide Varistor) which provides essential surge protection for the access control system.
What are the dimensions for installation planning?
The standard dimensions are 150mm (Length) x 39.5mm (Width) x 28mm (Height).
