Long-Type Electronic Strike Lock for Access Control
Product Description
i
Basic Information
Model NO.
ZDL-120NC//NO-L
Bolt Structure
Stainless Steel
Bolt Housing
Stainless Steel
Face Plate
Painted Steel
Voltage
DC12V
Holding Strength
300kg / 500kg
Opening Mode
90 Degree Swinging Door
Suitable for
Narrow Wooden & Metal Doors
Lock Size
250L x 25W x 31H (mm)
Color
Grey
D
Product Description

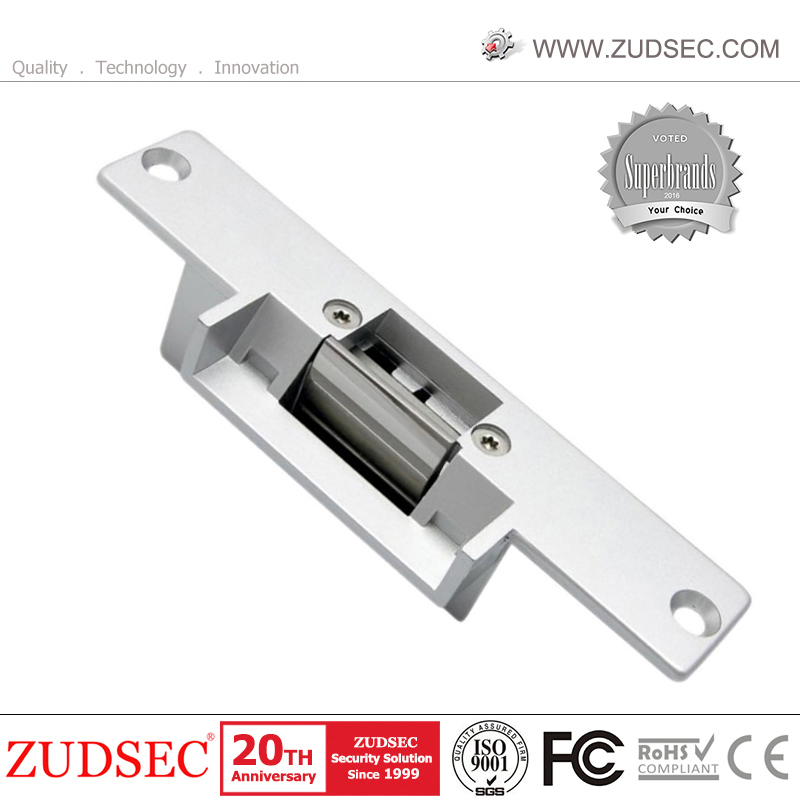

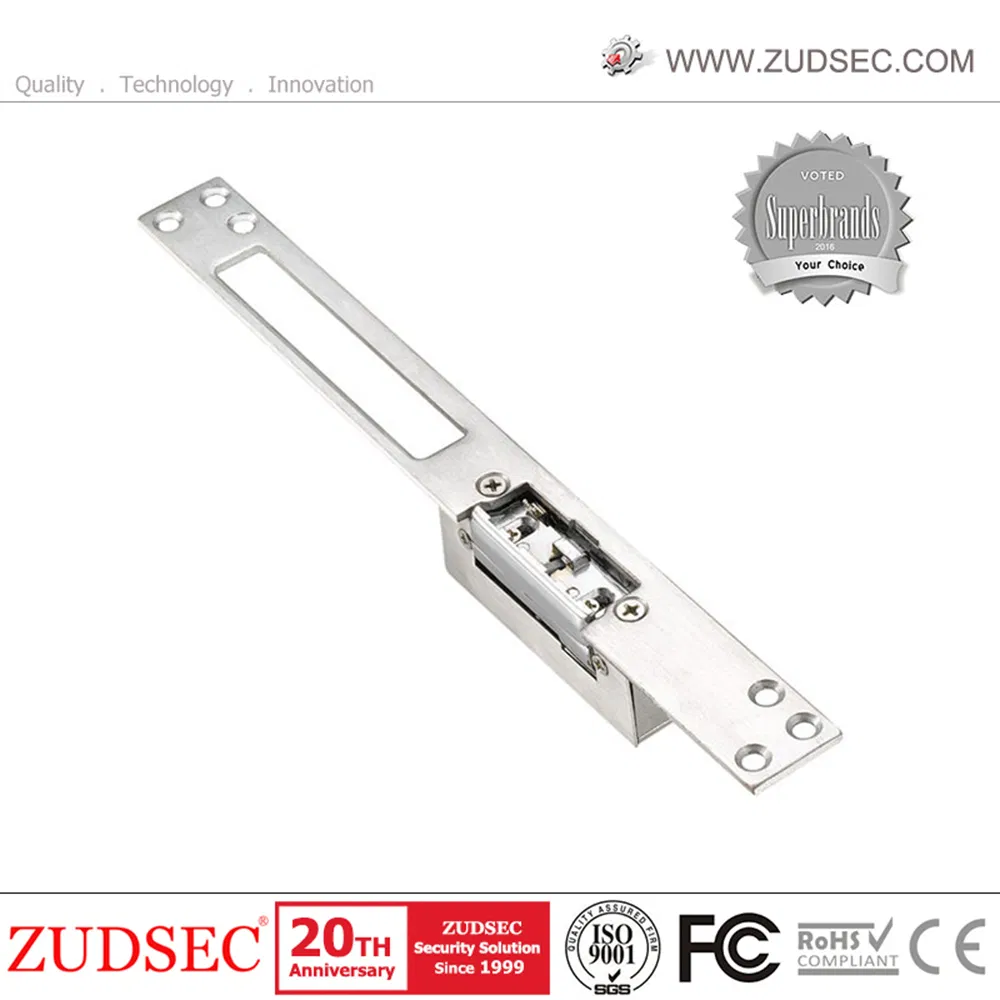

Long-Type Electronic Strike Lock for Access Control
The Long-type Electric Strike features a robust stainless steel structure and high-quality internal components. Designed for durability and precision, it operates on DC12V and is specifically suitable for narrow wooden and metal door frames.
- ZDL-120NC-L (Fail Safe): Power-off to Open. Ideal for safety-first exits.
- ZDL-120NO-L (Fail Secure): Power-off to Lock. Maintains security during power failure.
F
Key Features
- High Holding Strength: Tested up to 300kg.
- Premium Materials: Aluminum and Stainless Steel Bolt construction.
- Extreme Durability: Successfully tested to 1,000,000 operation cycles.
- Aesthetic Finish: High-temperature painted surface, beautiful and durable.
- Built-out MOV for surge protection.
P
Technical Parameters
| Bolt Structure | Stainless Steel; Draw the Polishing of silk |
| Current | 450mA (ZDL-130NO); 200mA (ZDL-130NC) |
| Working Voltage | DC12V |
| Surface Temp | Within +20ºC |
| Operating Temp | -10~+55ºC (14-131F) |
| Suitable Doors | Wooden Door, Metal Door, PVC Door |
| Dimensions | Lock: 150Lx39.5Wx35H(mm); Packing: 19.5X4X5.5CM |
| Weight | 0.3kg |
G
Product Gallery
R
Related Solutions
?
Frequently Asked Questions
What is the difference between Fail Safe (NC) and Fail Secure (NO)?
Fail Safe (NC) means the lock will open when power is cut off, making it suitable for emergency exits. Fail Secure (NO) remains locked when power is lost, maintaining security for the building.
What type of doors can this strike lock be installed on?
It is designed for 90-degree swinging doors and is particularly suitable for narrow wooden doors, narrow metal doors, and PVC doors.
What is the maximum holding strength of this lock?
Depending on the specific model variation, the holding strength ranges between 300kg and 500kg, ensuring a high level of physical security.
Does this electronic strike support 24V systems?
The standard operating voltage for this model is DC12V. Please ensure your access control system provides a stable DC12V output.
How durable is the bolt mechanism?
The bolt is constructed from high-quality stainless steel and has been tested to withstand up to 1,000,000 operation cycles for long-term reliability.
Is this lock suitable for outdoor use?
The operating temperature range is -10~+55ºC. While it features a high-temperature painted finish for durability, it is recommended for indoor or sheltered environments to prevent direct rain exposure.
