IP65 Waterproof Metal Touch-Screen Wiegand Output /Input Management Card RFID Card Access Control System
Product Description
◈ Basic Information
Model NO.
NT-T16 rfid card access control system
Interface
Serial Port
Reading Distance
1-5m
Application
Parking, Hospital, Library, Company, Bank
Verification
RFID Card /Password/RFID Card +Password
Door Open Time
0-99 Seconds
Material
Metal Shell, Zinc Alloy
Storage Capacity
1000 Users
Frequency
125kHz or 13.56MHz
Wiegand Signal
Output / Input Support
Voltage
DC 12V
Gross Weight
0.54kg
◈ Product Description & Overview

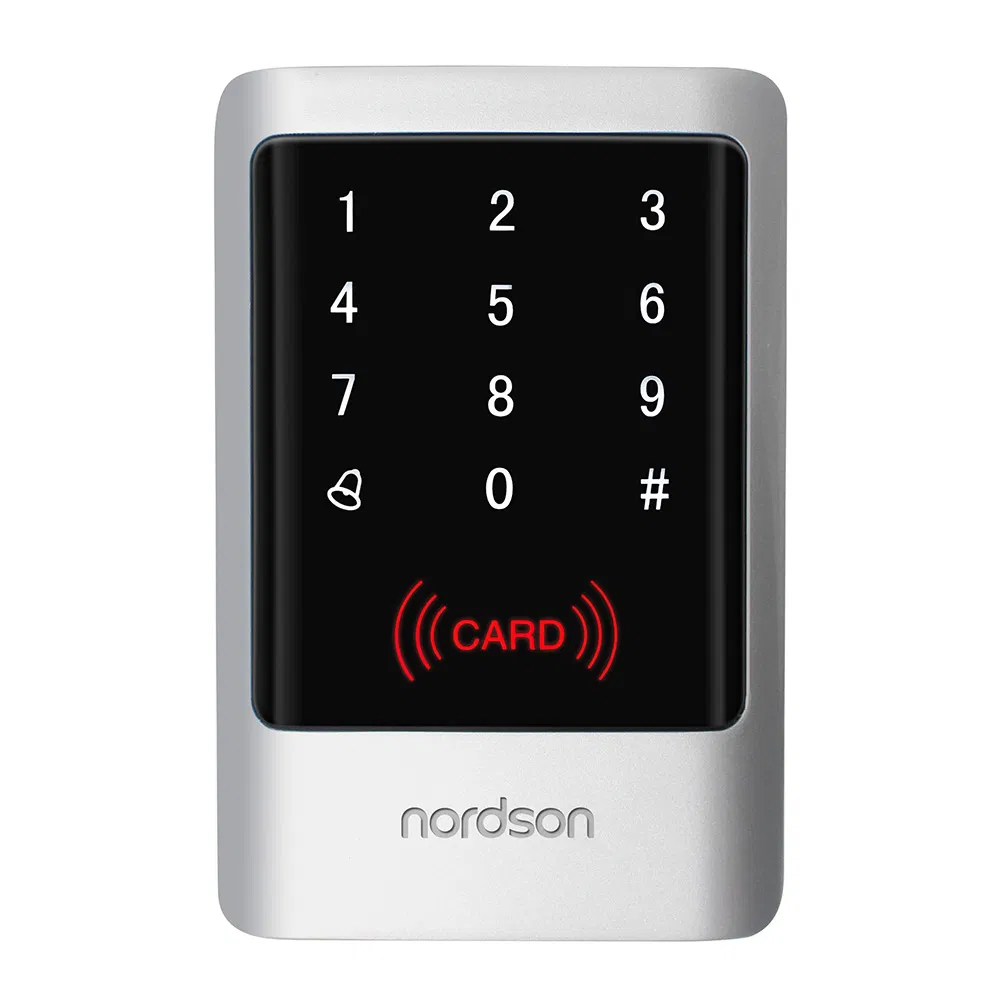

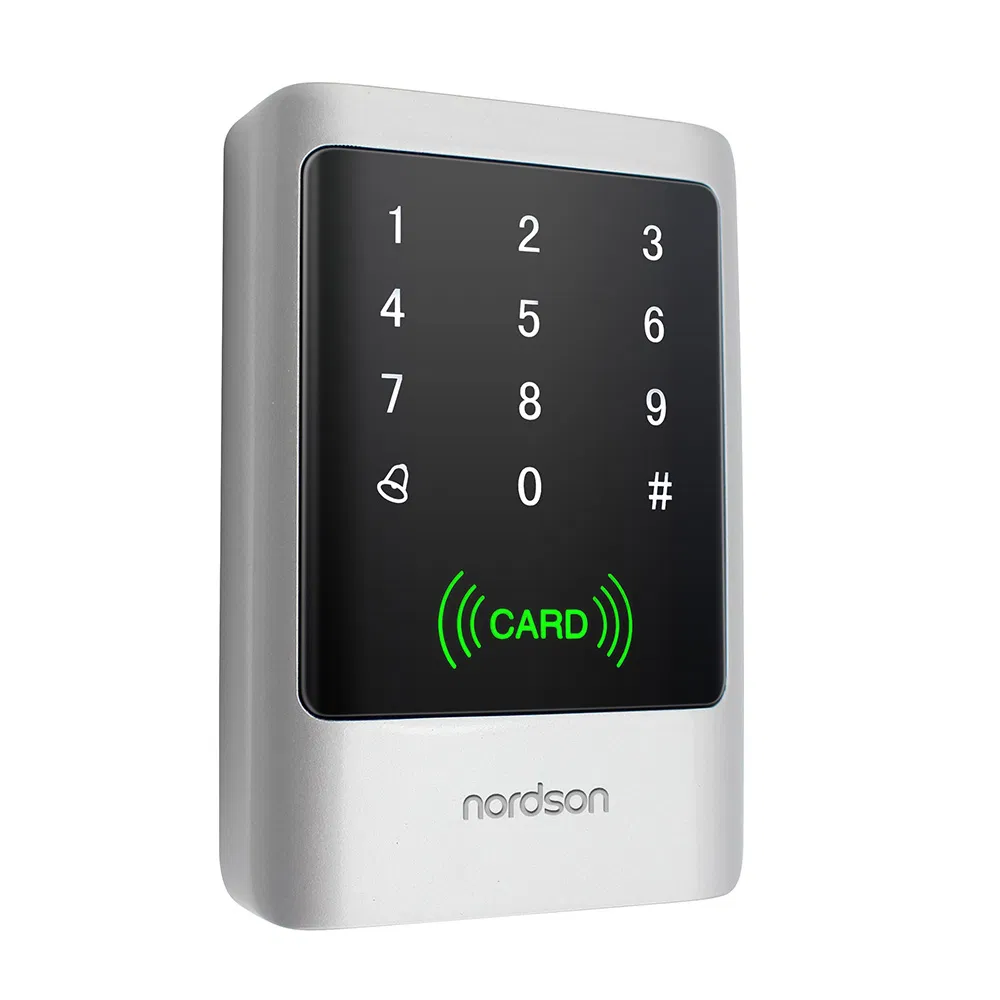

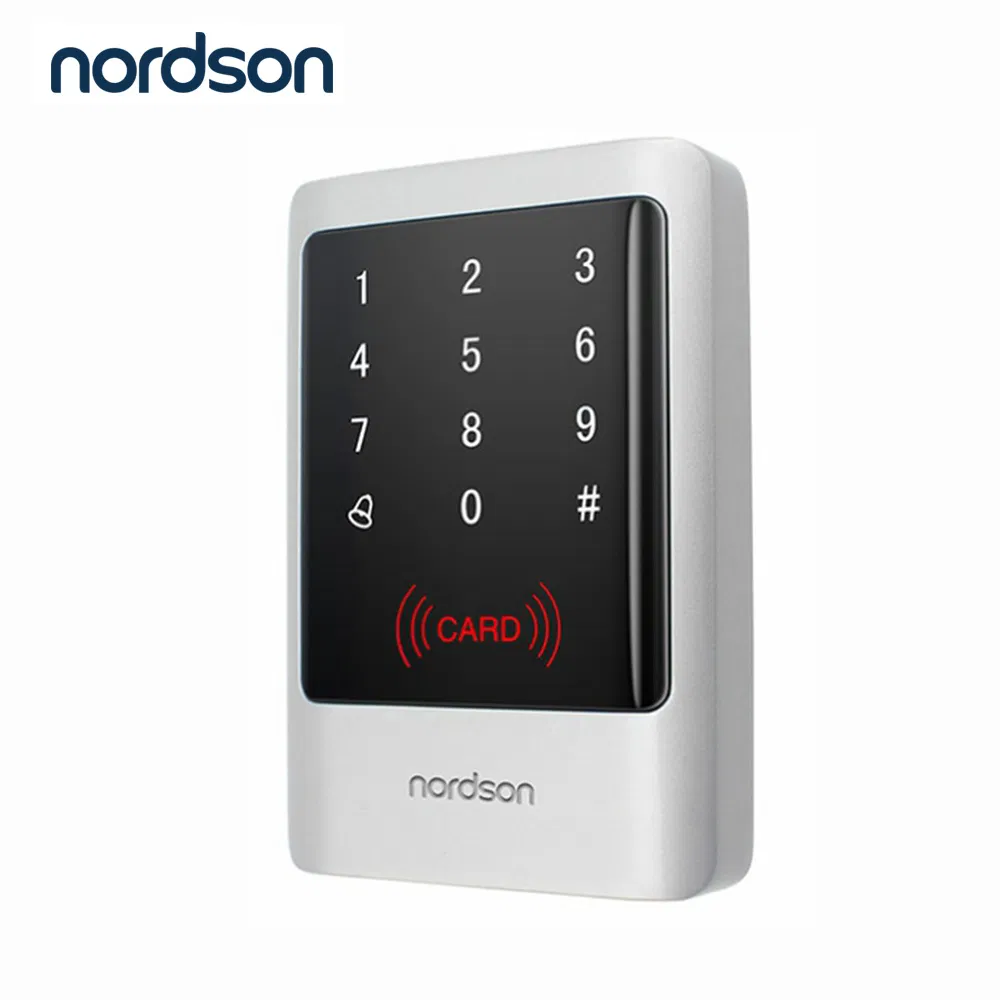

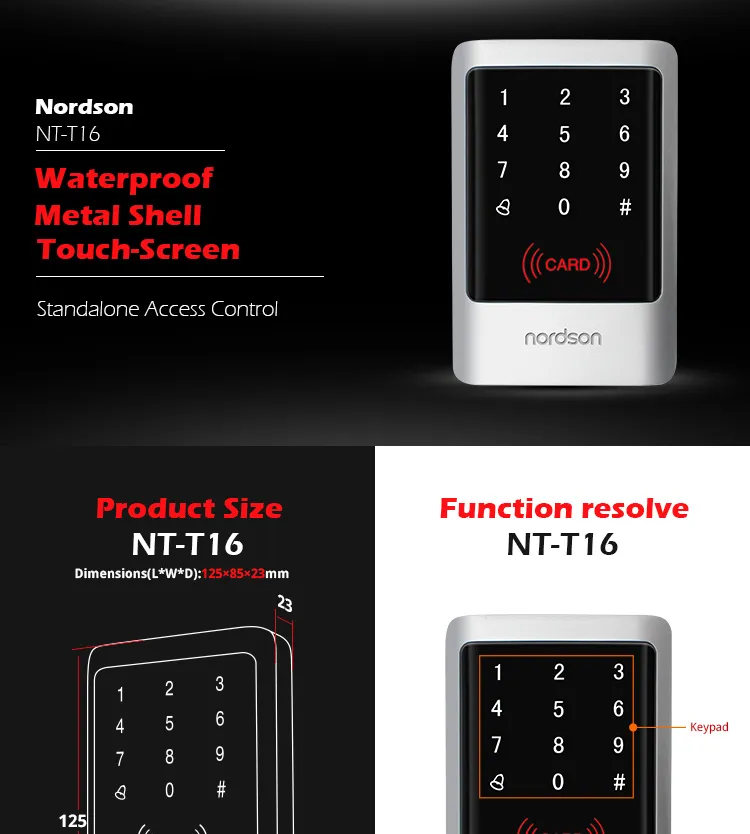

IP65 Waterproof Metal Touch-Screen Access Control System
The NT-T16 is a fashion-type IP65 waterproof metal touch access controller designed for single entrance doors. It supports up to 1000 users, integrating a control device and keyboard input into one seamless function. Easy to install and manage, this system offers stable performance and rapid proximity identification.
Built with short-circuit protection and anti-interference technology, it is ideal for automated office spaces, industrial enterprises, government agencies, telecom base stations, and high-security public access points.
◈ Technical Specifications
| Verification Method | RFID Card / Password / RFID Card + Password |
| Door Open Time | 0-99 seconds |
| Storage Capacity | 1000 Users |
| Material | Metal shell, Zinc Alloy |
| Proximity Range | 3-15CM |
| Frequency | 125KHz or 13.56MHz |
| Wiegand Signal | Wiegand output/input, support external reader |

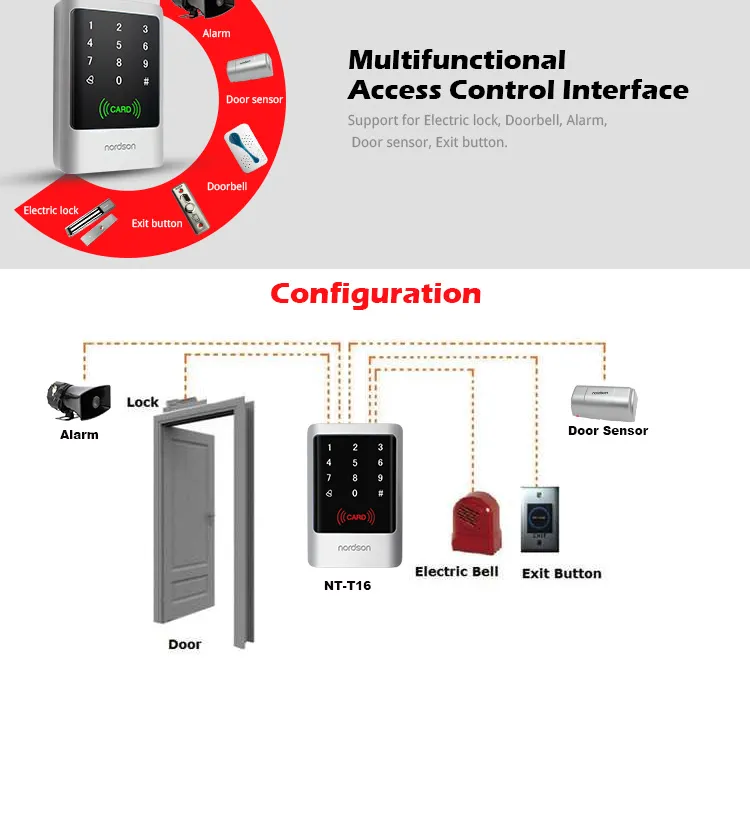

| Interfaces | Electric lock, Door sensor, Exit button, Alarm, DoorBell |
| Operating Voltage | DC 12V |
| Temperature / Humidity | 0°C - 45°C / 20%-80% |
| Dimensions | 125mm × 85mm × 23mm (L*W*D) |
◈ Key Functions
1
IP65 Waterproof Design: Durable metal case with a narrow frame and touch screen interface.
2
Independent Access: Standalone management for passwords, cards, and combined authentication modes.
3
Large Storage: High-capacity memory supporting up to 1000 unique RFID users.
4

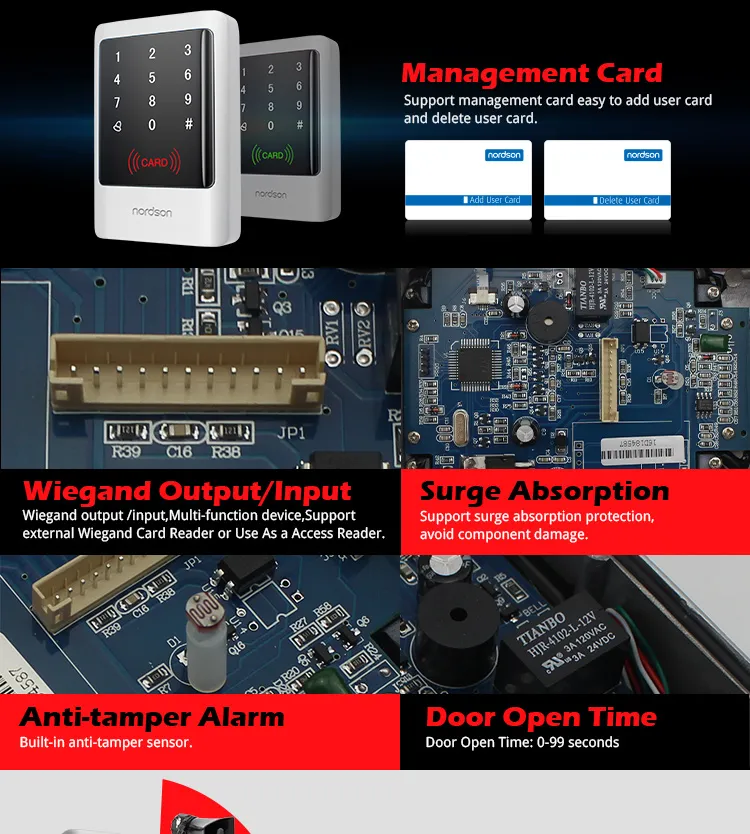

Wiegand Versatility: Can be used as a standalone controller or as an external access reader.
5
Auxiliary Inputs: Dedicated functions for exit buttons and doorbell integration.
6
Safety Protection: Built-in surge absorption protection for circuit longevity.
Frequently Asked Questions
Q1: Is the NT-T16 suitable for outdoor installation?
A1: Yes, it features an IP65 waterproof rating and a durable zinc alloy metal shell, making it highly resistant to weather elements.
Q2: How many users can the system manage?
A2: The device has a large storage capacity that supports up to 1,000 RFID users.
Q3: What are the available entry methods?
A3: Users can gain access via RFID Card, Password, or a combination of both (RFID Card + Password) for enhanced security.
Q4: Can this device connect to an external reader?
A4: Yes, it supports Wiegand input and output, allowing it to work with external card readers or function as a reader itself.
Q5: What power supply is required for this controller?

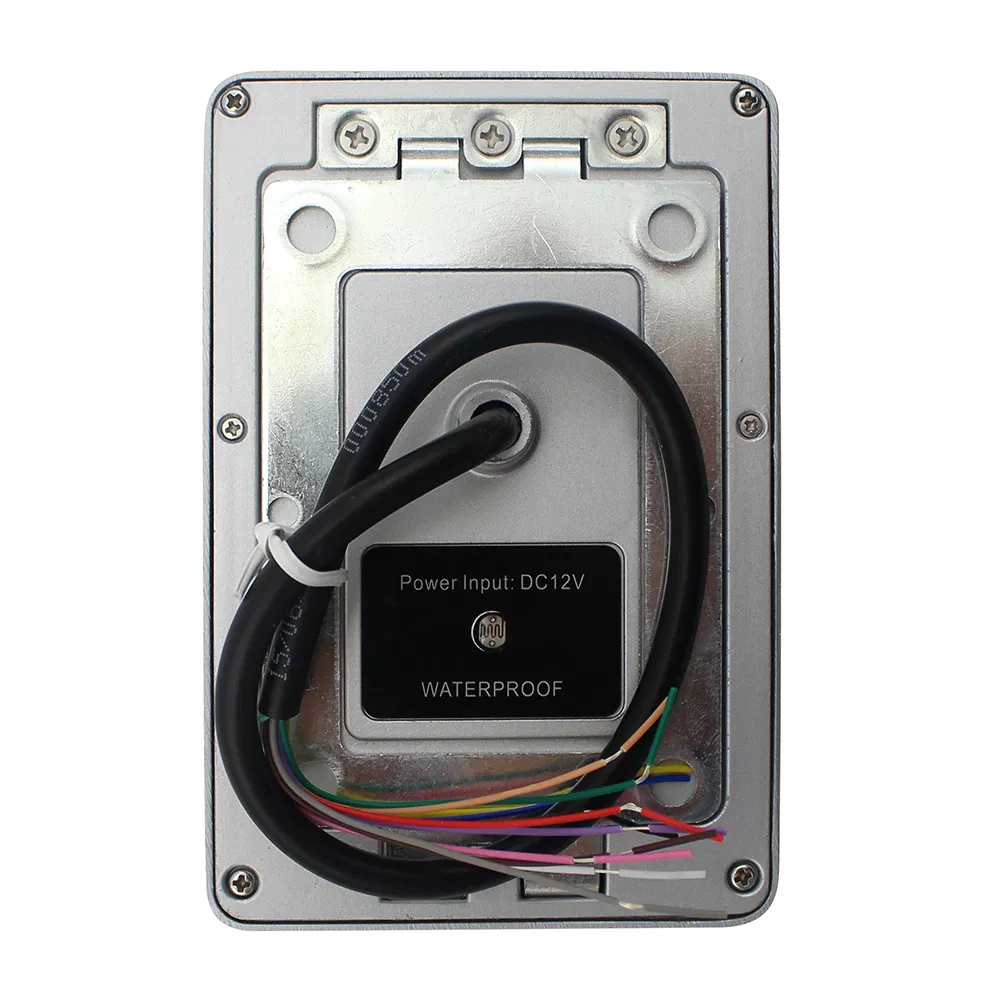

A5: The system operates on a standard DC 12V power supply.
Q6: Does it support different RFID frequencies?
A6: Yes, the system is available in both 125kHz and 13.56MHz (Mifare) versions to suit your existing card requirements.
