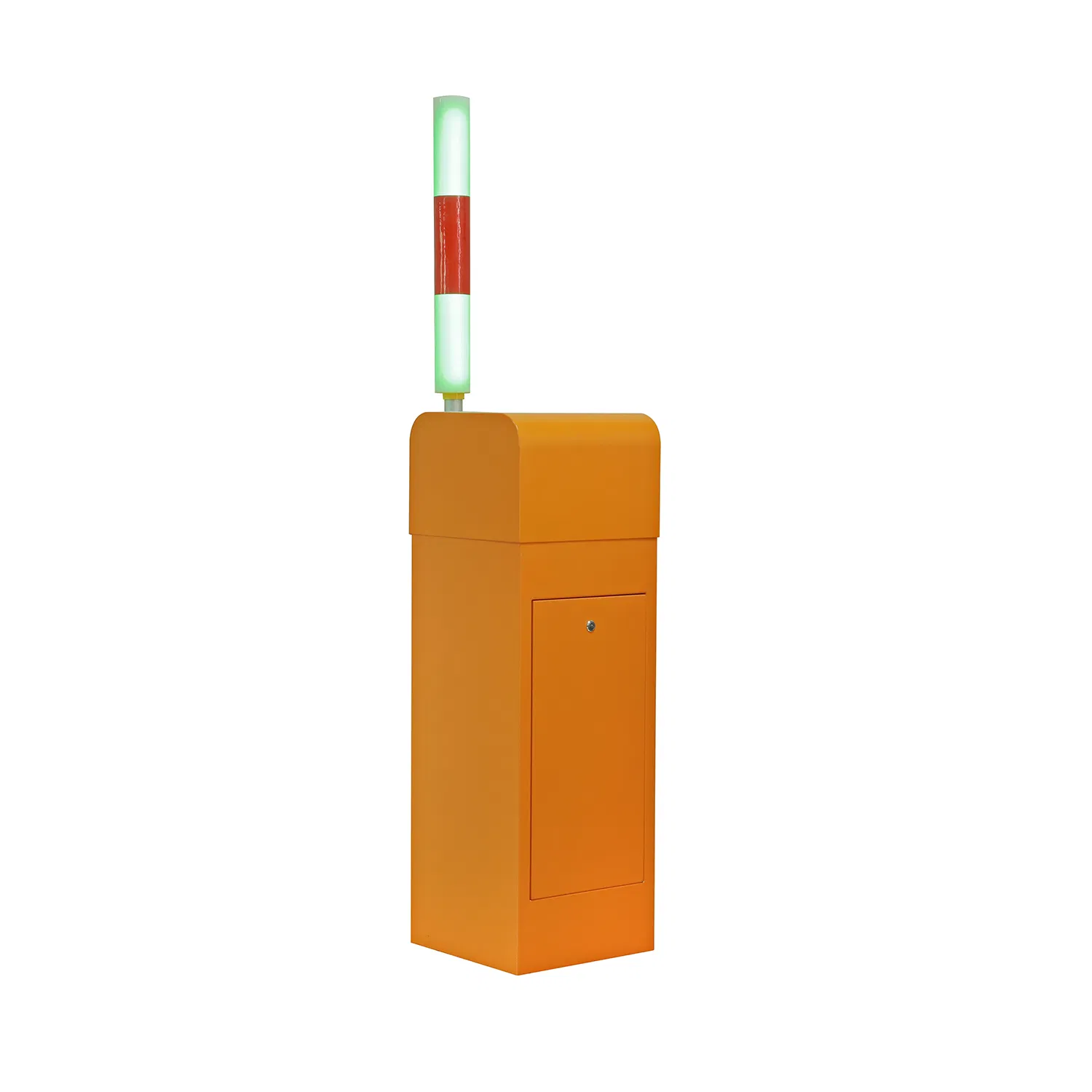

High-Speed Parking System with Smart Access Control Features
Product Description
ℹ
Basic Information
Model NO.
SJS-PD003A
Position
Vehicle Fence
Material
Steel
Function
Obstruction
Post Fixation
Expansion Bolts
Degree of Distortion
Rigid Barrier
Dimensions
35cm*35cm*107cm
Supply Voltage
AC220V or AC110V
Output Power
80W
Service Life
5,000,000 Times
⚙
High Speed Barrier Gate (SJS-PD Series)
This high-speed AC torque motor is compact, lightweight, fast, stable, and features a quick 0.9s rod lift. Its safety design is adaptable, with adjustable left/right directions for diverse applications. The built-in encoder ensures precision, long life, and easy setup.
- High-speed AC torque motor: Provides stable, strong output for efficient operation.
- Fast Response: Maximum lifting speed of 0.9s.
- Humanized Safety: Prevents pinching and collisions for passers-by.
- High Precision: Built-in encoder for accurate limit control.
- Versatile Arms: Straight, Articulated, Fence, or Telescopic arm types.

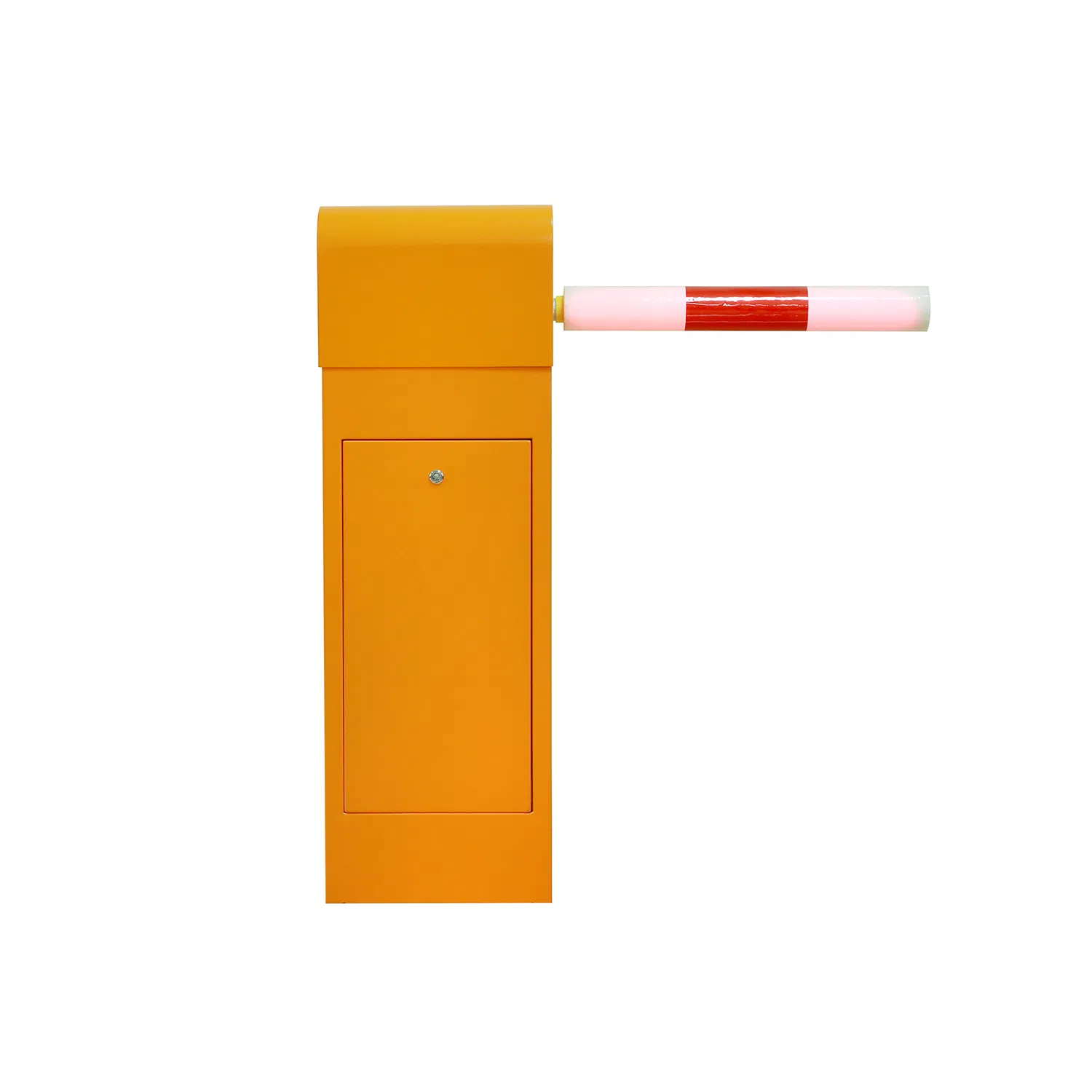

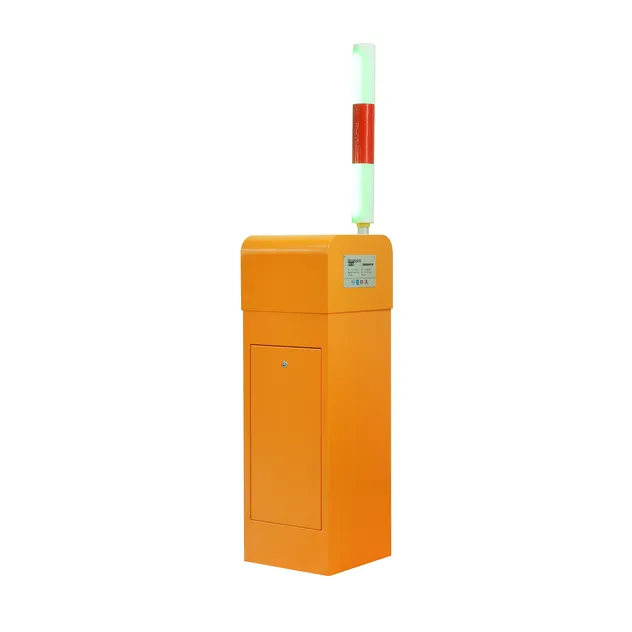

45-degree right side view
45-degree left side view

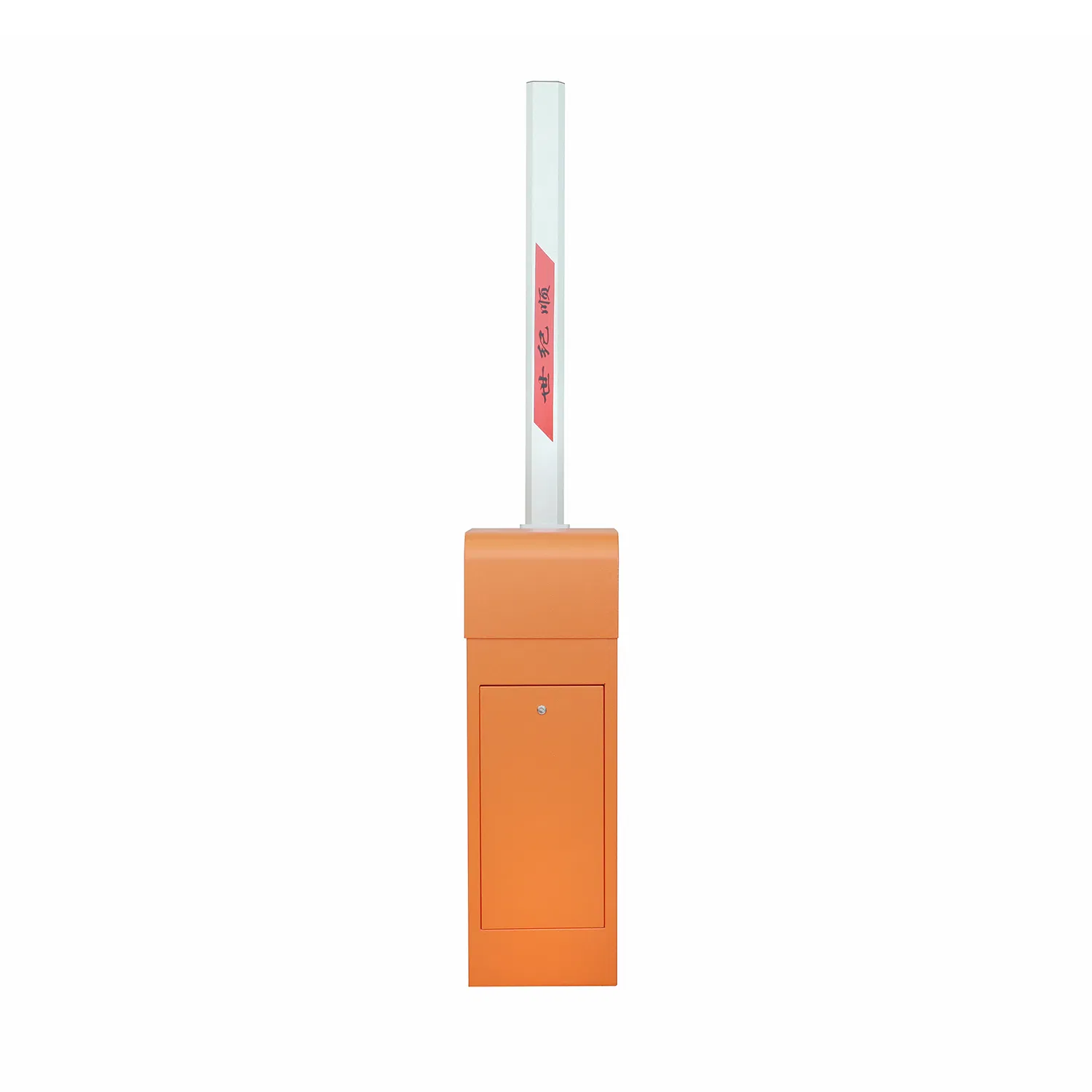

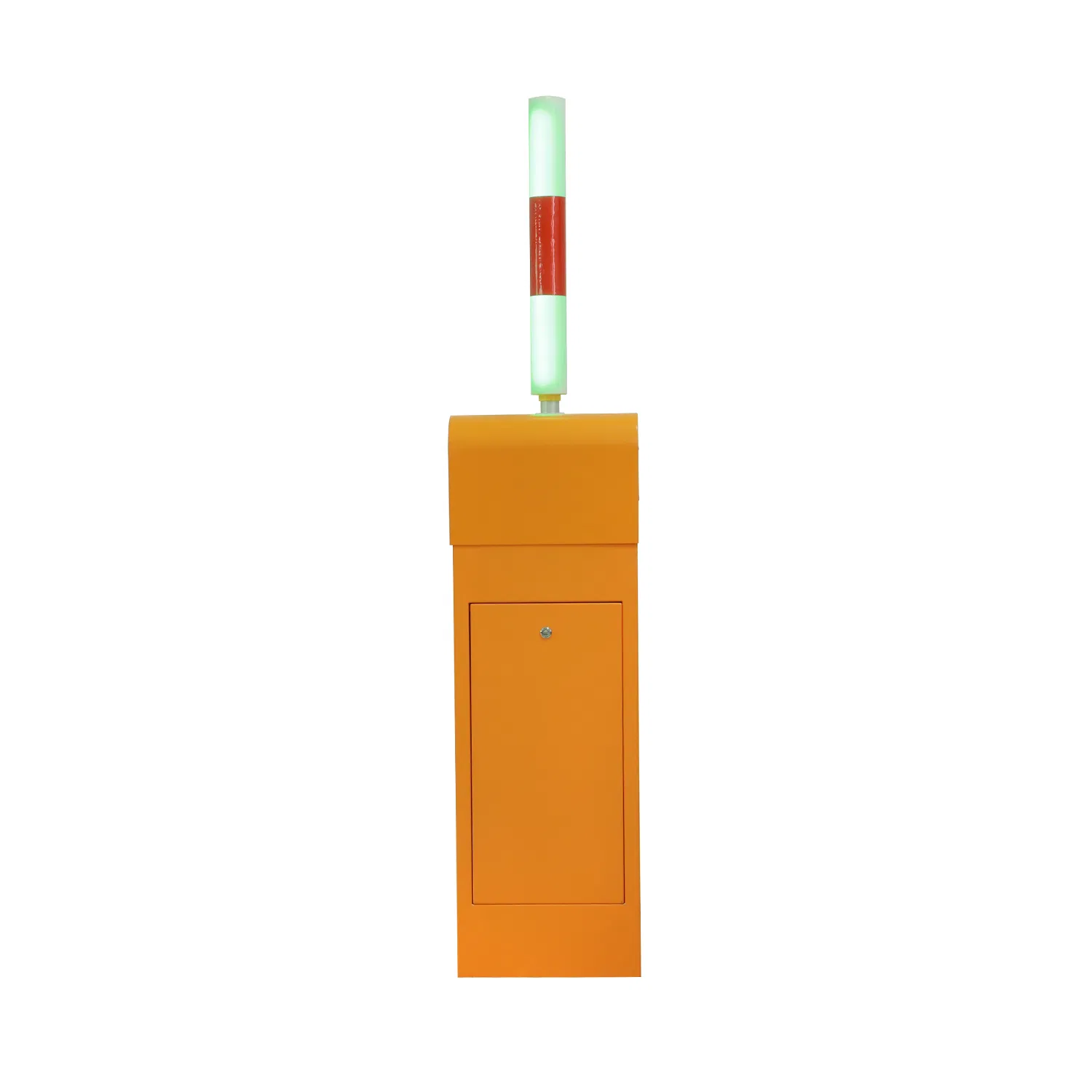

Front elevation
📊
Technical Specifications
| Supply Voltage | AC220V+/-10% or AC110V |
| Power Frequency | 50/60Hz |
| Output Power | 80W |
| Rated Current | 0.55A |
| Rated Speed | 1500r/min |
| Rated Torque | 35N*m |
| Standard Lever Length | 3--6m |
| Noise | <=60dB |
| Rising/Falling Time | 0.3s-6s |
| Service Life | 5 million times |
| Protection Class | IP55 |
| Temperature Range | -40℃ to +75℃ |
📦
Packaging & Service
Package Size
56.00cm * 44.80cm * 115.80cm
Gross Weight
60.000kg
Standard Package
Export standard wood carton
OEM/ODM
Service available upon request
Warranty
12 months standard
🖼
Product Details
❓
Frequently Asked Questions
What is the fastest lifting speed for this barrier gate?
The high-speed barrier gate series offers a maximum rod lifting speed of 0.9 seconds, specifically designed for high-traffic environments.
What types of arms are compatible with this system?
The system supports various arm types including straight, articulated, fence, and telescopic arms to adapt to different site requirements.
Can the direction of the gate be changed during installation?
Yes, the design is highly adaptable with left and right directions being adjustable to fit different application scenarios and site layouts.
What is the expected service life of the barrier?
The equipment is built for durability with a rated service life of approximately 5,000,000 operation cycles.
Does the system include safety features for pedestrians?
Yes, it features a humanized safety design that prevents pinching and collisions, ensuring the safety of both passers-by and the equipment.
What are the environmental tolerance levels?
The barrier gate is designed to operate reliably in temperature ranges from -40℃ to +75℃ and humidity levels up to 95%, with an IP55 protection rating.
