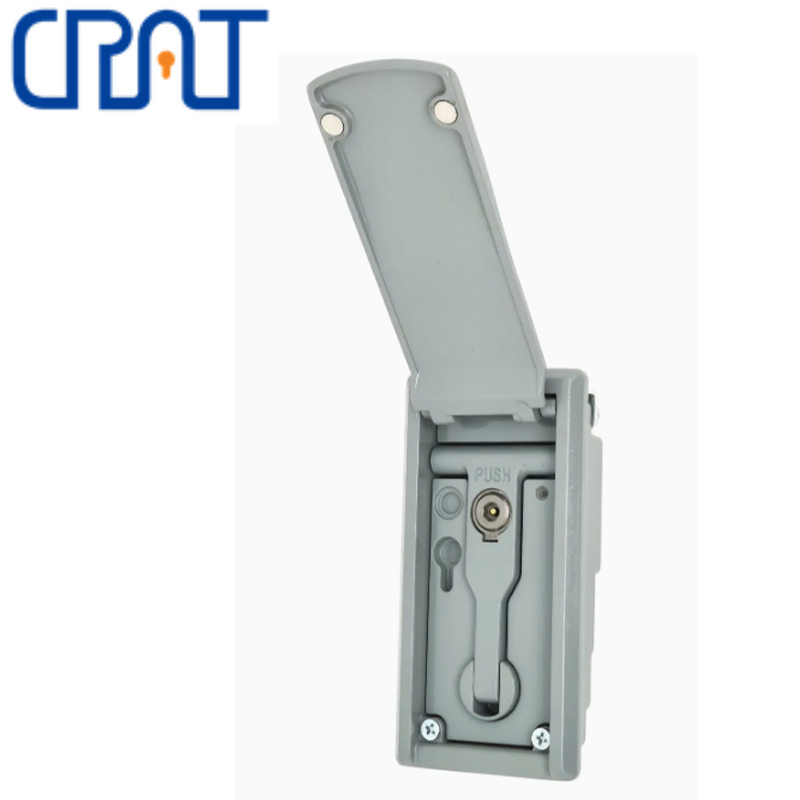

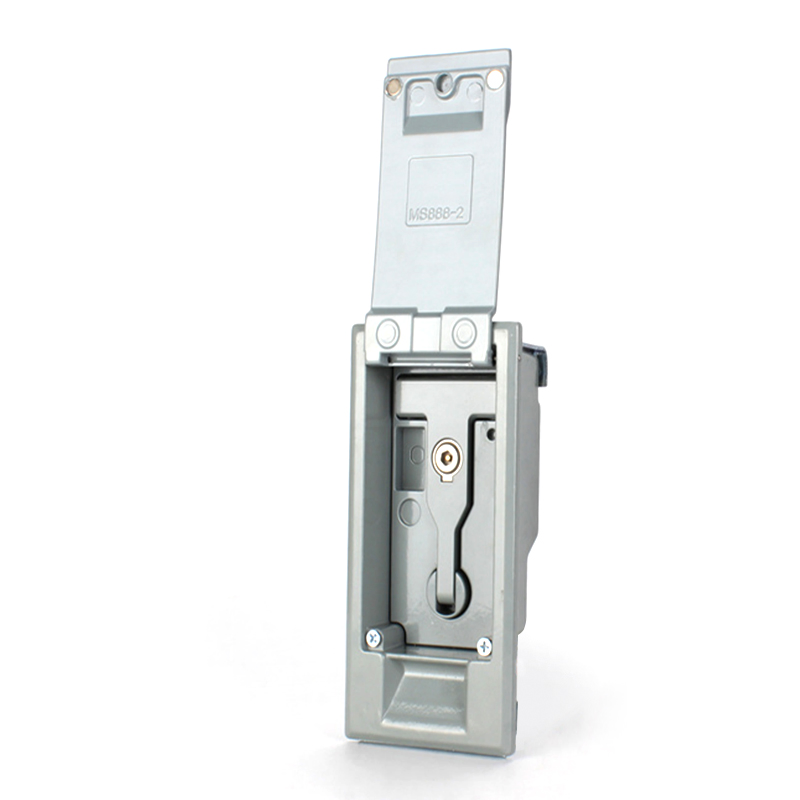

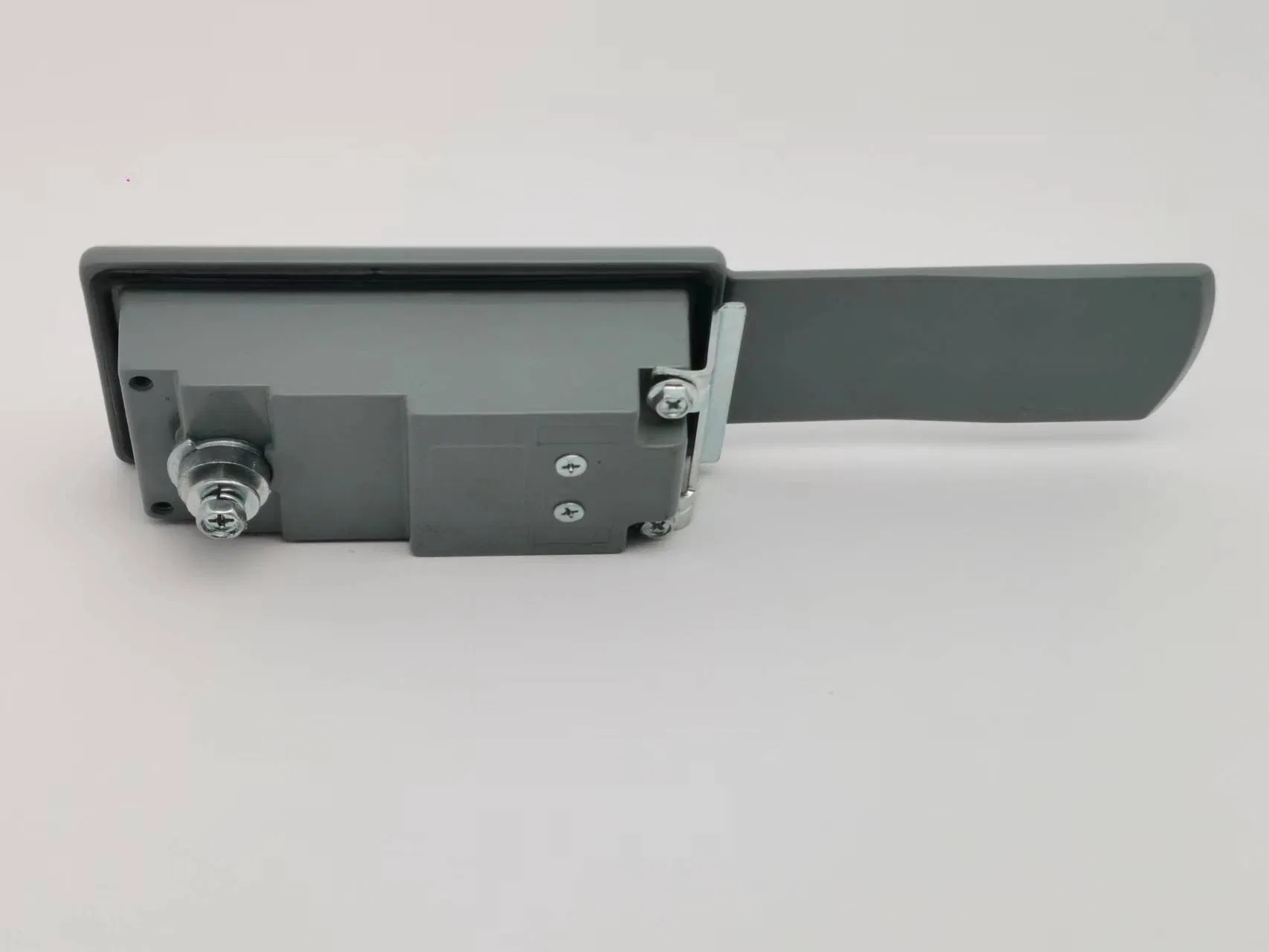

Fail Secure Intelligent Smart Electronic Strike Lock for Wooden Door Metal Door PVC Door
Product Description
Customized:Available
Certification:RoHS, CCC, FCC, CE
Working Principle:Electronically Controlled Lock
Function:Fail-Secure
Type:Mechatronic Lock
Material:Zinc Alloy
Protection Level:IP65 / IP67
Service Life:100,000 Times
Operating Voltage:12VDC
Encryption:AES128 Digital Technology
Package Size:46.00cm * 27.00cm * 15.00cm
Gross Weight:17.000kg
Transport:Carton
Advanced Security Solutions:
- Worried about unauthorized access?
- Frequently losing keys and replacing locks?
- Too many keys to manage and identify?
- Difficulty charging electronic locks?
- Need traceable unlock records and audit reports?
- Require temporary authorization for visitors?
| Technical Specifications | |
|---|---|
| Lock Core Material | Zinc Alloy |
| Lock Body Material | SUS304 Stainless Steel |
| Operating Environment | Temp: -40°C to 80°C | Humidity: 20%-98%RH |
| Unlocking Cycles | ≥ 100,000 times |
| Protection Level | IP65 Waterproof & Dustproof |
| Encoding Digits | 128-bit (No mutual opening rate) |
| Cylinder Technology | 360° Idle design to prevent violent opening |
| Encryption | Digital encoding & encrypted communication |
Wireless Design: Create lock systems without power or wiring for simpler, more efficient installation.
| Feature | Standard Model | Pro/4G Model |
|---|---|---|
| Operating Voltage | 3.3V - 4.2V | |
| Battery Capacity | 500mAh | |
| Unlock Times per Charge | 1000 Times | |
| Unlock Records | 100,000 entries | |
| Charging Port | Type-C | |
| Fingerprint Identification | No | Yes |
| Visual Screen | No | Yes |
| Remote Authorization | No | Yes |

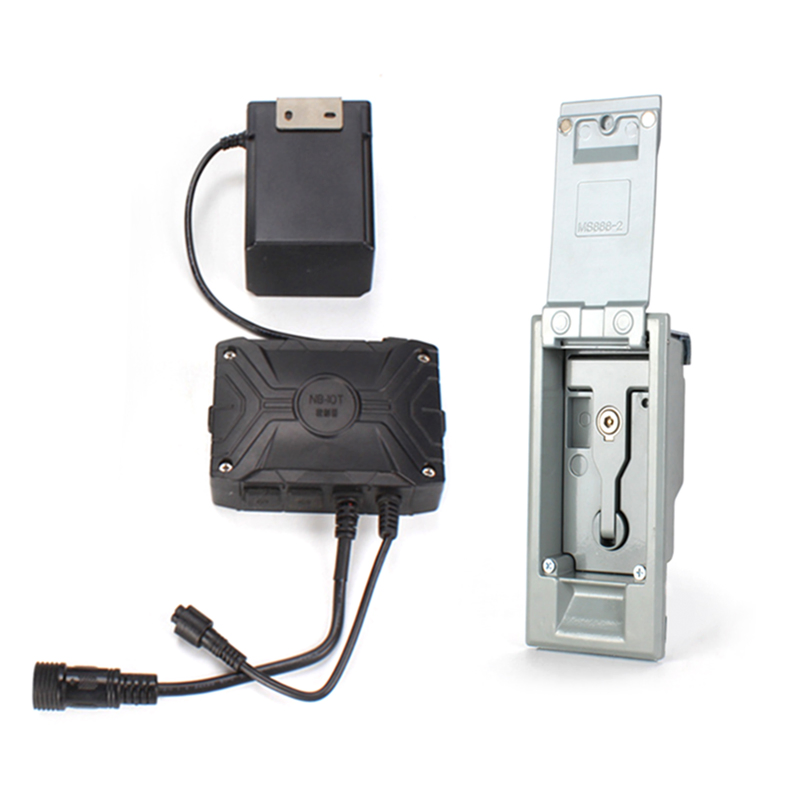

| Communication | Bluetooth | NB-IoT / 4G / Bluetooth |

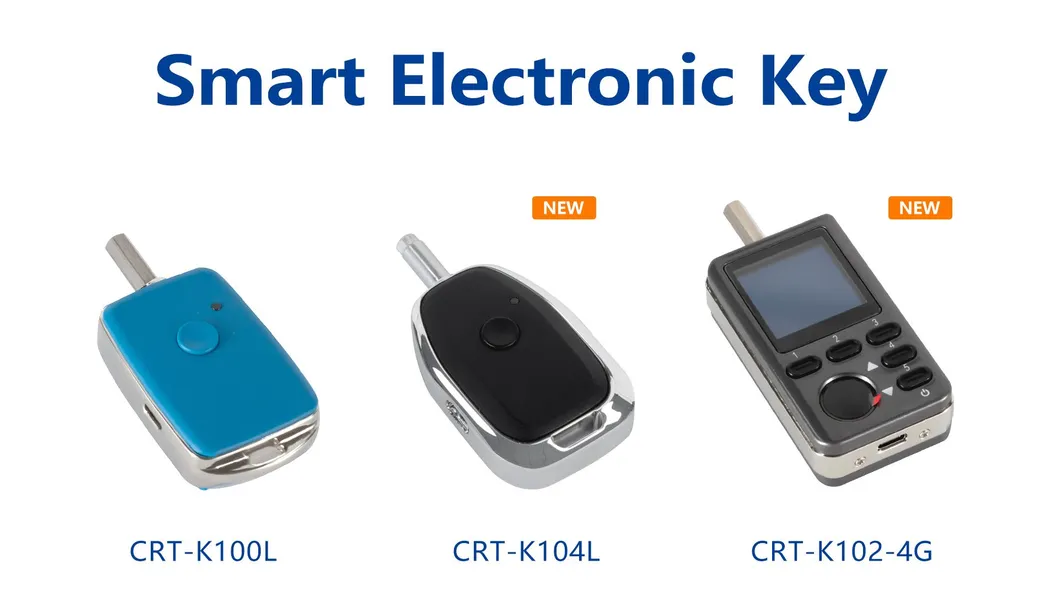

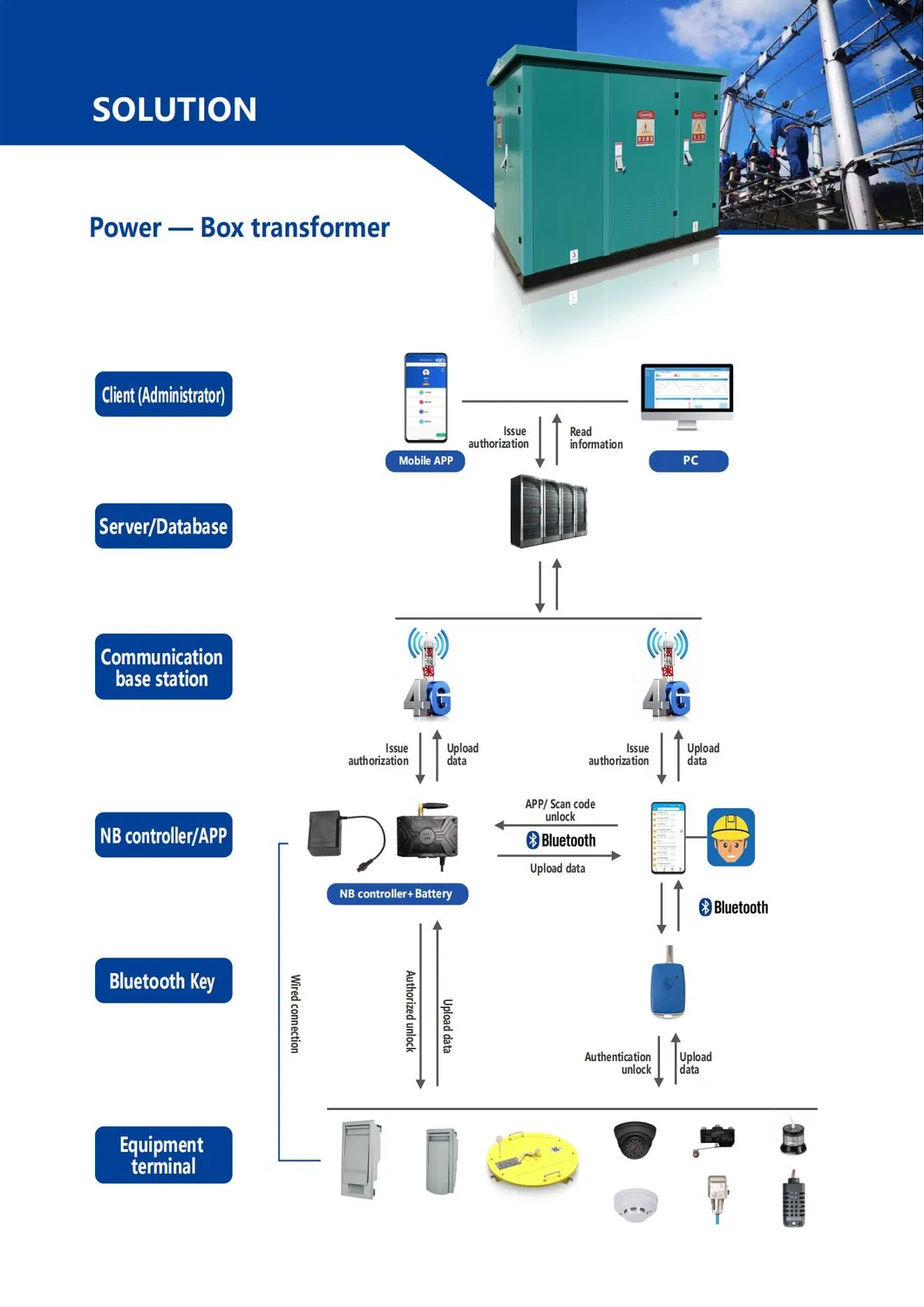

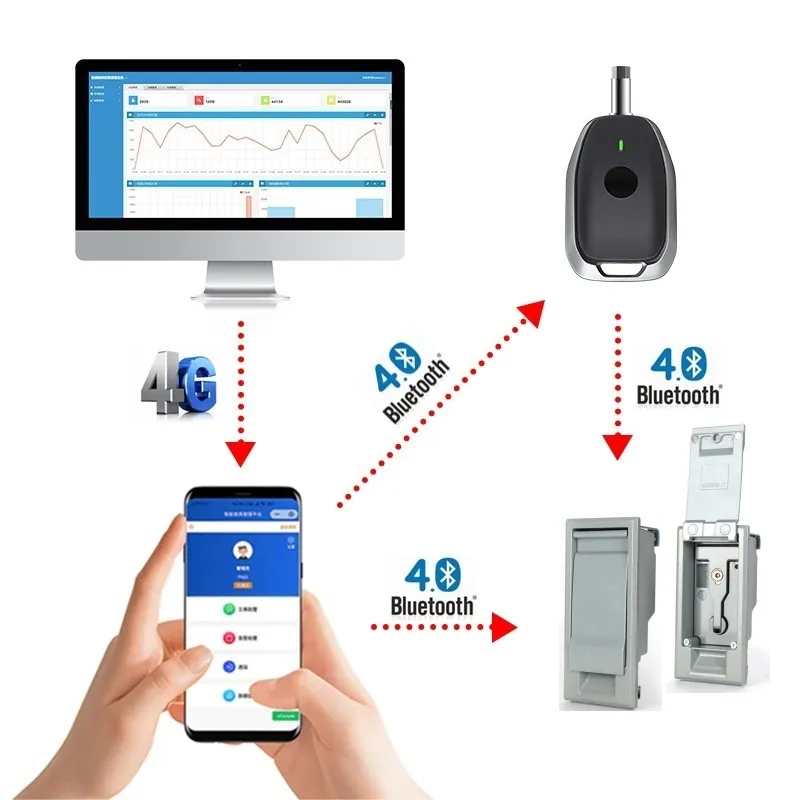

The system is composed of passive locks, smart electronic keys, and intelligent lock management software. A single key can be programmed to open multiple types of locks across your facility.
- Swiftly disable lost or stolen keys via management software.

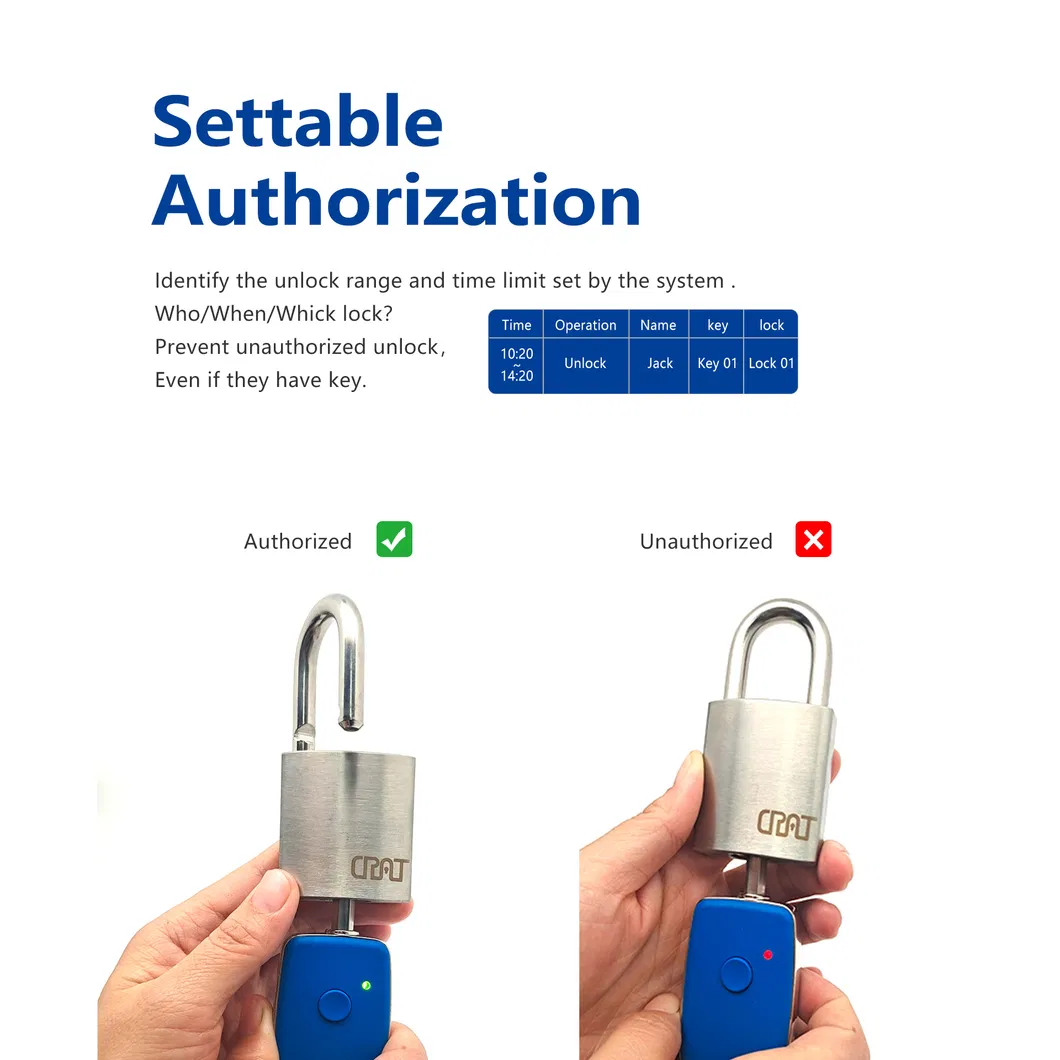

- Assign unlock permissions to specific departments or individuals.
- Audit trails: Record every unlocking and locking event automatically.
- Visual management: Map and list views for clear asset tracking.
- Remote authorization and fingerprint identification support.
- Customized software services to match your management needs.
Our intelligent lock systems are widely deployed in critical infrastructure, including:
✔ Communication Machine Rooms
✔ Outdoor Control Cabinets
✔ Optical Cable Transfer Boxes

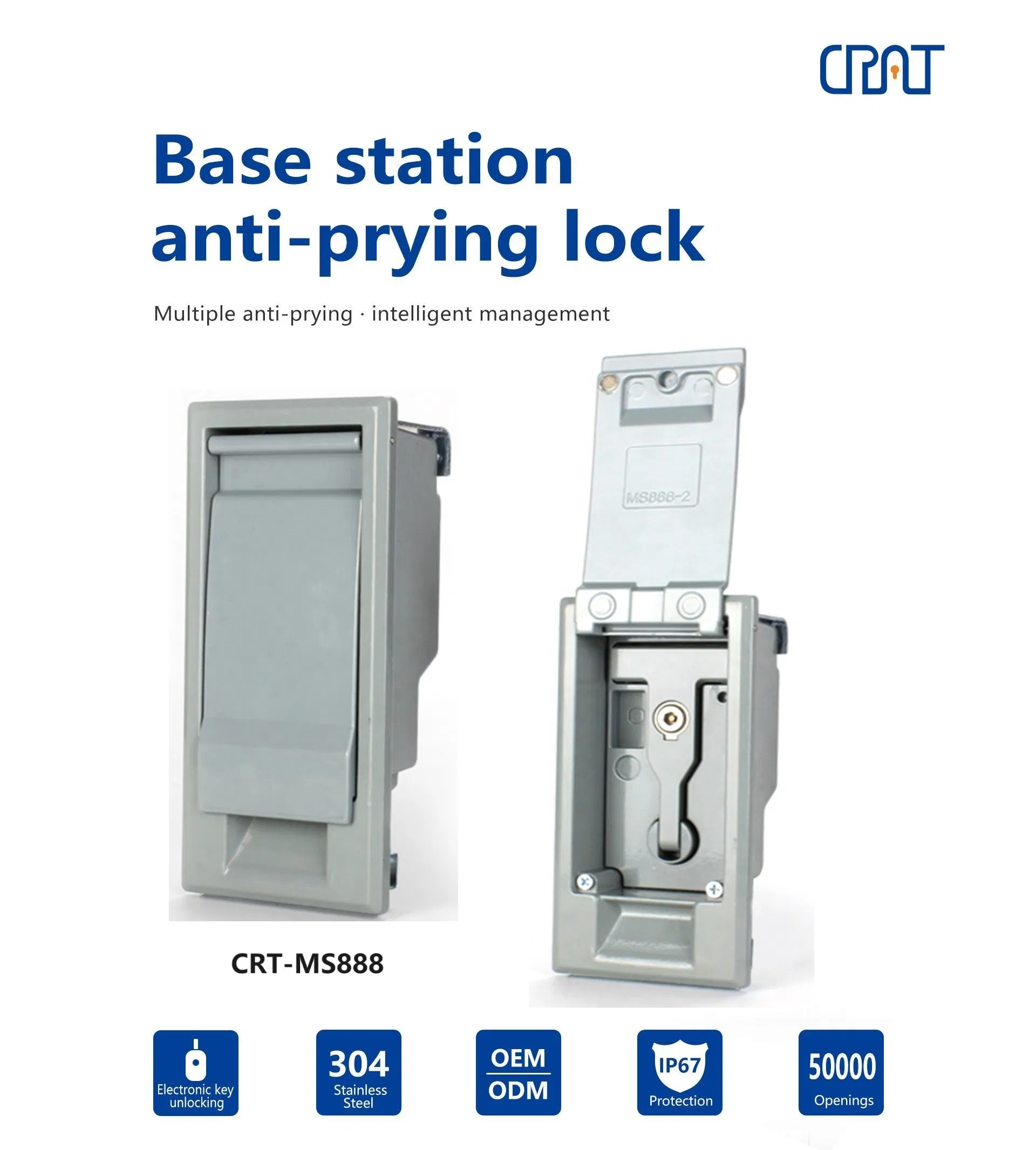

✔ Telecom Base Stations
✔ Manhole Covers & Utility Access
✔ Public Passages & Warehouses
What is the Minimum Order Quantity (MOQ)?
The MOQ is one unit. For customized sizes or logo printing, the MOQ is 300 units.
Is the lock management software free to use?
We provide a free standalone version of the lock management software. A professional web-based version is also available as a paid service.
What types of smart locks do you offer?
Our system includes passive smart locks, electronic wireless intelligent locks, padlocks, Bluetooth locks, manhole cover locks, and smart locks for communication base stations.
Can the locks be customized to specific requirements?
Yes, we provide fully customized services for both the lock hardware models and the management software based on your specific operational needs.

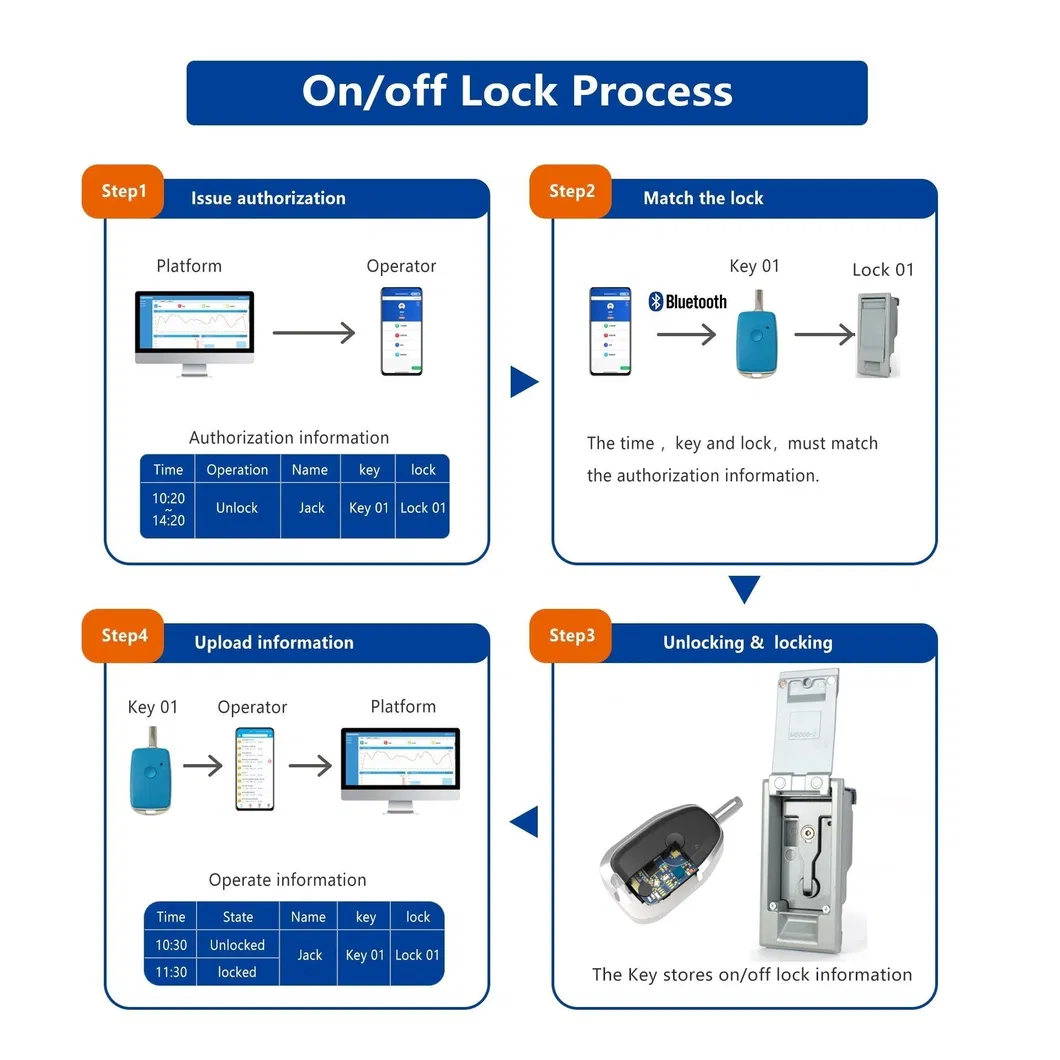

How does the passive lock system work without power?
The locks themselves do not require batteries or wiring. Power is supplied by the smart electronic key during the unlocking process, making installation simpler.
Are your products certified for industrial use?
Yes, our products are compliant with RoHS, CCC, FCC, and CE standards, and feature IP65/IP67 protection levels for harsh environments.
