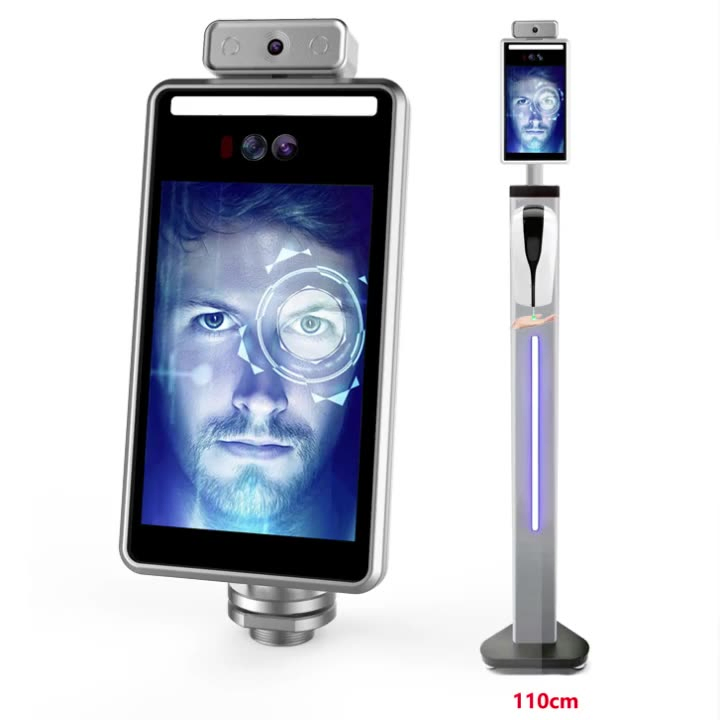

Face Recognition Thermal Facial Recognition Scanner Entrance Turnstile Gate Smart Access Control System
Product Description
📊
Basic Specifications
Model NO.AKA7C
ClockWith Clock
Voice ServiceWith Voice Service
Facial Capacity10,000

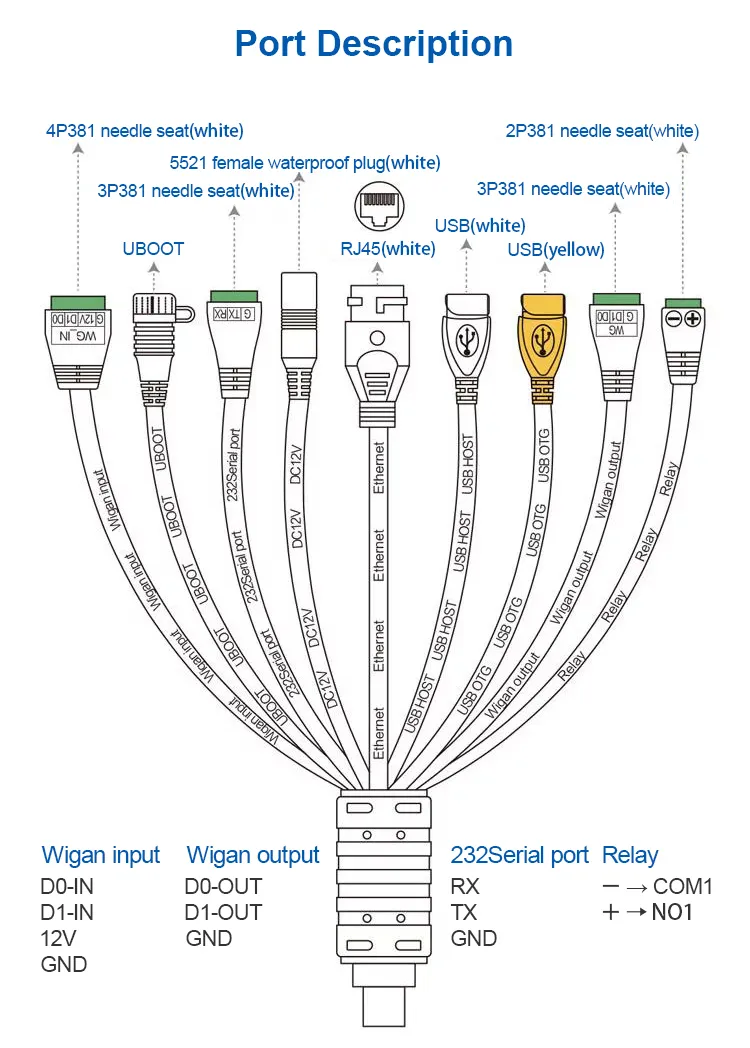

CommunicationRS485, USB, TCP/IP, Wiegand
MaterialAluminum Alloy
SystemLinux
CPURV1109 2 Core 1.5GHz
StorageRAM 1GB, Data Storage 8GB
Resolution600 * 1024
Camera200W Binocular Live Camera
Recognition Time< 300ms
Protection LevelIP55
Production Capacity30,000 PCS Per Month
⚙️
Technical Parameters
| Category | Feature | Details |
|---|---|---|
| Installation & Environment | Scenarios | Wall-mounted, Gate installation |
| Temp/Humidity | -15ºC to 55ºC, <90% RH | |
| Protection | IP55 | |
| Body Size | 246*21.5*123mm | |
| Hardware | Display | 7-inch HD IPS LCD screen |
| Fill Light | Three-color + Infrared fill light | |
| WIFI | Support (optional) | |
| Speaker | 1 way speaker | |
| Recognition | Distance | 0.5-2M |
| Accuracy | 99.70% | |
| Card Support | IC/ID card recognition (optional) |
🖼️
Product Showcase
❓
Frequently Asked Questions
Q: What is the facial recognition speed of this device?
The device features ultra-fast recognition, processing face data in less than 300ms.

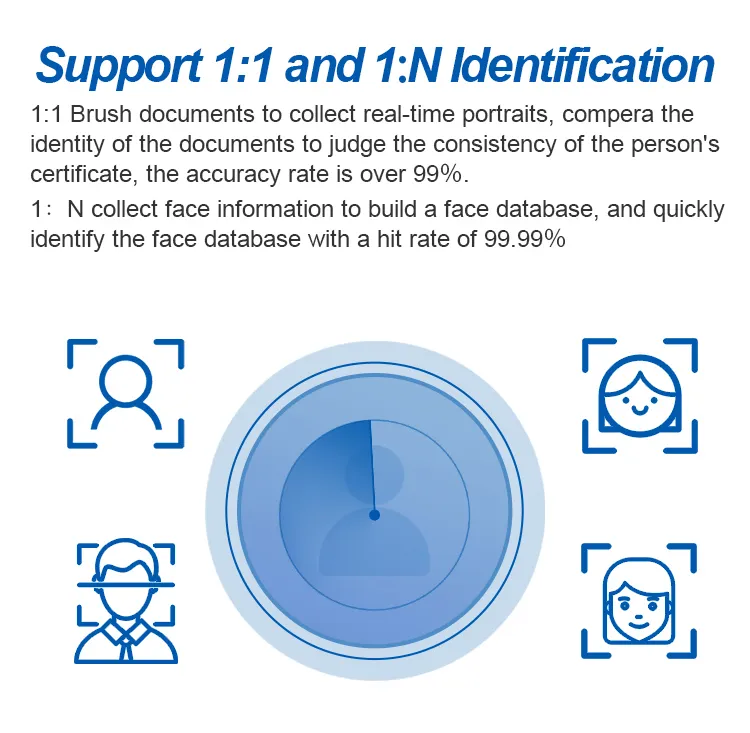

Q: How many users can be stored in the face library?

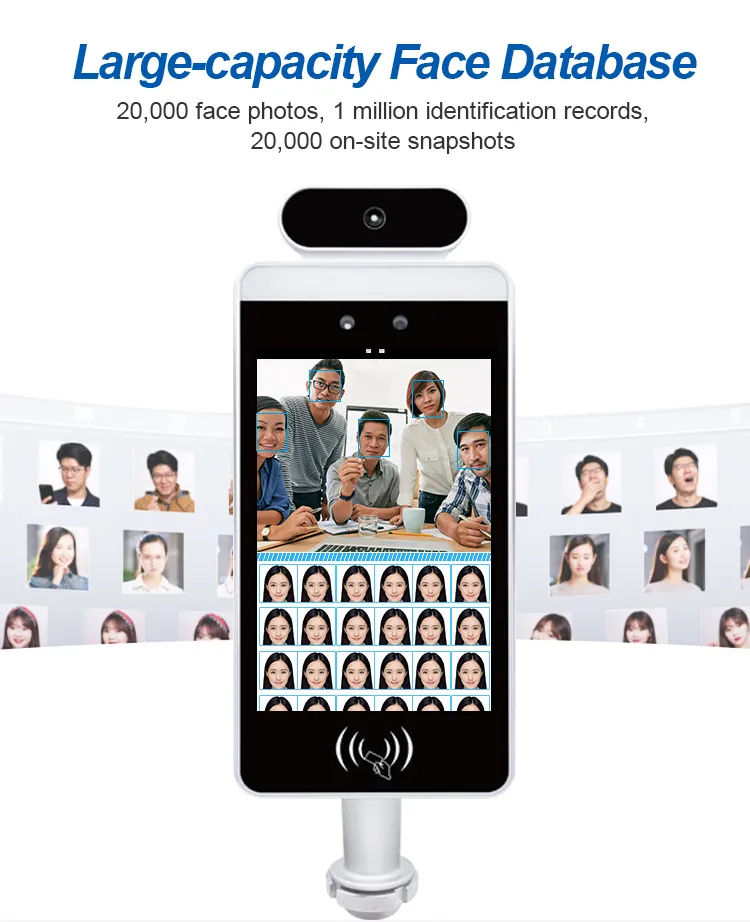

The system supports a large face library capacity of up to 20,000 users for 1:N recognition.
Q: Is this scanner suitable for outdoor environments?
Yes, it has an IP55 protection level and operates in temperatures ranging from -15ºC to 55ºC.

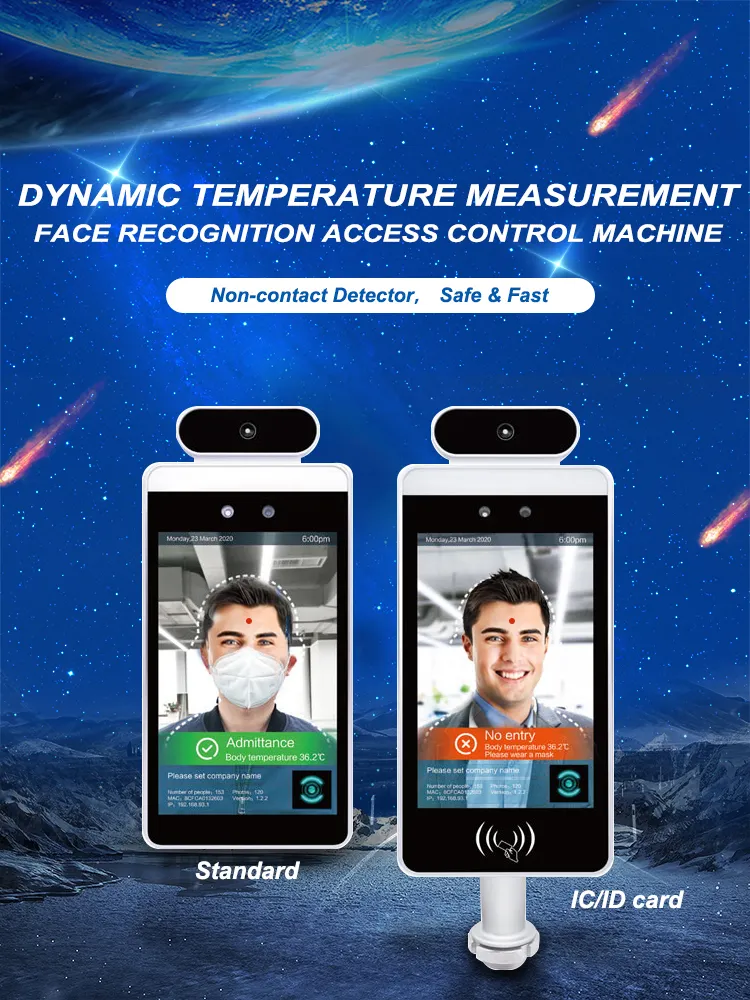

Q: Does it support card swiping in addition to face recognition?
Yes, it supports optional USB/Serial card swiping modules for IC/ID card recognition and witness comparison.
Q: What type of screen does the device use?
It is equipped with a 7-inch high-definition IPS LCD screen with a resolution of 600*1024.

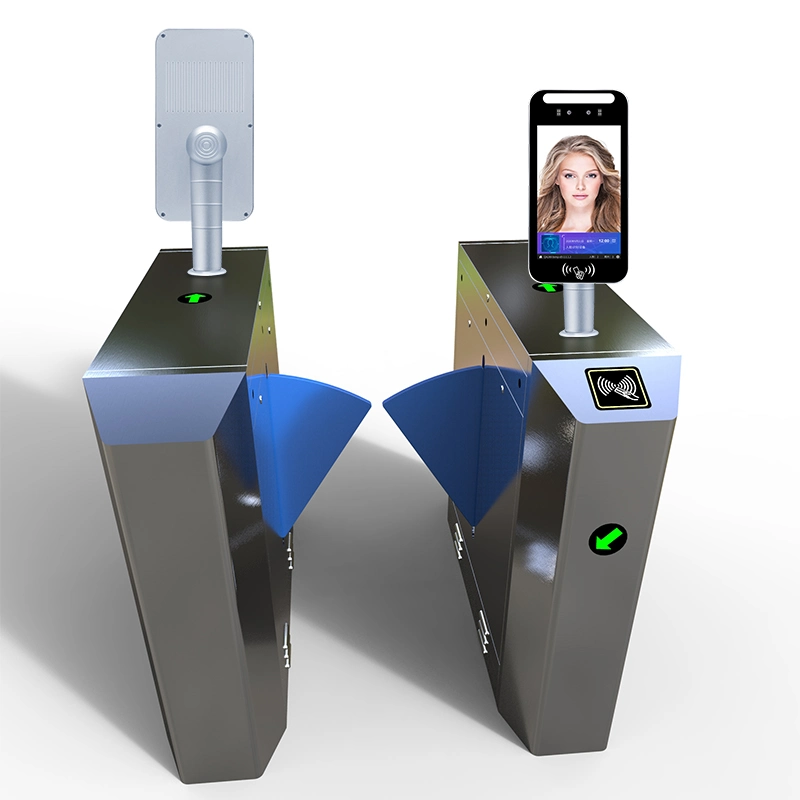

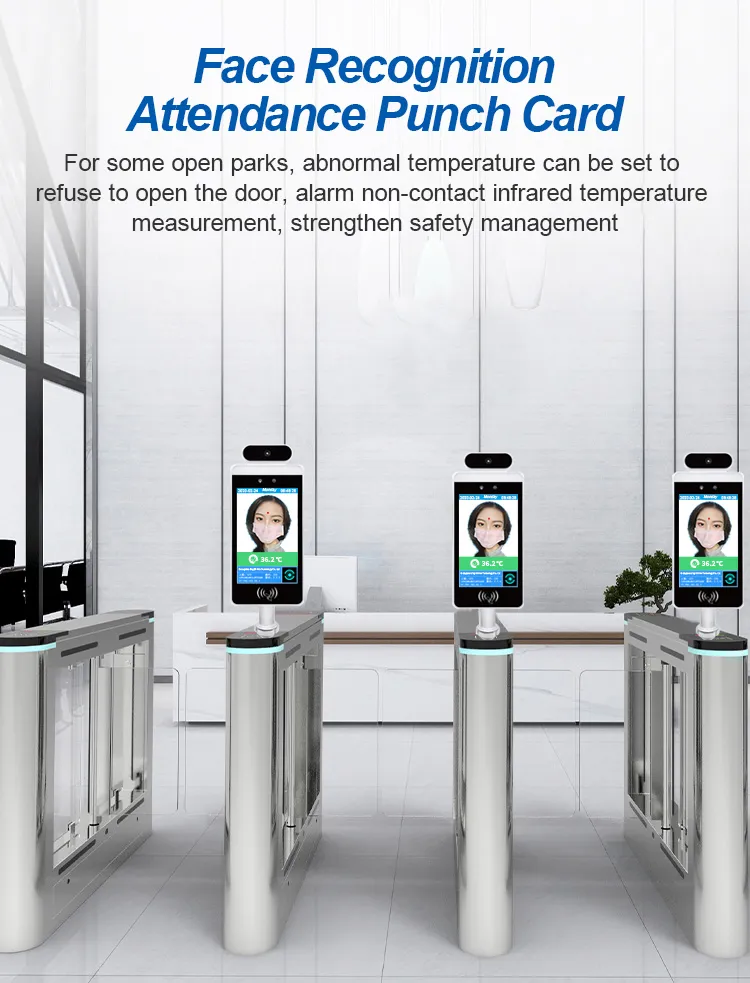

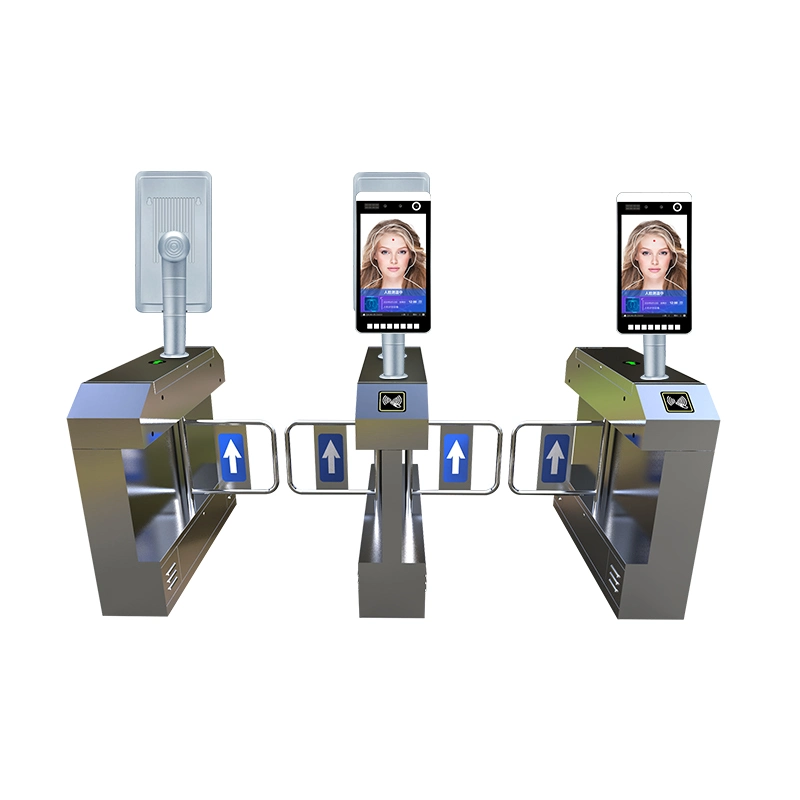

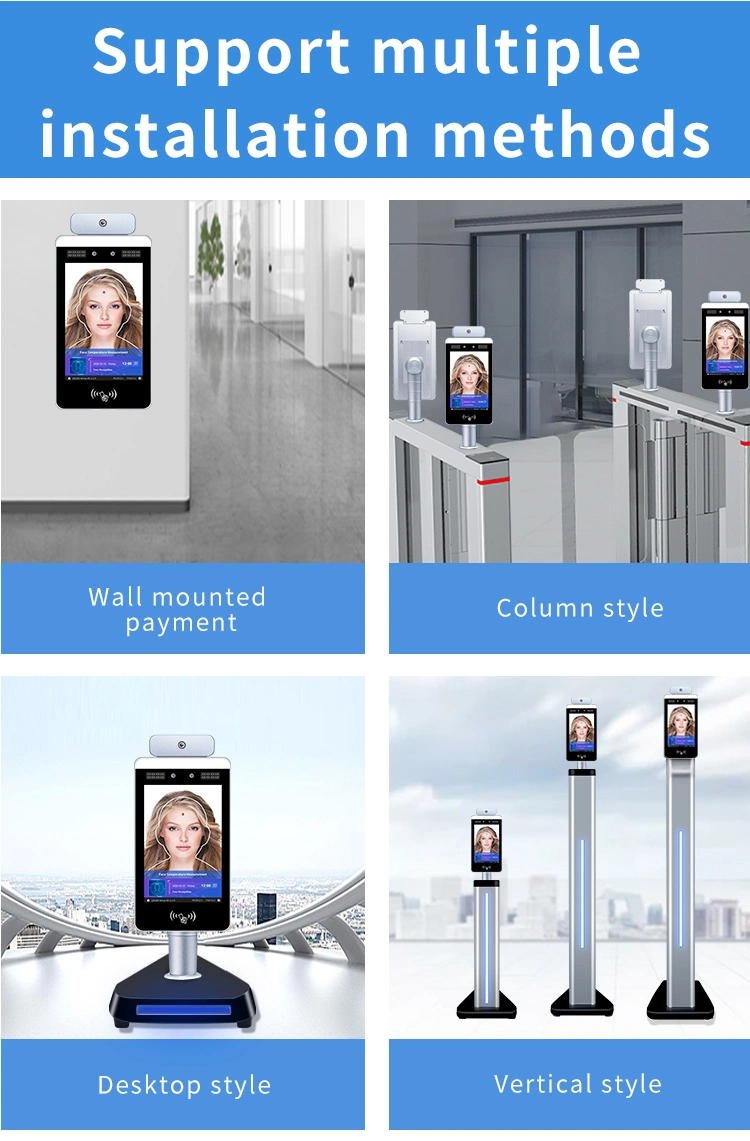

Q: What are the primary installation options?
The device is designed for versatile use and can be wall-mounted or installed directly on entrance turnstile gates.
