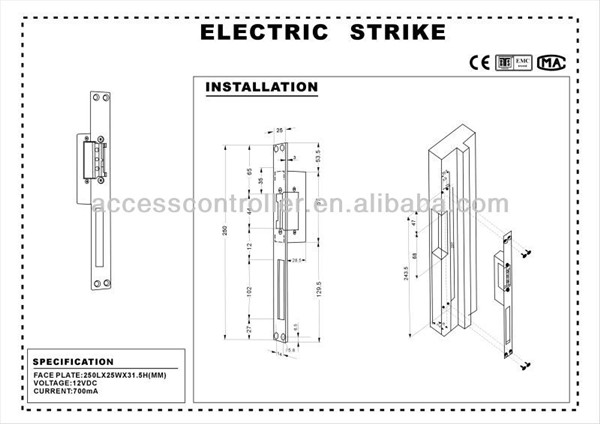

European Standard Electric Strike Locks 12 Volt
Product Description
Basic Product Information
Model NO.
DW-134LL
Type
Electronic
Style
European
Part
Lock
Usage
Household Door Locks
Holding Force
500kg
Voltage
9~12V
Current
700mA
Color
Metal
Weight
0.5kg
Specification
110Lx25Wx31.5(mm)
Capacity
5000 Per Month
Product Description
Long Plate European Narrow-type Door Lock Electric Strike NO style
The DW-134NO is a 12V narrow door European type electric strike door lock, designed for precision and durability in modern security systems.
Technical Specifications
| Product Parameter | Parameter Description |
|---|---|
| Lock Size | 110Lx25Wx31.5H(mm) |
| Strike Structure | Zinc die-casting |
| Holding Force | 500kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | 650mA |
| Special Design | Adjust Lock-tongue to NO style |
| Suitable For | Narrow Wooden Door; Narrow Metal Door |
| Surface Temperature | Within +20 degree |
| Suitable Temperature | -10~+55 degree(14-131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Face plate Housing | Surface by coating nickel |
| Function | Built-out MOV |
| Weight | 0.5kg |
Key Advantages
- 1Confirm the electric voltage (DC12V) and differentiate positive anode and cathode.
- 2When external power is used, ensure shared GND with the controller box.
- 3High Quality Control & Professional Engineering.
- 4Competitive Pricing & On-time Delivery.
- 524 Hours Reliable Professional Service.

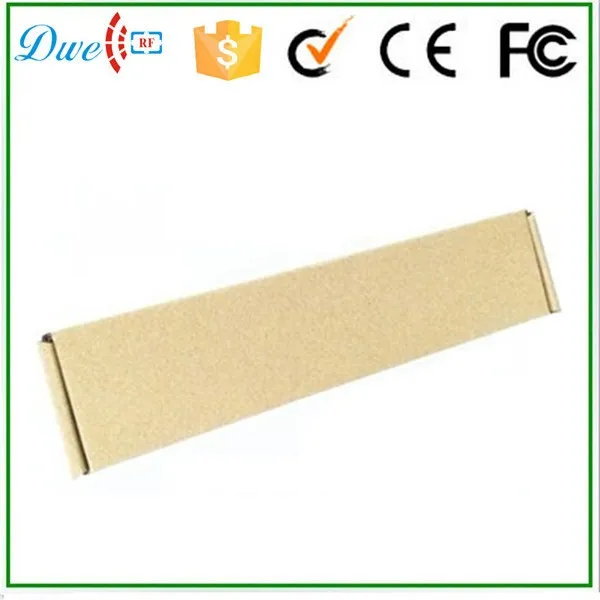

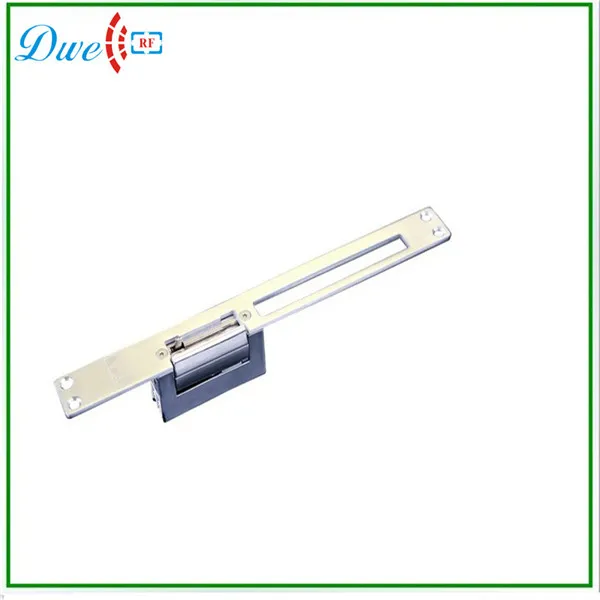

Product Showcase

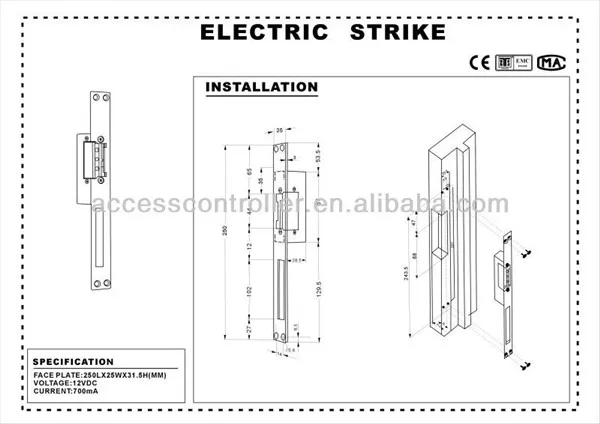

User Manual & Installation:
Application & Certifications:
Frequently Asked Questions
What is the holding force of this electric strike?
This European type electric strike lock provides a strong holding force of up to 500kg, making it suitable for high-security household and commercial door applications.
What does "NO style" mean for this lock?
"NO" stands for "Normally Open" (Fail-Secure). In this configuration, the lock remains locked when power is off and unlocks when the electrical current is applied.
Is this lock suitable for narrow door frames?
Yes, the lock features a narrow-type design (25mm width) specifically tailored for narrow wooden doors and narrow metal door frames.
What voltage is required for operation?
The standard operating voltage is DC12V with a current consumption of approximately 650mA-700mA. A DC24V version can be ordered upon request.
Can it operate in extreme temperatures?
Yes, it is designed to operate reliably in temperatures ranging from -10°C to +55°C (14°F to 131°F) and humidity levels up to 90%.
What material is used for the strike structure?
The strike structure is made of high-quality zinc die-casting, and the faceplate housing is coated with nickel for enhanced durability and corrosion resistance.
