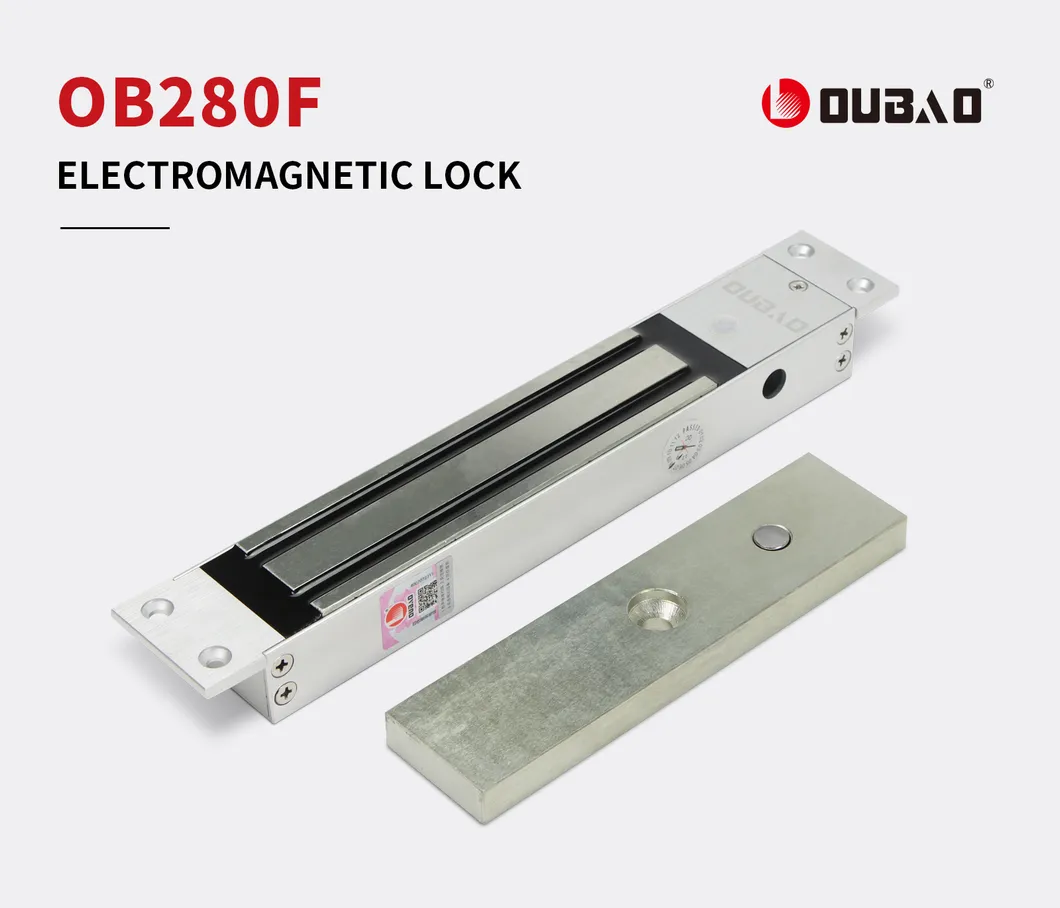

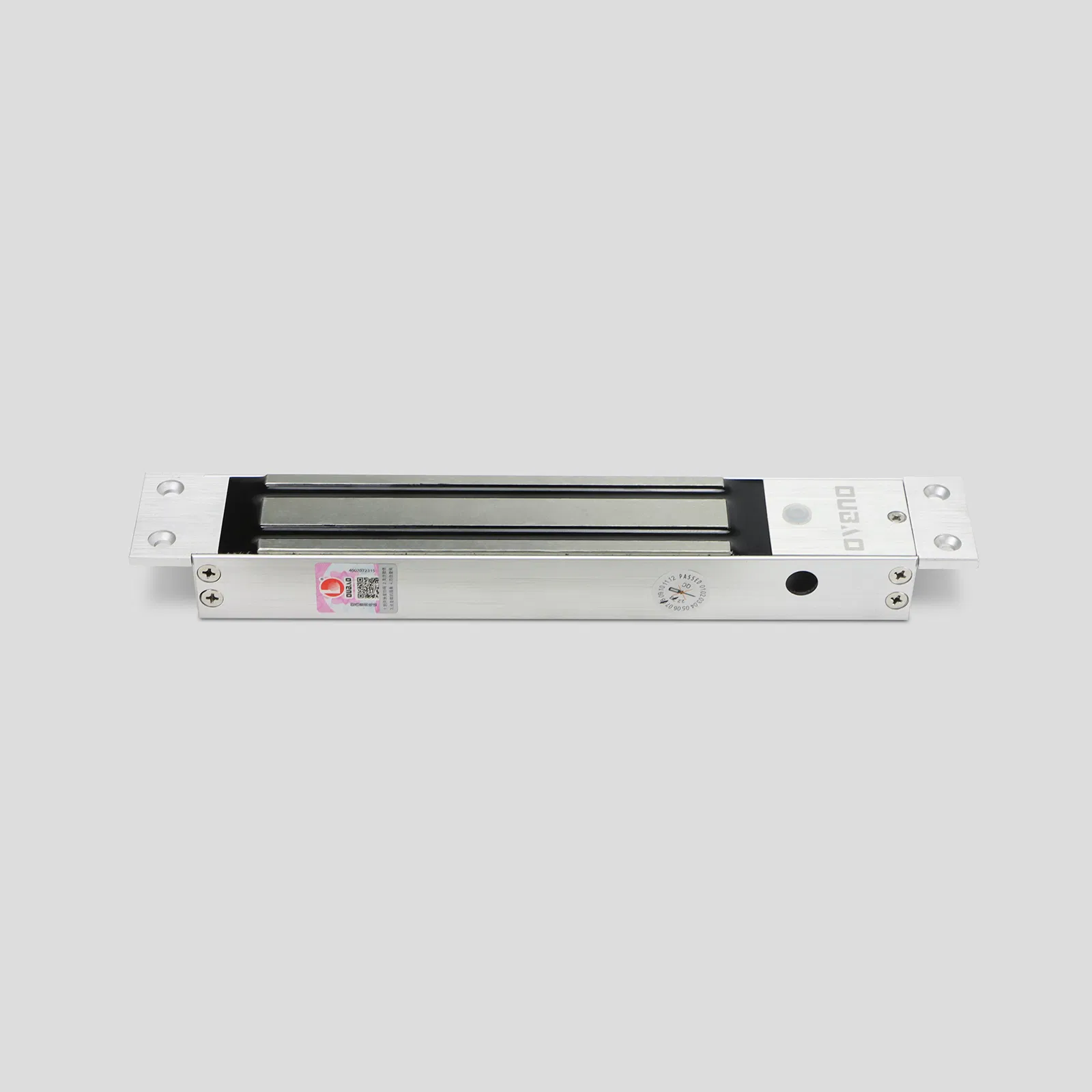

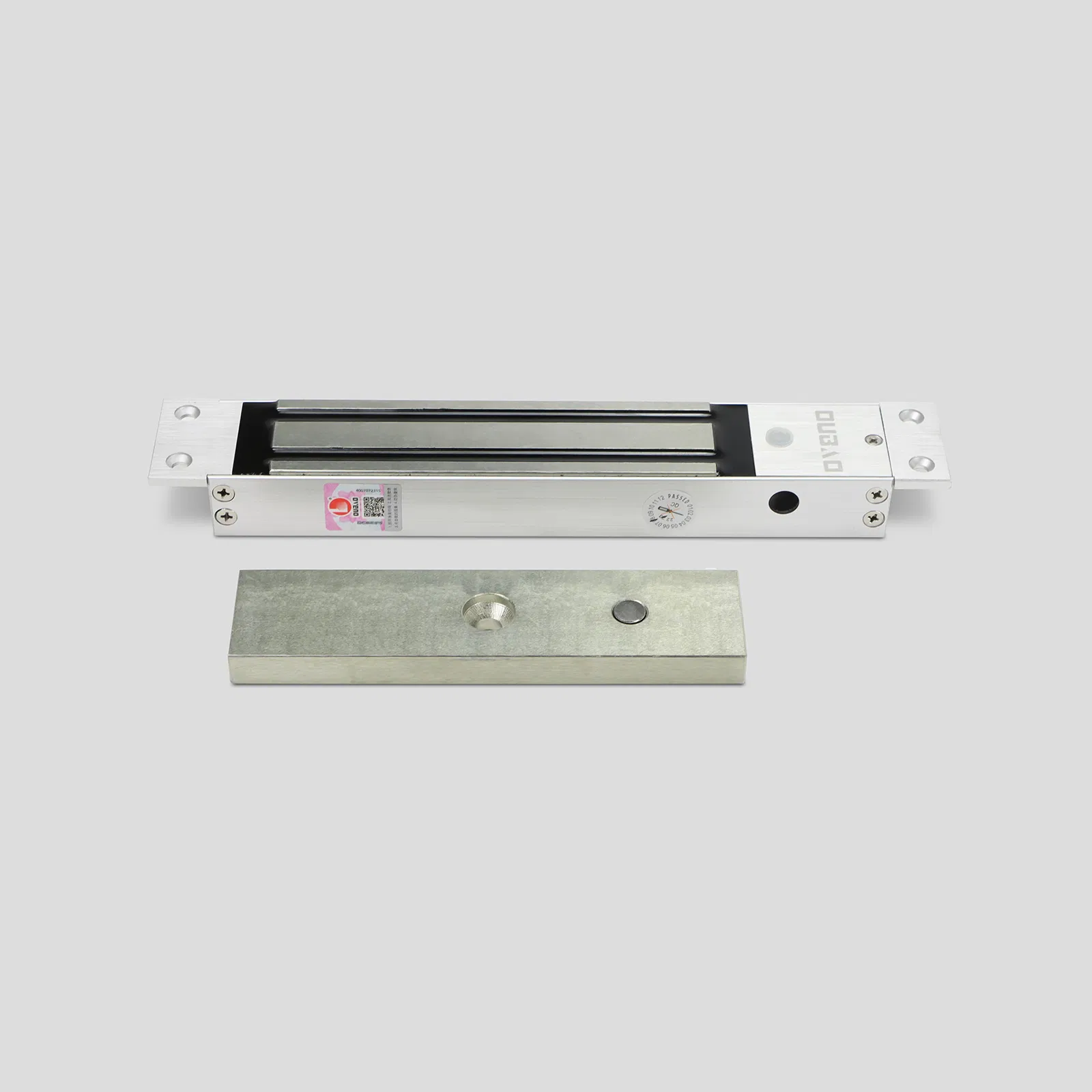

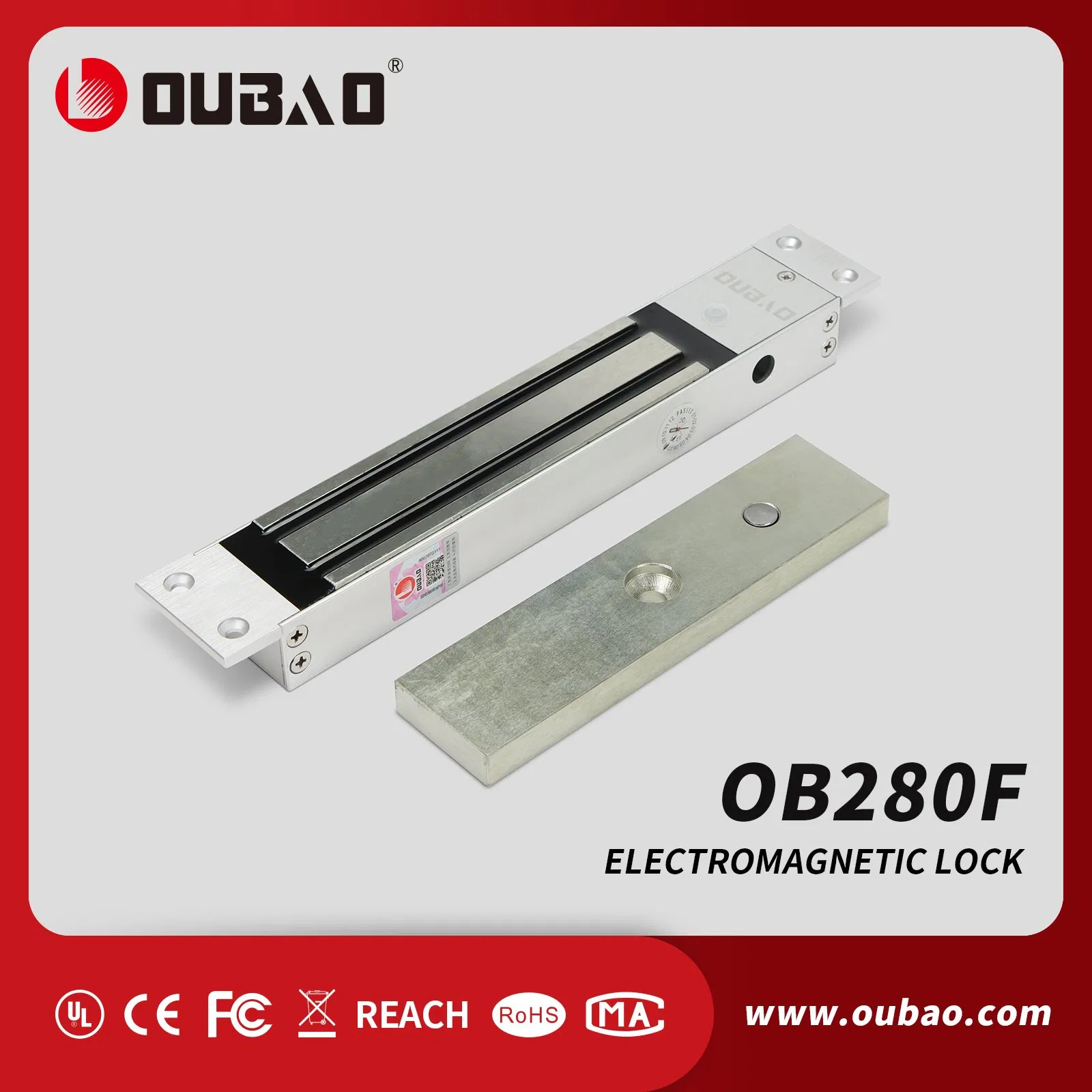

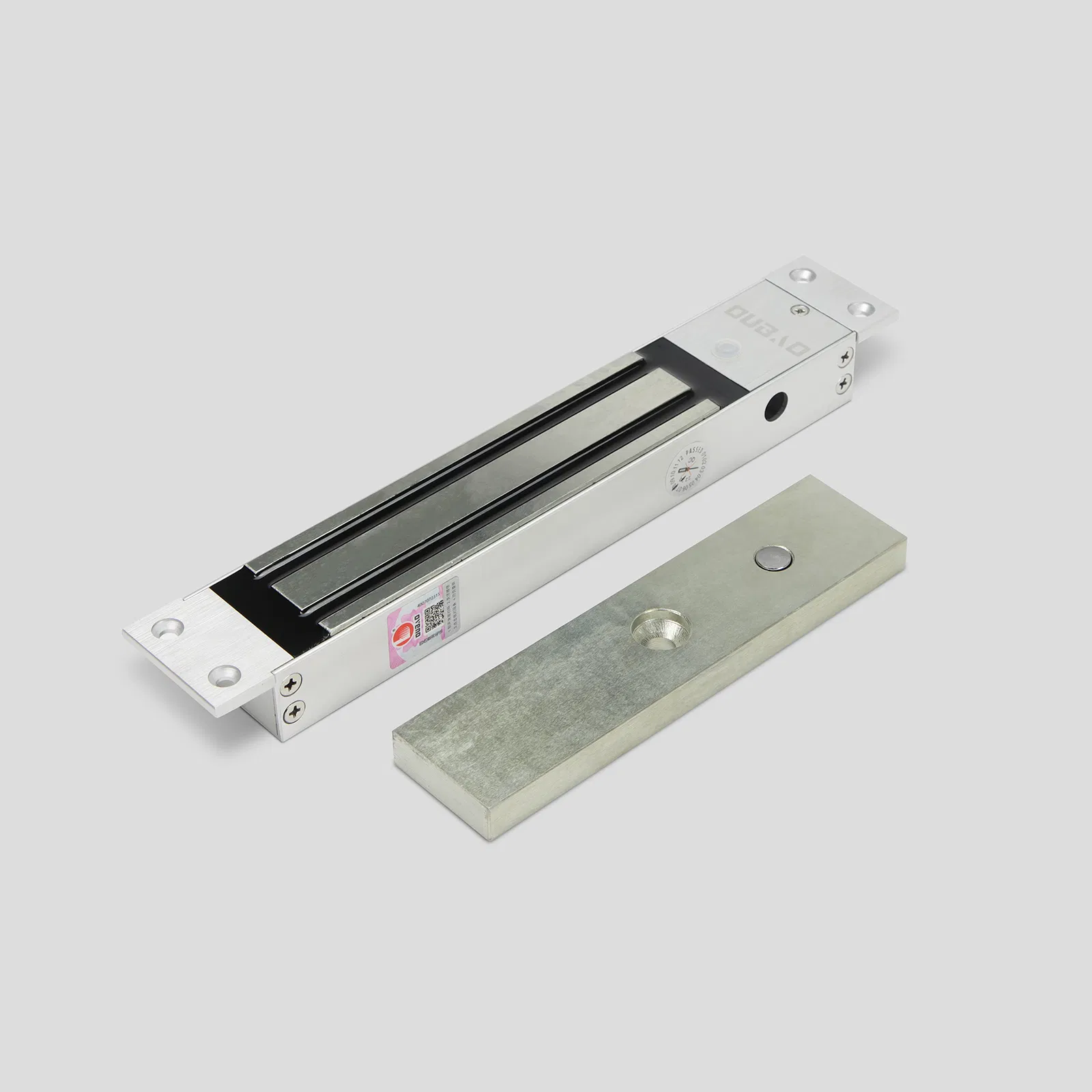

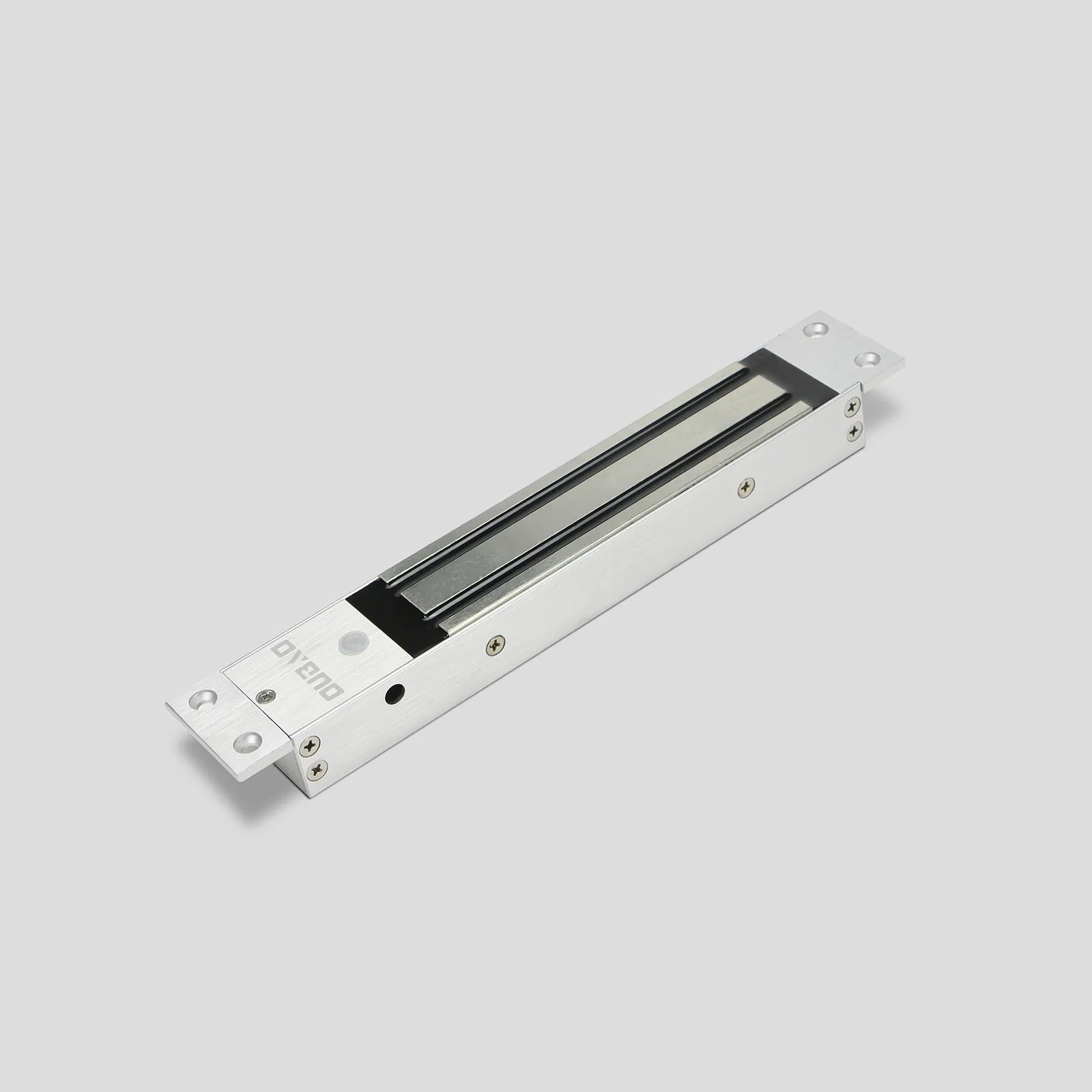

Electronic Electric Door Cabinet Strike Bolt Rim Magnetic Electromagnetic Lock Ob280f Series
Product Description
Model NO.
OB280F
Material
Aluminum Alloy
Type
Electronic
Style
Modern
Anti-theft Standard
A
Backset
60mm
Door Thickness Fits
35-50mm
Usage
Household Door Locks, Bedroom, Channel Lock
Certification
Rosh, EMC, FCC, CE, UL, CCC
Production Capacity
50,000 PCS / Year
Origin
China
HS Code
85318010

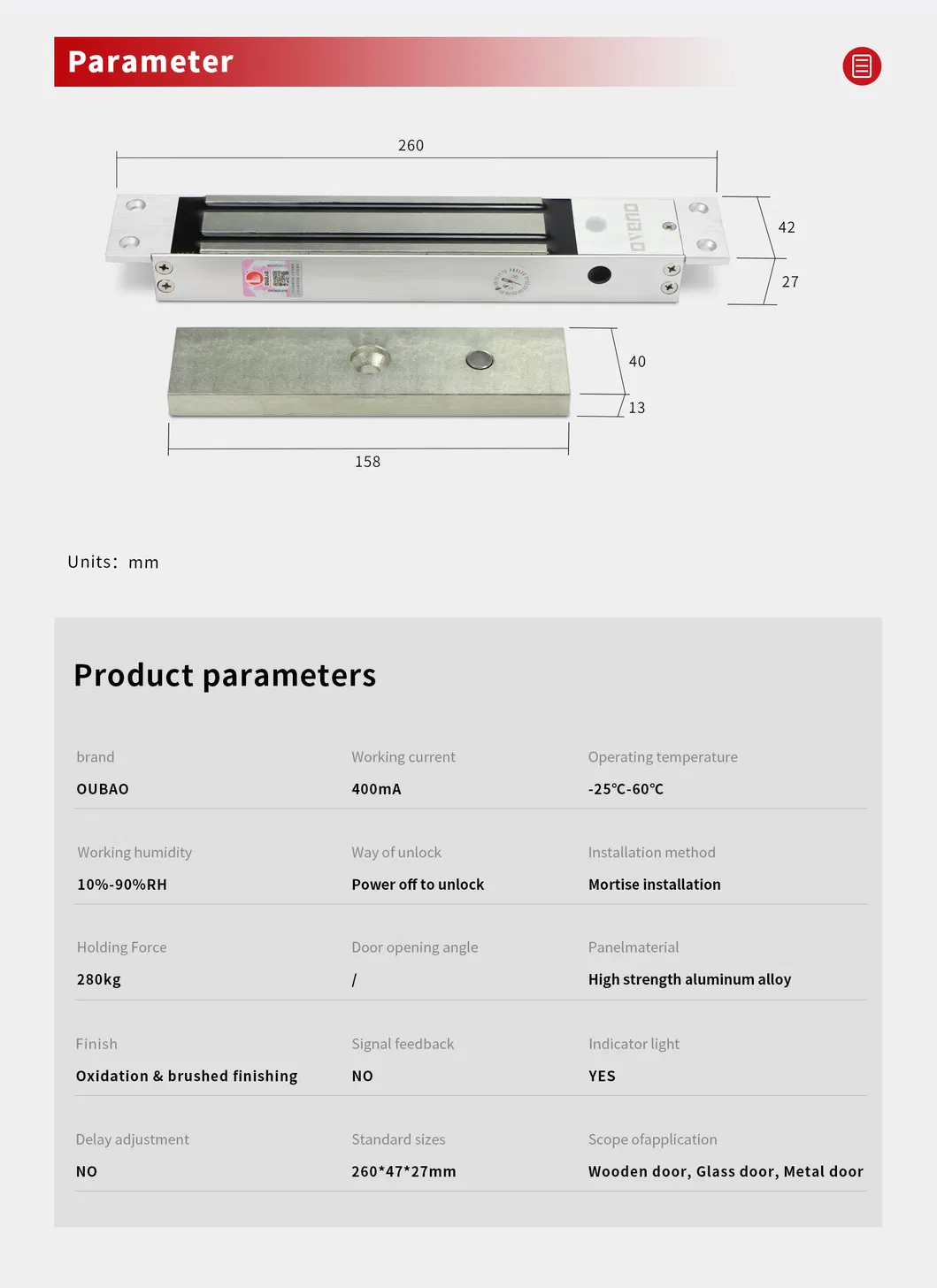

| Model | OB280F | OB280FA |
| Operating Voltage | 12VDC | |
| Working Current | 400mA | |
| Operating Temperature | -25 ºC ~ 60 ºC | |
| Working Humidity | 10% ~ 90% RH | |
| Way of Unlock | Power off to unlock (Fail-safe) | |
| Force of Pull | 280KG | |
| Panel Material | High strength aluminum alloy | |
| Finish | Oxidation & brushed finishing | |
| Signal Feedback | No | Yes |
| Standard Sizes | 234 * 48 * 29 mm | |
| Scope of Application | Wooden door, Glass door, Metal door | |
What is the holding force of the OB280F series?
The OB280F series provides a strong holding force of 280KG (approx. 600lbs), making it suitable for high-security requirements.
What types of doors are compatible with this magnetic lock?
This lock is versatile and can be installed on wooden doors, glass doors, and metal doors.
How does the "Power off to unlock" feature work?
This is a fail-safe mechanism. In the event of a power failure, the lock will automatically release, ensuring safety and easy exit during emergencies.
What is the difference between OB280F and OB280FA?
The OB280FA model includes a signal feedback function, allowing the system to monitor whether the door is locked or unlocked, whereas the standard OB280F does not.
Can this lock operate in extreme temperatures?
Yes, the lock is designed to operate reliably in temperatures ranging from -25 ºC to 60 ºC.
What certifications does this product hold?
The product is fully certified with RoHS, EMC, FCC, CE, UL, and CCC standards, ensuring international quality and safety compliance.
