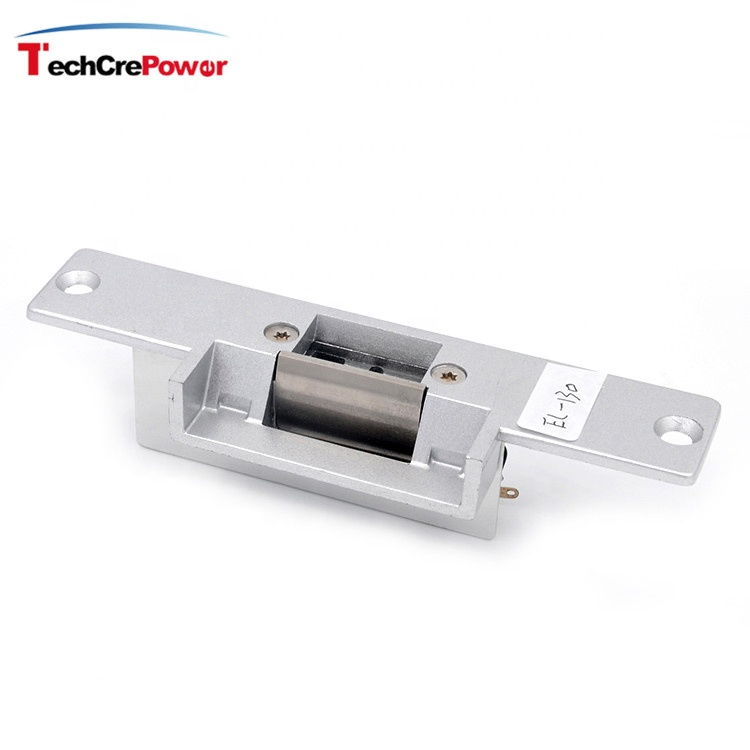

Full Equipped Standard Type 12V Electric Door Strike Lock for Glass Door
Product Description
i
Basic Specifications
Model NO.
EL-130 / EL-131 / EL-132
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, Community
Working Principle
Electronically Controlled Lock
Function
Fail-Safe, Fail-Secure, Built-out MOV
Type
Electric Strike
Holding Strength
500kg
Voltage
DC12V (Optional DC24V)
Current
240mA(NO); 200mA(NC)
Feature
Fail Secure(NO); Fail Safe(NC)
Suitable for
Wooden Door, Metal Door, PVC Door
Temperature
-10~+55℃ (14-131F)
Weight
0.4kg
★
Product Description

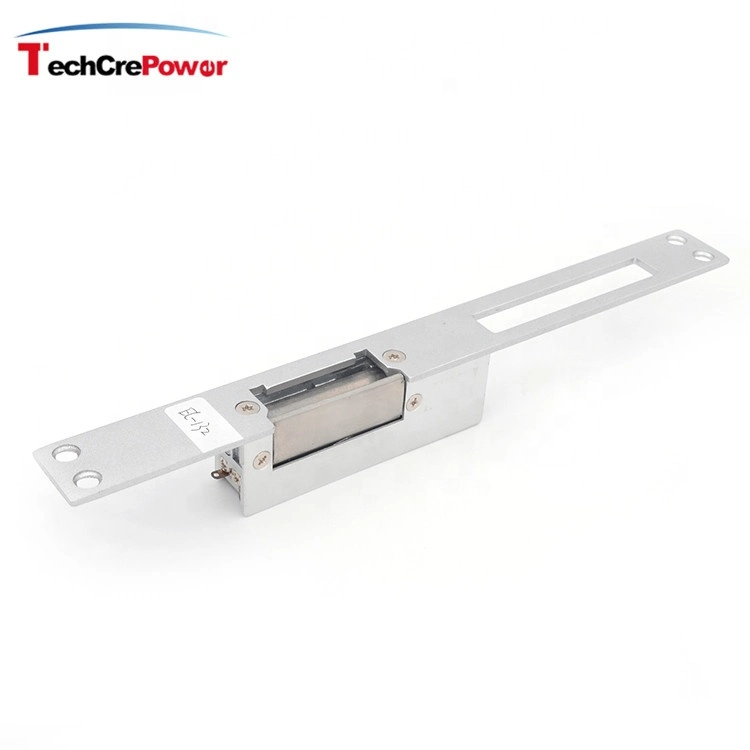

Full equipped standard type 12V electric door strike lock for glass door
The EL-130/131/132 series is designed for versatile applications including wooden doors, metal doors, and PVC doors. These electric strikes operate on the principle of converting electrical power into magnetic force. We offer two distinct working modes to meet various security requirements: Fail-Safe (locked when energized) and Fail-Secure (unlocked when energized).

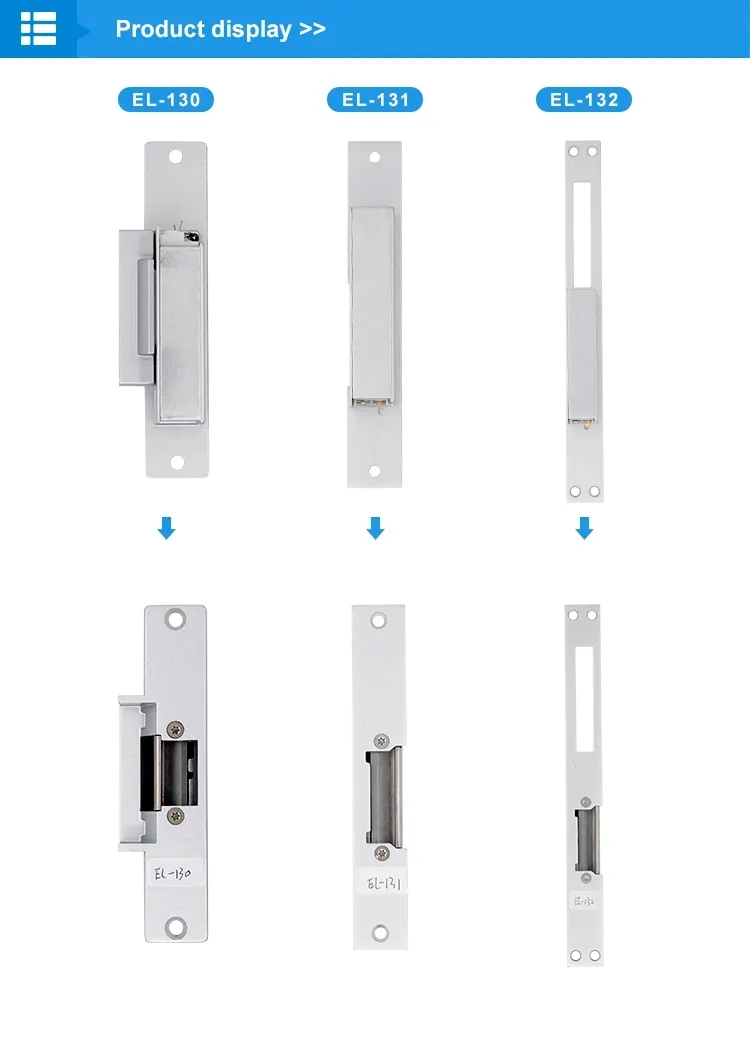

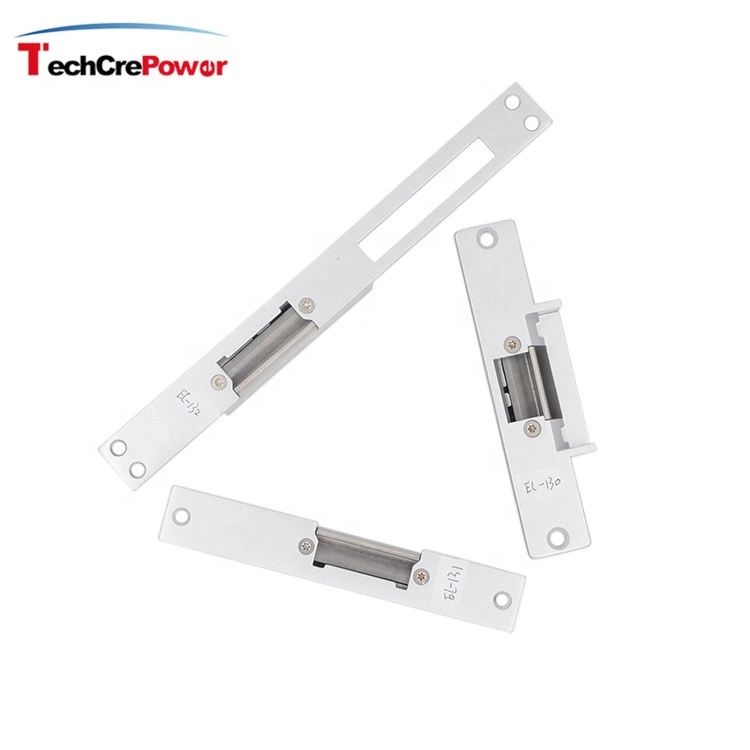

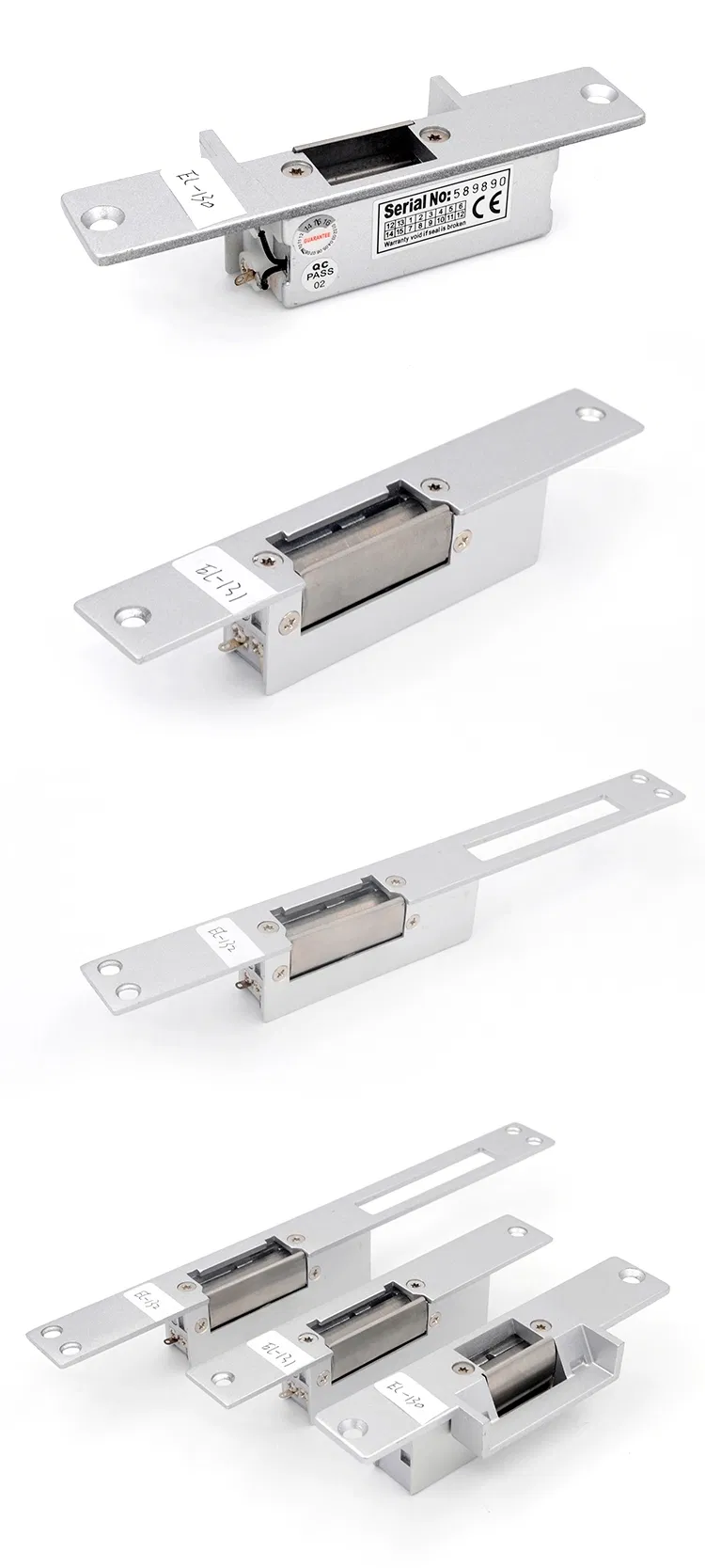

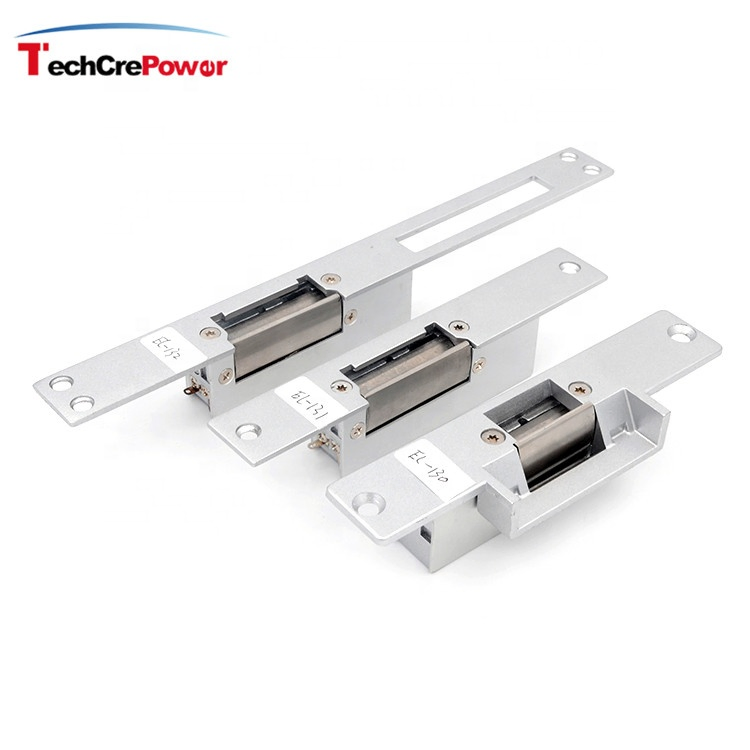

Series Differences:

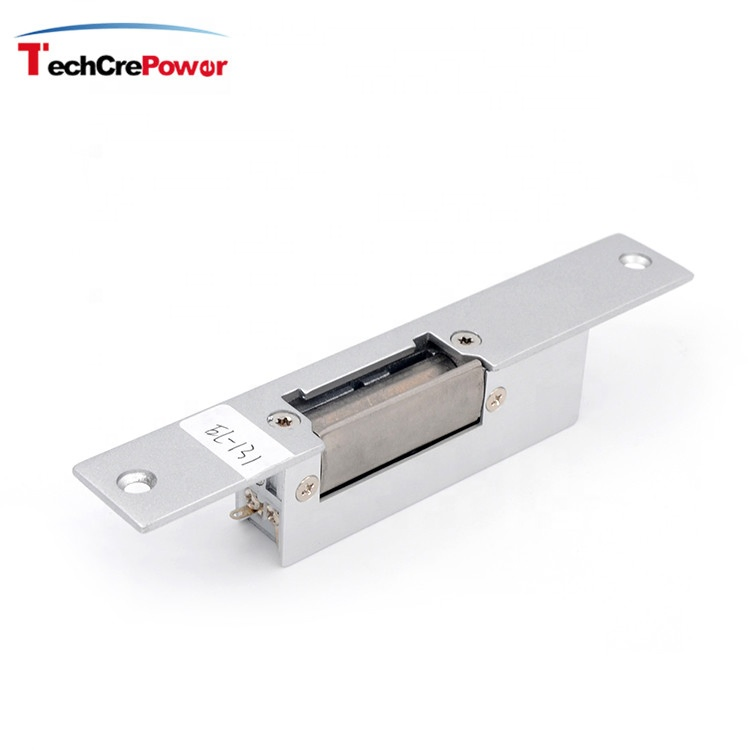

- EL-131NO/NC: Features a short faceplate for compact installations.
- EL-132NO/NC: Features a long faceplate for standard door frame requirements.

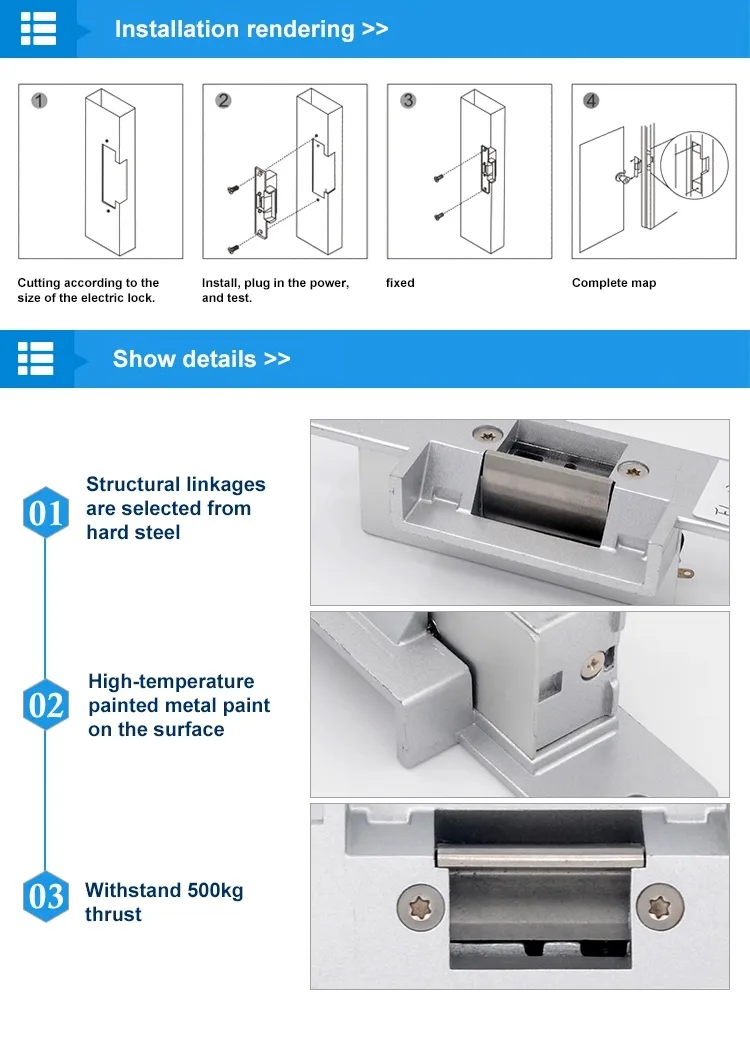

Key Features:
- Holding force up to 500kg.

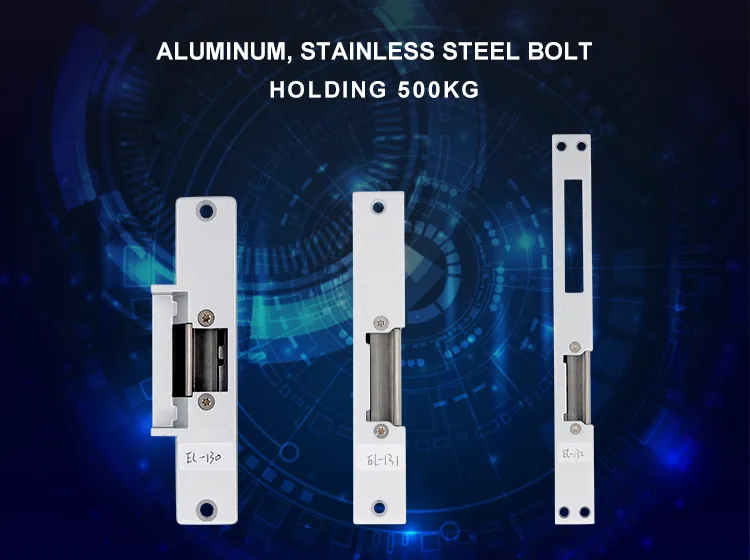

- Constructed with Aluminum and Stainless Steel Bolts.
- Durable high-temperature painted finish.
- Tested to 100,000 cycles for reliability.
⚙
Technical Parameters
| Product Parameter | Description |
|---|---|
| Lock Size | EL-130: 150Lx39.5Wx33.5H(mm) EL-131: 160Lx25Wx31H(mm) EL-132: 250Lx25Wx31H(mm) |
| Structure | 130: Zinc alloy | 131: Stainless Steel | 132: Stainless Steel |
| Holding Strength | 500kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | 240mA(NO); 200mA(NC) |
| Operating Mode | Fail Secure(NO); Fail Safe(NC) |
| Surface Temperature | Within +20℃ |
| Humidity | 0~90% (Non-condensing) |
| Protection | Built-out MOV (Surge Protection) |
📷
Product Gallery
?
Frequently Asked Questions
What door types are compatible with these electric strikes?
These locks are suitable for wooden doors, metal doors, and PVC doors commonly used in public passages, offices, and commercial buildings.
What is the difference between Fail-Safe and Fail-Secure?
Fail-Safe (NC) means the door unlocks when the power is cut. Fail-Secure (NO) means the door remains locked even if there is a power failure, requiring power to unlock.
Does the lock support 24V power supply?
The standard model operates on DC12V. However, a DC24V version is available upon request as a special order.
How much weight can the lock hold?
These electric strikes are built for high security with a holding strength of up to 500kg.
What are the material differences between models?
The EL-130 is made from Zinc Alloy, while the EL-131 and EL-132 models are constructed with Stainless Steel for enhanced durability.
Is there surge protection included?
Yes, these models feature a built-out MOV (Metal Oxide Varistor) which provides protection against voltage spikes and surges.
