EL-138lk-S Fail Safe Nc Mortise Long Type European Electric Strike Lock
Product Description
i
Basic Information
Model NO.
EL-138LK-S
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, Community
Working Principle
Electronically Controlled Lock
Function
Fail-Safe, Fail-Secure
Type
Electric Strike
Voltage
DC12V (Optional DC24V)
Suitable Door
Wooden, Metal, PVC Door
Temperature
-10~+55℃ (14-131F)
Humidity
0~90% (Non-Condensing)
Weight
0.42kg
Specification
250Lx43.5Wx32.5H(mm)
Capacity
5000PCS Per Month
★
Product Description
Introduction:

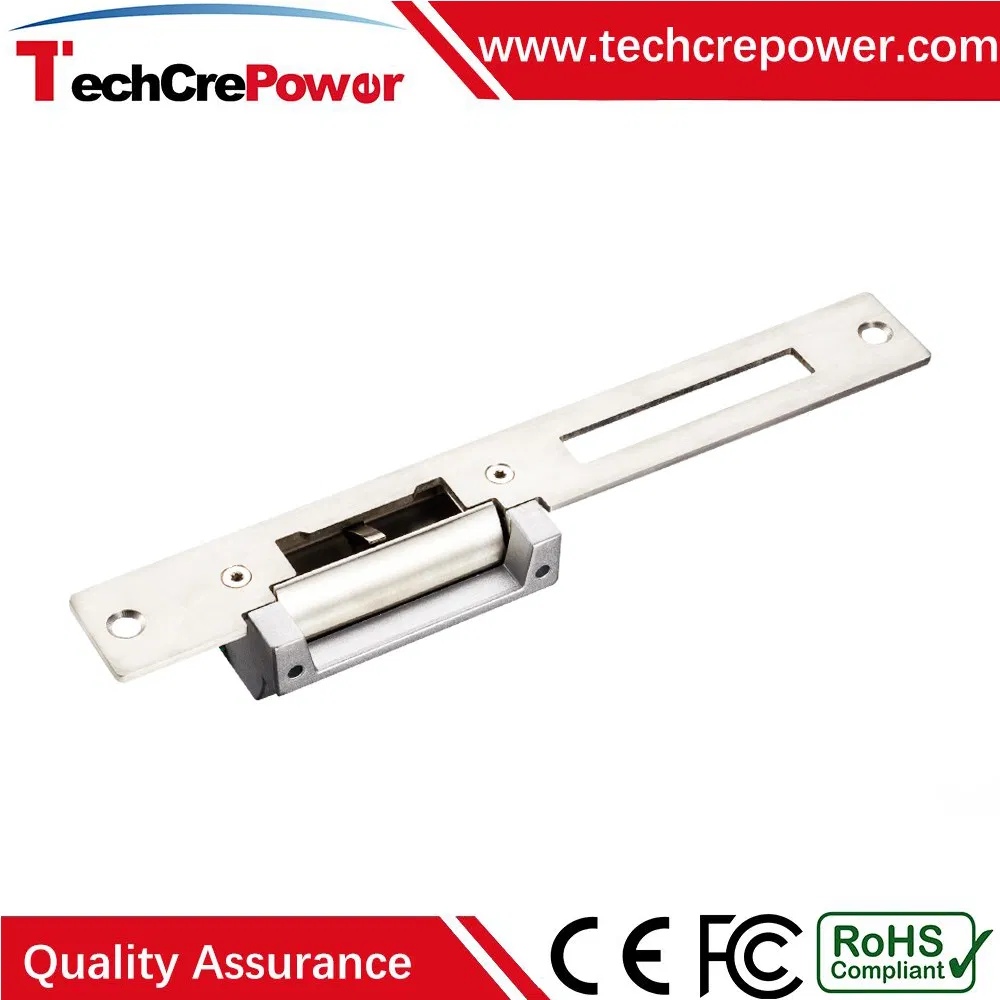

The EL-138LK is a Long Type European Electric Strike constructed from high-quality Stainless Steel. Featuring a robust holding force of up to 1000KG, it is designed for durability and security. The default operating voltage is DC12V, with DC24V available upon request. This lock is perfectly suited for wooden, metal, and PVC doors.
📋
Specifications
| Product Parameter | Parameter Description |
|---|---|
| Lock Size | 250Lx43.7Wx35H(mm) |
| Strike Structure | Stainless Steel |
| Holding Force | 1000kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | 12V/320mA; 24V/160mA |
| Feature | Fail Secure (YS-138LKNO-S); Fail Safe (YS-138LKNC-S) |
| Signal Output | Door status Output, NO/NC/COM |
| Surface Temperature | Within +20ºC |
| Optional Accessories | YS-308 |
| Patent No. | 201320470904.1 |
✔
Key Features
◈
High holding force of 1000kg for superior security.
◈
Special adjustable design for easy lock-tongue distance alignment.
◈
Direct installation design for metal frames with simple hole drilling.
◈
Extensively tested to 1,000,000 cycles for long-term reliability.
◈
High-temperature painted finish, durable and aesthetically pleasing.
◈
Certified by European Union (CE) and China Public Security (MA).
📷

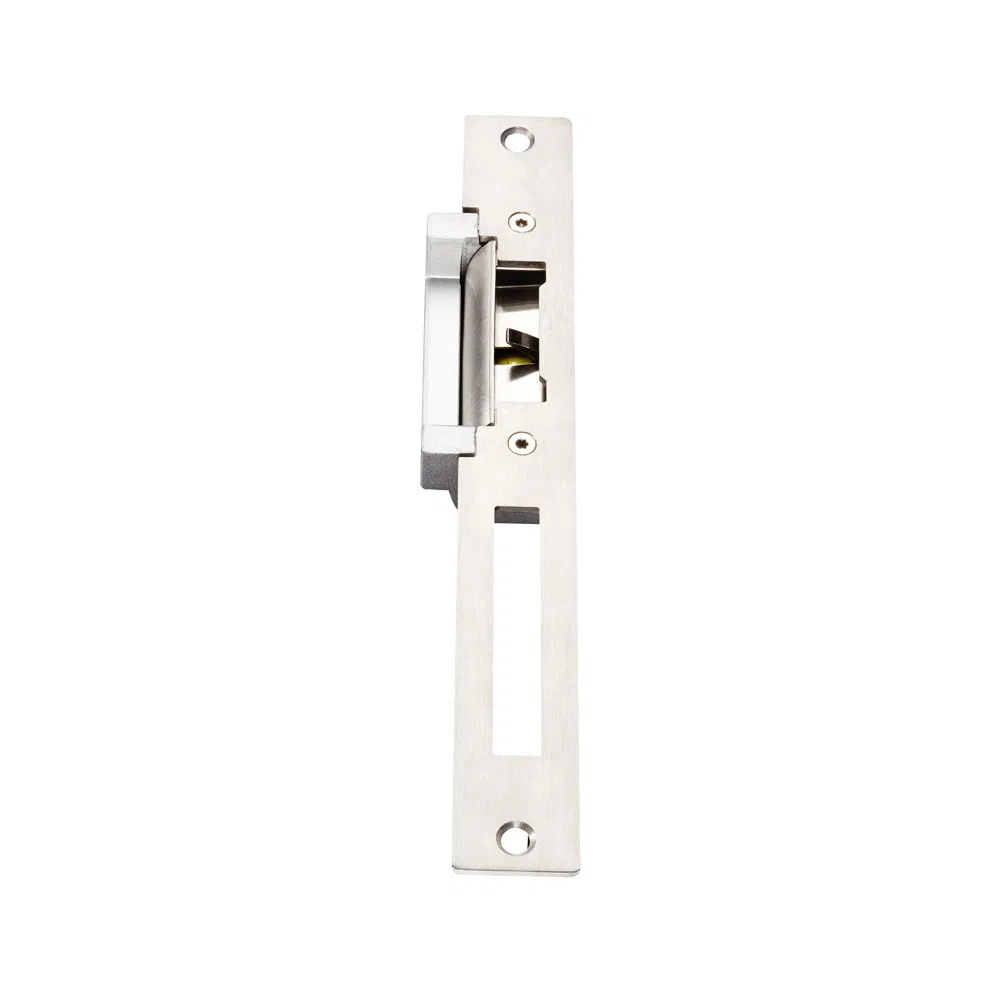

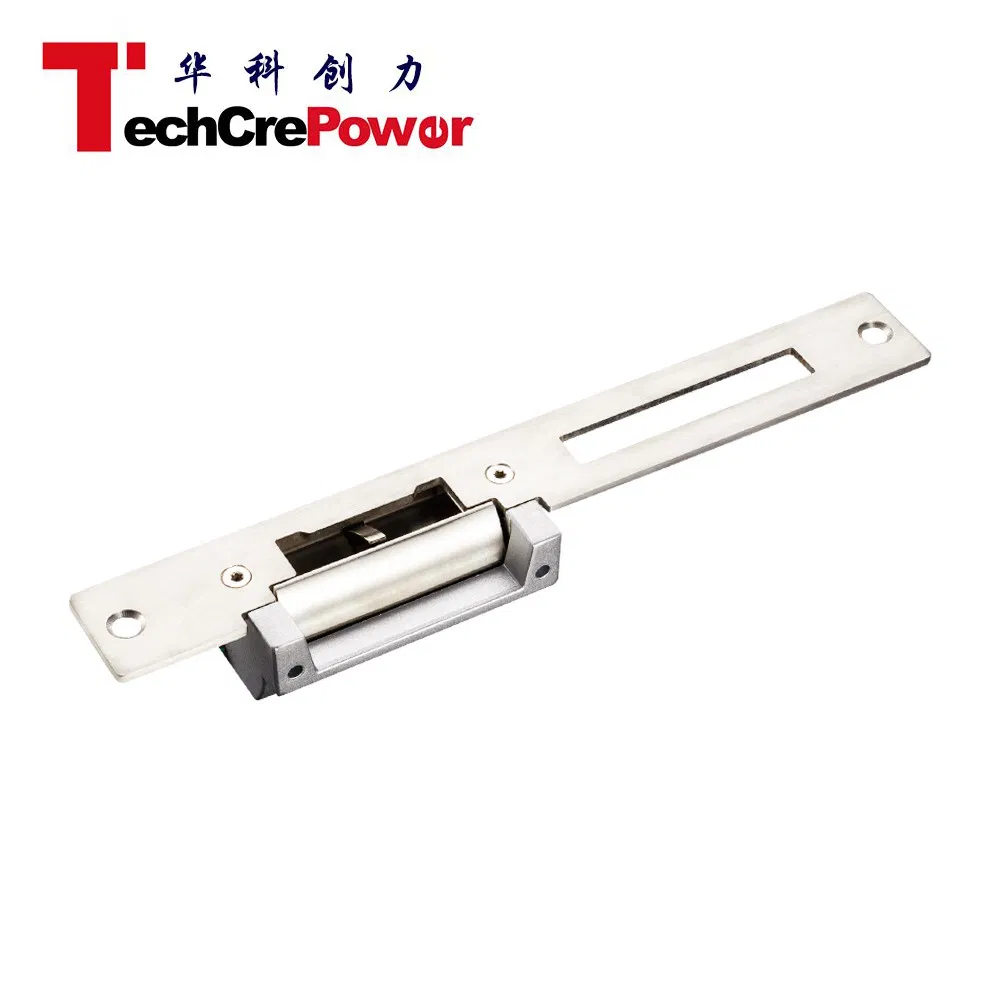

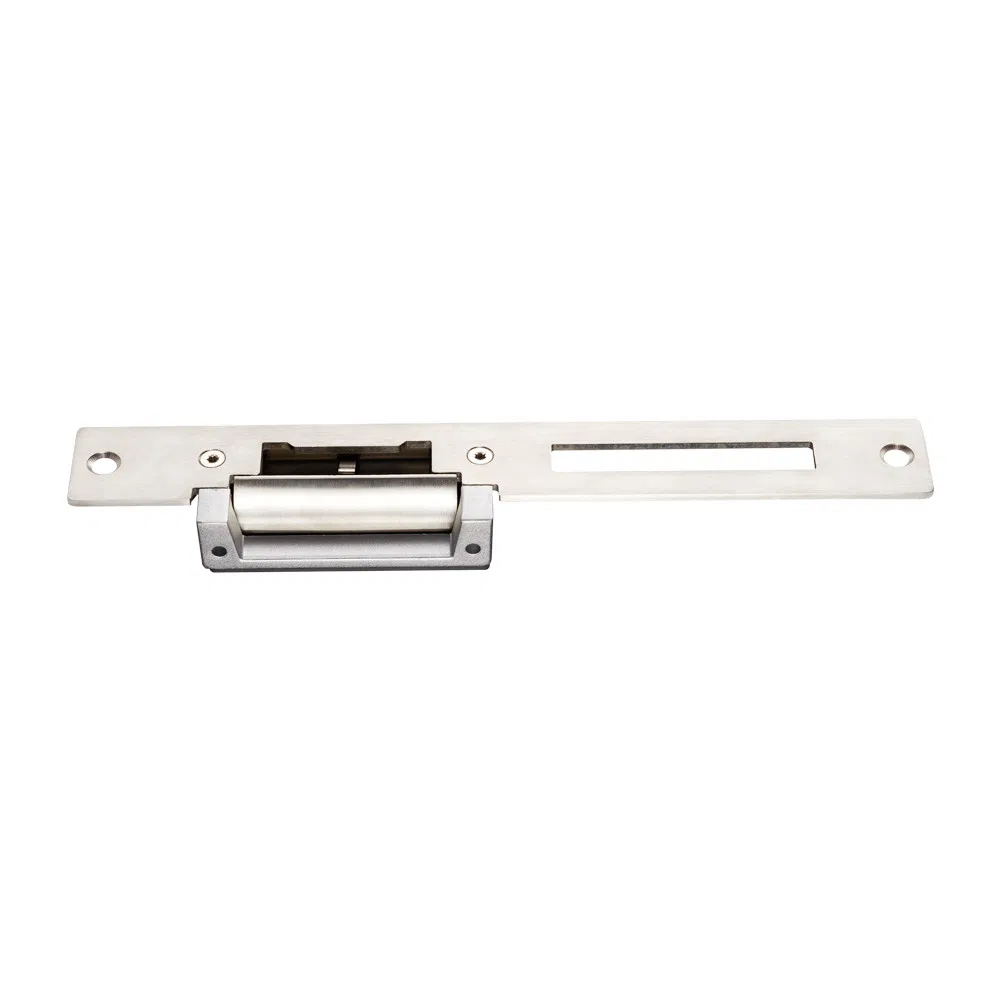

Product Gallery
?
Frequently Asked Questions
What is the difference between Fail-Safe and Fail-Secure models?
Fail-Safe (NC) means the lock opens when power is lost. Fail-Secure (NO) means the lock remains closed when power is lost. Both options are available for this model.
What is the maximum holding force of this electric strike?
This long-type European electric strike is designed to withstand a holding force of up to 1000kg.
Can I use this lock with a 24V power supply?
The standard version is DC12V, but a DC24V version can be customized upon order.
Is this lock suitable for outdoor use?
It operates within a temperature range of -10 to +55℃ and 0-90% humidity. While durable, it is best suited for protected environments or indoor applications.
Does it provide feedback on the door status?
Yes, the EL-138LK-S includes a signal output (NO/NC/COM) to monitor the door status.
What materials is the lock made of?
The strike structure is made of high-grade stainless steel, and the faceplate housing is made of painted steel for maximum durability.
