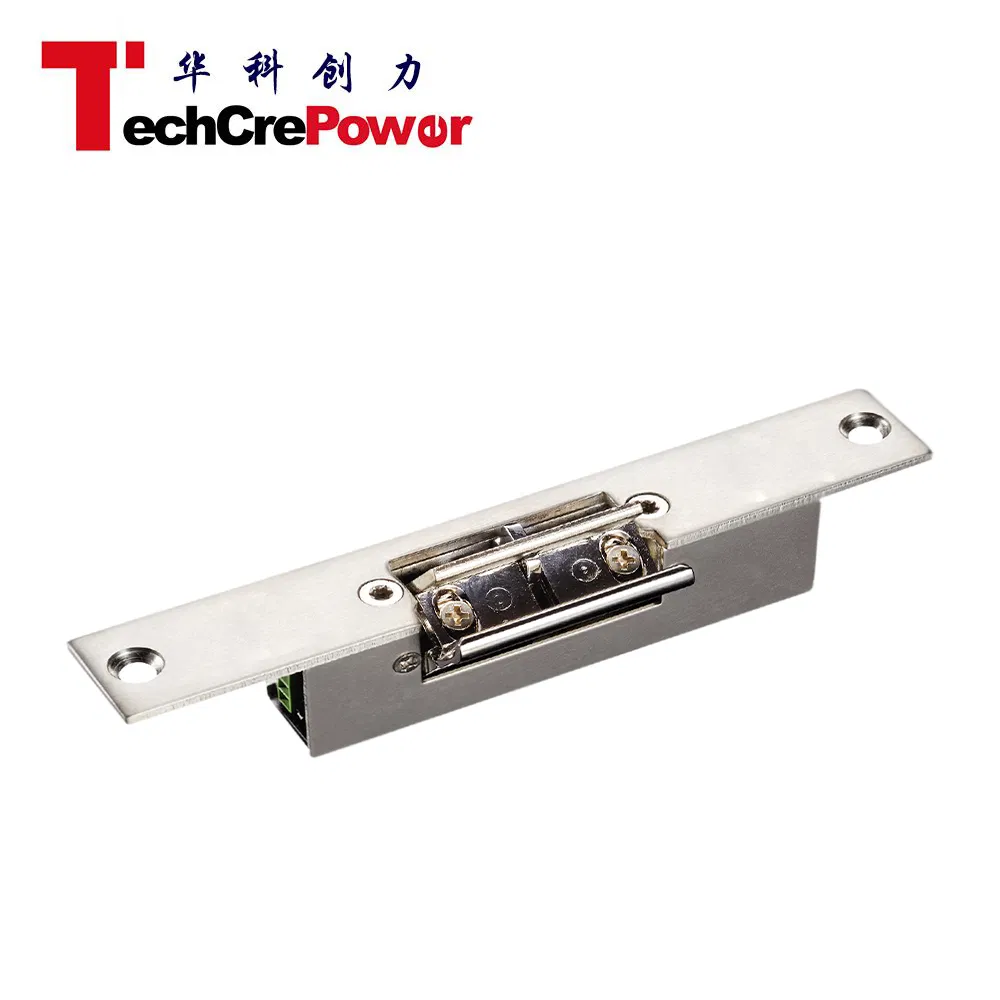

EL-133nc-S Frameless Glass Door Fail Safe Security Electronic Strike Lock
Product Description
Basic Information
Model NO.
EL-133NC-S
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community
Working Principle
Electronically Controlled Lock
Function
Fail-Safe
Type
Electric Strike
Lock Size
160lx25wx31h(mm)
Strike Structure
Stainless Steel
Holding Force
500kg
Current
DC12V/200mA, DC24V/100mA
Voltage
DC12V or DC24V
Signal Output
Lock Status Output NO/NC/COM
Temperature
-10~+55℃ (14-131F)
Transport Package
Box, Carton Packing
Specification
CE Certificate
Production Capacity
10000
Product Description

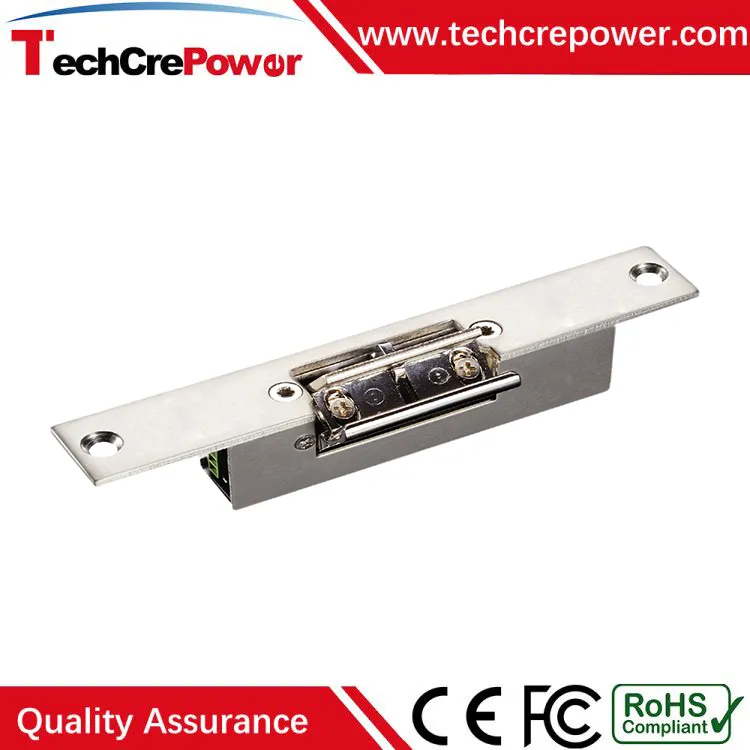

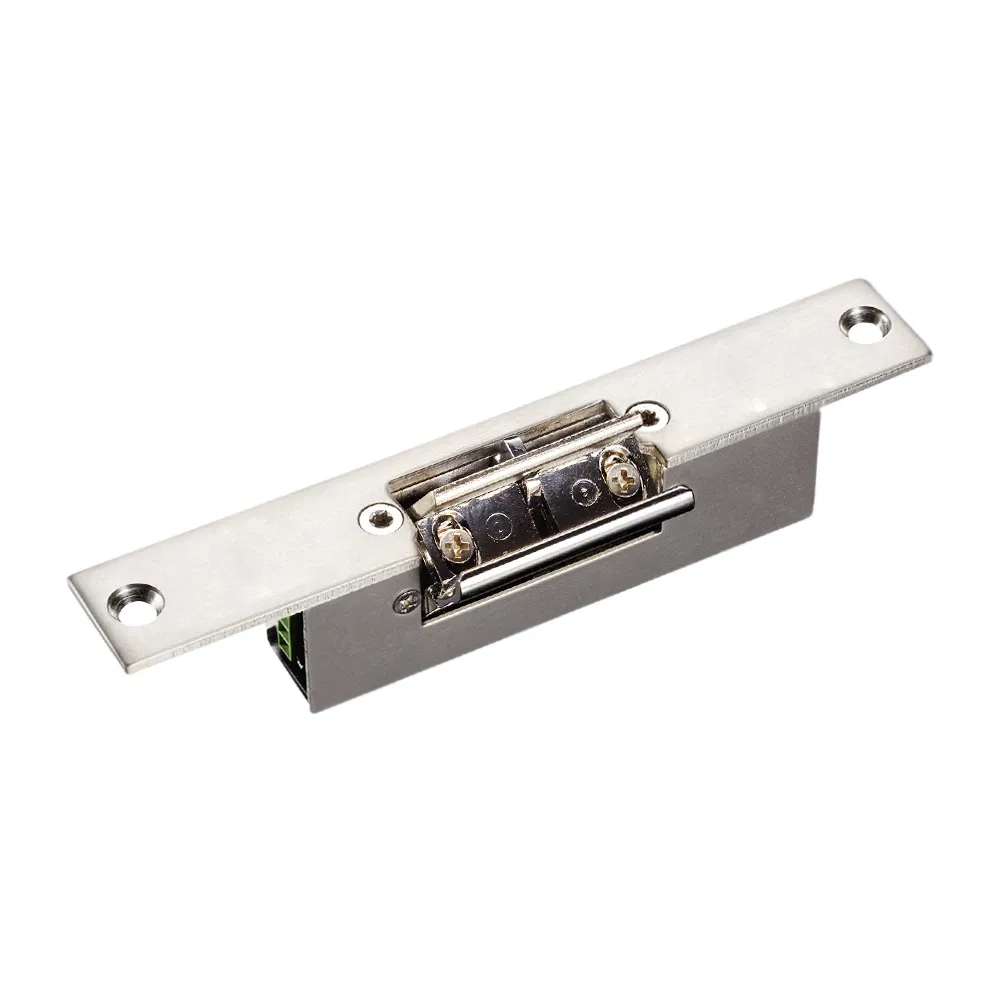

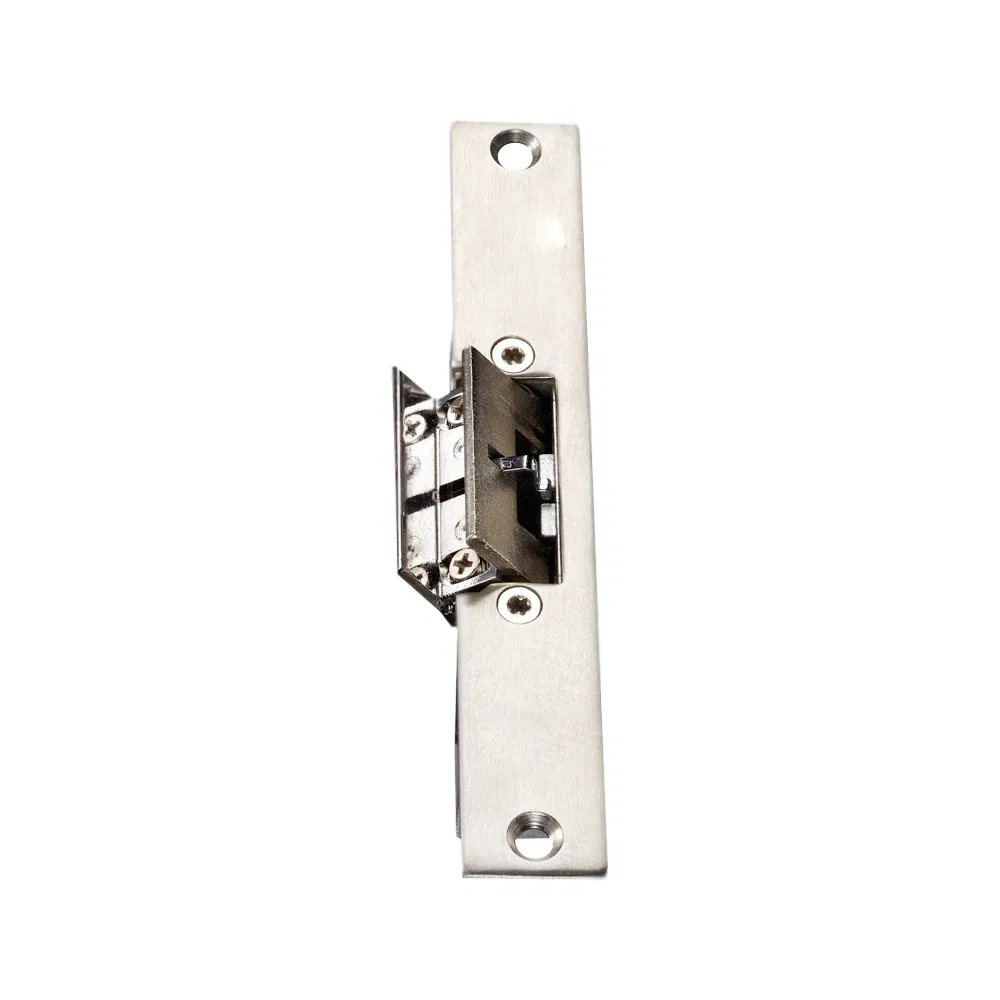

EL-133NC-S frameless glass door fail safe security electronic strike lock
EL-133NC-S is specifically designed for glass doors without frames. The operating principle of the electric strike is that electromagnetism produces the force to pull or push the release lever to lock or open the door.
| Product Parameter | Parameter Description |
|---|---|
| Lock Size | 160Lx25Wx31H(mm) |
| Structure | Stainless Steel |
| Holding Strength | 500kg |
| Voltage | DC12V (Optional DC24V) |
| Current | DC12V/200mA, DC24V/100mA |
| Feature | Fail Safe |
| Signal Output | Lock Status Output NO/NC/COM |
| Surface Temp | Within +20ºC |
| Suitable Temperature | -10~+55ºC(14-131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Face plate Housing | Painted Steel |
| Glass Thickness | 12-15mm |
| Opening Mode | 90 Degree Swinging Door |
| Function | Built-out MOV |
| Weight | 0.4kg |

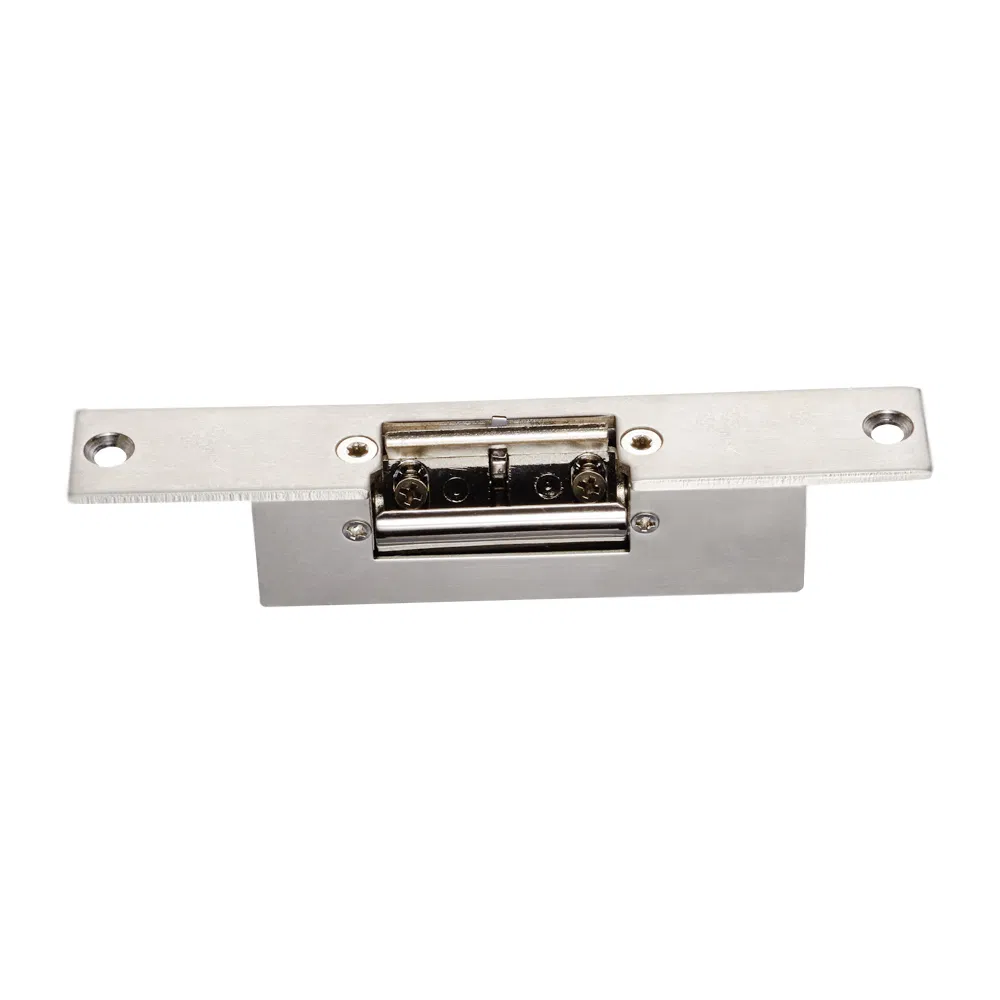

Product Gallery
Frequently Asked Questions
What is the "Fail Safe" function on this lock?
Fail Safe means that the door will unlock automatically when the power is cut or turned off, ensuring safety and easy exit during emergencies.
What is the suitable glass thickness for installation?
This electronic strike lock is designed for frameless glass doors with a thickness of 12mm to 15mm.
How much weight or force can this lock hold?
The EL-133NC-S provides a high holding force of up to 500kg (approximately 1100 lbs).
Does this lock support remote monitoring?
Yes, it features a signal output (NO/NC/COM) that allows you to monitor the real-time status of the lock.
What are the power requirements for this device?
The lock operates on DC12V with a 200mA current. A DC24V version is also available upon special request.
Is the lock body durable enough for high-traffic areas?
Yes, the strike structure is built from high-quality stainless steel, making it suitable for public passages, hospitals, and enterprises.
