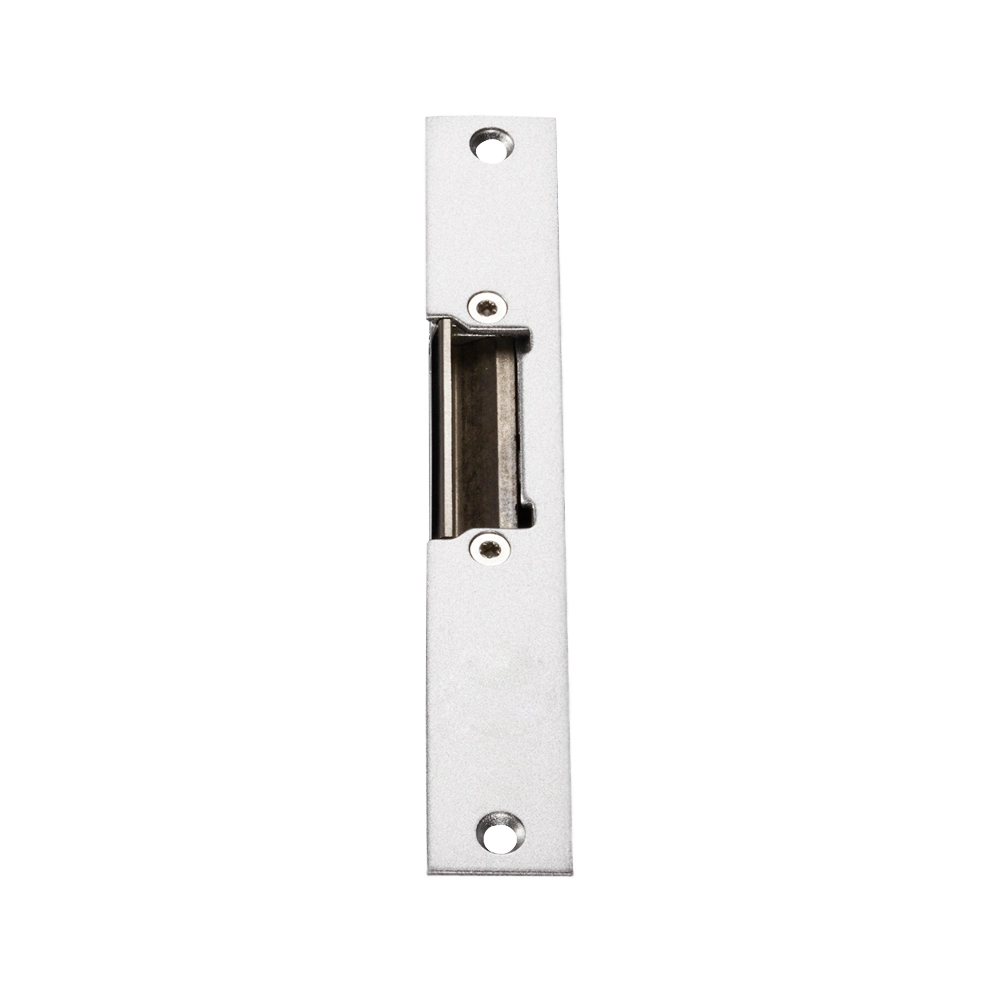

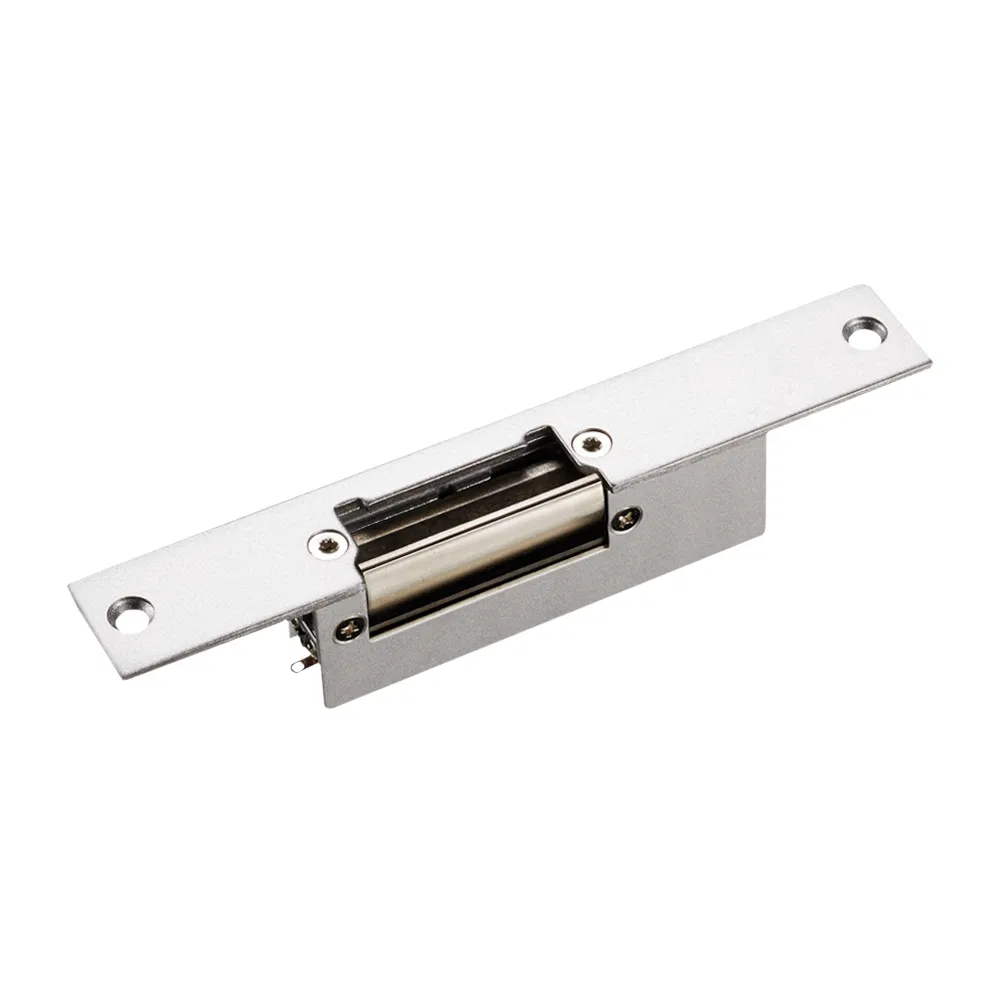

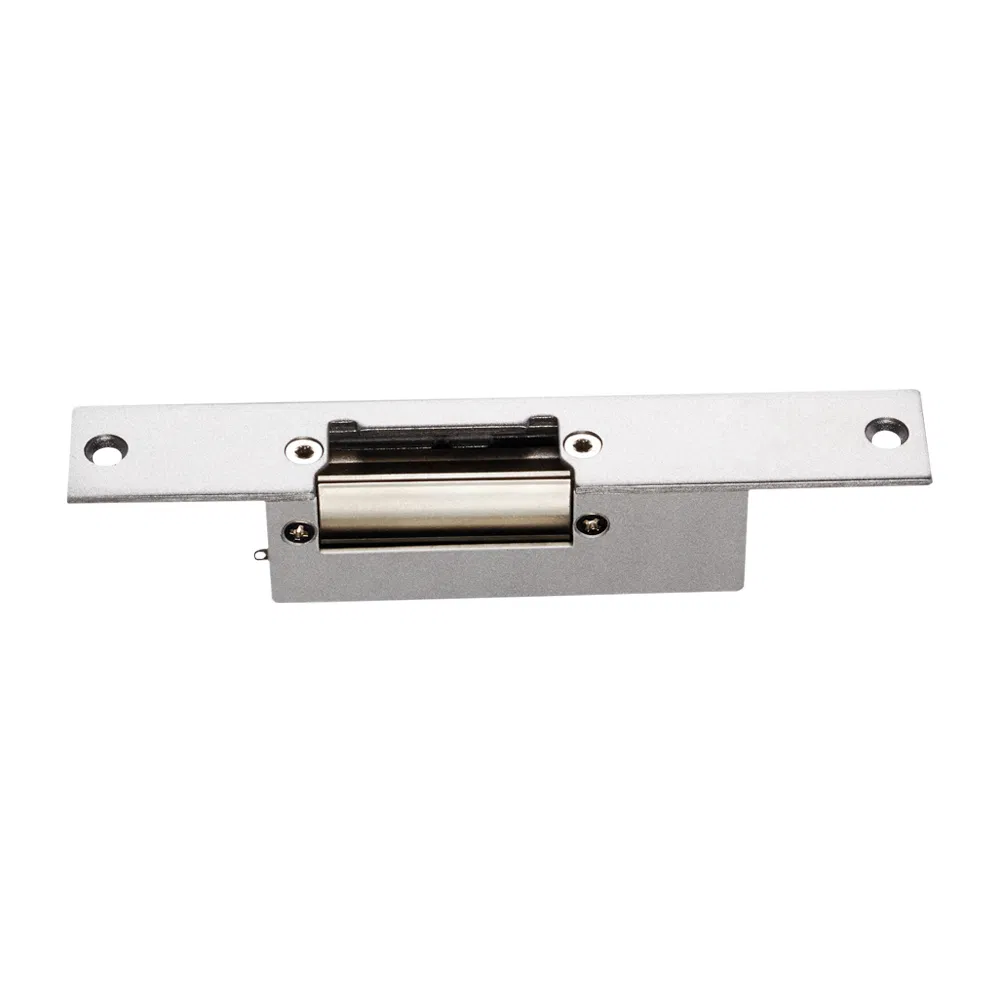

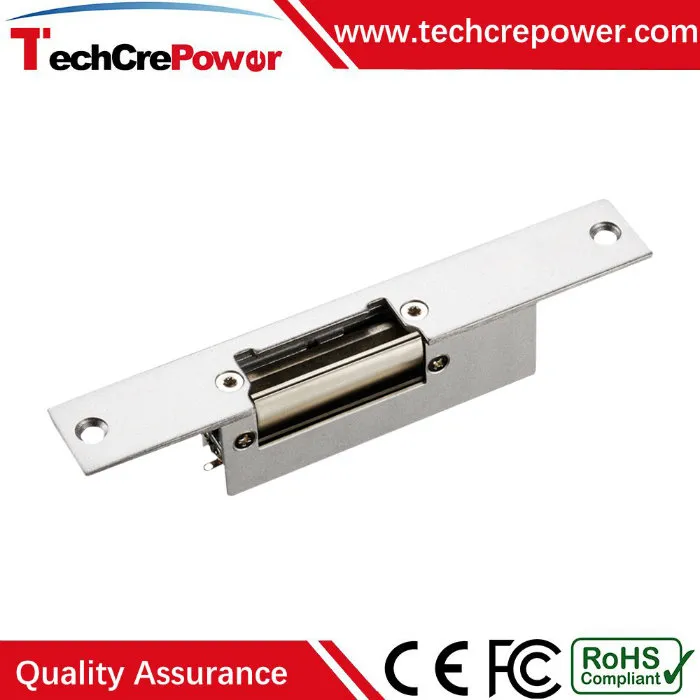

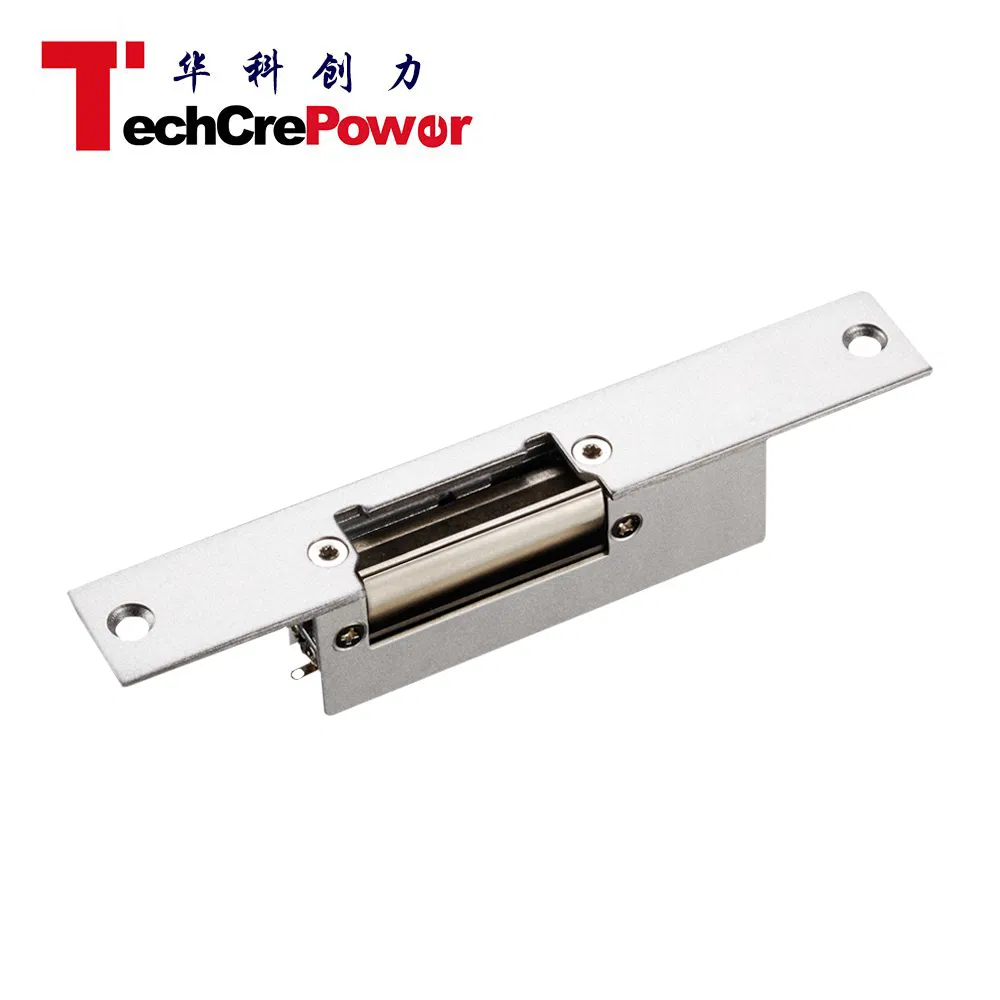

EL-131no/Nc Narrow-Type Stainless Steel 12V Electric Strike Lock
Product Description
Product Overview
The EL-131NO/NC is a professional-grade narrow-type stainless steel electric strike lock designed for high-security access control. With its robust construction and versatile operating modes, it serves as a reliable solution for various door types including wooden, metal, and PVC doors.
500kg Strength
1,000,000 Cycles Tested
CE & MA Approved
Basic Specifications
Technical Parameters
| Parameter | Description |
|---|---|
| Strike Structure | Stainless Steel |
| Current | 200mA (YS-131NO); 200mA (YS-131NC) |
| Working Mode | Fail Secure (NO) / Fail Safe (NC) |
| Signal Output | Lock Status NO/NC/COM |
| Suitable Temperature | -10 ~ +55ºC (14-131F) |
| Operating Humidity | 0 ~ 90% (non-condensing) |
| Function | Built-out MOV |
| Weight | 0.36kg |
Product Gallery
Frequently Asked Questions
Fail-Secure (NO mode) means the door remains locked when power is lost. Fail-Safe (NC mode) means the door unlocks automatically when power is cut off, which is often required for fire safety routes.
Yes, the EL-131 is suitable for wooden, metal, and PVC doors, specifically designed for narrow-type frames.
This model provides a strong holding force of up to 500kg, ensuring high security for public and private passages.
The standard version is DC12V, but a DC24V version can be customized upon order requirements.
Yes, it has been successfully tested for up to 1,000,000 operation cycles and features high-temperature painted steel for long-lasting use.
Yes, the device includes a signal output with NO/NC/COM connections to monitor the lock status.
