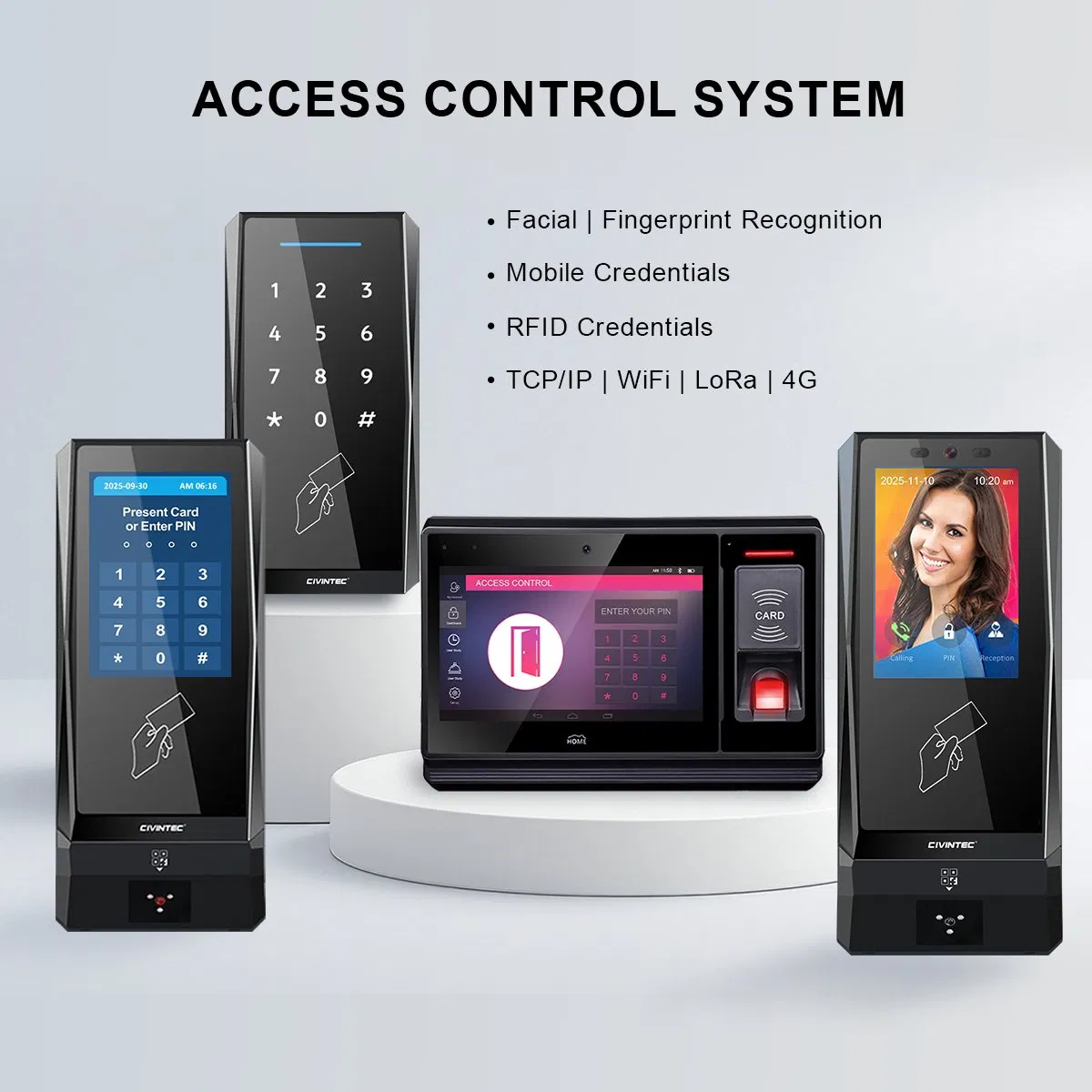

CT9 Touch Screen Keypad Smart NFC Card Reader Access Control System with Blue-Tooth Qr Code Mobile APP Remote
Product Description
Basic Information

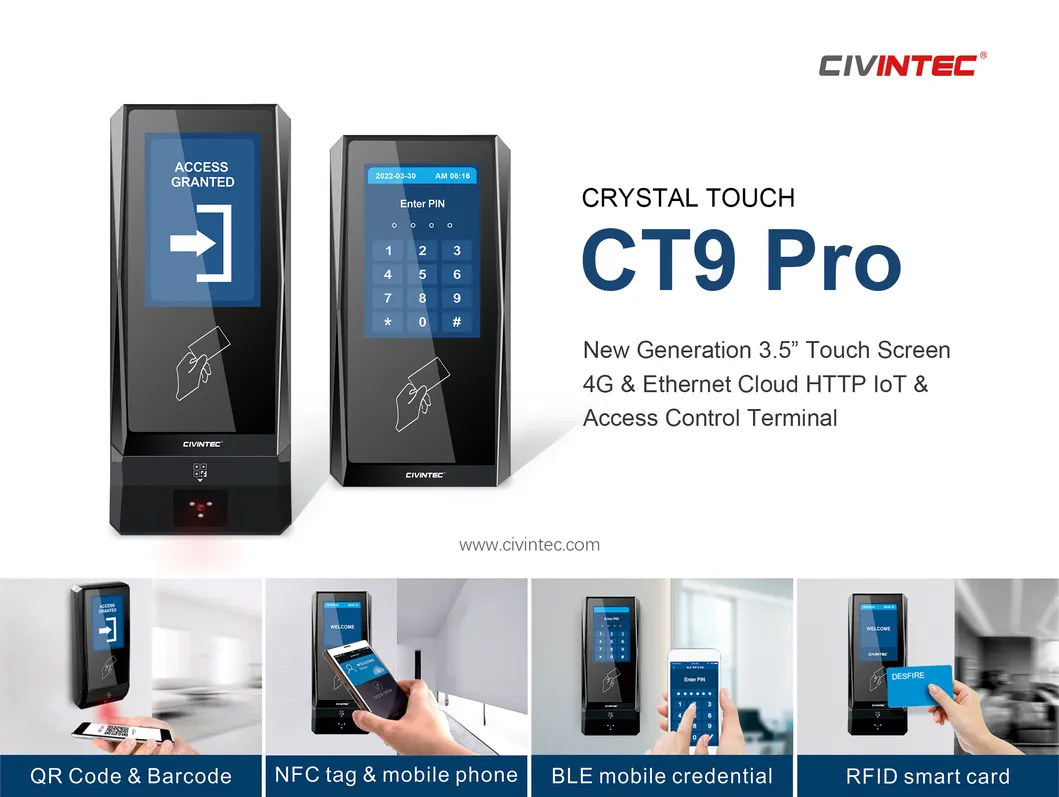

Product Overview

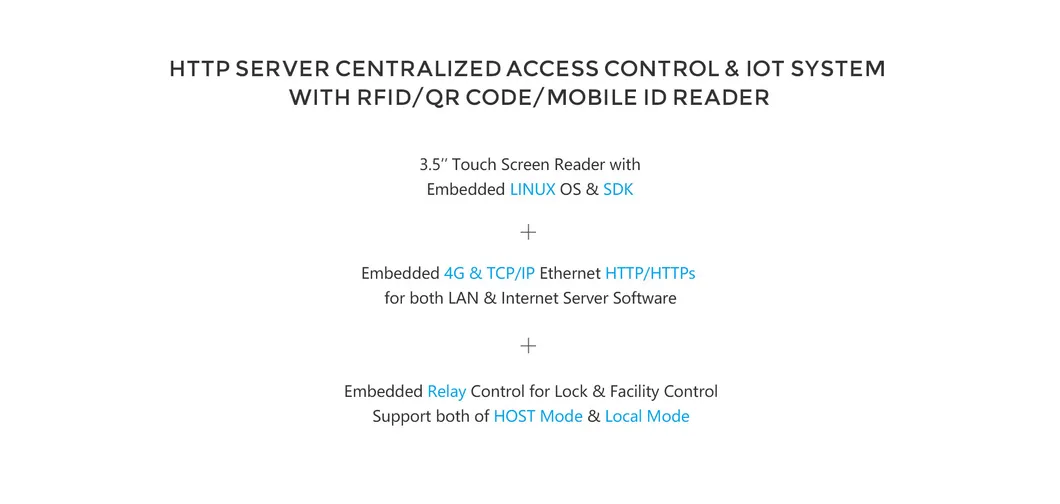

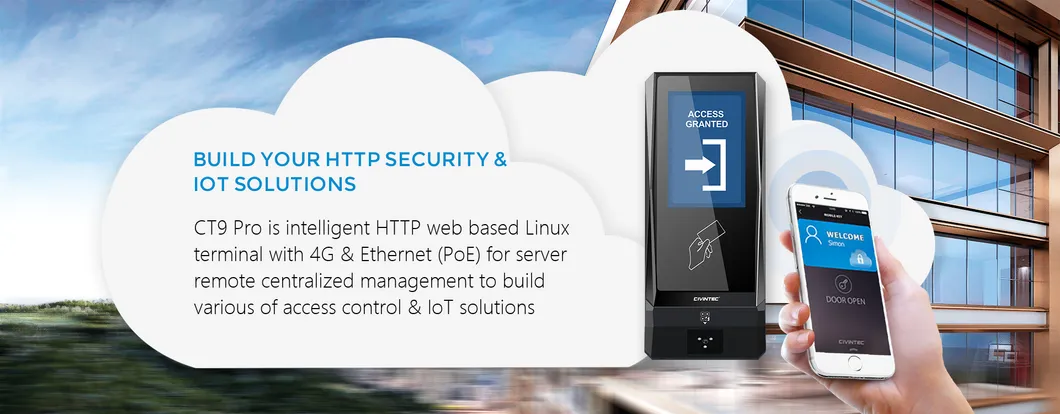

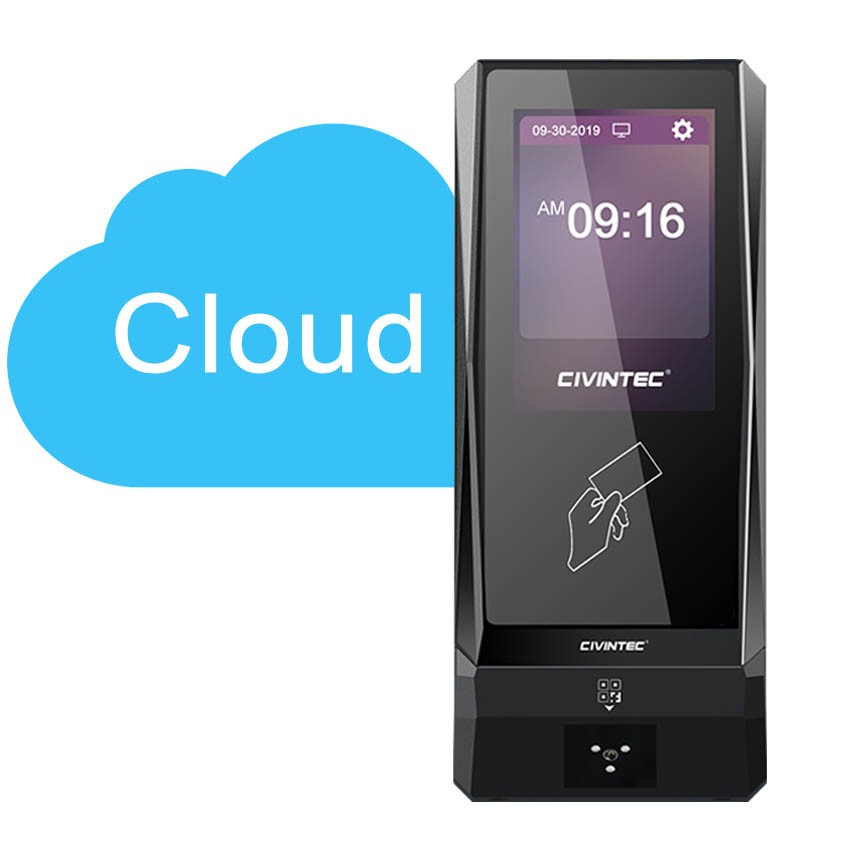

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE / barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 etc. |
| Mobile ID | BLE, NFC (Support BLE in iOS, and NFC/BLE in Android) |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Plus, DESFire® EV1/EV2/EV3, NFC tags, ISO14443B, iCLASS Seos® |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| I/O Port | 1~2 relay outputs Tamper alarm switch, door contact, door exit, Buzzer control |
| Capacity | 10,000 users / 50,000 logs |
Key Features

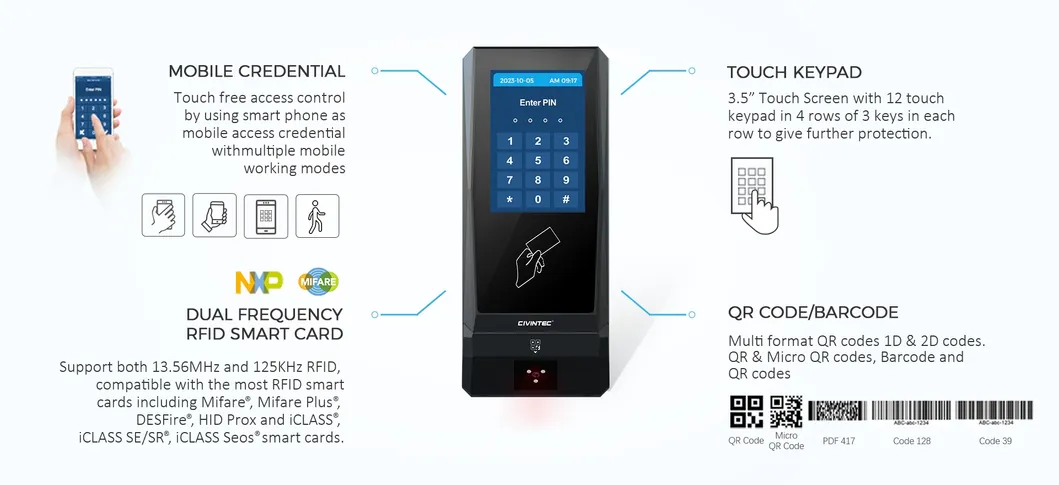

Incorporates 5-in-1 technologies: touch keypad, RFID dual frequency, BLE & NFC mobile access, and QR CODE/barcode for versatile visitor management.

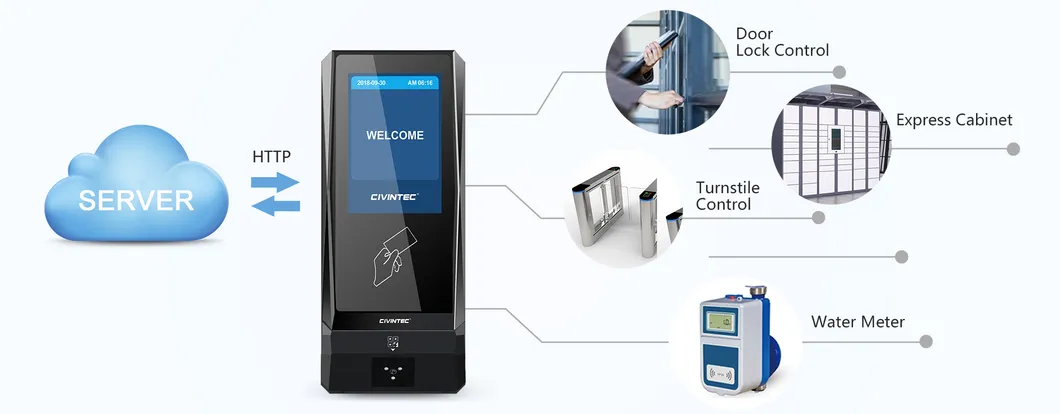

Bio-direction communication via standard HTTP & HTTPs between terminal and server to remotely control door locks and IoT facilities.

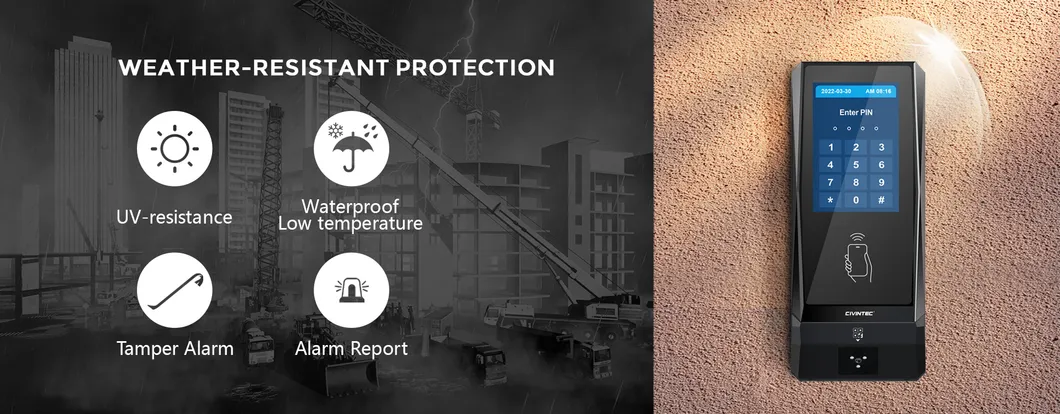

With IP65 ratings, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.

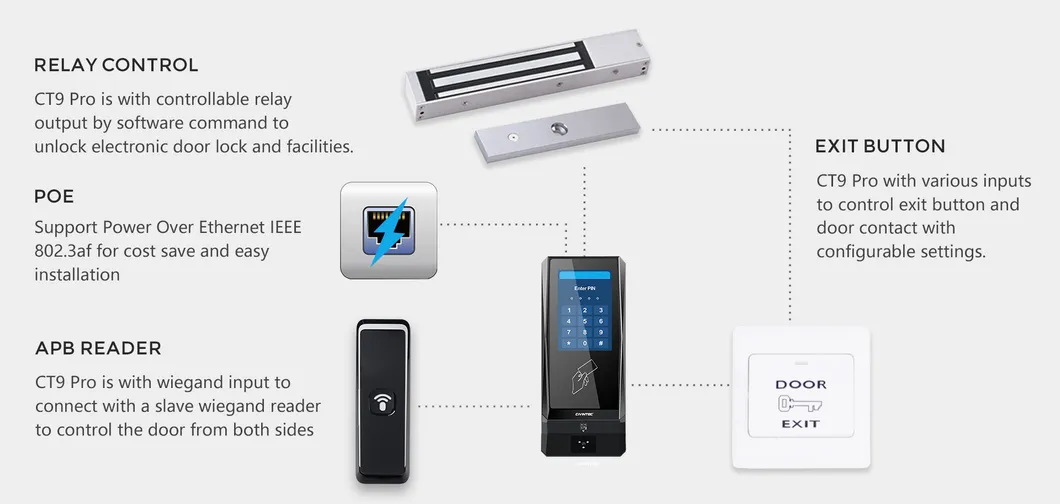

System Configuration & Customization

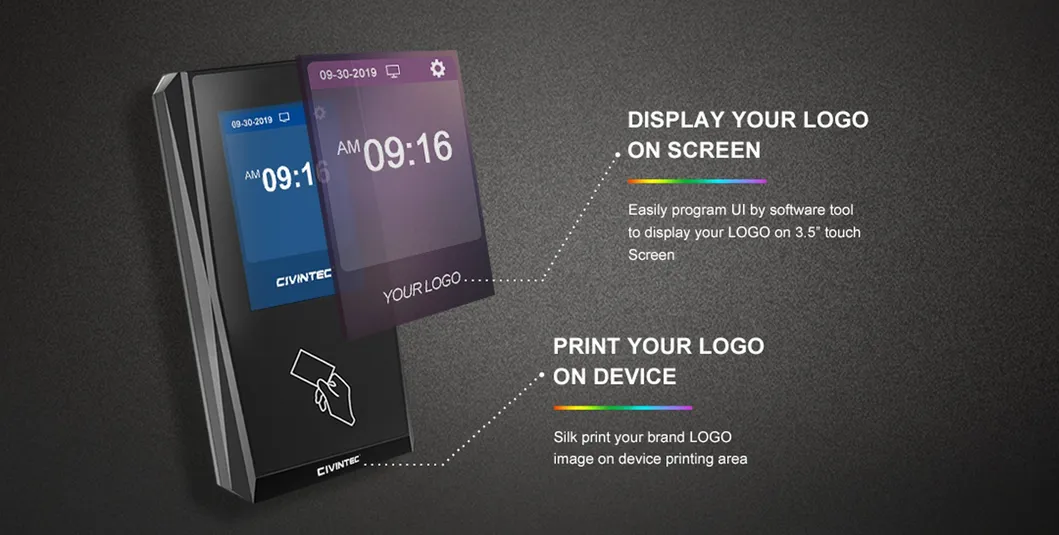

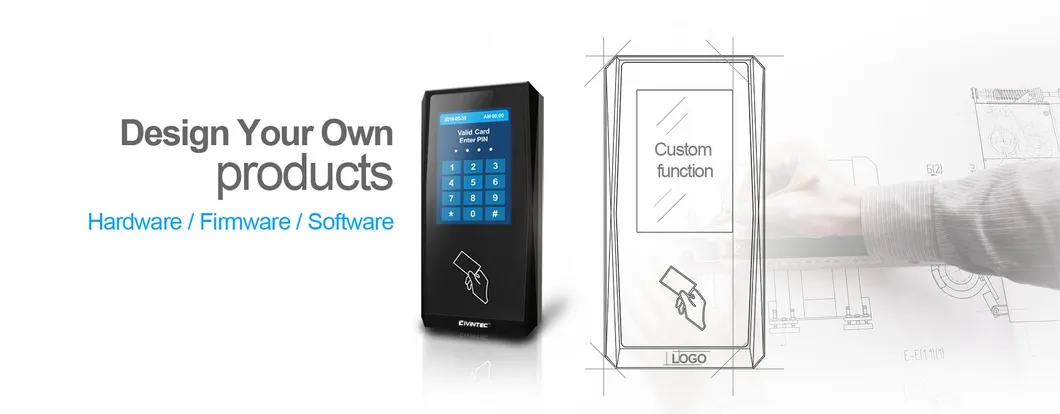

We offer ODM customization on hardware, housing, firmware, and software design. Users can program and display their own LOGO on the 3.5" touch screen.
