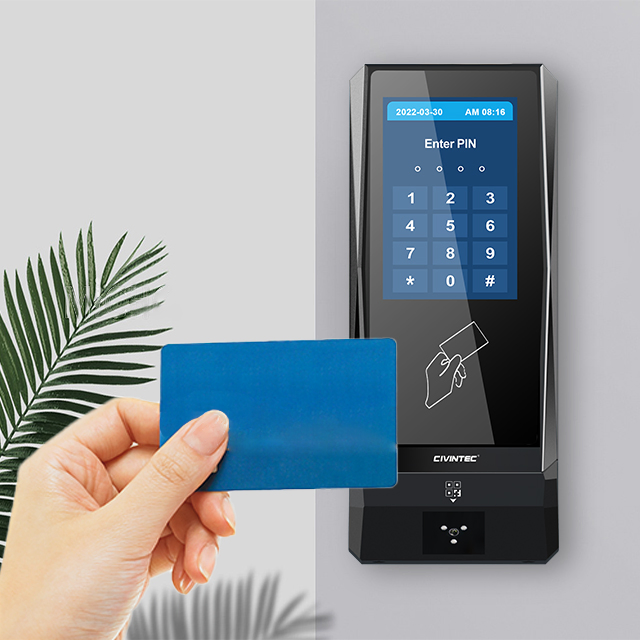

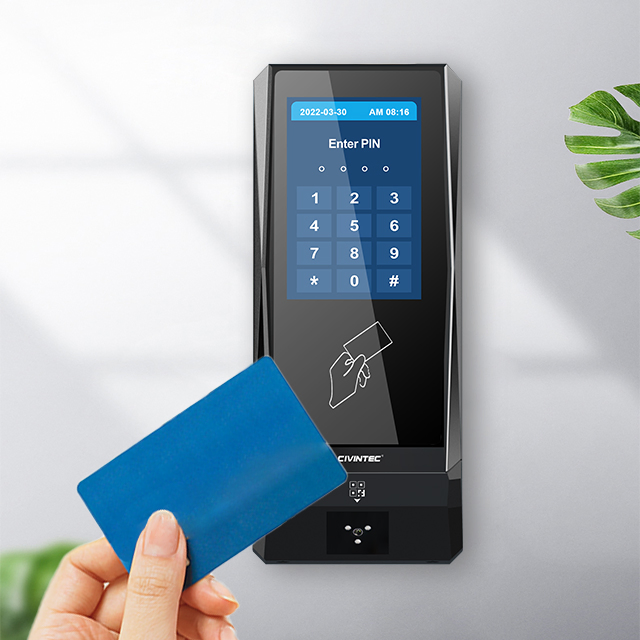

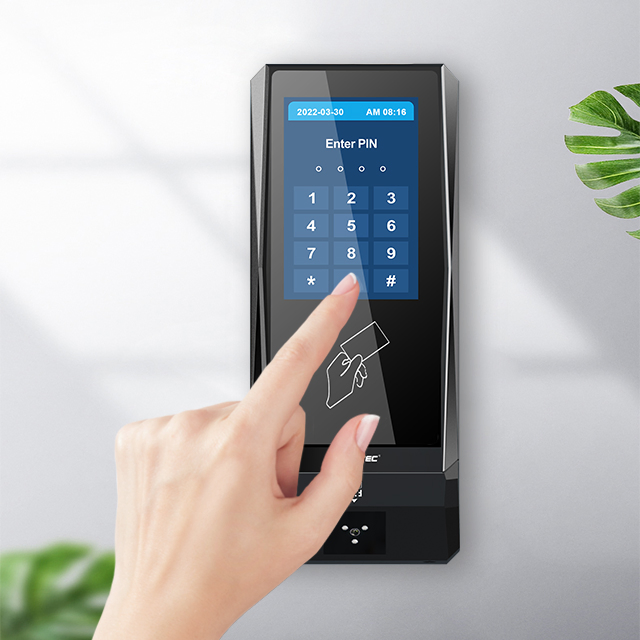

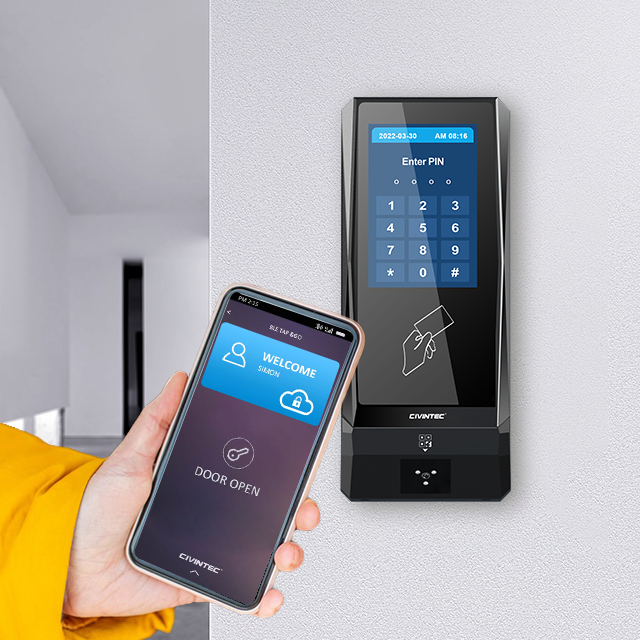

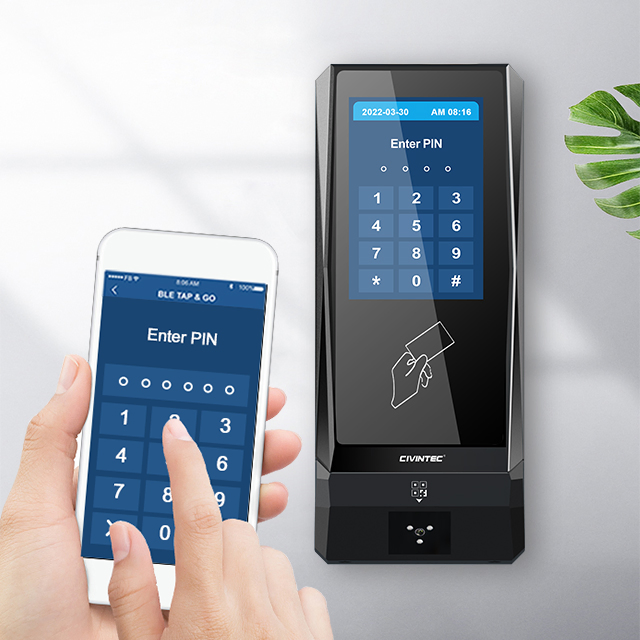

CT9 PRO TCP IP Poe Smart Access Control System with 13.56MHz NFC Communication RFID Card Reader
Product Description
Basic Information
Model NO.
CT9 PRO
Interface
USB, Serial Port, 4G, TCP/IP, RS485, Weigand
Reading Distance
10cm-15m
Application
Parking, Hospital, Library, Company, Bank, Store
Operating System
Linux OS
Display
3.5" Touch Screen Display
Identification
RFID, NFC, BLE, Pin Code
QR Code
QR Code, Barcode
User Capacity
10,000 Users
Protection
IP65 Waterproof Outdoor Use
Power
12-30V, PoE
Certification
CE, FCC

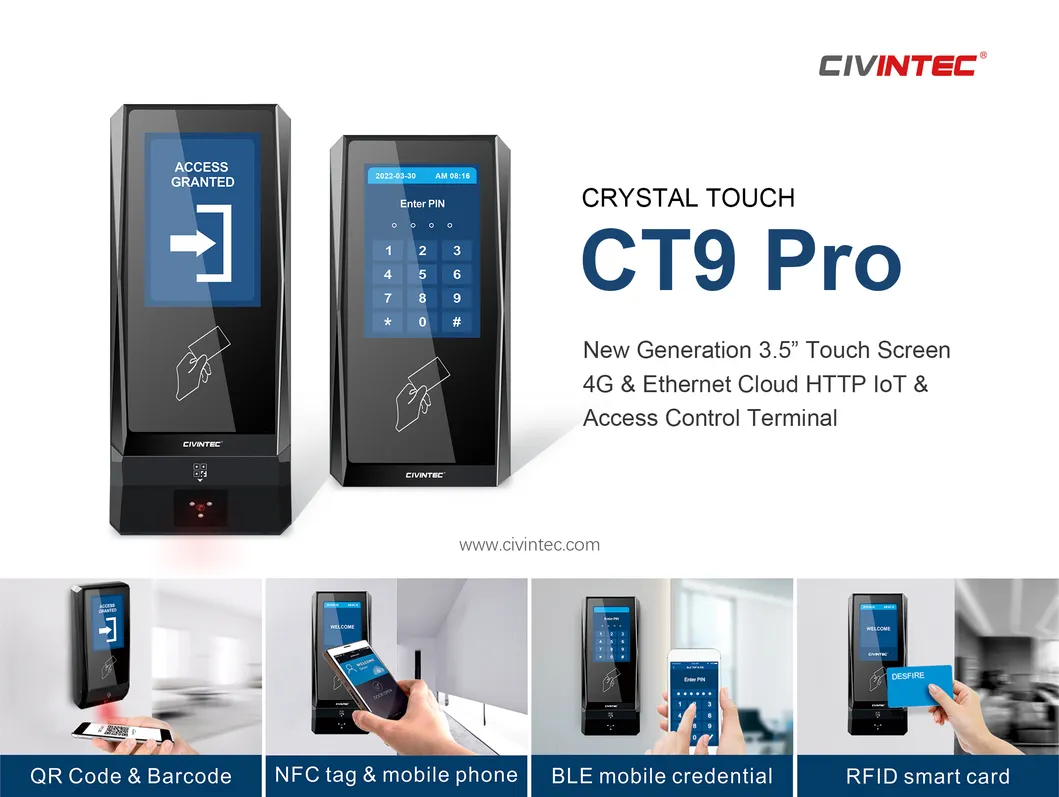

Product Overview
CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | 1D & 2D Codes: QR Code, Micro QR, PDF417, Code 128, etc. |
| Mobile ID | BLE, NFC |
| RFID Card | EM 125KHz, 13.56MHz Mifare Classic, Plus, DESFire EV1/EV2, HID Prox/iCLASS |
| SAM Slot | ISO7816(T=0,T=1) 1 SAM module |
| Interface | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, exit button |
| Storage | 10,000 users / 50,000 logs |
| IP Rating | IP65 outdoor/indoor use, UV-resistance |
Product Features

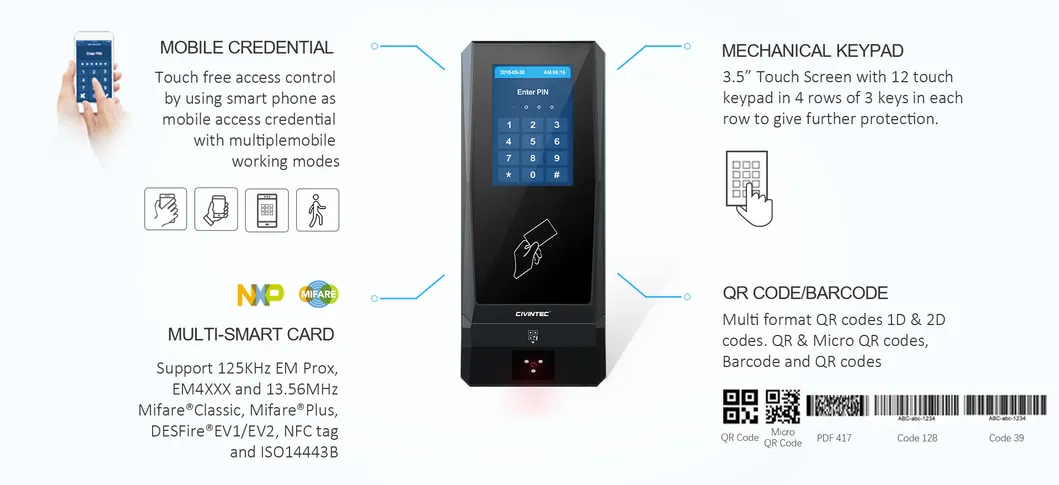

Multiple Access Credential:
Incorporates 5-in-1 technologies: touch keypad, dual RFID (125KHz/13.56MHz), BLE/NFC mobile access, and QR CODE/barcode for visitor management.
Incorporates 5-in-1 technologies: touch keypad, dual RFID (125KHz/13.56MHz), BLE/NFC mobile access, and QR CODE/barcode for visitor management.

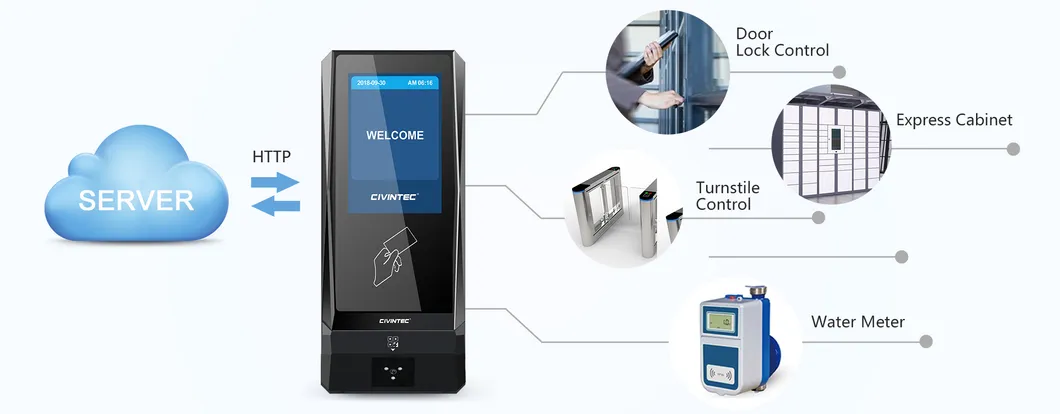

Cloud Server Remote Control:
Bi-directional communication via HTTP/HTTPs for remote door lock control and facility management.
Bi-directional communication via HTTP/HTTPs for remote door lock control and facility management.

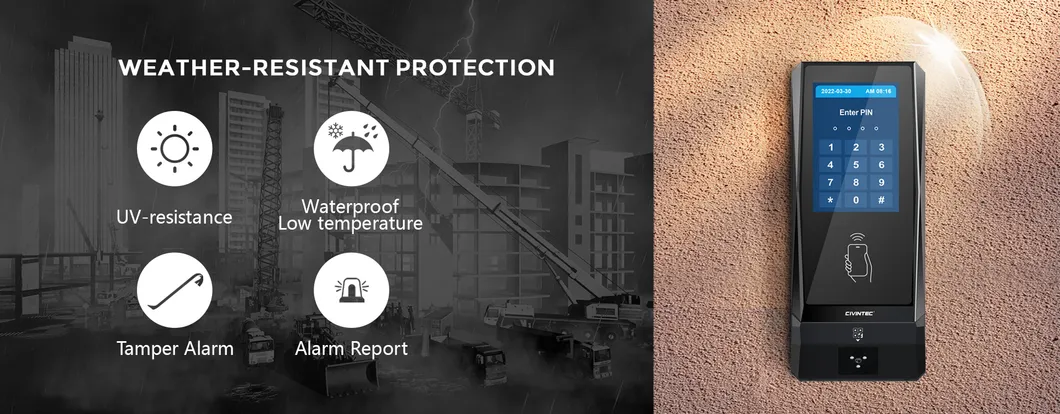

Weather-Resistant Protection:
IP65 rated for protection against rain, dust, and sunlight, ideal for outdoor and rugged environments.
IP65 rated for protection against rain, dust, and sunlight, ideal for outdoor and rugged environments.

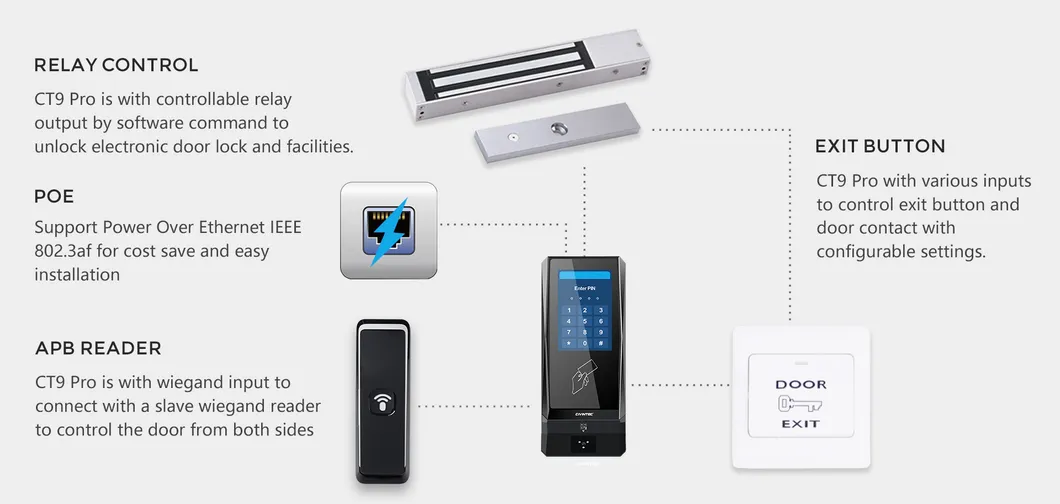

System Configuration
Customization Services
Support is available for ODM customization including hardware, housing, firmware, and software design.

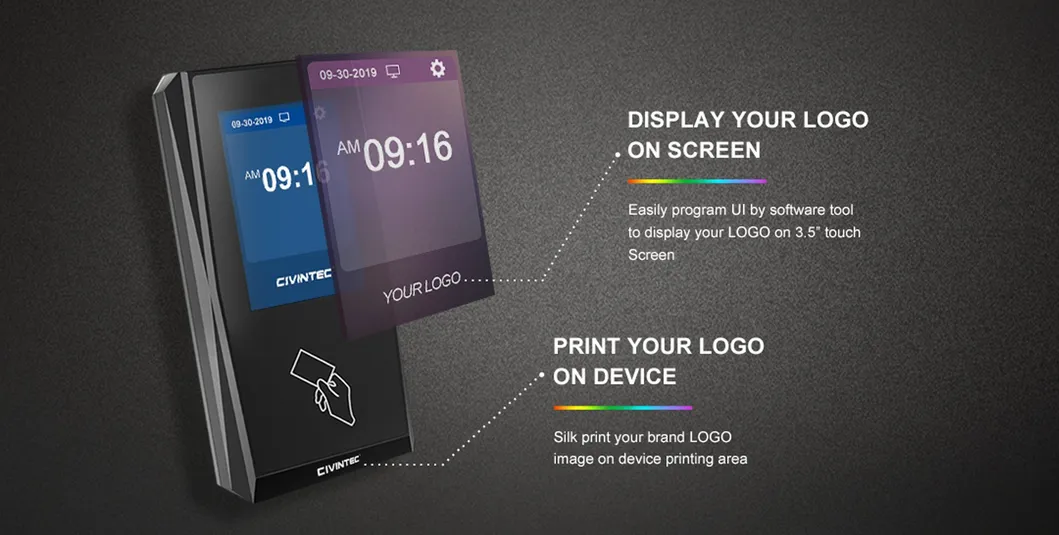

Users can program and display their own LOGO on the 3.5" touch screen and request OEM LOGO printing on the device body.
Related Products
Frequently Asked Questions
What identification methods does the CT9 PRO support?
The CT9 PRO supports 5-in-1 identification methods including RFID (125KHz & 13.56MHz), Mobile NFC, BLE (Bluetooth Low Energy), QR Codes/Barcodes, and Touch PIN codes.
Is this device suitable for outdoor installation?
Yes, the device is IP65 rated, making it resistant to weather, rain, dust, and UV rays, suitable for both indoor and outdoor environments.
Does the terminal support Power over Ethernet (PoE)?
Yes, it supports PoE IEEE 802.3af, allowing for simplified installation by providing power and data through a single Ethernet cable.
How many users can the CT9 PRO handle in offline mode?
The terminal can store up to 10,000 card users and 50,000 event logs in its local memory.
What communication protocols are available for integration?
It offers versatile communication options including 4G, TCP/IP, Wiegand, and RS485 OSDP protocols for seamless integration with cloud or local servers.
Can I customize the display on the touch screen?
Yes, the 3.5" touch screen is programmable, allowing users to display custom logos and interfaces.
