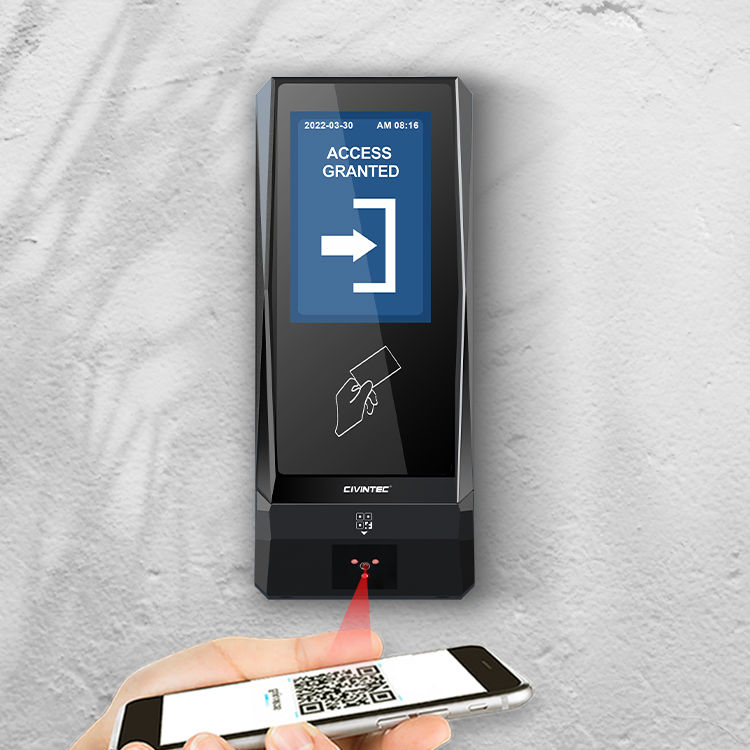

CT9 OEM Logo NFC Configuration Machine Visitor Access Control Software Smart Parking Systems with 4G
Product Description
Basic Information

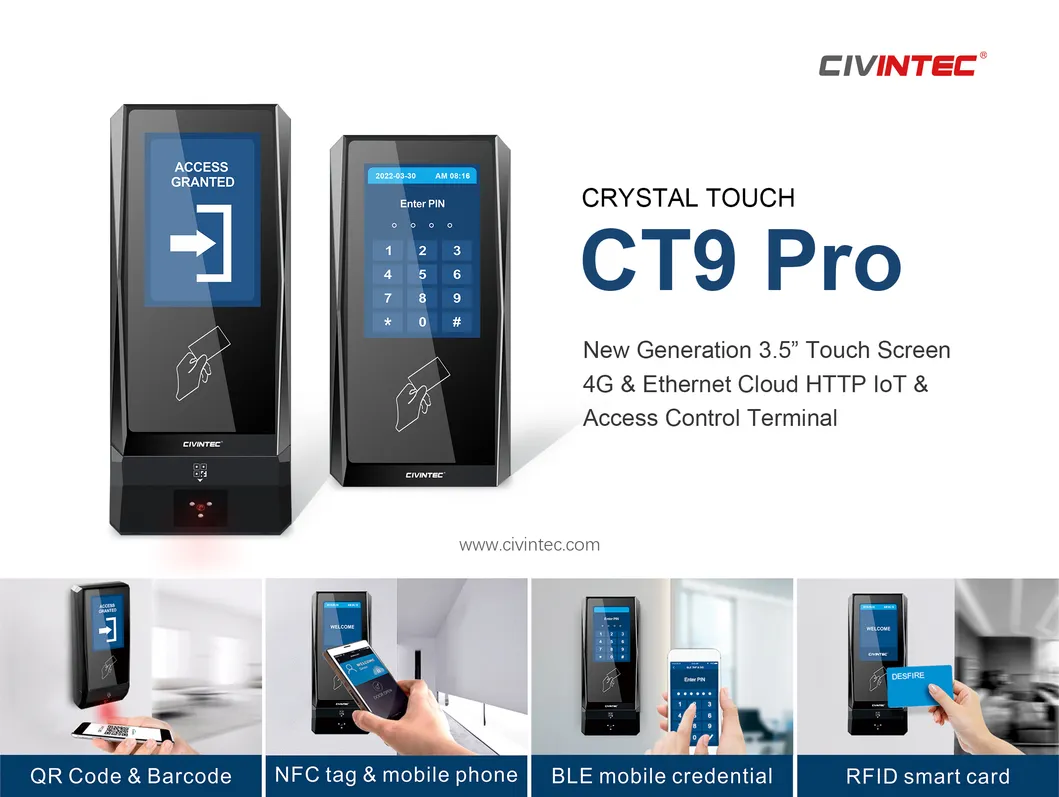

Product Overview

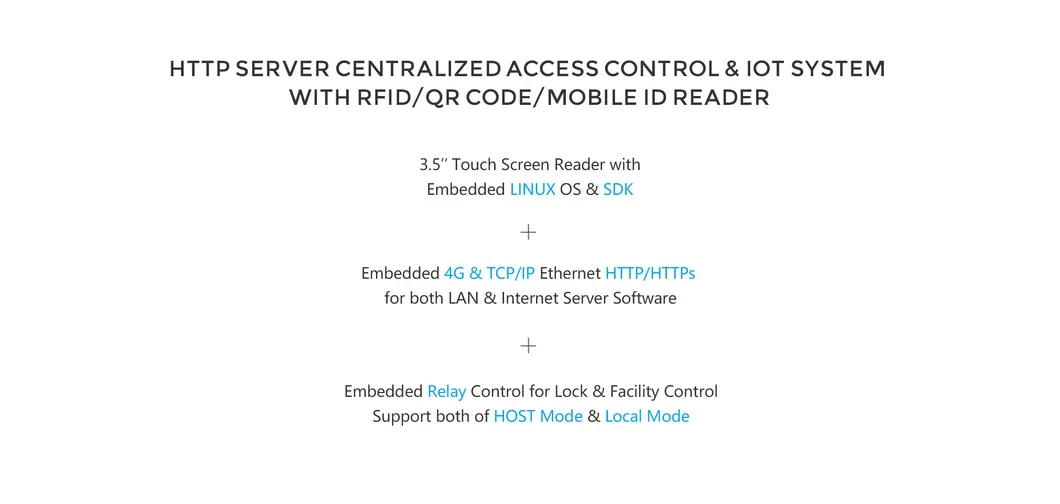

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
Technical Specifications
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Plus, DESFire® EV1, EV2, NFC tags, ISO14443B, HID Prox and iCLASS® |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit |
| Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |
Key Features

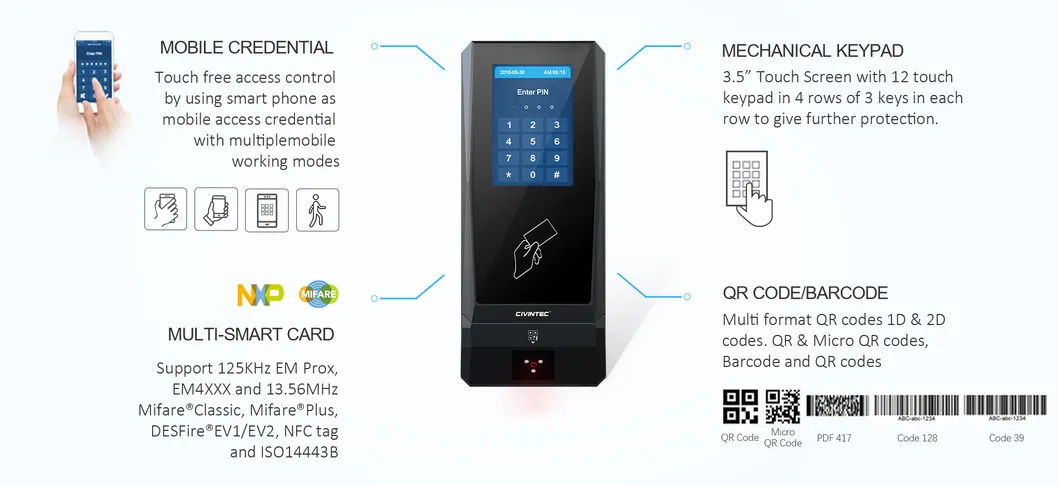

Multiple Access Credential

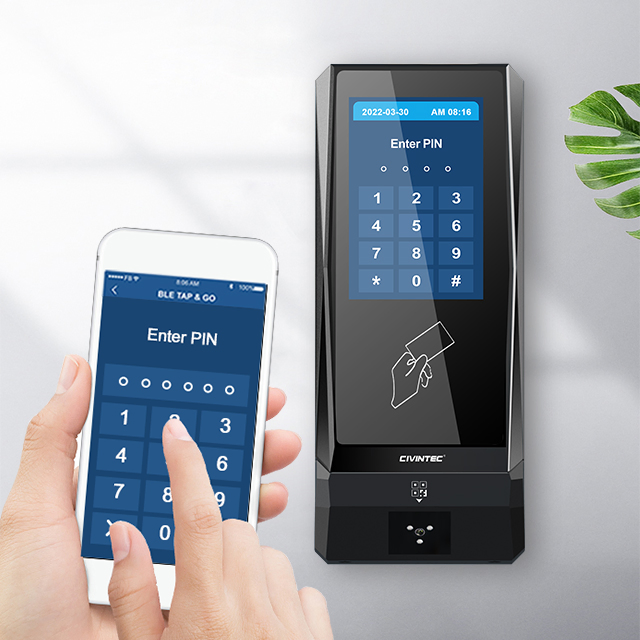

CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

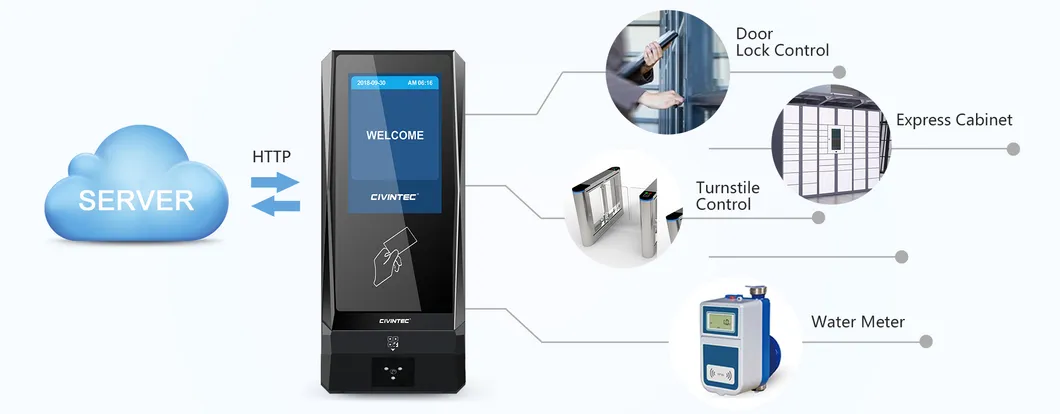

Cloud Server Remote Control
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.

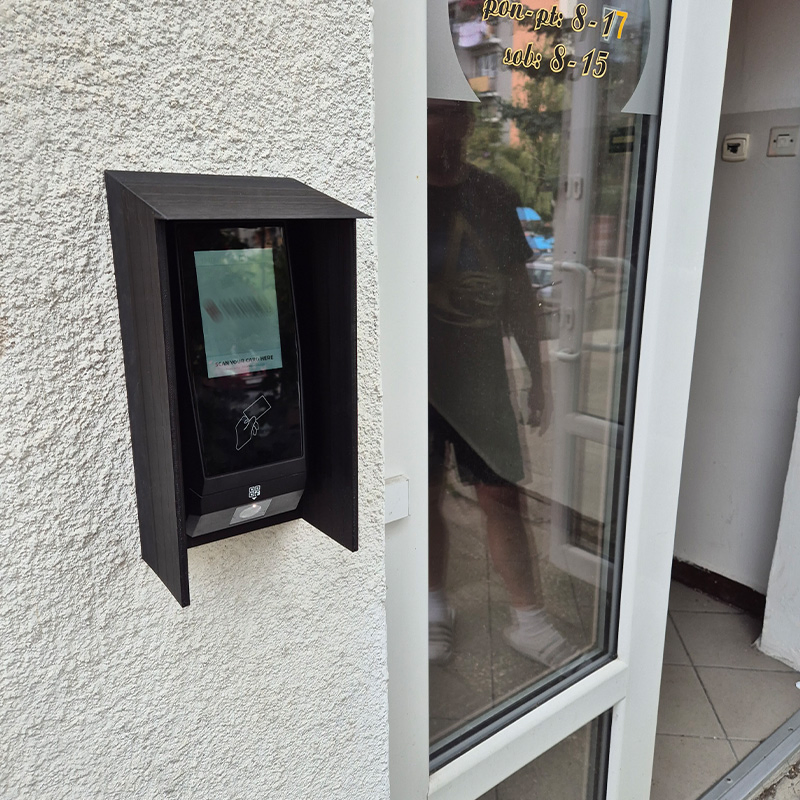

Weather-Resistant Protection
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, strong sunlight, ideal for outdoor use and various rugged working environments.

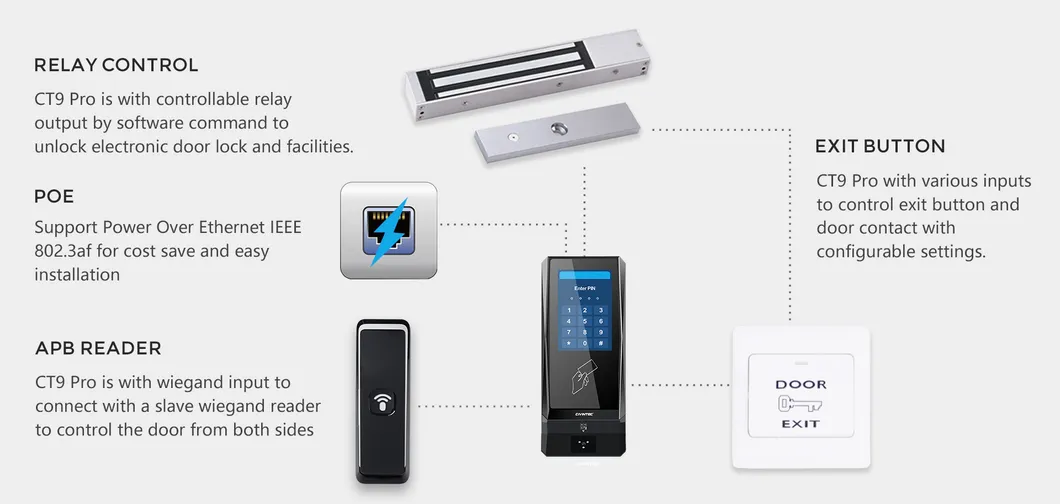

System Configuration
Customization Service

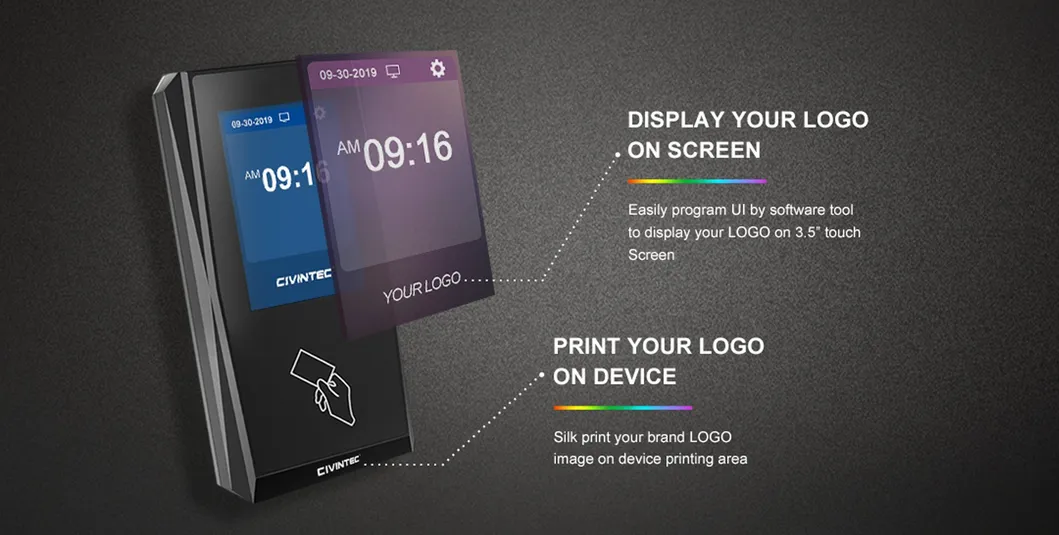

We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
