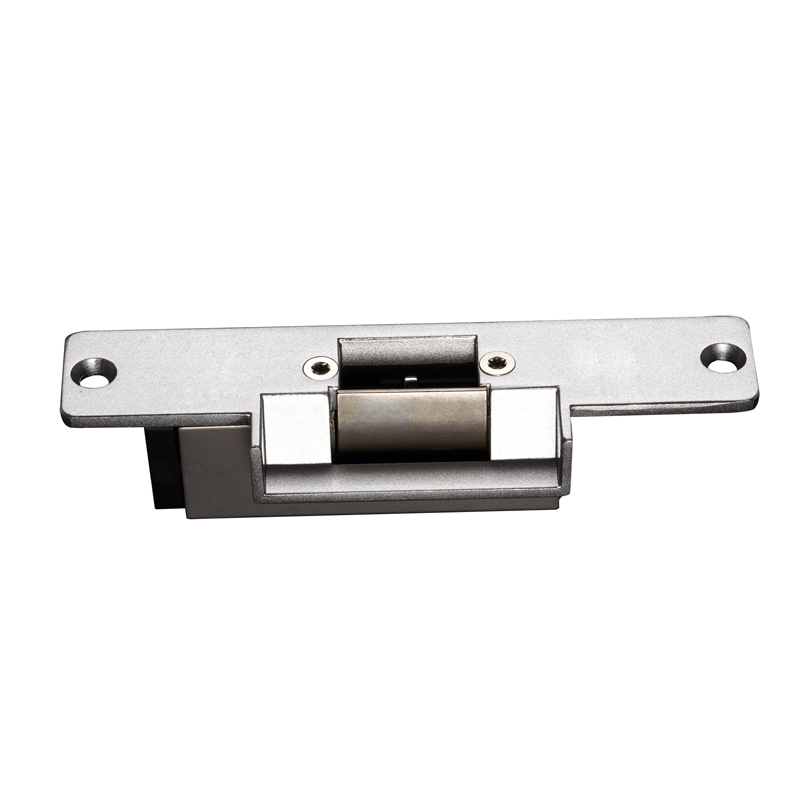

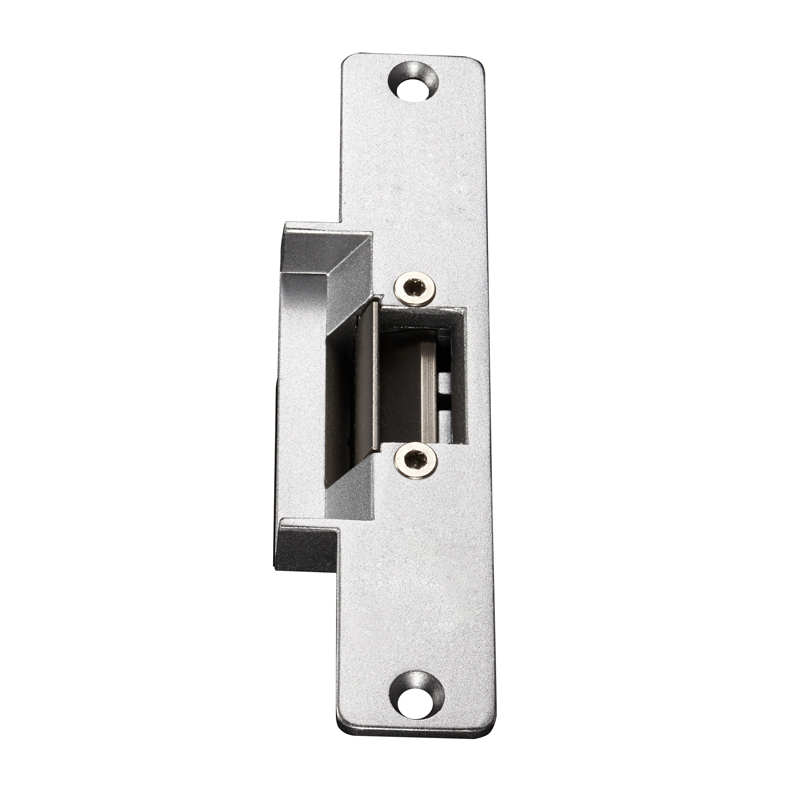

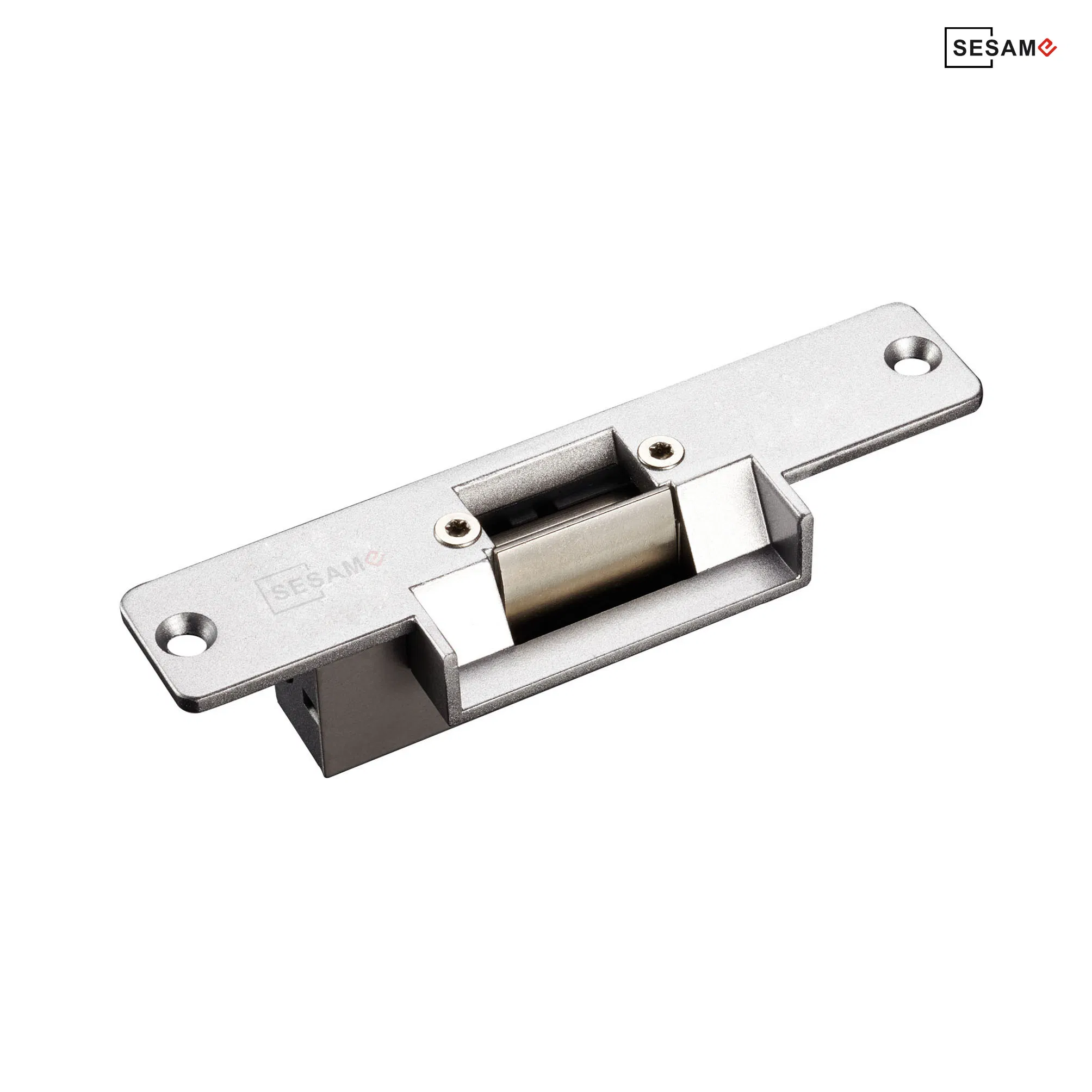

800kg Holding Force Fail Safe Standard Type Electric Strike Door Lock (SE-0NC) Suitable for Wooden Door Metal Door PVC Door
Product Description
The Fail Safe Standard Type Electric Strike is a reliable security product offering a simple yet effective solution for access control. Designed with fail safe functionality, it ensures easy access during emergencies. This standard type design is versatile for various applications, operating at stable voltage and current. Crafted from high-quality materials, it guarantees durability for both commercial and residential environments.
🛡️
High Security
800kg holding force provides robust protection for public and private passages.
⚡
Electrical Protection
Equipped with a built-out MOV to prevent electrical surges and ensure stable operation.
🚪
Versatile Application
Suitable for Wooden, Metal, and PVC doors with a 90-degree swinging mechanism.
| Model Number | SE-0NC |
| Holding Force | 800kg |
| Voltage / Current | 12VDC / 450mA |
| Lock Size | 150L x 39.5W x 31H (mm) |
| Feature | Fail Secure |
| Surface Temperature | Within +20℃ |
| Face Plate Housing | Electroplating |
| Opening Mode | 90 Degree Swinging Door |
| Weight | 0.35kg |
| Certification | FCC, CE |
- Possesses a holding force of 800kg for enhanced security.
- Operates at 12VDC with 450mA current for stable functioning.
- Comes with fail secure feature for restricted access during power loss.
- Surface temperature remains within +20ºC for safe continuous usage.
- Electroplated face plate housing for maximum durability and corrosion resistance.
- Lightweight 0.35kg design for simplified installation.
Warranty Period: 18 months to 3 years depending on the specific product type. The warranty starts from the delivery date.
Maintenance: Lifetime maintenance support is provided. We ensure repair or replacement of non-consumable parts within the warranty period.
What is the maximum holding force of this lock?
The SE-0NC electric strike provides a robust holding force of 800kg, making it suitable for high-security environments.
Which types of doors are compatible with this device?
It is designed for versatility and is compatible with wooden doors, metal doors, and PVC doors with a 90-degree swinging mechanism.
What are the power requirements?
The device operates on a standard 12VDC voltage with a current draw of 450mA.
Does the lock come with any electrical protection?
Yes, it includes a built-out MOV (Metal Oxide Varistor) which provides essential protection against electrical surges and spikes.
What is the fail-safe/fail-secure status of this model?
This specific model features a Fail Secure mechanism, meaning the door remains locked during a power failure to maintain security.
Is the product certified for international standards?
Yes, the SE-0NC is certified with both FCC and CE markings, ensuring it meets strict safety and quality standards.
