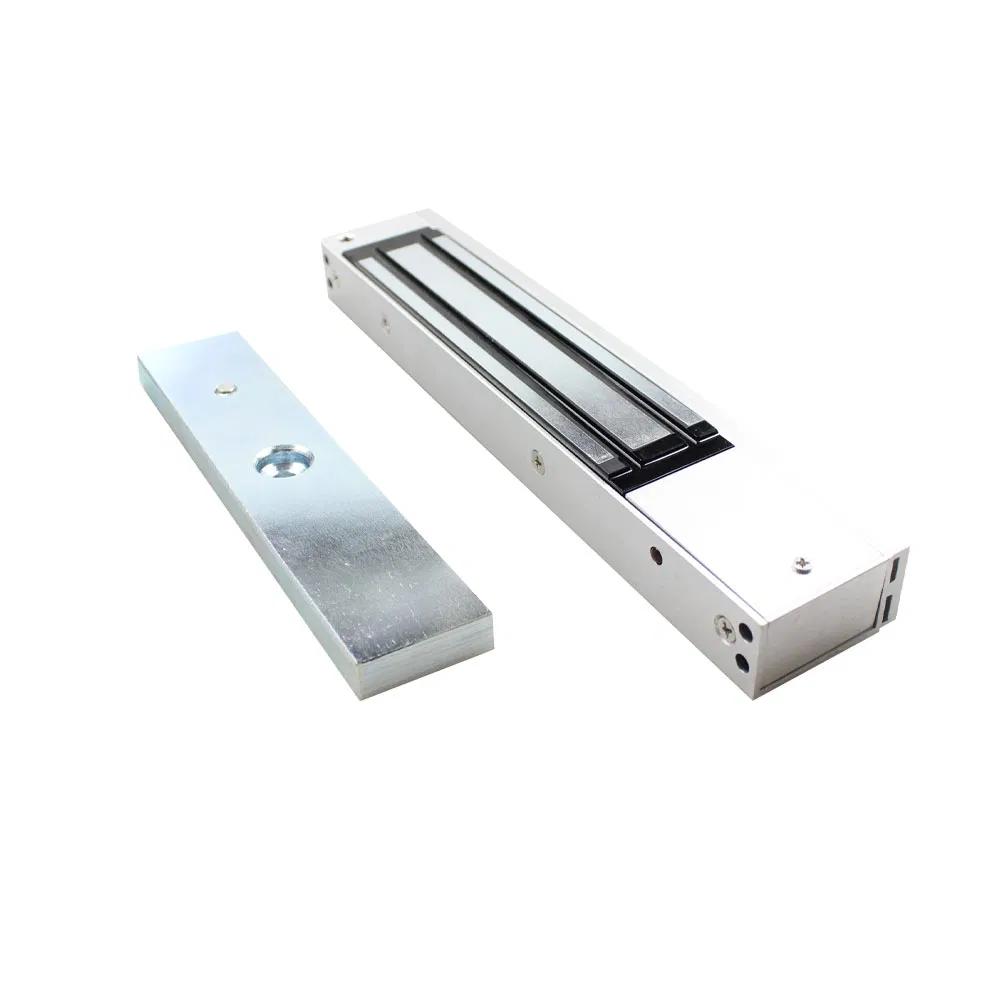

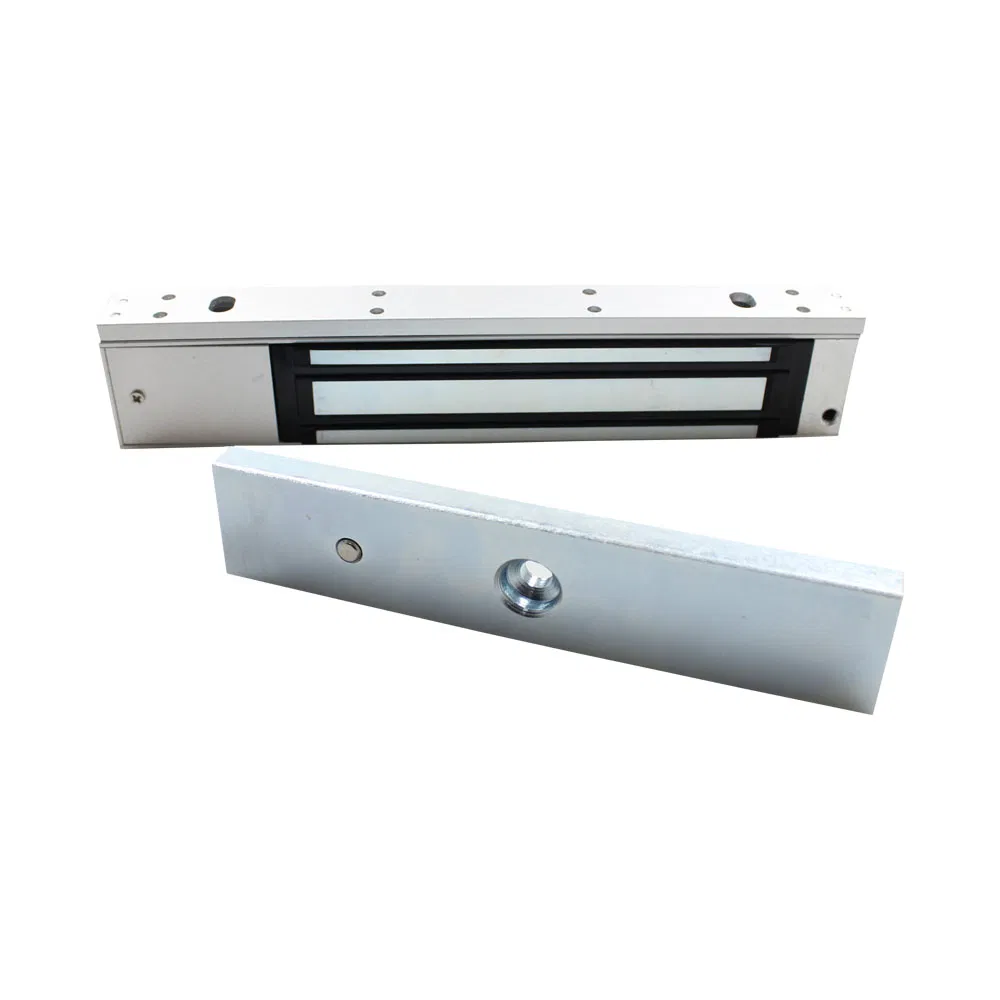

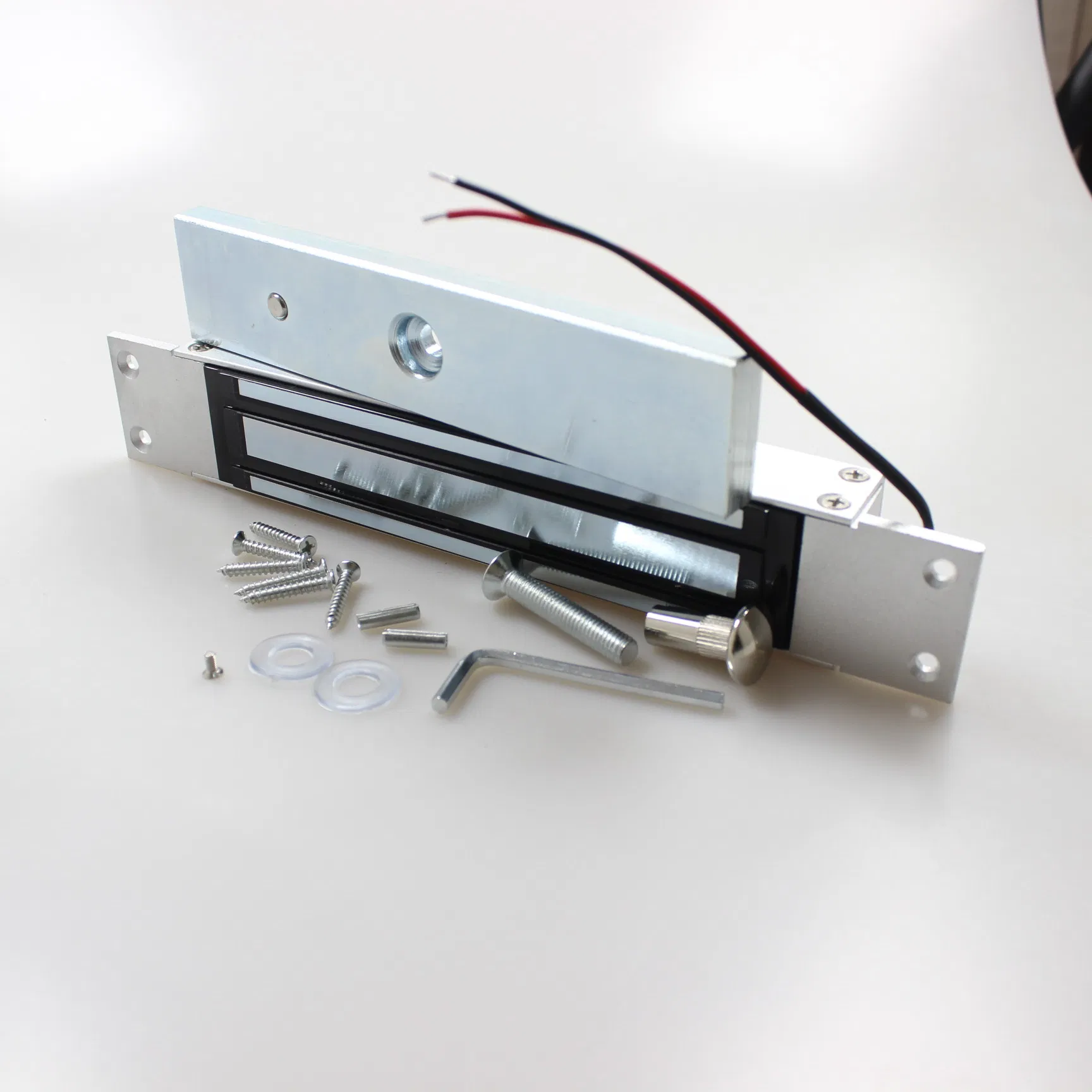

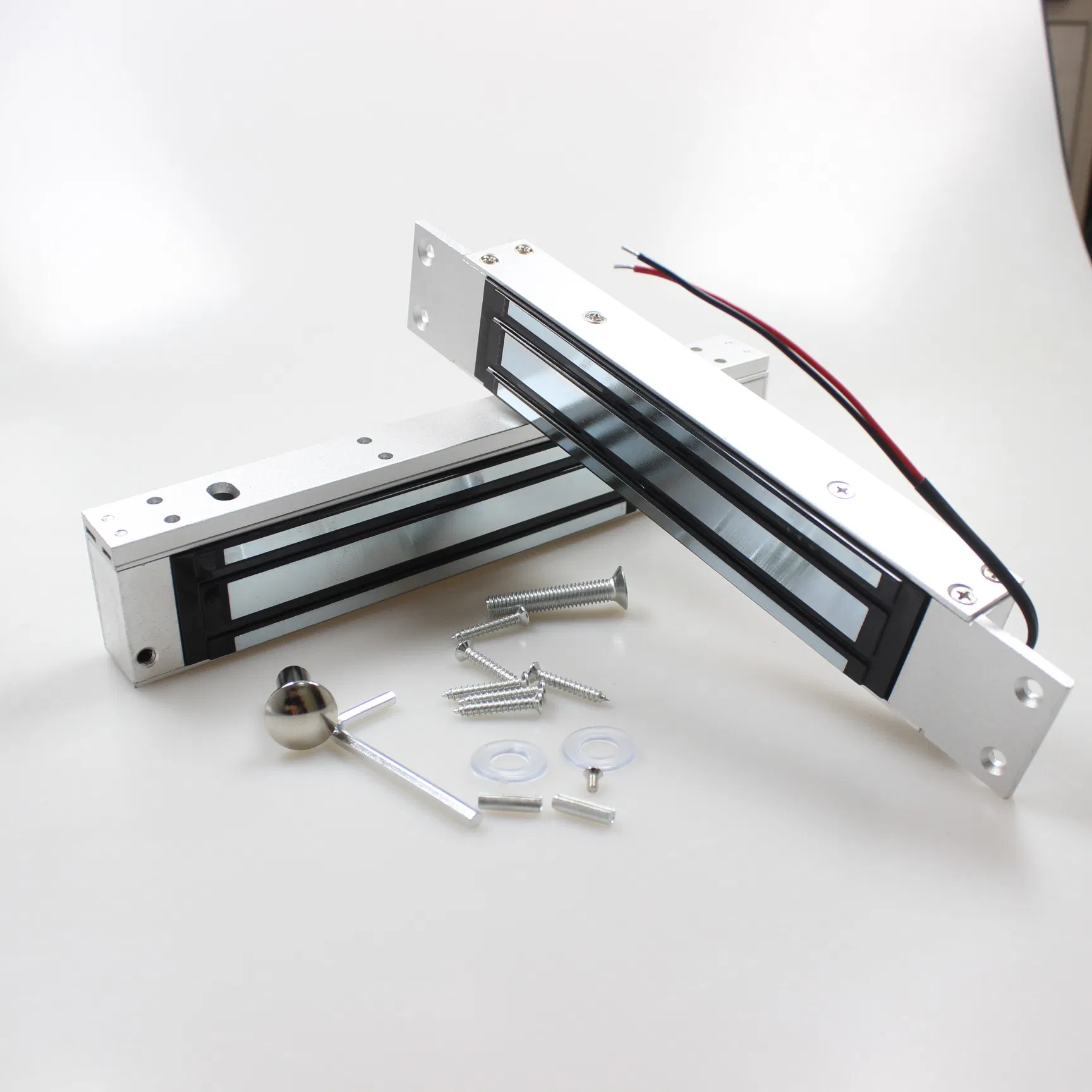

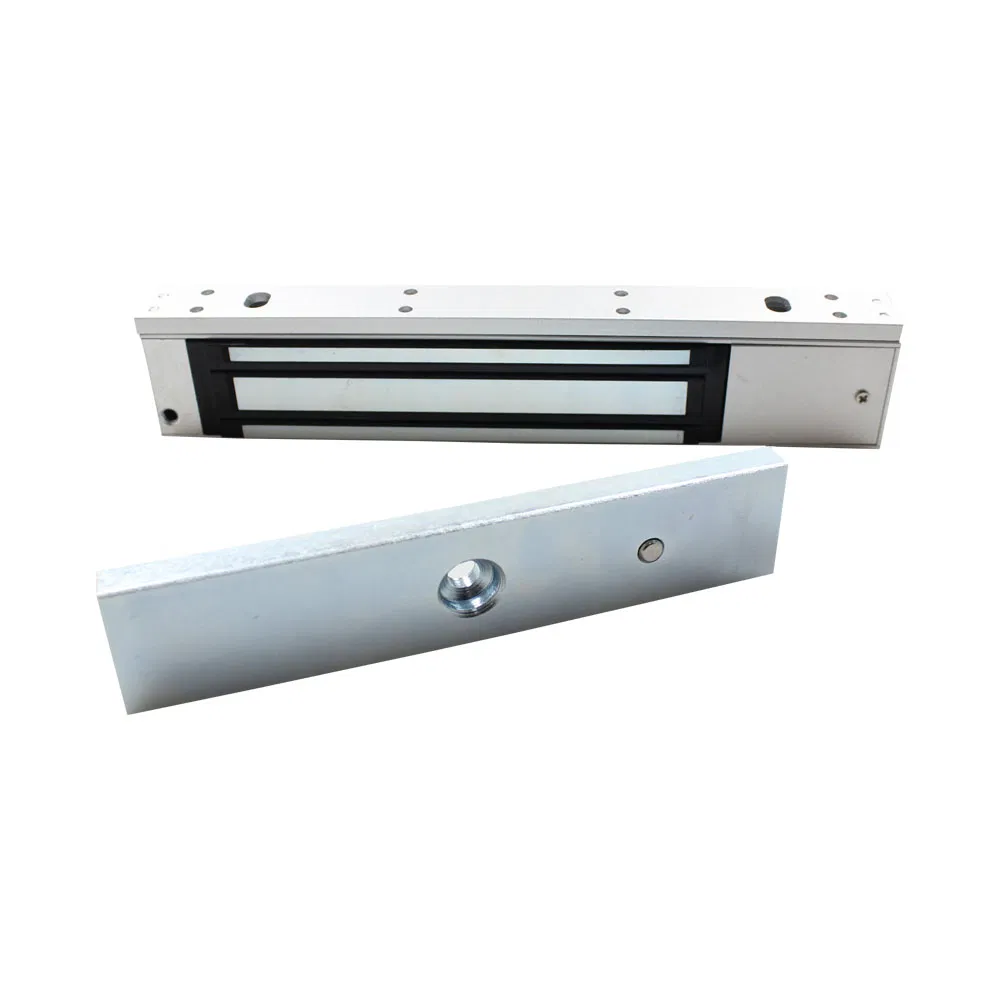

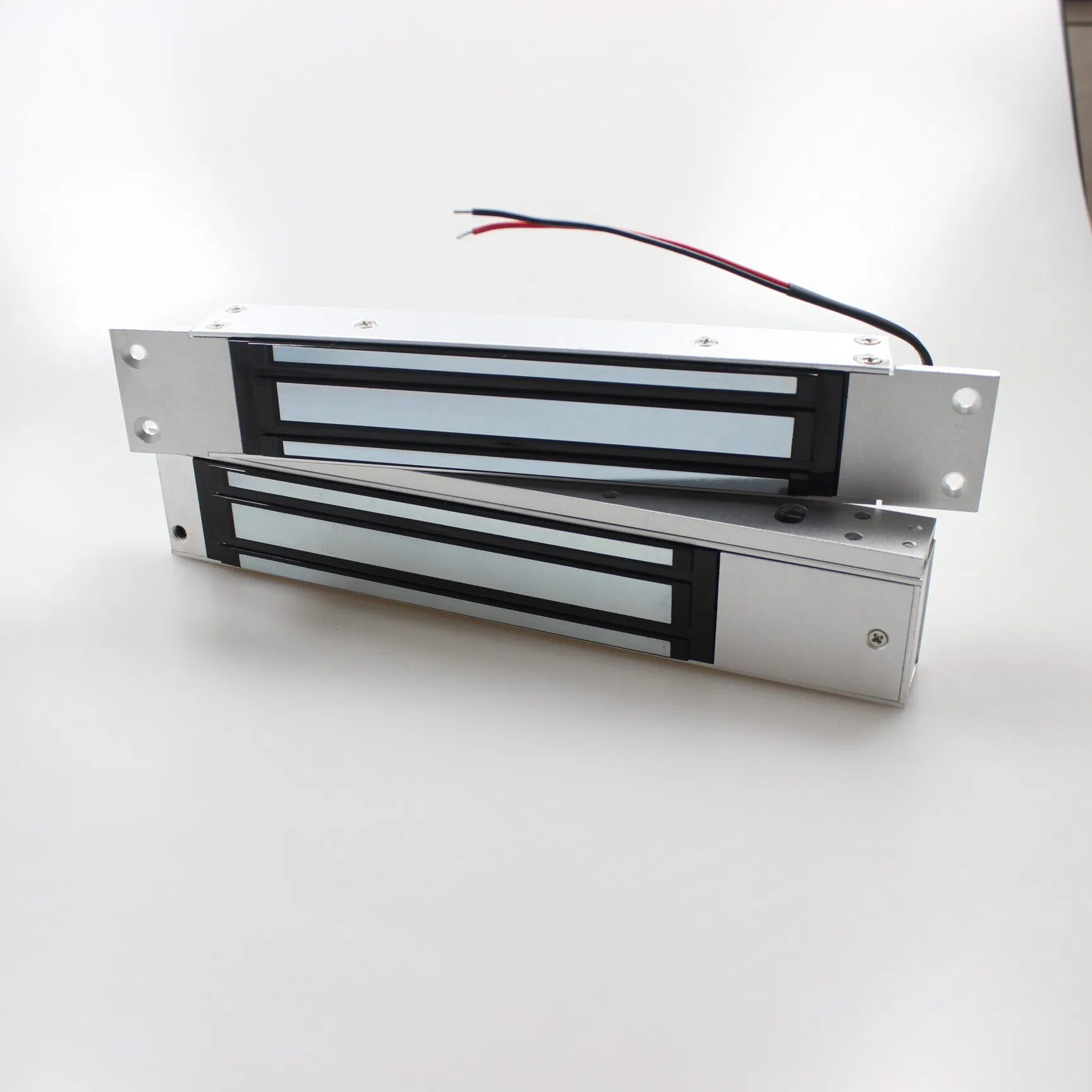

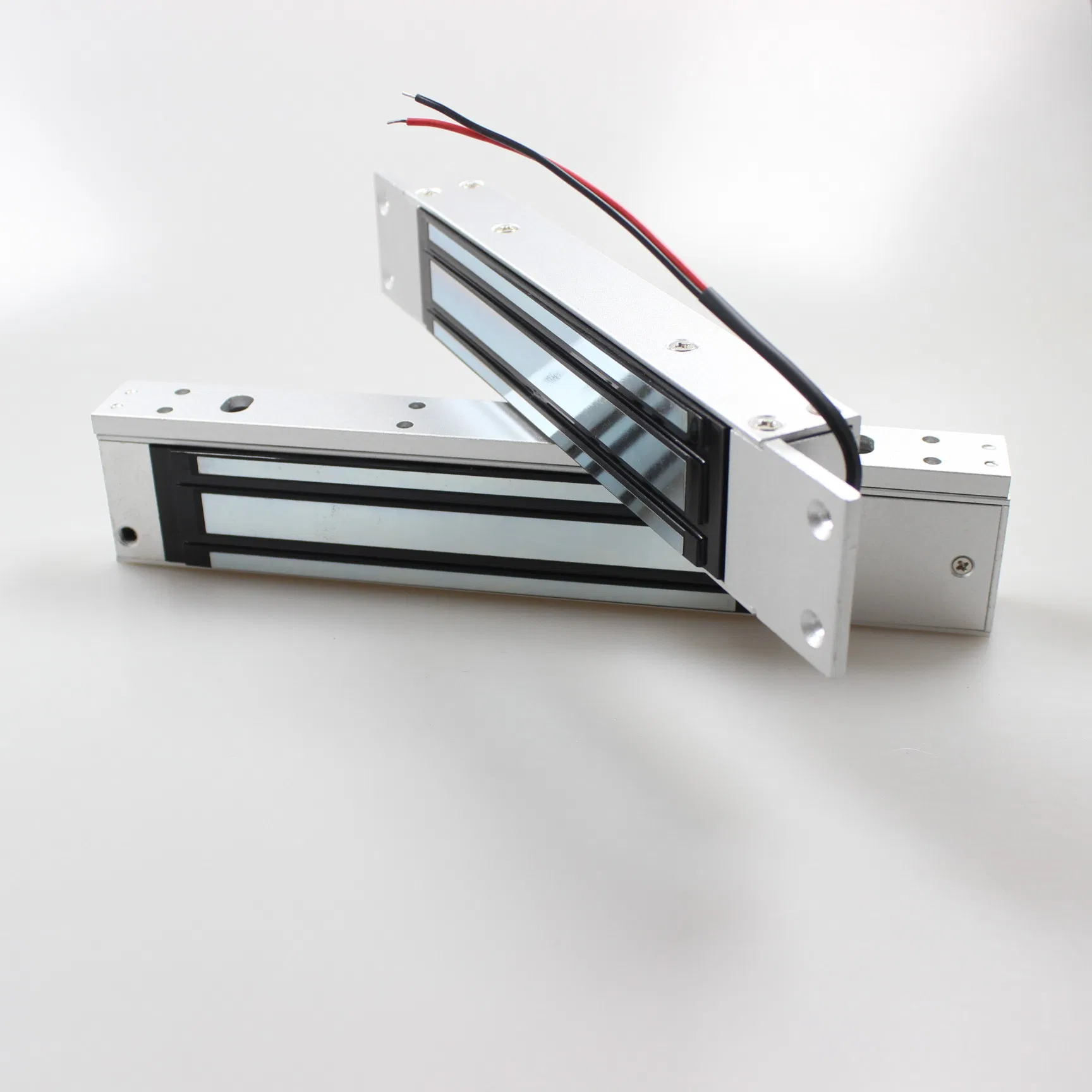

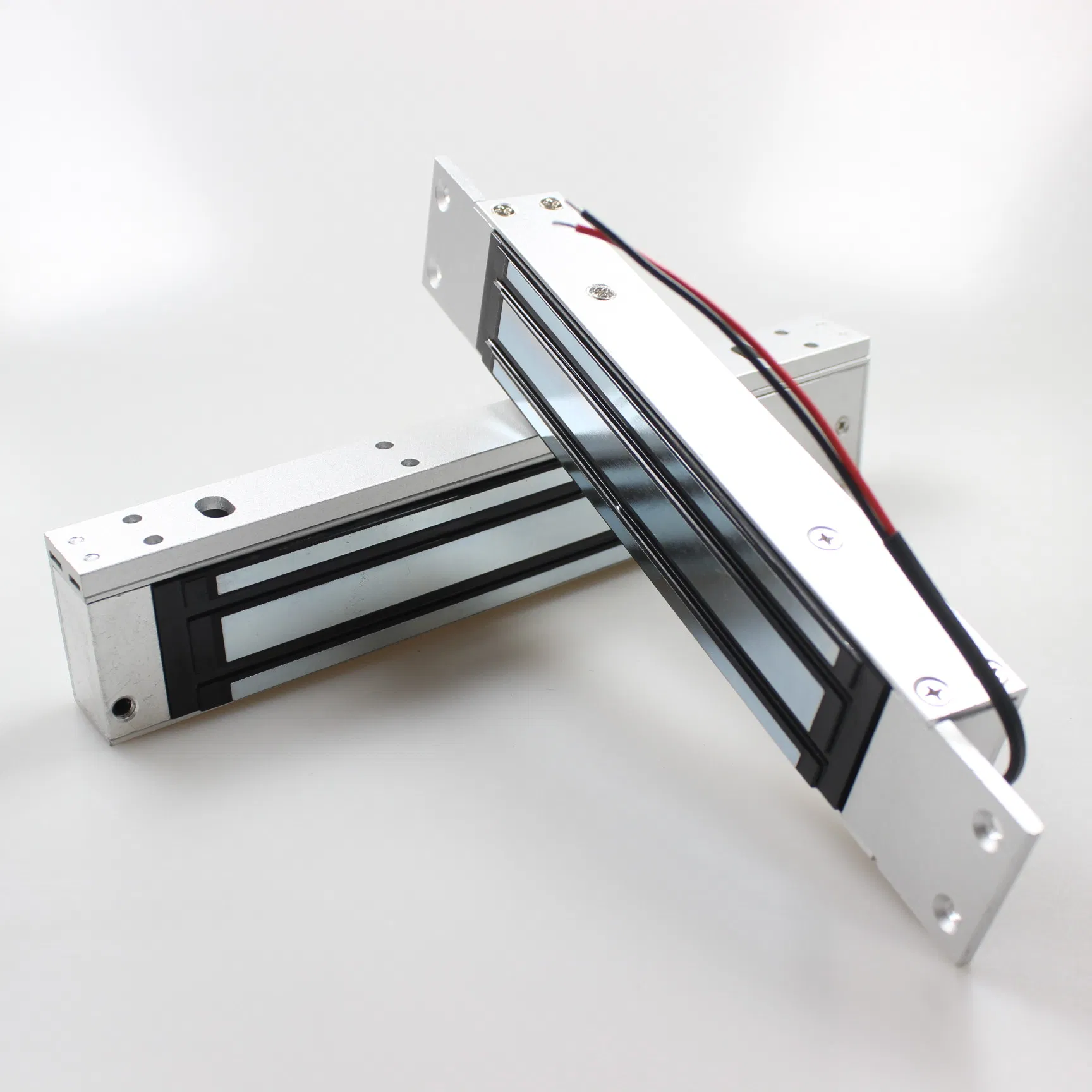

500kg Single Door Electronic Magnetic Electric Door Strike Electromagnetic Lock Controlled Em Lock
Product Description
📑 Basic Information
Model NO.
QN-B500G
Certification
RoHS, CCC, FCC, CE
Working Principle
Electronically Controlled Magnetic
Function
Fail -Safe
Type
Electromagnetic Lock
Working Voltage
12VDC/500mA or 24VDC/250mA
Material
Anodized Aluminum
Holding Force
500kg (1200lbs)
Operating Temp
-20~+55℃
Switch Time
0-20 Seconds Adjustable

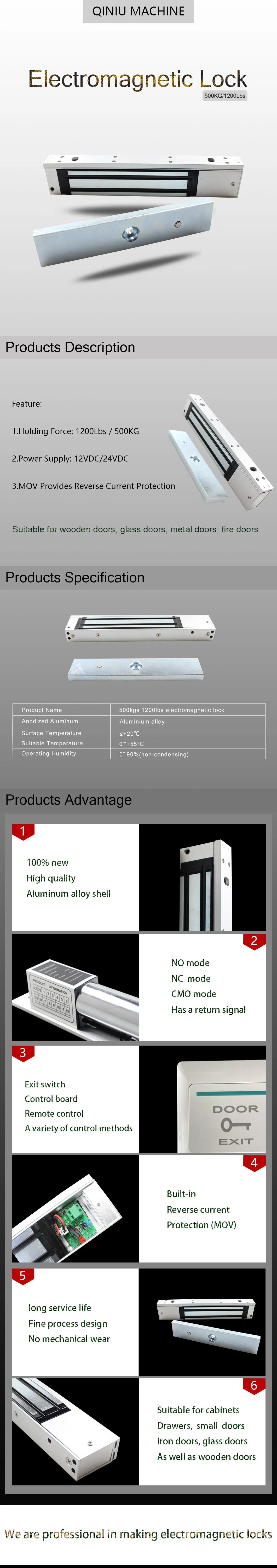

🚀 Product Description
High Quality Long Lifespan Electronic Magnetic Lock
📊 Series Products Specifications
| Model | QN-180kg | QN-280kg | QN-350kg | QN-500kg |
|---|---|---|---|---|
| Dimension | 168x38x23mm | 250x48x27mm | 250x56x29mm | 265x73x41mm |
| Holding Force | 300lbs | 600lbs | 800Ibs | 1200Ibs |
| Current | 12V/500mA or 24V/250mA | |||
| Material | Anodized Aluminum | |||
| Feature | Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage | |||
🏢 Profile & Commitment
We are a comprehensive company specializing in the research and development, production and sales of mechanical equipment, electronic products, hardware, and daily products. We vigorously promote industrialization and modern production equipment to create fast and convenient use of equipment.
Warranty Service:
Warranty Service will be honored if the damage is not caused by human; we provide a 3-year warranty for relative products. We provide professional and reasonable solutions for electromagnetic lock requirements.

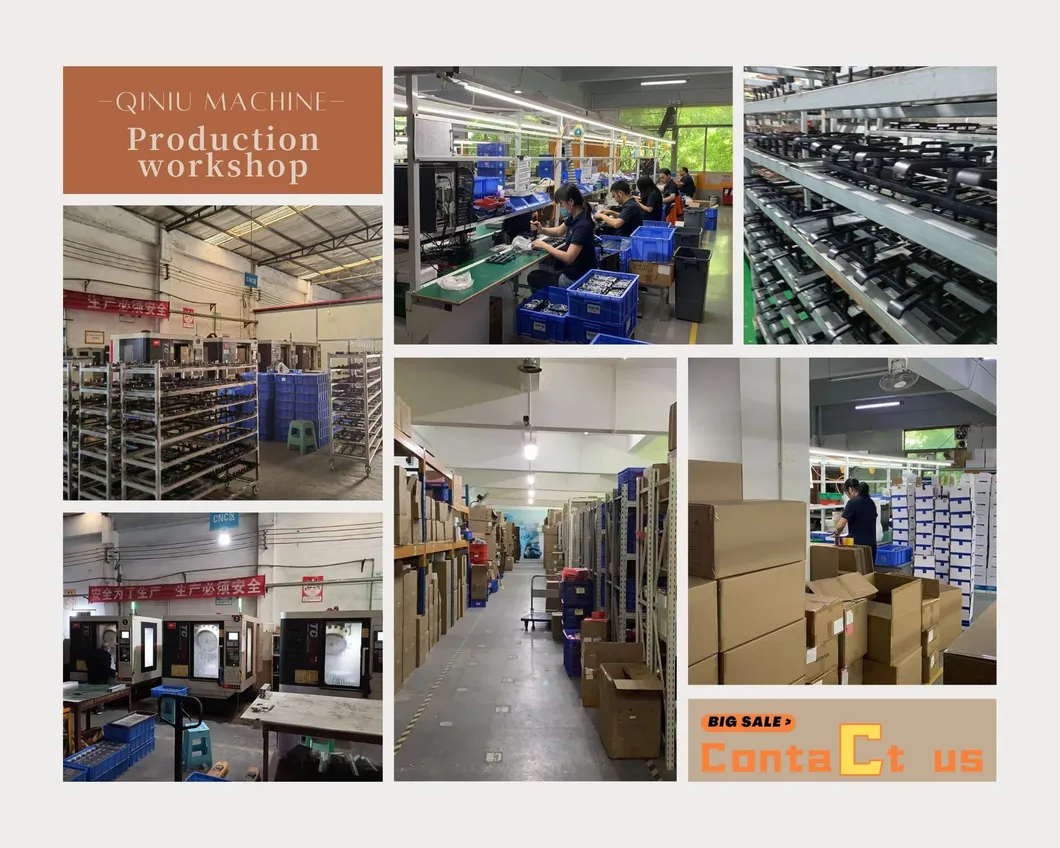

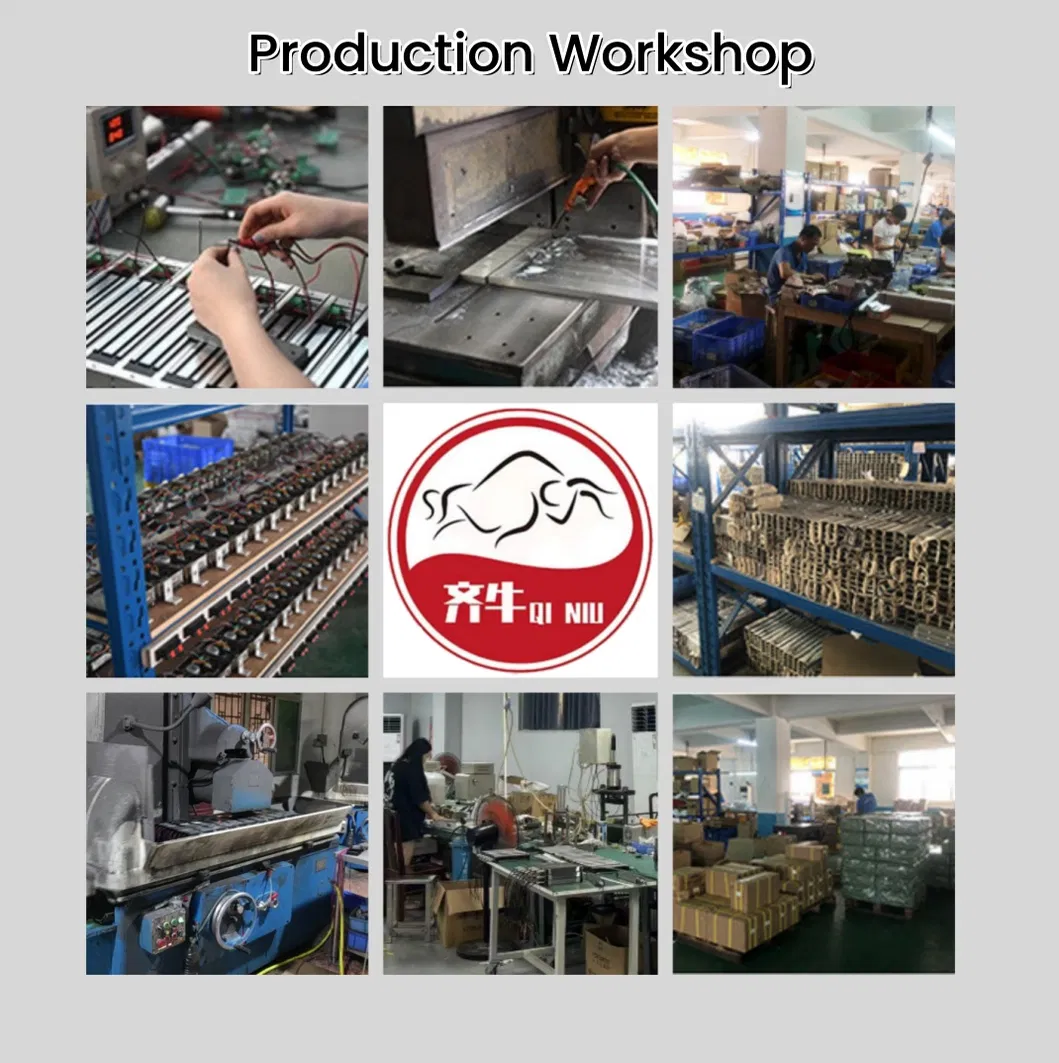

🏭 Manufacturing & Quality
📦 Packaging & Shipping
❓ FAQ
What is your MOQ?
Usually our MOQ is 500 pcs. But we accept lower quantity for your trial order.
Can we provide samples?
Sure. We usually provide existing samples for free. For custom designs, a small charge may apply, which is refundable upon reaching a certain order quantity.
How long is the sample lead time?
For existing samples, it takes 1-2 days. For custom designs, it typically takes 3-7 days.
How long is the production lead time?
It takes approximately 10-15 days for MOQ orders.
What design file formats do you need?
We accept JPG, AI, CDR, or PDF formats for processing your custom artwork or printing screens.
