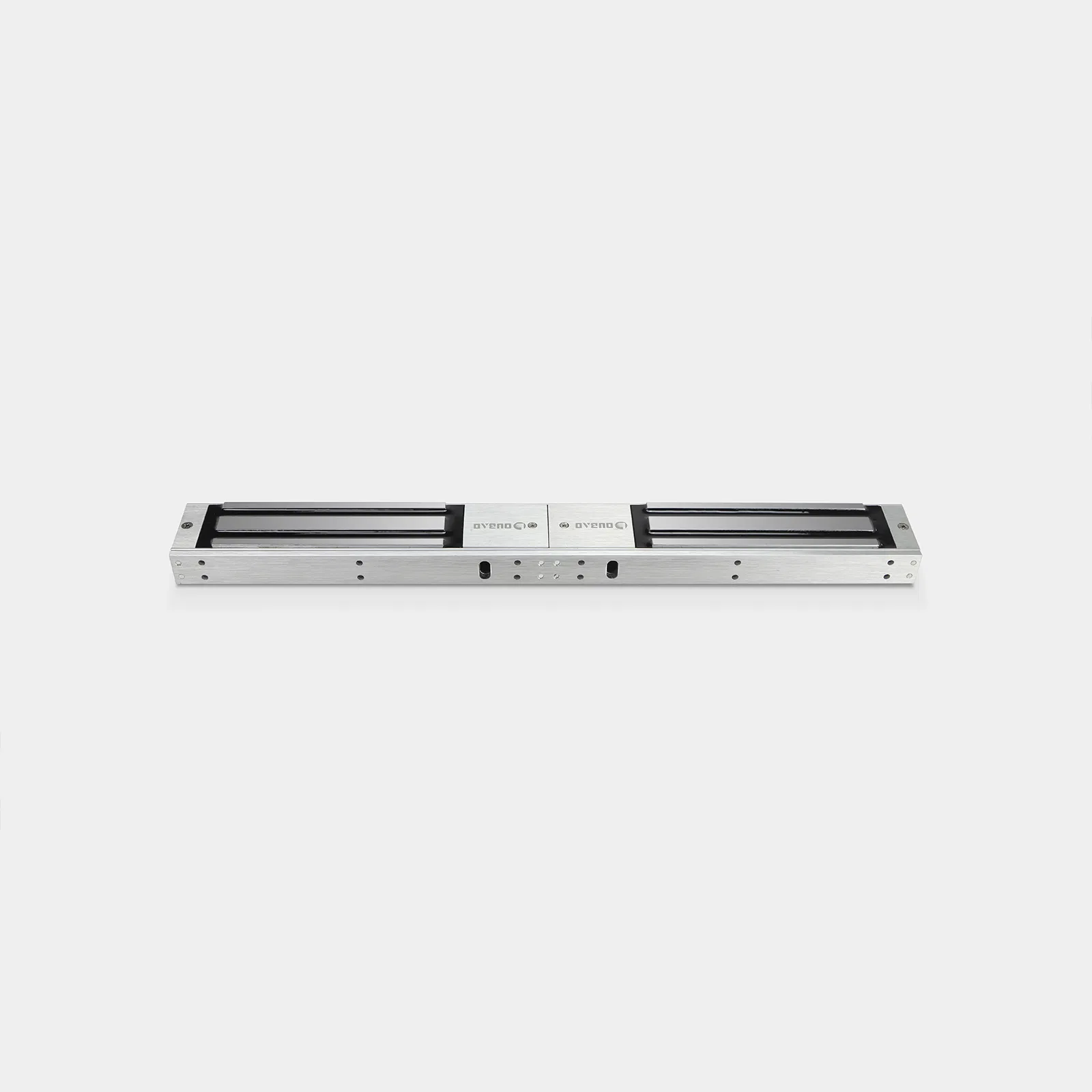

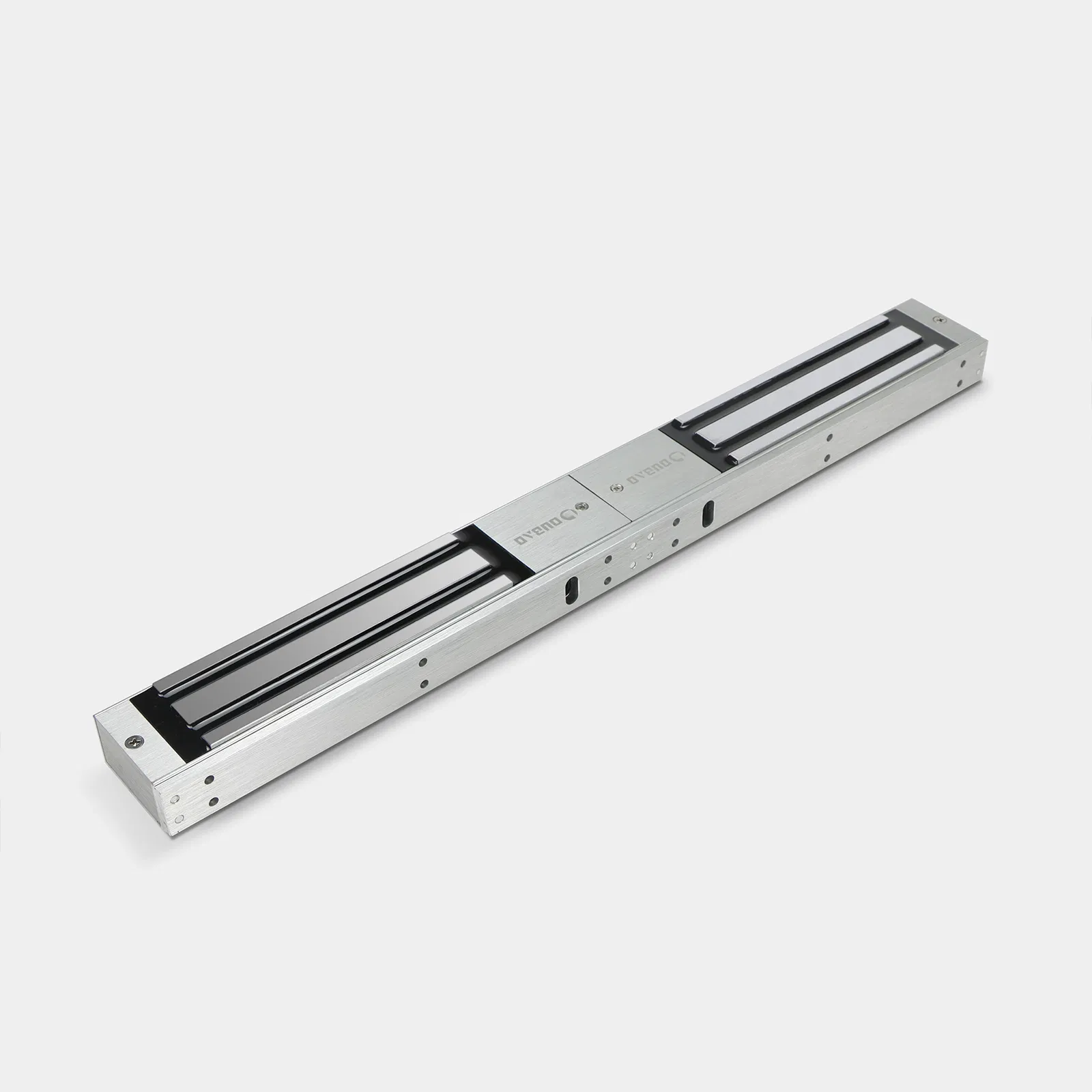

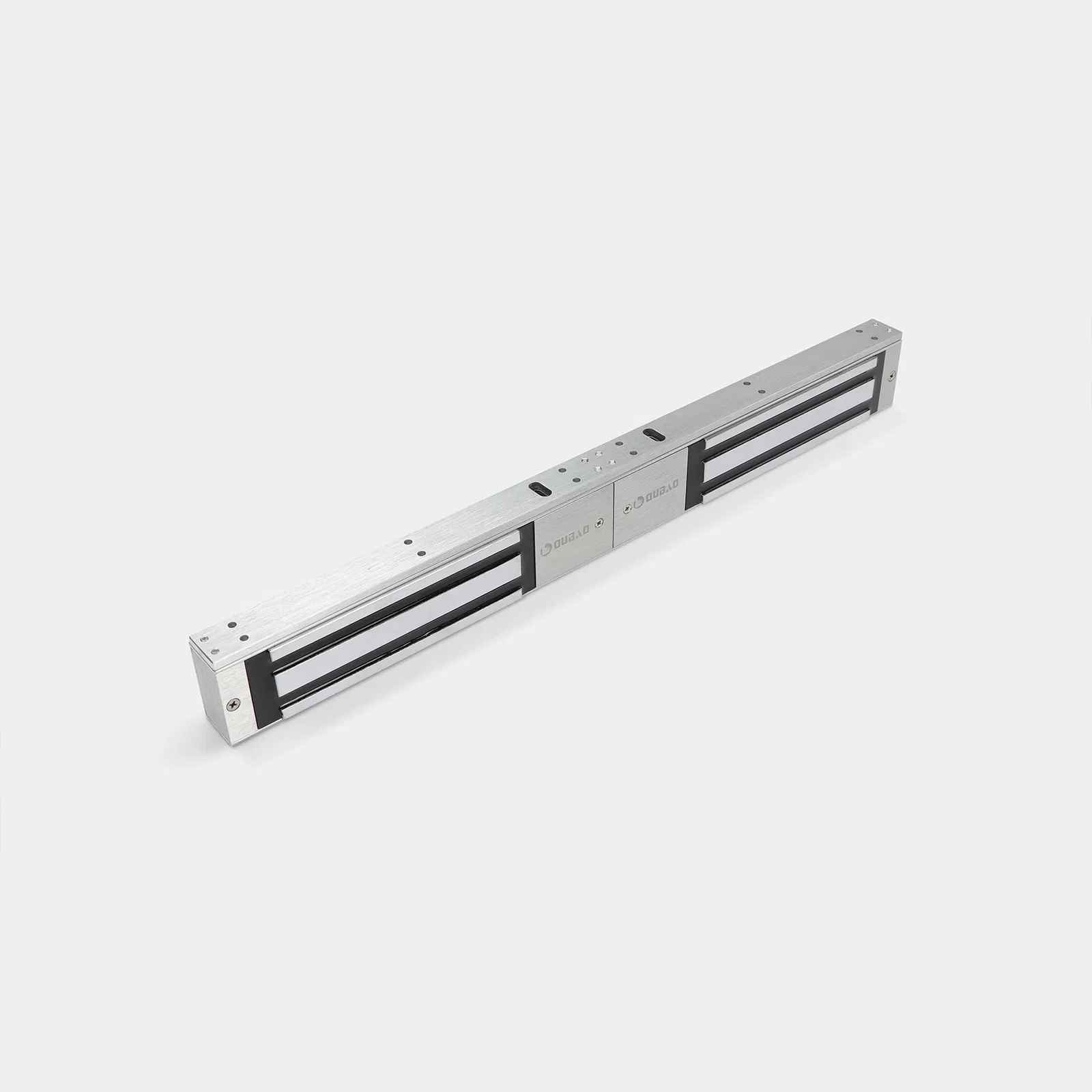

350kg Double Doo Mute Electromagnetic Lock Cabinet Sliding Strike Electric Magnetic Door Lock
Product Description
Basic Specification

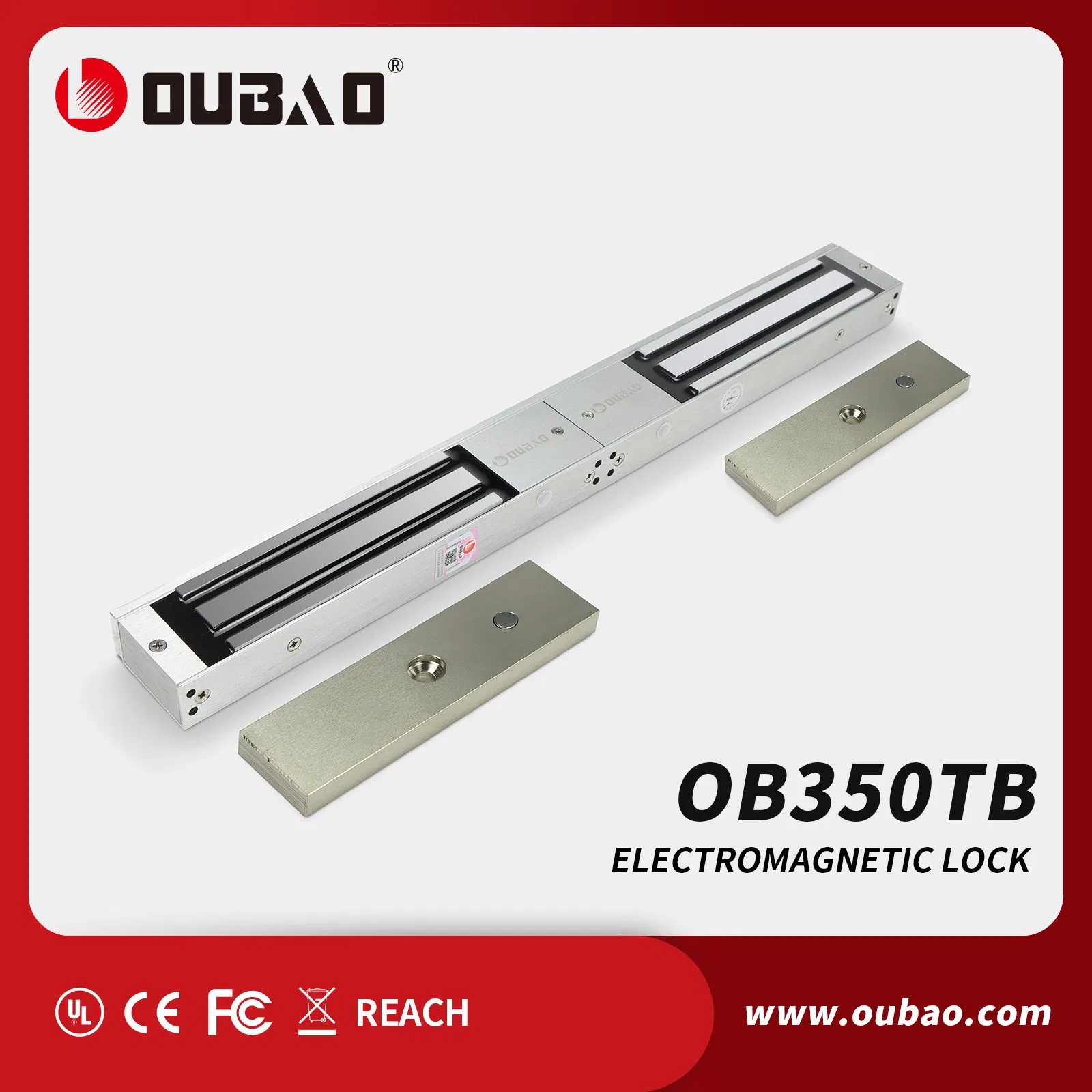

Model NO.
OB350TB
Material
Iron
Type
Key Lock
Style
Modern
Shape
Mortise Door Lock
Standard
Anti-theft Level A
Backset
60mm
Door Thickness
35-50mm
Cylinder
65mm
Usage
Household, Bedroom, Channel Lock
Certification
Rosh, EMC, FCC, CE, UL, CCC
Capacity
50,000 PCS /Year
Product Description

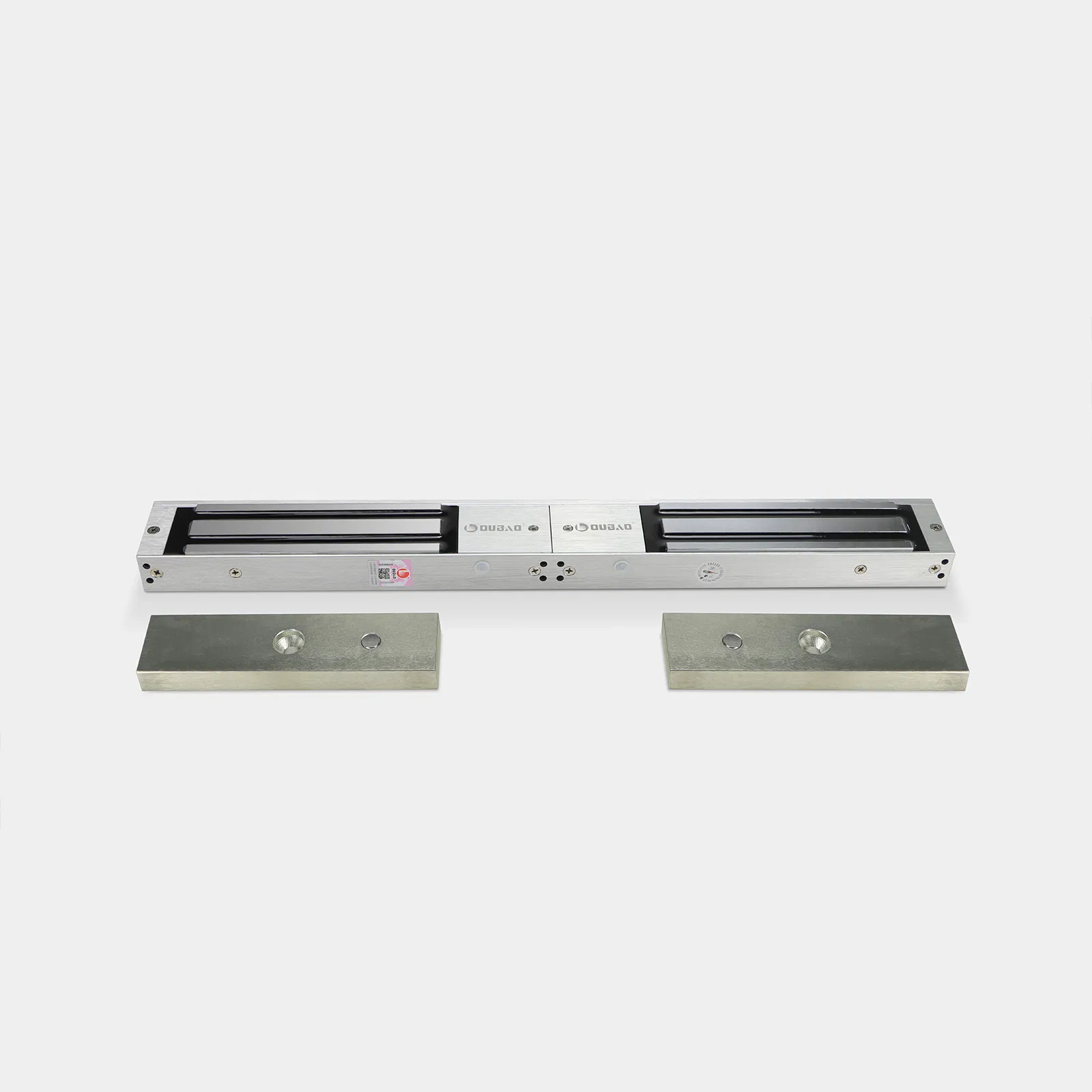

Electromagnetic locks are an increasingly popular choice among security installers for being simple to install, durable, reliable, and highly resistant. A large electromagnet is mounted on the door frame and the Armature plate is mounted on the door.
When the magnet is powered and the door is closed, the Armature plate is held fast to the magnet. The mag-lock must be unlocked to both enter and leave. We offer a wide range of electromagnetic locks in different sizes, voltages, and holding forces to satisfy all customer requirements.
| Holding Force | 350KG x2 ±10% (800LBS x2) |
| Operating Voltage | 12VDC (DC24V upon request) |
| Working Current | 400mA x2 |
| Operating Temperature | -25 ºC ~ 60 ºC |
| Working Humidity | 10% ~ 90%RH |
| Unlock Method | Power on to lock (Fail safe) |

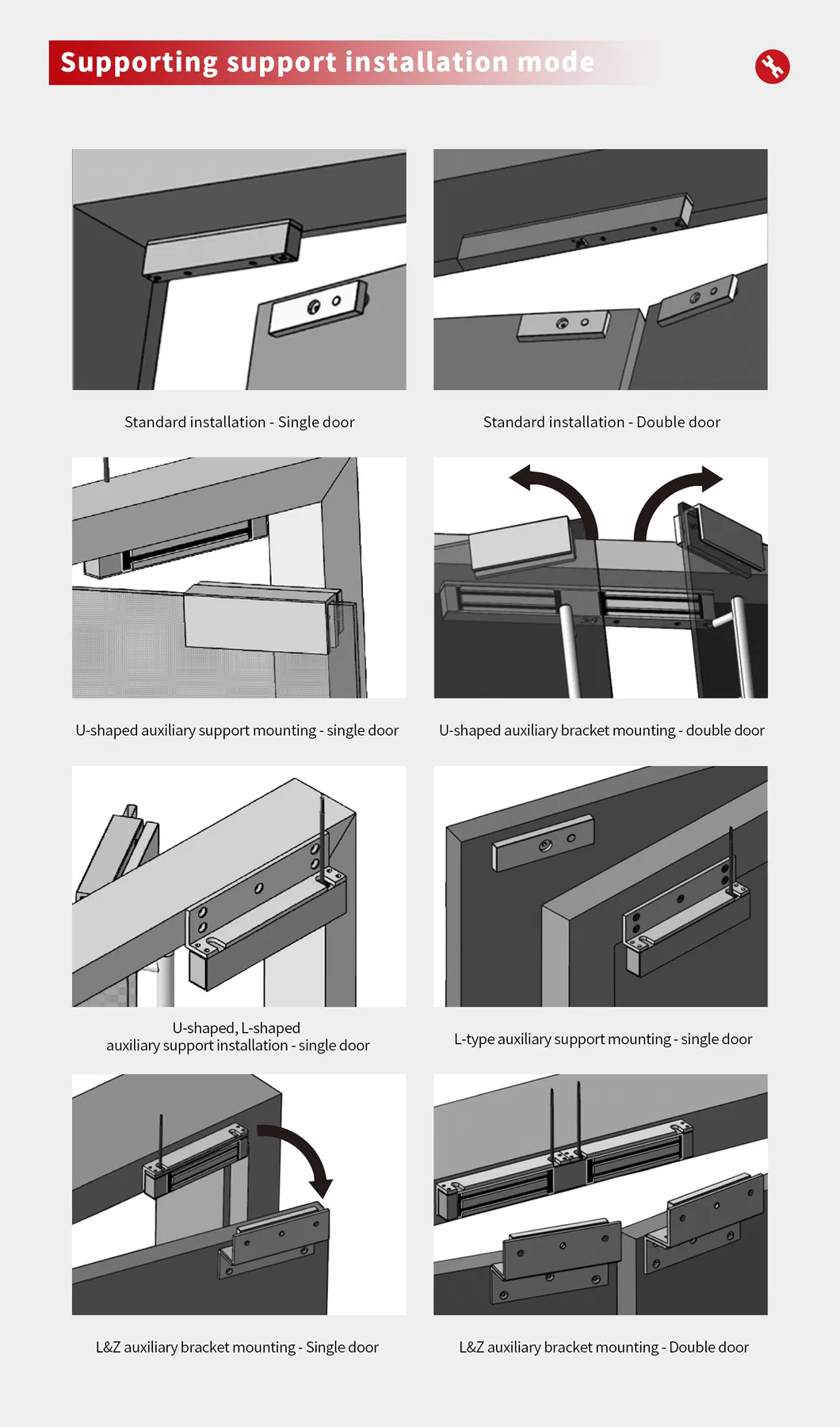

| Installation | Hanging installation (Surface) |
| Door Opening Angle | 90° |
| Panel Material | High strength aluminum alloy |
| Finish | Oxidation & brushed finishing |

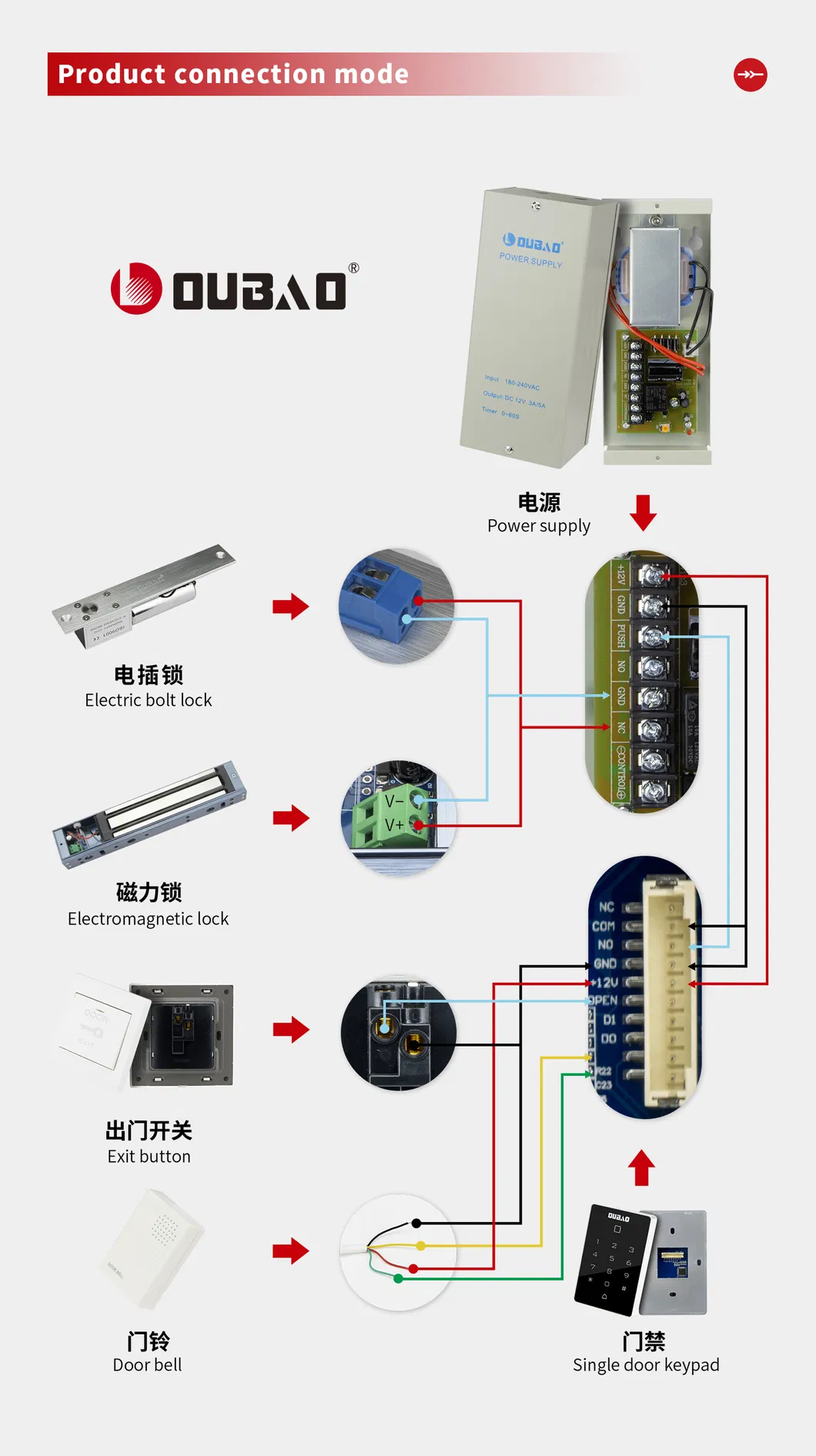

| Signal Feedback | NO / COM / NC |
| Indicator Light | Red (Locked), Green (Unlocked) |

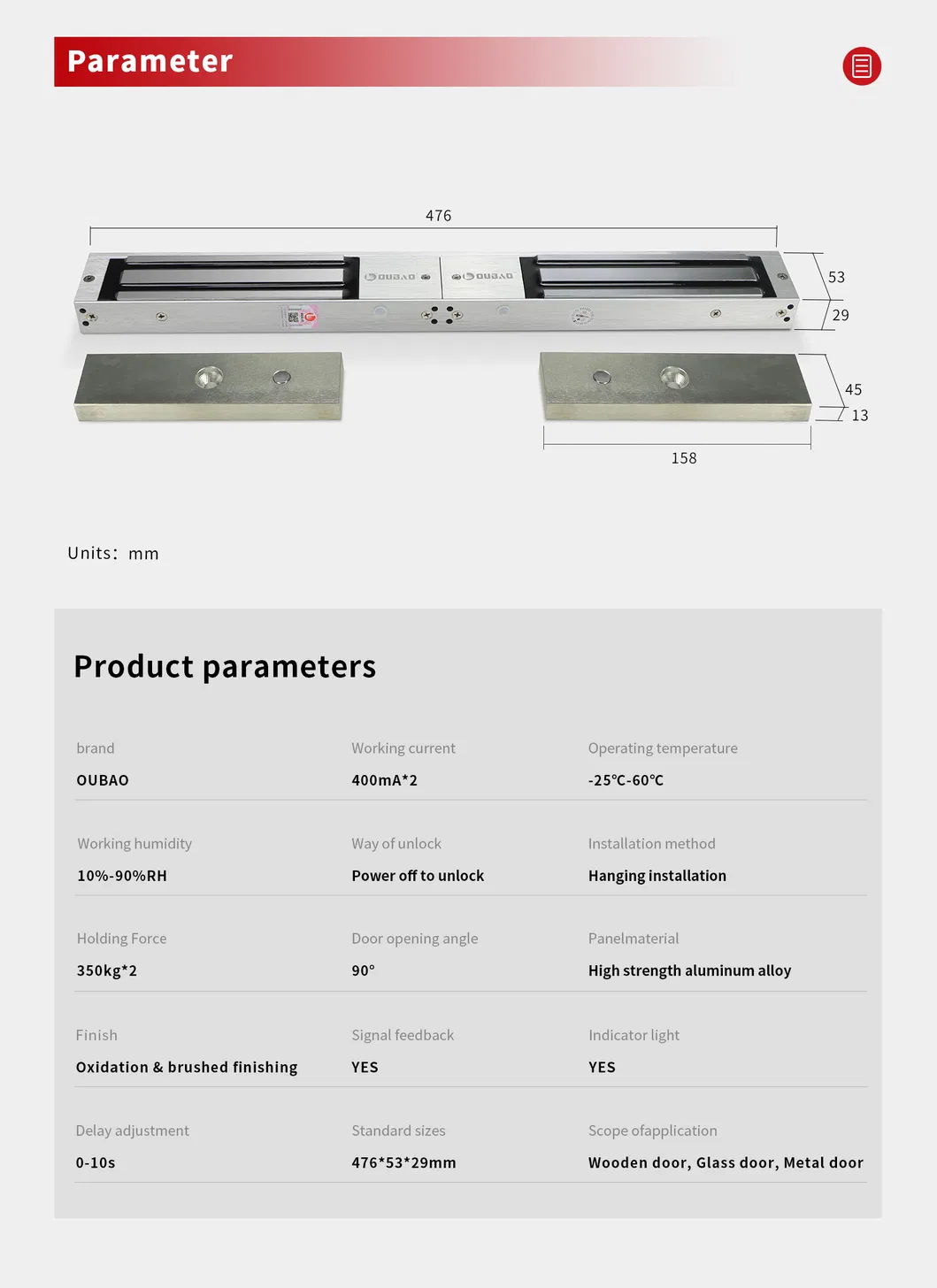

| Magnetic Size | 476 * 53 * 29 mm |
| Armature Plate Size | 158 * 45 * 13 mm |
| Scope of Application | Wooden, Fireproof, Glass, Metal doors |
| Service Life | More than 500,000 times |
| Weight | 4.6 kg/PCS |
Frequently Asked Questions
Do you accept OEM or ODM?
Yes, we provide full OEM and ODM services to meet your specific branding and design requirements.
What is the MOQ for each product?
For retail, we can process any quantity via express. For wholesale, the MOQ is usually 300pcs. You can also mix different items for sea shipment.
Can you send samples before placing an official order?
Yes, samples are available. While the sample itself is free, the express shipping costs are to be covered by the customer.
How long is the warranty period?
We offer different warranty periods depending on the product, typically ranging from 2 to 5 years.

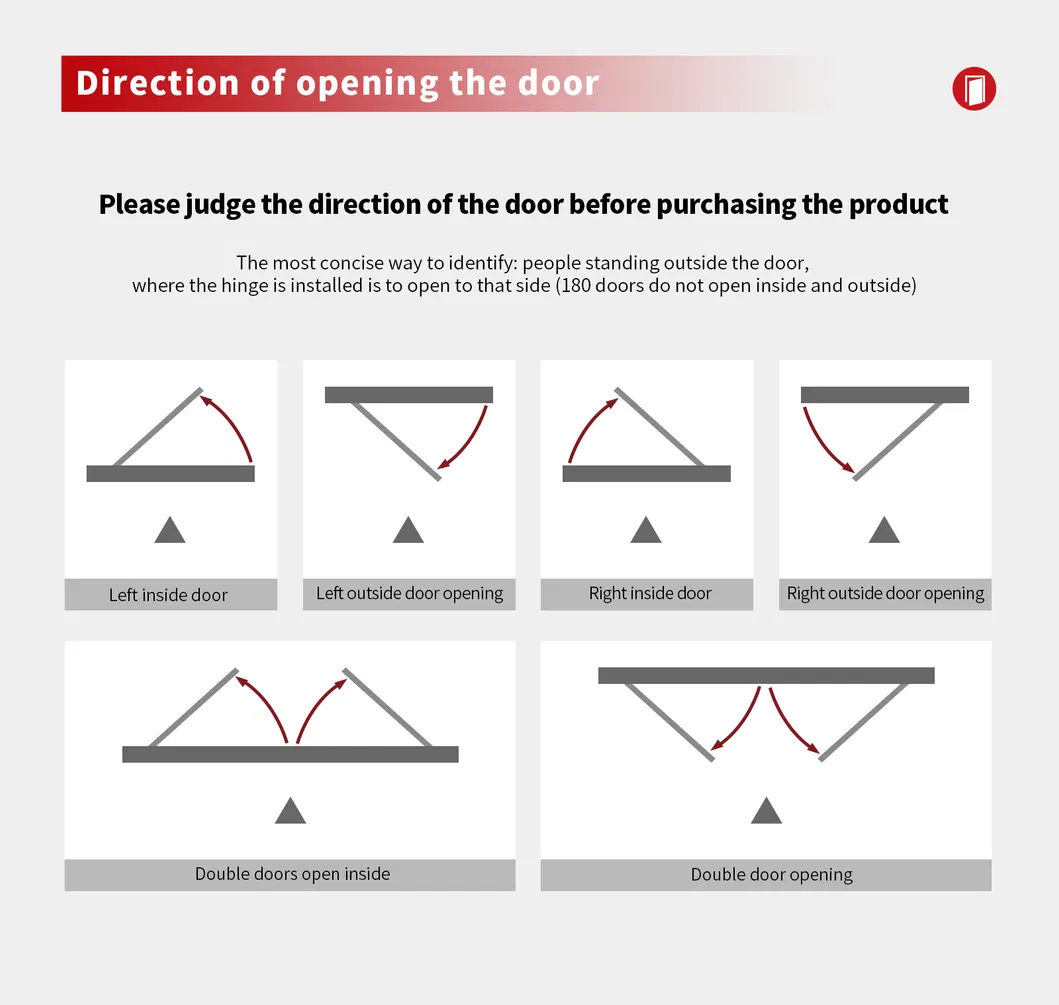

What types of doors are compatible with this lock?
This electromagnetic lock is suitable for a wide variety of doors, including wooden doors, fireproof doors, glass doors, and metal doors.
What does "Fail Safe" mean for this lock?
"Fail Safe" means the device requires power to remain locked. In the event of a power outage, the lock will automatically release for safety.
