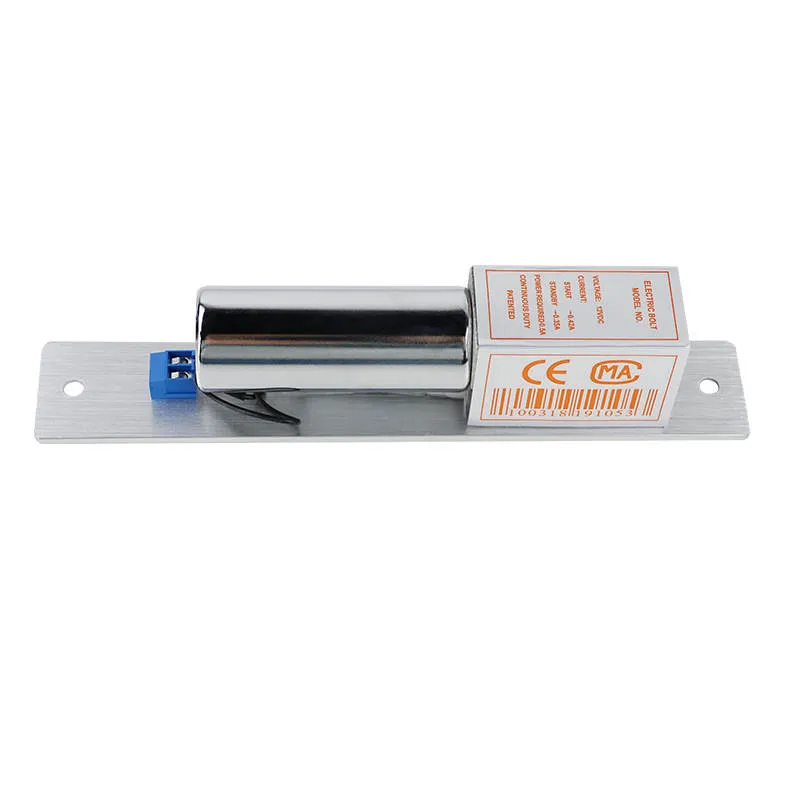

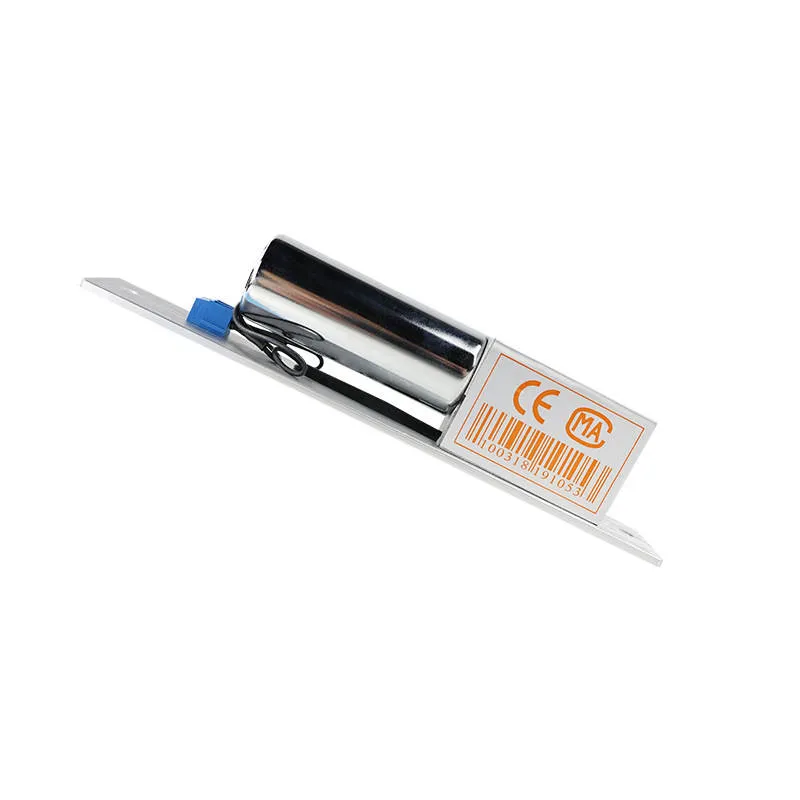

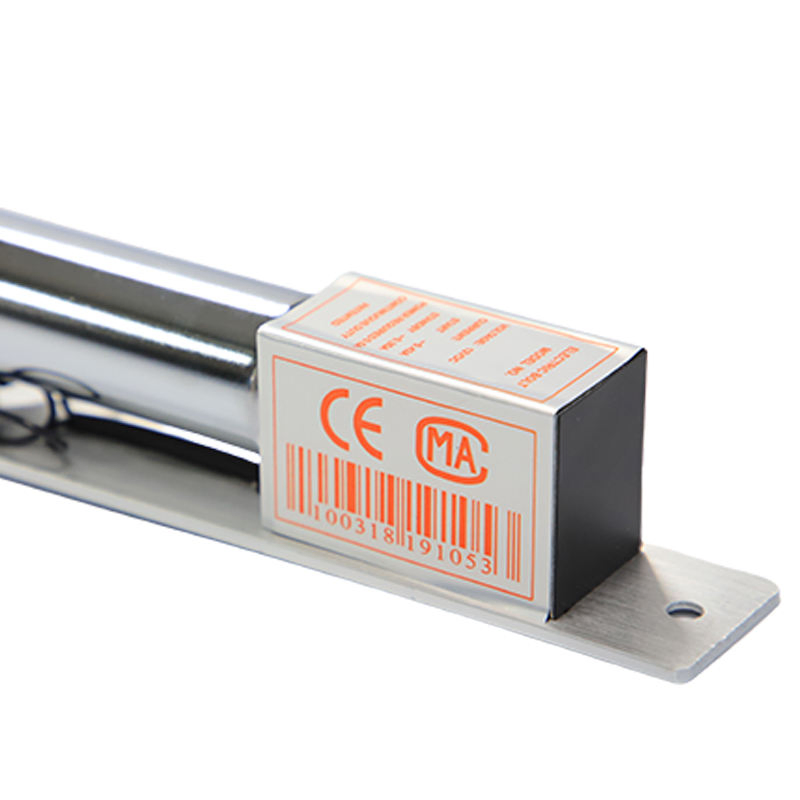

2-Wire Electric Bolt Lock with Metal Electronic Strike and Magnetic Sensing, for Embedded Installation in Framed/Frameless Glass Doors
Product Description

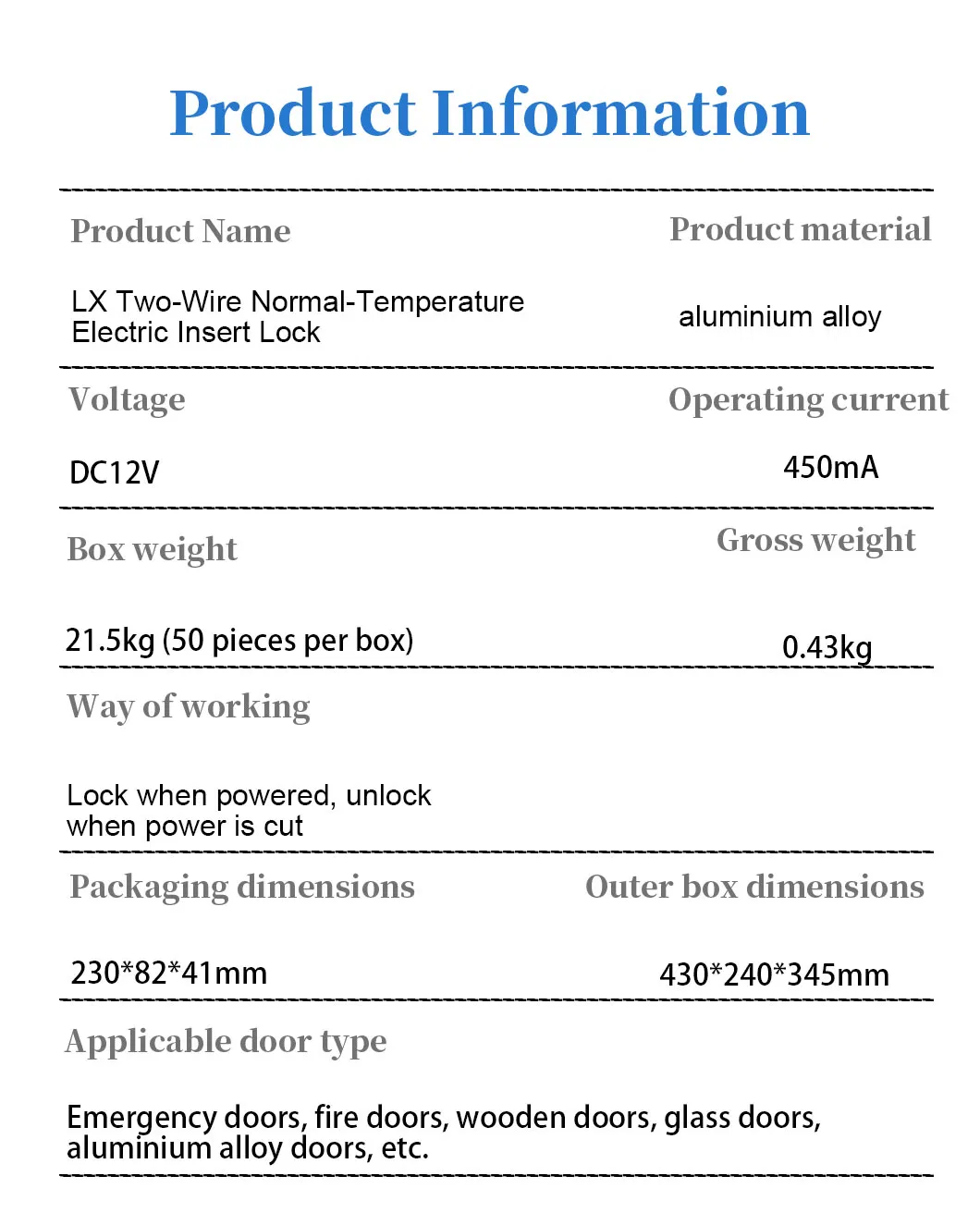

Model NO.
NF-EBL02
Certification
RoHS, FCC, CE
Working Principle
Electronically Controlled Magnetic
Function
Fail-Secure
Type
Electric Bolt
Voltage
12V
Operating Current
450mA
Weight
0.43kg
Origin
China
HS Code
8301400000
This versatile electric bolt lock is suitable for a wide range of environments including: Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, and Community.

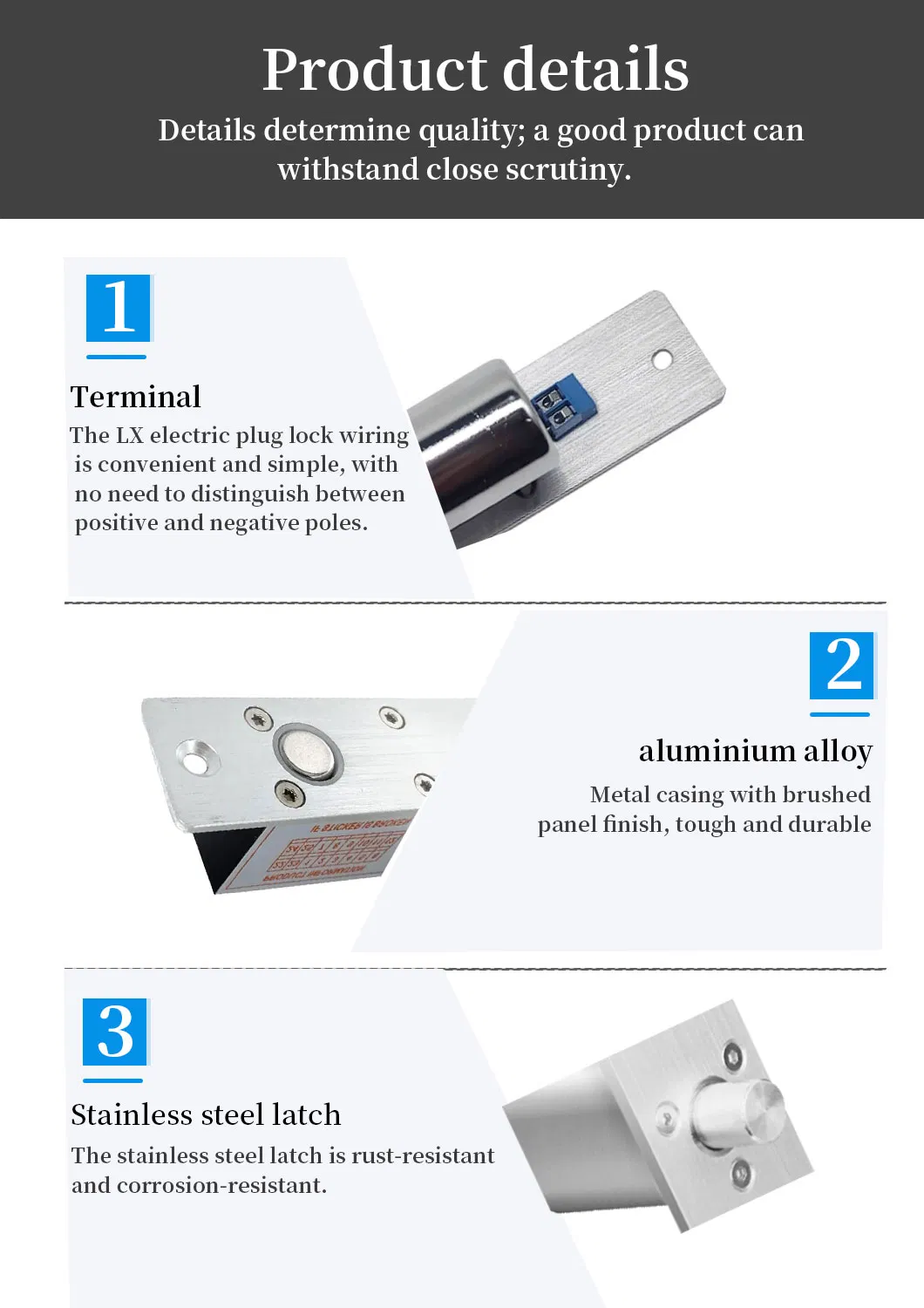

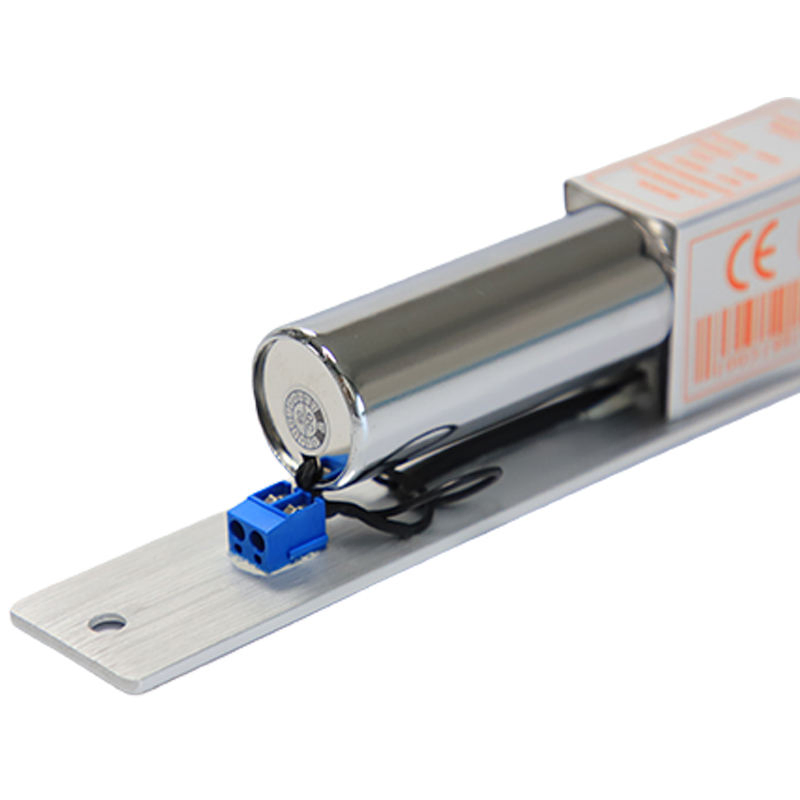

The LX 2-wire normal-temperature electric bolt lock is a cost-effective and reliable access control solution designed for indoor applications. Featuring a simplified 2-wire connection system, it enables fast and hassle-free installation and is fully compatible with mainstream access control panels, card readers, and intercom systems.
✨ Key Highlights:

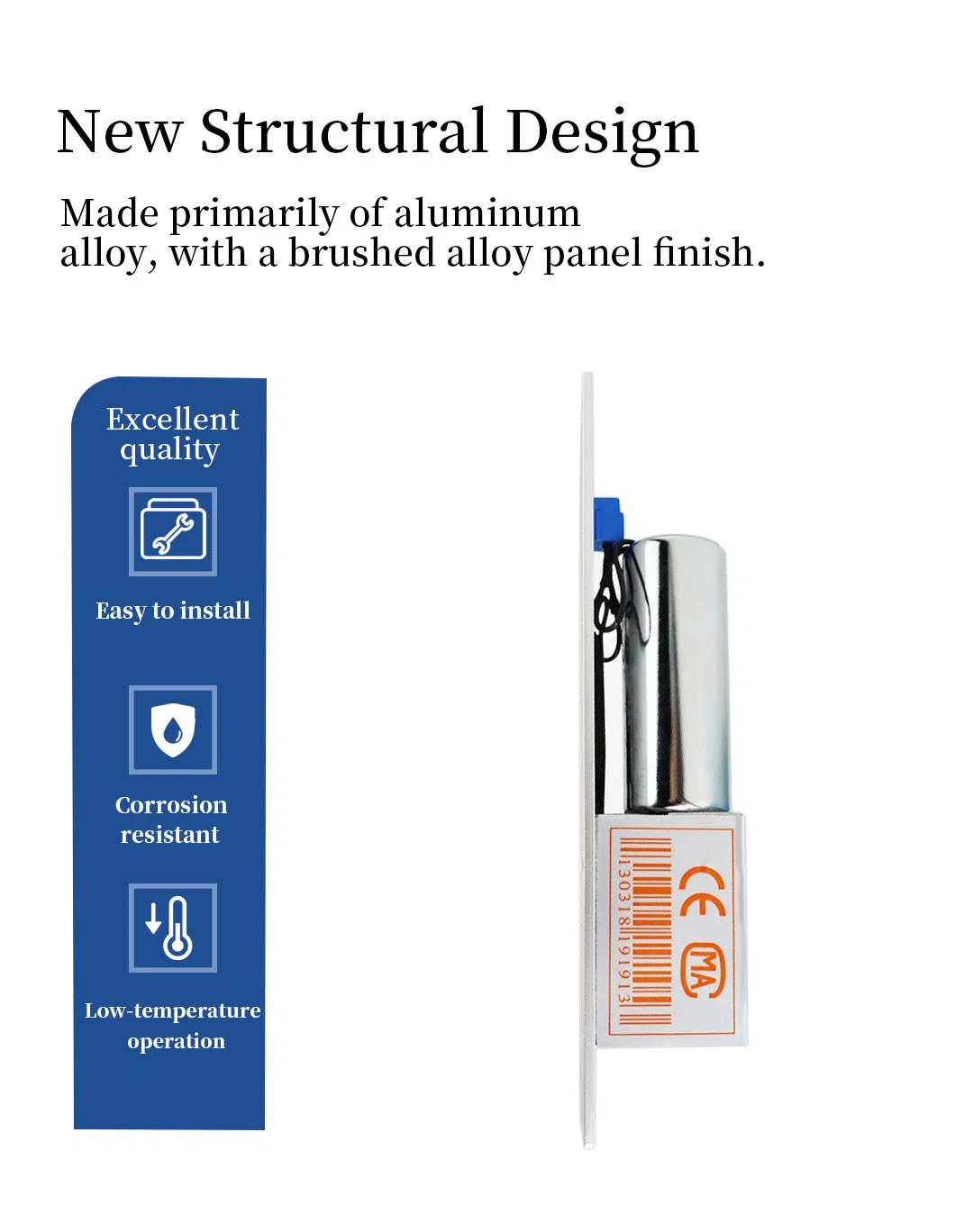

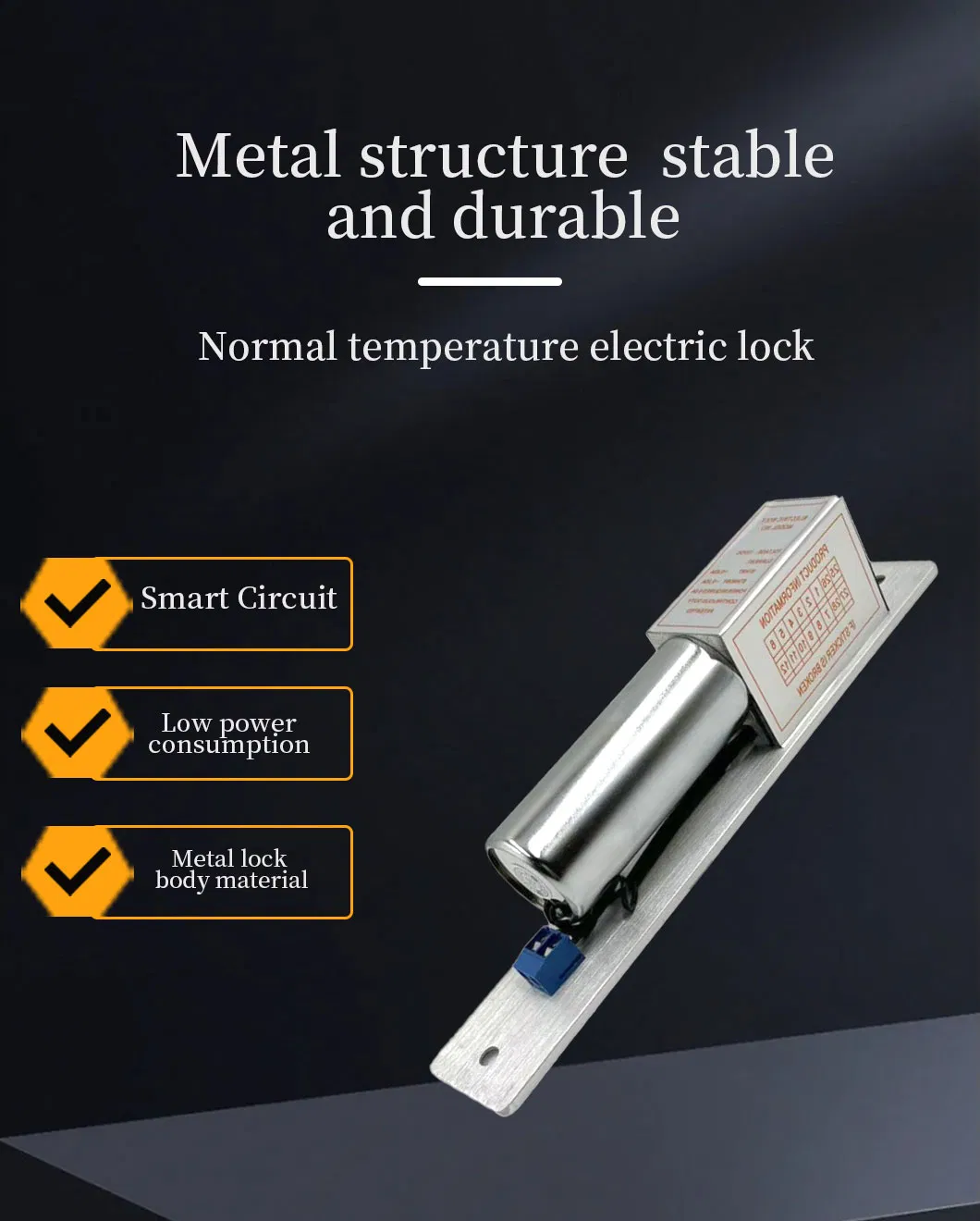

- High Durability: Built with a high-strength zinc alloy shell and a hardened steel bolt.
- Rapid Response: Delivers stable locking and unlocking with a response time of ≤ 0.5 seconds.
- Temperature Range: Optimized for environments from -10°C to 60°C.
- Energy Efficient: Low standby power consumption to reduce operational costs.

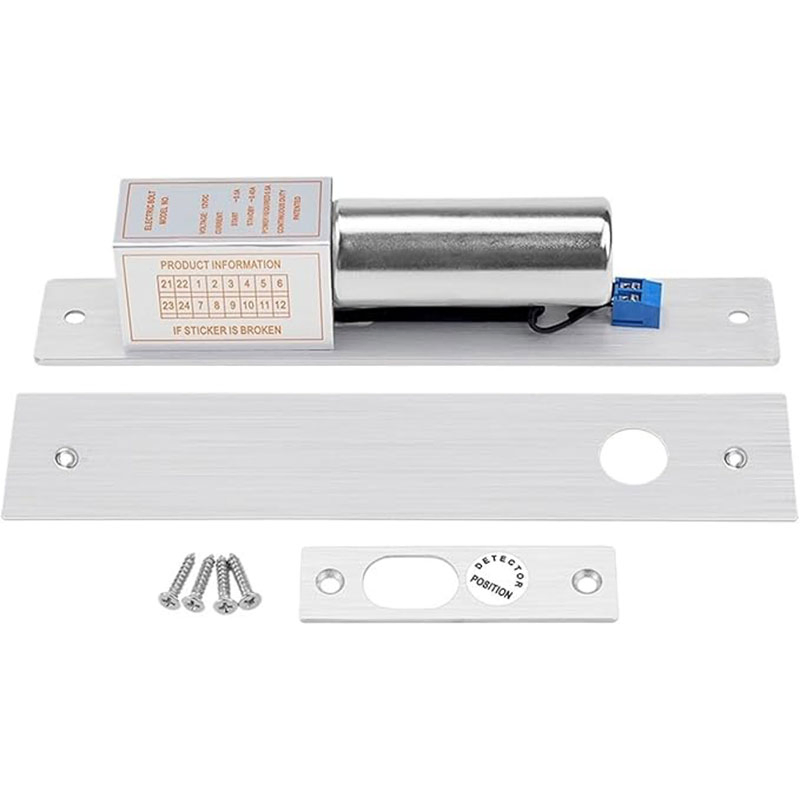

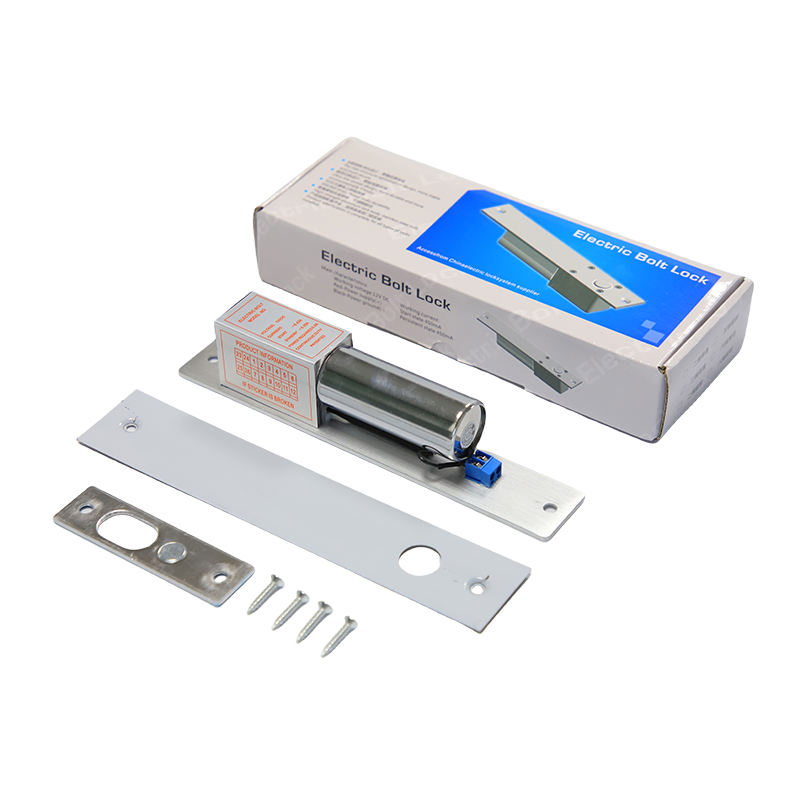

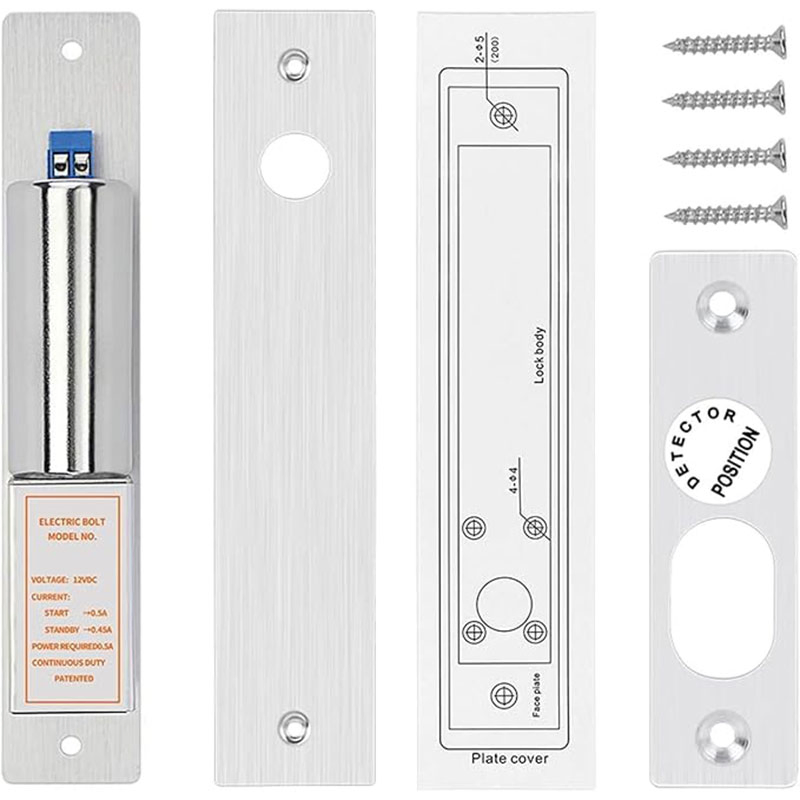

The product comes with a complete set of mounting accessories and a user-friendly instruction manual, ensuring easy deployment and maintenance for offices, commercial buildings, and residential scenarios.
Package Size
20.00cm * 12.00cm * 5.00cm
Gross Weight
0.430kg
Lead Time
3 days (1-1 Sets); Negotiable (>1 Sets)
What is the "Fail-Secure" function?
Fail-secure means the door remains locked when power is lost, providing higher security for sensitive areas.
What is the operating temperature for this lock?
This lock is designed to operate reliably in temperatures ranging from -10°C to 60°C.
Is it compatible with my existing access control system?

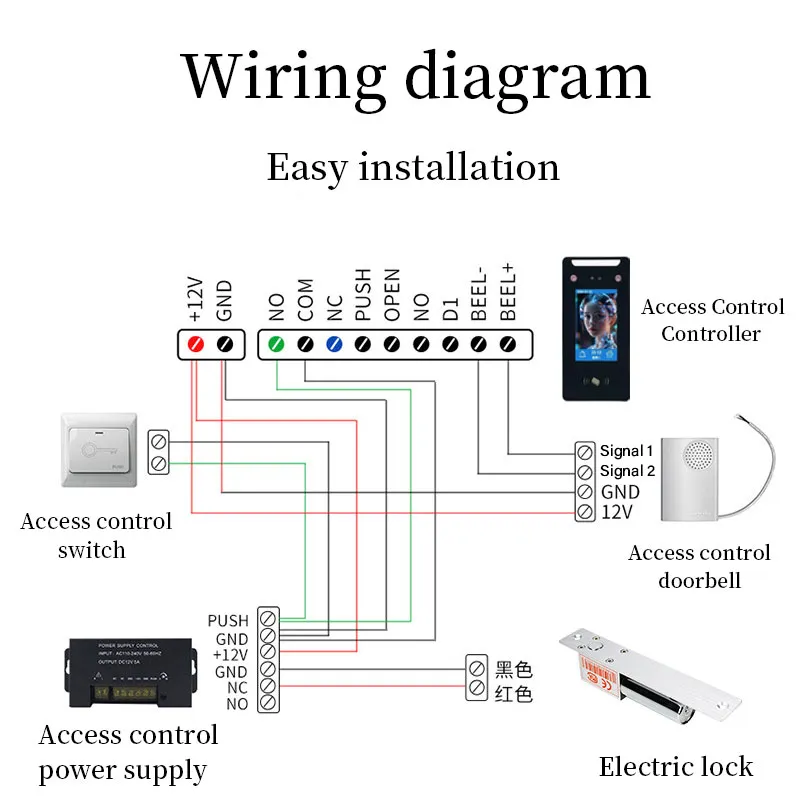

Yes, the simplified 2-wire system is compatible with most mainstream access control panels, card readers, and intercoms.
How fast does the bolt lock/unlock?
The lock features a rapid response time of ≤ 0.5 seconds for efficient entry and exit.
What materials are used in its construction?
It is constructed with a high-strength zinc alloy shell and a hardened steel bolt for maximum tamper resistance.
What power supply is required?
The lock operates on a 12V DC power supply with an operating current of 450mA.
