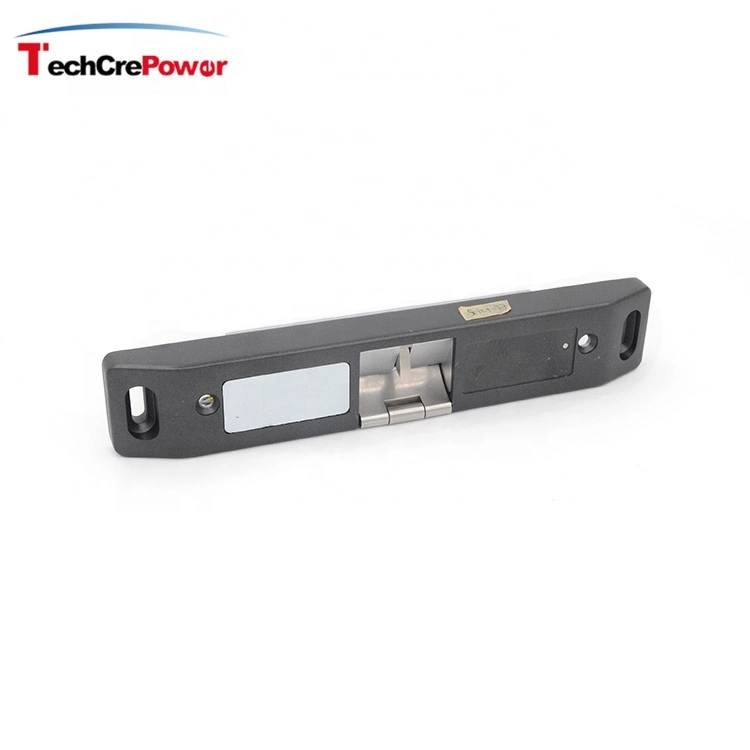

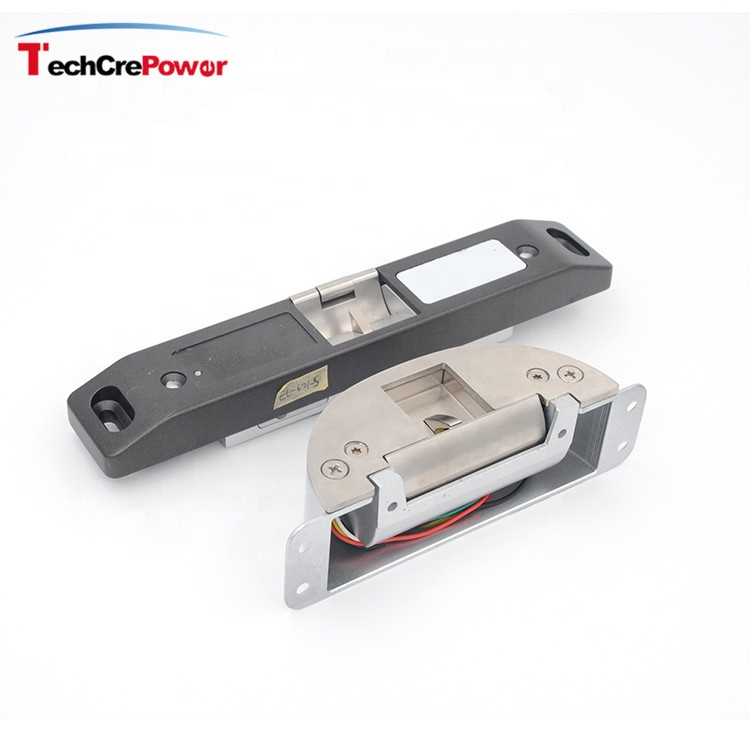

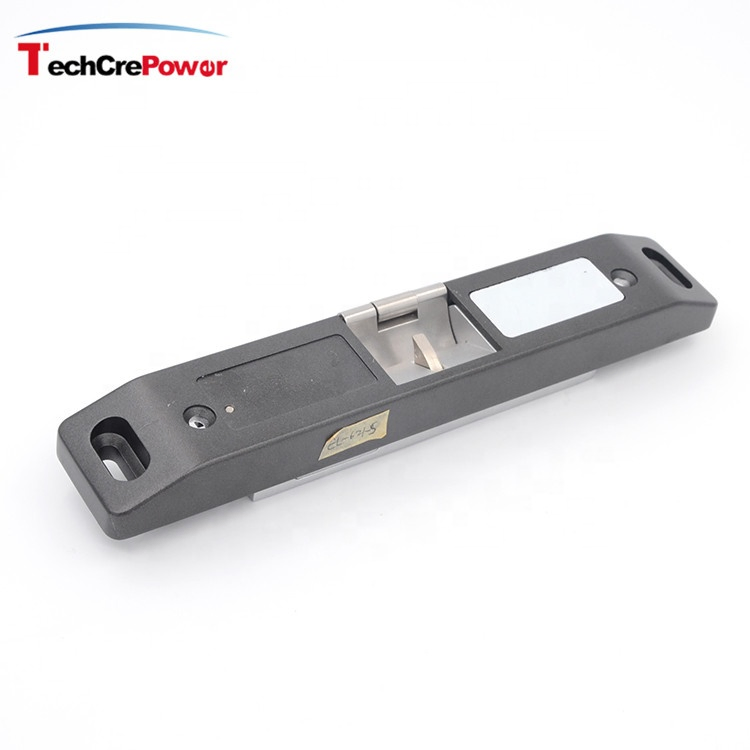

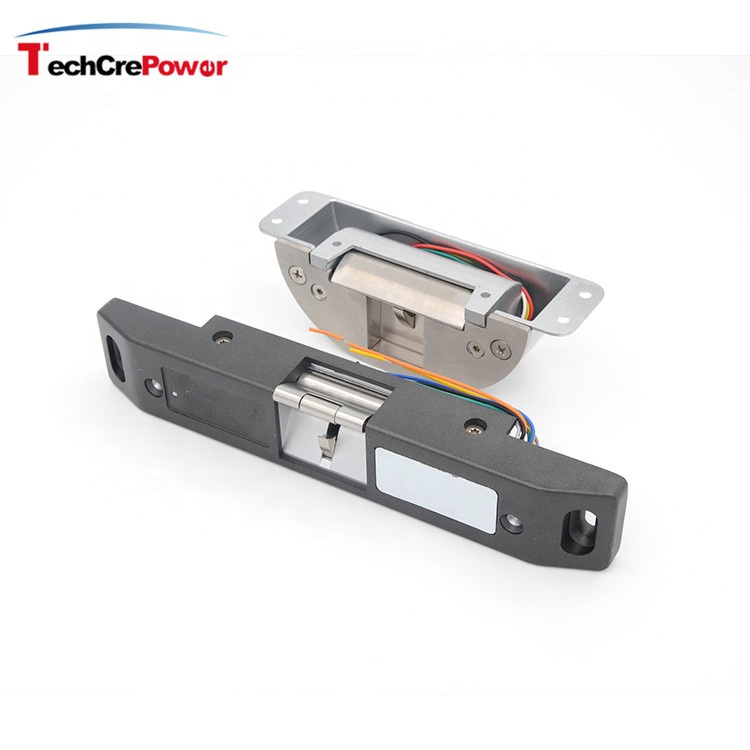

12V Fire Push Bar Electric Door Strike Lock for Supporting Rod Lock Fire Door
Product Description
Basic Specifications
Model NO.
EL-621-S / EL-622-S
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, Community
Type
Electric Strike
Holding Force
1000kg Holding Force
Working Principle
Electronically Controlled Lock
Material
304 Stainless Steel
Input Voltage
12V or 24VDC
Capacity
10000 PCS/Month
Product Description
12V Fire Push Bar Electric Door Strike Lock for Supporting Rod Lock Fire Door
The EL-621-S is specifically engineered for fire exit doors equipped with push-rod locks. Utilizing advanced electromagnetic principles, the strike lock generates the necessary force to manage the release lever, facilitating secure locking or emergency opening.
The EL-622-S features an enhanced stress structure design, making it compatible with all major brands of fire push rod locks. It has successfully undergone 1,000,000 cycles of mechanical testing, ensuring long-term reliability and performance. Users can easily configure the operation mode to either Fail Safe or Fail Secure based on security requirements.
Key Features
-
◈
Enhanced Durability: Robust stress structure design for high-traffic fire exits.
-
◈
Specialized Solenoid: Custom 100,000 cycle solenoid valve design.
-
◈
Flexible Power: Supports dual voltage inputs of 12V or 24V DC/AC.
-
◈
Universal Compatibility: Designed to apply to all brands of fire push rod locks.
Technical Specifications
| Product Parameter | Description |
|---|---|

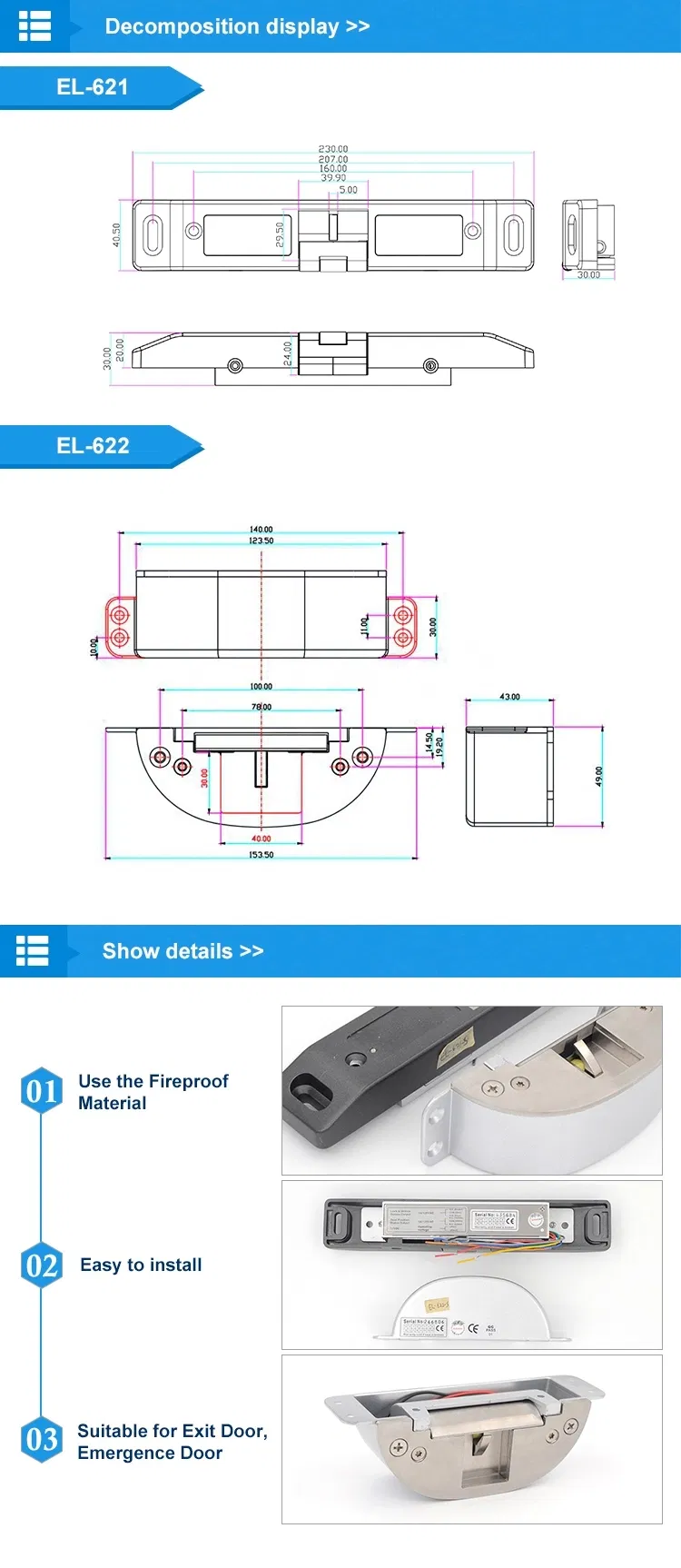

| Lock Size | 621: 230Lx40Wx30H(mm) | 622: 153.5Lx43Wx49H(mm) |
| Lock Tongue Structure | 304 Stainless Steel |
| Holding Force | 1000kg |
| Voltage | DC12V or DC24V |
| Current | 12V/320mA; 24V/160mA |
| Signal Output | Lock Status Output NO/NC/COM |
| Suitable For | Supporting rod lock fire door |
| Surface Temperature | Within +20ºC |
| Operating Temperature | -10~+55ºC (14-131F) |
| Operating Humidity | 0~90% (non-condensing) |
| Face Plate Housing | High temperature paint |
| Door Opening Angle | 90 Degrees |
| Weight | 621: 0.75kg | 622: 0.52kg |

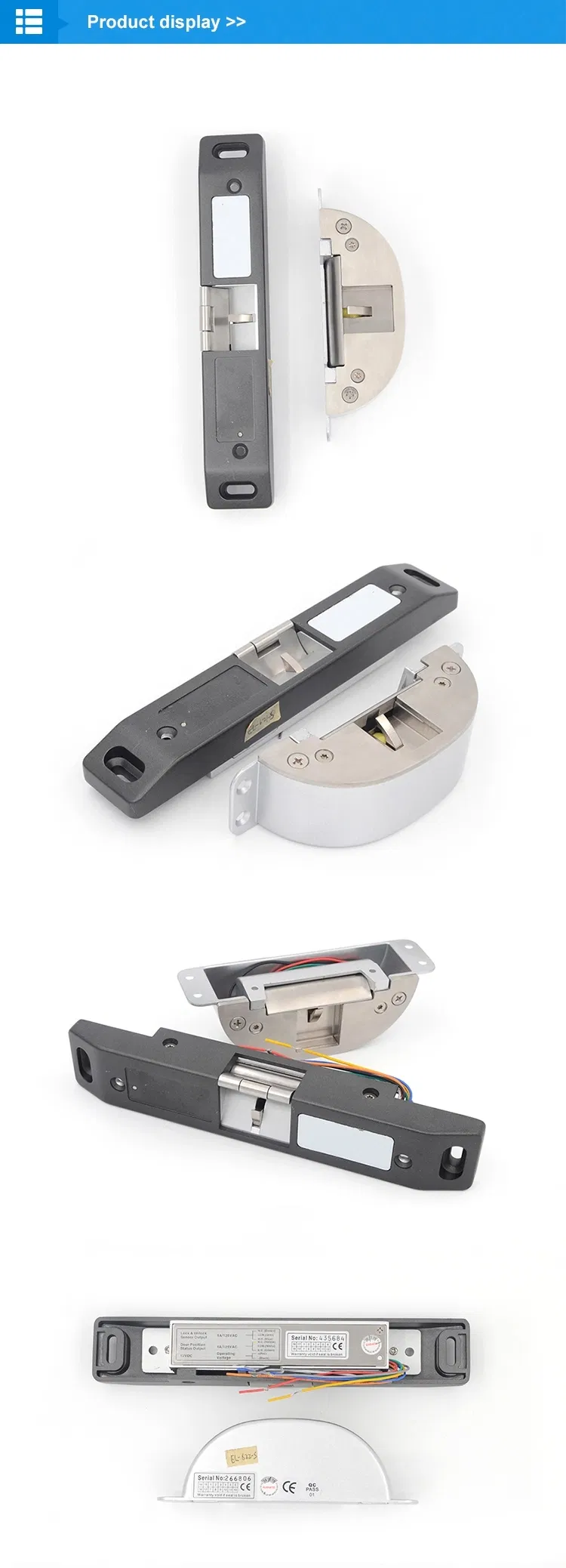

Product Details & Installation
Frequently Asked Questions
What is the maximum holding force of this electric strike?
The lock is designed with a high-strength structure providing up to 1000kg of holding force.
Is it compatible with different brands of fire push bars?
Yes, the special design is universal and applies to all major brands of fire push rod locks.
Does this lock support both Fail Safe and Fail Secure modes?
Yes, the operation mode can be adjusted to meet either Fail Safe (power to lock) or Fail Secure (power to open) requirements.
What power supply is required for operation?
The lock is versatile and supports both 12V and 24V DC/AC power inputs.
What material is used for the locking mechanism?
The lock tongue is constructed from high-grade 304 Stainless Steel for maximum durability and fire resistance.
Has the lock been tested for long-term durability?
Yes, it has successfully passed 1,000,000 cycles of mechanical testing to ensure reliability in high-traffic areas.
