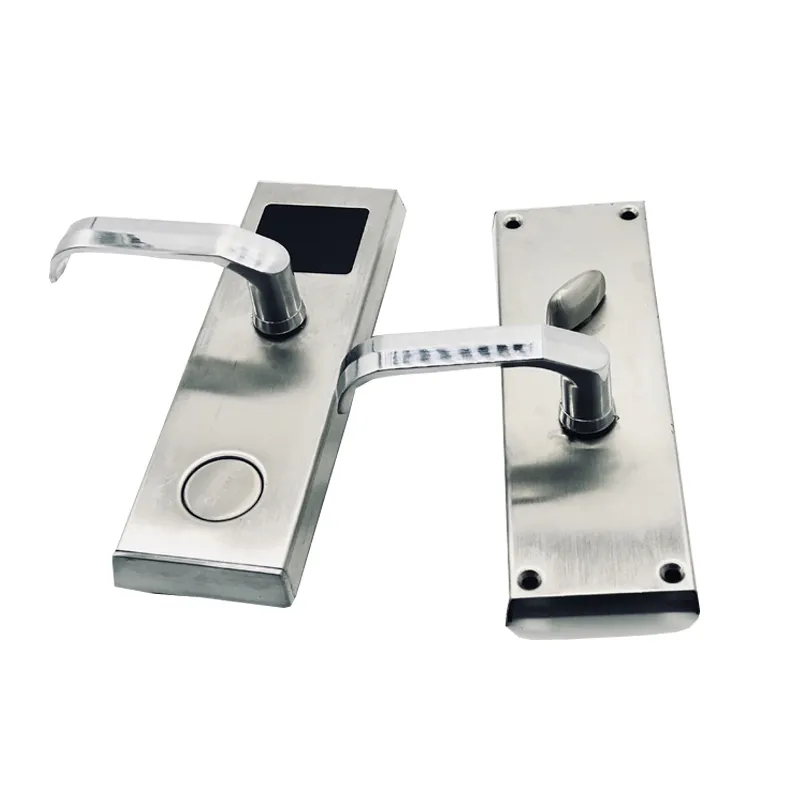

From Wholesale China Hotel Key Card Door Lock System
Product Description
Basic Specifications
Model NO.
344MFSA
Surface Treatment
Brushed
Style
Modern
Power Type
DC
Certification
CE, FCC, ISO
Color
Silver
Usage
Hotel, Household, Commercial, Hospital, School
Door Thickness
30-55mm
Unlock Way
Card or Mechanical Key
Card Type
RFID Card
Battery
4 Pieces of AA Batteries
Suitable Door
Wooden Door, Fire-Proof Door, Metal Door
Factory Advantages
🏆
Experience
4 Years experiences, Served over 10,000 Hotels
🏭
Pricing
Original factory manufacturing price
🛡️
Service
Warranty for one year, maintenance forever, Perfect After Sale Service
📜
Certified
With CE and FCC certification, RoHS standard technology

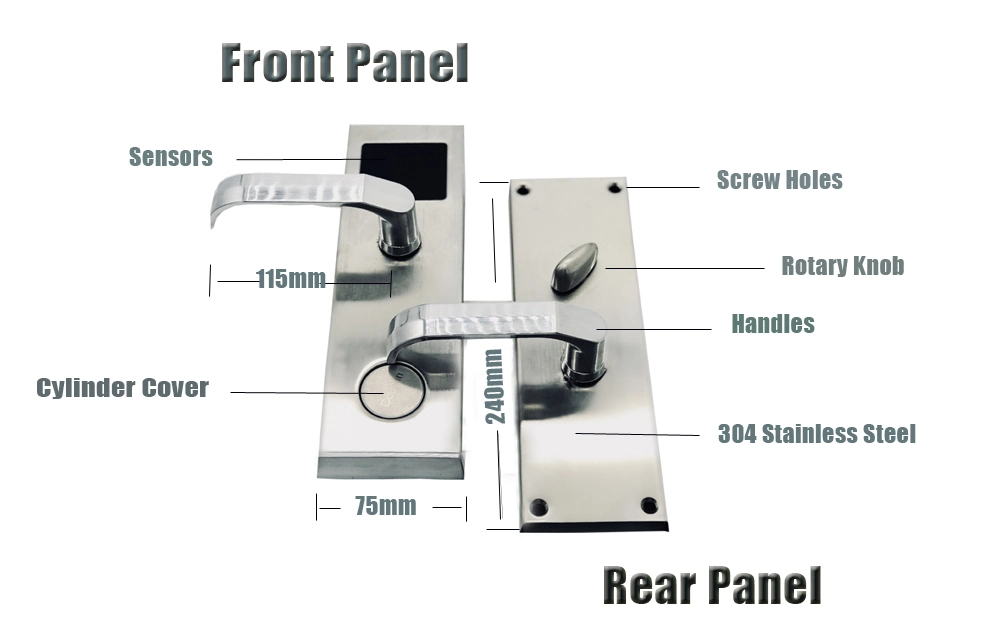

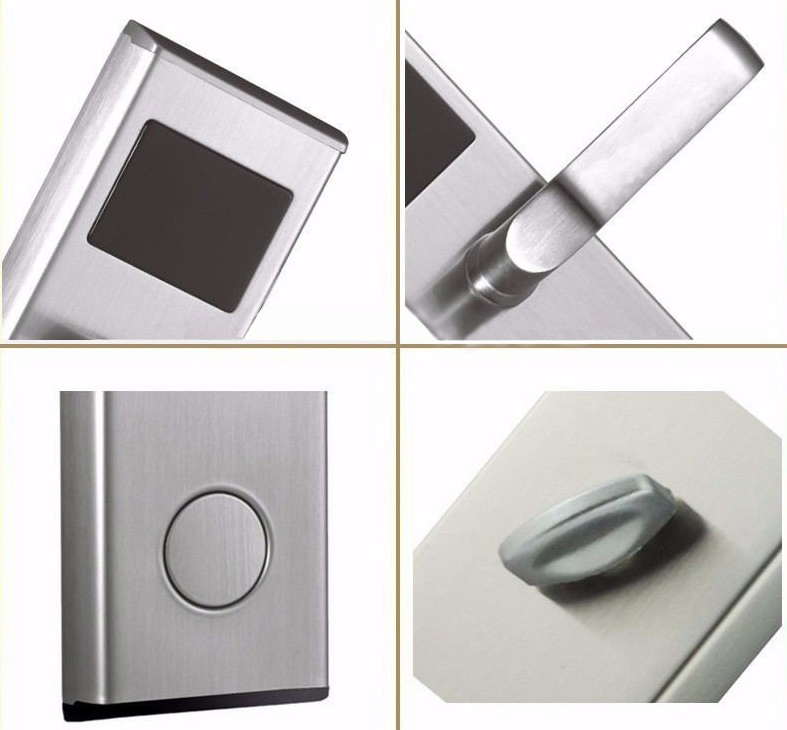

Product Highlights
- Solid Handle: Makes the lock more durable and robust.
- Hidden Key Hole: Elegant design while maintaining emergency access.
- Anti-Corrosion: Material will never be oxidized or corroded.

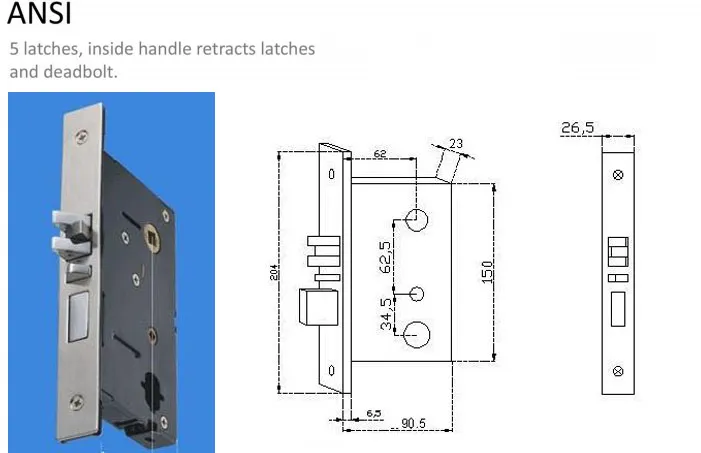

- Mortise Options: American or European mortise lock available.
Technical Index
| Power Supply | DC6V (4x AA batteries) with low voltage indication |
| Static Power | <1u A |
| Dynamic Power | About 200mA |
| Battery Life | Exceeds 20,000 door openings |
| Memory Record | Stores 512 opening lines (Standard) |
| Environment | Temp: -20º C to 70º C, Humidity: 98% max |
| Anti-static | 15,000V protection for data security |

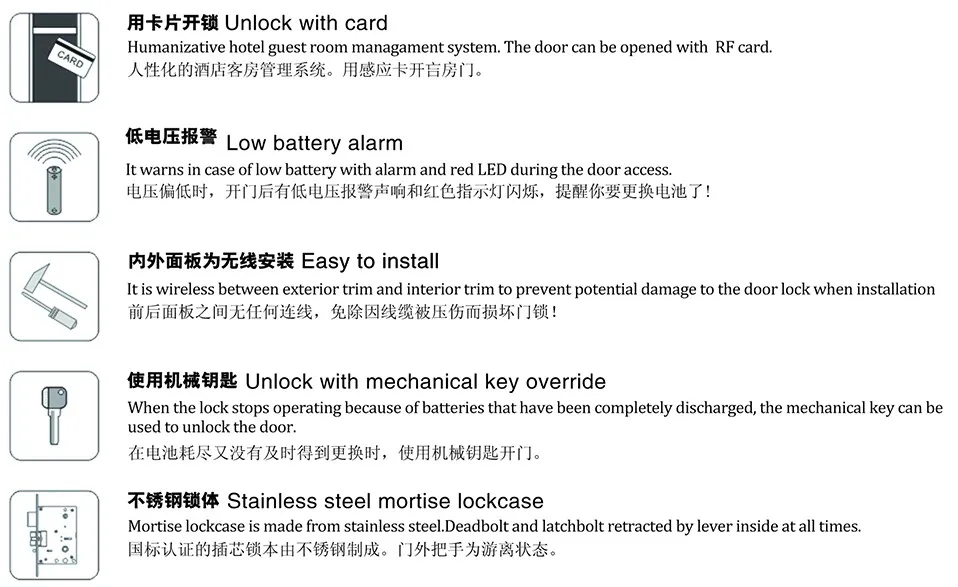

System Functions
| Five Levels Control | General, Building, Floor, Area, and Room control |
| Password Control | Dual system and operating passwords for security |
| Cipher Coding | Unique codes per card; prevents copying |
| Timing Control | Internal clock manages card validity limits |
| File Records | Logs all card and mechanical key openings |

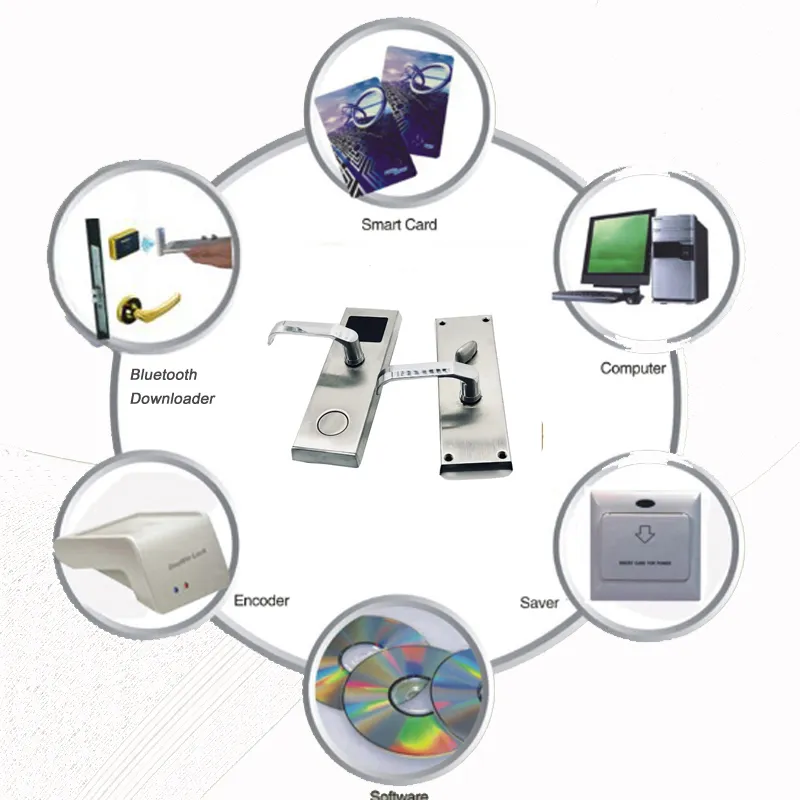

System Construction & Application
- Integrated access for parking, lobby, elevators, and room entry.
- Simple replacement for existing mechanical or electronic locks.
- Low voltage alarm rings when batteries need replacement.
- Anti-theft, scoop-proof, and prying resistant features.
Frequently Asked Questions
What is the required door thickness for this lock?
The lock is suitable for doors with a thickness between 30mm and 55mm.
How many times can the door be opened with one set of batteries?
The 4 AA batteries typically allow for over 20,000 door openings before replacement is needed.
Can the lock be opened in case of an emergency or battery failure?
Yes, emergency mechanical keys are provided to open the door in special situations.
Does the system record who opened the door?
Yes, the lock stores a record of up to 512 opening lines, including entries made via mechanical keys.
Is the key card secure against unauthorized copying?
Absolutely. Each RFID card uses unique cipher coding that cannot be copied. Compulsory decoding will automatically destroy the card.
What happens if the battery voltage gets low?
The system includes a low-voltage alarm that rings to notify staff/users when the power is below the standard working voltage.
