Hotel RFID S50 1K Card Used for Hotel Lock System
Product Description
Basic Specifications
Model NO.
S50
Suitable for
Home Door
Customized
Available
Usage
Commercial, Household, Industrial, School, Office
Door Thickness
30-55mm
Applications
Hotel, School, Office, Hospital
Color
Silver, Gold
Card Type
Smart Card Type
Emergency
Opened by Mechanical Key
Battery
4 Pieces of AA Batteries
Certification
FCC & CE
HS Code
83014000
Capacity
400,000 Units
Product Overview

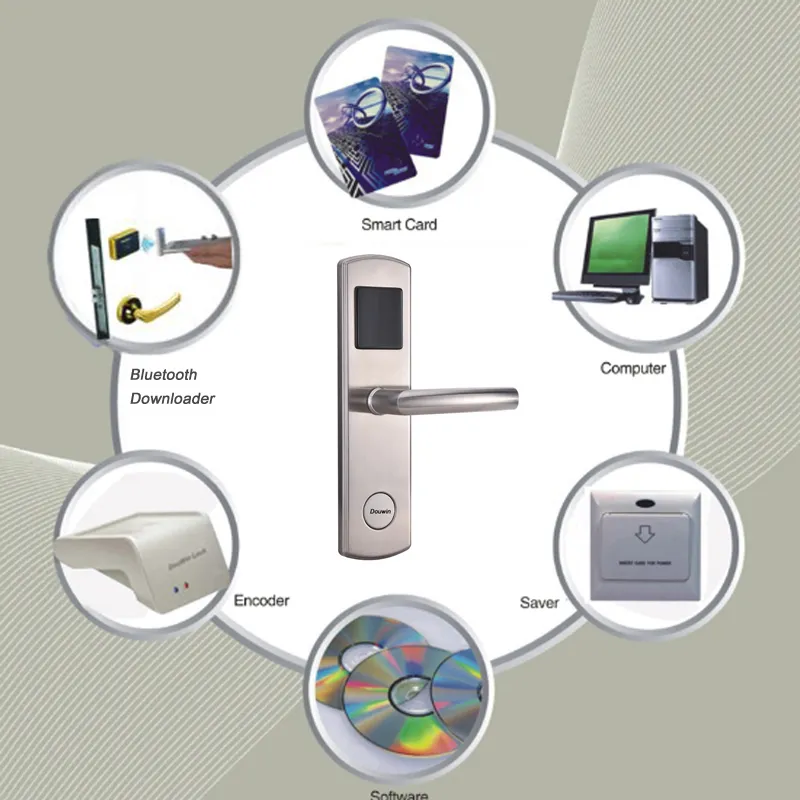

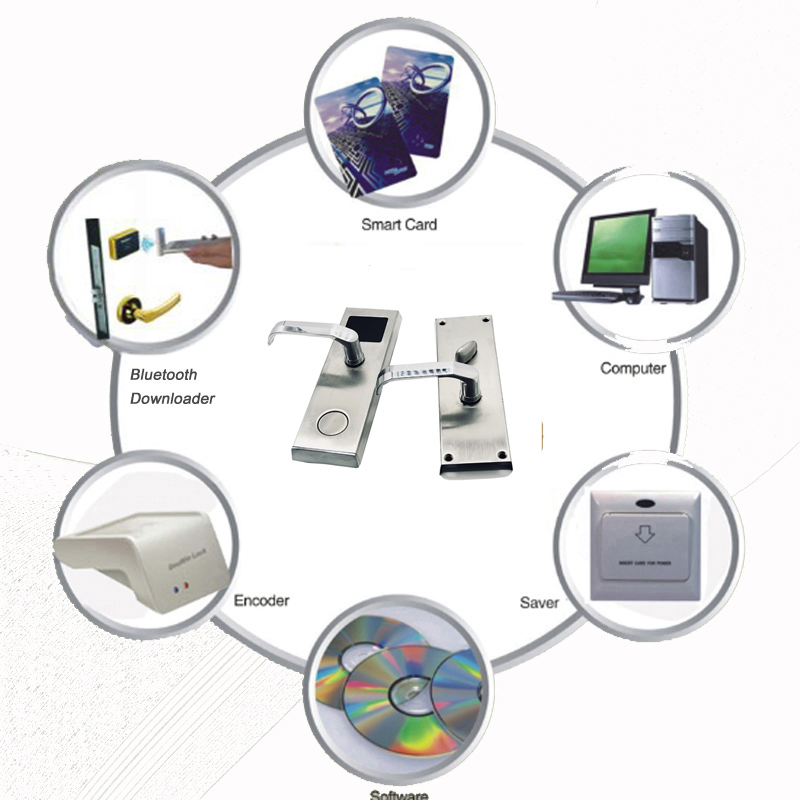

The Hotel RF card door lock system consists of the Smart Lock, management software, encoder, Portable programmer (PDA), RF card, and energy-saving switch.
🌟 Key Advantages
- Environmental technology compliant with RoHS standards.
- Equipped with a Solid Handle for enhanced durability.
- Design of hidden key hole for a simple and beautiful aesthetic.
- Choice of American or European mortise locks.
- High-quality materials that will never be oxidized or corroded.
Technical Functional Index

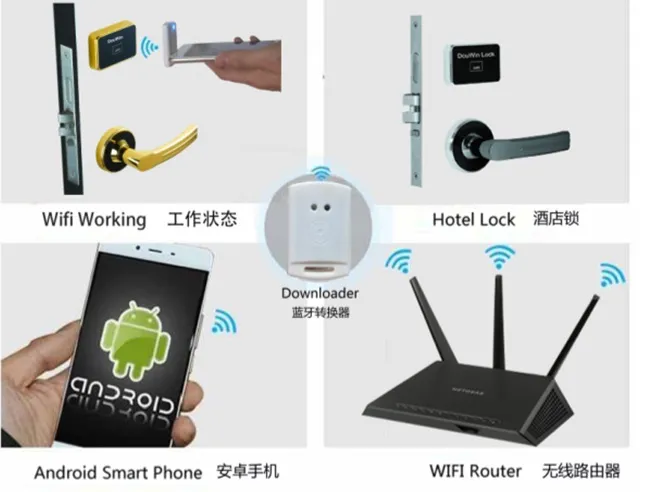

Wifi Version Hotel RFID Card Door Lock System Working Conditions:
- Hotel Reception's computer and smart phone must be in the same LAN via Wifi.
- Smart phones must use the Android system and have Bluetooth functionality.

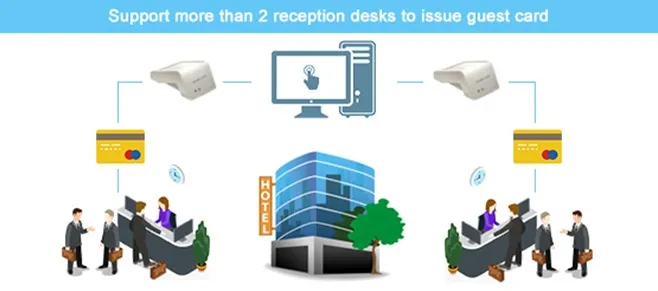

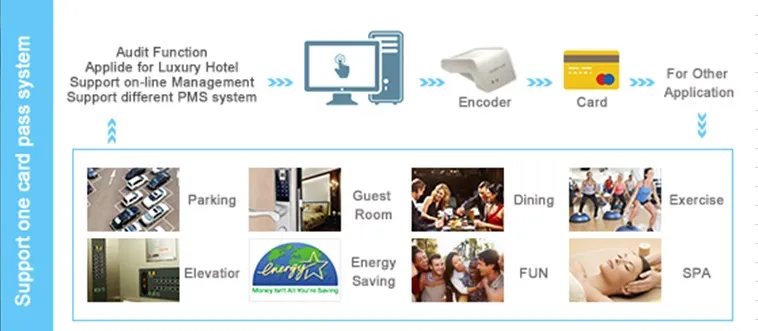

The door lock software is powerful, integrating hotel entrance access control and elevator access control. It can be integrated with any hotel management software (PMS) via SDK (DLL). Data is shared across the LAN, allowing multiple front desk receptions to handle check-ins simultaneously.
System Components
| Hotel RF Door Lock | One set per room |
| Open Door Card | Master card, Waitress card, Guest card, etc. |
| RF Encoder | Issues all open door cards for the system. |
| Door Lock Software | Manages all cards; supports multiple languages via DIY settings. |
| Energy Saver | Guests gain power in their room only via the RF card. |

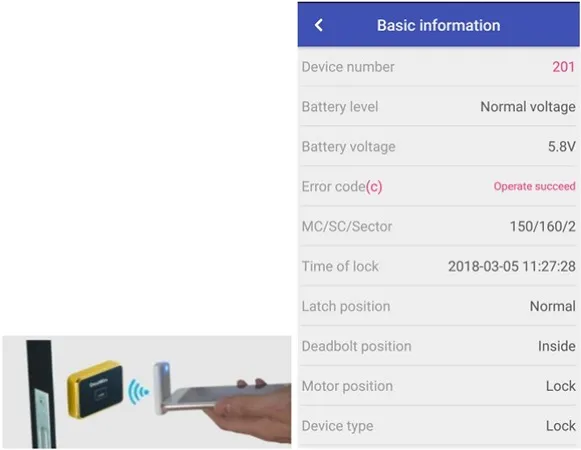

| Mobile App (PDA) | Programs room numbers/time and reads opening records (who, when, which card). |
Security & Control Functions
1. Five Levels of Control: General control, building control, floor control, area control, and room control.
2. Password Control: Combined system and operating passwords for maximum security.
3. Cipher Coding: Each card has a unique, non-copyable code.
4. Timing Control: Internal clocks control the effective time limits of card keys.
5. File Records: All openings (including mechanical) are recorded (up to 512 lines).
6. Loss Reporting: Lost cards can be instantly cancelled in the system.
Technical Specifications
- Power Supply: DC6V (4x AA batteries) with low voltage indication.
- Static Power: <1uA | Dynamic Power: ~200mA.
- Battery Life: Exceeds 10,000 openings.
- Inductive Distance: 1-5cm.
- Environment: -20°C to 70°C; Humidity up to 98%.
- Anti-static: Fully resolved via closing status design.

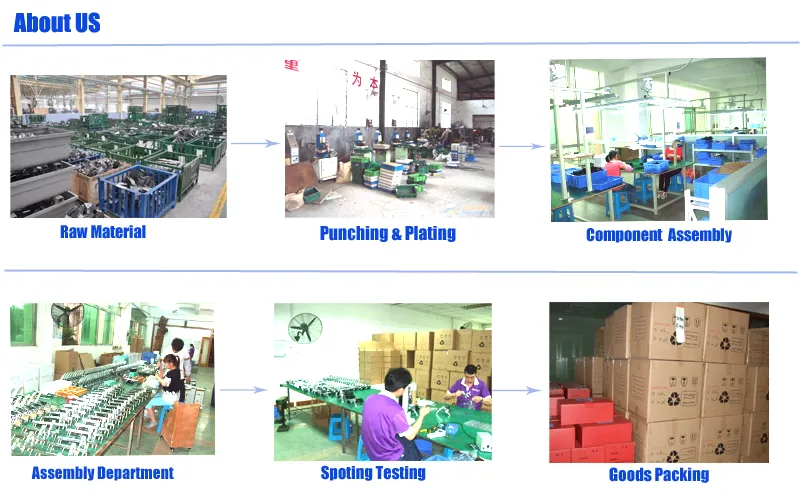

Manufacturing Excellence

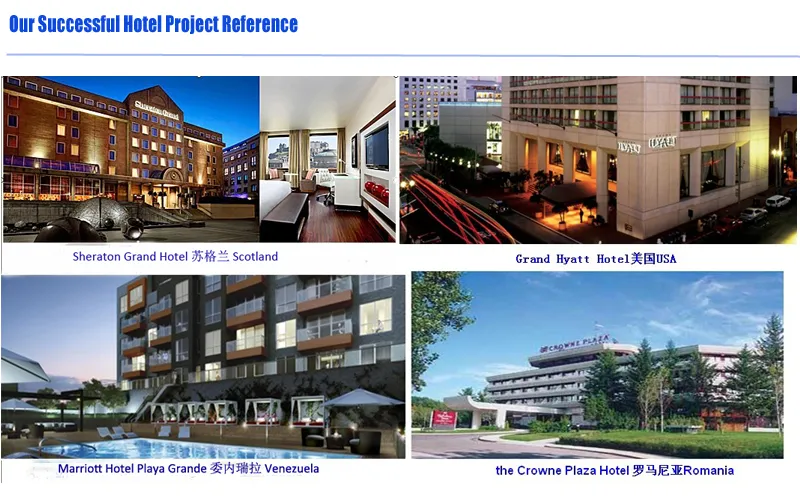

- Extensive experience serving over 10,000 hotels.
- Original factory manufacturing prices with sample service welcome.
- One-year warranty with lifetime maintenance support.
- Fast response: Quotations within 24 hours and sample shipping within 3 days.
- Fully certified with CE and FCC standards.
Frequently Asked Questions
What type of batteries does the S50 lock require?
The lock is powered by 4 standard AA batteries (DC6V). It features a low-voltage alarm to notify you when they need replacement.
Can the lock be opened if the electronics fail or batteries die?
Yes, every lock is designed with a hidden mechanical key hole for emergency manual override.
What is the suitable door thickness for this model?
The S50 model is compatible with doors ranging from 30mm to 55mm in thickness.
Is the management software compatible with existing Hotel PMS?
Yes, the software can be integrated with most Hotel Management Systems (PMS) using the provided SDK (DLL).
How many opening records can the lock store?
The standard lock stores up to 512 lines of opening records, which can be read using the PDA downloader.
Is the lock resistant to environmental wear?
Absolutely. The lock uses environmental technology and high-grade materials that are resistant to oxidation and corrosion.
