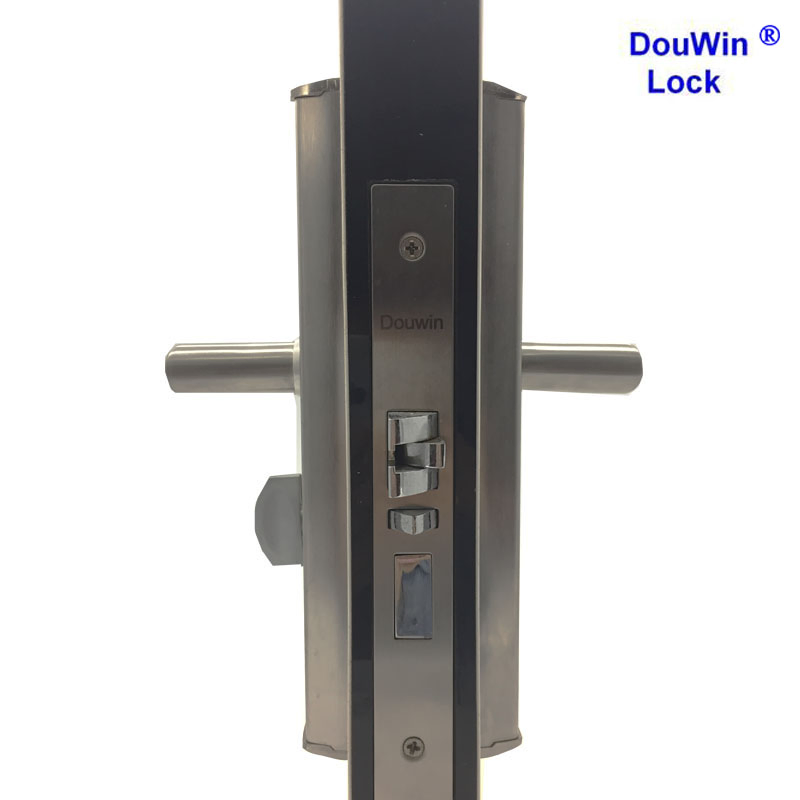

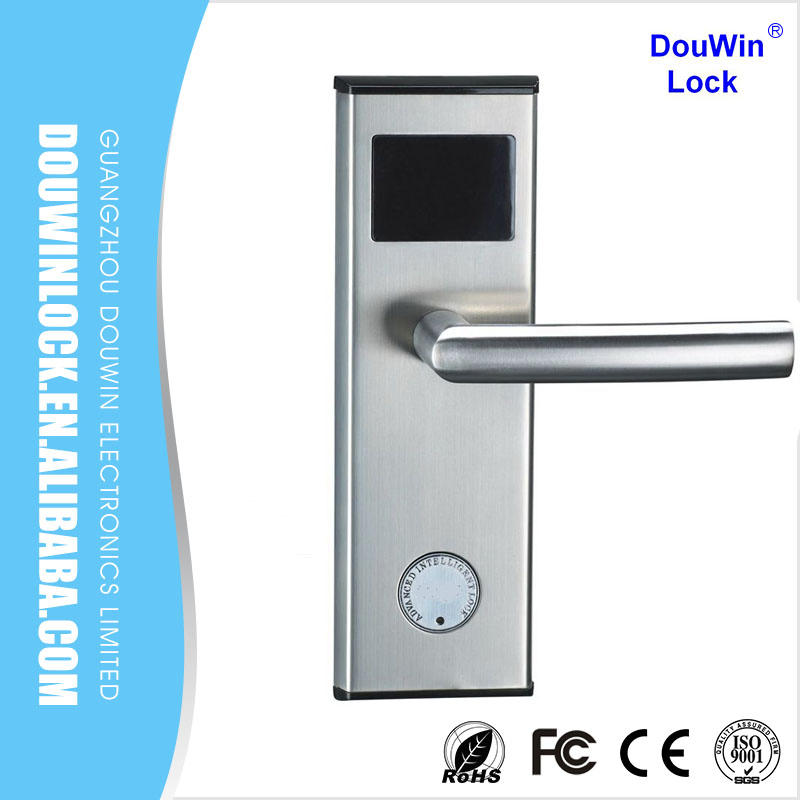

Management Hotel Software Hotel Room Card Lock System From China
Product Description
Basic Specifications
Model NO.
346MFSA
Suitable for
Home Door
Usage
Commercial, Household, Industrial, School, Office
Door Thickness
30-55mm
Color
Silver, Gold
Card Type
Smart Card Type
Emergency
Opened by Mechanical Key
Battery
4 Pieces of AA Batteries
Certification
FCC & CE
HS Code
83014000
Product Overview
Advanced hotel management software and room card lock system. The RF hotel door lock series includes:
◈ MIFARE® card hotel lock (USB port encoder & software)
◈ Temic card hotel lock (USB port encoder & software)
◈ EM hotel lock (Standalone, no software required)
Key Selling Points
✔ Classic & Durable Design
✔ Multi-language Support
✔ Competitive Pricing
✔ 12-Month Warranty

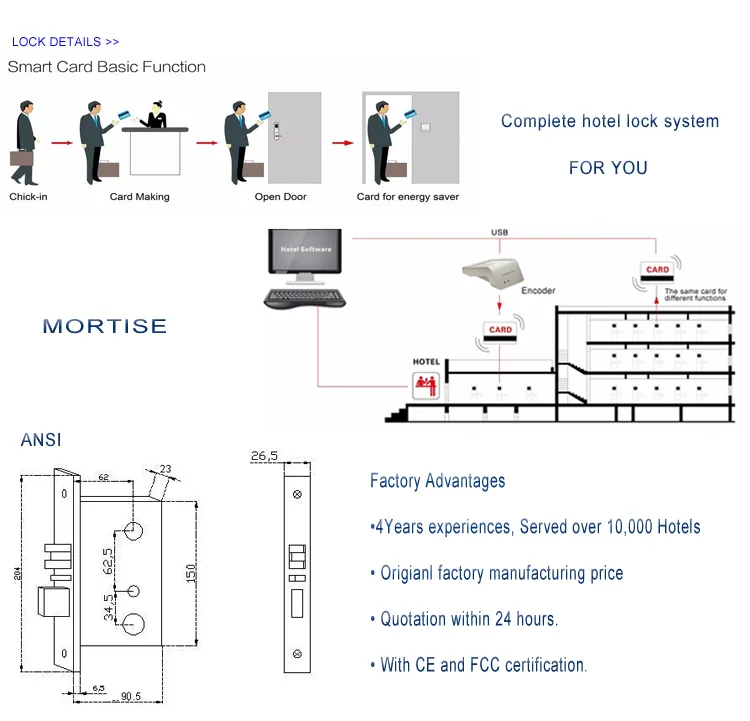

System Configuration
| Component | Function |
|---|---|
| Lock | Installed on guest room doors |
| Encoder | Authorizes cards via software management |
| Energy Saver Switch | Controls room power (Optional software managed) |
| Card | Used to unlock doors |
| Data Gatherer | Collects entrance information logs |
| Software | Free, permanent, included with Encoder |
Technical Features

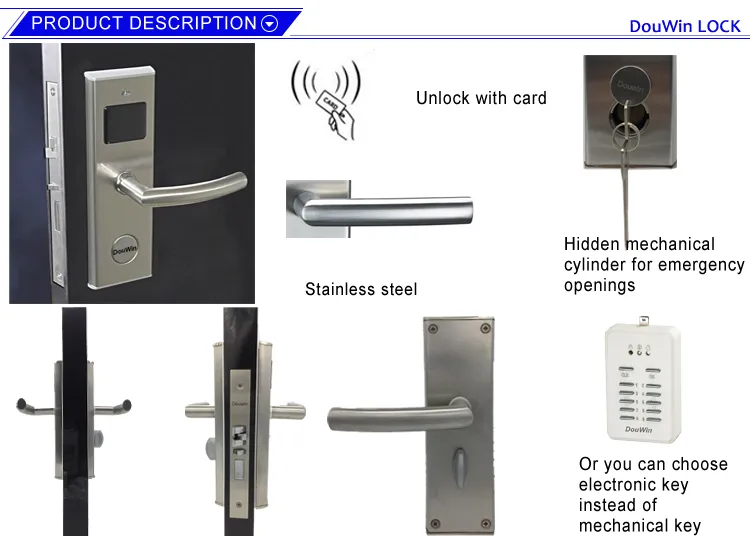

| Material | Zinc Alloy with chrome plated: moisture proof, fire retardant |
| Surface Finishing | PVD-durable for at least 15 years |
| Power Supply | 4 pcs AA alkaline batteries (8-12 months life) |
| Low Voltage Warning | Warning sounds when voltage < 4.5V (50 openings remaining) |
| Static Consumption | < 30 uA |
| Working Temp | -25°C ~ 55°C |
| Auto-Lock | Automatically locks 7 seconds after unlocking |
| Door Thickness | 32-60mm (Customizable) |
Card Management Hierarchy
Issue different card types to execute rank management:
- • Guest Card: Programmed with specific expiry dates for room access.
- • Master Card: Held by housekeeping for access to all rooms.
- • Floor Card: Used by cleaning staff for specific floor access.
- • Emergency Card: Overrides and enters all rooms.
Frequently Asked Questions
What types of cards are supported by the lock system?
The system supports MIFARE®, Temic, and ID cards. Depending on the model chosen, you can use software-managed cards or standalone EM cards.
How long do the batteries last and what happens if they run out?
The 4 AA alkaline batteries typically last 8-12 months. When the voltage drops below 4.5V, a low-voltage warning will trigger, allowing approximately 50 more openings before exhaustion. Mechanical keys are provided for emergency access.
Is there a recurring cost for the management software?
No, the hotel management software is provided for free and is permanent. There are no subsequent fees for its use.
What is the material and durability of the lock panel?
The locks are made of Zinc Alloy with chrome plating, making them moisture-proof and fire-retardant. The PVD surface finishing is designed to be durable for at least 15 years.
Can I track who opened the door and when?
Yes, by using the data gatherer and software, you can retrieve the opening records to see exactly who accessed the lock and at what time.
What door thickness is required for installation?
The standard applicable door thickness is between 32mm and 60mm. If your door is outside this range, please advise in advance for customization.
