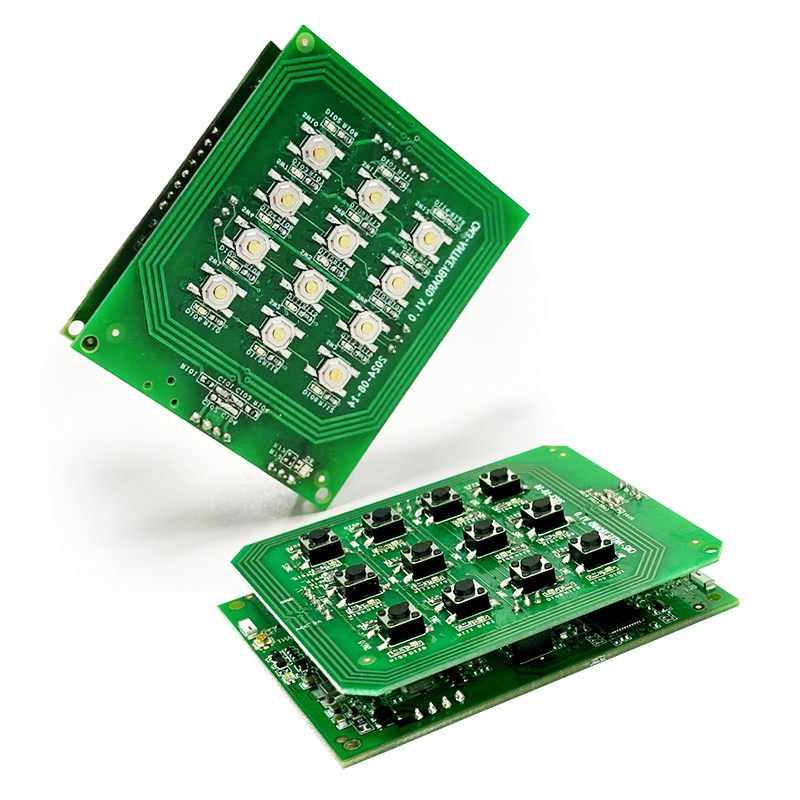

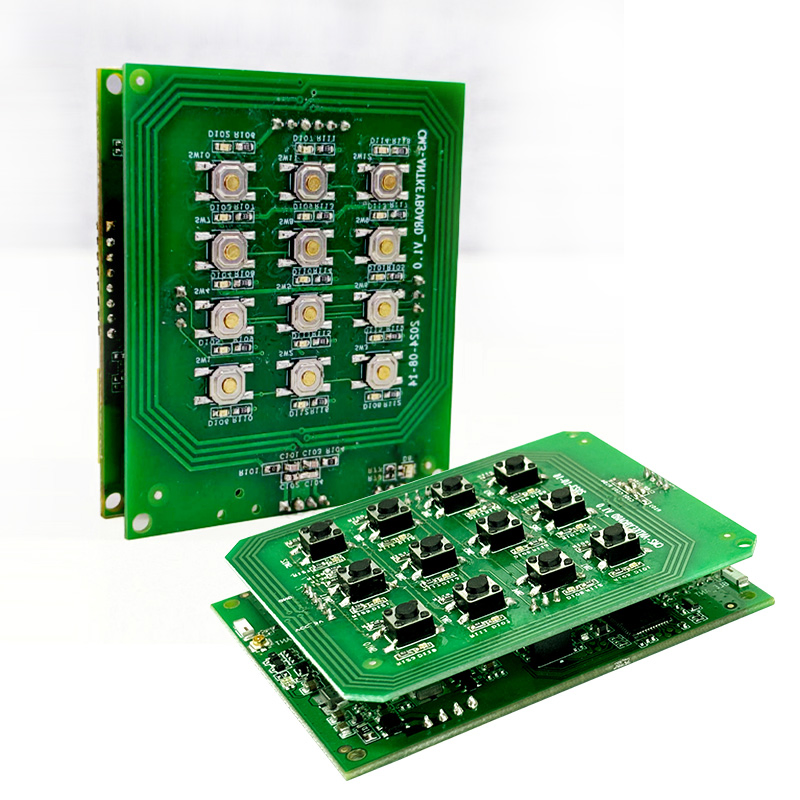

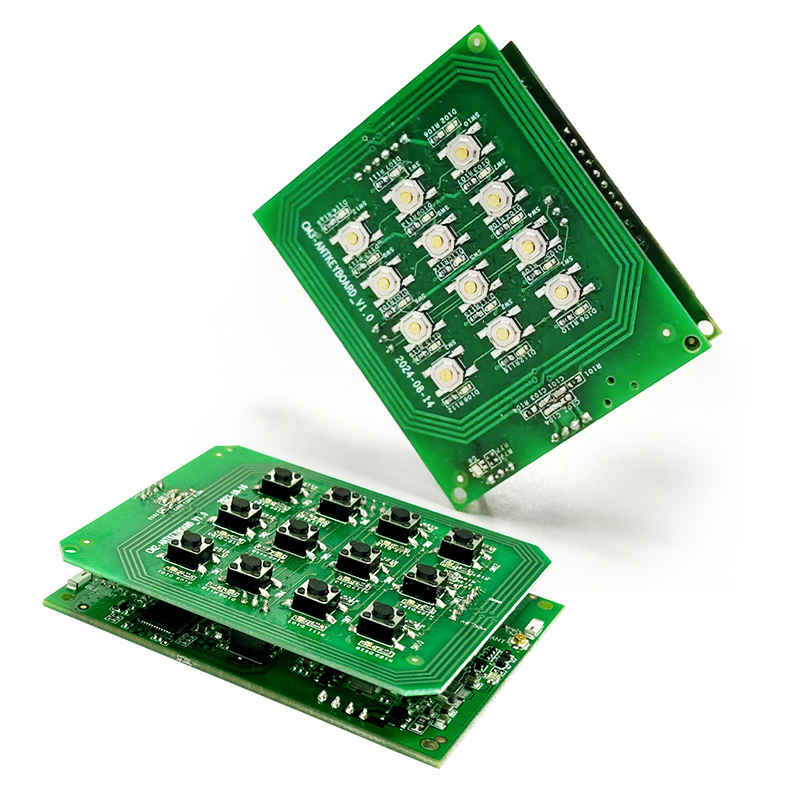

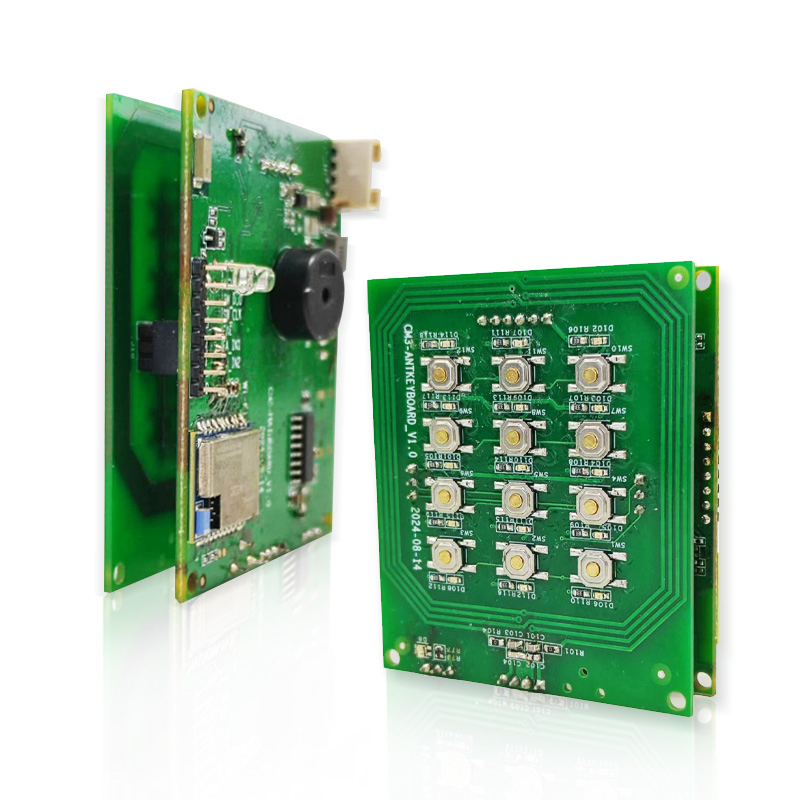

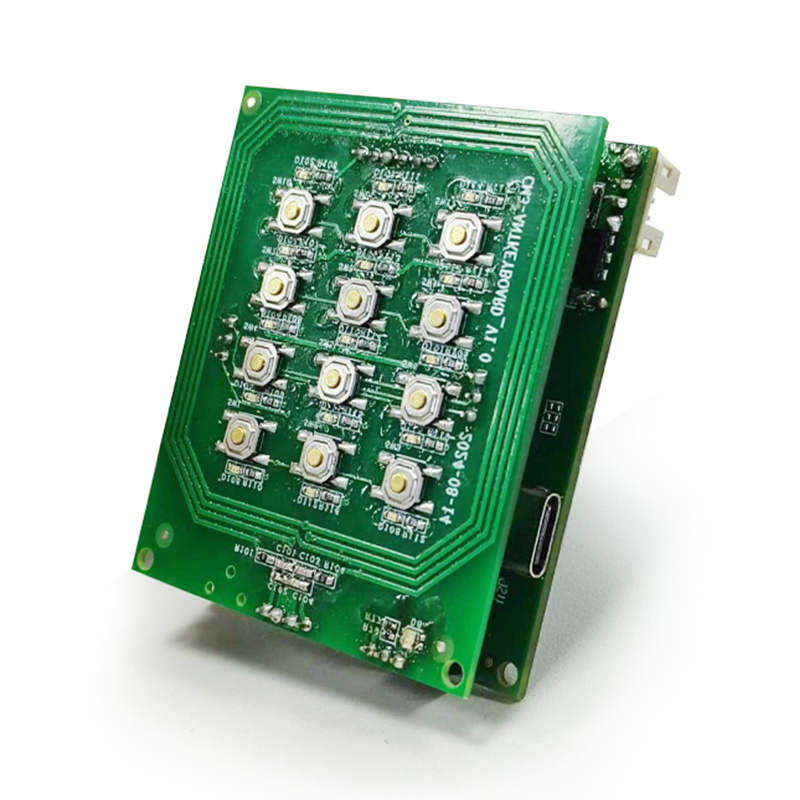

Cm3 Card Reader Door Lock System Card Access Door Lock System Commercial RFID Door Lock System
Product Description
Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Anti-theft Standard
A
Backset
70mm
Usage
Household Door Locks, Bedroom, Channel Lock
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2, ISO14443b
Wireless
BLE 5.3 Master & Slave Mode, Beacon, Thread, Zigbee
Interface
WiFi, BLE 5.3, USB
Power
3V, 4 * Battery

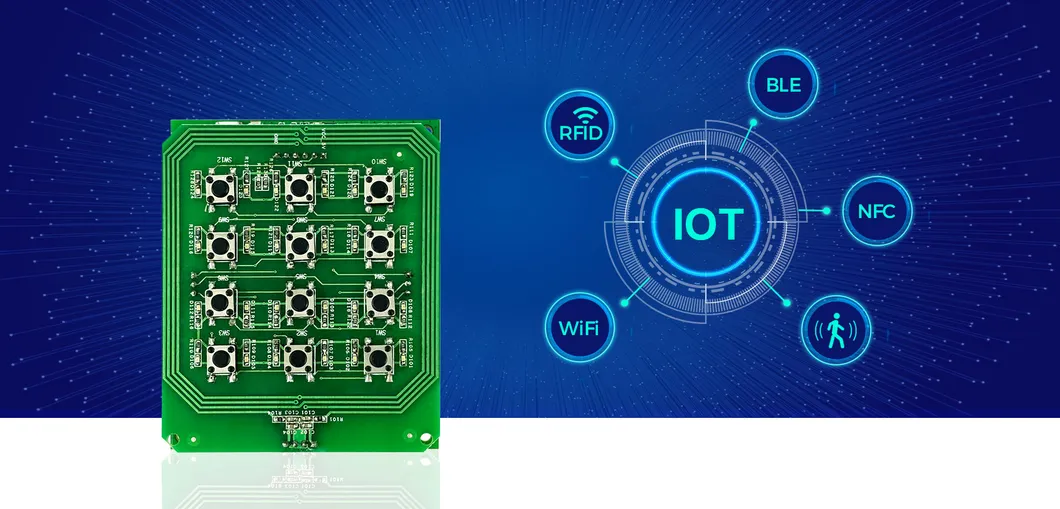

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meets the high security application requirements.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meets the high security application requirements.

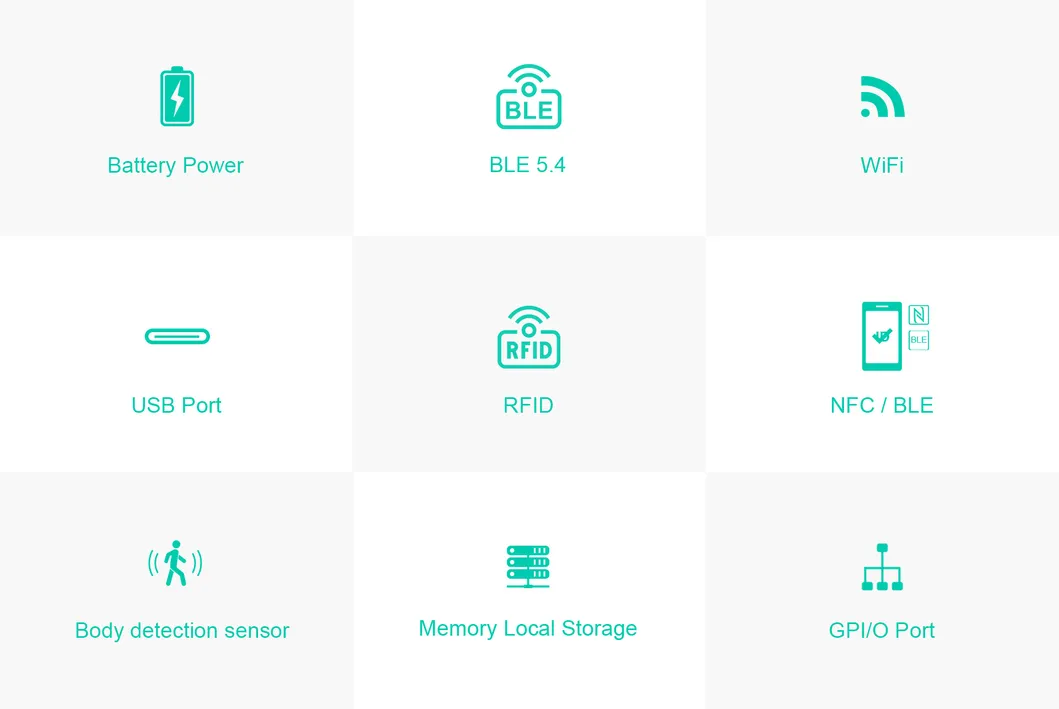

✔ Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
✔ Support Arm® TrustZone® for high security
✔ Rich I/O port for electric lock control
✔ With memory for local data storage
✔ Economic solution for battery powered ultra-low power consumption reader
✔ Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
✔ Embedded software development & Body detection function
| Memory | 4M BYTE |
| Power Supply | USB / 3V (4 * battery) |
| RFID Standard | 13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, NFC tag, HID iCLASS CSN |
| Secure Interface | Optional SAM slot ISO7816; SAM AV2 support; Secure IC for MCU protection EAL5+ Level |
| Mobile Comm. | NFC mobile phone, BLE 5.3 |
| Keypad | 12 digit mechanical keypad |
| Interfaces | WiFi, BLE 5.3 (Master/Slave, Beacon, Thread, Zigbee, Mesh), USB |
| Indicators | Buzzer and Bio-color LED |
| Temp Range | -20ºC ~ 60ºC |
What is the main advantage of the Smart CM3 platform?
The Smart CM3 is a new generation BLE 5.4 wireless platform designed for ultra-low power consumption, making it ideal for battery-operated devices like wireless electric locks and handheld applications.
Which RFID technologies are supported?
It supports a wide range of 13.56MHz technologies including Mifare Classic, DESfire EV1/EV2/EV3, Ultralight C, Plus S/X, NFC tags, and HID iCLASS CSN.
Does it support mobile phone access?
Yes, it supports both NFC mobile phone communication and BLE 5.3 for mobile credentials and application interfacing.
How secure is the CM3 system?
It features Arm® TrustZone® support, optional SAM slots with EAL5+ encryption level, and secure ICs for MCU communication protection.

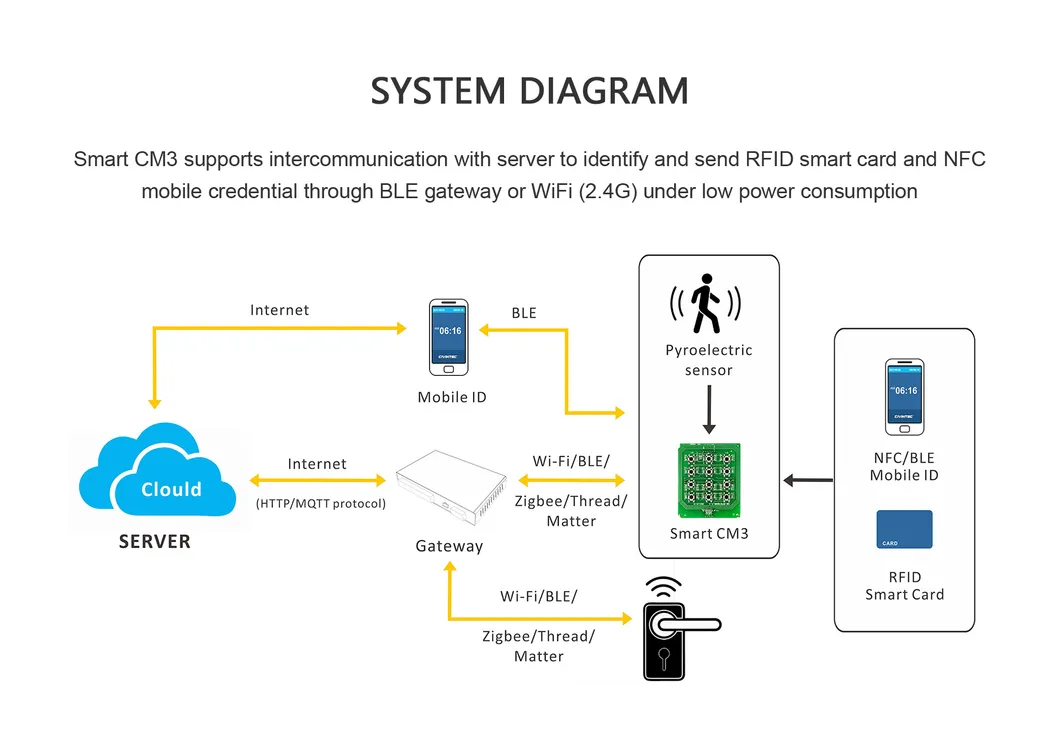

What wireless protocols can be used for communication?
The platform is highly versatile, supporting WiFi, BLE 5.3 (including Mesh and Beacon modes), Zigbee, Thread, and Matter protocols.
What are the power options for this device?
The device can be powered via a standard USB connection or through a 3V battery setup (typically 4 batteries) for wireless installations.
