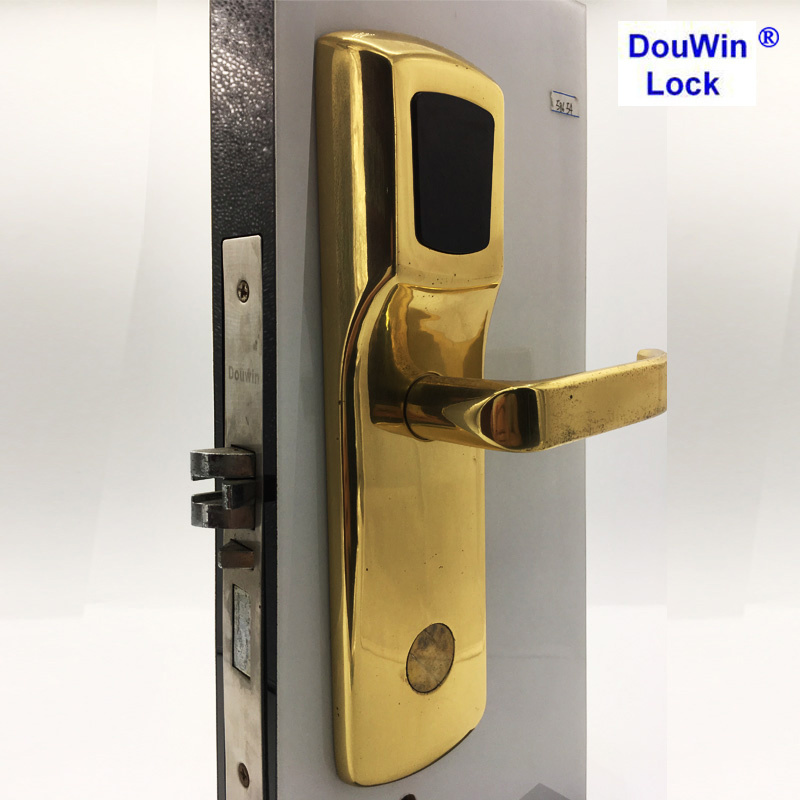

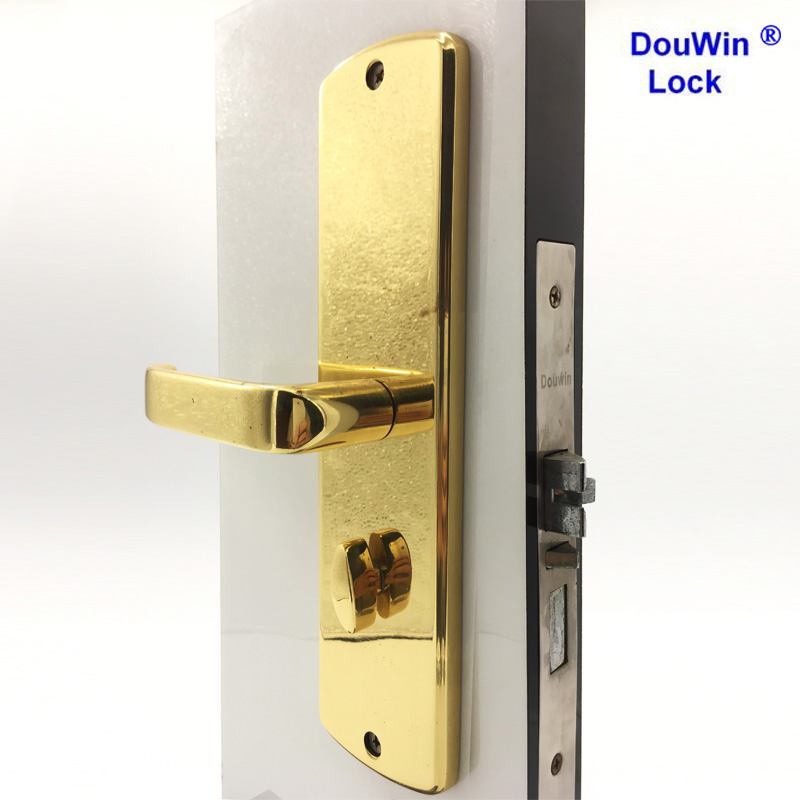

Hotel Card Door Lock System with Smart Key Card Door Lock System
Product Description
Basic Specifications
Model NO.
586MFGB
Surface Treatment
Brushed
Style
Modern
Power Type
DC (4x AA Batteries)
Certification
CE, FCC
Color
Silver
Usage
Hotel, Household, Commercial
Door Thickness
30-55mm
Card Type
Smart Card (ID, TEMIC, MIFARE®)
Emergency
Mechanical Key Override
Production Capacity
400,000 Units
HS Code
83014000
Product Description & Configuration
🛡️
Reliable Hotel Security System
Integrated smart lock solution designed for modern hospitality management with permanent free software.
Integrated smart lock solution designed for modern hospitality management with permanent free software.

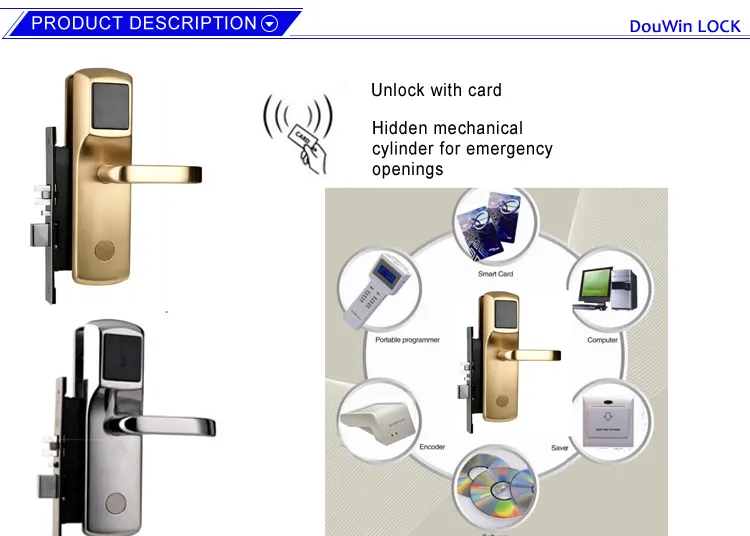

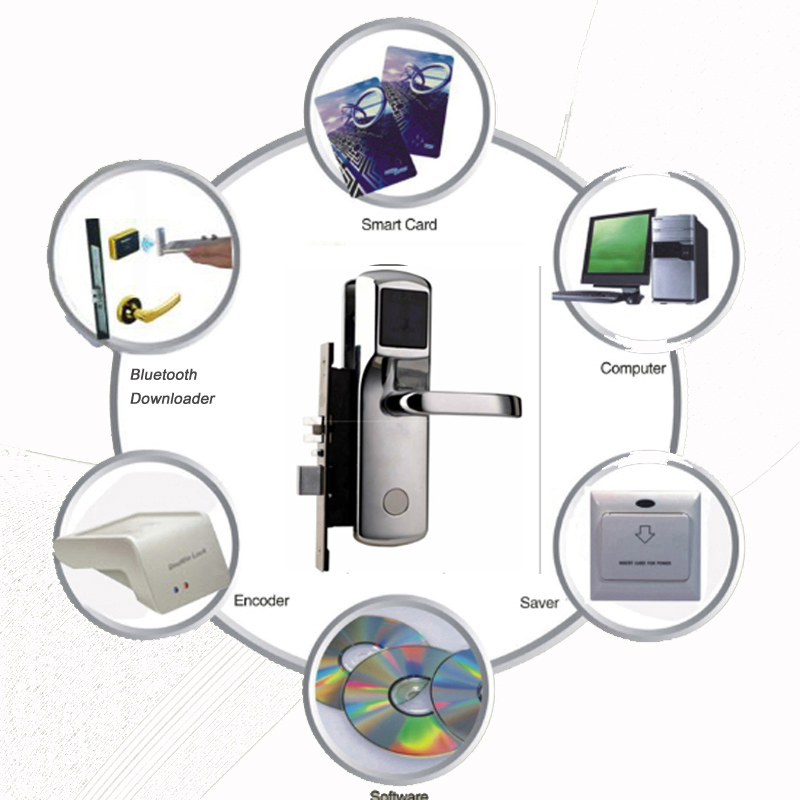

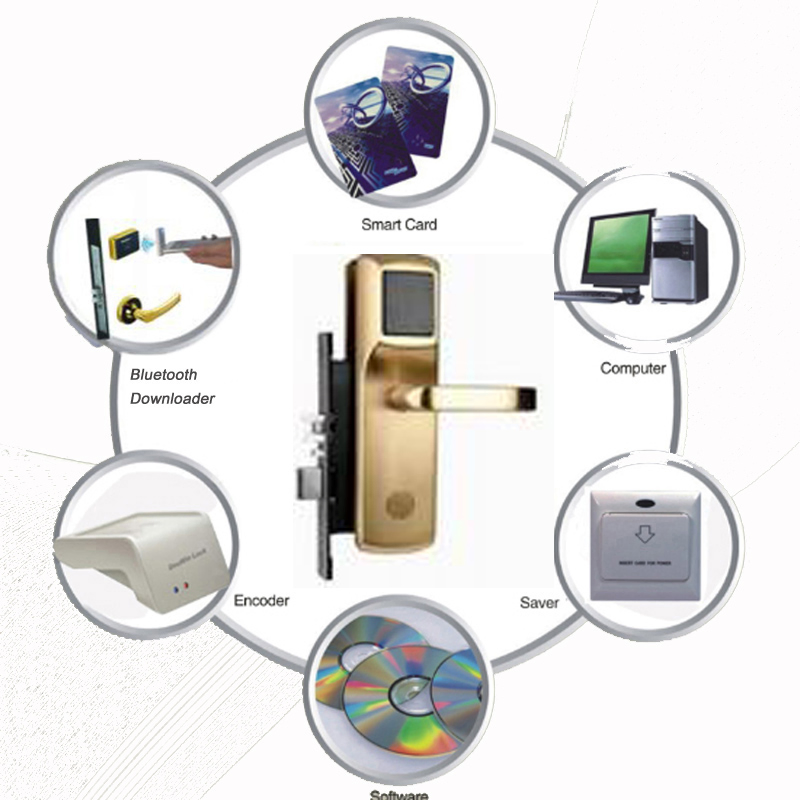

Basic System Configuration
| Component | Functionality |
|---|---|
| Lock | Installed on guest room doors for secure access. |
| Encoder | Authorizes and programs cards via management software. |
| Energy Saver Switch | Gains room power upon card insertion (Optional software managed). |
| Card | The smart key used by guests and staff to open doors. |
| Data Gatherer | Collects entrance logs and audit trails from locks. |
| Software | Free, permanent management software included with Encoder. |
Extended Functions
| Access Control | Manage common areas or main entrance doors using the same software/card. |
| Elevator Controller | Restrict floor access to authorized cardholders only. |
| Room Status | Door bell integration and guest room status monitoring. |
Technical Specifications
| Material | Zinc Alloy with chrome plated: moisture proof, fire retardant. |
| Panel Surface | PVD-durable for 15 years minimum. |
| Battery Life | 8-12 months in normal operating state. |
| Low Voltage Warning | Alerts when voltage < 4.5V; supports ~50 more openings. |
| Static Consumption | < 30 uA |
| Dynamic Consumption | 220mA |
| Working Temp | -25°C ~ 55°C |
| Auto-Lock | Lock engages automatically 7 seconds after unlocking. |
| Reliability | Tested for 10,000+ continuous card insertions. |

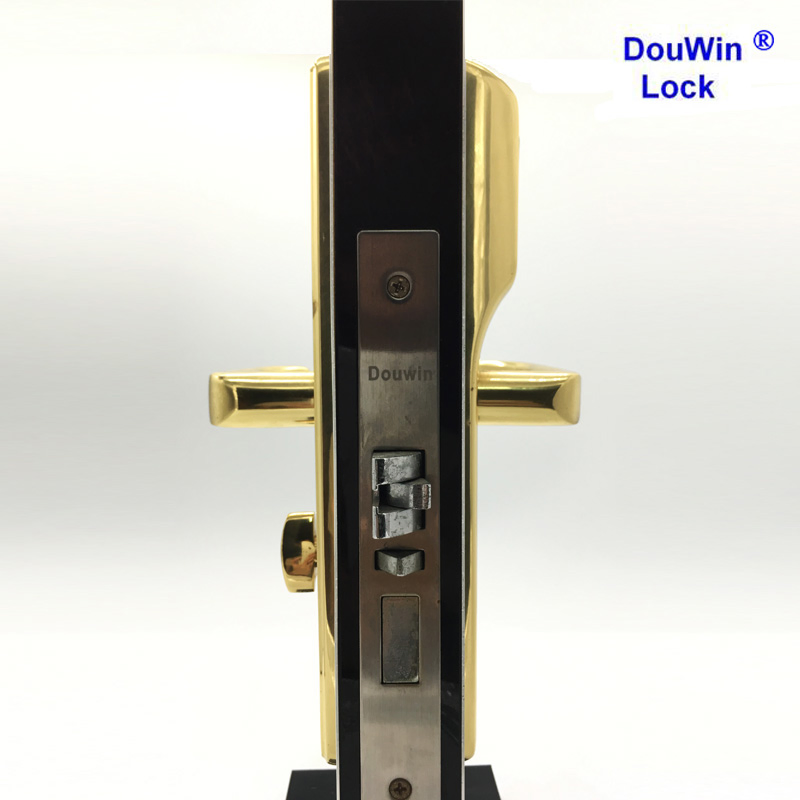

Product Visuals

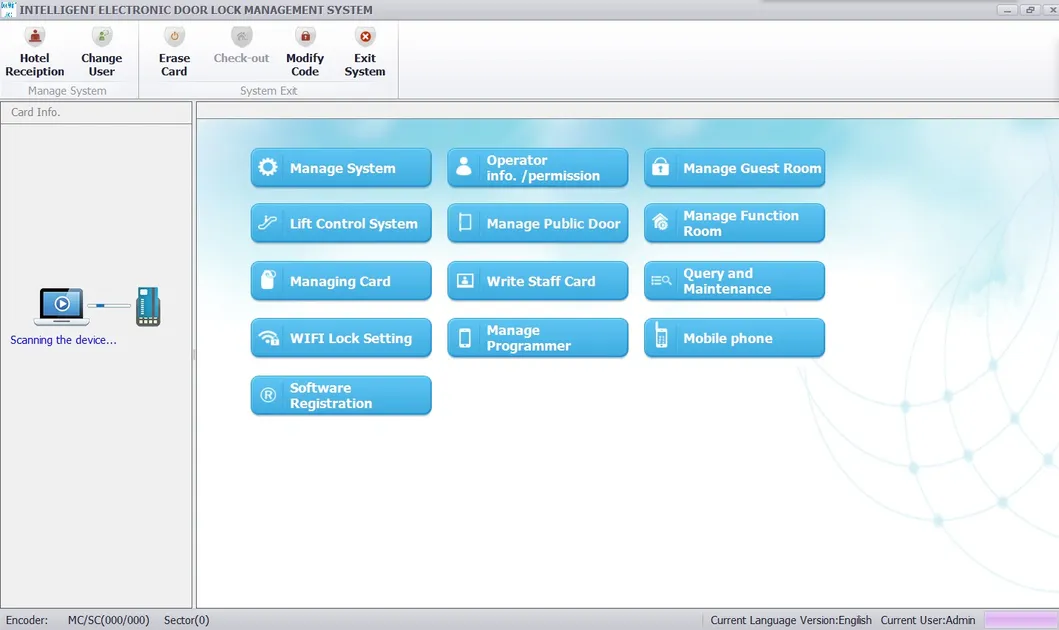

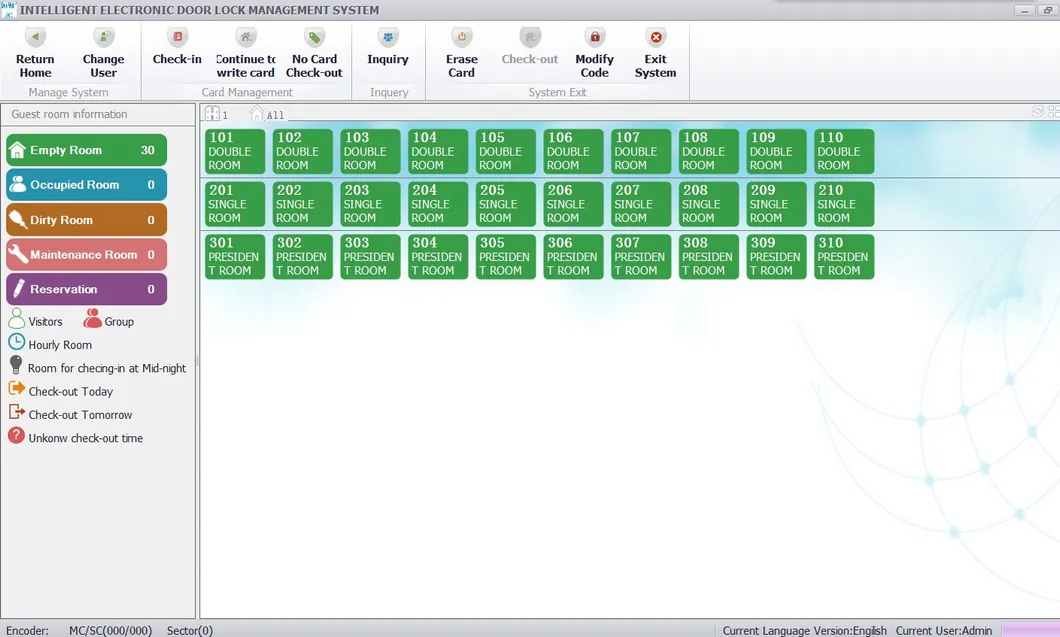

Software Management Interface

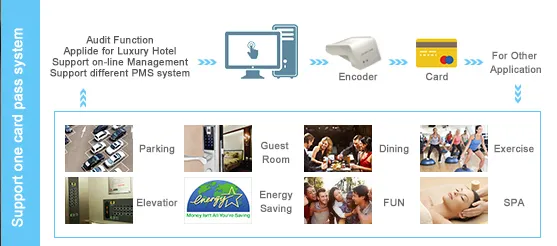

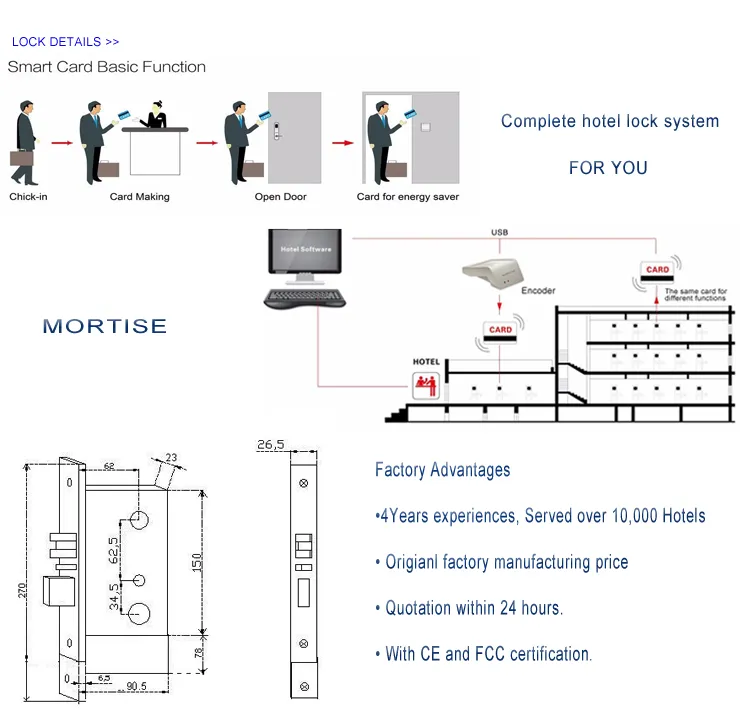

System Integration & Advantages
Packaging & Quality Assurance
Frequently Asked Questions (FAQ)
What types of cards are compatible with this hotel lock?
The system supports ID, TEMIC, and MIFARE® smart cards, with a lifespan of approximately 100,000 uses.
How long do the batteries last and is there a low power warning?
The 4 AA alkaline batteries typically last 8-12 months. A low-voltage warning will sound when the power drops below 4.5V, allowing for approximately 50 more unlocks before replacement is required.
Can this lock system be integrated with my current hotel PMS?
Yes, the door lock software can be integrated with most Hotel Management Software (PMS) using our provided SDK (DLL).
What happens if the electronic card system fails?
In case of electronic failure or emergency, the lock can always be opened manually using a mechanical override key.

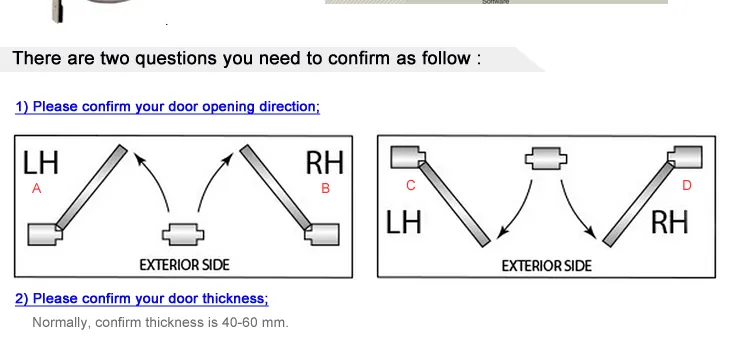

What is the required door thickness for installation?
The standard applicable door thickness is 32-60mm. If your door is outside this range, please contact us in advance for customization.

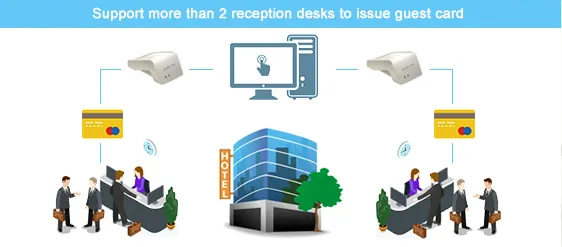

Does the software support multiple front desk workstations?
Yes, the software supports LAN data sharing, allowing multiple reception desks to perform guest "Check-in" tasks simultaneously.
