Standalone Access Control System (Non-Software Based)
Product Description
| Model NO. | S606EM |
| Verification Method | Electric Lock, Door Sensor, Exit Button, Alarm |
| Capacity of Cards | 1500 Users |
| Wiegand Signal | Output & Input (Support External Wiegand26) |
| Power Supply | DC12V |
| Waterproof Grade | IP67 |
| Frequency | EM-ID 125kHz or 13.56MHz |
| Keyboard | Metal Buttons with Luminous |
| Operating Temp. | -45°C to 60°C |
| Material | Metal |
| Package Size | 15.00cm * 8.00cm * 4.00cm |
| Gross Weight | 0.600kg |

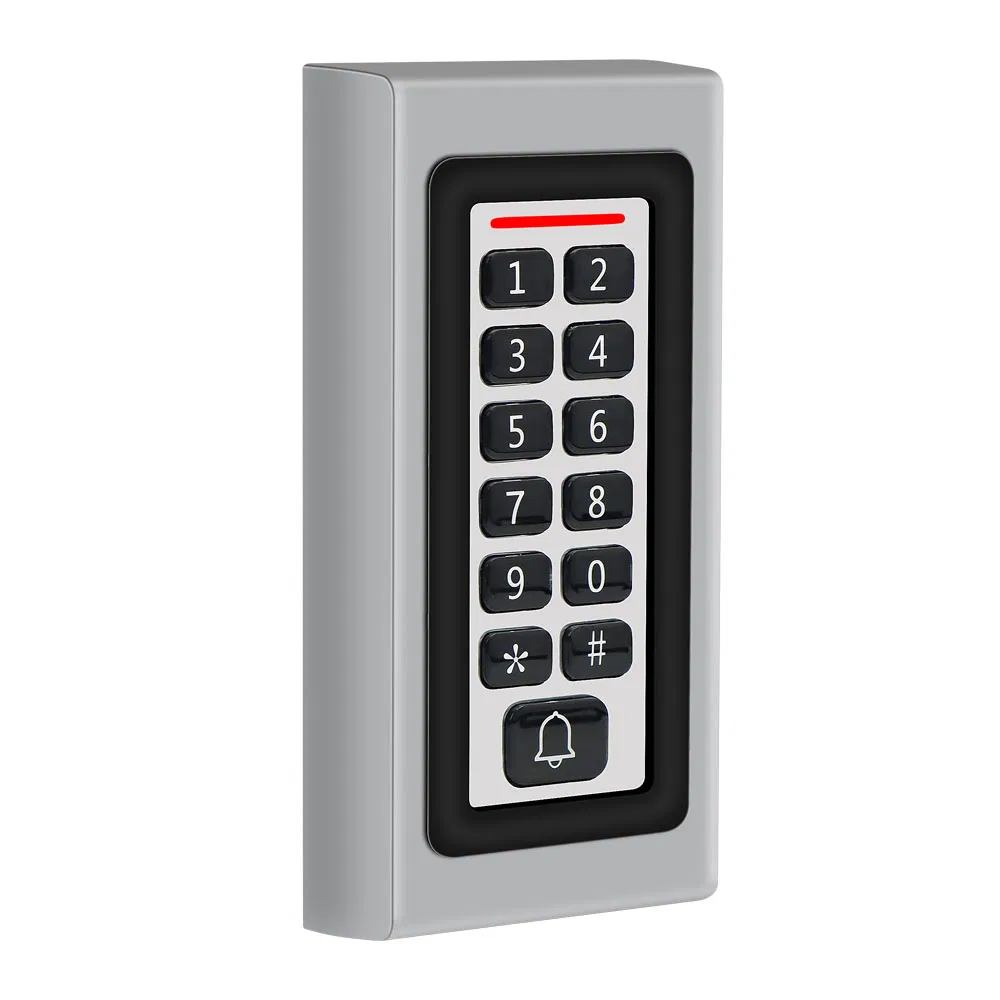

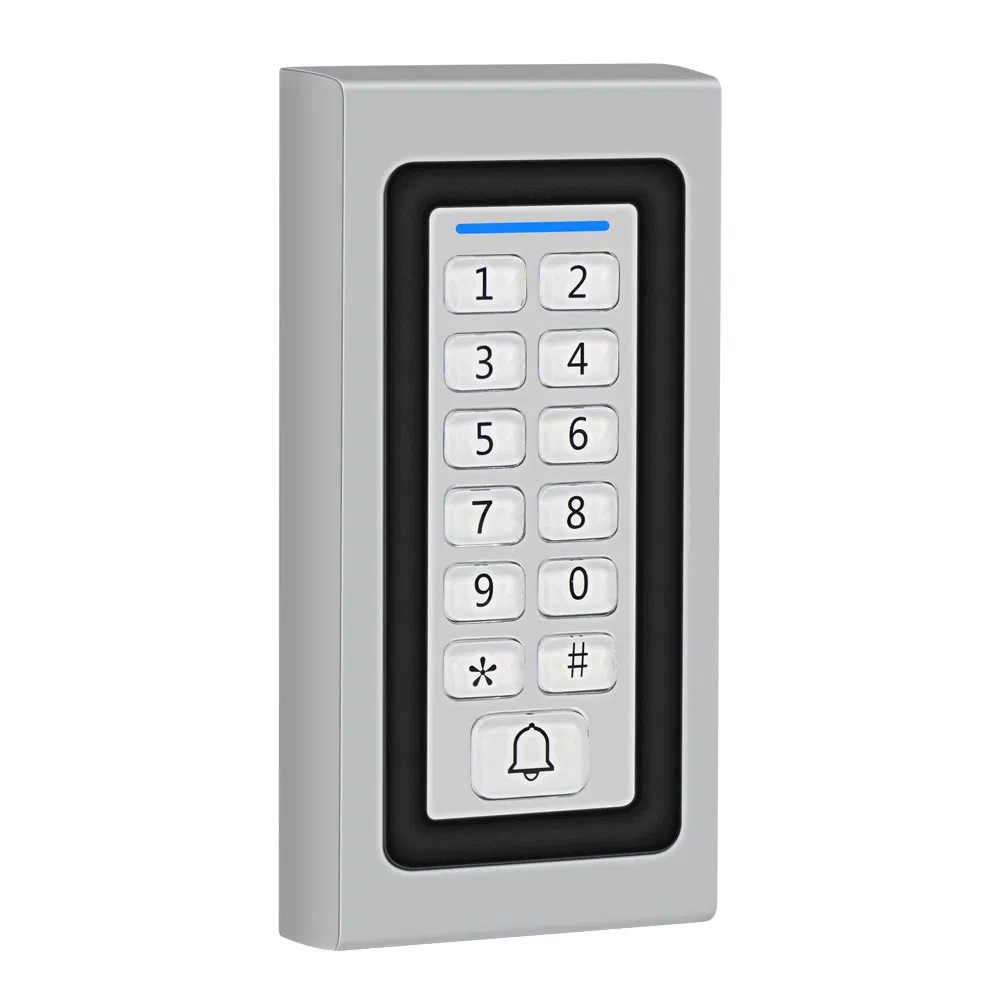

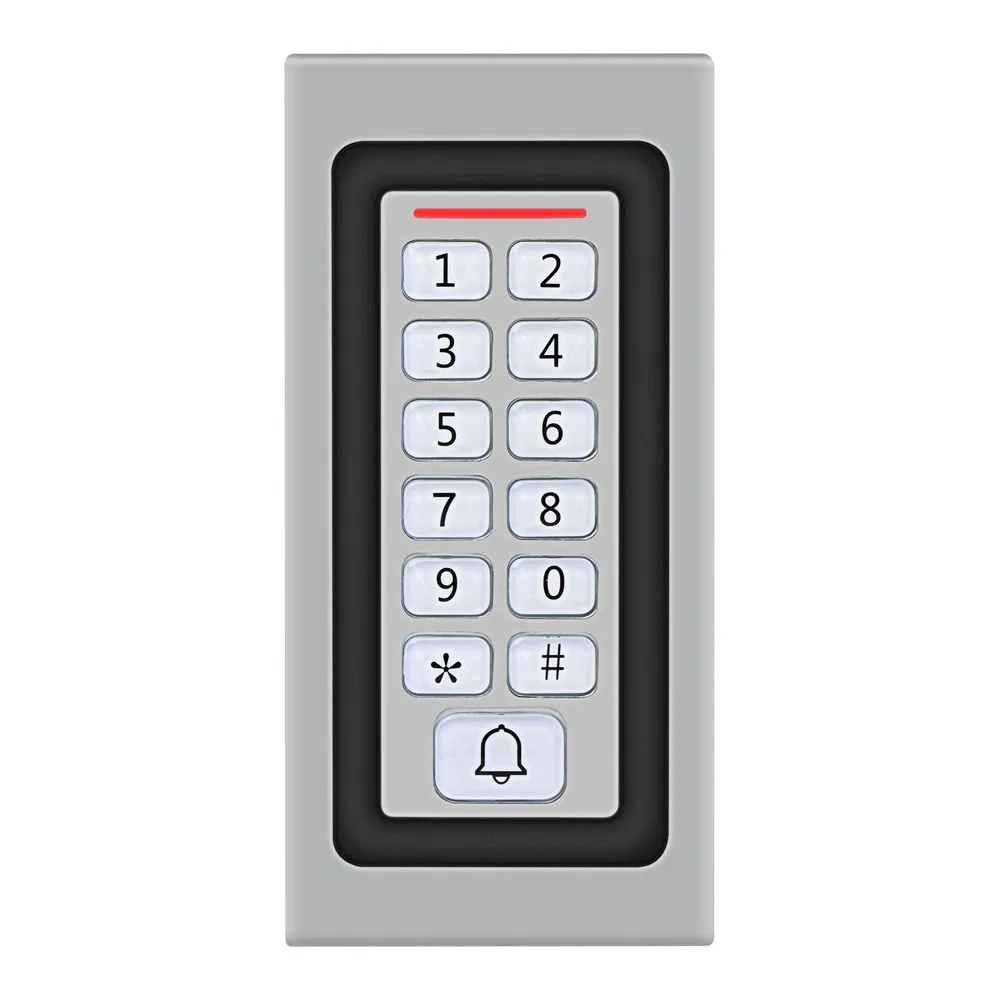

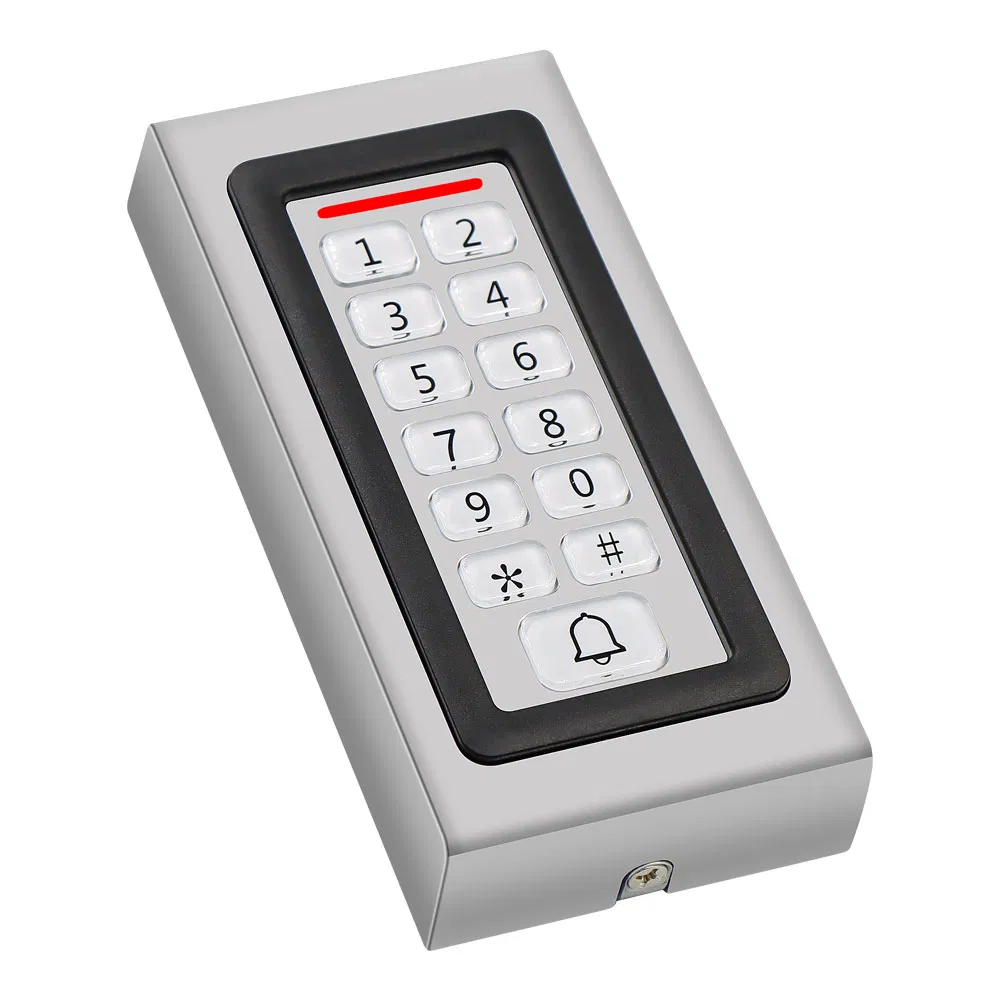

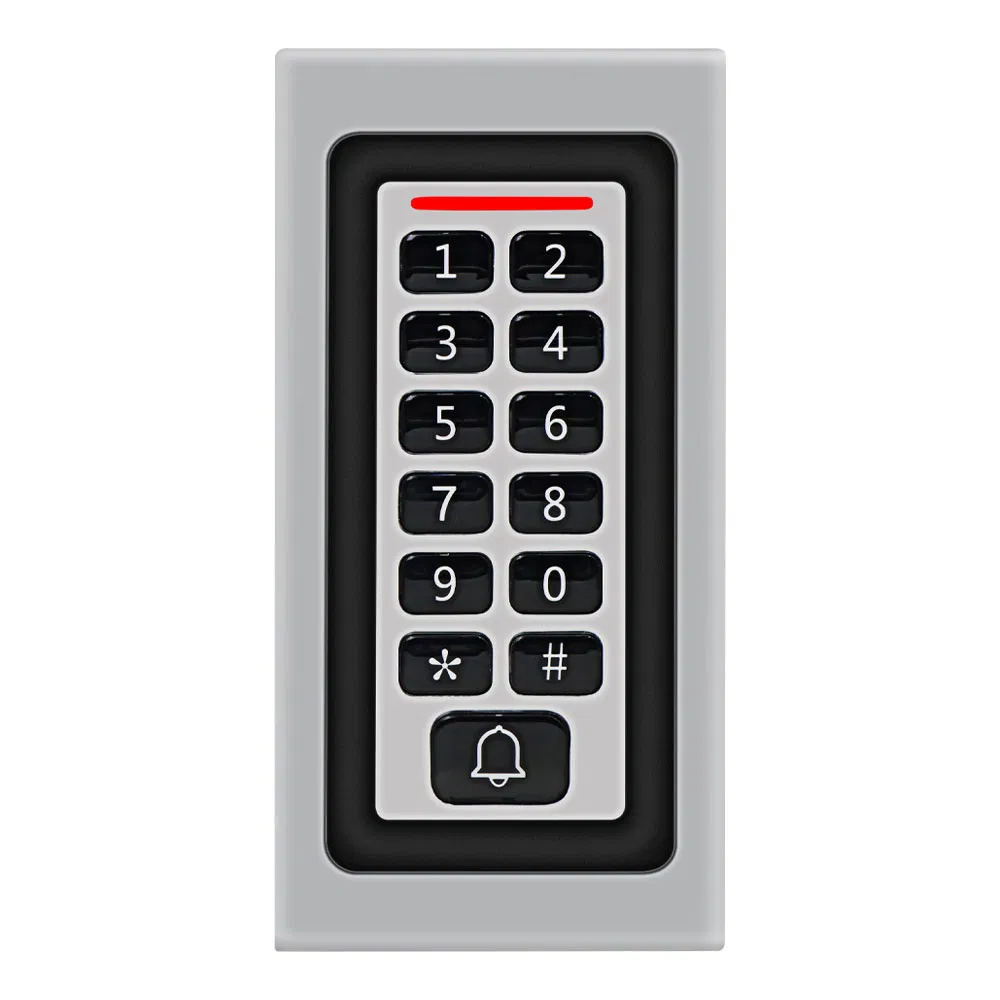

Standalone Access Control System (Non-Software Based)
Installing a standalone access control system is a practical way to enhance security for homes, offices, or small commercial spaces. This system operates independently without the need for complex software management, providing a reliable and straightforward security solution.
Control Panel
The core unit that manages access permissions and system logic.
Reader/Keypad
Metal luminous buttons for RFID card, PIN, or biometric authentication.
Locking Device
Compatible with magnetic locks, electric strikes, or smart locks.
Power Supply
Standard 12V DC power for continuous and stable operation.
Choose the Door
Select a door with stable power access. Ensure the frame can accommodate the chosen lock type.
Mount the Control Panel
Install in a secure location at a height of 1.4-1.5 meters for easy access.
Install Reader/Keypad
Mount on the exterior frame. Use shielded wiring to prevent signal interference.
Install Locking Device
Connect to NC terminals for fail-safe (Magnetic Lock) or NO terminals for fail-secure (Electric Strike).
Connect Exit Button
Install near the inside handle for instant egress functionality.
Power & Test
Connect 12V DC power and verify all verification methods function correctly.
A1: The system has a large capacity, supporting up to 1500 individual users.
A2: Yes, it features an IP67 waterproof grade, making it highly resistant to rain and dust.
A3: Yes, the device is equipped with metal buttons that feature luminous backlighting for night use.
A4: It is designed for extreme environments, operating reliably between -45°C and 60°C.
A5: Yes, the system supports Wiegand 26 output and input for external reader integration.
A6: No, this is a standalone system, meaning it can be programmed and managed directly on the device without software.
