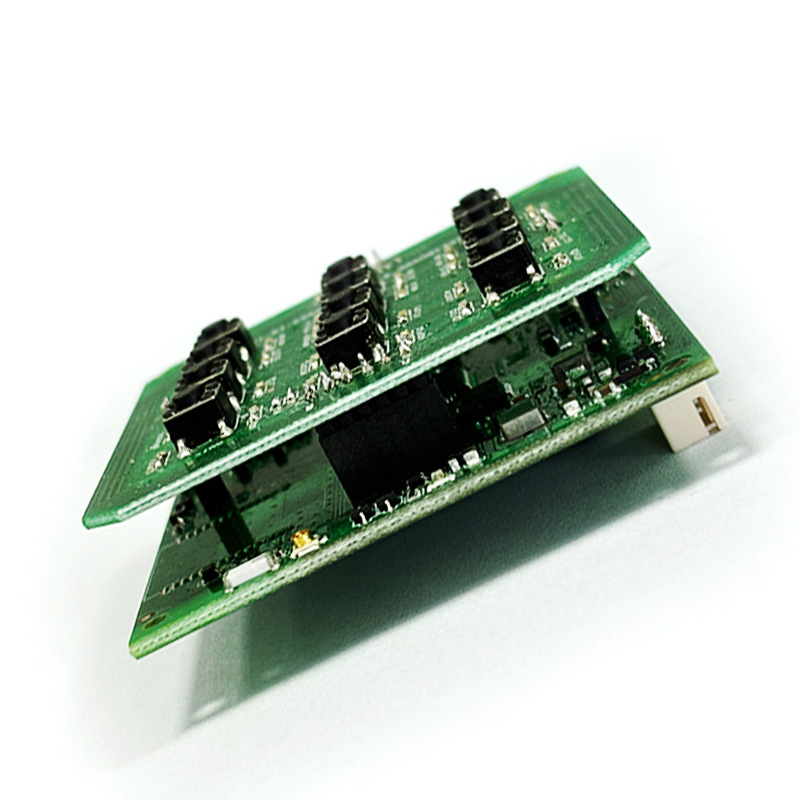

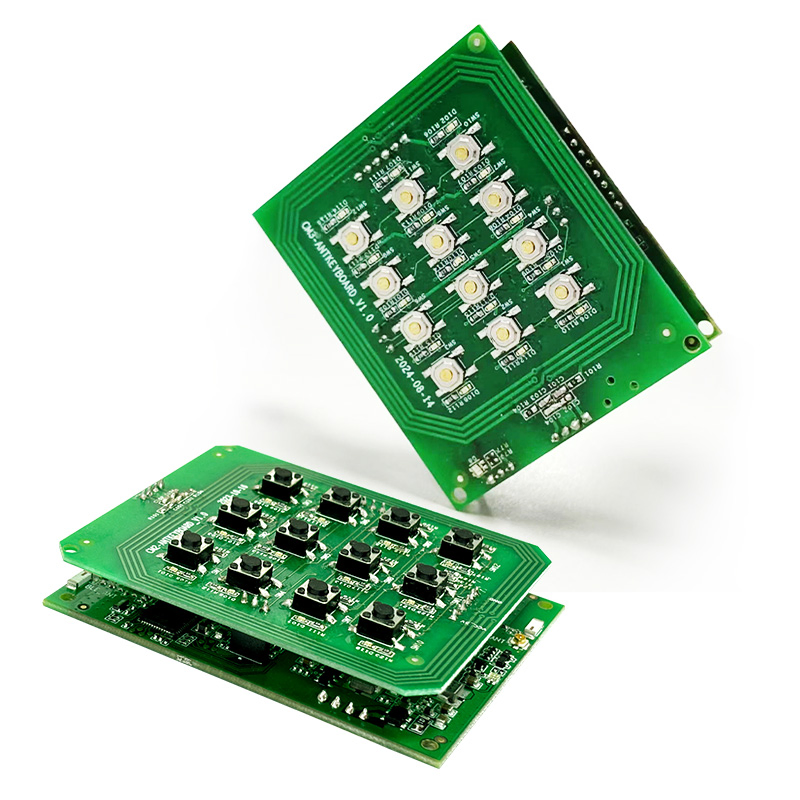

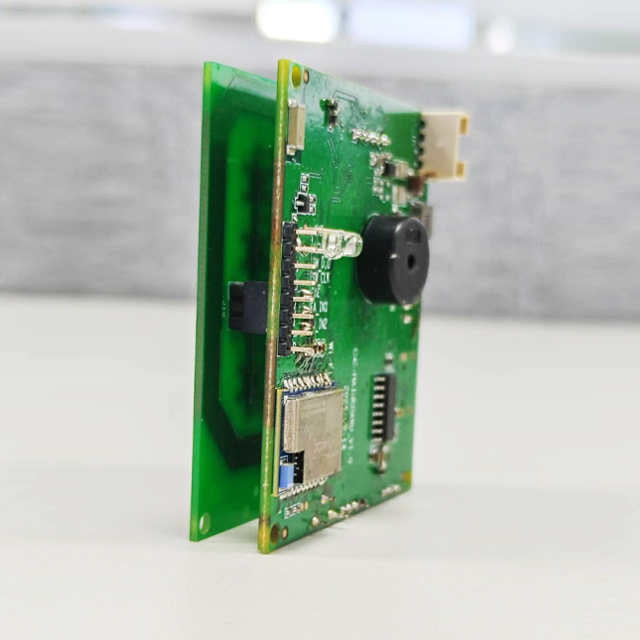

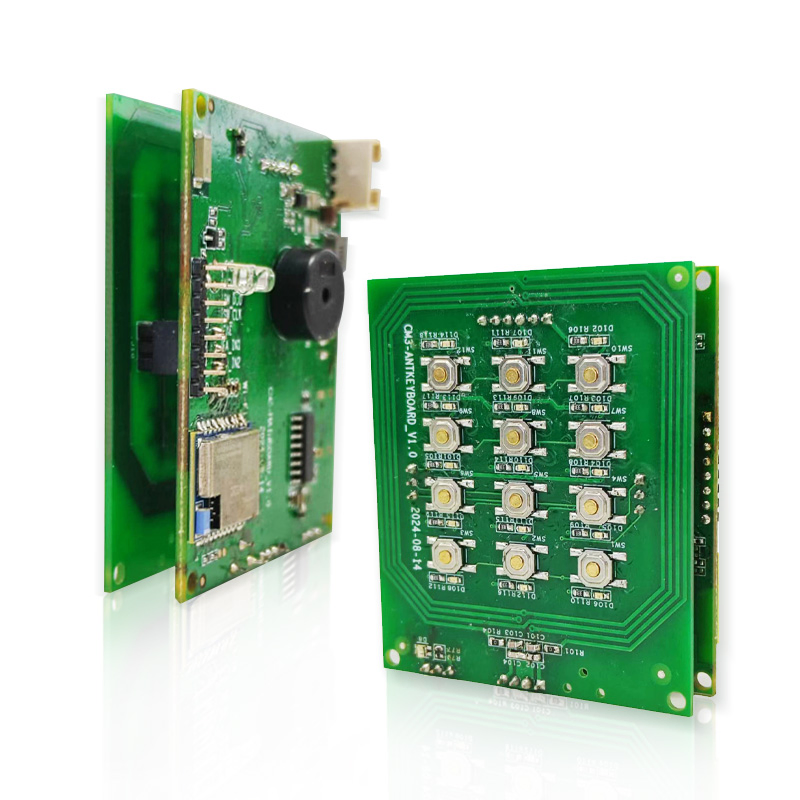

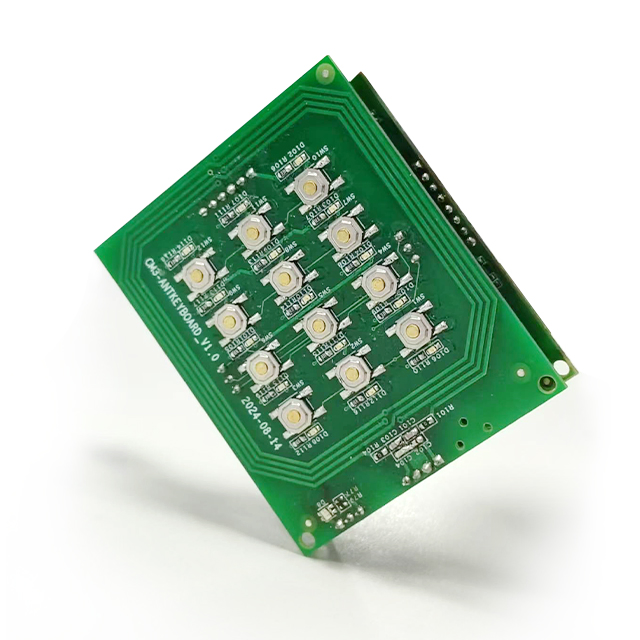

Cm3 Industrial Access Control Telephone Entry Systems with RFID Equipment Tracking Locks Product Type
Product Description
Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Anti-theft Standard
A
Part
Lock
Backset
70mm
Usage
Household Door Locks, Bedroom, Channel Lock
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2, ISO14443b
Communication
WiFi, BLE 5.3, USB
Power
3V, 4 * Battery
Origin
China

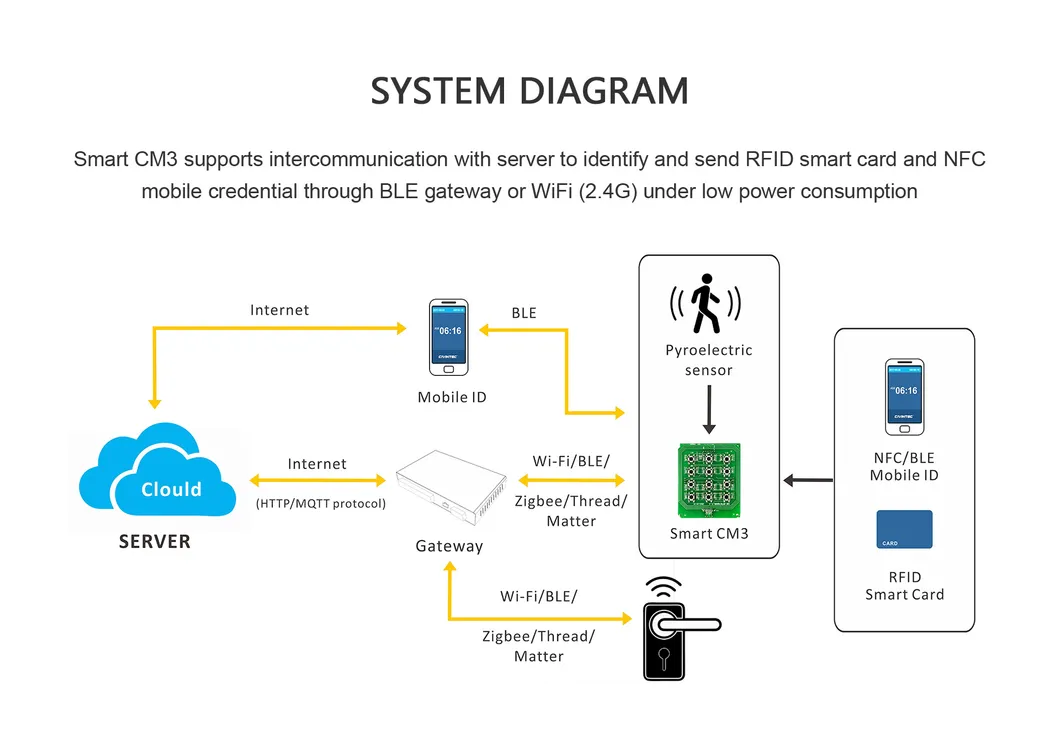

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery operated power consumption design, which contain the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application.
✦

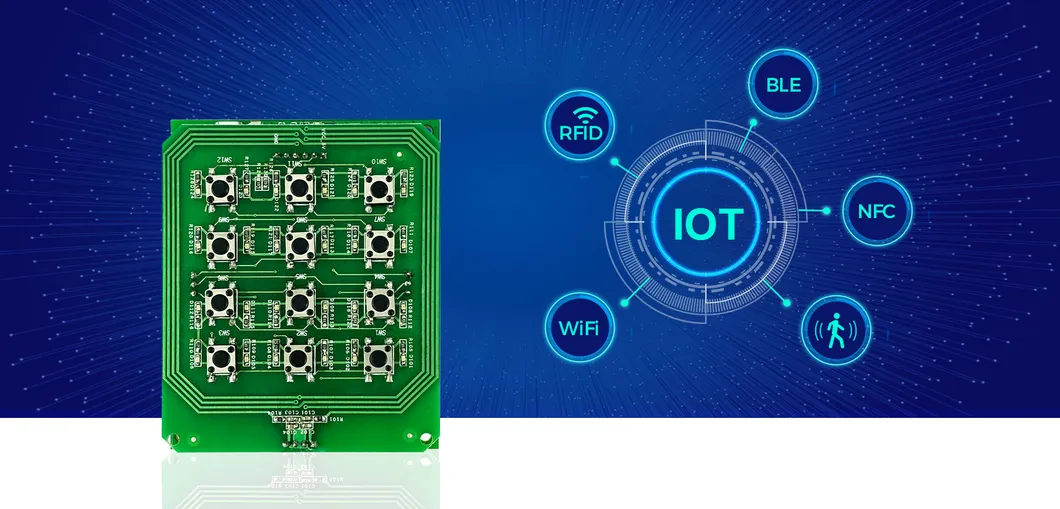

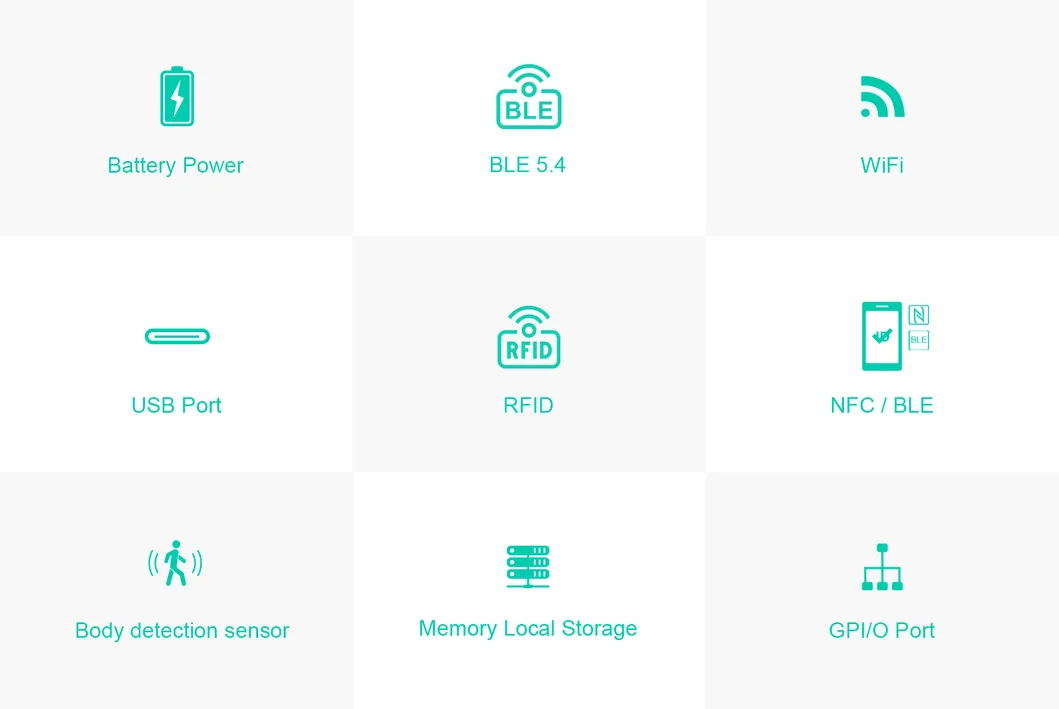

Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
✦
Support Arm® TrustZone® for high security
✦
Rich I/O port for electric lock control
✦
With memory for local data storage
✦
Economic solution for battery powered ultra-low power
✦
Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
✦
Embedded software development & Body detection
| Memory | 4M BYTE |
| Power Supply | USB / 3V (4 * battery) |
| RFID Standards | 13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, NFC tag, HID iCLASS CSN |
| Secure Interface | Optional SAM slot ISO7816; SAM AV2 for encryption; Secure IC EAL5+ Level |
| Mobile Comm | NFC mobile phone, BLE 5.3 |
| Keypad | 12 digit mechanical keypad |
| Interfaces | WiFi, BLE 5.3 (Master & Slave, Beacon, Zigbee, Mesh), USB |
| Indicators | Buzzer and Bio-color LED |
| Operating Temp | -20ºC ~ 60ºC |
| Configuration | Configuration card, software tool, or factory configured |
What wireless protocols does the CM3 platform support?
The CM3 supports a wide range of protocols including BLE 5.4, WiFi, Zigbee, Thread, Matter, and MQTT, making it highly versatile for IoT applications.
Is the device compatible with mobile credentials?
Yes, it fully supports NFC and BLE Mobile credentials, allowing users to use their smartphones for access control and identification.
What are the power options for the CM3?
The device can be powered via a USB connection or by four 3V batteries, designed specifically for ultra-low power consumption.
How secure is the data transmission?
It features Arm® TrustZone® support and a Secure IC with EAL5+ level protection for MCU communication, ensuring high-level security for sensitive applications.
What types of RFID cards can be used?
It supports almost all 13.56MHz technologies, including Mifare Classic, DESfire EV1/EV2/EV3, Ultralight C, and HID iCLASS CSN.
Can the CM3 store data locally?
Yes, the system includes 4MB of onboard memory dedicated to local data storage for offline or standalone operations.
