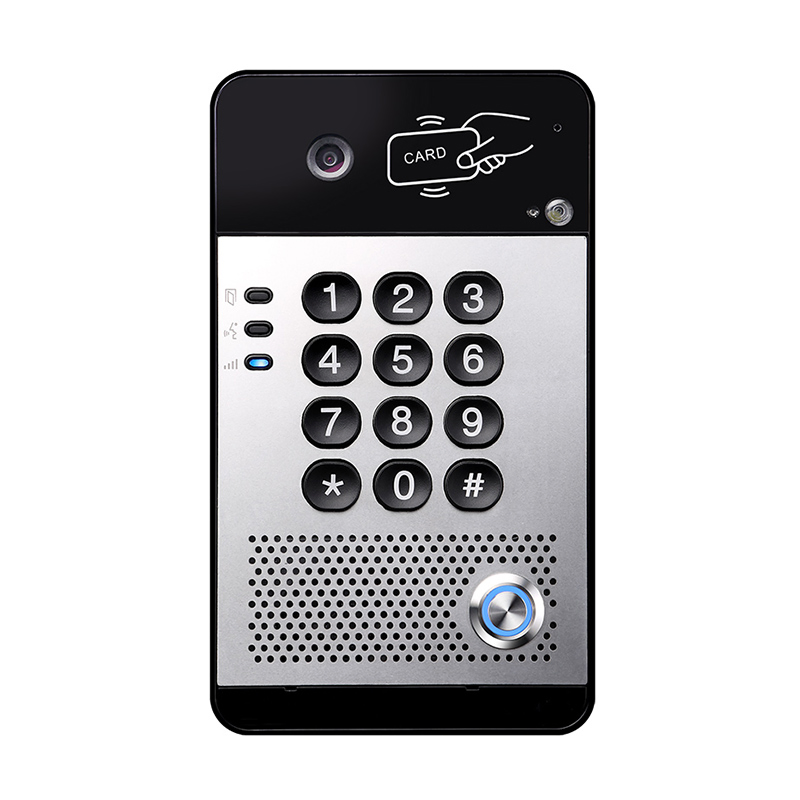

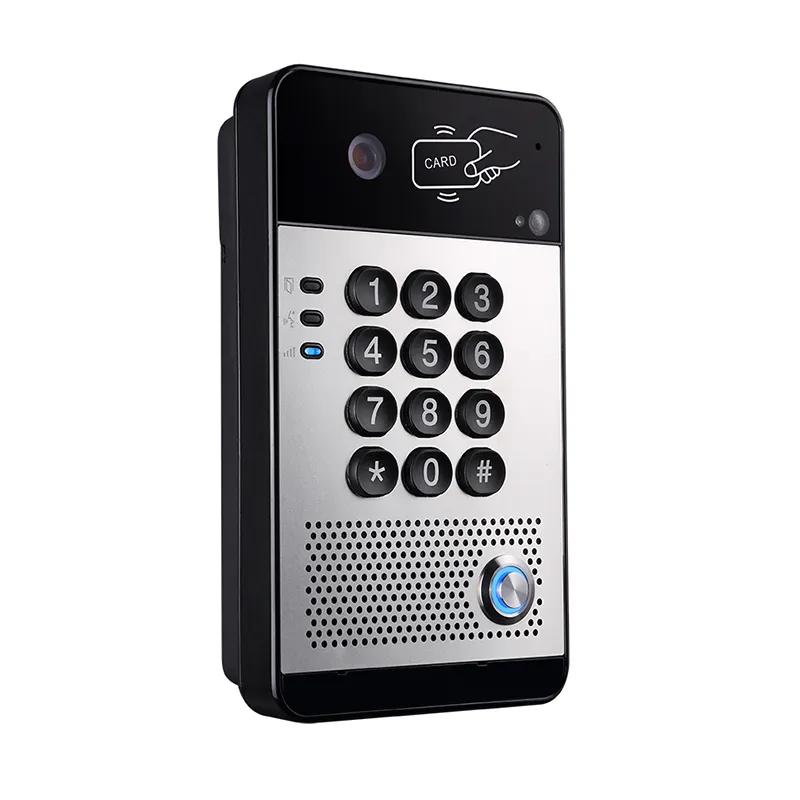

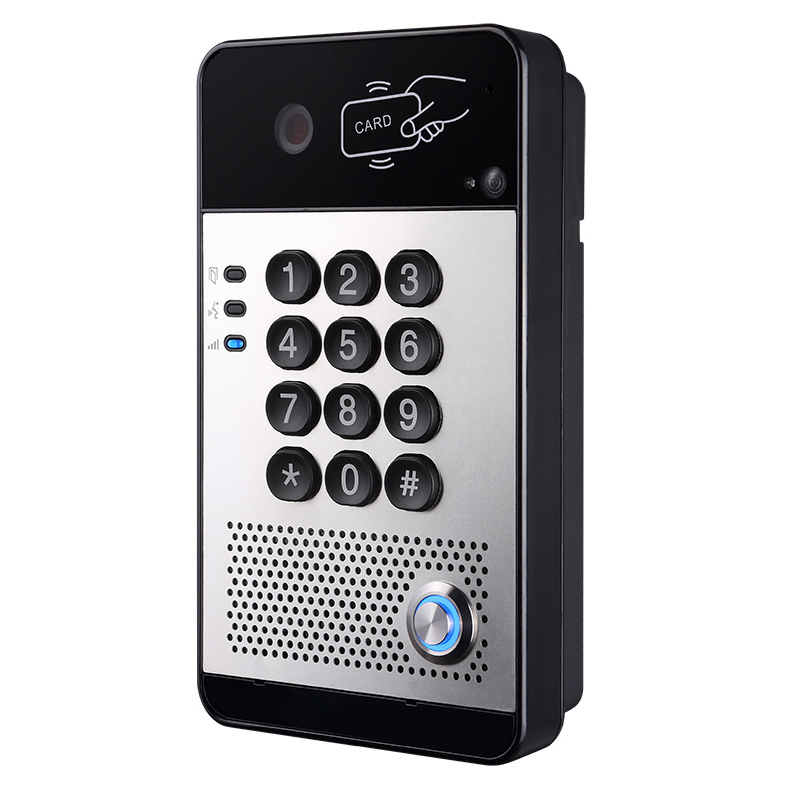

Niteray SIP Video Door Phone Electronic Door Lock Outdoor SIP Universal Intercom System for Industrial
Product Description
Basic Information
Model NO.Q520
Voice ServiceWith Voice Service
InstallationWall-Mounted
CertificationFCC, CE
KeypadsYes
Phone UnlockSupport
Router/PBXSupport
Swipe CardSupport
Touch KeyboardNumeric Keys
ProtocolSIP
NetworkStatic/Pppoe/DHCP
PowerPoE or Adapter
Weight0.65kg
HD Camera720p Video
OriginGuangdong, China
Capacity10K/Month
Main Features
- 📺Video SIP door phone with 720P HD camera support.
- 💳Hidden RFID Card Reader for secure access control.
- 🔓Built-in Relay for Door Lock connection (NO/NC modes).

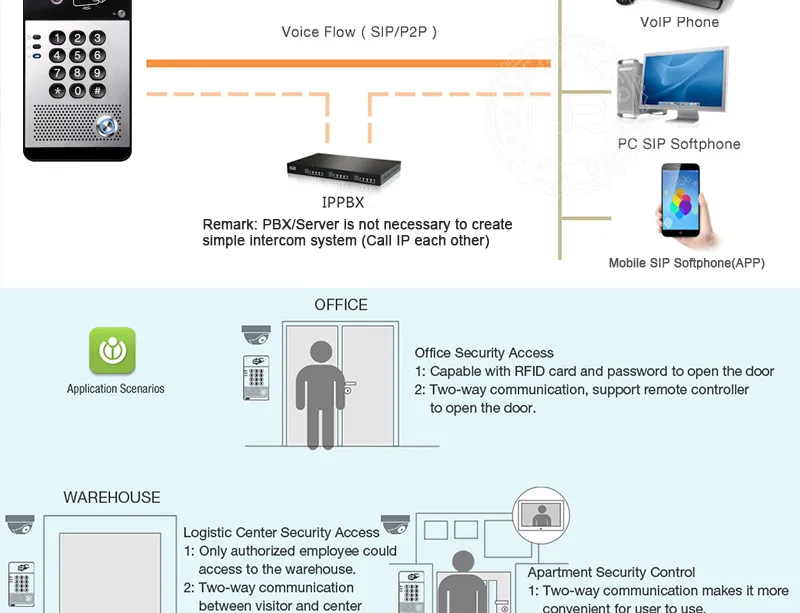

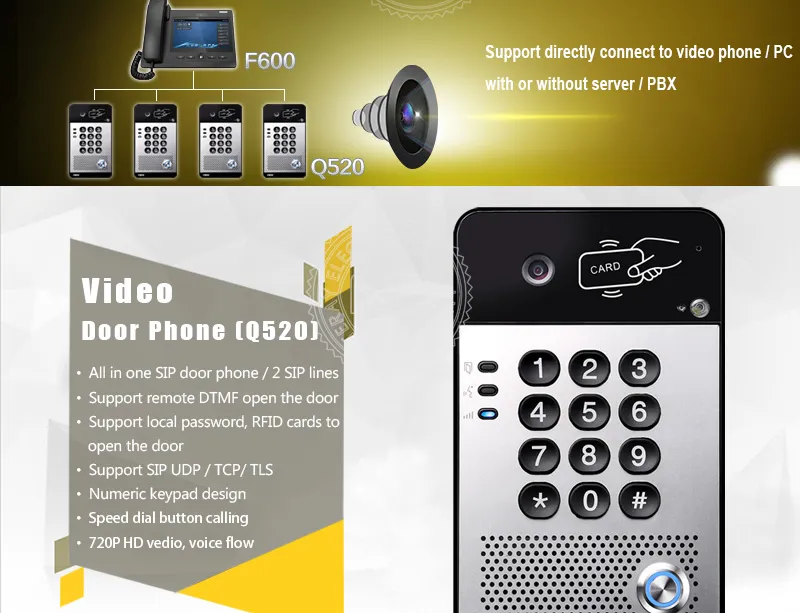

- 🌐SIP Protocol support for easy server/PBX or peer-to-peer deployment.
- ☔IP65 Waterproof design suitable for various environments.
- 🗣️Full Duplex Intercom with high-quality conversation voice.
- 🤖Auto Answer and Auto Hand Down functionality.
- 🔢Multiple unlock methods: DTMF, Password, RFID Card, or Indoor Switch.

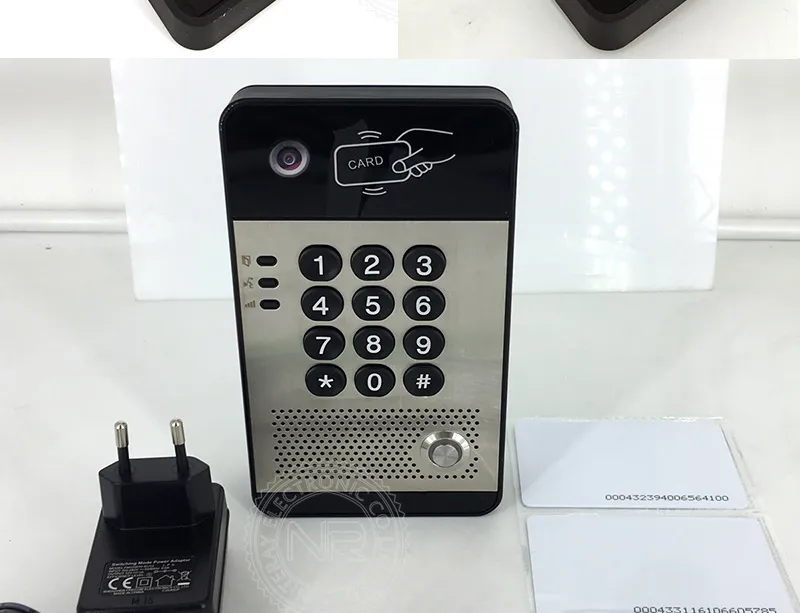

Product Gallery

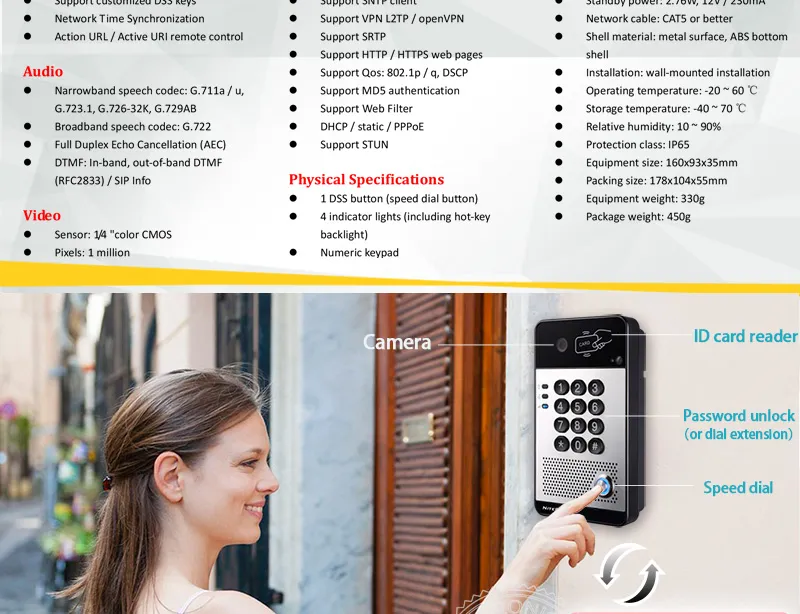

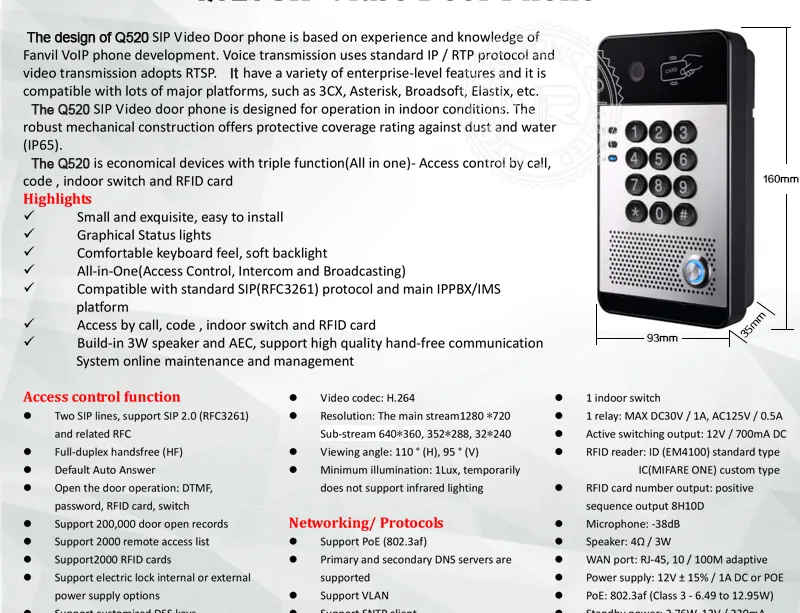

Technical Datasheet
| Access Control & Audio | Video & Networking | ||
| SIP Lines | 2 Lines, SIP 2.0 (RFC3261) | Video Codec | H.264 |
| Audio Codec | G.711a/u, G.723.1, G.729AB, G.722 | Resolution | Main stream 1280*720 |
| Echo Cancellation | Full Duplex (AEC) | Viewing Angle | 110° (H), 95° (V) |
| RFID Capacity | 2000 cards | Power Supply | PoE (802.3af) or DC 12V/1A |
| Open Door Log | 200,000 records | Protocols | VLAN, STUN, SRTP, HTTP/HTTPS |
| Physical Specifications | Connectivity | ||
| Protection Class | IP65 Waterproof | Relay | 1 Relay (MAX DC30V/1A) |
| Operating Temp | -20°C to 60°C | Active Output | 12V/700mA DC |
| Material | Metal surface, ABS body | WAN Port | RJ-45, 10/100M adaptive |
Frequently Asked Questions
What unlock methods does the Q520 support?
The device supports multiple secure unlock methods, including DTMF (via phone), numeric passwords, RFID cards, and internal indoor switches.
Is this door phone compatible with my existing PBX system?
Yes, it uses standard SIP 2.0 protocol and is compatible with major platforms such as 3CX, Asterisk, Broadsoft, Elastix, and more.
Can the Q520 be installed outdoors?
The device features an IP65 rated waterproof and dustproof design, making it durable for various indoor and protected outdoor environments.
Does the device support Power over Ethernet (PoE)?
Yes, the Q520 supports standard PoE (802.3af Class 3), allowing for simplified installation with a single network cable for both data and power.
What is the camera quality for video calls?
The device is equipped with a 1/4" color CMOS sensor providing 720P HD video (1280*720 resolution) with a wide 110-degree horizontal viewing angle.
How many RFID cards can the system manage?
The system can store and manage up to 2000 remote access RFID cards and maintain up to 200,000 door opening logs.
