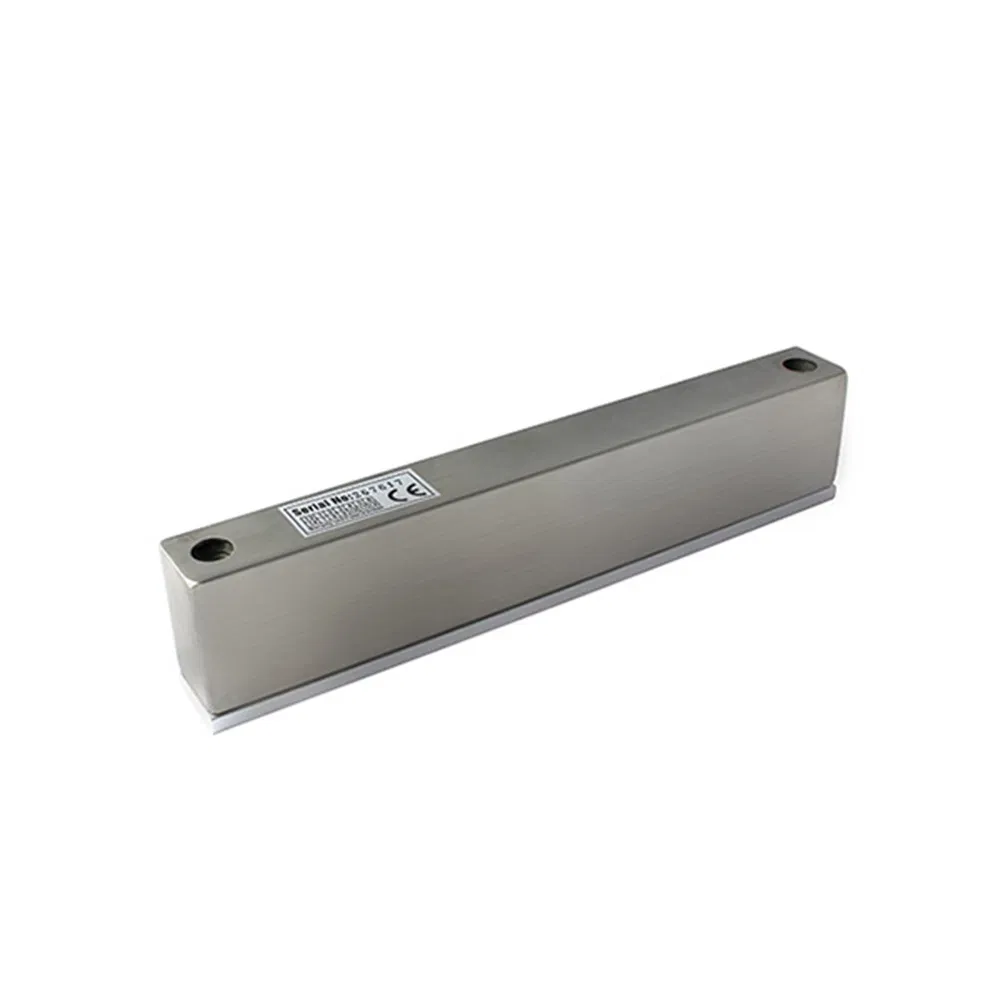

Stainless Steel Waterproof Outdoor Access Control Door Magnetic Pin Lock System
Product Description
Stainless Steel Waterproof Outdoor Access Control Door Magnetic Pin Lock System

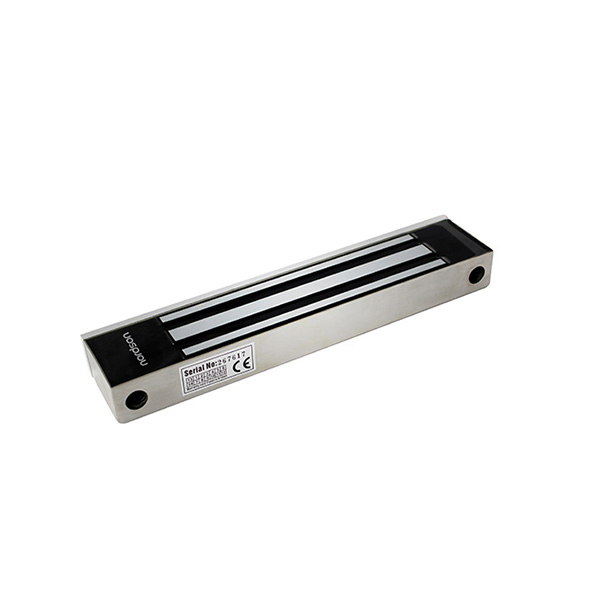

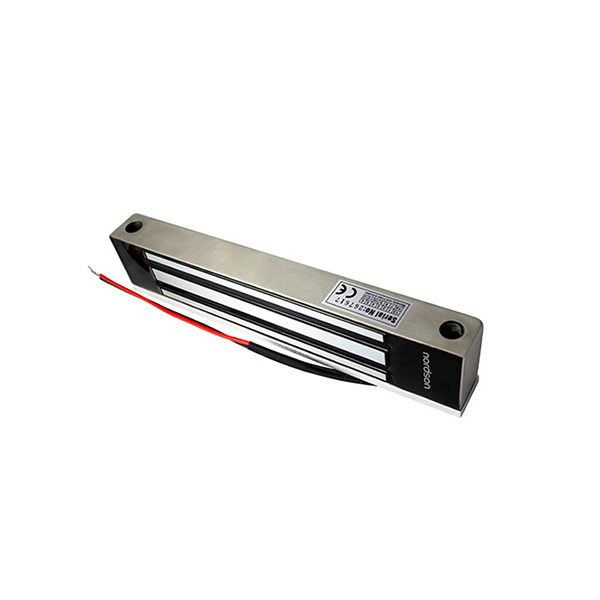

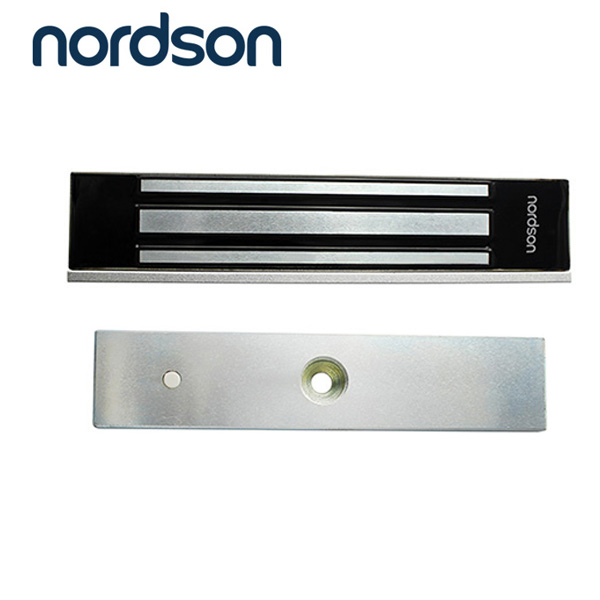

The NW-280 single door embedded magnetic lock is constructed from high-quality stainless steel and features an IP65 waterproof rating. This lock is specifically engineered for outdoor applications including glass doors, wooden doors, metal doors, fire doors, and sliding doors. The hoisting design significantly saves time and effort during installation.
Utilizing powerful magnetic force to secure the door leaf, this system is both safe and reliable. It is compatible with a complete set of accessories for inward doors, frameless glass doors, and narrow doors. Furthermore, the special anti-residual magnetic design ensures that automatic access control remains safer and more convenient for daily use.
| Holding Force | 280kg (600Lbs) |
| Waterproof Grade | IP65 |
| Lock Status Sensors | NO |
| Rated Operating Voltage | 12/24VDC |
| Current Consumption | 12V/480mA |
| Optional Functions | Relock Delay Timer, Buzzer |
| Surface Finish | Stainless Steel |
| Ambient Temperature | -10~+55ºC (14-131F) |
| Suitable Doors | Wooden, Aluminum, Glass, Fireproof, Metal |

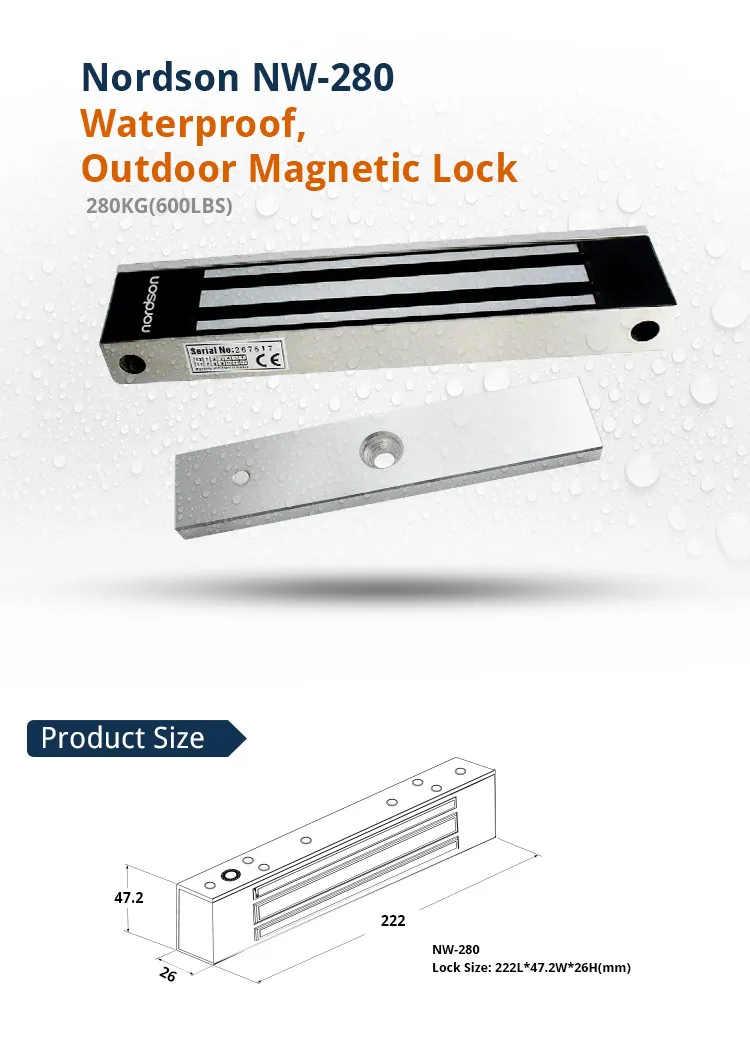

| Magnet Dimensions | 222L * 47.2W * 26H (mm) |

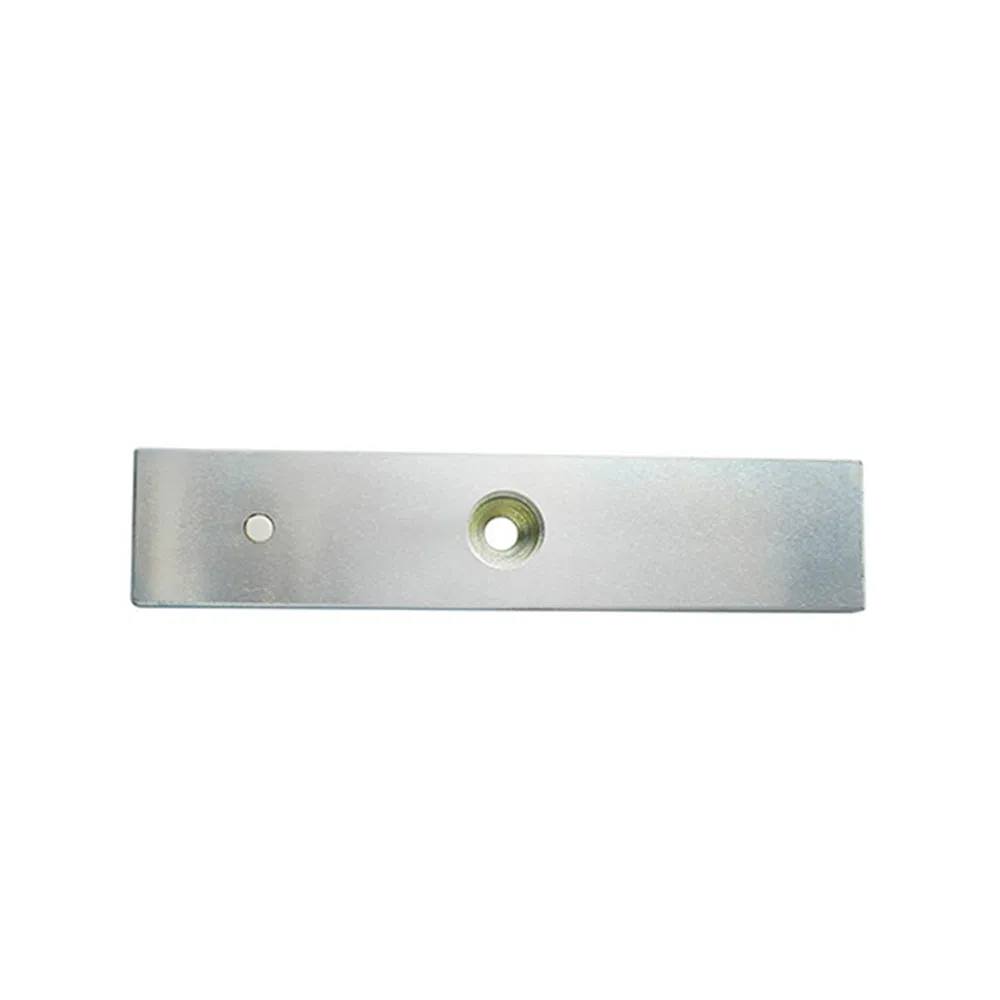

| Armature Plate Dimensions | 180L * 38W * 13H (mm) |
| Certifications | CE, ROHS, SGS |
