Commercial Stainless Steel RFID Card Hotel Door Lock System
Product Description

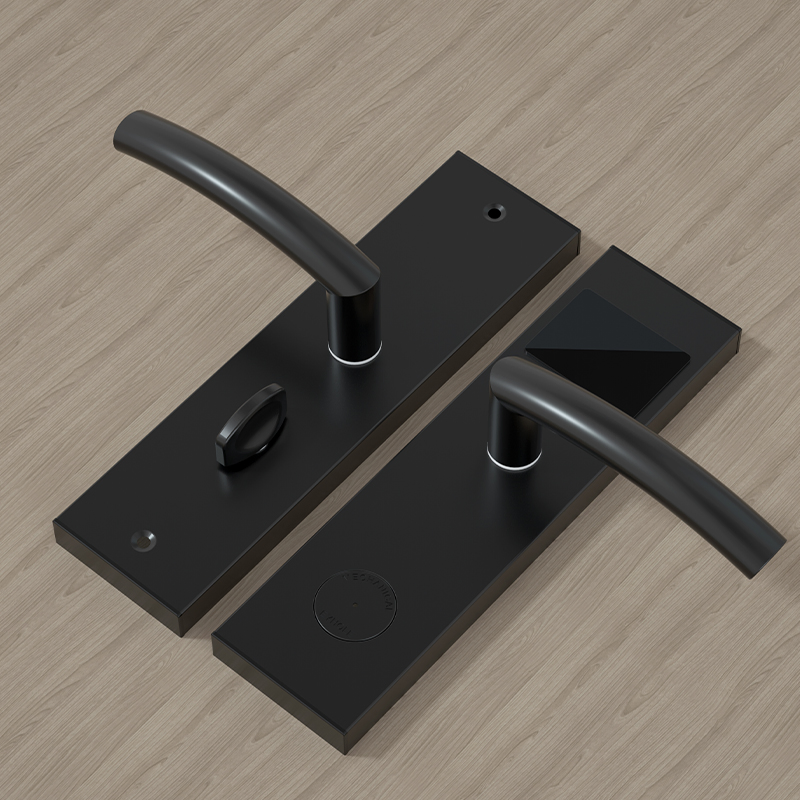

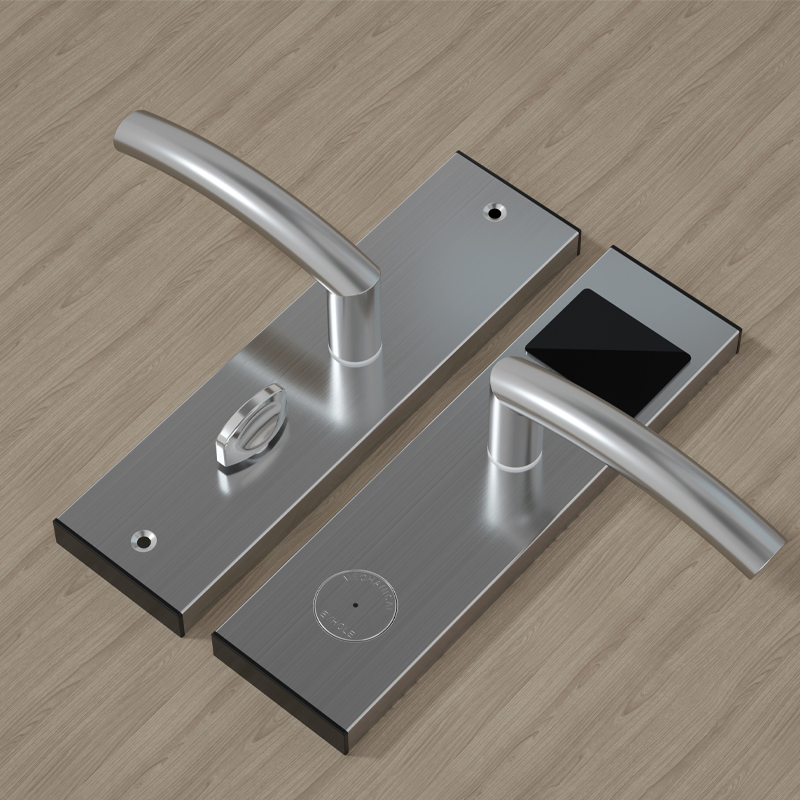

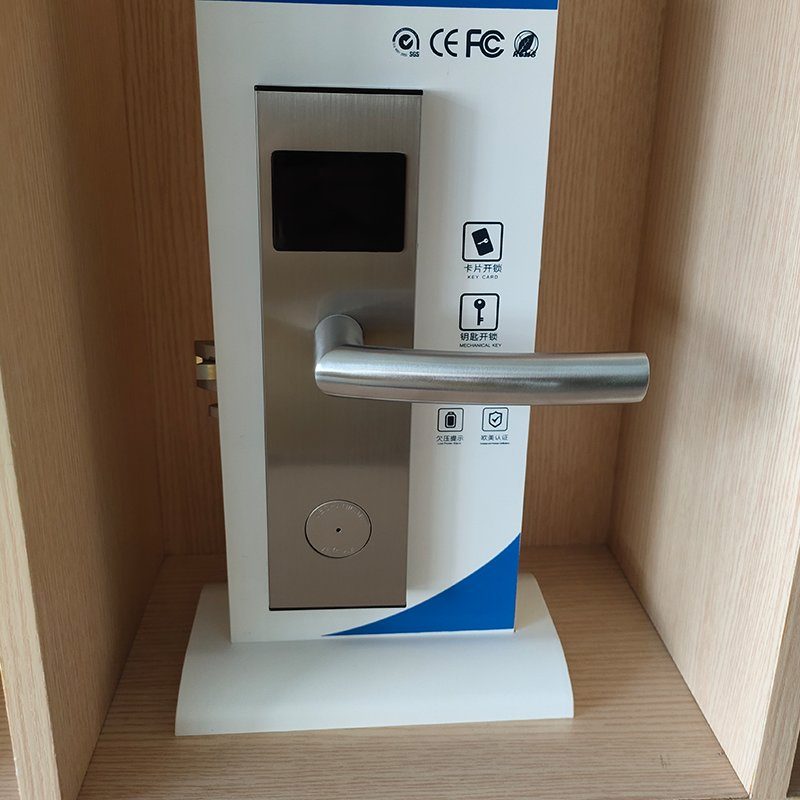

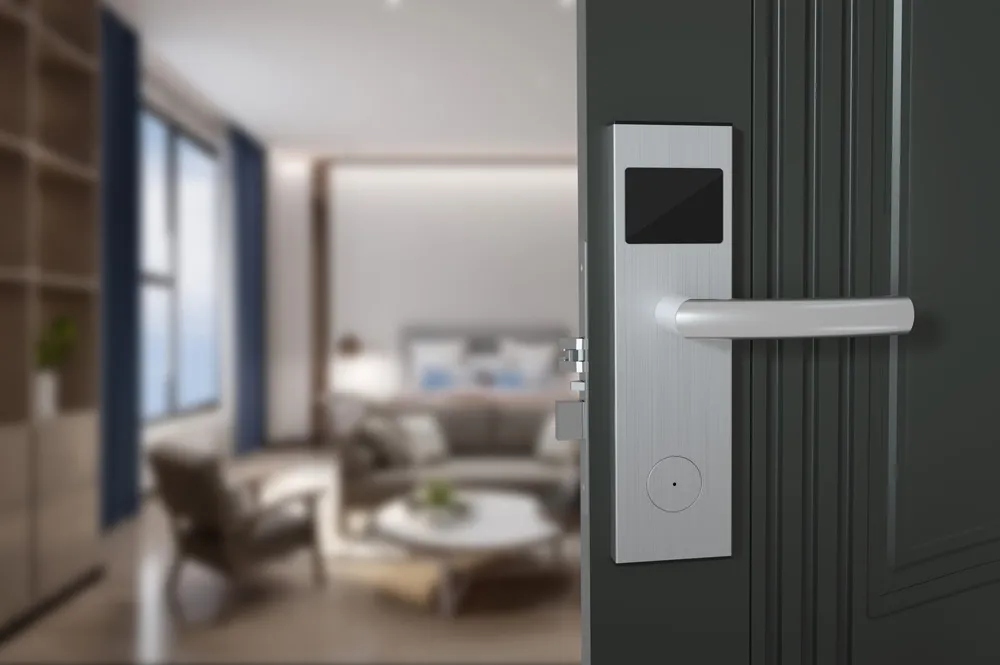

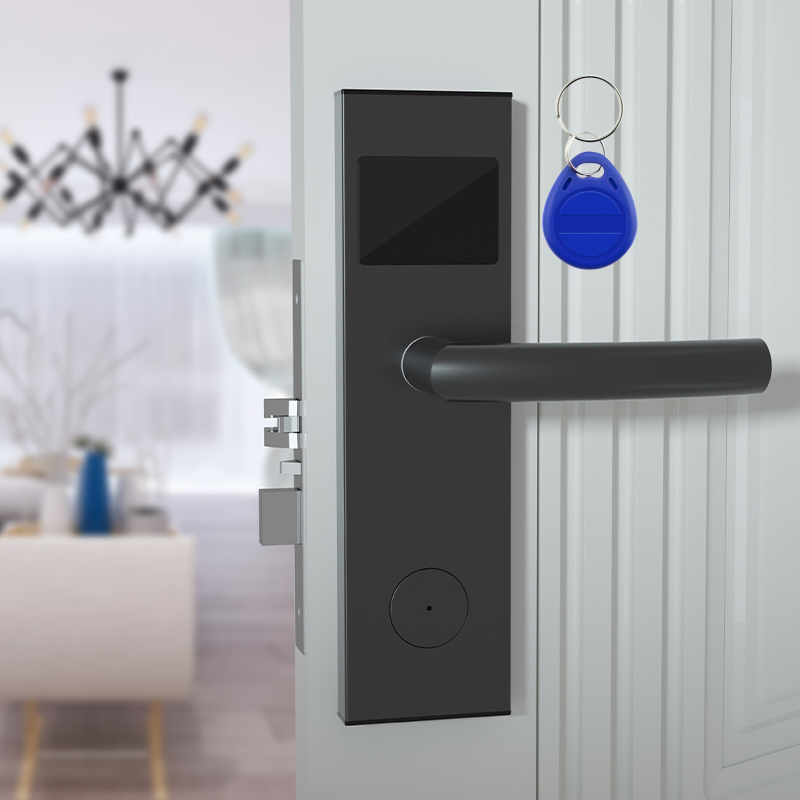

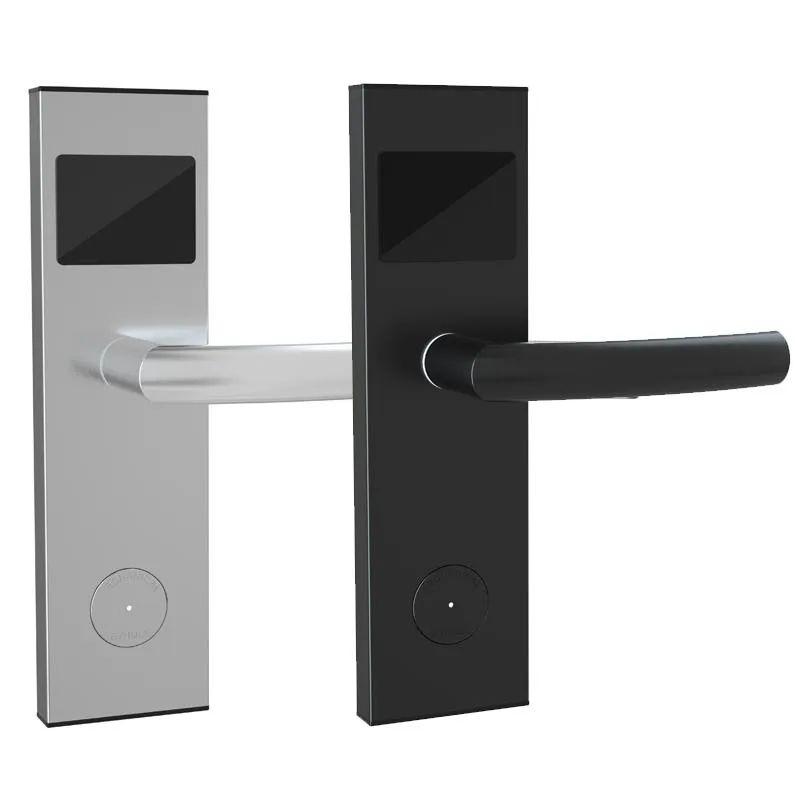

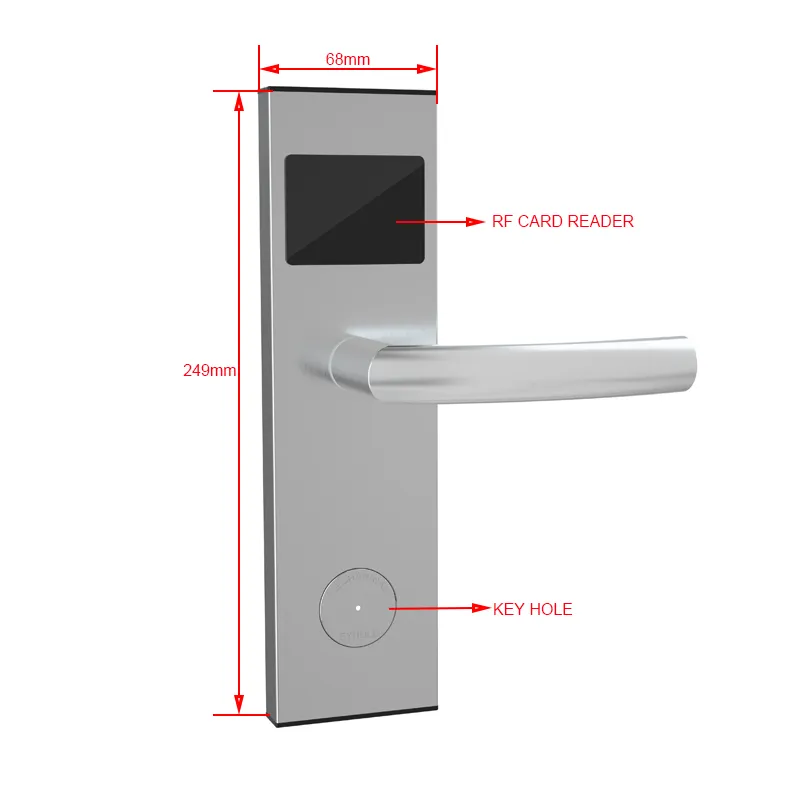

Commercial Stainless Steel RFID Card Hotel Door Lock System
Key Advantages:

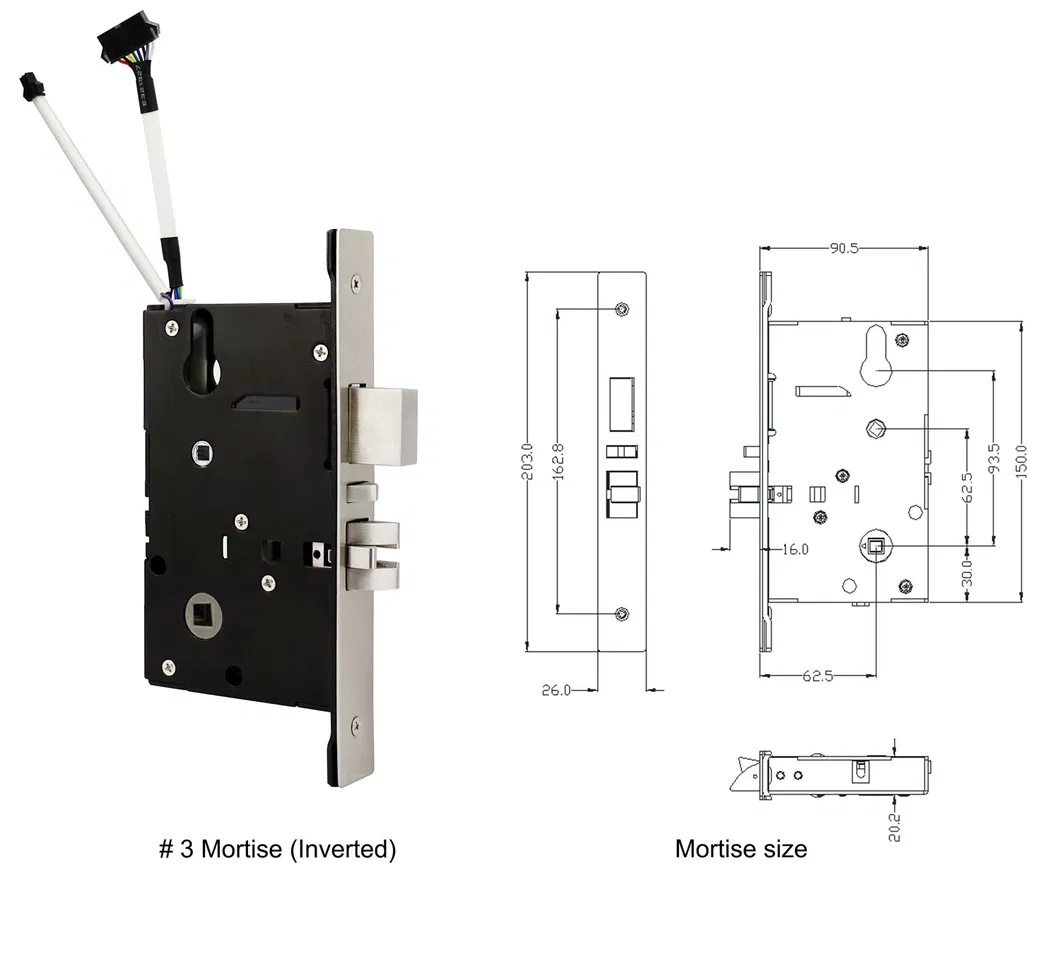

- USA standard 5-lock Tongue Structure Lock Core with hierarchical management
- Triple mute lock body for quiet operation
- Durable lock face without artificial rivets or plastic parts
- Anti-interference and error correction features for reliable performance
- Damp-proof and dust-proof circuit processing
- Data retention: Lock information is not lost during power outages
- Internal clock to control key card usage time
- Built-in anti-static support and low voltage warning

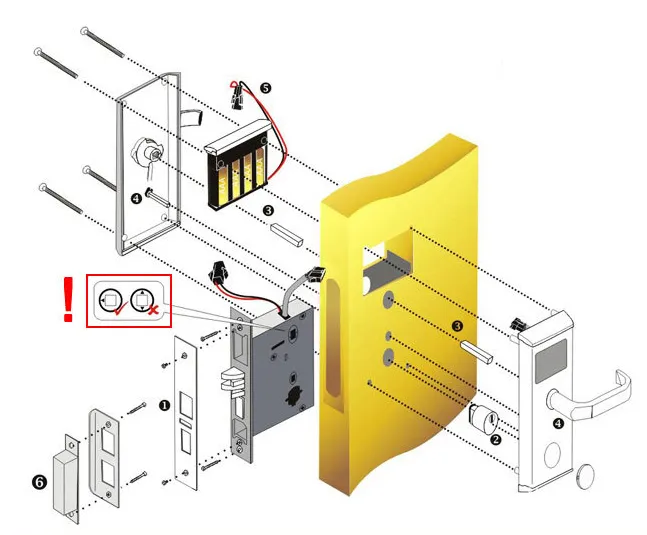

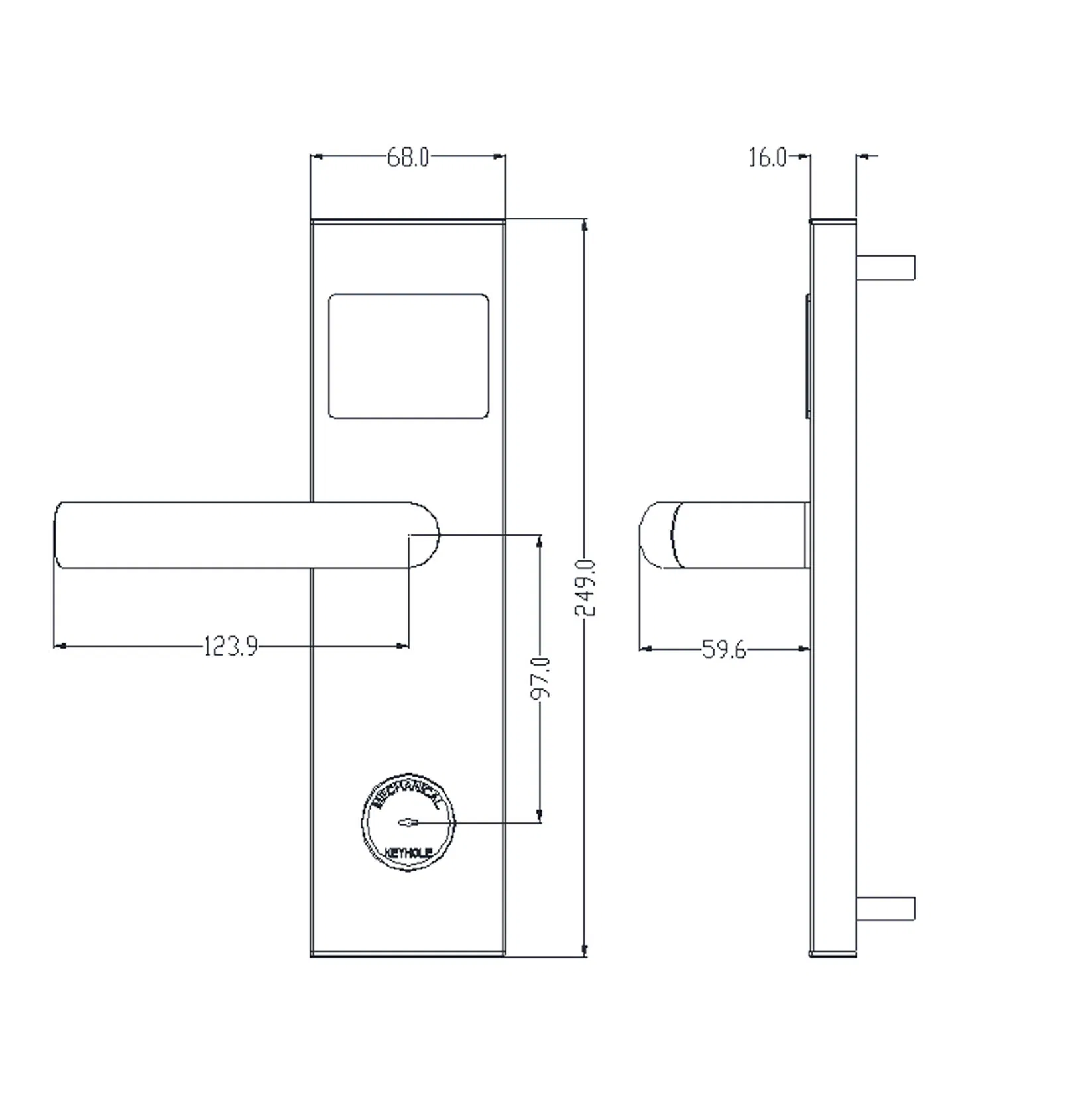

- Compatible with wooden doors (Thickness: 38-60 mm)
| Material | Stainless Steel |
|---|---|
| Unlock Method | RF card and physical keys |
| Reading Distance | ≤3cm |
| Card Type | M1 card, T57 card, and ID card |
| Working Temperature | -20ºC to 70ºC |
| Unlock Record | Stores latest 255 records |
| Application | Hotel, office, home, school, villa, etc. |

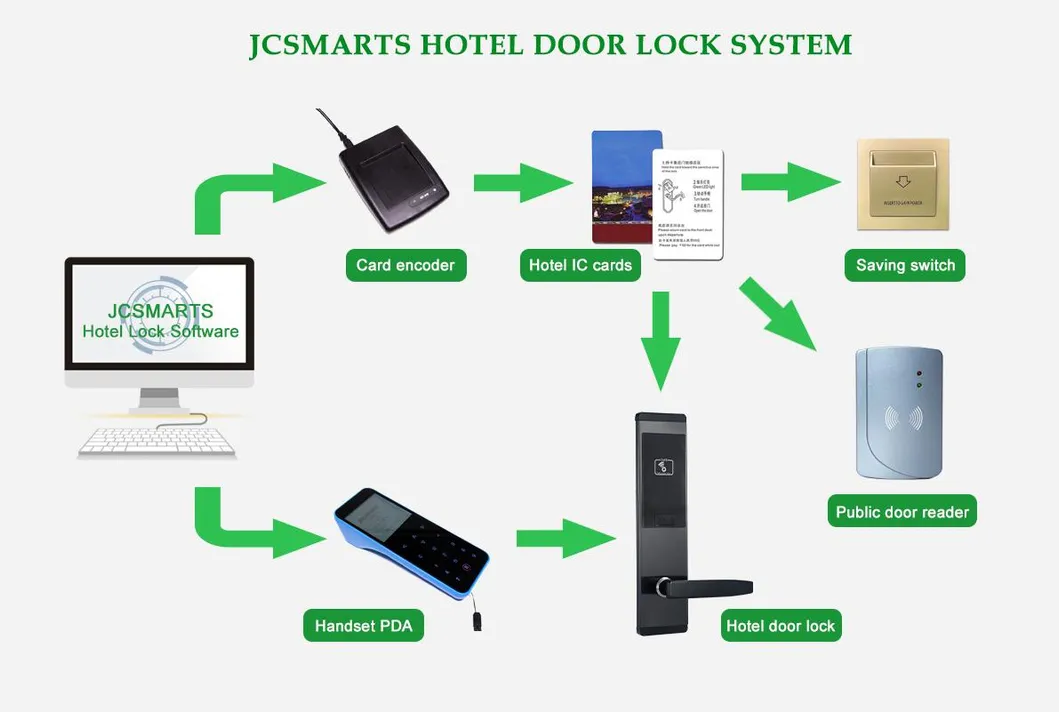

| Basic System Requirements | |
|---|---|
| Software | Supports English and Thai; allows integration via Win32 Dynamic Library. |
| Card Encoder | Essential for issuing room cards; supports multiple encoders simultaneously. |
| Handset PDA | Optional but recommended for easy lock installation and firmware upgrades. |
| RF Card | T5557 or M1 cards (default white; custom printing available). |
| Optional System Add-ons | |
|---|---|
| Energy Saving Switch | Enables room electricity only when a card is inserted. |
| Elevator Controller | Requires guests to swipe their room card to activate the elevator. |
| Access Reader | Allows guest cards to unlock public or gate doors. |

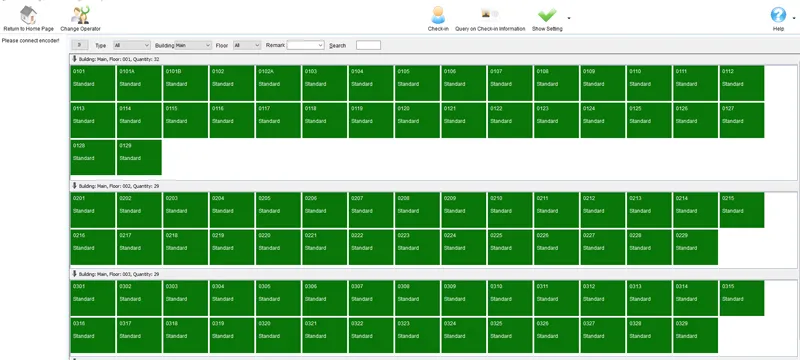

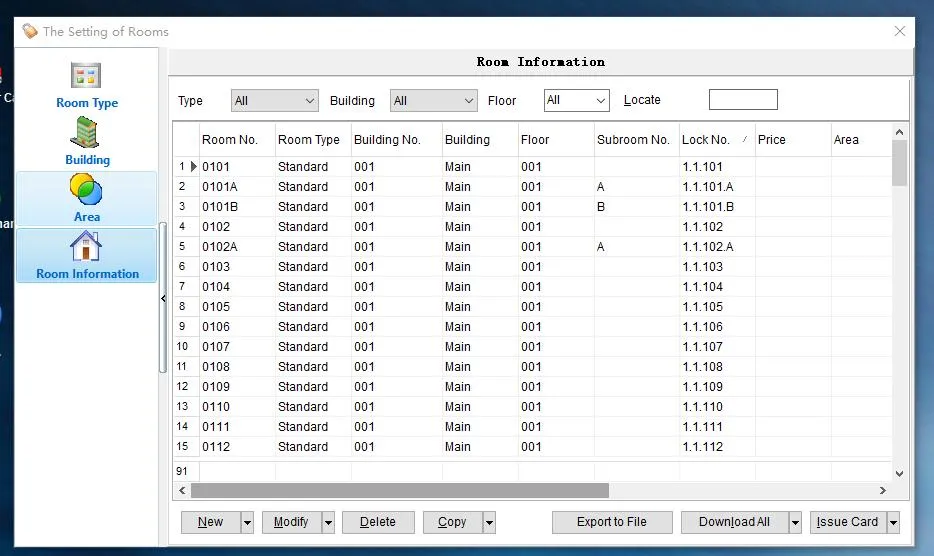

Receptionist Management: Features include room pre-booking, check-in, room extension, card loss reporting, and comprehensive data reporting.

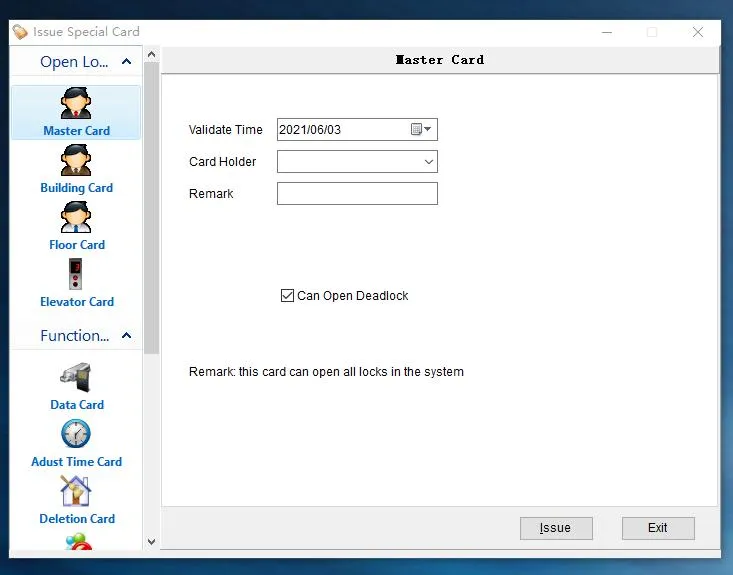

Multi-stage Key Cards: Create building cards, floor cards, cleaning cards, and specific room cards for hierarchical access control.

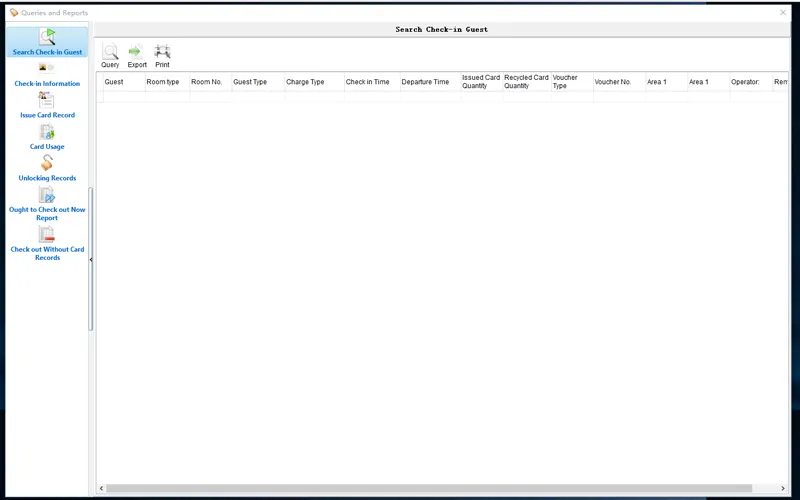

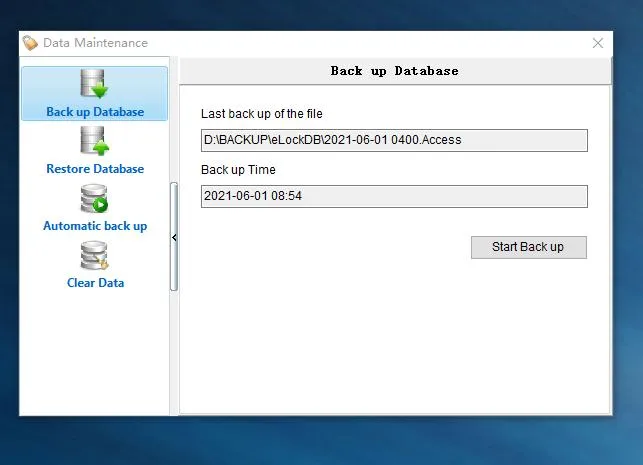

Data Maintenance & Reports: Easy backup solutions for computer migration and detailed queries for unlocking records and usage history.
Lead Time: Samples (1-2 days), Bulk Orders (5-7 days).

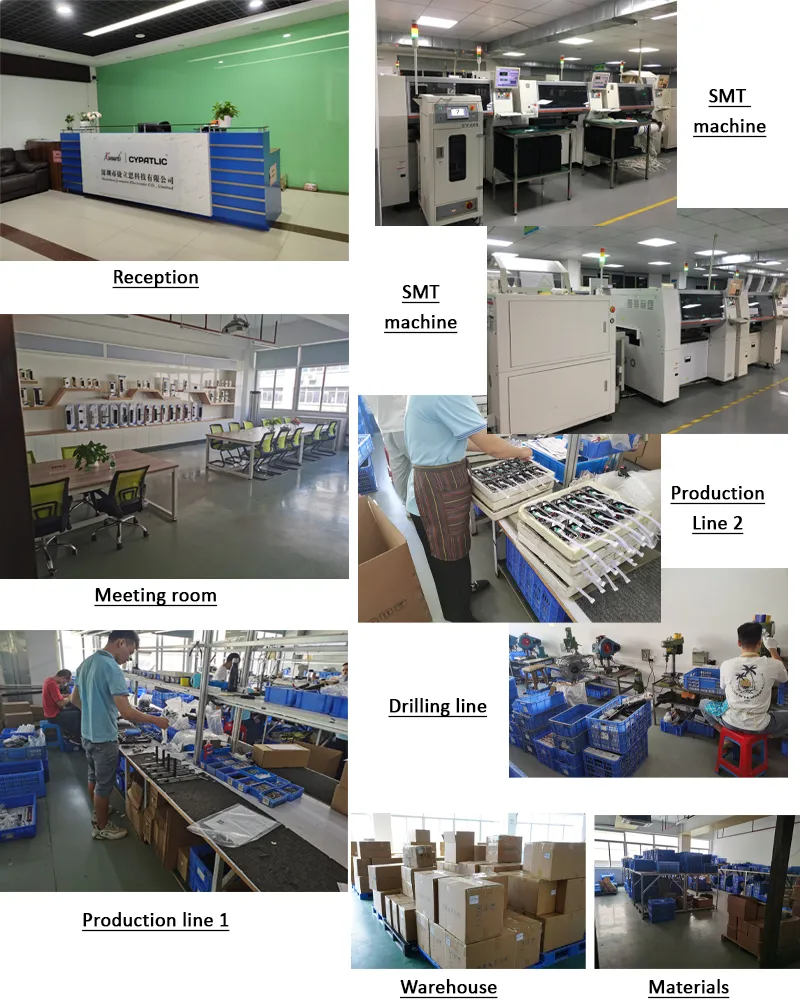

A high-tech enterprise specialized in door lock system development, production, and export. With a production capacity of 20,000 units per month, the business range covers digital smart door locks for hotels, residential, and commercial use.
