Commercial RFID Card Keyless Electric Door Lock System for Hotel
Product Description
Overview & Basic Info
Product Description

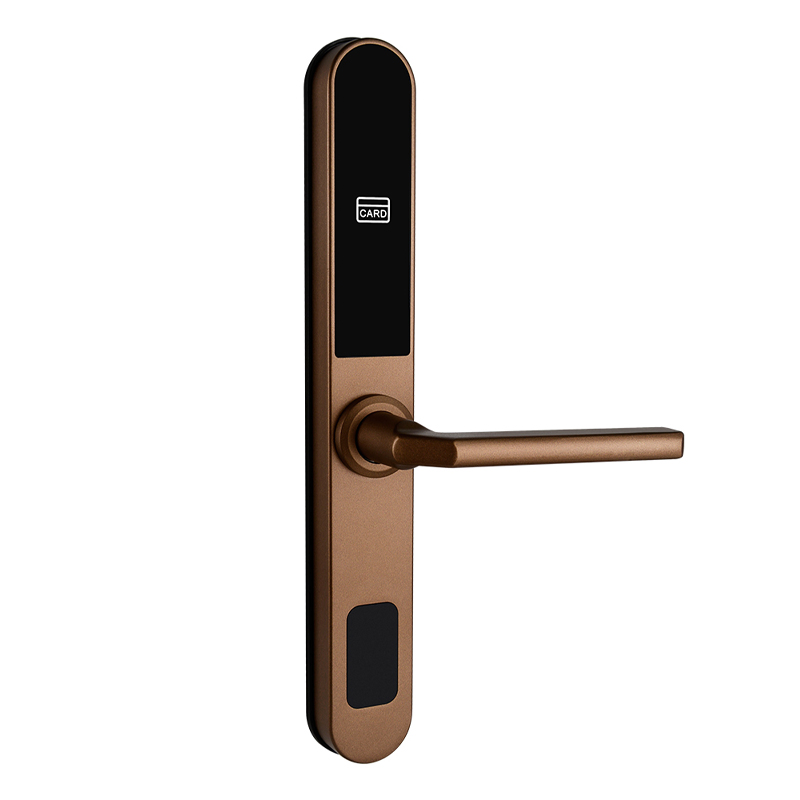

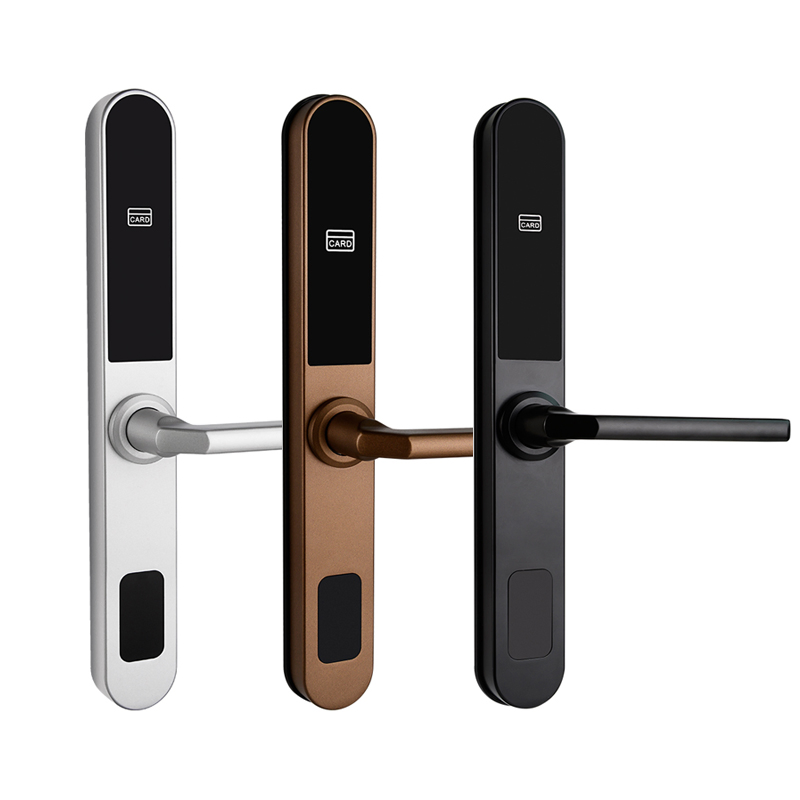

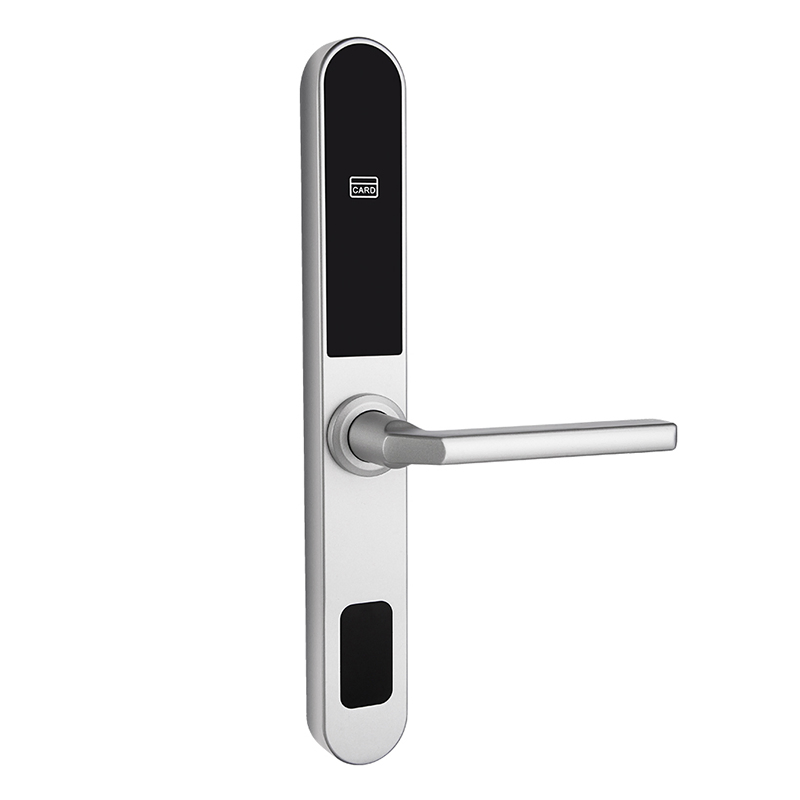

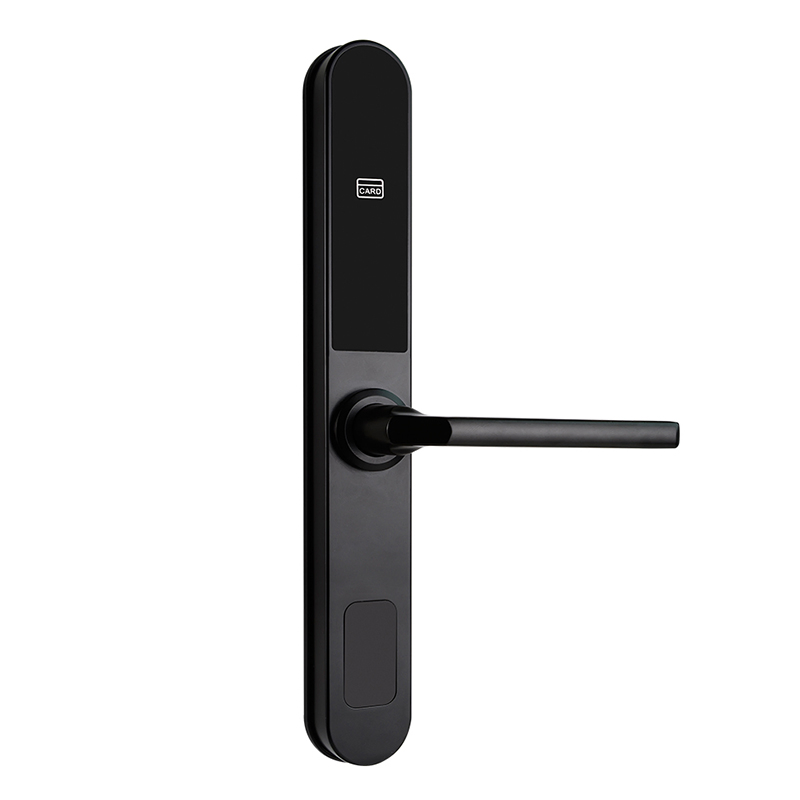

Commercial RFID Card Keyless Electric Door Lock System for Hotel
Core Advantages
- Multiple mortise options: 2885, 3085, 3585, 4085, 5085, 6085, 5572, 6072
- Triple mute lock body for quiet operation
- No artificial rivets and plastic parts on lock face
- Anti-interference and error correction board support
- Damp-proof and dust-proof circuit processing
- Data retention during power outages
- Internal clock for key card time control
- Anti-static and low voltage warning system
- Fit door thickness: 30-60 mm (Wooden and Aluminum doors)
Product Parameters
| Material | Aluminum Alloy |
|---|---|
| Unlock Method | RF Card and Physical Keys |
| Reading Distance | ≤3cm |
| Card Compatibility | M1 card, T57 card and ID card |
| Working Temperature | -20ºC to 70ºC |
| Unlock Record | Stores latest 255 entries |
| Applications | Hotel, Office, Home, School, Villa etc. |

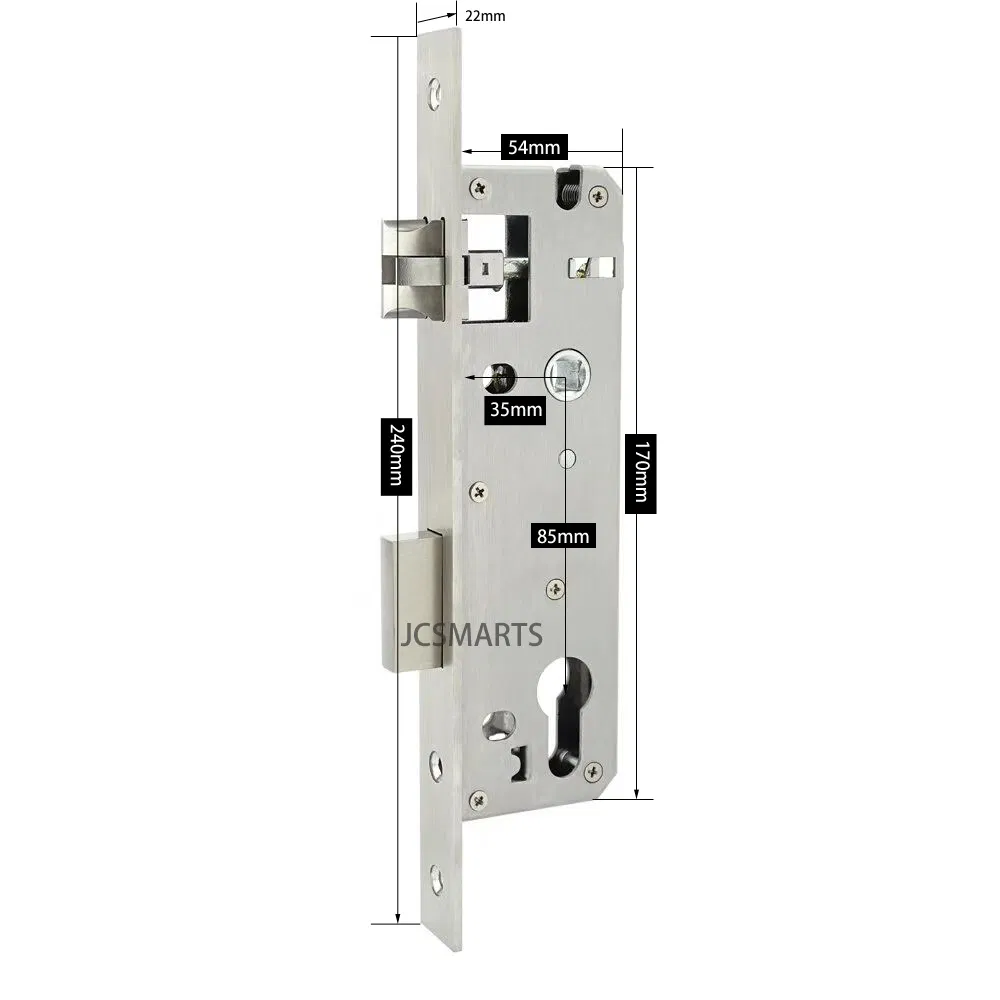

Optional Mortise: 2885, 3085, 3585, 4085, 4585, 5085, 6085, 7085, 5572, 6072 etc.
Hotel Lock System Description

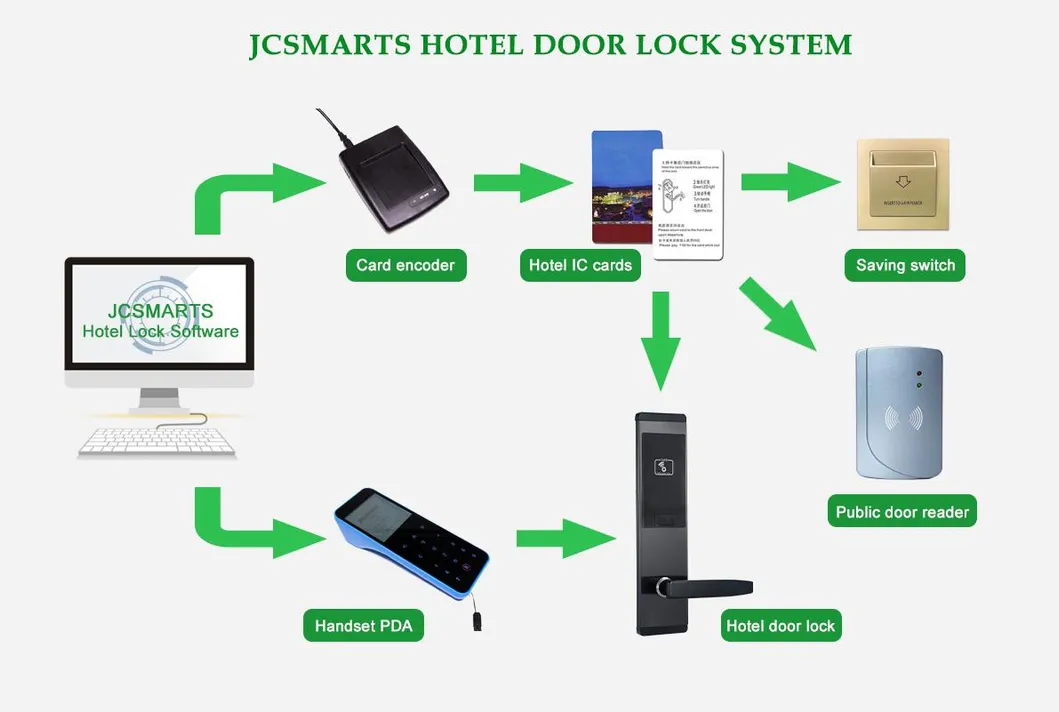

Basic System Components
| Component | Description |
|---|---|
| Software | Supports English and Thai; Win32 Dynamic Library available for integration. |
| Card Encoder | Used to issue room cards; supports multiple encoders working simultaneously. |
| Handset PDA | Optional; helps with easy installation, time proofreading, and data synchronization. |
| Door Lock | Select based on door type; contact for installation confirmation. |
| RF Card | Necessary (T5557 or M1); supports custom logo/hotel info printing. |
Optional Components
| Component | Function |
|---|---|
| Energy Saving Switch | Powers room electricity only when the card is inserted. |
| Access Reader | Allows room cards to unlock public gates or doors. |
| Elevator Controller | Restricts elevator usage to valid card holders only. |
Management & Software

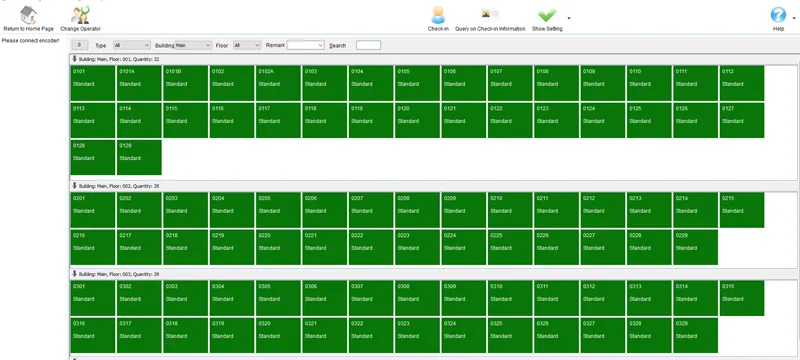

Receptionist Management
Simulates hotel operations including pre-concert room, check-in, extension, room exchange, and loss reporting. Generates detailed reports.

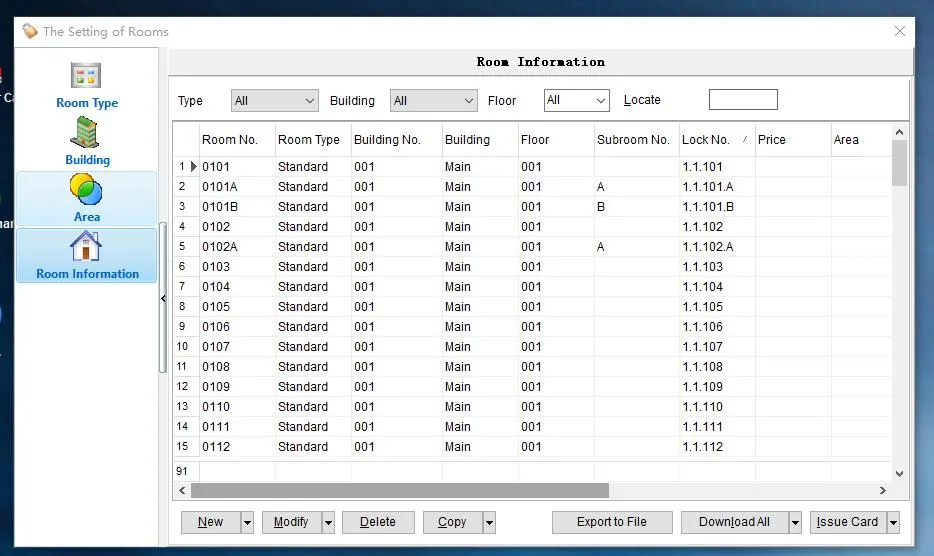

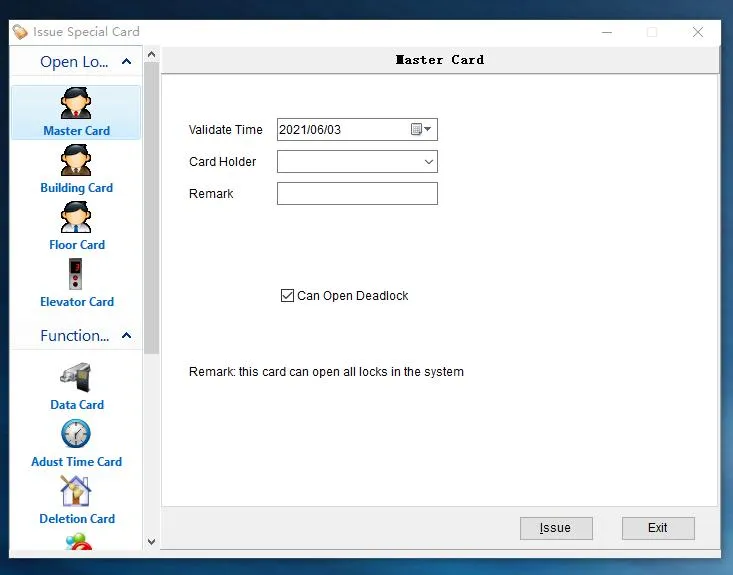

Room Information & Multi-stage Cards
Configure room details on PC and transfer via PDA. Issue building, floor, cleaning, and guest cards.

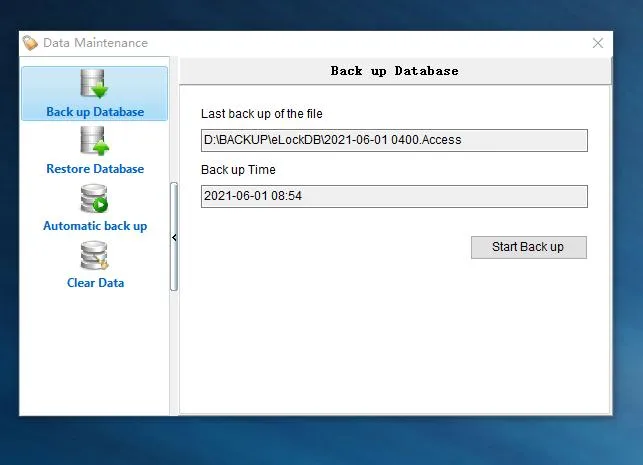

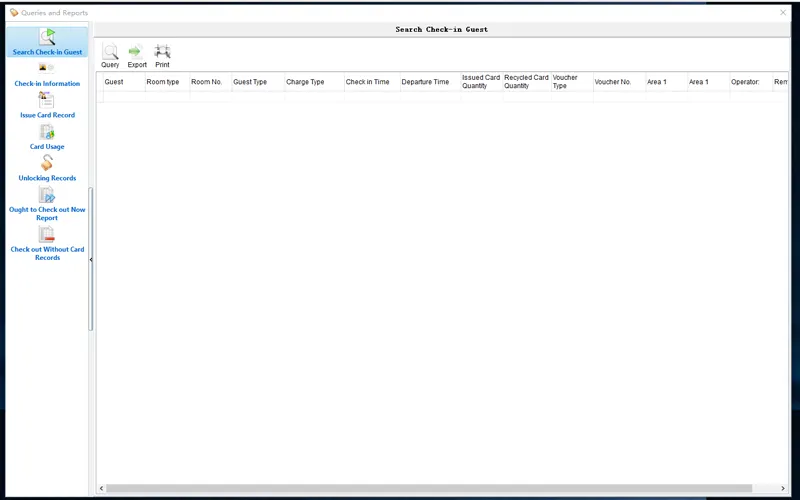

Data Reports & Maintenance

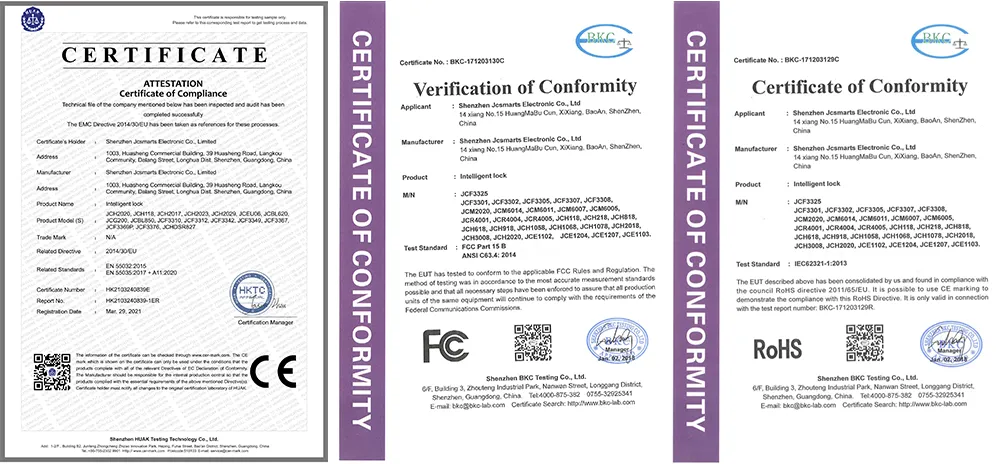

Certifications & Installation

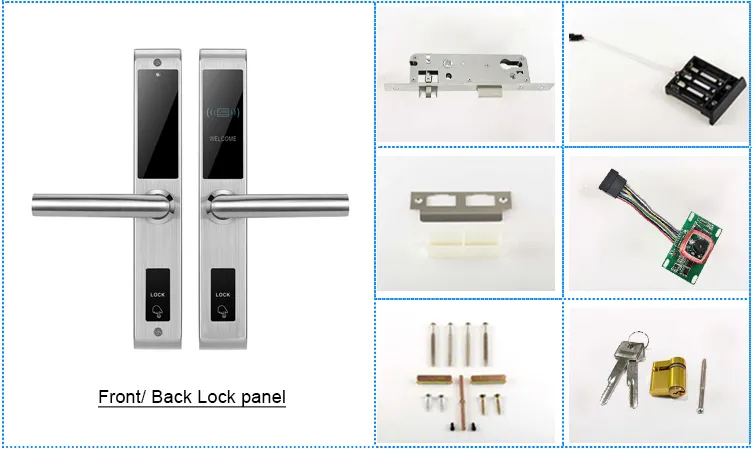

Packaging & Shipping
Lead Time: Samples: 1-2 days | Bulk Orders: 5-7 days.

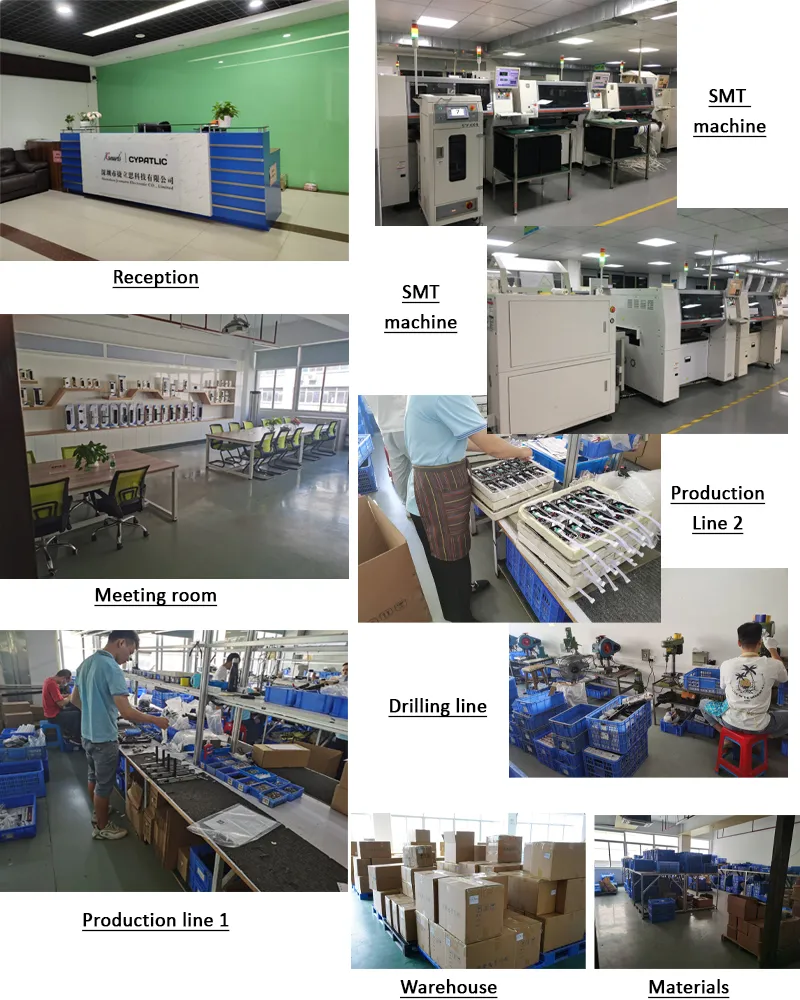

Profile
Founded in 2015, we are a high-tech enterprise specialized in door lock systems development, production, and export. With a dedicated workforce producing 20,000pcs monthly, we cover digital smart locks, mechanical hardware, and power-saving solutions. Reliability and security are our core objectives.
Frequently Asked Questions
A: The system supports M1 cards, Temic (T57) cards, and ID cards. T57 cards are the default option.
A: This lock is suitable for doors with a thickness between 30mm and 60mm (standard fits 38-65mm).
A: The lock can store the latest 255 unlocking records for security tracking.
A: Currently, the software supports English and Thai. Other languages like Russian and Spanish are under development.

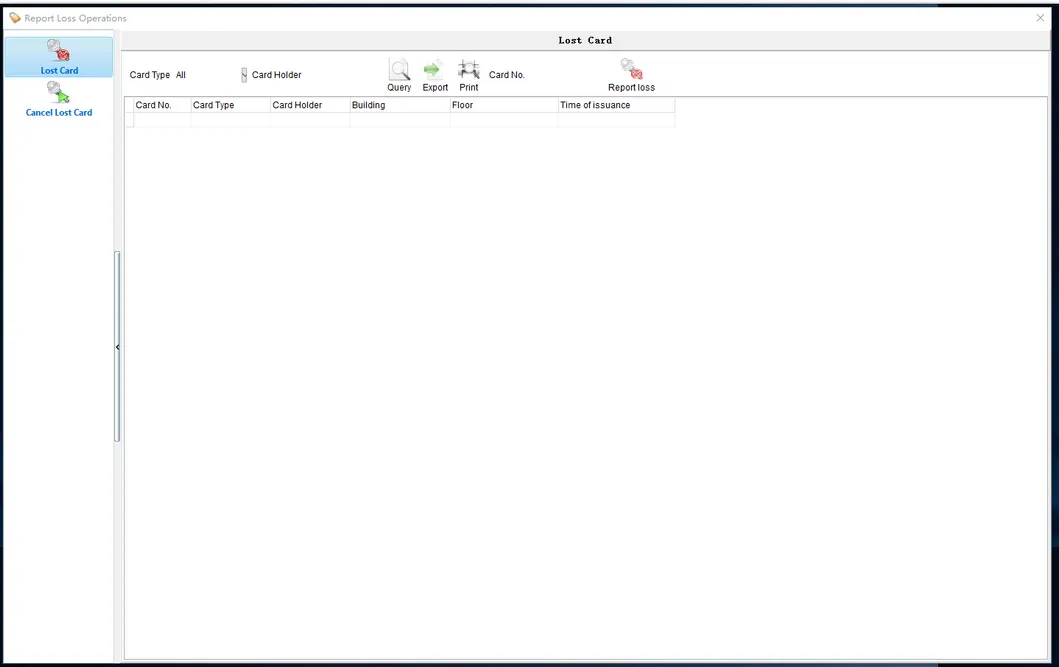

A: You can easily cancel the lost card through the management software and issue a new one instantly.
A: Yes, we provide options to print custom images, logos, and hotel information on the RF cards.
