RFID Keyless Door Entry Systems with Touch-Screen Digital Door Locks
Product Description
i
Basic Specifications
Model NO.
iGlass108-J
Color
Gold
Screen
Color Screen
Communication
USB, Battery
Fingerprint Capacity
1000
User Capacity
3000
LCD Display
1.77 Inch TFT Color
Support
Fingerprint+RFID+Pincode
Specification

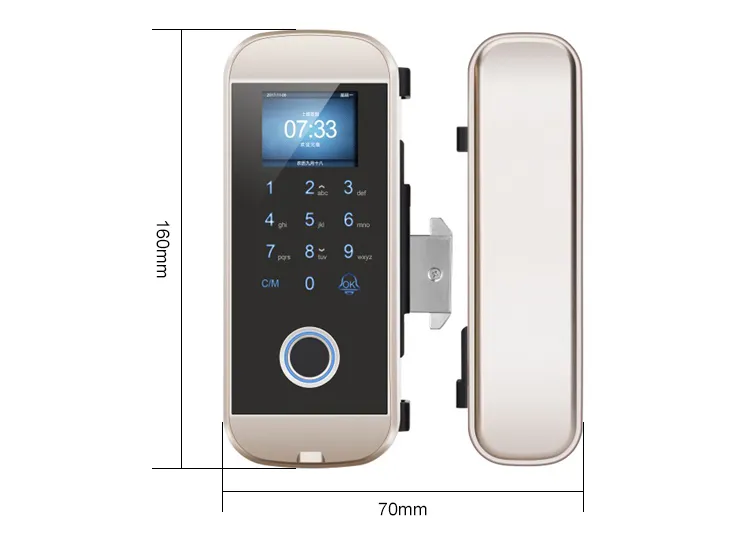

160*70mm
Origin
China
Production Capacity
20000pcs / Month
★
Product Overview

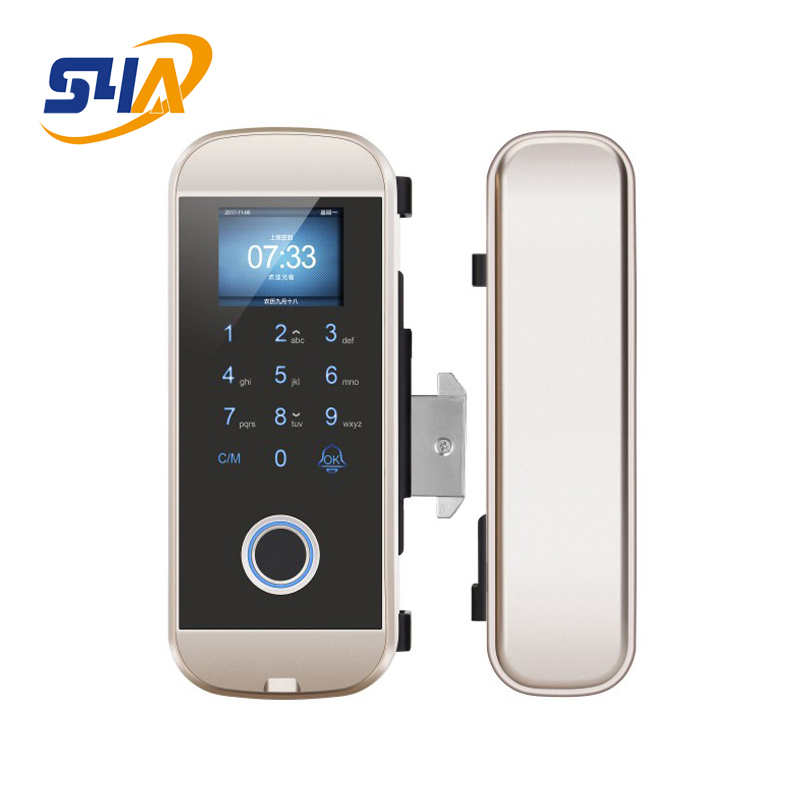

RFID Keyless Door Entry Systems with Touch-Screen Digital Door Locks
Key Advantages:

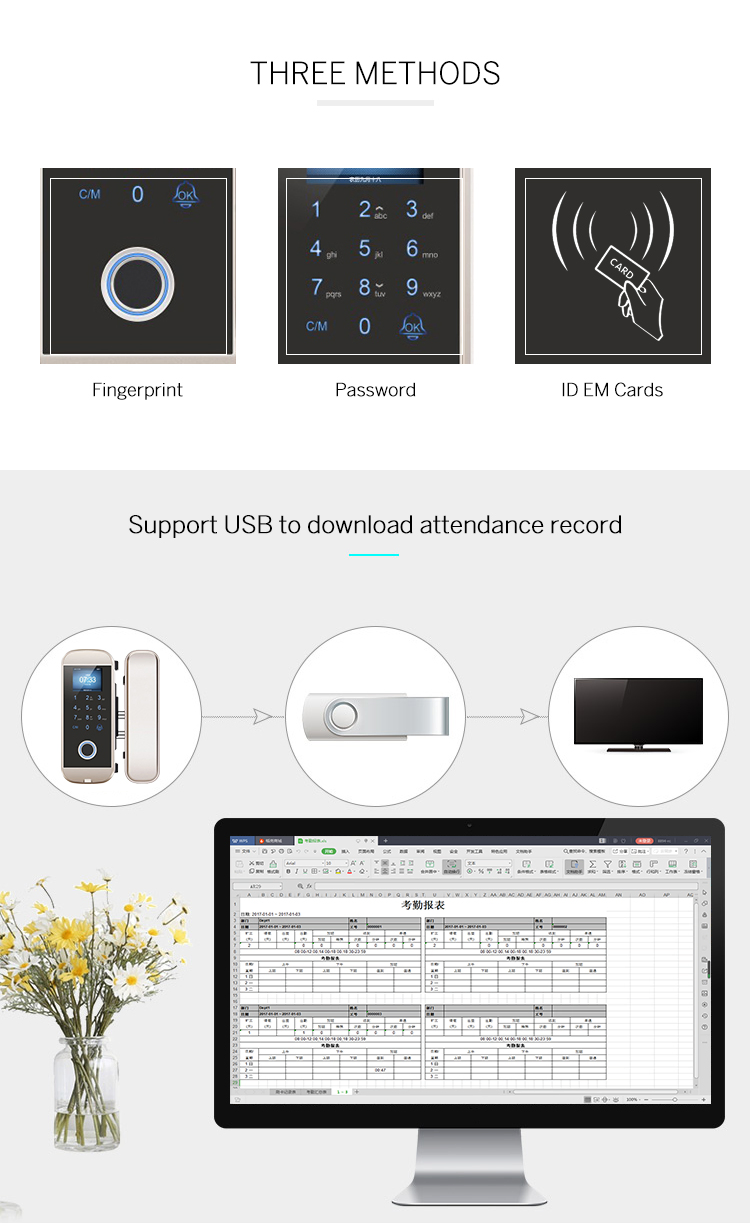

Multiple unlock modes: Fingerprint, Password, Card and Combination Mode.
High sensitive full touch keypad with backlight for dark environments.
Human-centric operation with clear voice guidance.

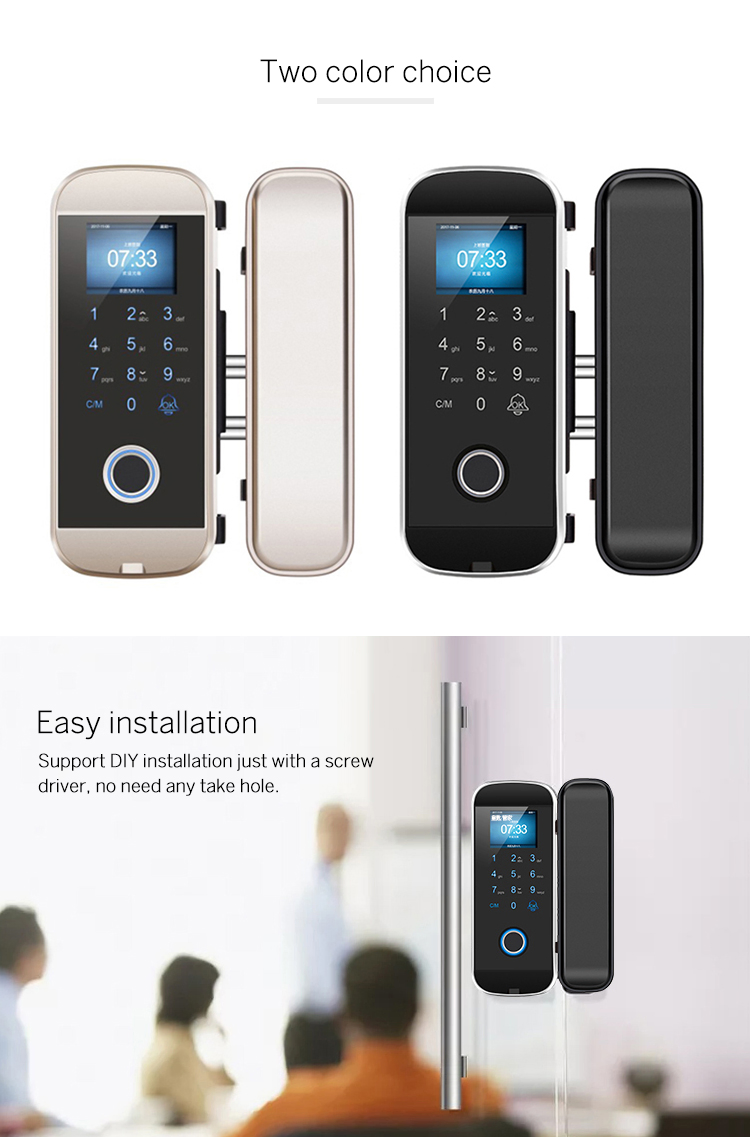

DIY installation using only a screwdriver—no drilling required.
Optional remote control function for added convenience.
Built-in doorbell for visitor notification.
Powered by 4pcs AA batteries with low battery alarm.
External emergency USB battery input support.
⚙
Technical Parameters

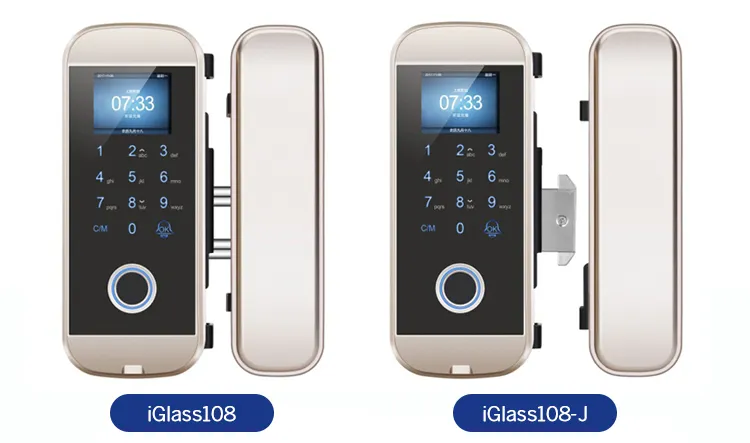

| Model Number | iGlass108-J |
| Fingerprint Sensor | Semiconductor |
| Material | Lock body: Zinc Alloy; Cylinder: Stainless Steel |

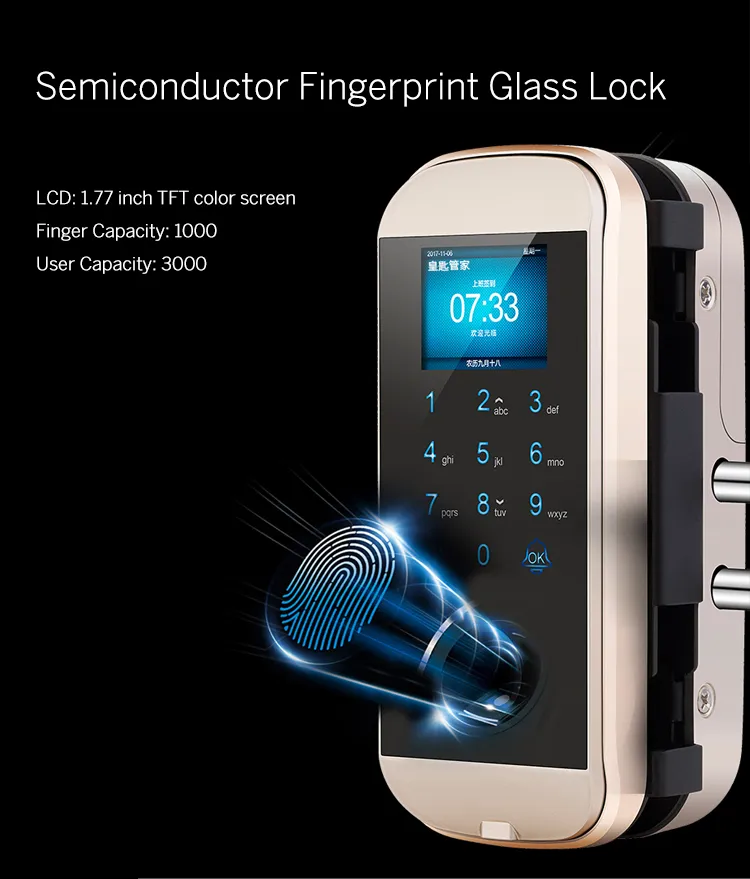

| LCD Display | 1.77 inch TFT color screen |
| Recognition Speed | <0.5s |
| FAR / FRR | <0.001% / 0.10% |
| Power Supply | DC4.0~6.0V (4*1.5V AA Battery) |
| User Capacity | 1000 Templates (Finger/RFID/Pincode) |
| Recognition Mode | Fingerprint, password verification, ID/IC card |

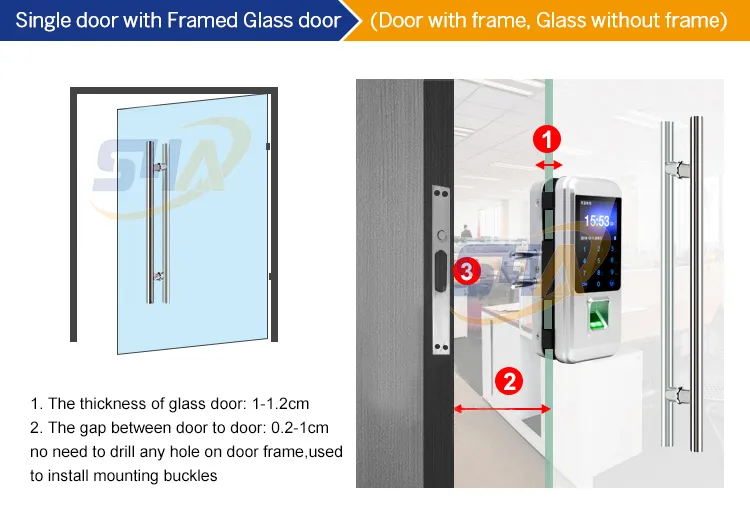

| Door Thickness | 8~15mm |
| Working Temperature | -20ºC ~ 55ºC |
| Emergency Power | USB Port (6~9v) |
📷
Product Gallery
Frequently Asked Questions
How many users can the iGlass108-J lock register?
The system supports a total capacity of up to 3,000 users, including 1,000 templates for fingerprints, RFID cards, and pincodes.
What types of doors is this lock suitable for?

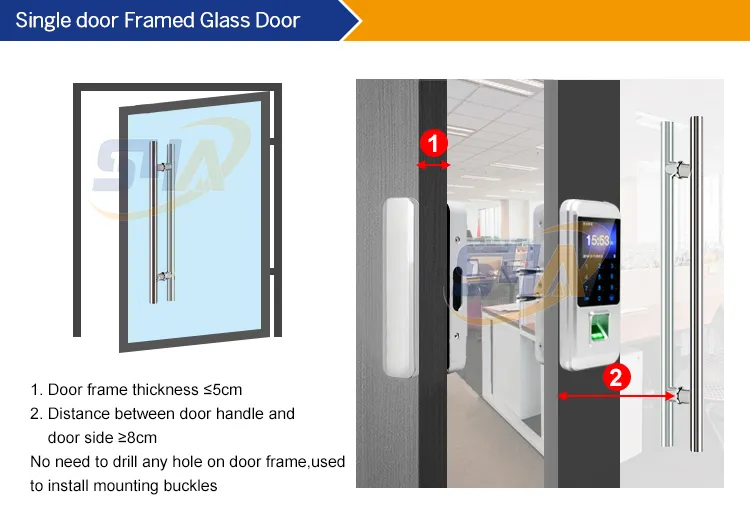

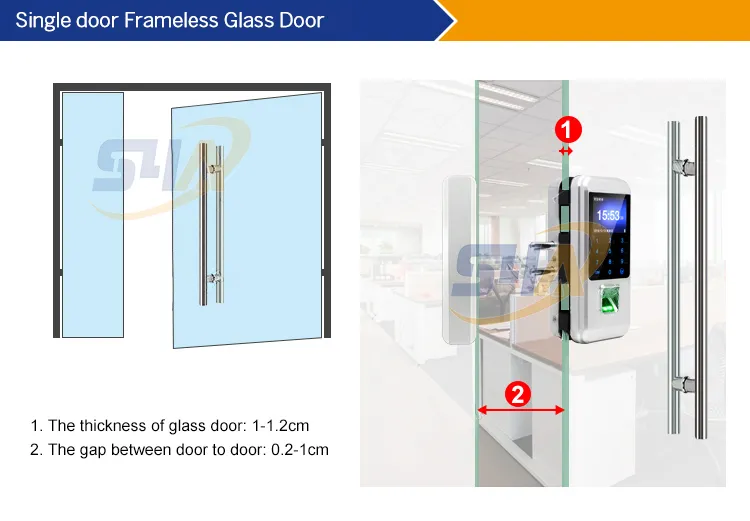

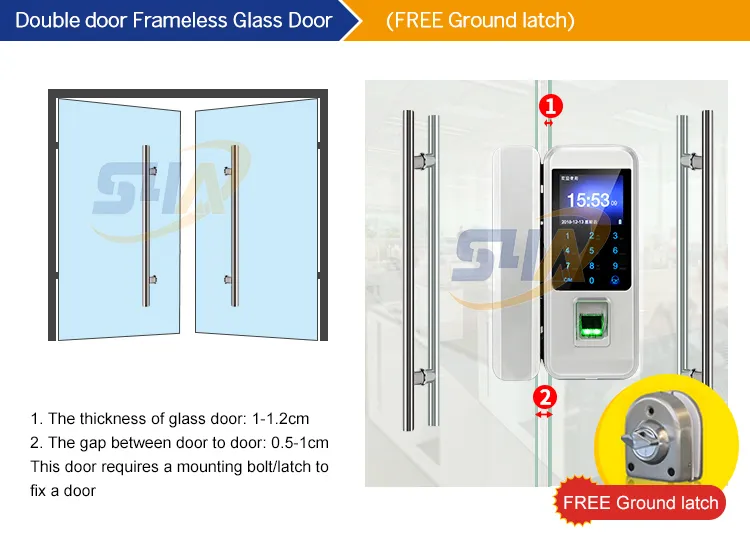

This lock is designed for glass doors with a thickness ranging from 8mm to 15mm. It is ideal for office and residential glass entries.
Is professional installation required?
No, it supports DIY installation. You only need a screwdriver to install it, and there is no need to drill holes in the door.
What happens if the batteries run out?
The lock has a low battery alarm. If the power is completely exhausted, you can use the external emergency USB port to power the lock temporarily.
Does the keypad work in the dark?
Yes, the lock features a highly sensitive full touch keypad with a built-in backlight, making it easy to operate in zero-light conditions.
What are the available verification methods?
You can unlock the door using your fingerprint, a password, an RFID card, or a combination mode for enhanced security.
