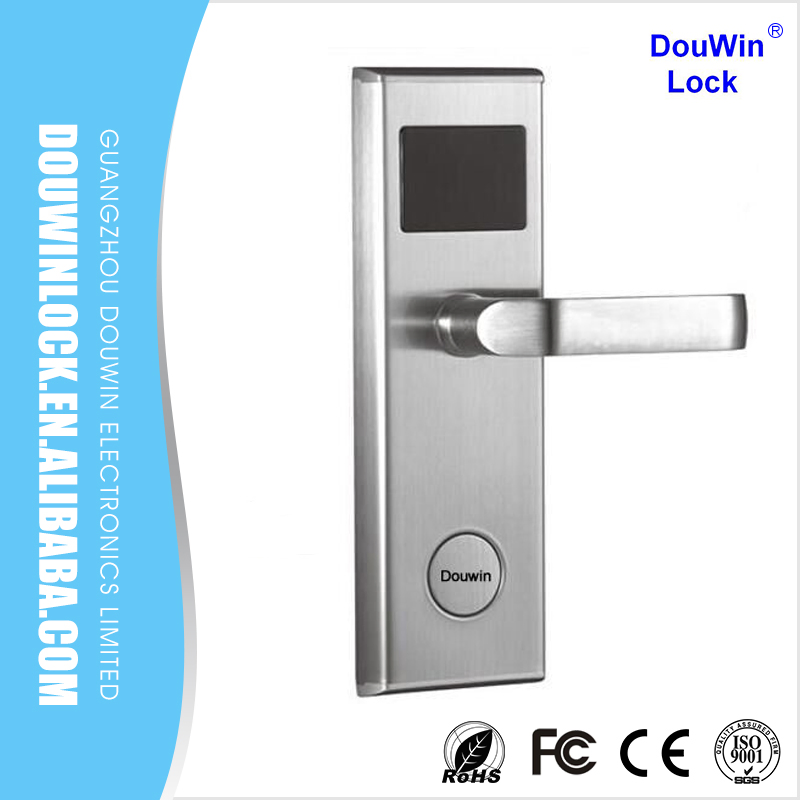

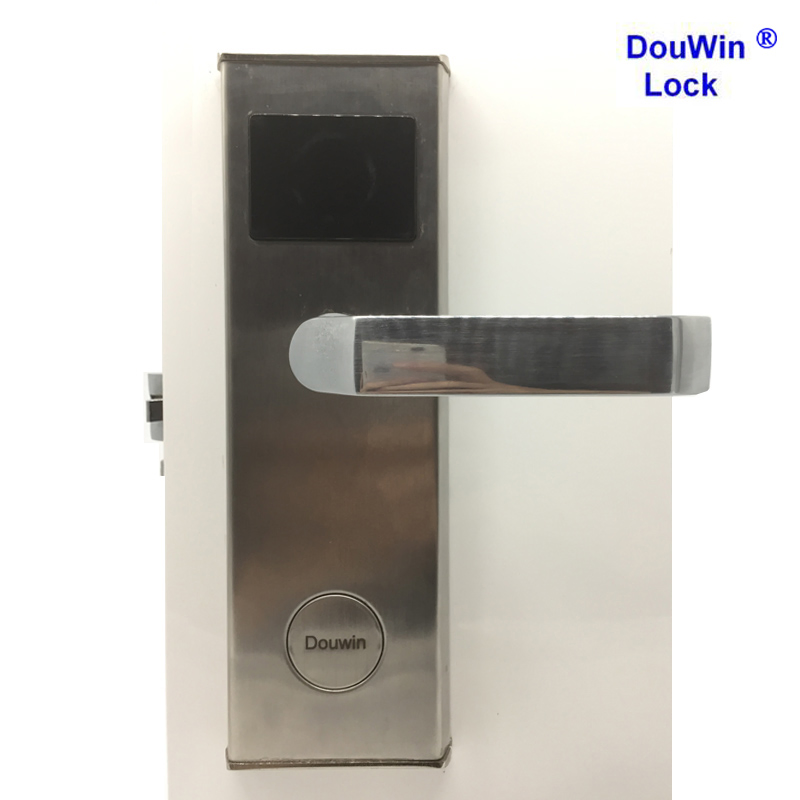

RFID Hotel Key Card Door Lock System From China
Product Description
Basic Specifications
Model NO.
344MFSA
Surface Treatment
Brushed
Style
Modern
Power Type
DC
Certification
CE, FCC, ISO
Color
Silver
Door Thickness
30-55mm
Unlock Way
Card or Mechanical Key
Card Type
RFID Card
Battery
4 Pieces of AA Batteries
Suitable Door
Wooden, Fire-Proof, Metal Door
HS Code
83014000
Product Overview

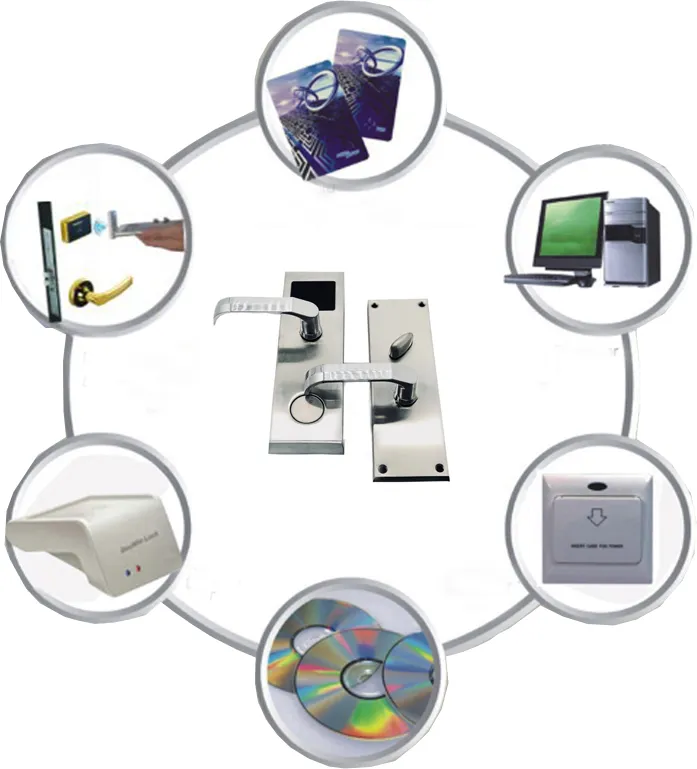

The Hotel RF card door lock system consists of an intelligent lock, management software, encoder, portable programmer (PDA), RF cards, and energy-saving switches.
- Environmental technology compliant with RoHS standards.

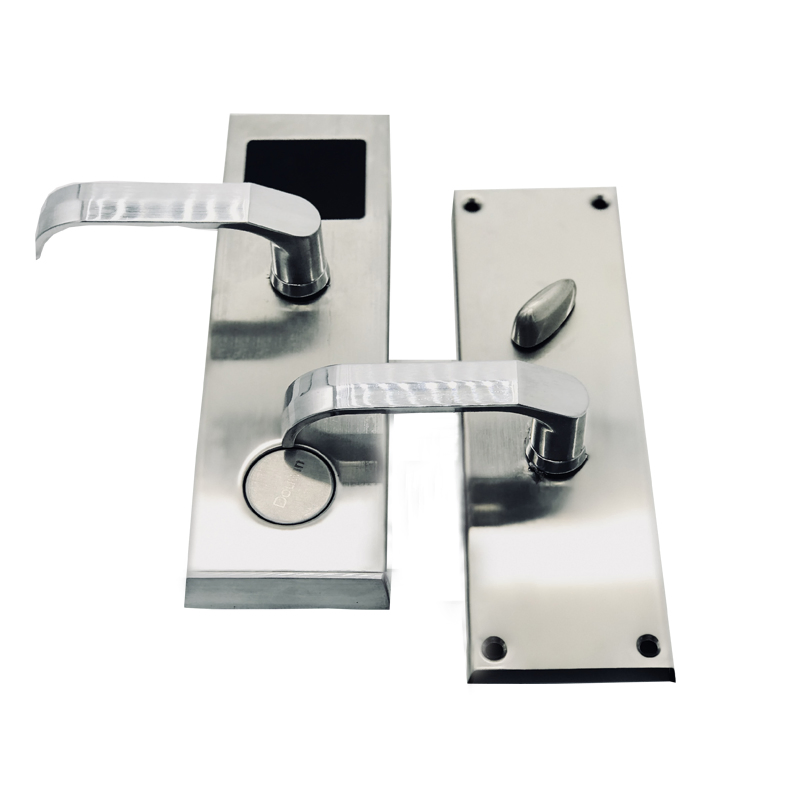

- Equipped with a Solid Handle for enhanced durability.
- Hidden key hole design for a simple and aesthetic appearance.

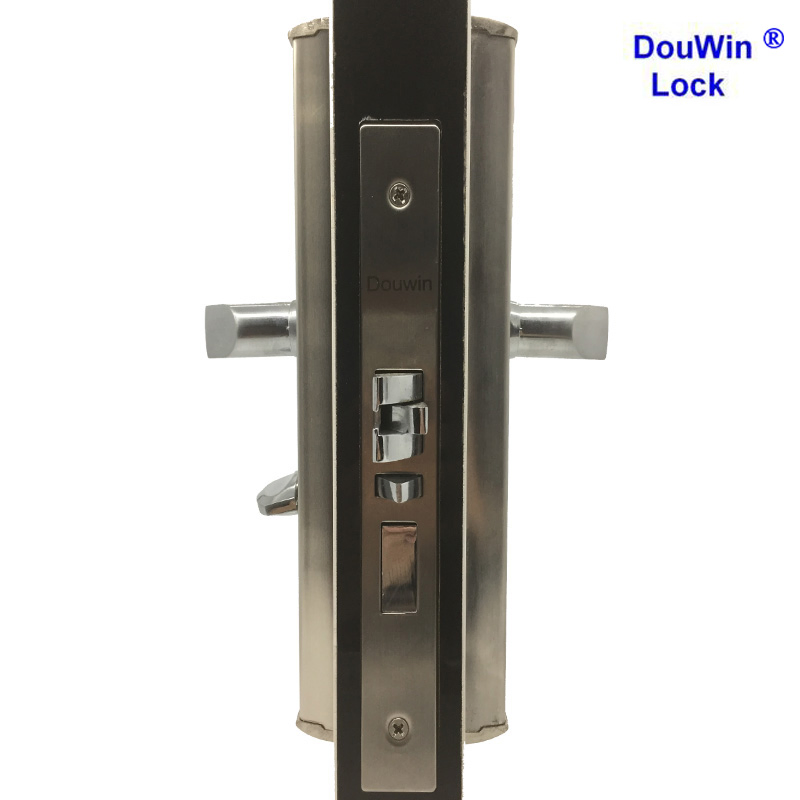

- Compatible with American or European mortise locks.
- High-quality materials that resist oxidation and corrosion.
Technical Functional Index

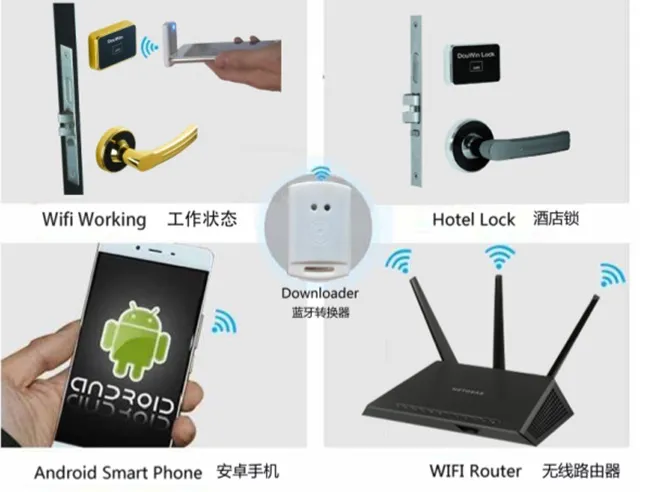

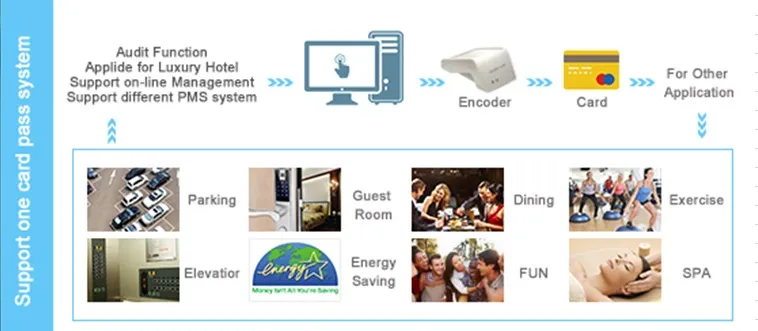

Wireless Connectivity: The system supports LAN integration where the reception computer and mobile devices can communicate via Wifi (Android system with Bluetooth required for mobile functions).
| Open door card | Master card, Waitress card, Guest card, etc. |
| RF Encoder | Issues all open door cards for the system. |

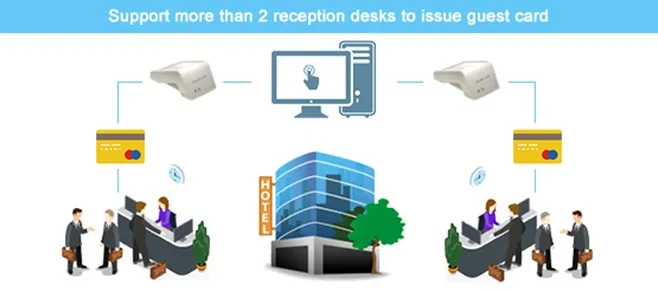

| Management Software | Multilingual support for card management and system settings. |
| Energy Saver | Allows power access in rooms only via valid RF card. |
| Downloader (PDA) | Programs room numbers/time and reads opening records. |
Multi-Level Control System
Security CardOpens all locks even when deadbolted (Emergency use).
Manager CardOpens all room locks except when deadbolted.
Staff/Waiter CardAccess for services during specified times.
Cleaning CardDesignated access for cleaning personnel.
Guest CardValid for the designated room within the stay period.
Restriction CardVoids lost cards instantly through the system.
Technical Parameters
Power Supply
DC6V (4x AA Batteries)
Static Power
< 1uA
Dynamic Power
~200mA
Battery Life
> 10,000 openings
Reading Distance
1-5cm
Internal Log
512 lines of records
Quality Assurance
- Low voltage alarm system to notify battery replacement.
- Anti-theft, scoop-proof, and prying-resistant features.
- Every circuit board is tested for long-term lifespan.
- Adjustable handles to fit various door orientations.
- Certified with CE and FCC standards.
Frequently Asked Questions
Q1: What power source does the lock require?
The lock operates on DC6V, using 4 standard AA batteries. It includes a low-voltage alarm to alert you when batteries need replacing.
Q2: How many opening records can the lock store?
The standard lock can store up to 512 lines of opening records, including entries made with mechanical keys.
Q3: Can the system be integrated with other hotel software?
Yes, the door lock software can be integrated with most Hotel Management Software (PMS) using our SDK (DLL).
Q4: What happens if a guest loses their card?
A Restriction Card can be issued immediately through the management software to void the lost card and maintain security.
Q5: What types of doors are suitable for this lock?
This lock is designed for wooden doors, fire-proof doors, and metal doors with a thickness between 30mm and 55mm.
Q6: Is there an emergency opening method?
Yes, the lock features a hidden key hole and can be opened using a mechanical key or a high-level Security Card in emergency situations.
