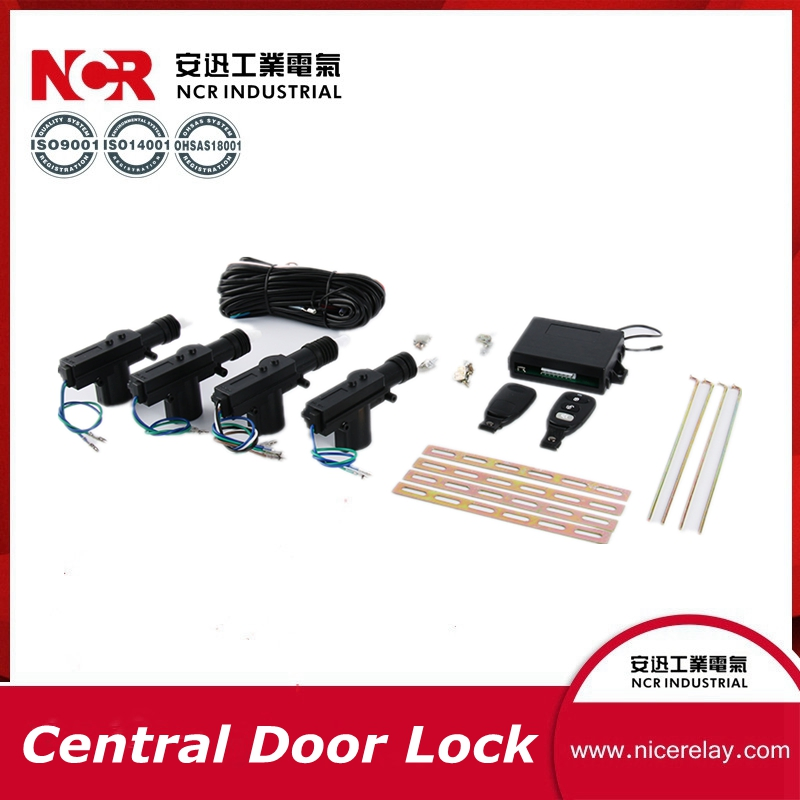

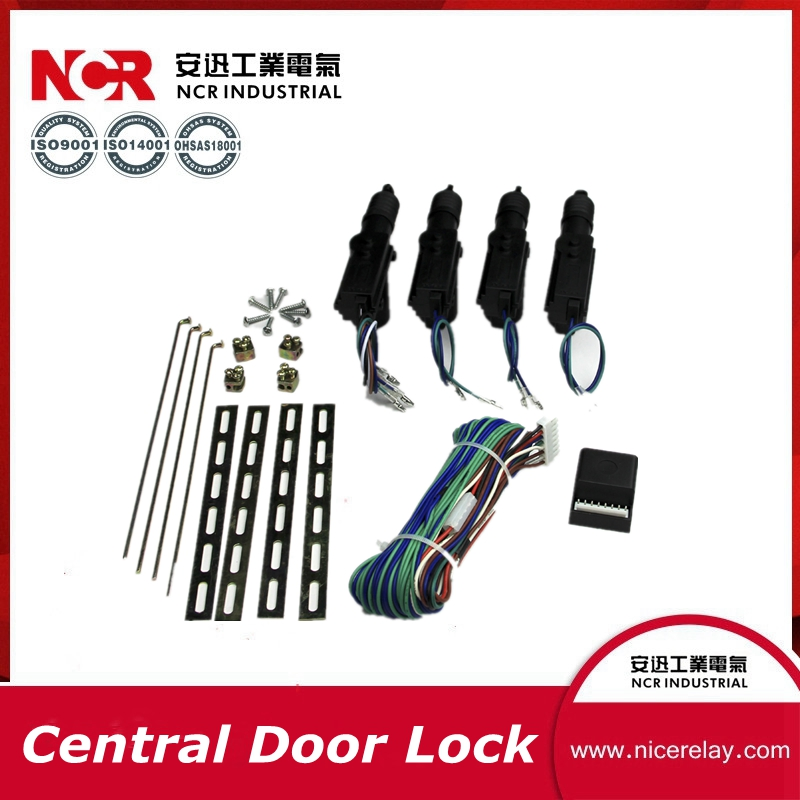

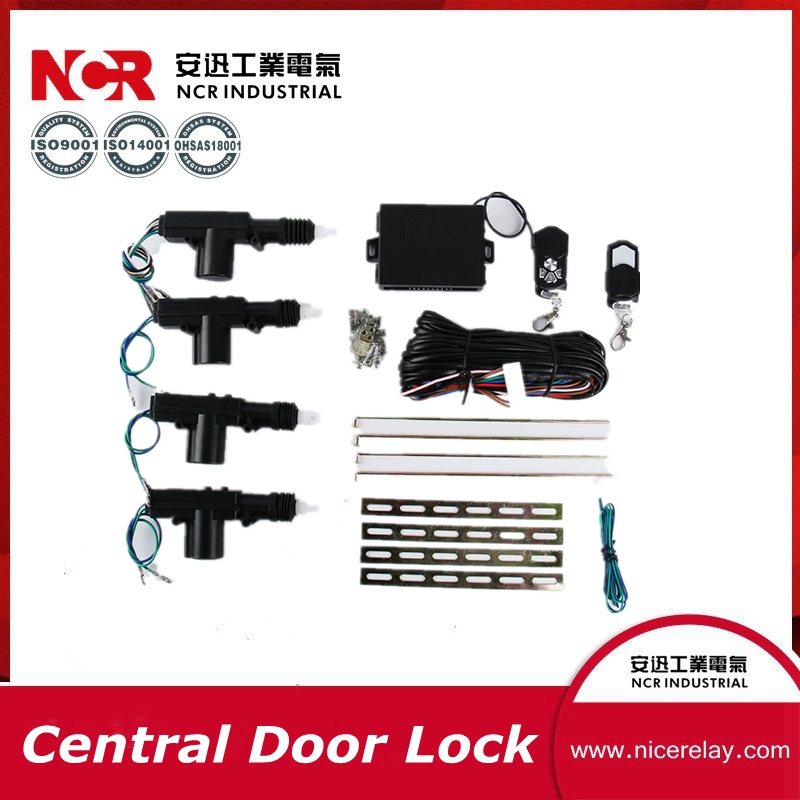

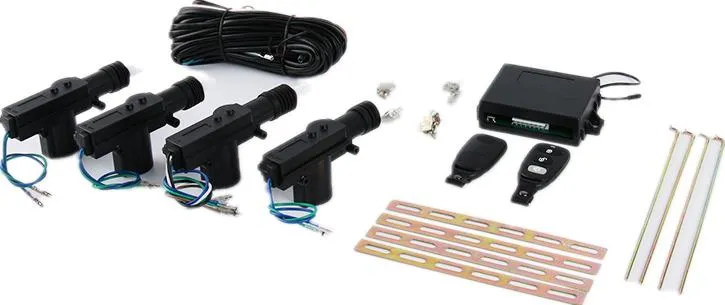

Reliable 12V Central Lock System for Easy Vehicle Access
Product Description
i
Basic Specifications
Model NO.
NR-CL-J06
Material
Plastic
Lock Core Type
European Style
Car Lock Type
Mechanical
Performance
A Class Theft-proof
Operating Voltage
DC12V
Operating Current
10 A
Remote Distance
60 M
Working Force
2.5 Kg
Operating Stroke
18 ± 1mm
Working Life
100,000 Times
HS Code
8301201000
★
Product Description
✔
Universally applicable to all cars with 4 doors, seamlessly integrating with any alarm system for enhanced security.
✔
Effortlessly secure or unlock your vehicle with precision using the two included remote controls, or manually for added flexibility.
✔

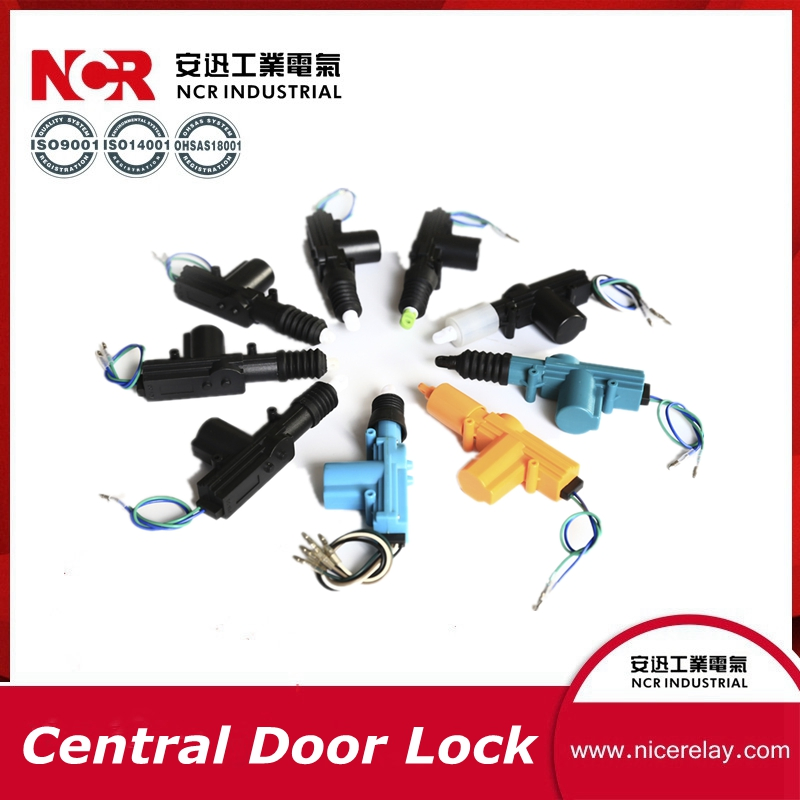

Equipped with a robust 5-wire gun-type actuator, ensuring reliable and efficient operation.
✔
Includes two durable 2-wire gun-type actuators, guaranteeing consistent performance.
✔
Designed with 360-degree rotation heads, allowing for straightforward and hassle-free installation.
✔
The unit is meticulously sealed, providing superior dust-tight and waterproof capabilities for all-weather resilience.
✔
Engineered with a double-track, jam-prevention design, promising smooth and uninterrupted functionality.
⚙
Technical Data
Operating Voltage: DC12V, ensuring optimal performance.
Operating Current: ≥ 10 A, delivering powerful and consistent operation.
Remote Distance: Exceeds 60 meters, offering convenience and control from range.
Working Force: ≥ 2.5 KG (options up to 3.5 KG available upon request).
Operating Stroke: Precision-engineered at 18 ± 1mm for accurate movement.
Working Humidity: Efficient operation at humidity levels below 75%.
Temperature Range: Endures temperatures from -20°C to 70°C.
Working Life: Exceeds 100,000 cycles for superior durability.
?
Frequently Asked Questions
Is this central lock system compatible with my vehicle?
Yes, the system is universally applicable to all 4-door car models and can integrate with any existing alarm system.
Does the system provide weather resistance?
Absolutely. The unit is meticulously sealed to provide dust-tight and waterproof protection, suitable for all weather conditions.
What is the effective range of the remote control?
The remote distance exceeds 60 meters, providing reliable control from a significant range.
Does the kit include all necessary actuators?
Yes, it includes one 5-wire gun-type actuator and two 2-wire gun-type actuators for a complete setup.
What is the expected lifespan of the system?
This central lock system is engineered for longevity, with a tested working life of over 100,000 cycles.
How does the 360-degree rotation head benefit installation?
The 360-degree rotation heads allow for flexible positioning, making the installation process straightforward and hassle-free in various door configurations.
