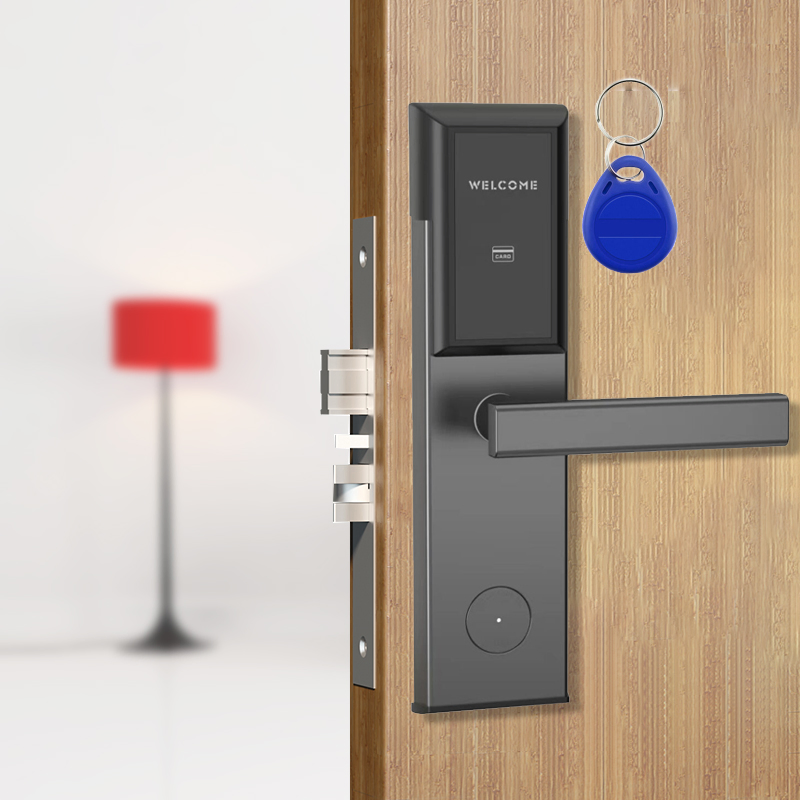

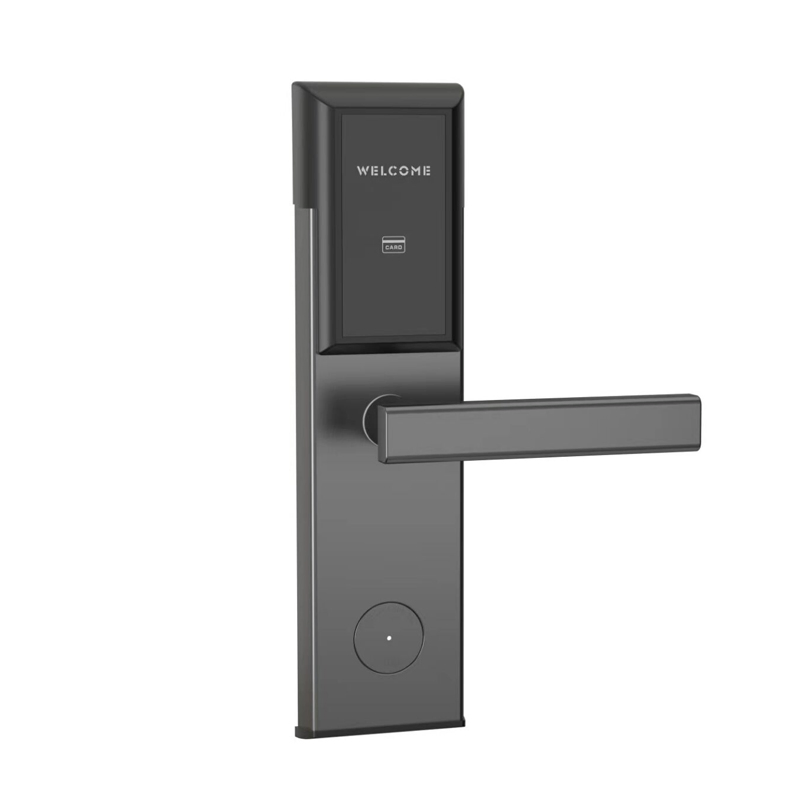

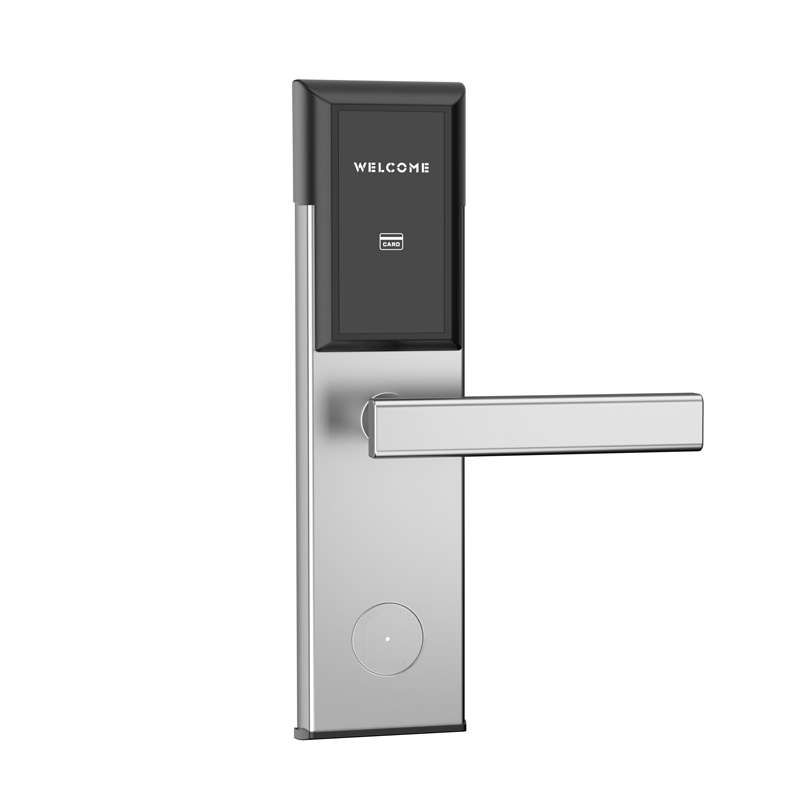

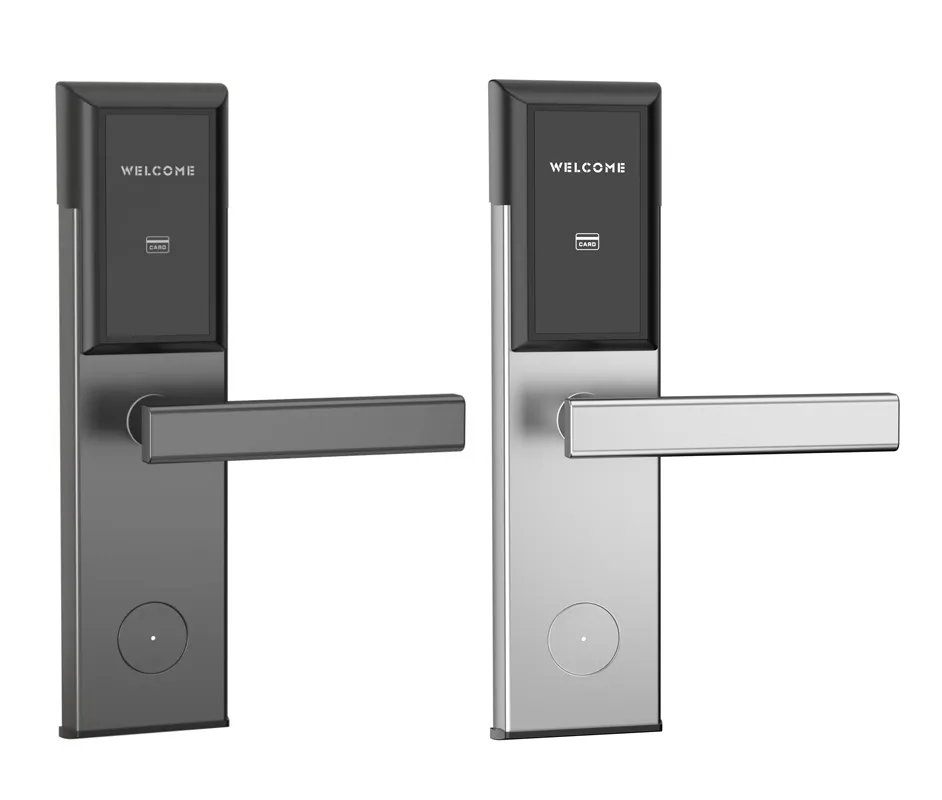

Portable Electronic RFID Hotel Lock System with Free Software
Product Description
📋
Basic Specifications
Model NO.
JCH118E15
Type
Smart Card
Material
Stainless Steel
Style
Modern
Power Type
AC / Battery
Data Storage
Offline (255 Records)
Certification
CE, FCC, RoHS
Fit Door
38-65mm Wooden Door
⭐
Product Advantages
✔ USA standard 5-lock Tongue Structure Core.
✔ Triple mute lock body for quiet operation.
✔ Anti-interference and error correction board.
✔ Damp-proof and dust-proof circuit processing.
✔ Non-volatile memory (no info loss on power off).
✔ Low voltage warning system.
⚙️

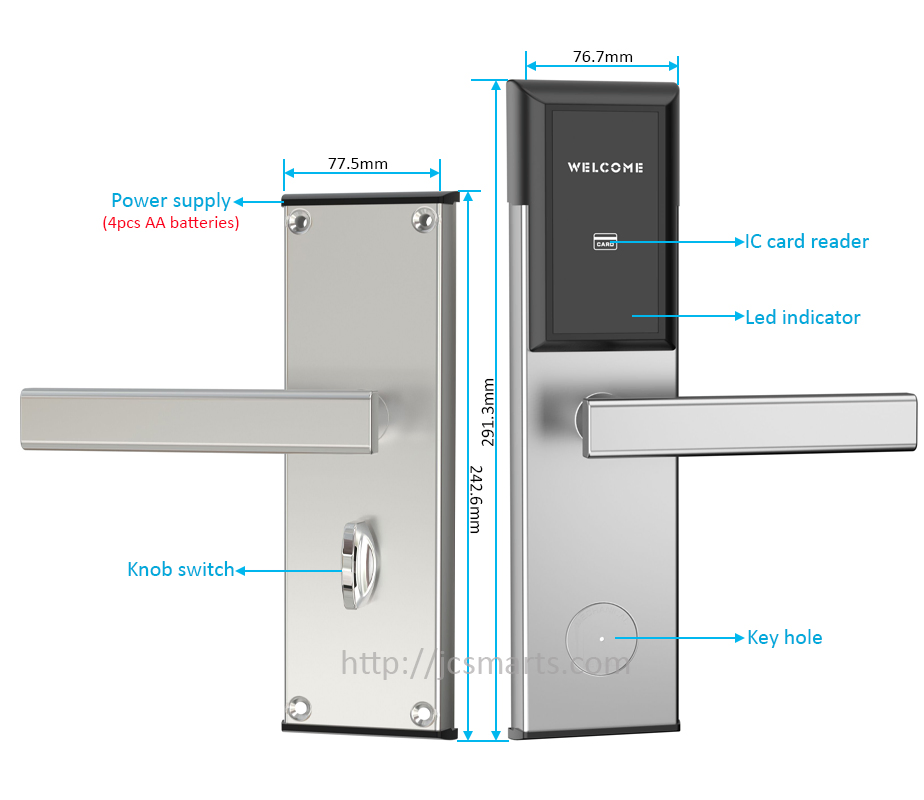

Technical Parameters
| Feature | Details |
|---|---|
| Material | Stainless Steel |
| Unlock Method | RF Card and Physical Keys |
| Reading Distance | ≤3cm |
| Card Compatibility | M1 card, T57 card, and ID card |
| Working Temp | -20ºC to 70ºC |
| Application | Hotel, Office, School, Villa, Apartments |
🌐

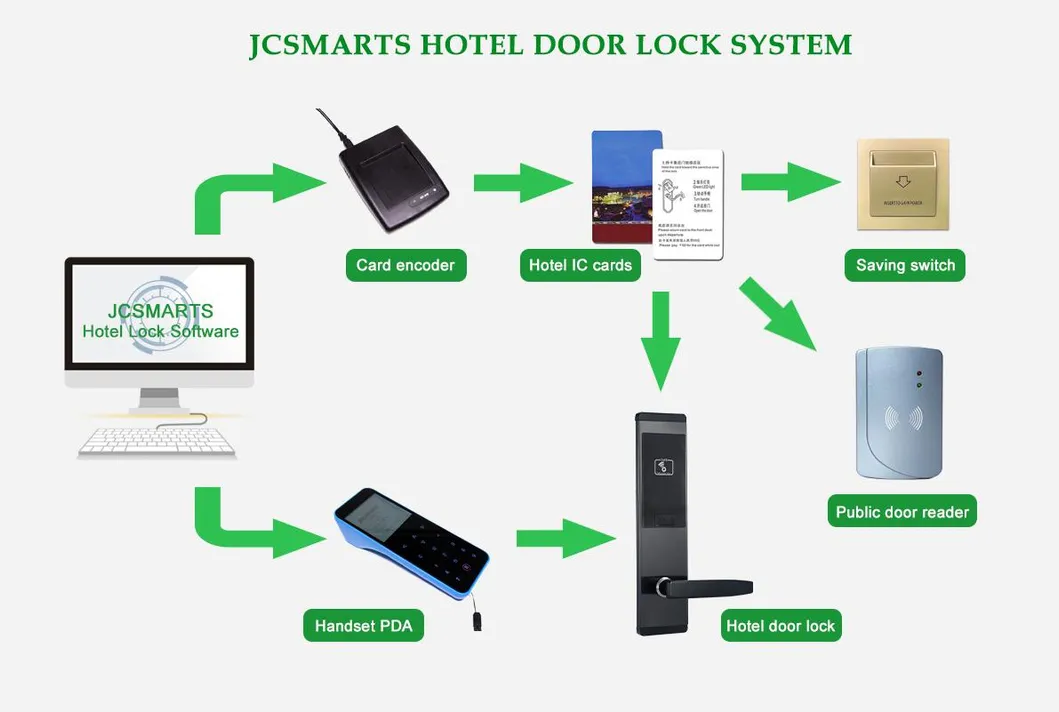

Hotel Lock System Description
🔑 Essential Components

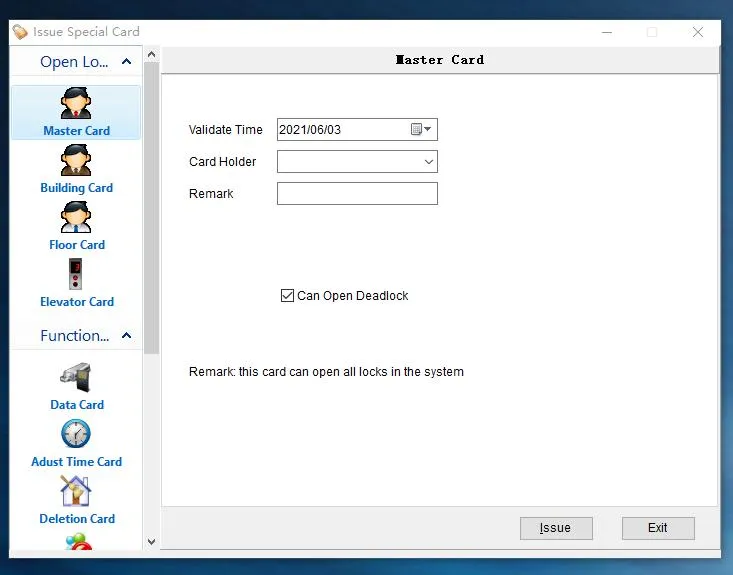

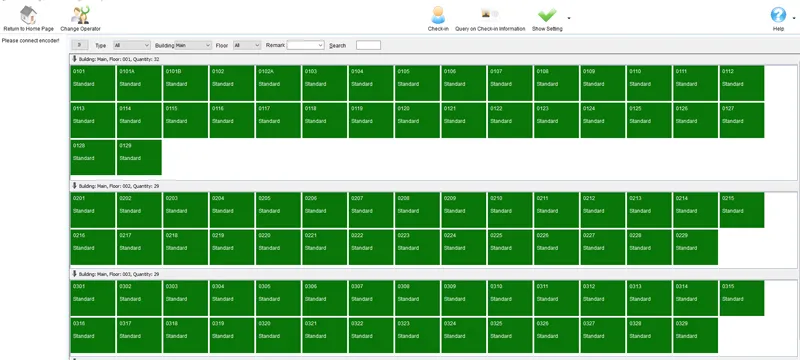

| Software | Supports English and Thai. Provides Win32 Dynamic Library for integration. |
| Card Encoder | Used to issue room cards; supports multiple encoders for reception desks. |
| Handset PDA | Optional tool for easy lock installation, time proofreading, and reading records. |
| RF Cards | T5557 or M1 cards available. Supports custom logo printing. |
🛡️ Optional Functions
| Energy Switch | Saves power by requiring card insertion for room electricity. |
| Elevator Control | Enhances security by restricting elevator use to cardholders. |
📦

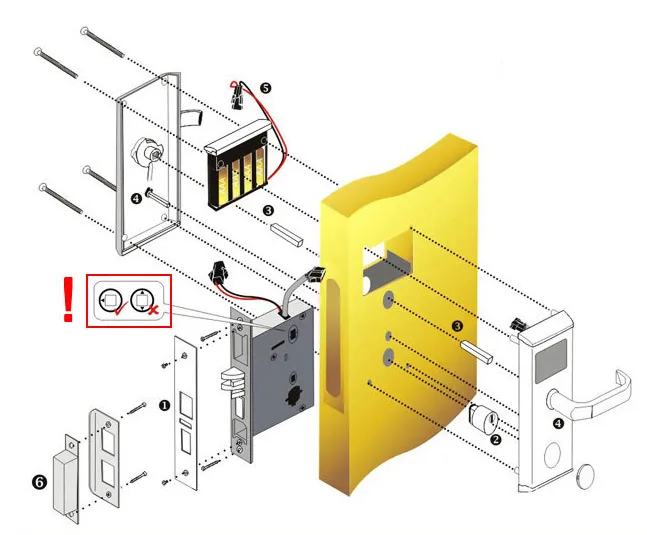

Installation & Logistics
Lead Time: Samples (1-2 days) | Bulk Orders (5-7 days depending on quantity).
❓
Frequently Asked Questions
What material is used for the lock body?
The lock is constructed from high-quality Stainless Steel with a brushed surface treatment for durability and a modern look.
What types of cards are compatible with this system?
The system supports MIFARE (M1) cards, Temic (T5557) cards, and ID cards. The default card provided is usually the T5557 white card.
Can I retrieve entry records from the lock?
Yes, the lock features offline data storage that can keep the latest 255 unlocking records for security auditing.
What happens if a guest loses their room card?
You can easily report the card as lost in the management software. This cancels the lost card's access and allows you to issue a new one immediately.
Is the lock suitable for outdoor use?
The lock is designed for a working temperature range of -10 to 60 degrees Celsius and the circuit is damp-proofed, making it suitable for various indoor and sheltered commercial environments.

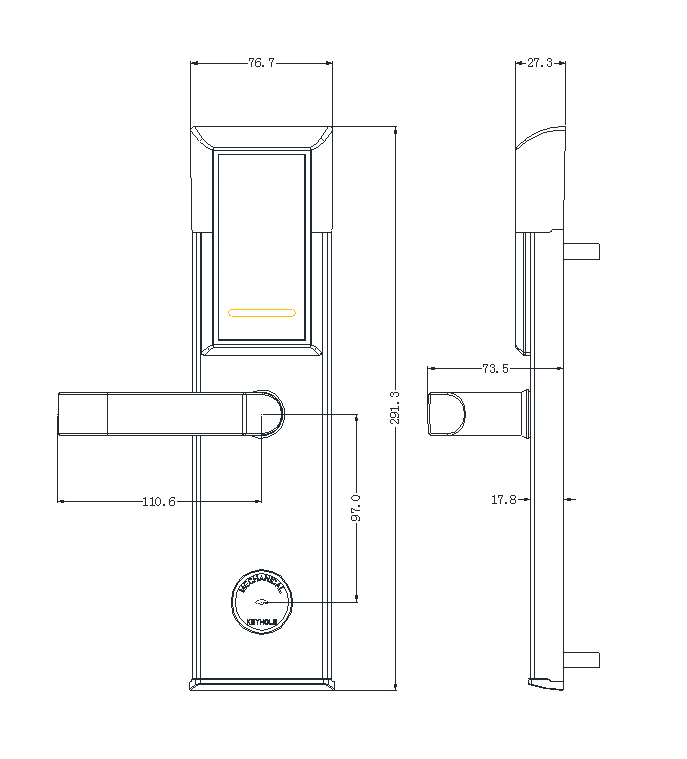

What is the required door thickness for installation?
The standard lock fits wooden doors with a thickness between 38mm and 65mm.
