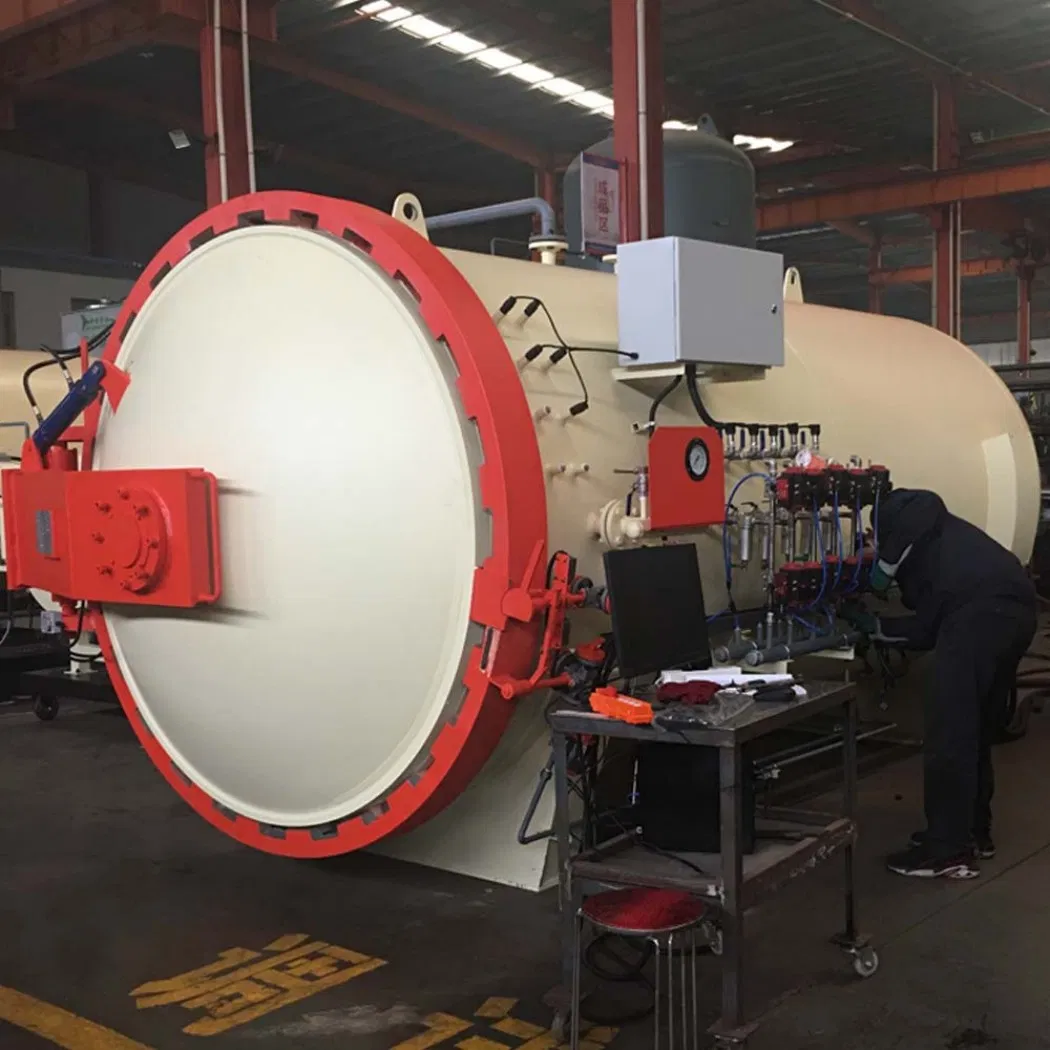

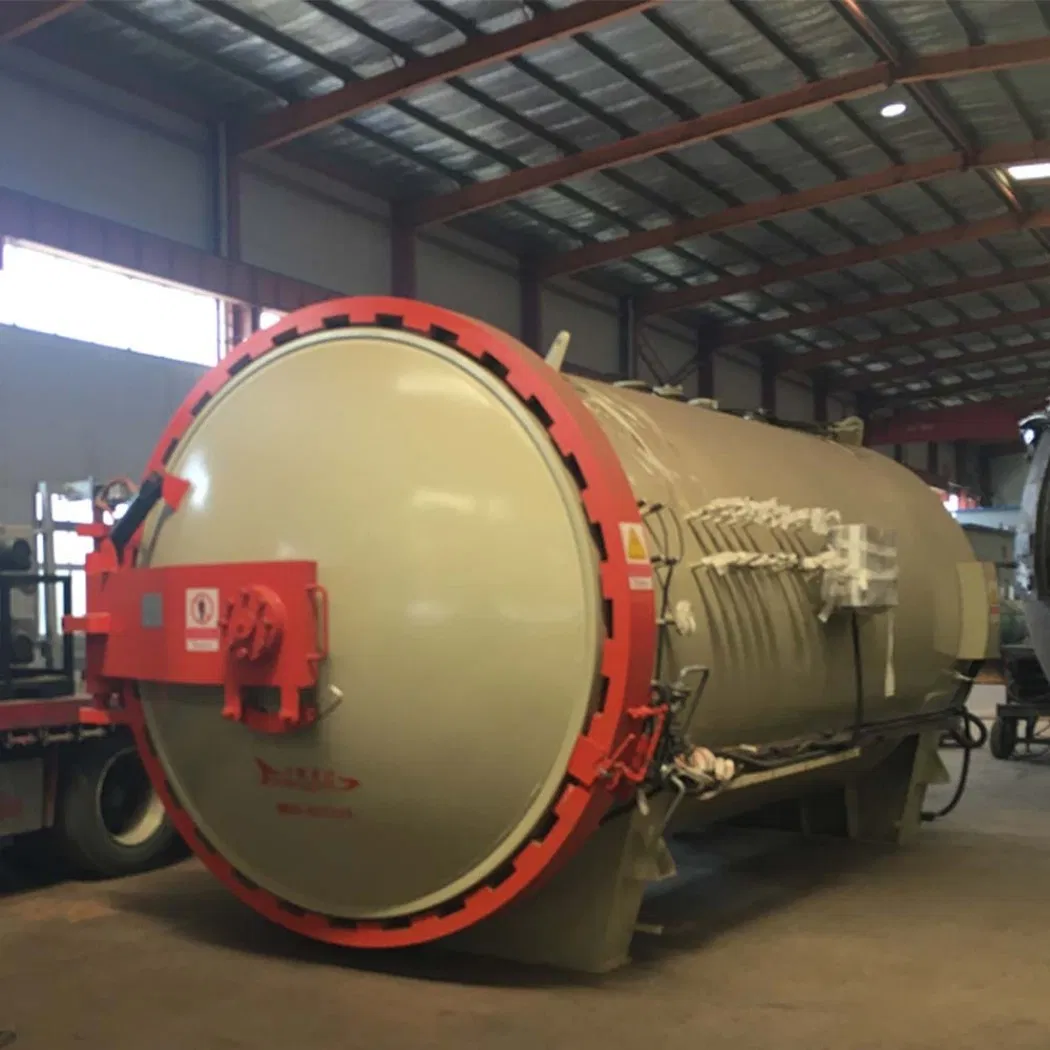

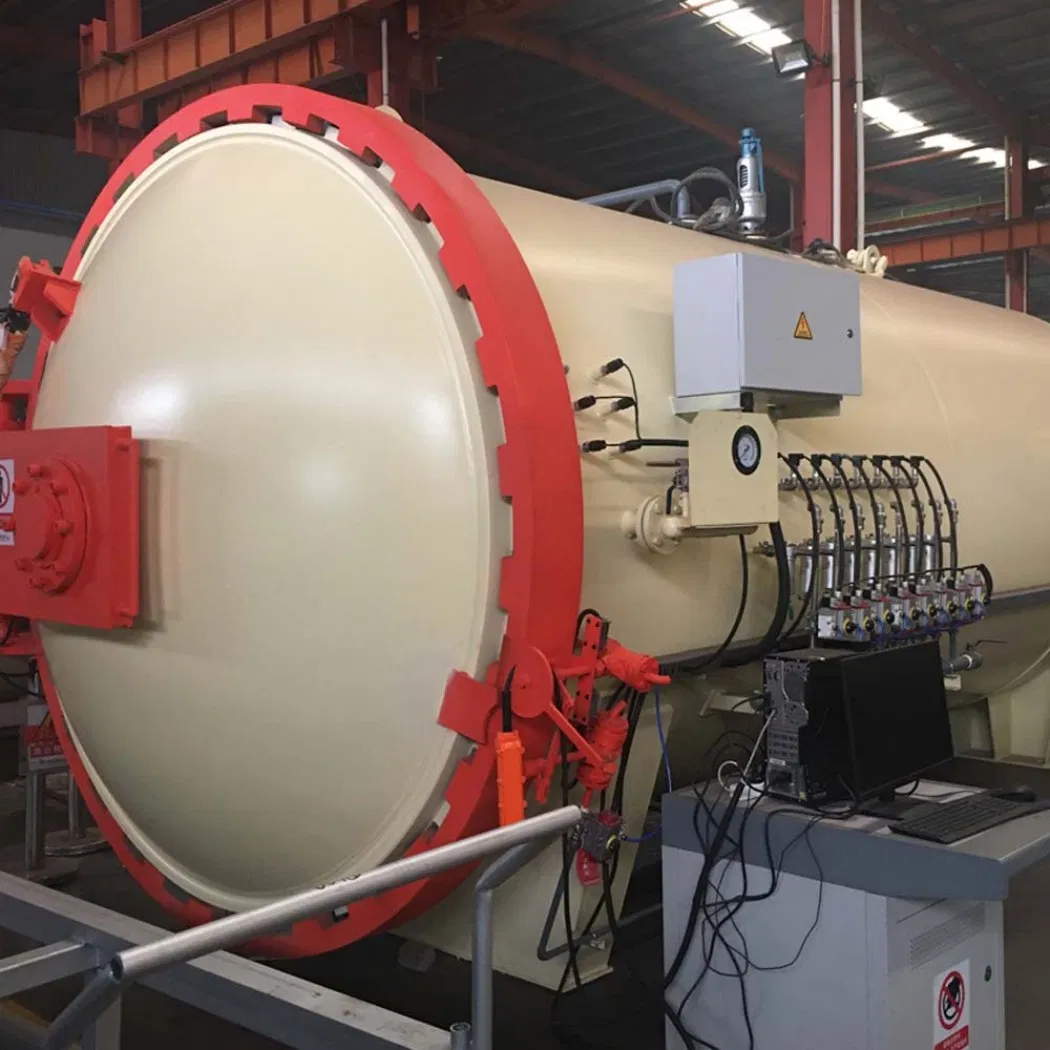

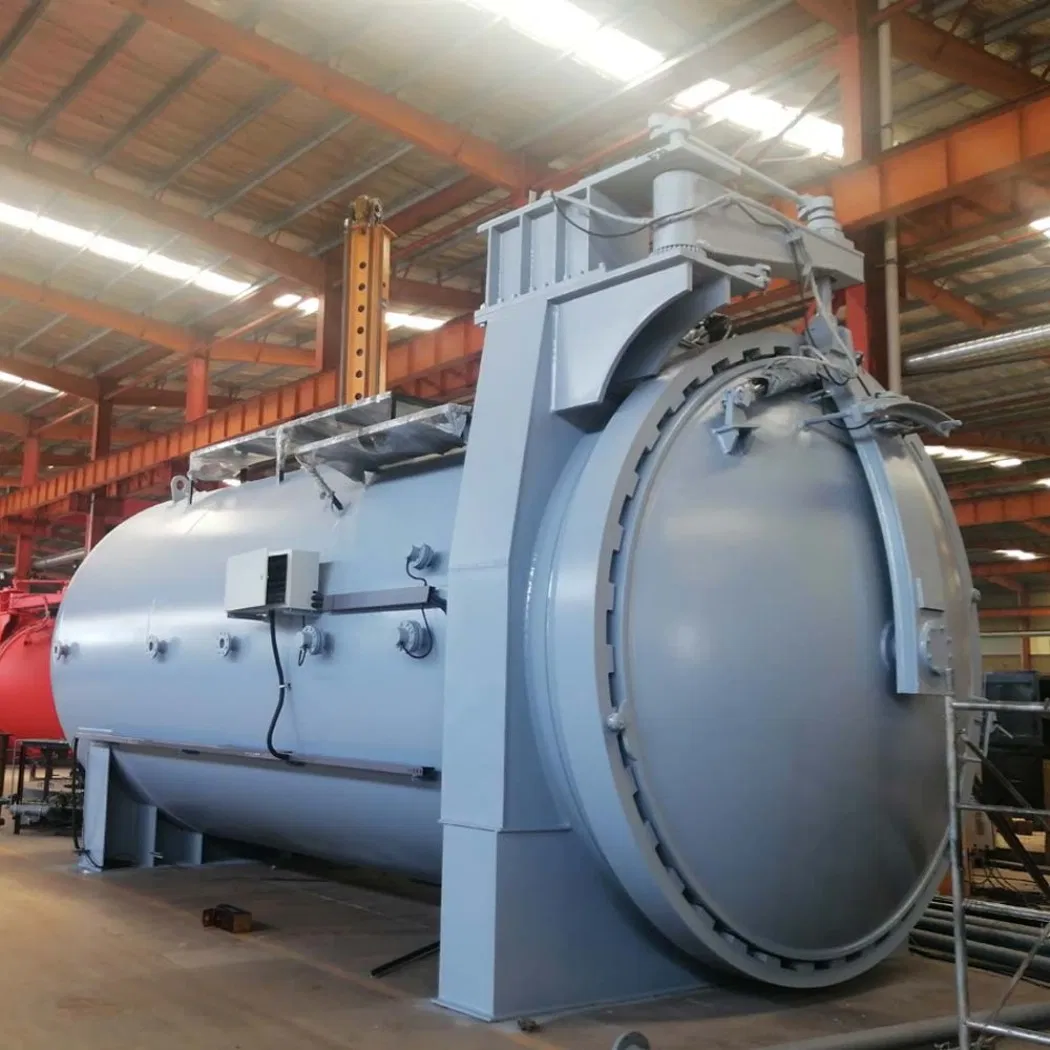

Heavy-Duty Multi-Purpose Composite Curing Autoclave System for Defense Contractors & Commercial Aerospace Model Hmc-4000 with Dual Fan System
Product Description
Basic Information
Model NO.
AC-1500-3000-25
Function
Process Vessel for Composite Curing
Application
Composite Manufacturing
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Nitrogen
Vessel Design
ASME Section VIII, Div. 1 / PED 2014/68/EU
Heating Method
Electric, Steam, or Thermal Oil
Control Standard
Siemens/Allen-Bradley PLC with 15" HMI
Cooling Method
Air Cooling/Water Cooling/Spray Cooling
Product Description
1. Product Overview
Our autoclave systems are industrial-grade pressure vessels designed for curing high-performance composite materials through precisely controlled heat and pressure cycles. These critical systems enable the production of lightweight, ultra-strong components essential for aerospace, automotive, and renewable energy industries. We deliver complete, turnkey solutions that ensure optimal laminate consolidation, void reduction, and superior mechanical properties in finished parts.
2. Key Features & Innovations
- Advanced Control System: Fully automated PLC control with intuitive touchscreen HMI allows for precise programming.
- Superior Thermal Uniformity: Patented airflow management technology ensures exceptional temperature uniformity (±2.5°C).
- Robust & Safe Construction: Vessels fabricated from ASME/PED-certified high-strength steel alloys.
- Energy-Efficient Operation: Innovative insulation and heat recovery units reduce operational costs.
3. Technical Specifications
| Category | Specification | Standard Range |
|---|---|---|
| Working Volume | Internal Diameter | 1.0m to 4.5m (Custom up to 8m+) |
| Working Volume | Usable Length | 2.0m to 15.0m (Custom up to 30m+) |
| Performance | Maximum Temperature | 250°C, 400°C, 450°C, or 500°C |
| Performance | Maximum Pressure | 0.8 MPa to 6.0 MPa (116 to 870 psi) |
| Construction | Door Type | Manual swing, pneumatic, or motorized |
| Systems | Control Standard | Siemens/Allen-Bradley PLC with 15" HMI |
4. Competitive Advantages
| Advantage | Customer Benefit |
|---|---|
| Proven Track Record | Over 300+ successful installations globally. |
| Process Expertise | Deep application knowledge for optimized material curing. |
| Low Lifetime Cost | Energy-saving design and durable construction. |
| Compliance Ready | Engineered to meet international pressure vessel and safety standards. |

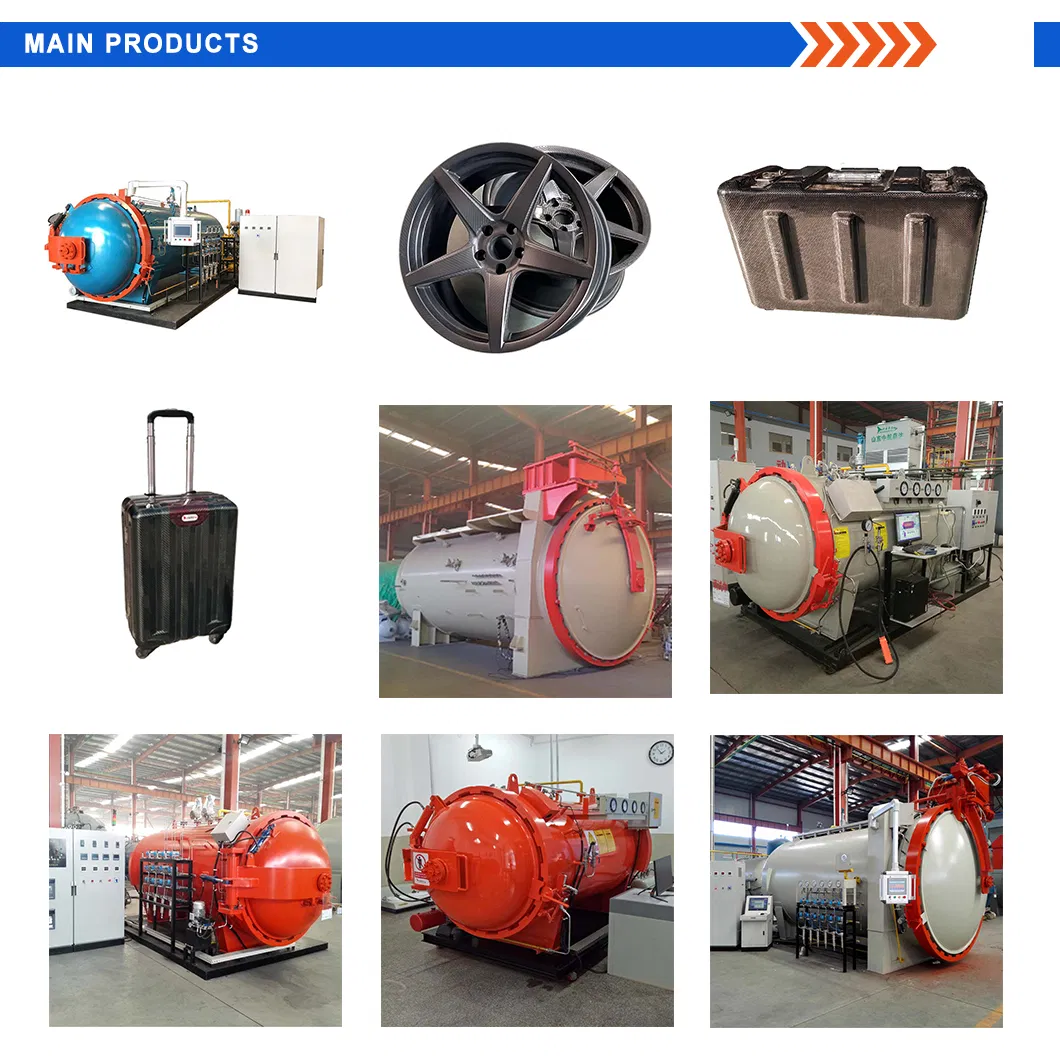

Main Products

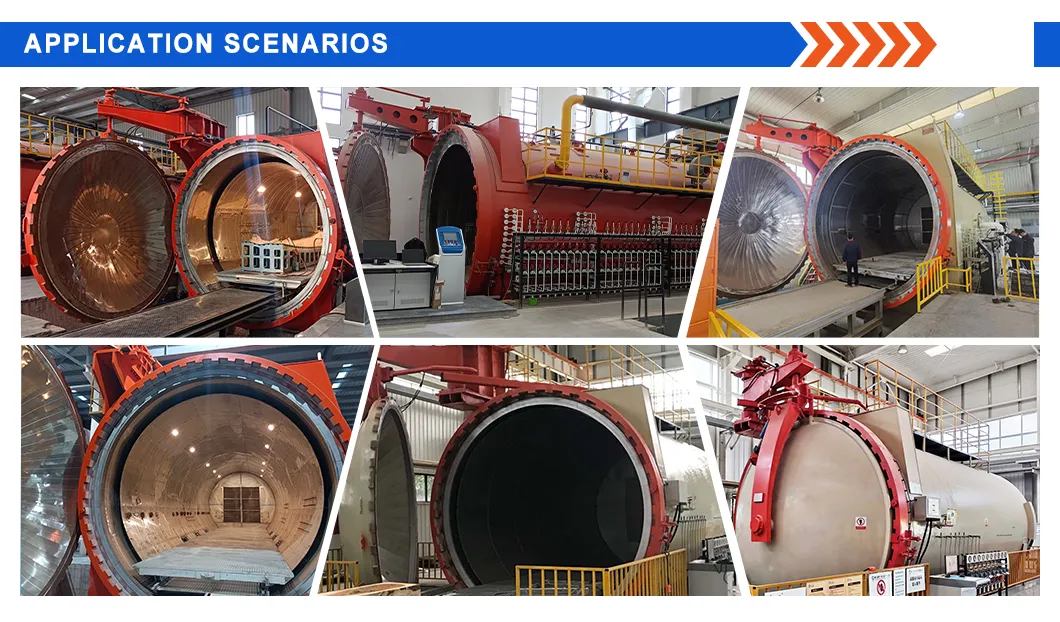

Application Scenarios
Our autoclaves are utilized in manufacturing critical composite components across:
Aerospace, Defense, Automotive & Racing, Wind Energy, Sports & Industrial, and New Energy sectors.

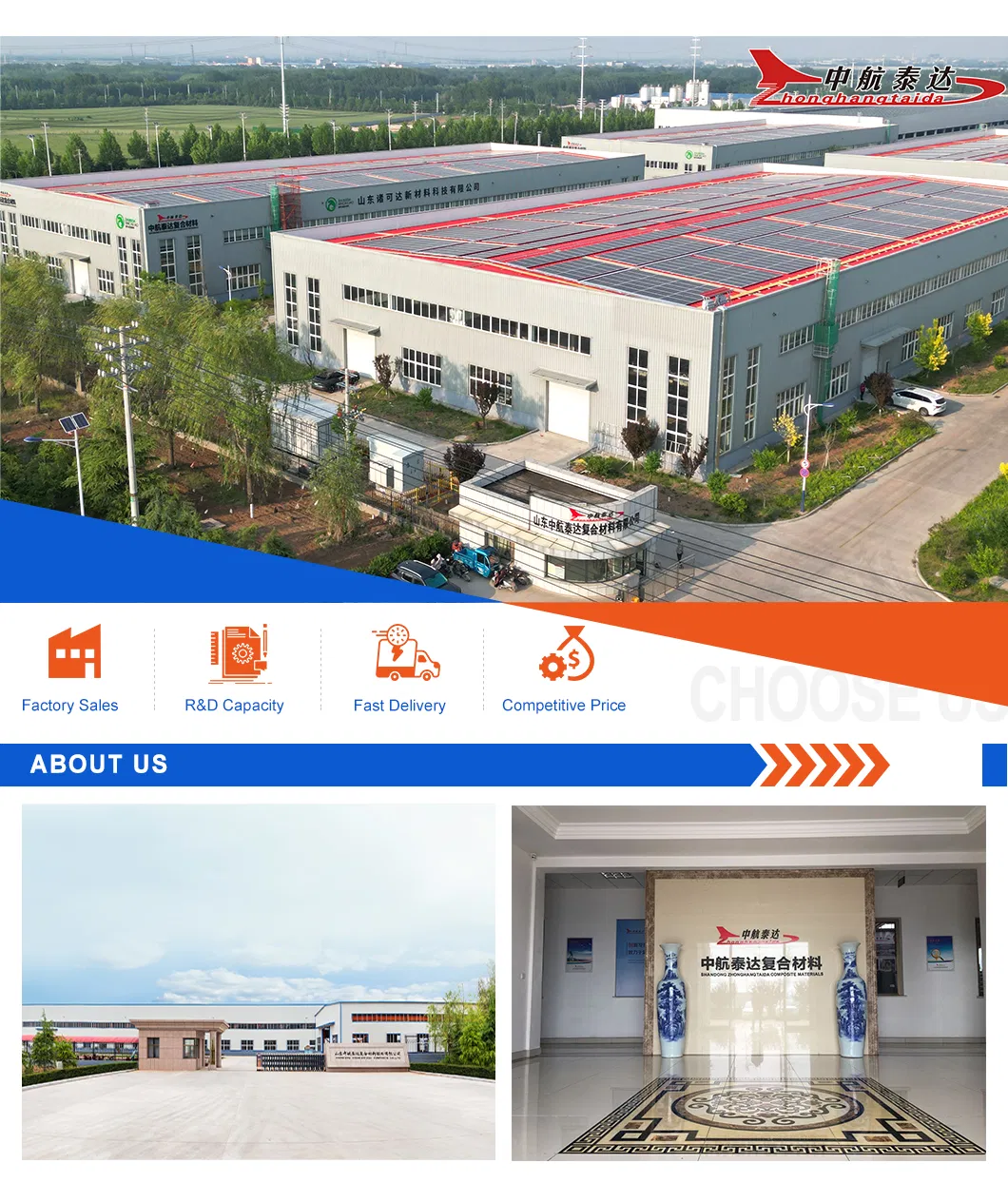

Company Overview
As a national high-tech enterprise, we specialize in the R&D, production, and sales of autoclave composite equipment and products. Recognized as a Specialized and Innovative SME, we hold ASME pressure vessel design and manufacturing certifications and Chinese A2 qualifications. With advanced equipment and a robust quality assurance system, we deliver reliable performance across two innovation R&D platforms focused on lightweight composite technology.

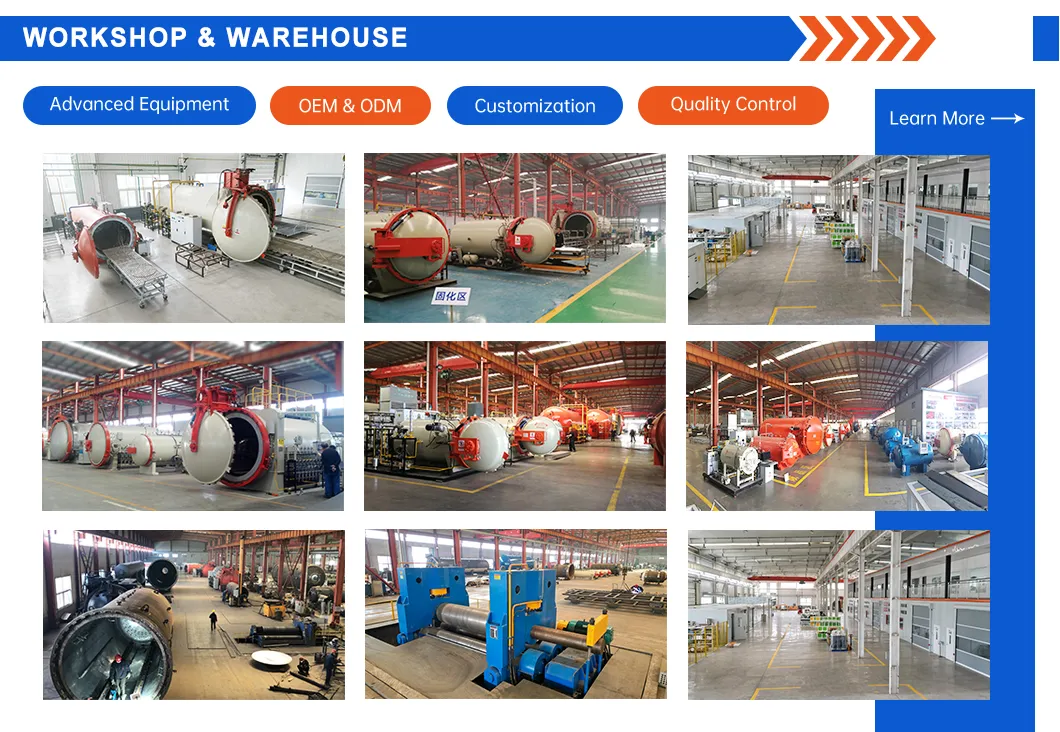

Workshop & Manufacturing

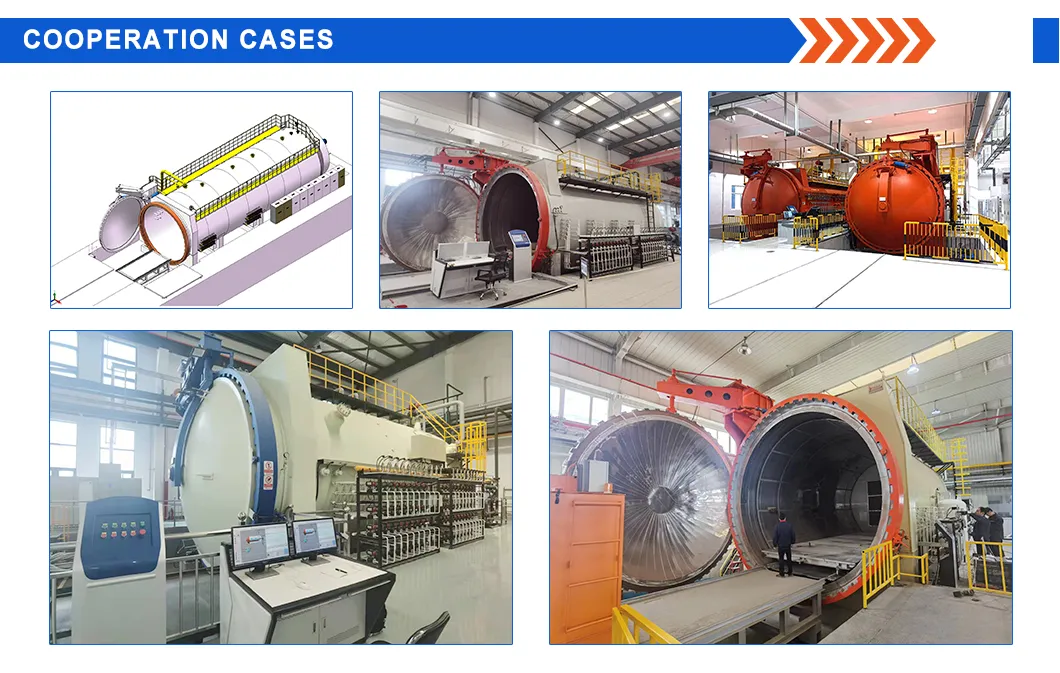

Certificates & Cooperation Cases
Packaging & Shipping
We provide integrated "door-to-door" packaging and transportation solutions. Our strategy uses customized multi-layered protective packaging and precisely engineered stabilization to address the challenges of large, heavy-weight, and high-value precision equipment.
Frequently Asked Questions
What is the maximum operating temperature and pressure of your autoclaves?
Our standard models range from 250°C to 500°C in temperature and 0.5 MPa to 8.0 MPa in pressure. Custom specifications are available to meet specific process requirements.
Are your control systems fully automated?
Yes. All our autoclaves feature a fully programmable PLC-based control system (Siemens/Allen-Bradley) with a user-friendly HMI, allowing for precise management of cure cycles.
What industries are these systems designed for?
Our systems are engineered for advanced manufacturing in aerospace, defense, automotive (EV battery curing), wind energy, and high-performance industrial applications.
Can you provide customized solutions based on specific dimensions?
Absolutely. We can design systems based on your specific part dimensions, process curves, material requirements, and facility constraints.
How are these large autoclaves packaged for international shipping?
Each unit is custom-crated in a heavy-duty, weatherproof steel-frame package. Critical components are shock-mounted and isolated to ensure zero damage during transit.
What kind of after-sales support do you offer?
We provide 24/7 remote technical support, on-site installation supervision, operator training, and an extensive inventory of genuine spare parts worldwide.
