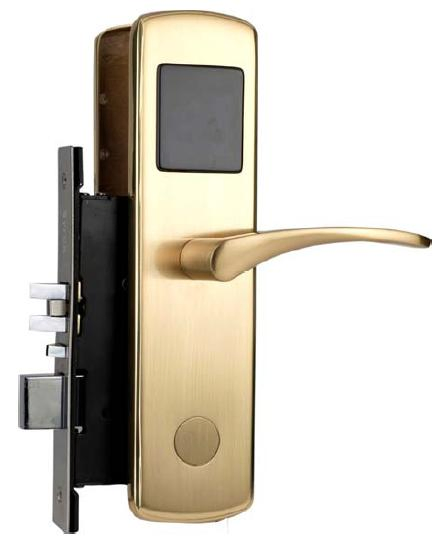

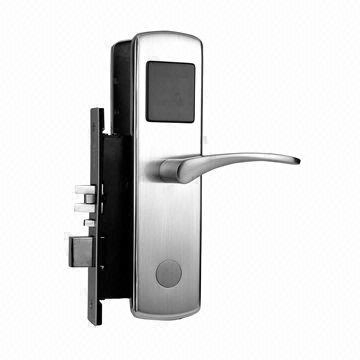

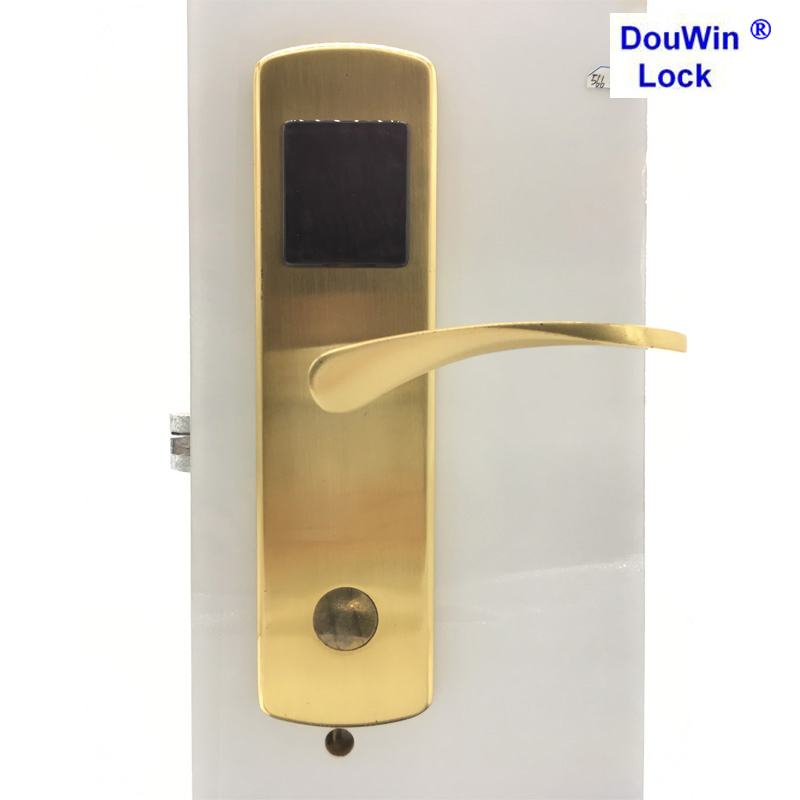

Door Hotel Lock Software System with Video
Product Description
📋
Basic Specifications
Model NO.
566MFSB
Interface
IEEE 1394
Reading Distance
1-5m
Application
Parking, Hospital, Library, Company, Bank, Store
Material
Stainless Steel
Suitable for
Home Door
Design
Modern
Door Thickness
30-55mm
Color
Silver, Gold
Battery
4 Pieces of AA Batteries
Certification
FCC & CE
HS Code
83014000
🛠️

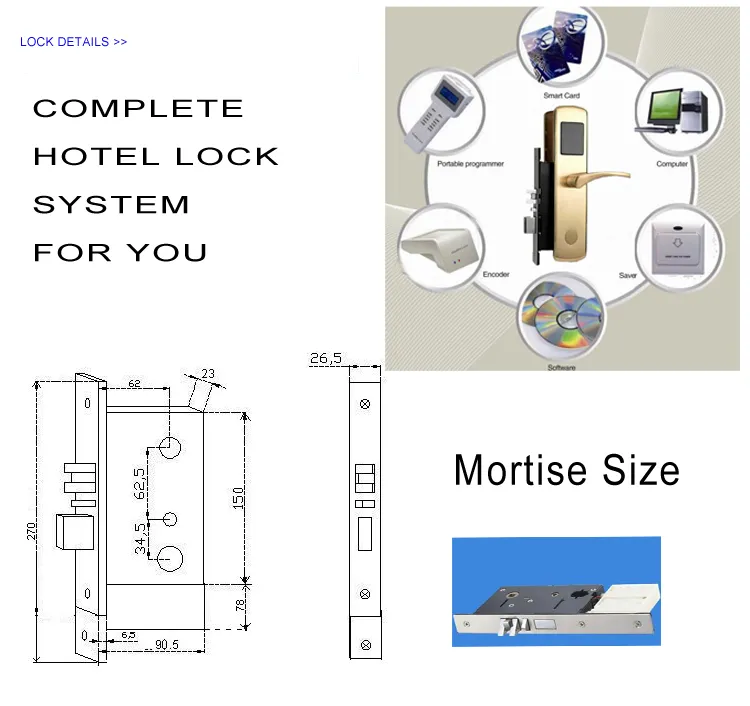

Product Description & System Configuration

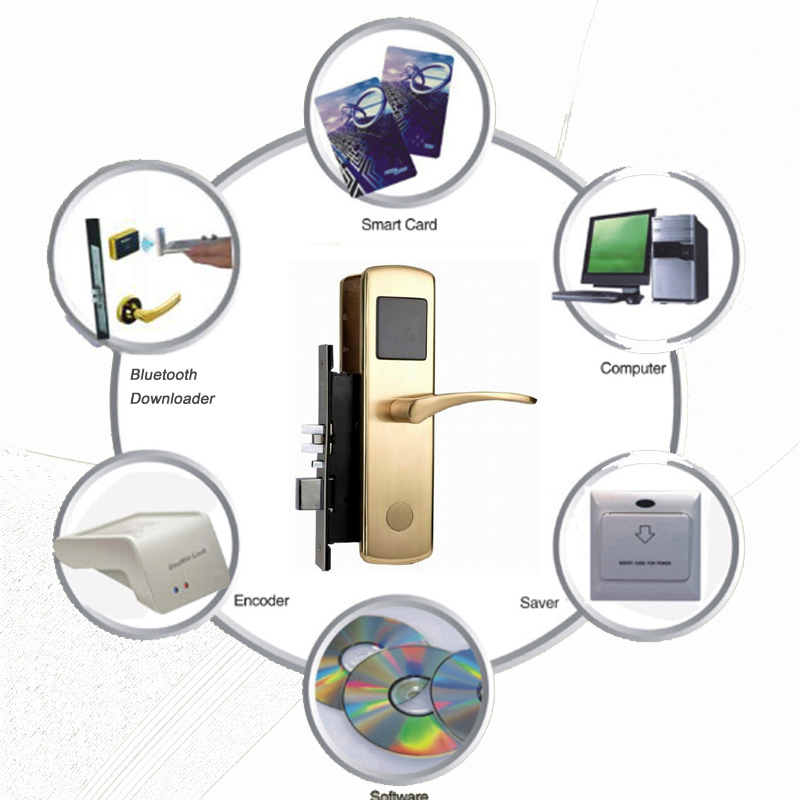

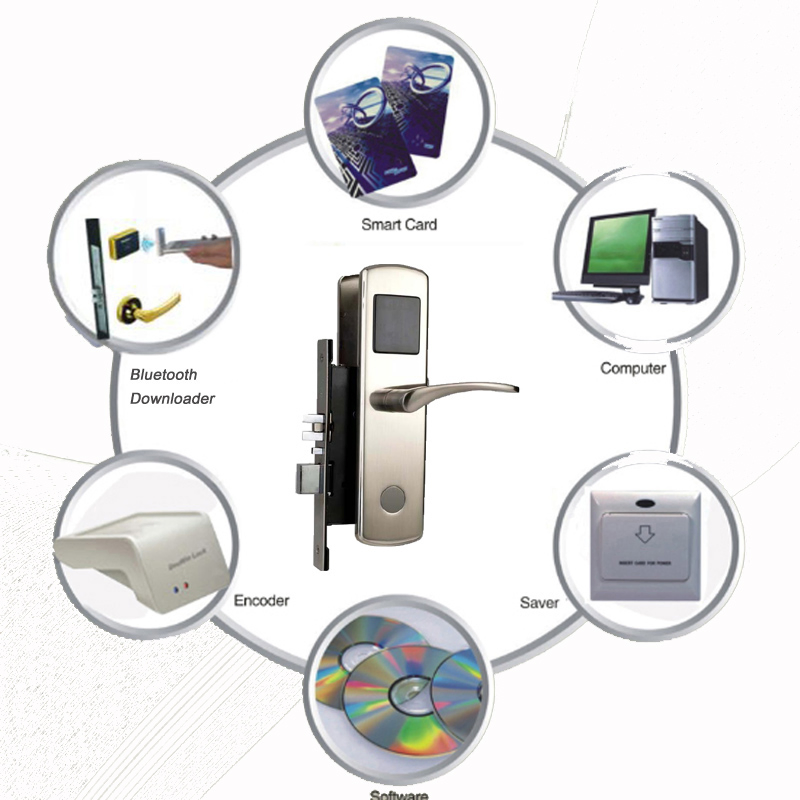

Basic System Configuration:
| Lock | For guest room |
| Encoder | For authorize card, when need software management |
| Energy saver switch | To gain power for the room (optional software managed) |
| Card | To open doors |
| Data gather | To collect entrance information |
| Software | Free, permanent, packed with Encoder |
Extended Functions:
| Access control | For common area, or main doors etc. same software, same card |
| Elevator controller | For elevator. same software, same card |
| Room status | For guest room, come with door bell |
⚙️
Technical Features
| Applicable card | ID, TEMIC, MIFARE®: 100,000 times life |
| Material | Zinc Alloy with chrome plated: moisture proof, fire retardant. |
| Panel surface finishing | PVD-durable for 15 years at least |
| Power supply | 4 pcs AA alkaline batteries |
| Battery life | 8-12 months in normal state |
| Low voltage warning | When power's voltage is less 4.5V, warning sounds during unlock. Still allows ~50 openings. |
| Static consumption | < 30 uA |
| Dynamic consumption | 220mA |
| Working temperature | -25C ~ 55C |
| Open time | Auto-relocks after 7 seconds |

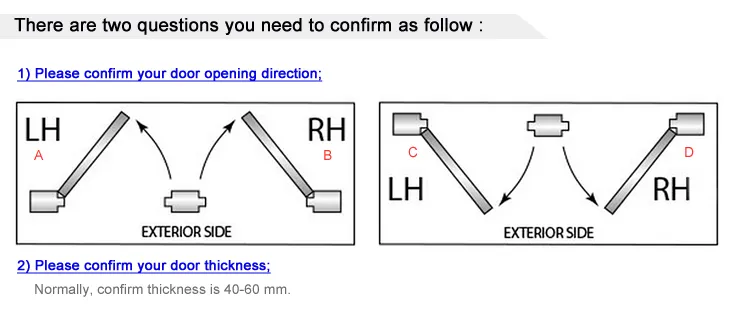

| Door thickness | 32-60mm |
💻
Software Management System
- Free offer: No charges for software or subsequent use.
- Comprehensive Control: Manage the entire site effectively.
- Simple Operation: Card Encoder connects via USB for easy rank management.
- Audit Trail: Retrieve lock records to see who opened the door and at what time.

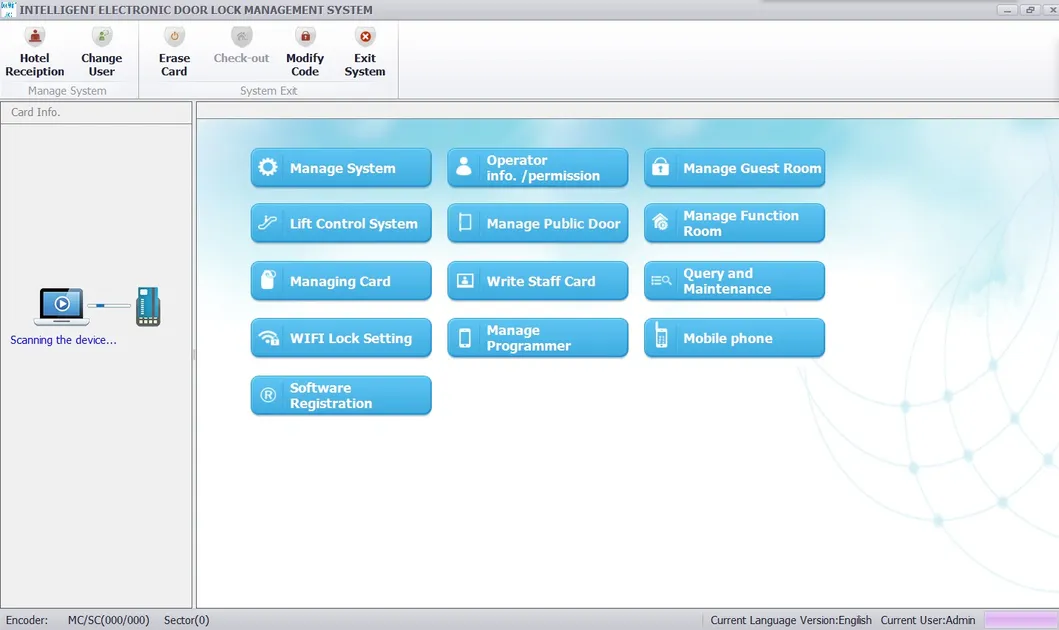

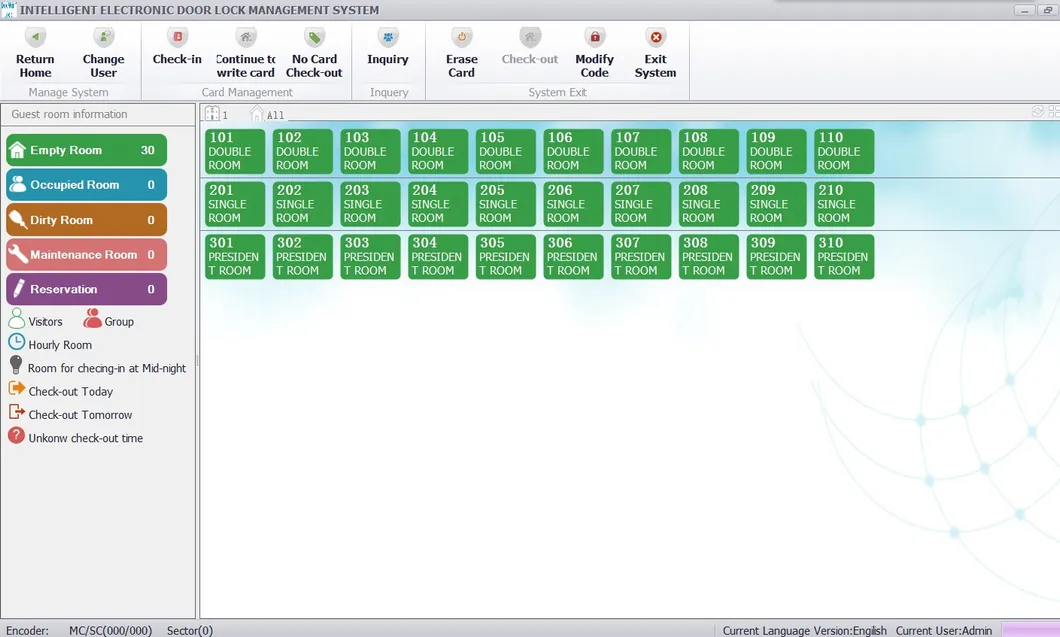

Software Interface Overview:
🔗

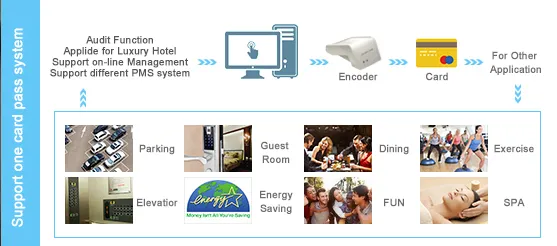

PMS Integration & LAN Sharing

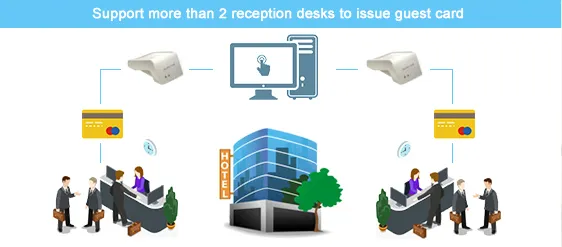

The software is powerful, integrating entrance and elevator access. It supports integration with Hotel Management Software (PMS) via SDK (DLL). Data can be shared across a LAN for multiple reception desk operations.
📦
Packaging & Service
❓
Frequently Asked Questions
What types of cards are compatible with this hotel lock?
The system supports ID, TEMIC, and MIFARE® cards, which are designed for long-term use with a lifecycle of up to 100,000 insertions.
How long does the battery typically last?
Under normal working conditions, the 4 AA alkaline batteries will last between 8 to 12 months.
What happens if the battery runs low?
When the voltage drops below 4.5V, a low-voltage warning will trigger during unlocking. You can still unlock the door approximately 50 times after the first warning.
Is there a cost for the hotel management software?
No, the software is provided free of charge permanently and is included in the package with the Card Encoder.

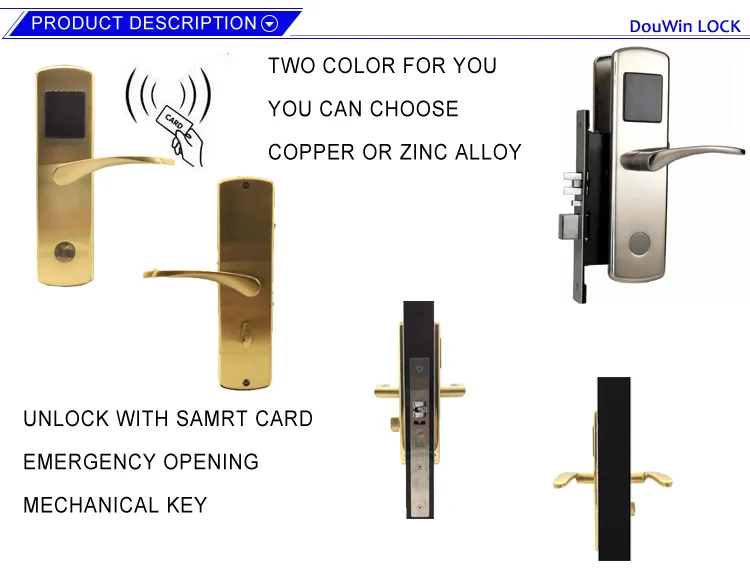

Can the lock be opened in an emergency?
Yes, the lock can be opened using a mechanical emergency key or an emergency card issued through the system.
What is the warranty period for this product?
The product comes with a 1-2 year warranty from the date of delivery, along with lifetime technical support.
