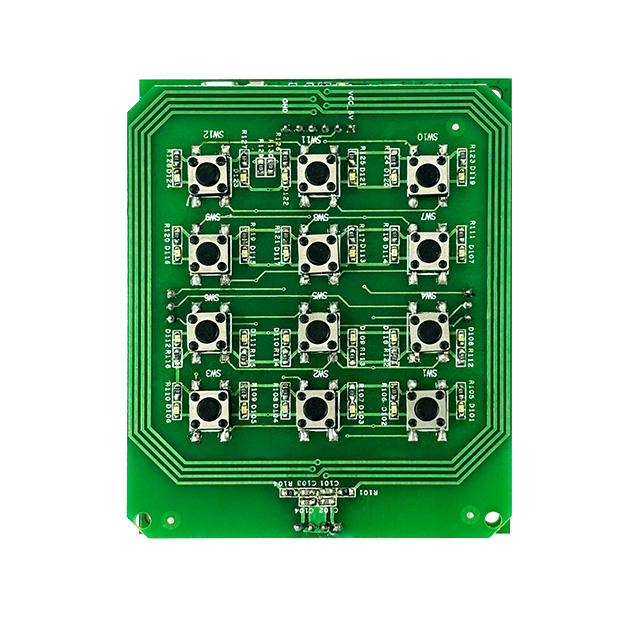

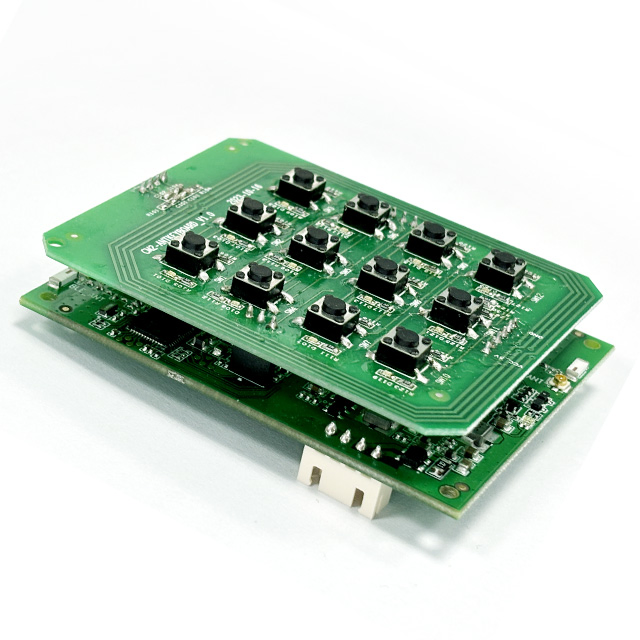

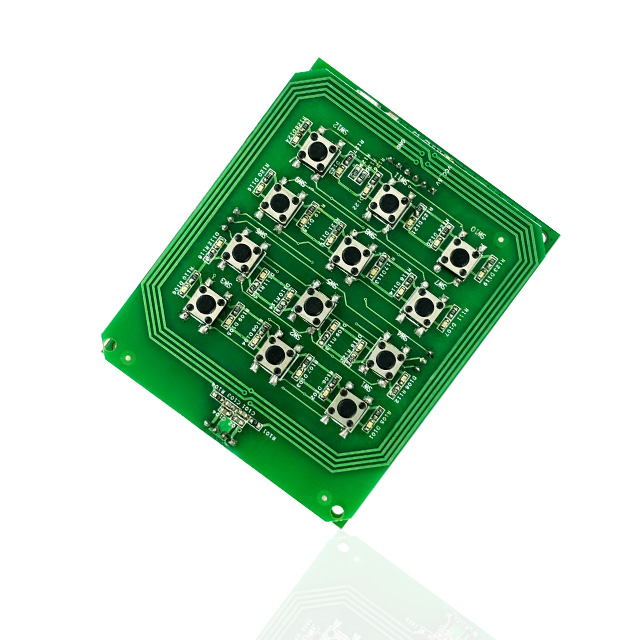

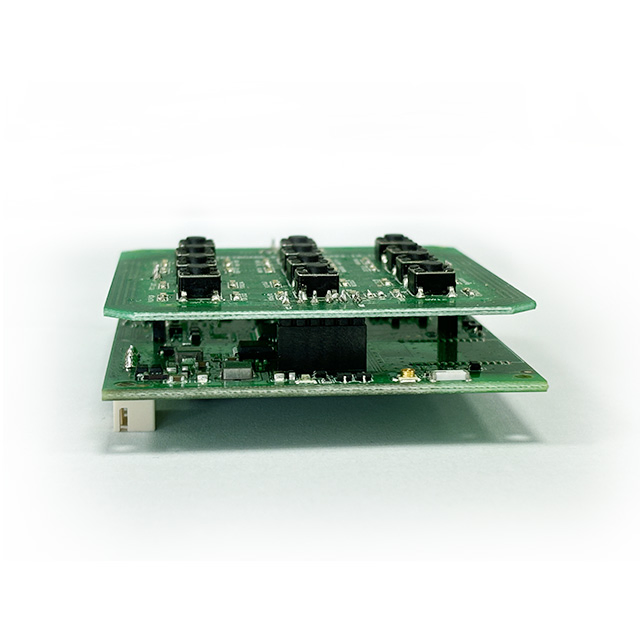

Cm3 Commercial RFID Door Lock System with Card Reader Access Control Card Access Door Lock System
Product Description

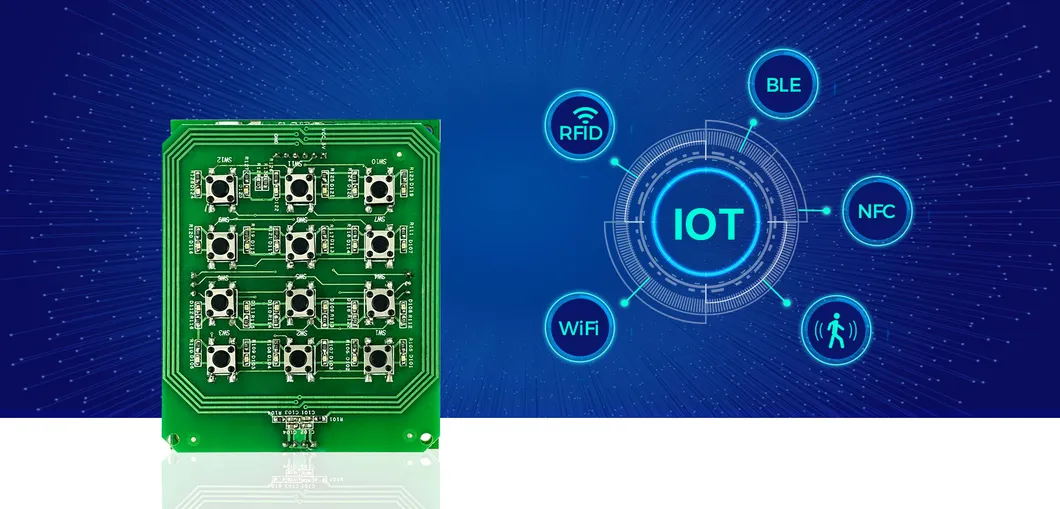

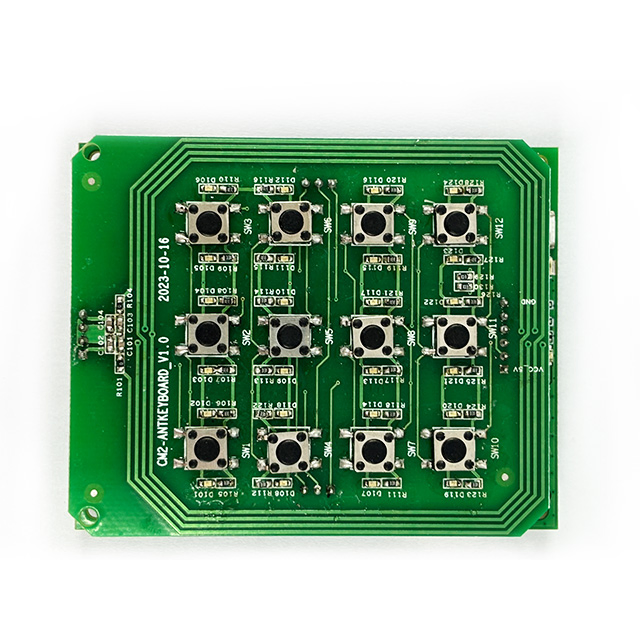

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery-operated power consumption design, which contain the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application.
Thanks to the latest technologies, it meet the Ultra-low power consumption requirement. Smart CM3 powerful platform is highly recommended for both hardware and software customization.
| Memory | 4M BYTE |
| Power Supply | USB or 3V / 4 * battery |
| RFID Standards | 13.56MHz ISO14443A, ISO15693 and ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, Ultralight C, Mifare plus S/X, NFC tag, HID iCLASS CSN |
| Secure Interface | Optional SAM slot ISO7816; Support SAM AV2; Secure IC for MCU protection EAL5+ Level |
| Mobile Communication | NFC mobile phone & BLE 5.3 |
| Keypad | 12 digit mechanical keypad |
| Interfaces | WiFi, BLE 5.3 (Master & Slave, Beacon, Thread, Zigbee, Mesh), USB |
| Indicators | Buzzer and Bio-color LED |
| Operating Temp | -20ºC ~ 60ºC |
