Tahiti Lock

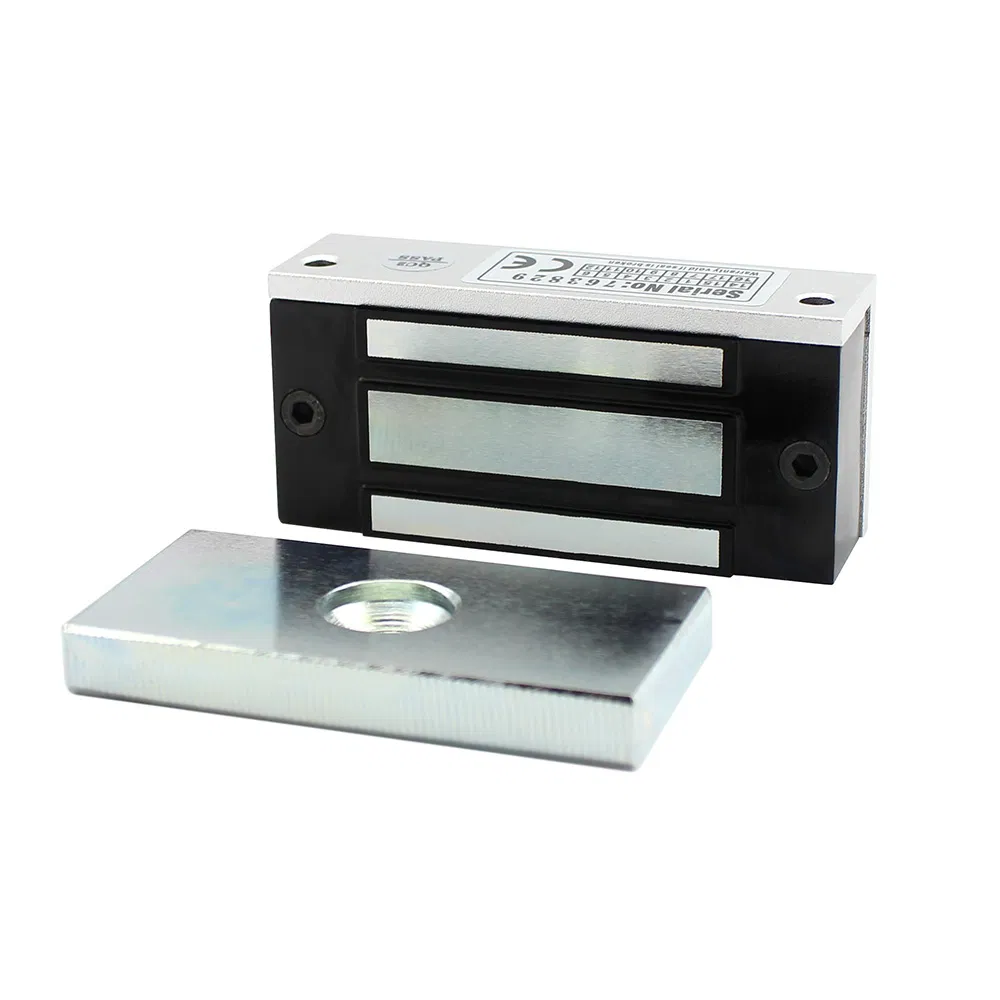

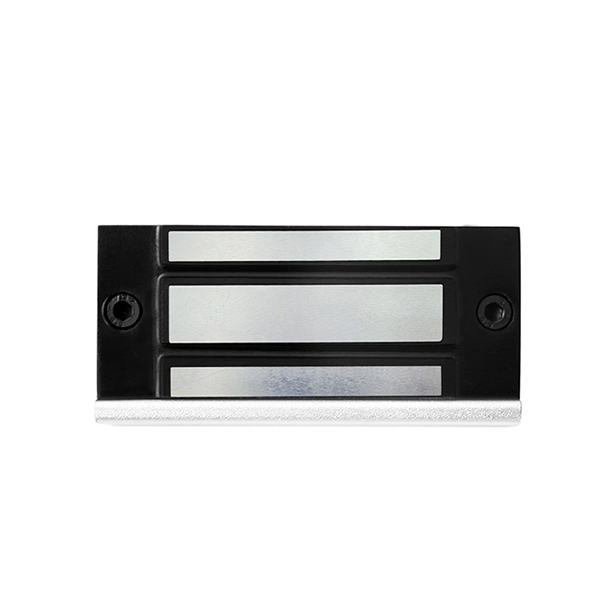

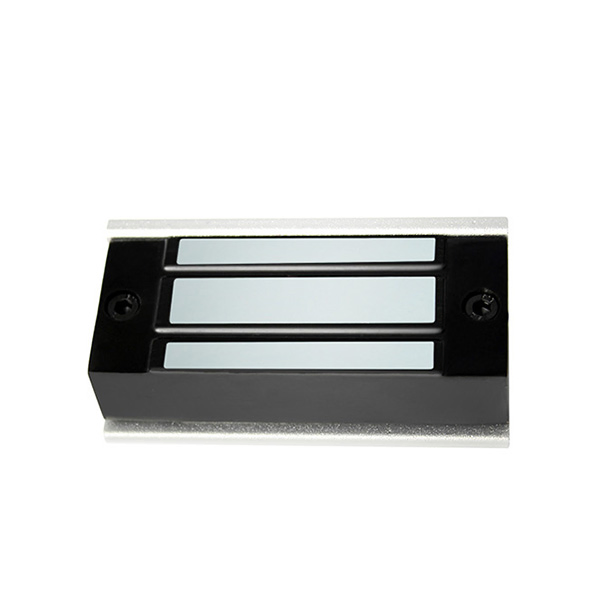

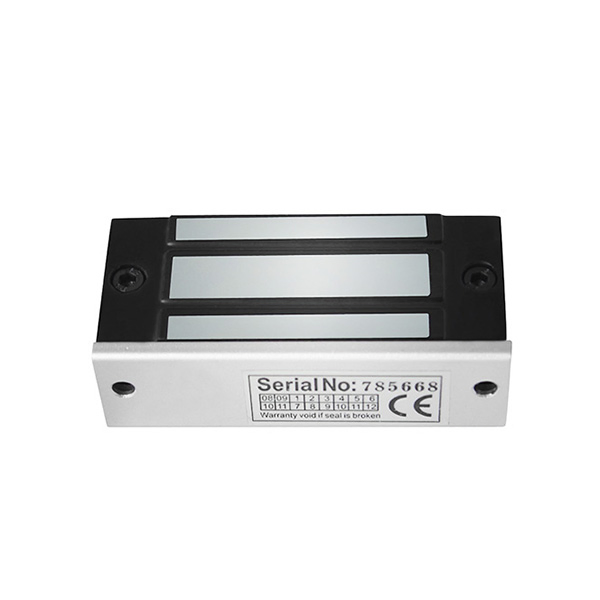

60kg/100lbs Mini Electronic Magnetic Door Lock for Cabinet Fridge and Windows
Product Description
Basic Information
Product Description
Overview:
NE-60 Mini single door magnetic lock is specifically designed for small cabinet doors, such as windows, storage cupboards, and fridge doors. It saves time and power during installation. Whether it is an inward door, frameless glass door, or narrow door, a complete set of accessories is available. The special Anti-residual magnetic design ensures automatic access control is safer and more convenient.
Key Functions:
- Passed 100lbs super static linear tension tests.
- Anti-residual magnetic design to keep constant tension.
- Built-in reverse current protection device (MOV) for stability and safety.
- Wear-resistant materials for long-lasting durability.
- Full electromagnetic suction work with zero mechanical failure.
- High-strength alloy shell with anode hardening treatment.
- Lock body features double insulation treatment.
- Certified by European CE, ROHS, and China MA.
Technical Specification
| Holding Force | 60kg (100Lbs) |
| Rated Operating Voltage | 12VDC |
| Current Consumption | 12V/300mA |
| Optional Functions | Lock Status Sensors, Relock Delay Timer, Buzzer |
| Surface Finish (Magnet) | Zinc plated |
| Surface Finish (Armature) | Zinc plated |
| Ambient Temperature | -10 ~ +55ºC (14-131F) |
| Suitable for | Wooden, Aluminum, Glass, Fireproof & Metal doors |

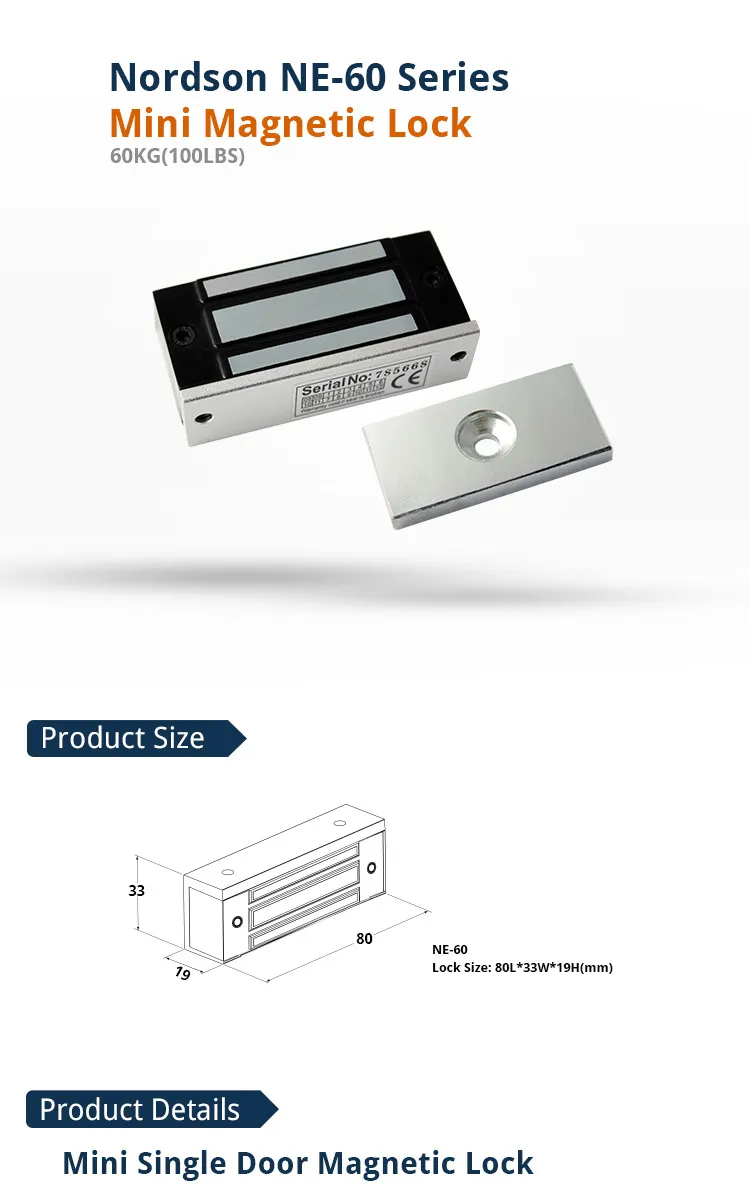

| Magnets Dimensions | 80L x 33W x 19H (mm) |
| Armature Plate Dimensions | 80L x 24W x 9.3H (mm) |
| Weight | 0.5kg |
Logistics & Service
Packaging: Neutral Package.
Shipping: Small quantities ship within 1-5 working days after payment. Large quantities ship within 14 working days.
Warranty Services: For non-human factor quality issues, we offer a three-year warranty for electromagnetic locks; 3-year warranty for access control panels, electric bolts, and electric strikes; 1-year warranty for exit buttons, brackets, and power supplies.
