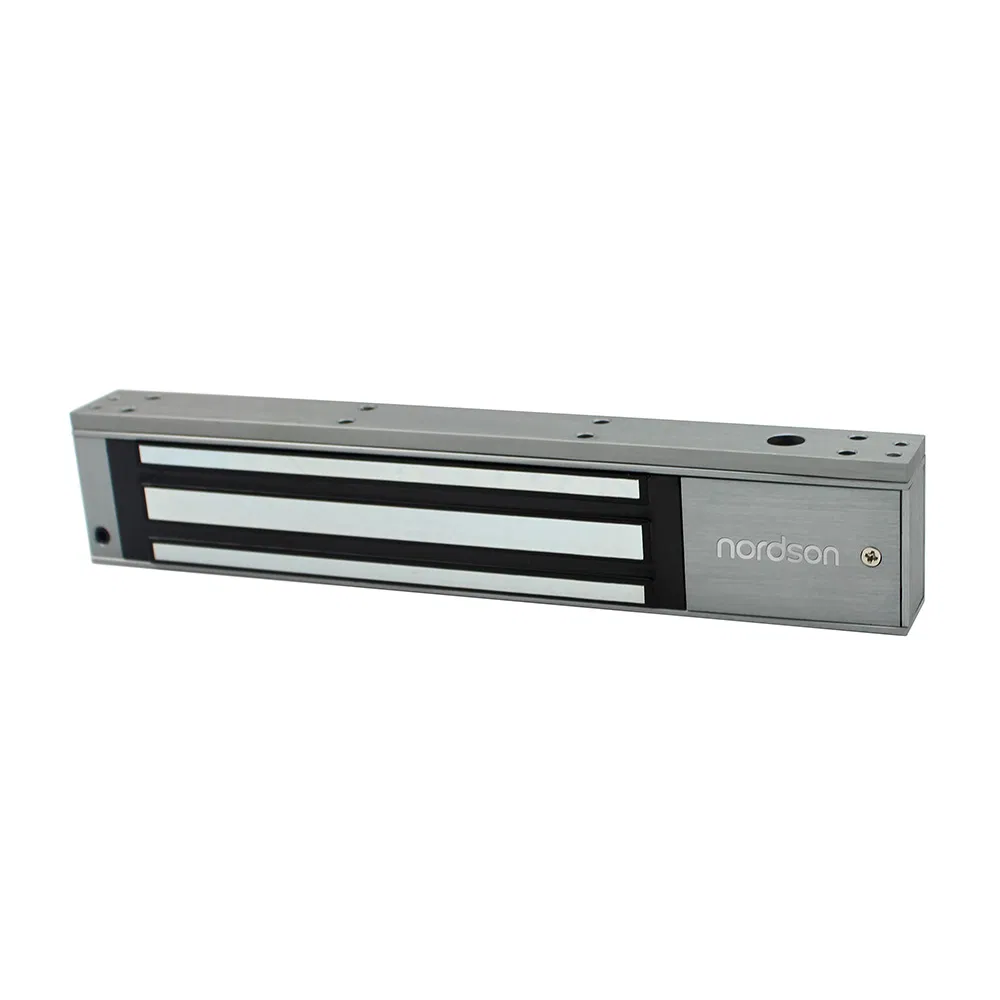

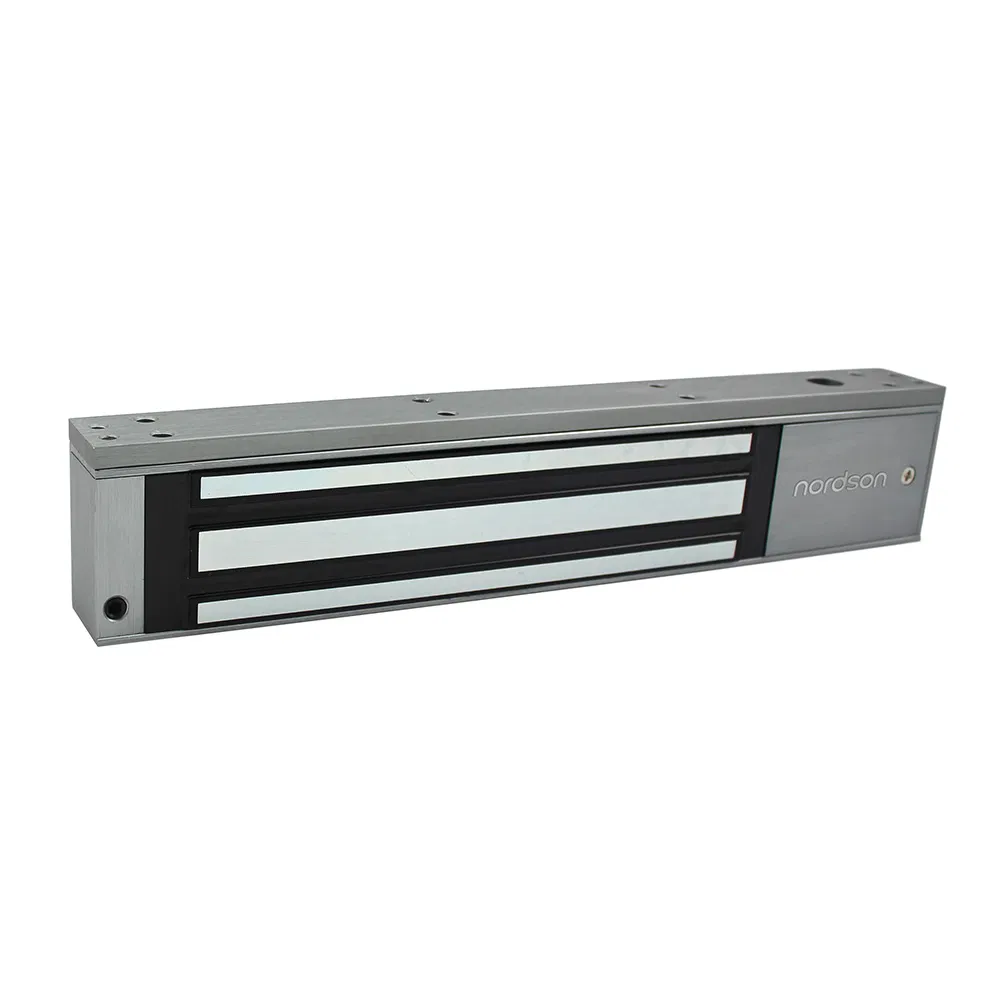

280kg 600lbs 12V Glass Door Lock System Gate Lock Electromagnetic Door Lock with Signal Buzzer Electric Magnetic Lock
Product Description
600lbs Single Door Stable Holding Force Electromagnetic lock with Signal and Buzzer
NE-280S(Buzzer) is a single door magnetic lock equipped with a Buzzer/LED and door position detection output. It is specifically designed for normal glass doors, wooden doors, metal doors, fire doors, and small doors. Its hoisting design saves time and effort during installation. With special anti-residual magnetic design, it ensures automatic access control is safer and more convenient.
| Model NO. | NE-280S(buzzer) Electromagnetic lock |
| Material | Zinc Alloy |
| Holding Force | 280kg / 600lbs |
| Operating Voltage | 12/24VDC |
| Lock Status Indicator | Red and Green, Double Color LED |
| Signal Output | NO, NC, COM |
| Usage | Household Door Locks, Channel Lock, Gate Door Lock, Garage Door Lock |
| Suitable For | Wooden, Aluminum, Glass, Fireproof & Metal Doors |
| Current Consumption | 12V/500mA; 24V/250mA |

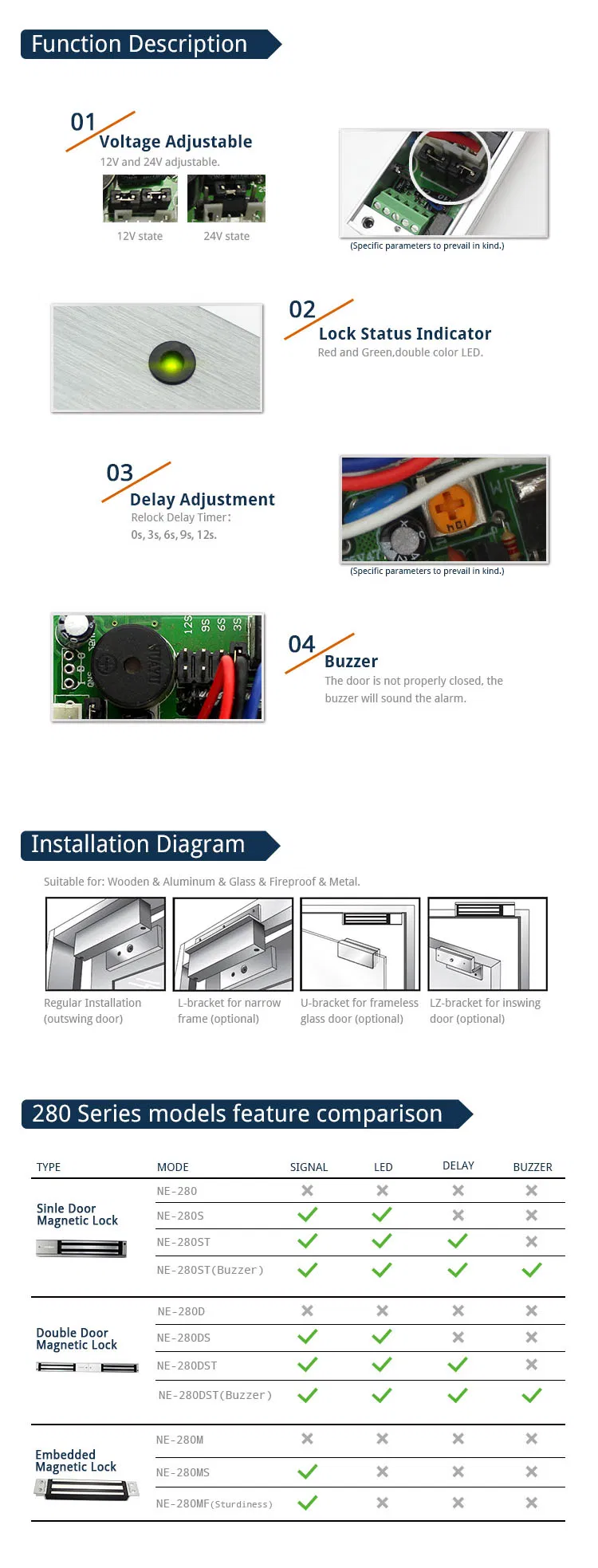

| Optional Functions | Relock Delay Timer, Buzzer |
| Surface Finish | Zinc Plated (Magnet & Armature Plate) |
| Ambient Temperature | -10 ~ +55ºC (14-131F) |

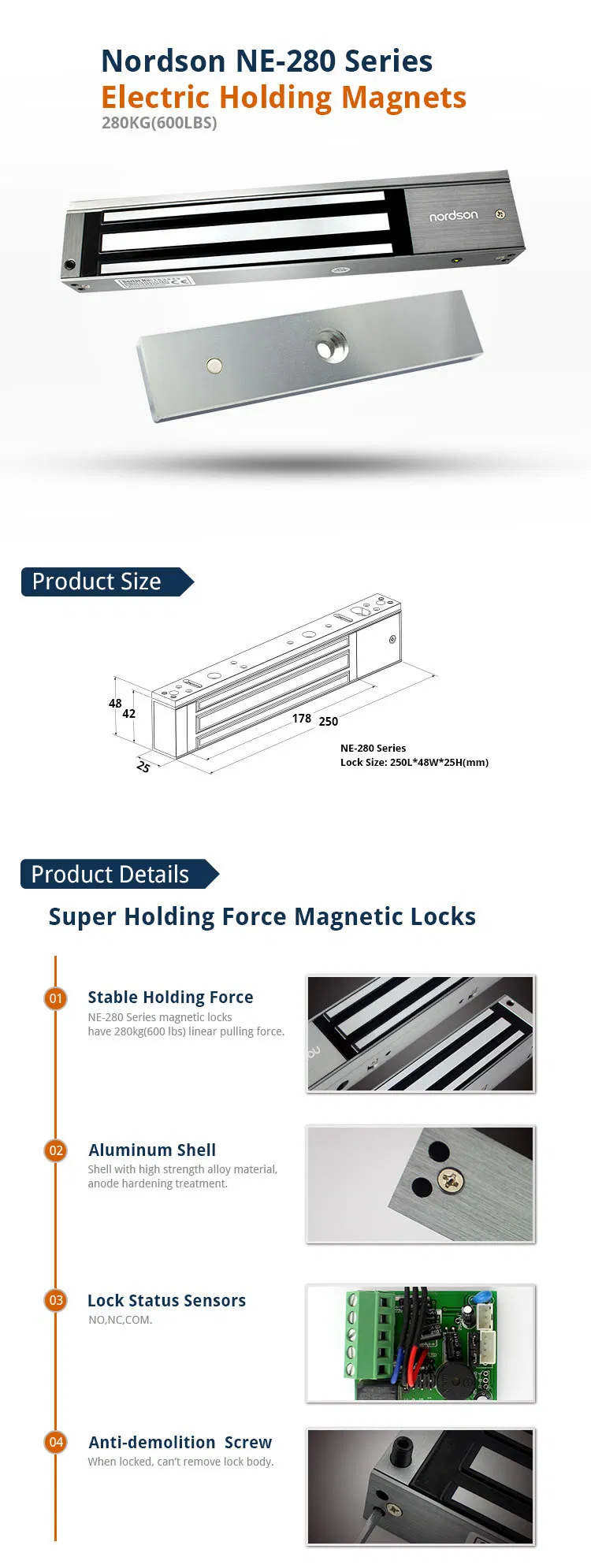

| Magnet Dimensions | 250L x 48W x 25H (mm) |
| Armature Plate Dimensions | 180L x 38W x 11H (mm) |
| Weight | 2.0kg |
| Package Size | 29.00cm * 28.00cm * 21.00cm |
Frequently Asked Questions
What is the holding force of this electromagnetic lock?
The NE-280S provides a stable holding force of 280kg (600lbs), making it suitable for a wide range of security applications.
What types of doors can this lock be installed on?
It is highly versatile and suitable for wooden doors, aluminum doors, glass doors, fireproof doors, and metal doors.
Does the lock include a status indicator?
Yes, it features a dual-color LED indicator (Red and Green) to show the lock status clearly.
What is the purpose of the built-in buzzer?
The buzzer provides an audible alarm if the lock status is abnormal, enhancing the security of the access control system.
What are the power requirements for this model?
The lock operates on a rated voltage of 12V or 24VDC, with a current consumption of 500mA at 12V and 250mA at 24V.
Does this lock support signal feedback?
Yes, it includes lock status sensors with NO, NC, and COM outputs for integration with monitoring systems.
