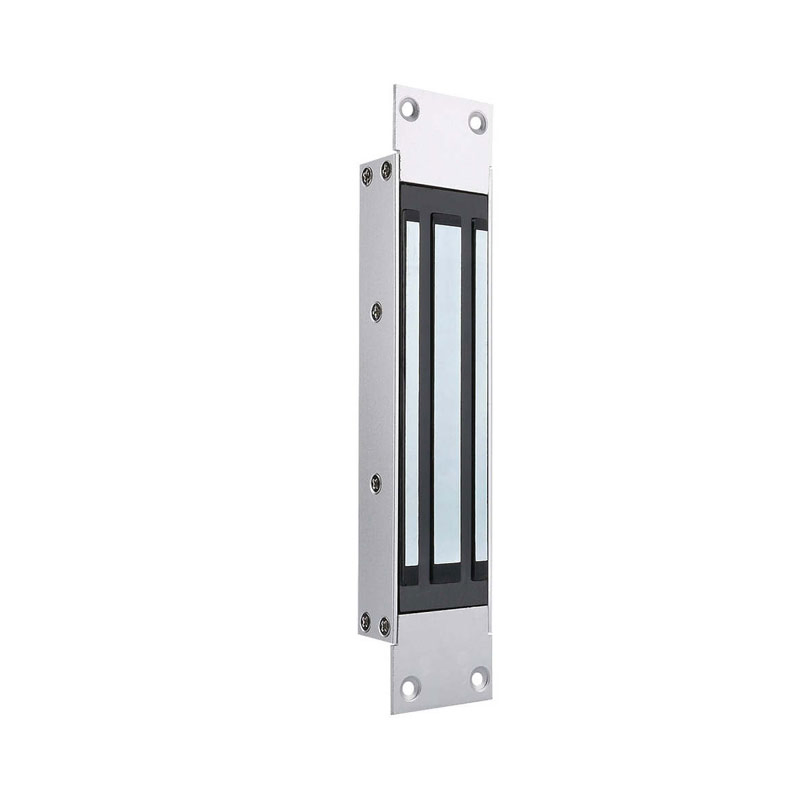

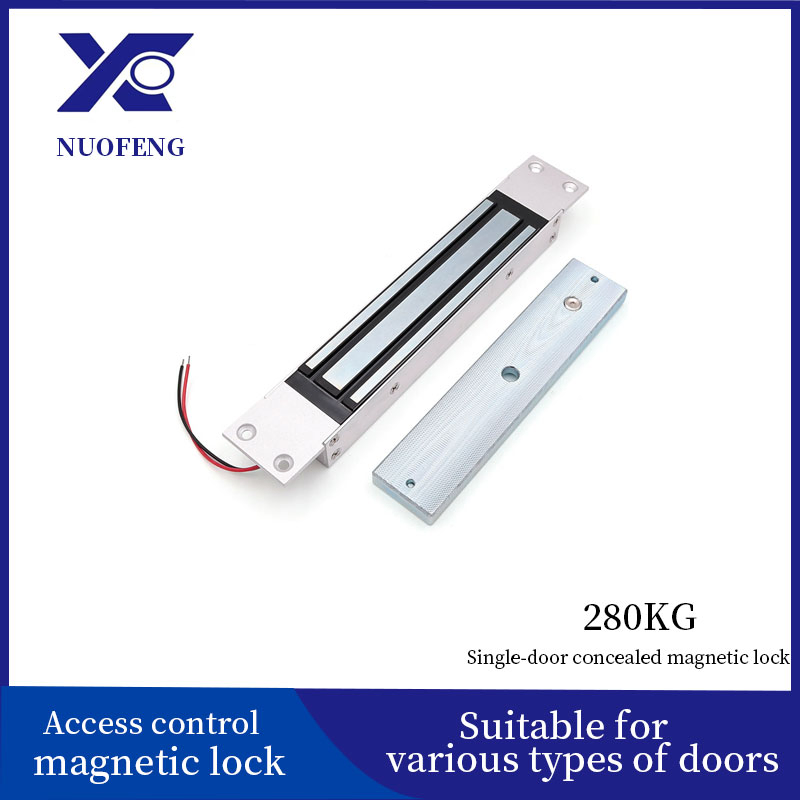

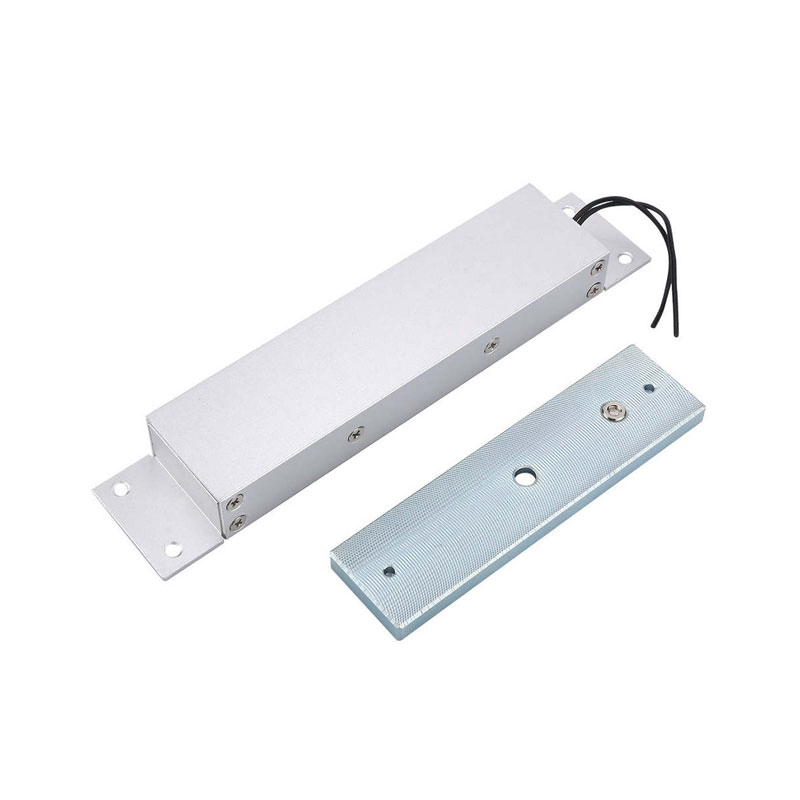

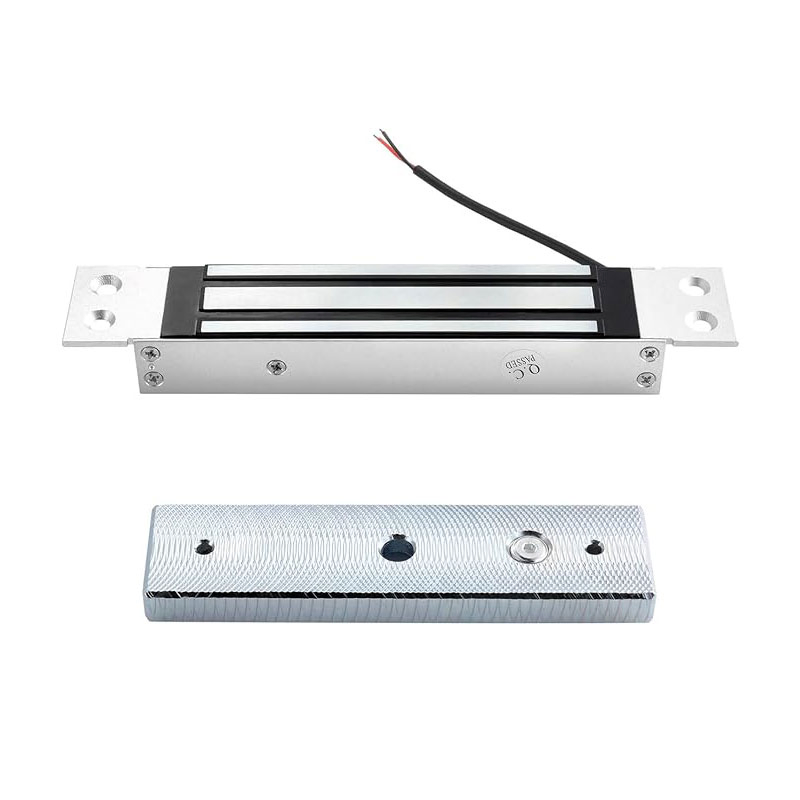

280kg High-Security Concealed Magnetic Commercial & Residential Door Access Control Lock
Product Description
1
Basic Information
| Model NO. | NF280C |
| Material | Aluminum Alloy |
| Type | Electronic |
| Style | European |
| Holding Force | 280kg (600lbs)±10% |
| Input Voltage | DC12V / DC24V |
| Operating Current | 12V 500mA / 24V 250mA |
| Operating Temp | -30℃ ~ +66℃ |
| Applicable Humidity | 0 ~ 95% |
2
Product Description
This 280KG concealed magnetic lock is a high-performance security solution designed for hidden installation, ideal for commercial, residential, and industrial door access control systems. It combines strong holding force with a discreet design—eliminating visible hardware to preserve door aesthetics while ensuring reliable anti-theft and anti-unauthorized entry protection.
Key Features
✔
Strong & Reliable Holding Force: 280KG magnetic force securely locks doors, preventing forceful entry in high-traffic areas.
✔
Concealed Design: Mounts hidden inside door frames or door leaves, preserving original door aesthetics.
✔
Durable & Weather-Resistant: Aluminum alloy shell with IP54 rating protects against dust and splashes.
✔
Easy Integration: Compatible with 12V DC access control systems, card readers, and biometric devices.
3

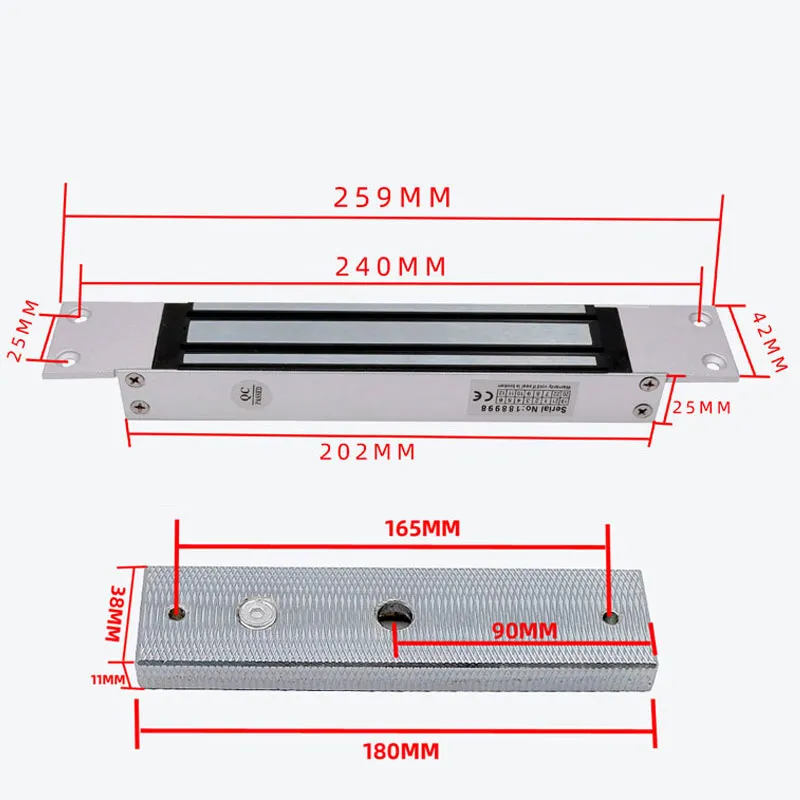

Visual Overview
Right Elevation
Left Elevation
Front Elevation
4
Technical Specifications
| Parameter | Details |
|---|---|
| Holding Force | 280KG (617LBS) |
| Installation Type | Concealed / Hidden Mounted |
| Door Materials | Metal, Wood, Composite, PVC |
| Protection Grade | IP54 (Dustproof & Splash-proof) |
| Material | High-strength Aluminum Alloy & Copper Coil |
| Dimensions | Customizable (Standard: approx. 250mm x 45mm x 28mm) |
5
Applications & After-Sales
Application Scenarios
- • Commercial: Office entrances, retail backdoors
- • Industrial: Data centers, server rooms, factories
- • Residential: Villa gates, apartment main doors
- • Aesthetic Spaces: Museums, hotels, art galleries

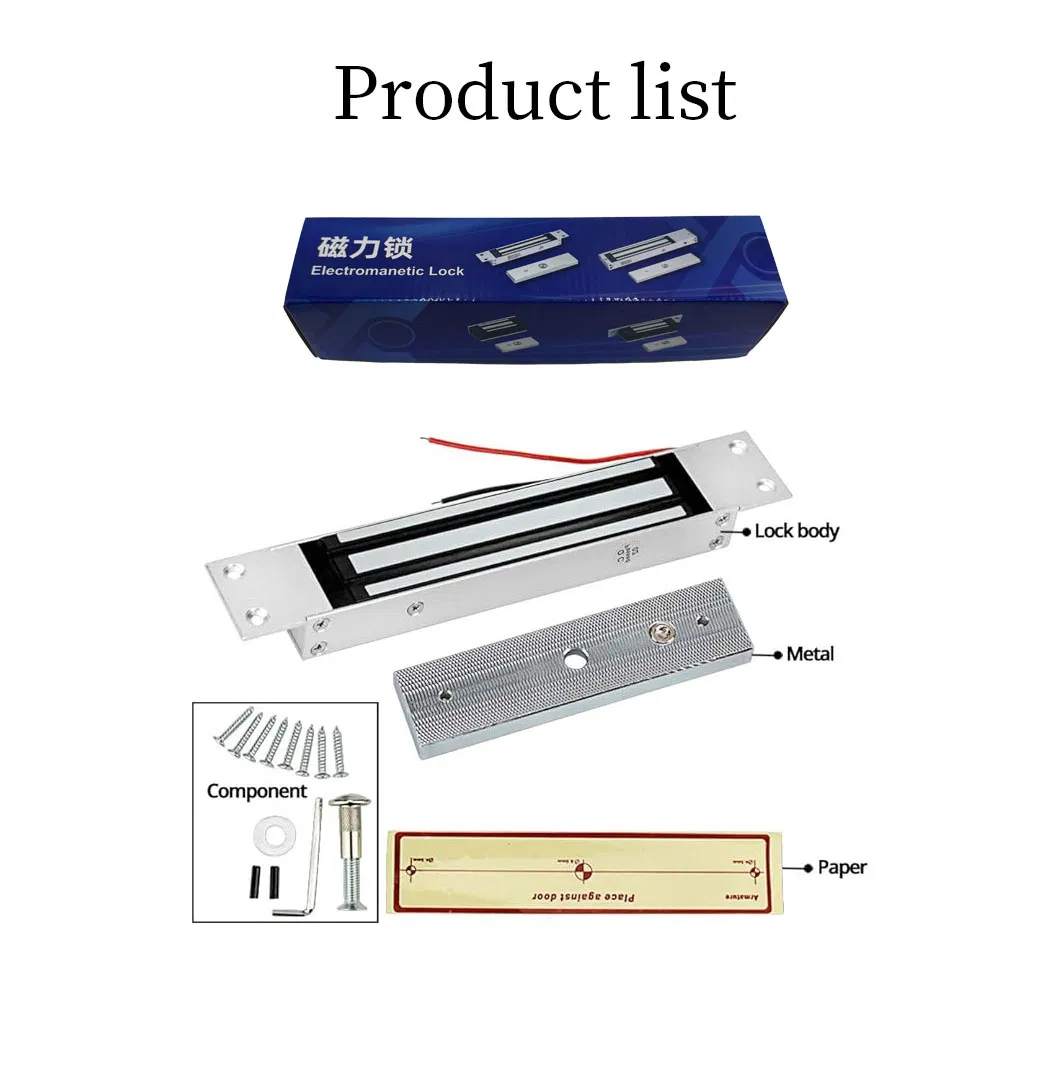

Package Contents
- • 1 × 280KG Concealed Magnetic Lock
- • 1 × Set of Mounting Brackets & Screws
- • 1 × Installation Instruction Manual
- • 1 × Wiring Diagram
?
Frequently Asked Questions
Q1: What is the holding force of this magnetic lock?
A1: It provides a strong holding force of 280KG (617LBS), which effectively resists forceful entry attempts.
Q2: Is the installation truly concealed?
A2: Yes, the lock body is embedded in the door frame or door leaf, with no visible hardware exposed to maintain aesthetics.
Q3: Which door materials are compatible?
A3: It works with most common door materials, including metal, wood, composite, and PVC doors with sufficient thickness.
Q4: What voltage does this lock use?
A4: It operates on DC 12V, the standard voltage for most access control systems, featuring low power consumption.
Q5: Can it be used in humid environments?
A5: Yes, it has an IP54 protection rating, making it suitable for indoor and covered outdoor or semi-humid areas.
Q6: Is professional help required for installation?
A6: We recommend professional installation to ensure precise alignment of the concealed lock body and proper electrical wiring.
