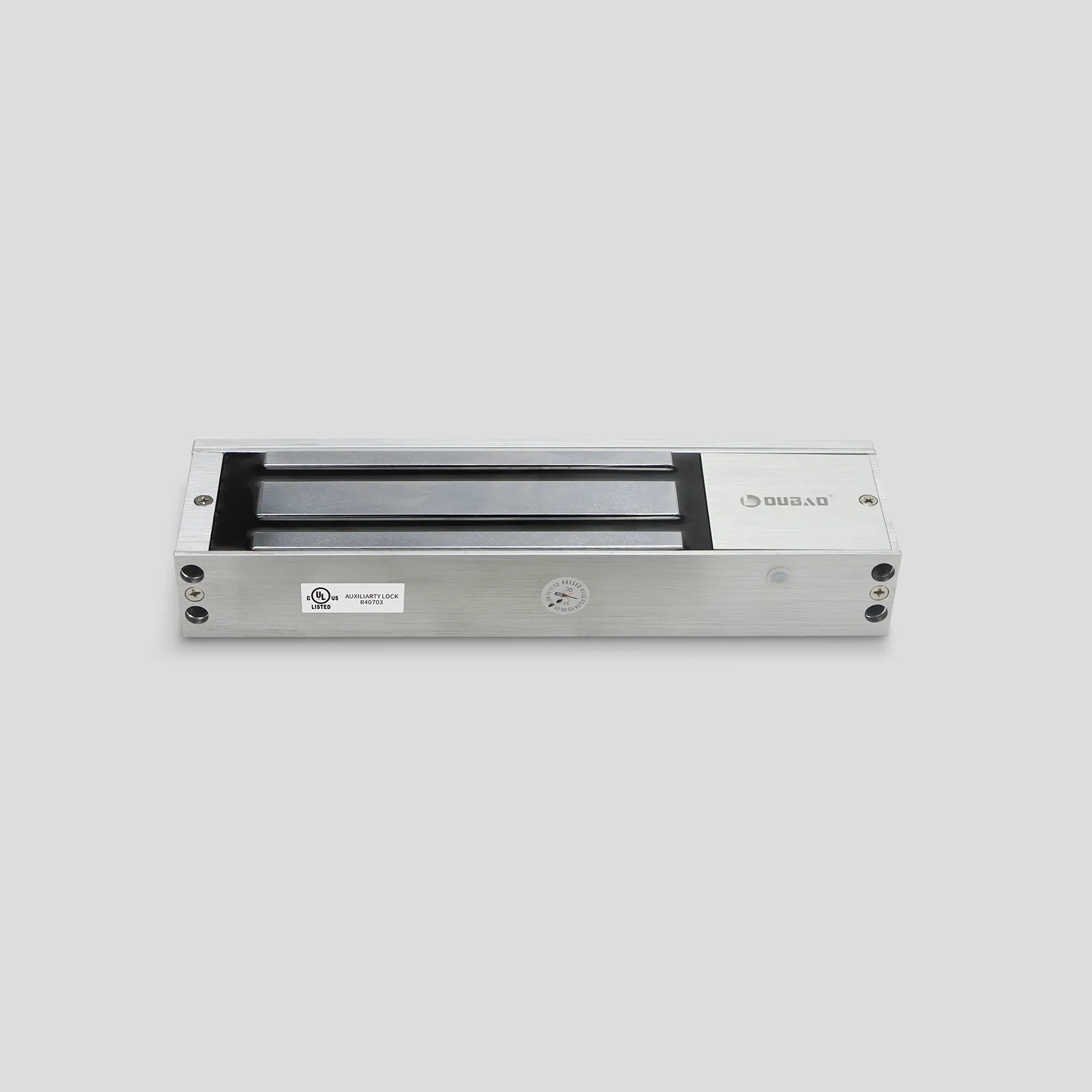

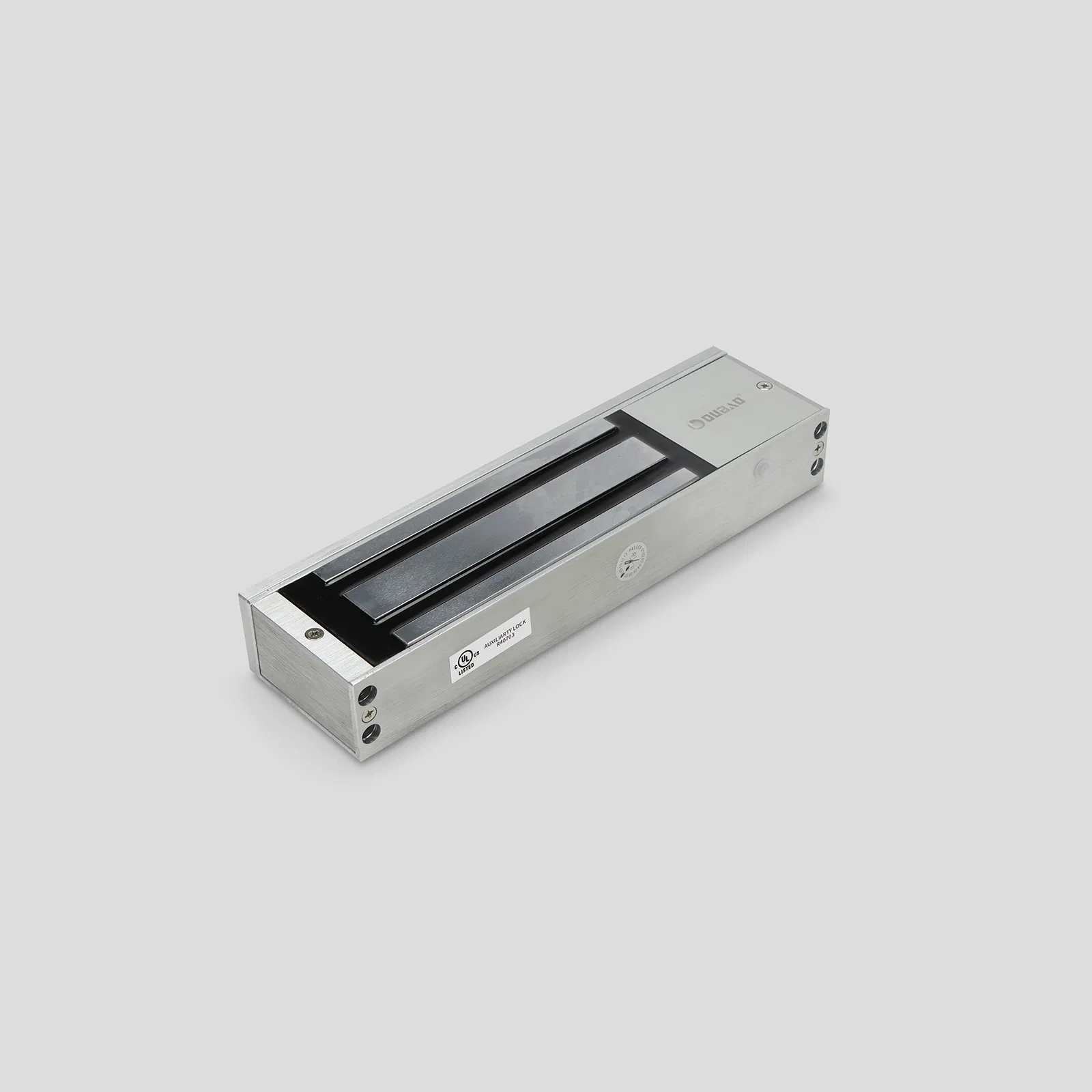

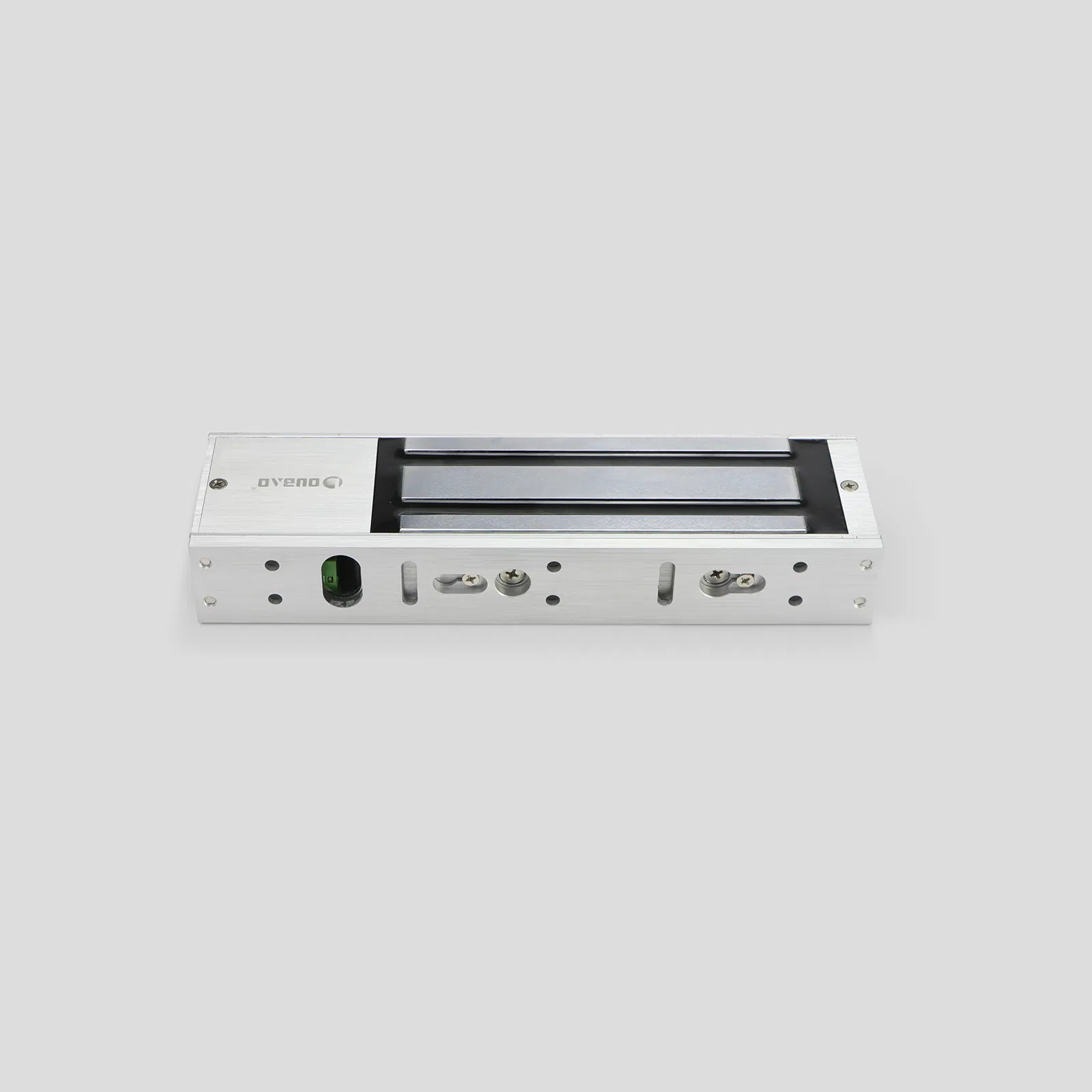

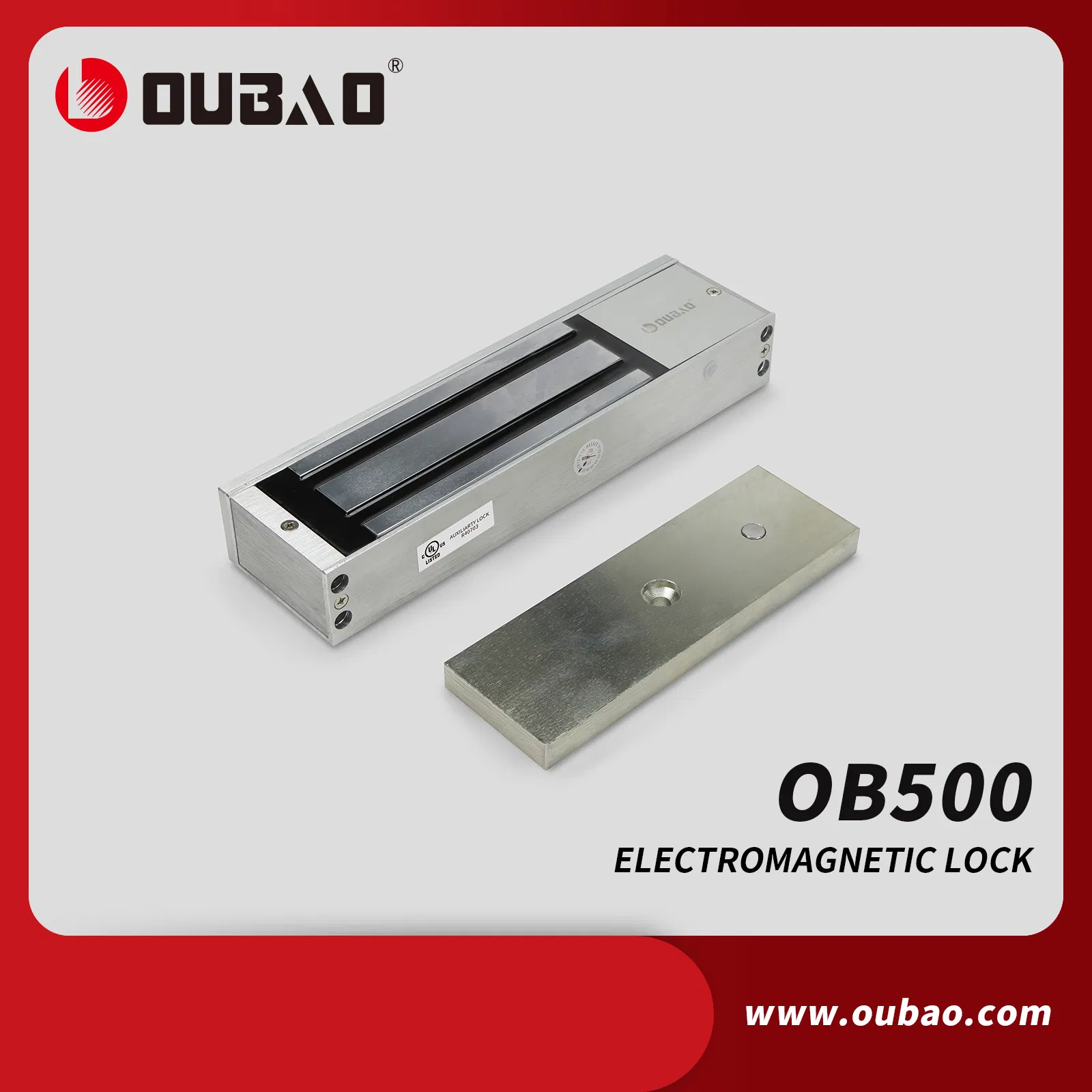

UL 500kg (1100Lbs) Heavy-Duty Single Door Electronic Electrically Controlled Magnetic Lock
Product Description
i
Basic Specifications
Model NO.
OB500
Material
Aluminum Alloy
Type
Key Lock
Style
Modern
Shape
Mortise Door Lock
Anti-theft Standard
A
Backset
60mm
Door Thickness
35-50mm
Usage
Household, Bedroom, Channel Lock
Certification
Rosh, EMC, FCC, CE, UL, CCC
Capacity
50000 PCS /Year
Origin
China
★
Product Overview
Electromagnetic locks are a popular choice for security installers due to their simplicity, durability, and high resistance. Featuring a large electromagnet mounted on the door frame and an armature plate on the door, these locks provide a robust security solution. When powered, the armature plate is held fast to the magnet, requiring a release command to both enter and leave.
| Holding Force | 500KG ± 10% (1200LBS) |
| Operating Voltage | 12VDC (DC24V available upon request) |
| Working Current | 450mA |
| Temperature Range | -25 ºC ~ 60 ºC |
| Working Humidity | 10% ~ 90%RH |
| Unlock Method | Power on to lock (Fail safe) |

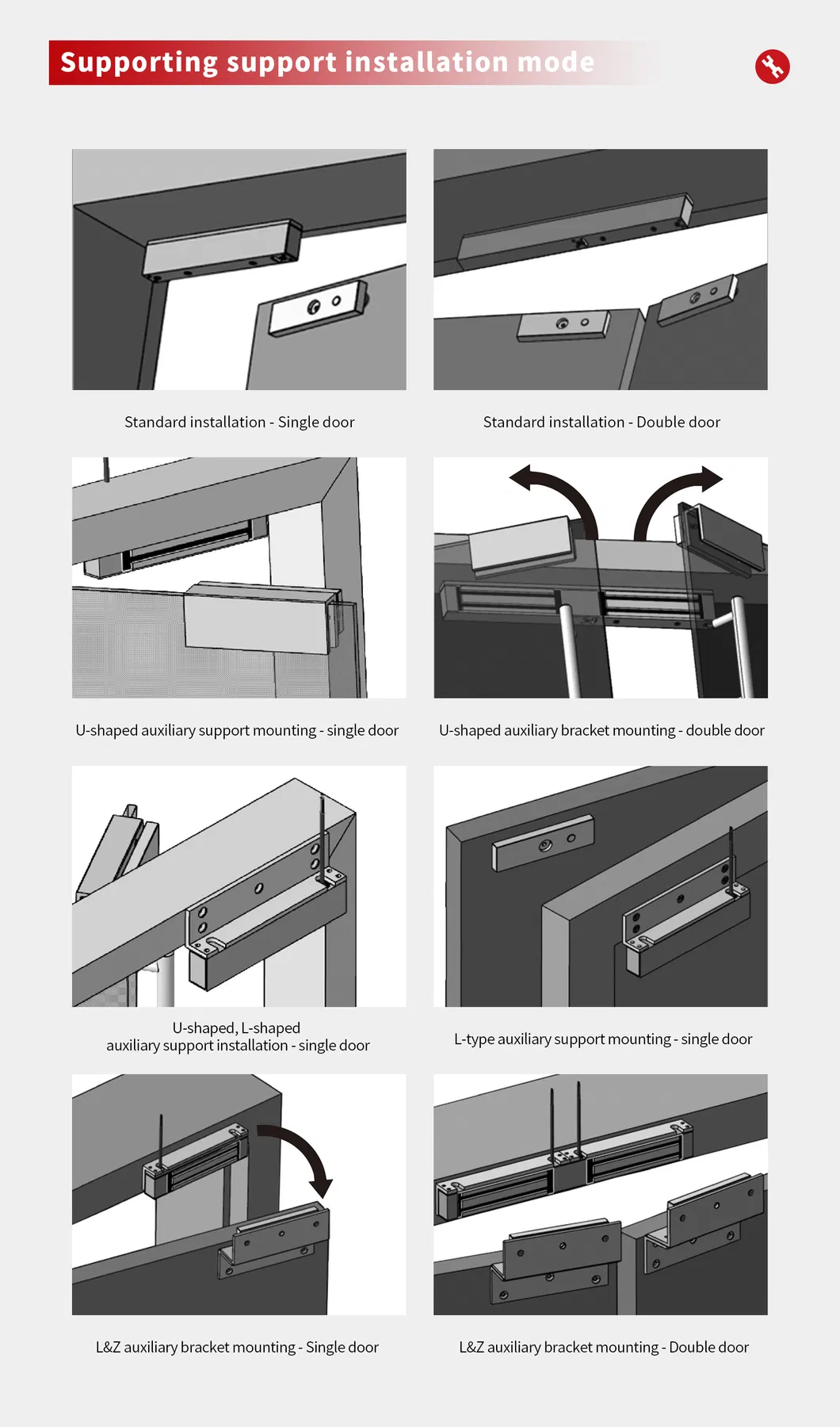

| Installation | Hanging / Surface installation |
| Opening Angle | 90° |
| Panel Material | High strength aluminum alloy |
| Indicator Light | Red LED |

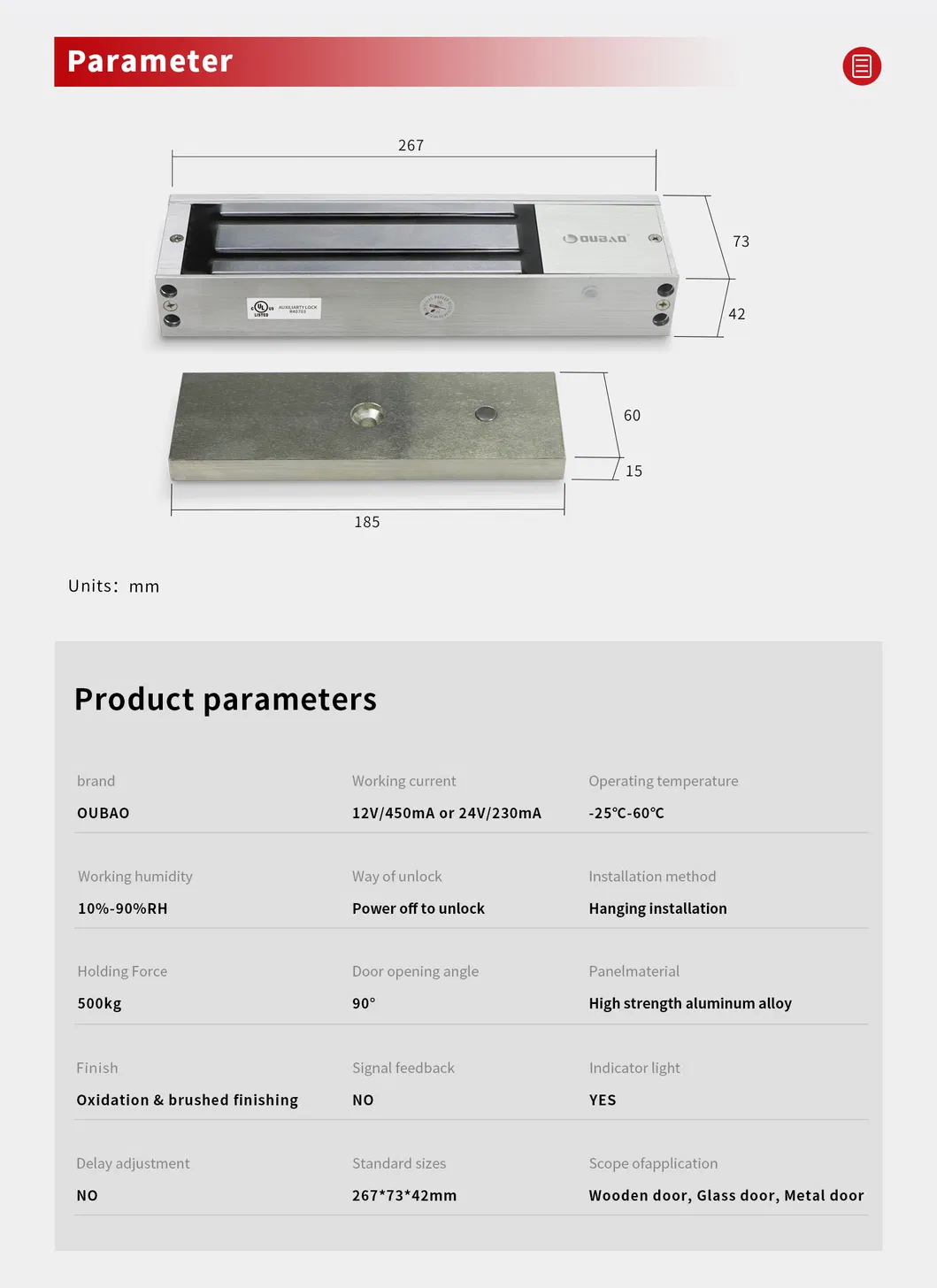

| Magnetic Size | 267 * 73 * 42 mm |
| Armature Plate Size | 185 * 60 * 15 mm |
| Scope of Application | Wooden, Fireproof, Glass, and Metal doors |
| Service Life | More than 500,000 times |
| Weight | 4kg/PCS |
📷

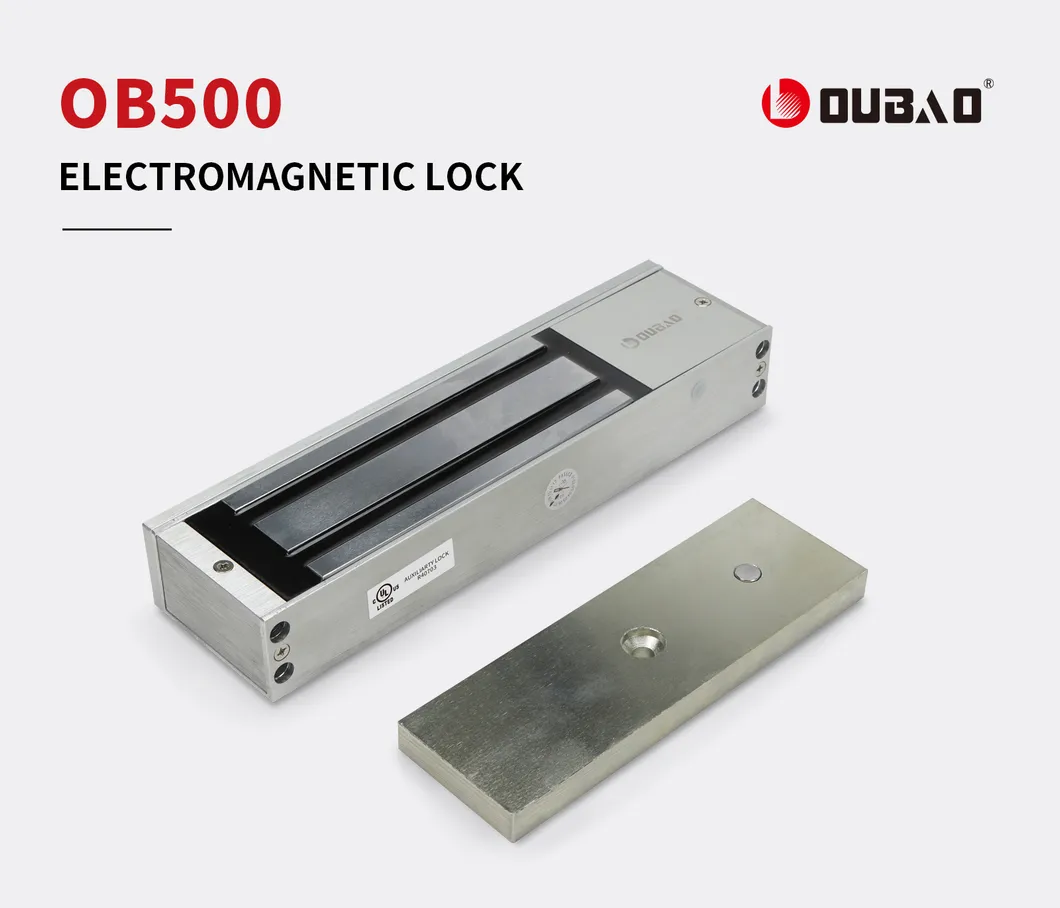

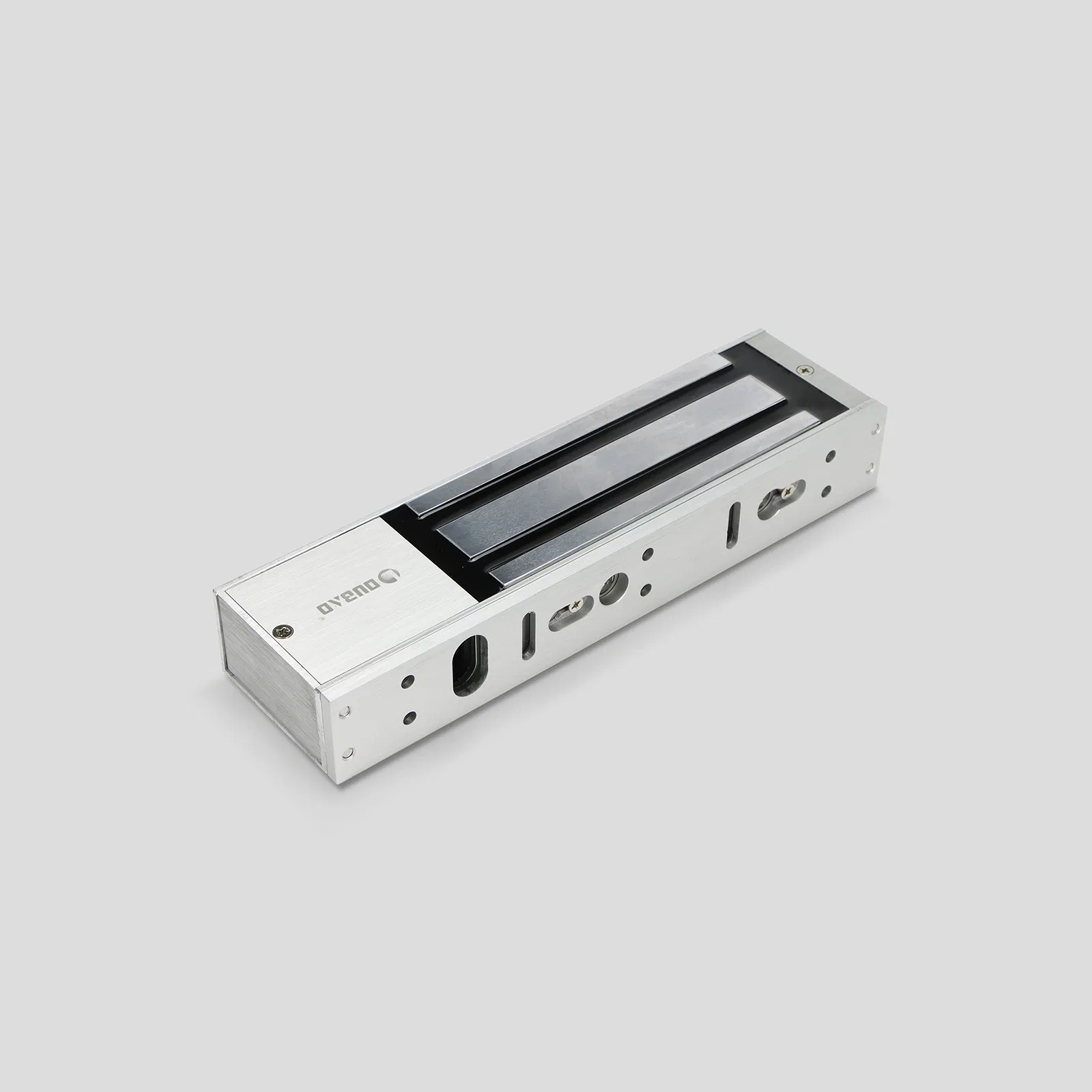

Product Gallery
?
Frequently Asked Questions
Do you accept OEM or ODM?
Yes, we provide both OEM and ODM services to meet specific customer requirements.
What is the Minimum Order Quantity (MOQ)?
For retail, we can provide any quantity shipped via express. For wholesale orders, the standard MOQ is usually 300pcs. You can also mix different items for sea shipment.
Are samples available before official orders?
Yes, we can provide samples. While the sample itself is free, the express shipping cost is to be covered by the customer.
How long is the warranty period?
We offer different warranty periods depending on the product, ranging from 2 to 5 years.
What door types are compatible with this magnetic lock?
This 500KG lock is highly versatile and suitable for wooden doors, fireproof doors, glass doors, and metal doors.
What is the "Fail Safe" function?
The "Fail Safe" mechanism means the device is "Power on to lock." In the event of a power failure, the lock will release automatically to ensure safety and emergency egress.
