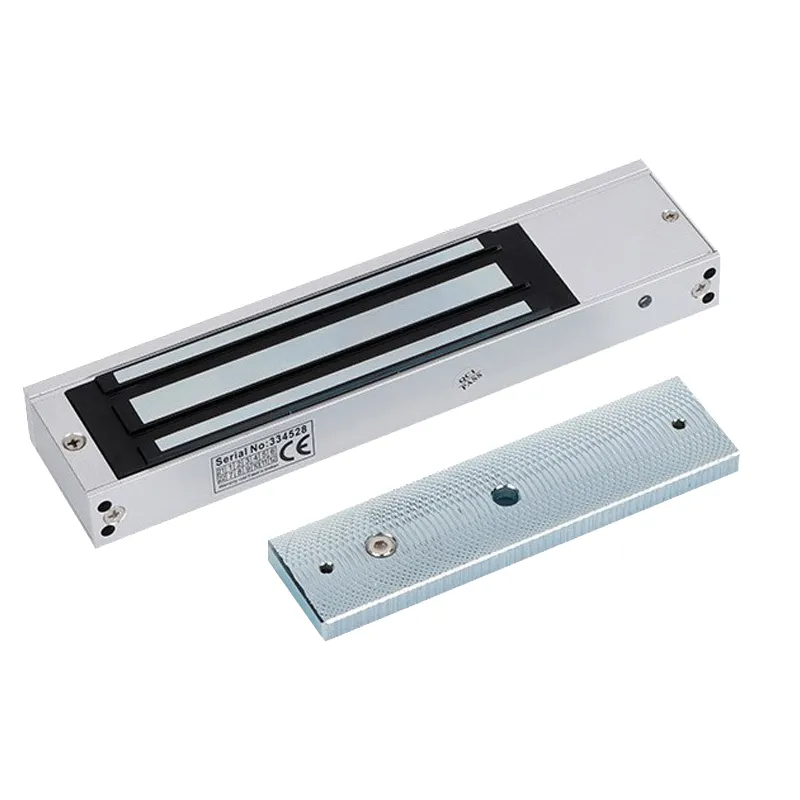

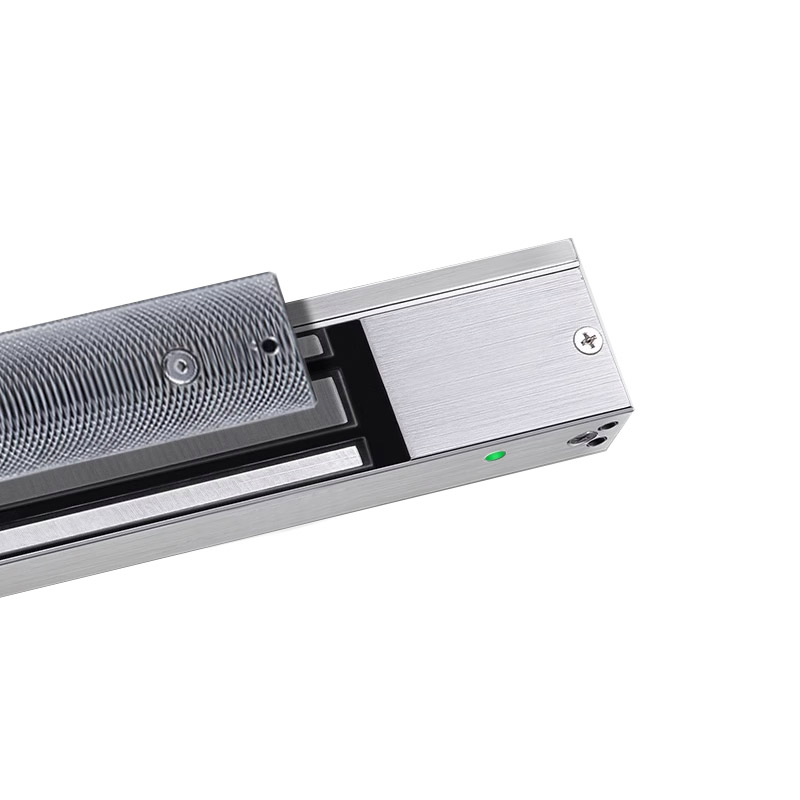

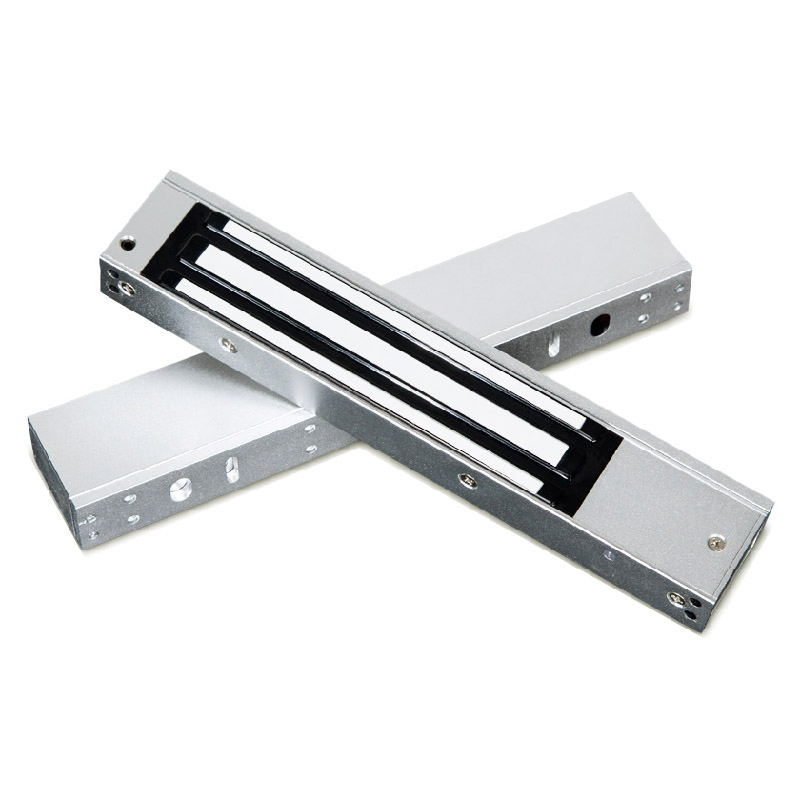

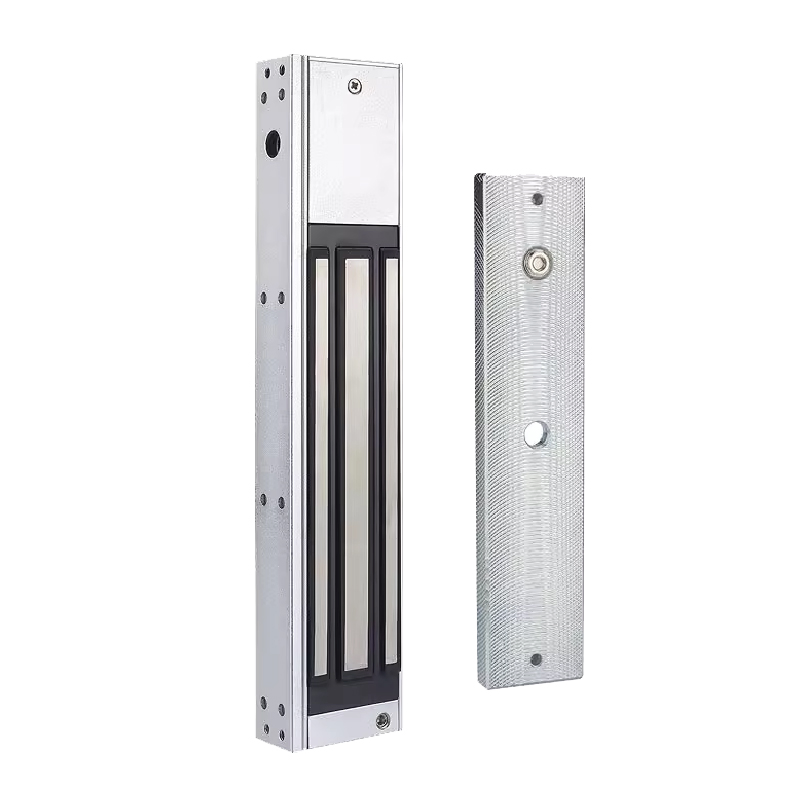

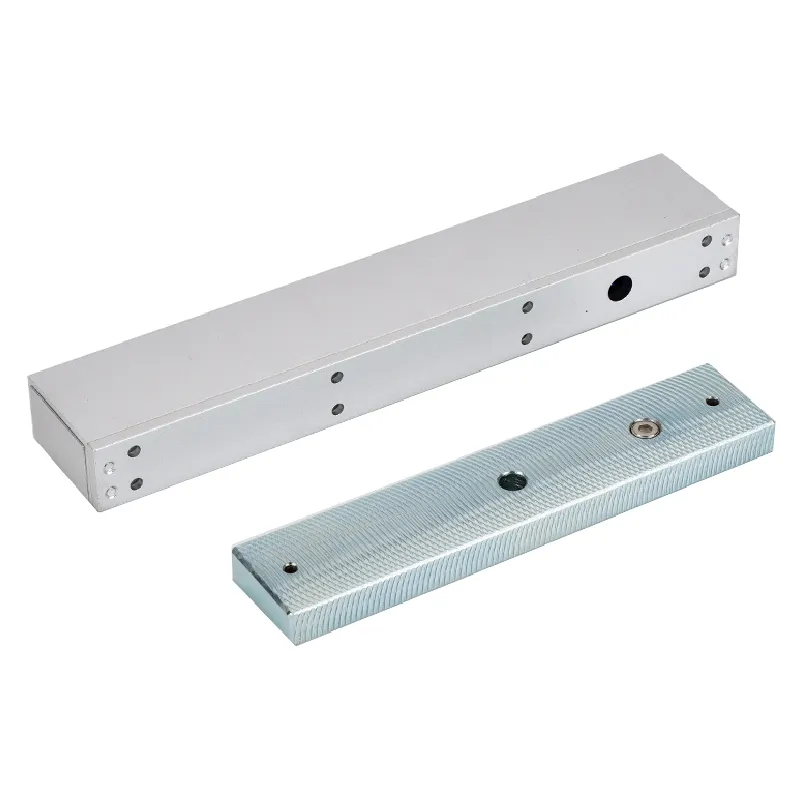

Electro Magnetic Door Lock 700lbs (320KG) with Door Status Monitoring
Product Description
📋
Basic Specifications
Model NO.
ME1232S
Material
Aluminum Alloy
Type
Electro Magnetic Lock
Style
Remote or Card Access Control
Holding Force
320kg (700lbs)
Installation
Surface Mount
Operation Voltage
12VDC or 24VDC
Unlock Time
Less Than 1 Second
Specification
Waterproof for outdoor gate
Origin
China
📦
Packaging & Delivery
Package Size
275.00cm * 62.00cm * 65.00cm
Gross Weight
2.120kg
🔍
Product Description

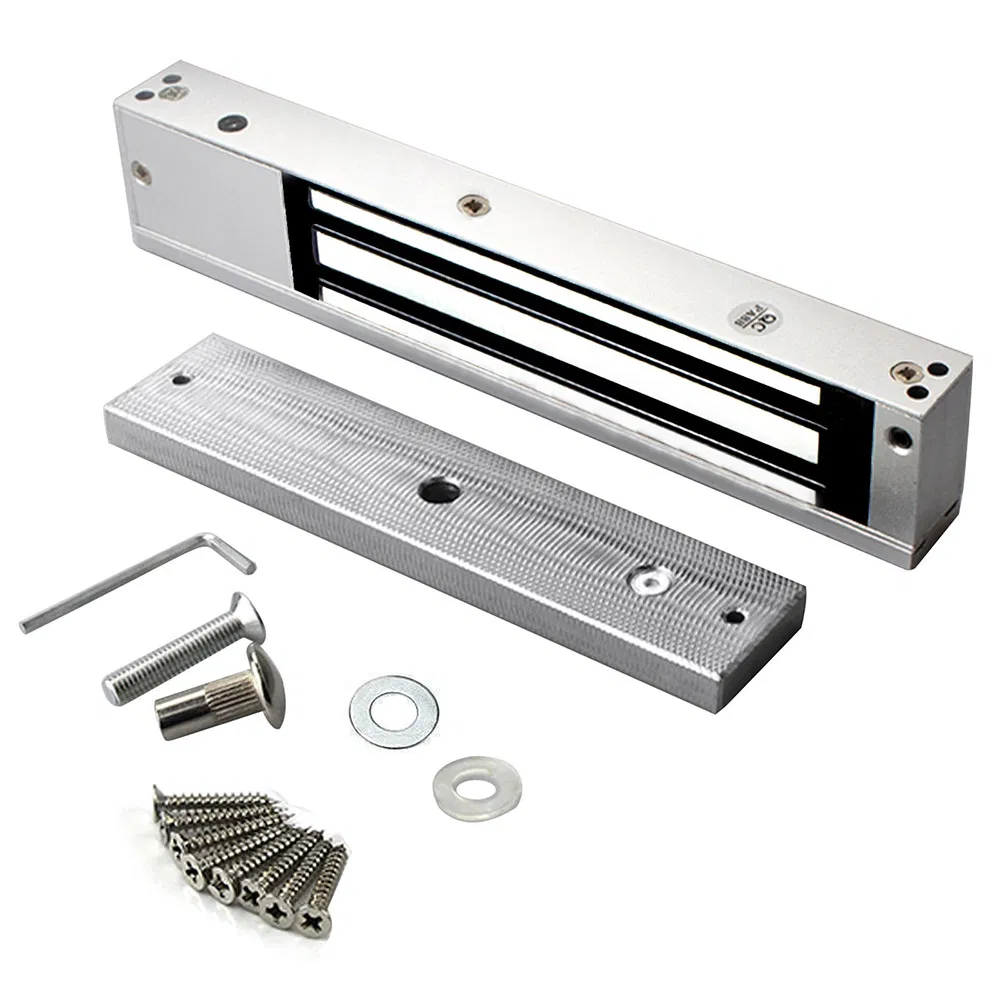

Electromagnetic lock ME1232S is a durable electromagnetic lock ideal for single doors. It is with door status reporting. Surface mounting either vertically or horizontally offers easy and flexible installation. Hardware accessories include brackets, housings, and dress covers as needed for every opening type. The Electromagnetic lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. It is with high durability and low maintenance.
⭐
Key Features
- Superior alloy-constructed lock body and strikes
- Architectural brushed stainless steel finish provides corrosion resistance
- Built-in micro switch for door status reporting
- Surface mounting and easy installation using only a drill and allen wrench
- Fully sealed electronics for tamper proof and weather proof
- Instant release circuit, no residual magnetism
- Low noise operation
- Accepts access control signals from numeric keypads and card readers
- Can be fitted to wooden door, glass door, metal door, fire door and security door
⚙️
Technical Specification
Operation Voltage
12VDC ±10%
Power Consumption
480mA@12VDC
Operation Mode
Fail unlock
Holding Force
320KG(700lbs)
Cycle Rating
More than 1,000,000
Working Temp
-10ºC ~ +55ºC

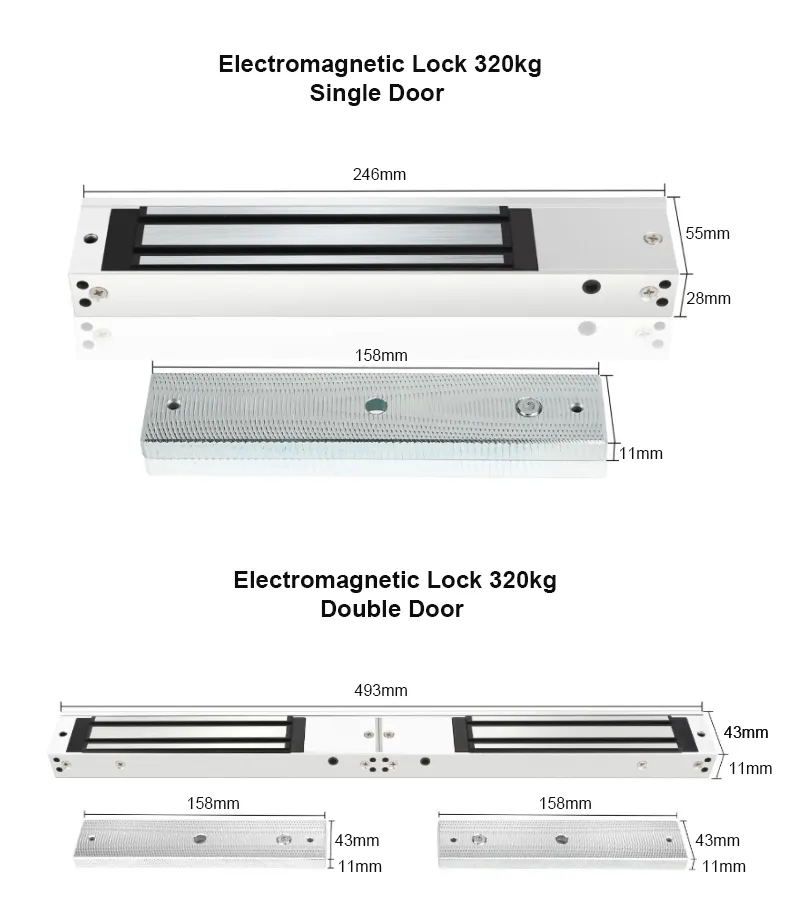

Lock Dimensions
246mm*49.5mm*26.5mm
Strike Dimensions
180mm*38mm*11mm
🛒
Order Particulars
| Model No. | Holding Force | LED indicator | Lock Status | Delay | Mounting Way | Single/Double |
|---|---|---|---|---|---|---|
| ME1232DLS | 320KG/700lbs | with | with | without | Surface Mount | Double |
| ME1232DLR | 320KG/700lbs | with | without | with | Surface Mount | Double |
| ME1232S | 320KG/700lbs | without | with | without | Surface Mount | Single |
| ME1232FS | 320KG/700lbs | without | with | without | Flush Mount | Single |
| ME1232L | 320KG/700lbs | with | without | without | Surface Mount | Single |
| ME1232D | 320KG/700lbs | without | without | without | Surface Mount | Double |
| ME1232LR | 320KG/700lbs | with | without | with | Surface Mount | Single |
🏠

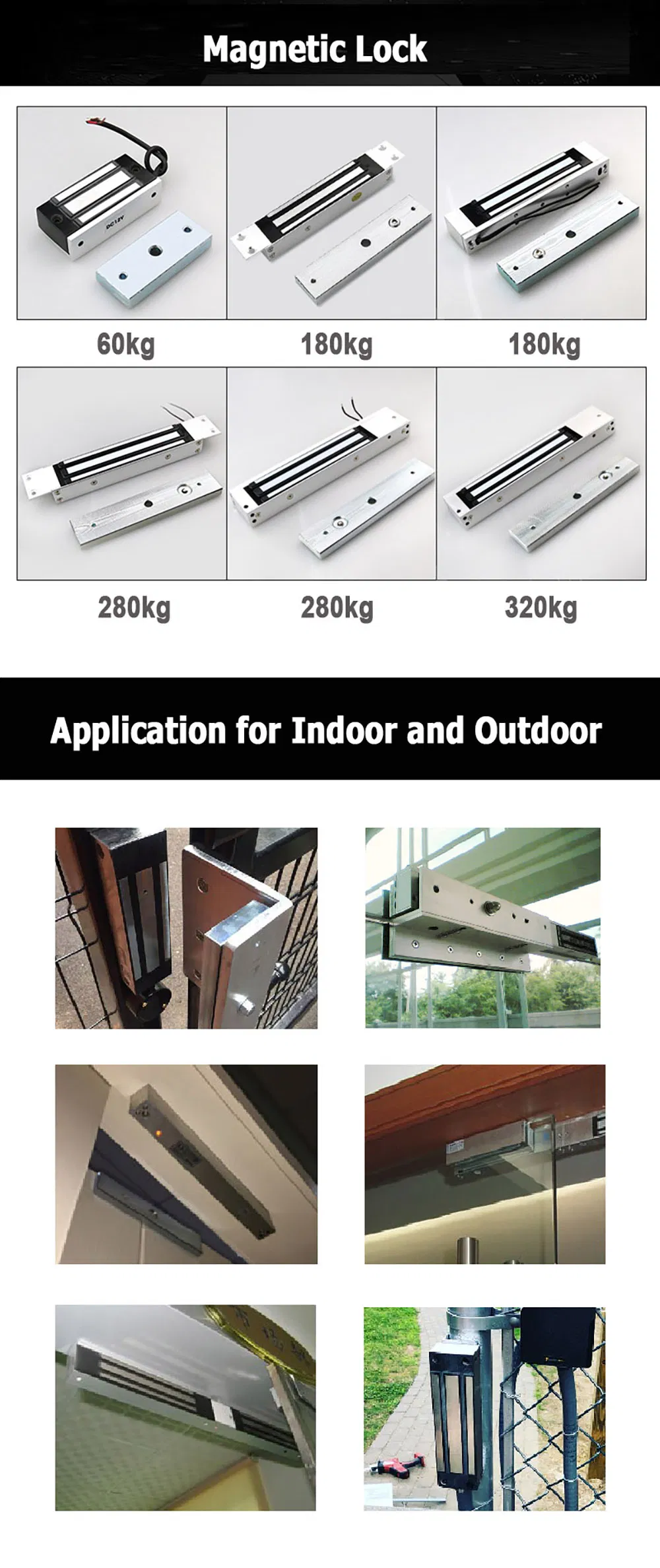

Applications
The electromagnetic lock is ideal for various applications including: Wooden doors, glass doors, metal doors, fire doors, and security doors.
ℹ️
About the Manufacturer
Our team is a designer and manufacturer specializing electrified locking solutions for lockers, cabinets and kiosks. No matter size-restricted enclosures or heavy-doored metal cabinets; we can meet your particular security requirement with customized design for your applications. Our ranges cover electronic cabinet locks, electronic drawer locks, smart parcel locker control system, vending machine control system, and IOT control hardware and software.
❓
Frequently Asked Questions
What is the holding force of the ME1232S lock?
The ME1232S electromagnetic lock provides a strong holding force of 320KG (700lbs), making it suitable for high-security requirements.
Can this lock be used on glass doors?
Yes, this lock is compatible with wooden doors, glass doors, metal doors, fire doors, and security doors.
Is the lock suitable for outdoor use?
Yes, the ME1232S features fully sealed electronics making it tamper-proof and weather-proof, ideal for outdoor gates.
Does the lock support door status monitoring?
Yes, it includes a built-in micro switch specifically designed for door status reporting.
What is the operating voltage for this device?
The lock operates on a standard 12VDC or 24VDC power supply, with a power consumption of approximately 480mA@12VDC.
How fast is the unlocking process?
The lock features an instant release circuit with no residual magnetism, allowing it to unlock in less than 1 second.
