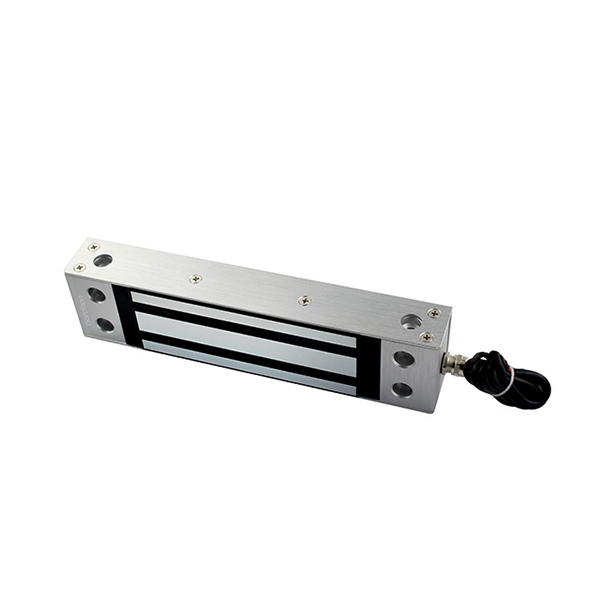

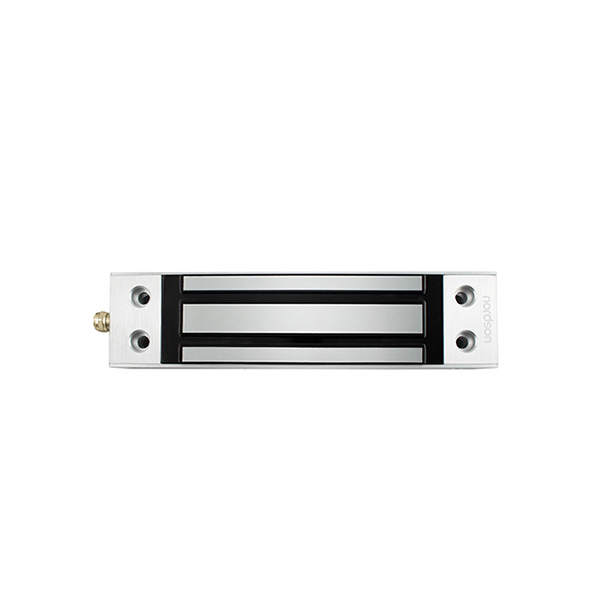

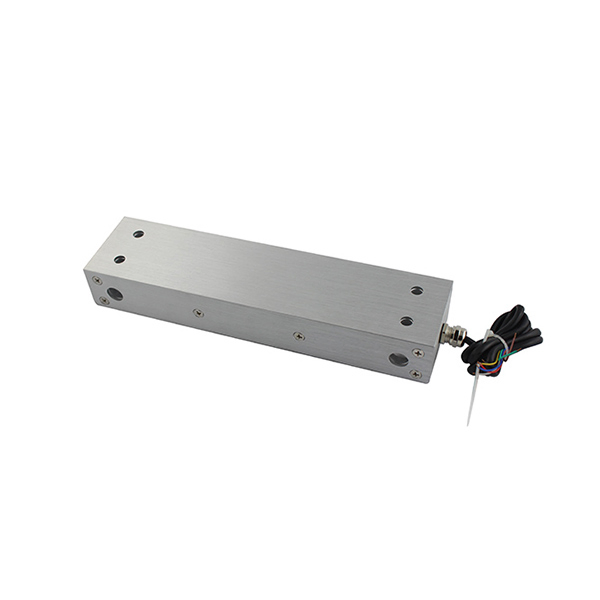

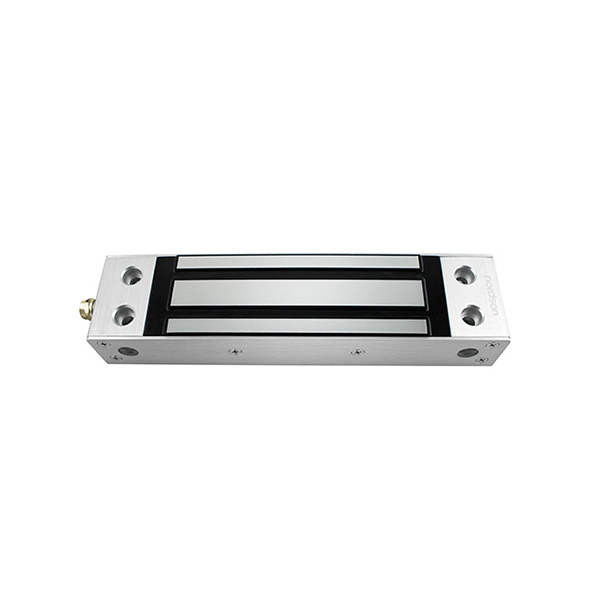

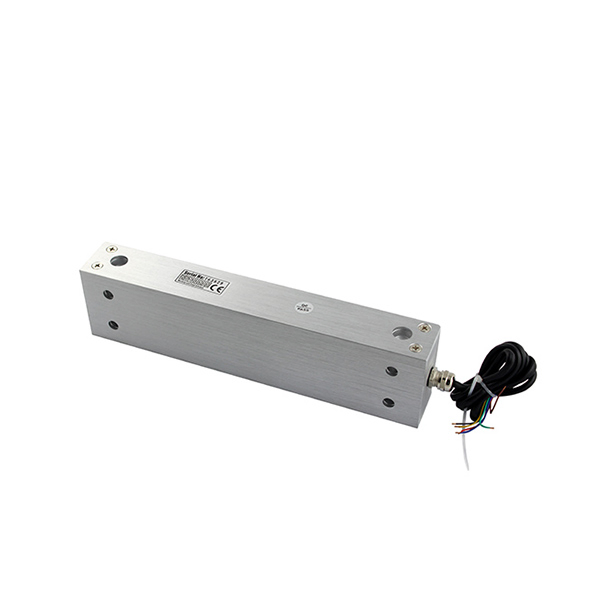

DC12V Waterproof IP68 Outdoor 600kg (1200Lbs) Glass Door Electromagnetic Electro Magnetic Door Lock
Product Description
⚙
Basic Specifications
Model
NE-600W door lock
Voltage
DC12V or DC24V
Holding Force
600kg (1200lbs)
Waterproof Grade
IP65 / IP68
Operation Mode
Fail-Safe (Power to Lock)
Working Principle
Electronically Controlled Magnetic

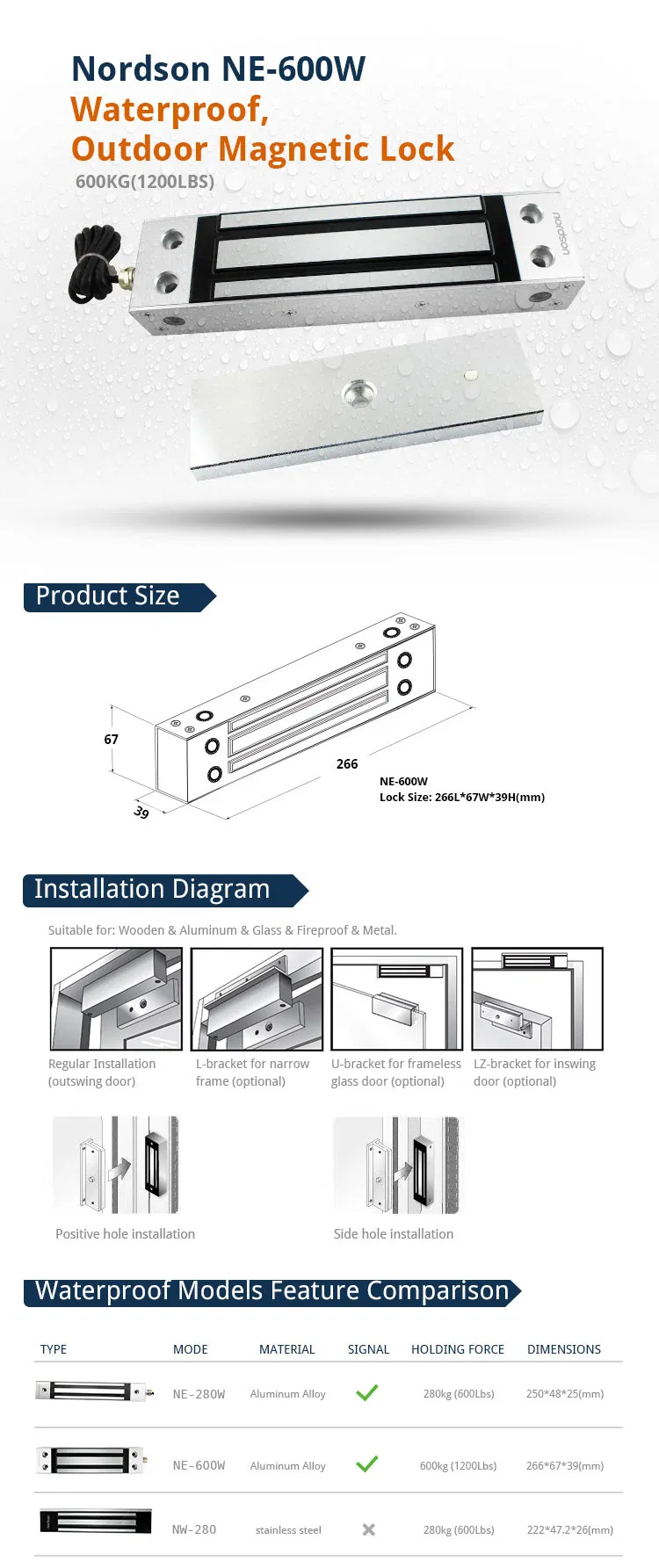

Lock Size
266L*67W*39H (mm)
Armature Plate
185L*57W*13H (mm)
Current Draw
12V/500mA or 24V/250mA
Weight
4.7kg
Status Sensors
Dry Contact NO/NC/COM
Certifications
CE, RoHS
★
Product Overview
12V Waterproof Outdoor Gate Lock NE-600W
- Suitable for Public Passage, Enterprise, Supermarket, Campus, Hospital, and more.
- IP65/IP68 Waterproof rating designed specifically for outdoor gate environments.
- Fail-Safe function ensuring security and safety compliance (Power to Lock).
- High holding force of 600kg (1200Lbs) for heavy-duty applications.
- No residual magnetism and no mechanical damage design.
- 90-degree opening suitable for all types of doors with frames.
- Built-in Buzzer with customization options available.
📷
Visual Display
📦
Packaging & Logistics
Packaging: Neutral Package for safe transit.
Shipping: Small quantities are processed within 1-5 working days; large quantities are processed within 14 working days after receipt of remittance.
🛡
Service & Warranty
For non-human factors related to product quality, we offer professional warranty services:
- 3-Year warranty for electromagnetic locks.
- 3-Year warranty for access control panels, electric bolts, and electric strikes.
- 1-Year warranty for exit buttons, brackets, and power supplies.
All products have passed CE and RoHS certifications, as well as rigorous quality testing for security applications.
?
Frequently Asked Questions
1. What is the holding force of the NE-600W magnetic lock?
The lock provides a powerful holding force of 600kg, which is approximately 1200lbs, making it ideal for heavy-duty security needs.
2. Is this lock suitable for outdoor rain exposure?
Yes, this model features an IP65/IP68 waterproof rating, specifically designed to withstand outdoor gate environments and wet weather conditions.
3. Does the lock remain locked if the power goes out?
No, this is a "Fail-Safe" lock (Power to Lock). For safety reasons, the lock will release when power is cut, ensuring emergency egress.
4. What voltage does this electromagnetic lock require?
The lock is versatile and can operate on either DC12V or DC24V power supplies.
5. Can I monitor the status of the door through this lock?
Yes, it includes lock status sensors with dry contacts (NO, NC, COM) to provide feedback on whether the door is locked or unlocked.
6. What types of doors is this lock compatible with?
It is designed for all kinds of doors with frames and supports a 90-degree opening mechanism.
