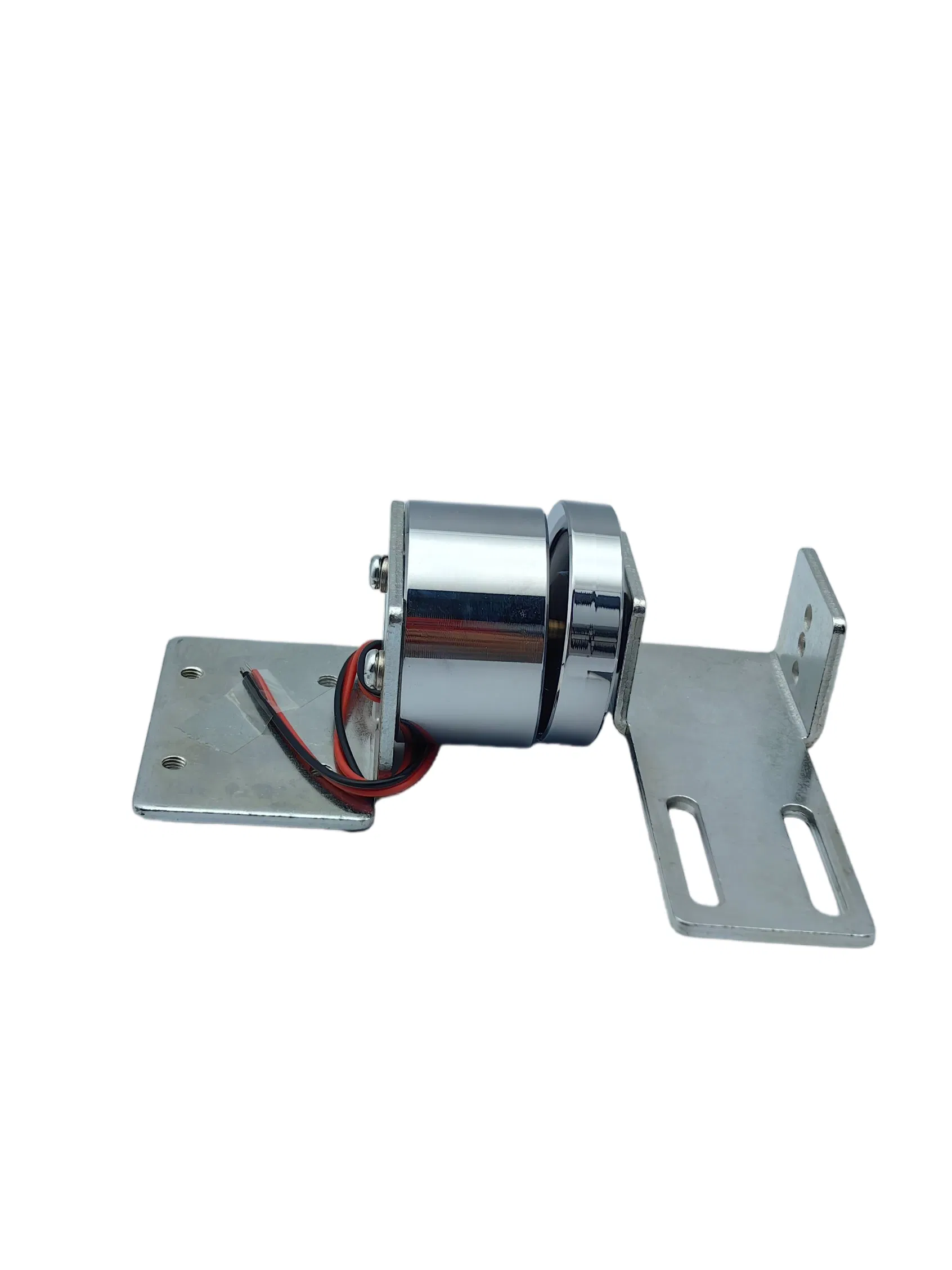

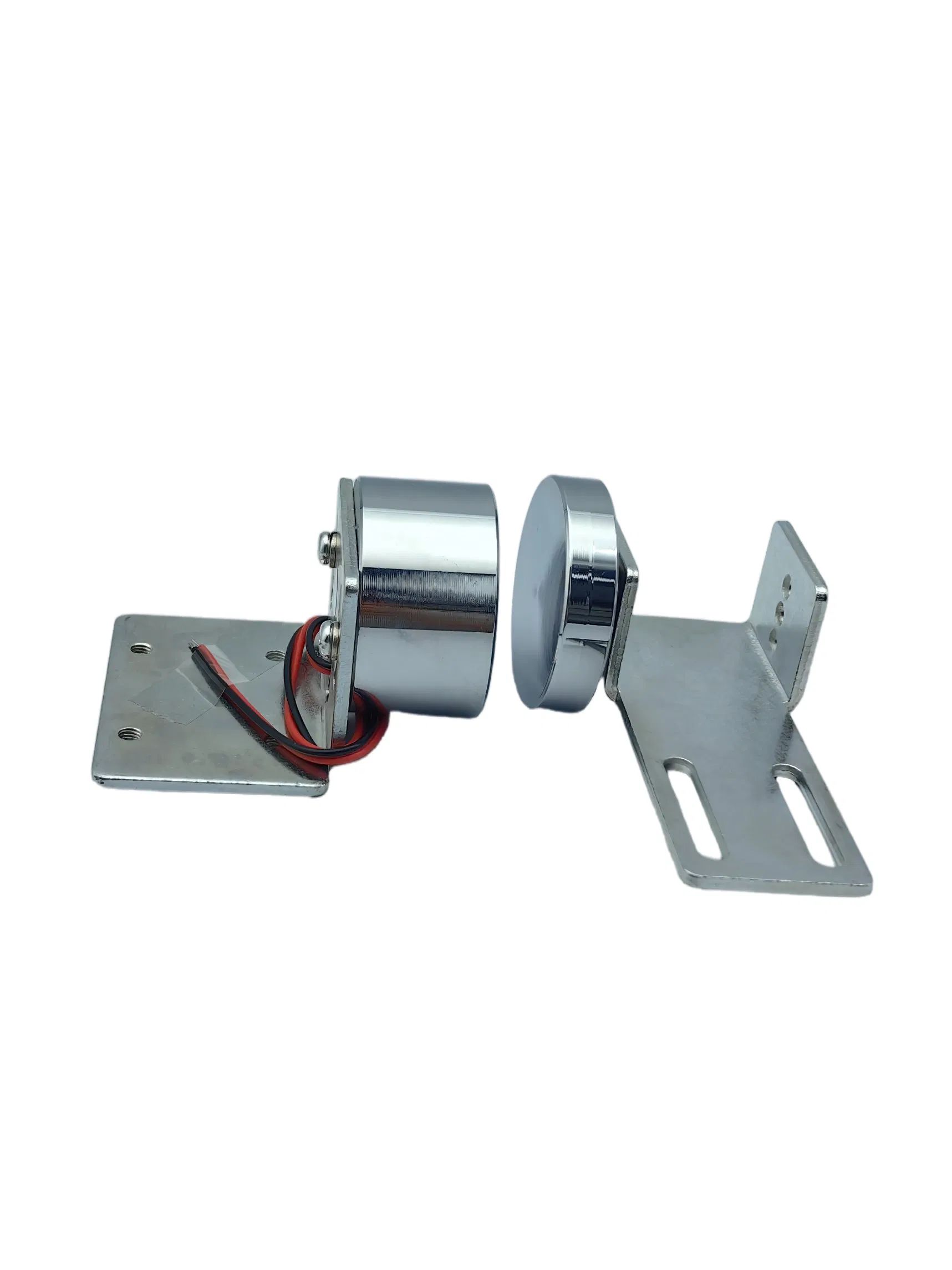

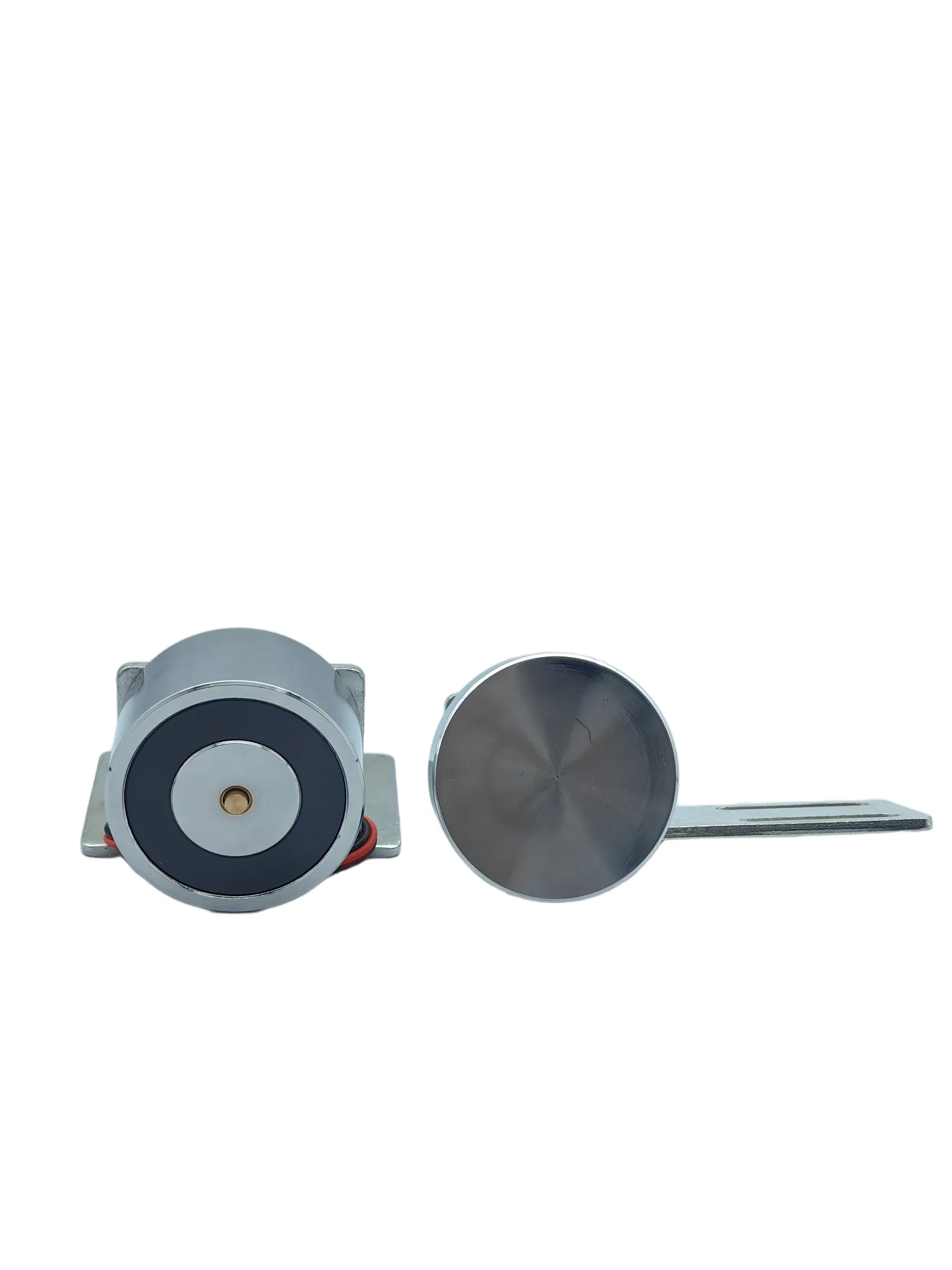

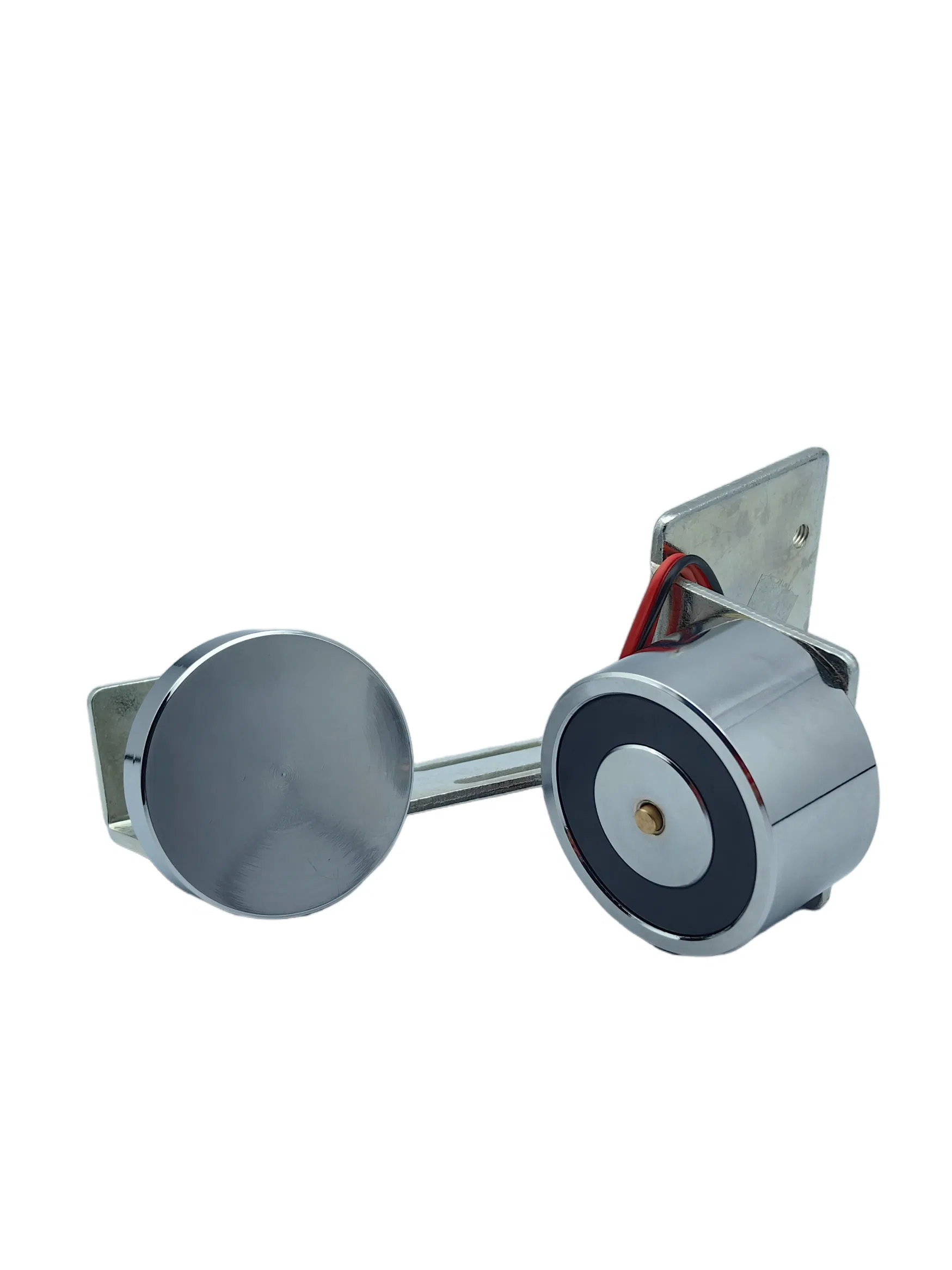

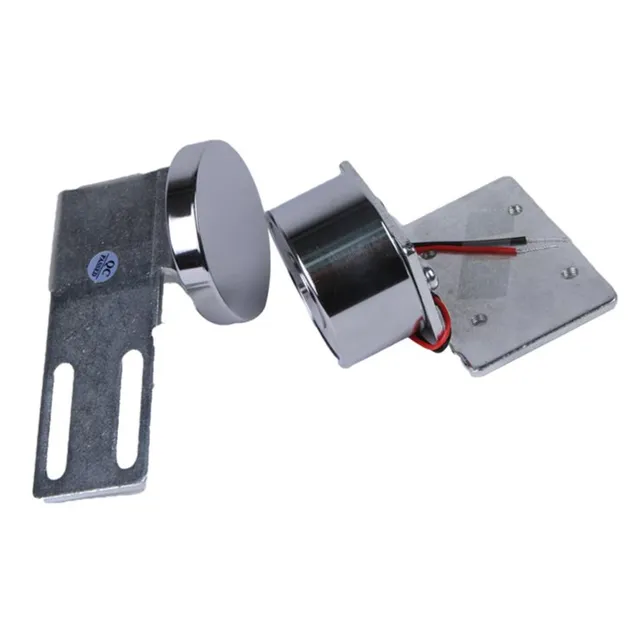

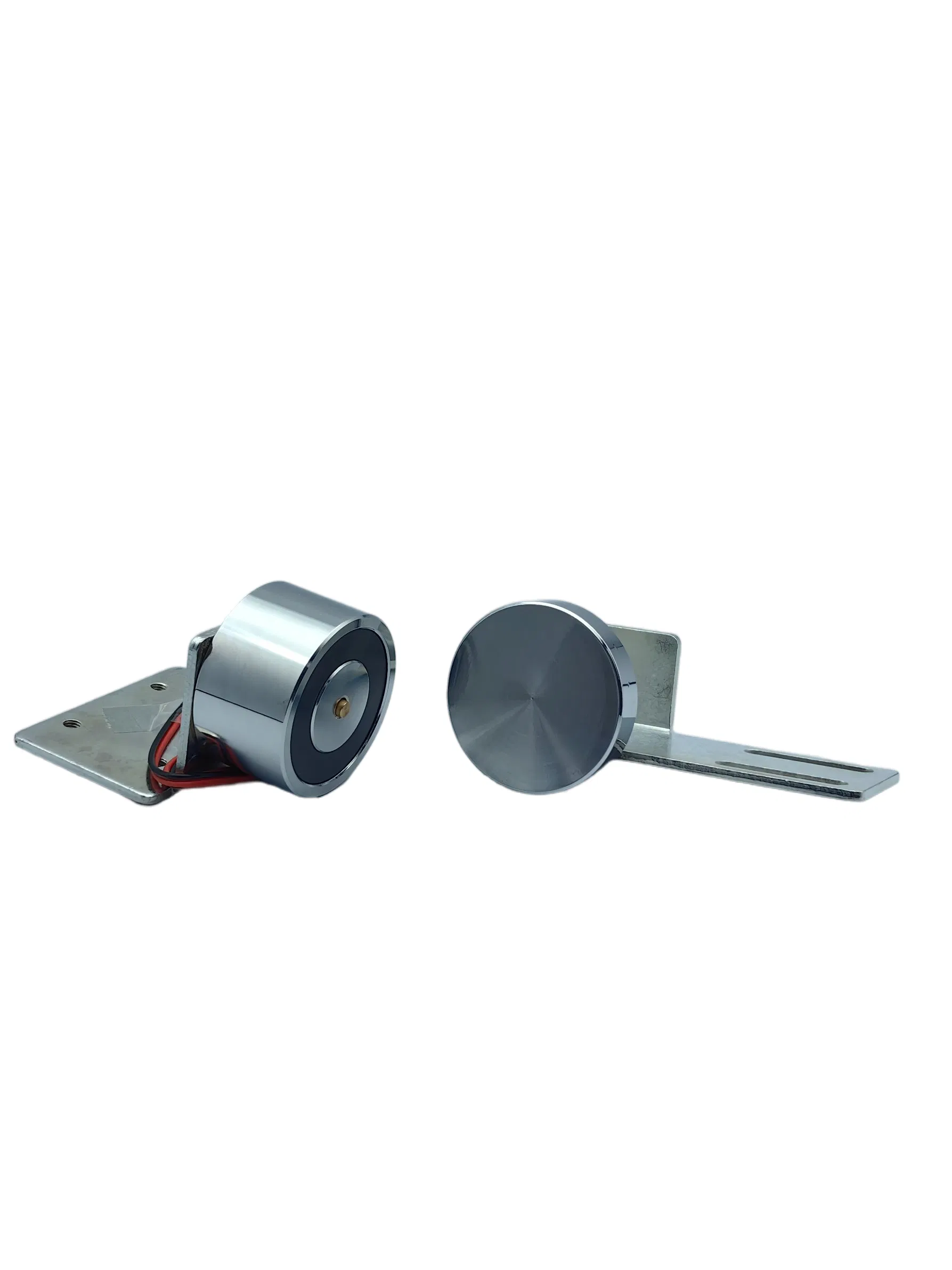

Canbo M-213D Modern Electromagnetic Magnetic Lock for Hotel Villa for Sliding Glass Door Mini Automatic Door Induction Lock
Product Description
📋
Basic Specifications
Model
M-213D
Certification
CE
Principle
Magnetic Control
Function
Fail-Safe
Voltage
DC 12V
Pull Force
180 / 280 / 360 / 500 Kg
Installation
Surface / Concealed
🛡️
Product Description
The Single and Double Door Electromagnetic Lock (EM-Lock) is a high-performance access control security component. Engineered for maximum holding force, it provides silent and fail-safe operation for securing various door setups in commercial and industrial environments.

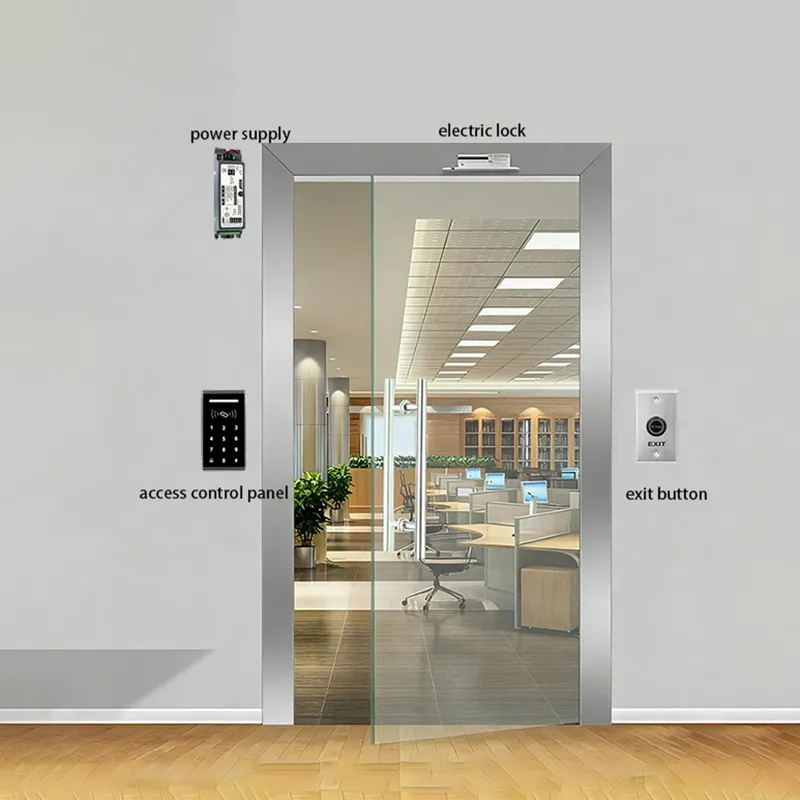

When energized, the lock creates a powerful magnetic bond with the armature plate, effectively preventing unauthorized forced entry. It integrates seamlessly with keypads, card readers, and biometric scanners.
✨
Key Characteristics
- Exceptional Holding Force: Available in 180kg, 280kg, 360kg, and 500kg options to suit different security needs.
- Fail-Safe Operation: Automatically unlocks during power failure to ensure safe egress and fire code compliance.

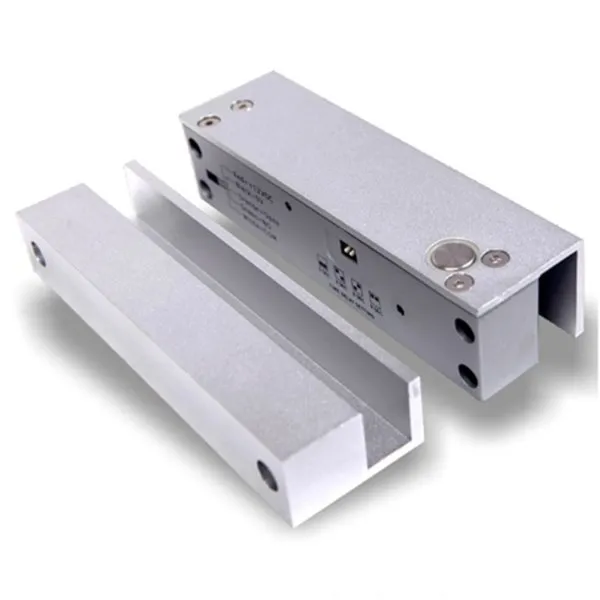

- Durable Construction: High-strength aluminum or zinc alloy housing with excellent corrosion resistance.
- Silent Operation: No mechanical moving parts, ensuring a long and quiet service life.
🏗️
Installation & Applications
The system comes as a complete kit for easy integration. It features a low-power 12V DC design compatible with standard access control systems.
Ideal for:
- Corporate Offices & Government Buildings
- Hospitals, Schools, and Universities
- Data Centers and Server Rooms
- Airports and Hotel Entrances
- Industrial Gates and Restricted Zones
📊
Technical Parameters

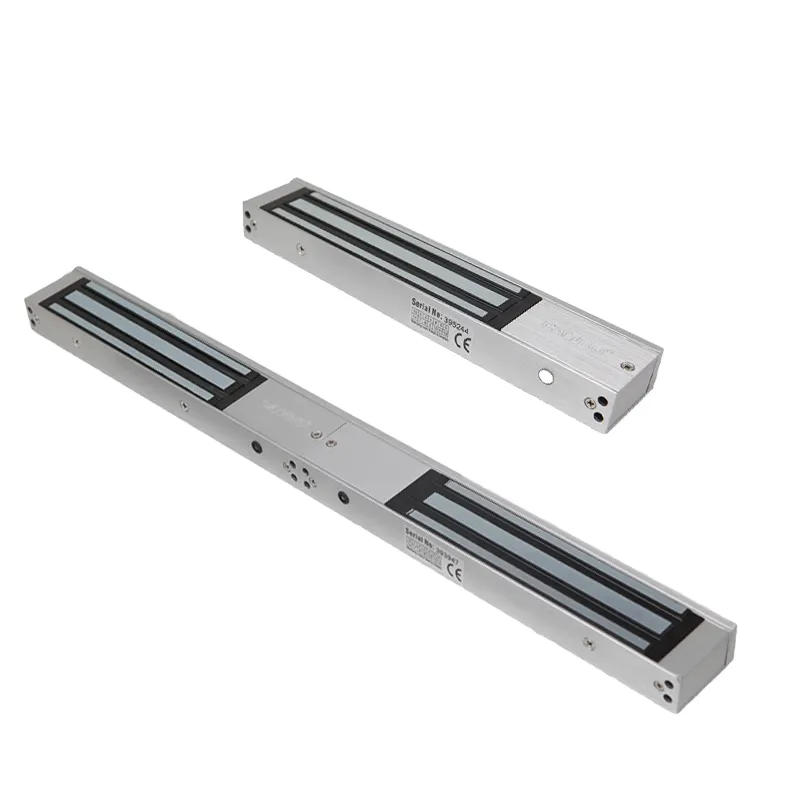

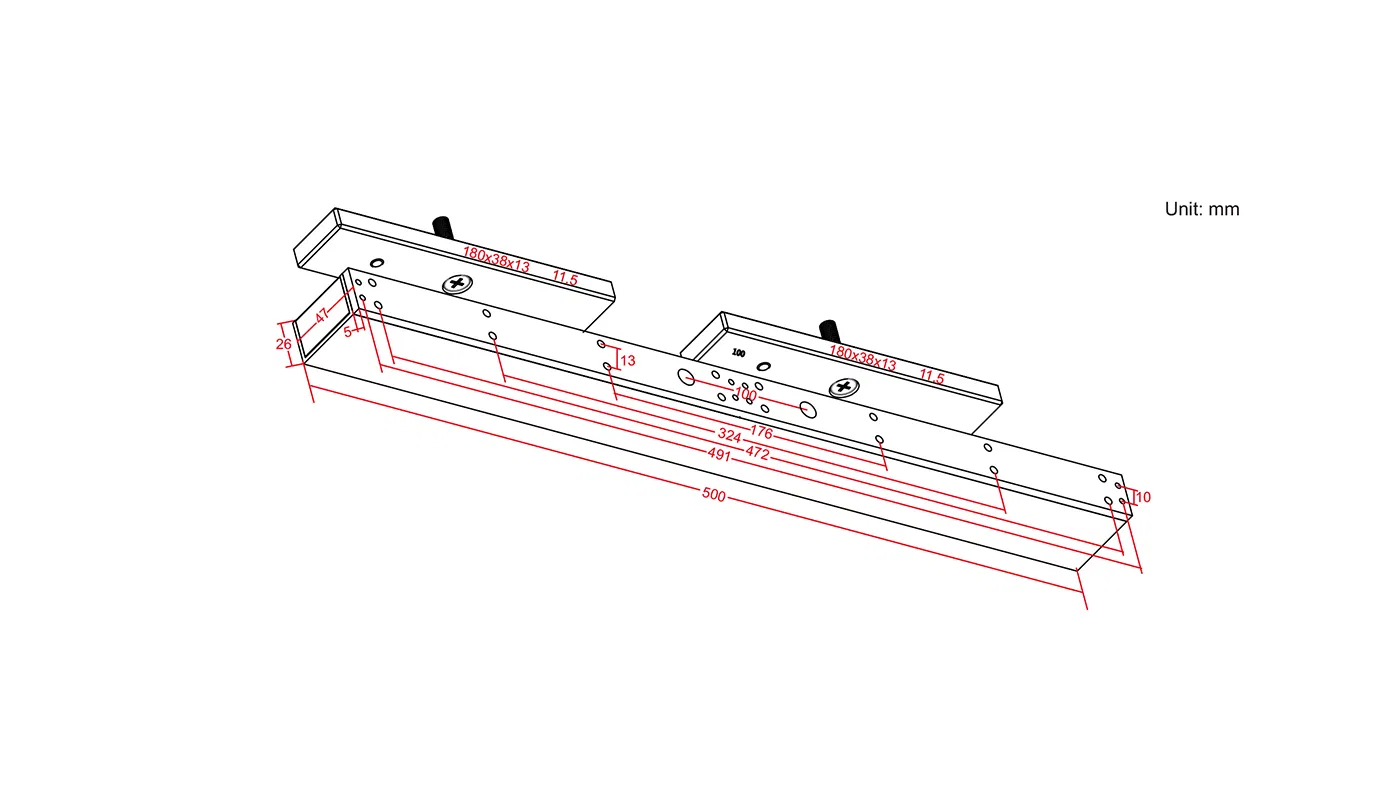

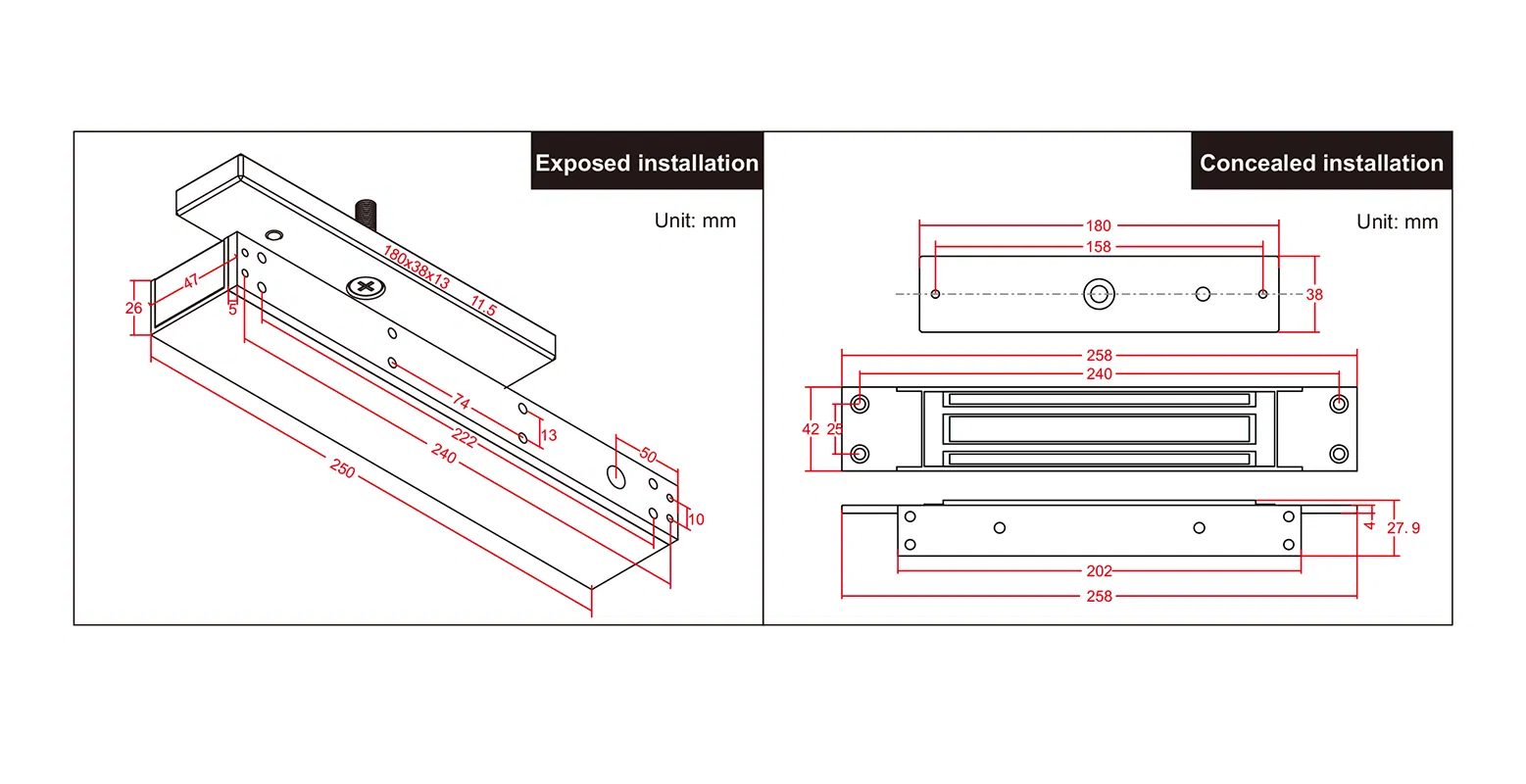

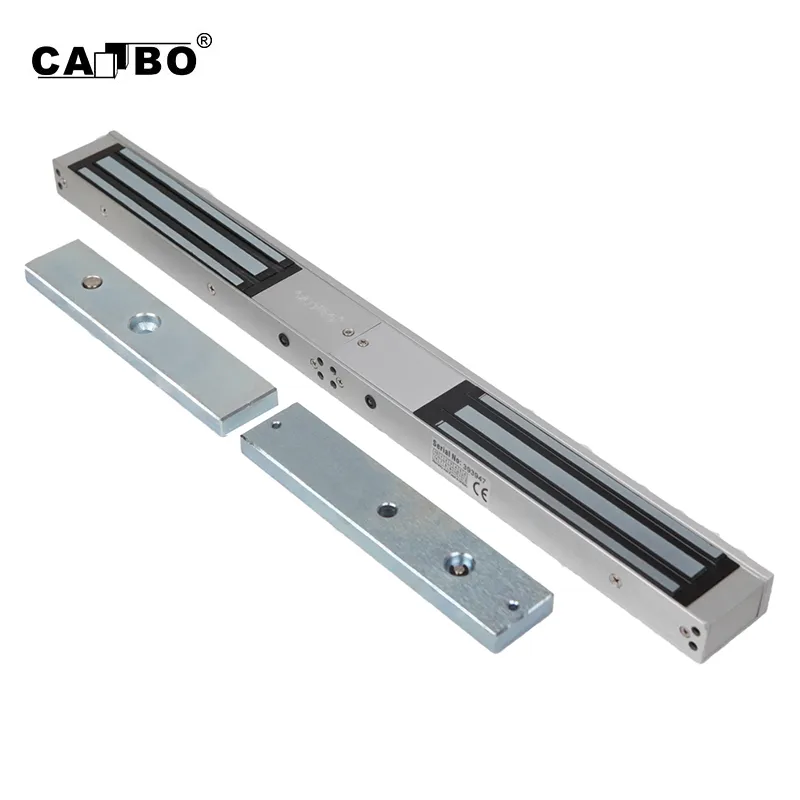

| Lock Body Size | 250×47×26mm (Single) / 500×47×26mm (Double) |
| Working Principle | Power-on to lock, Power-off to unlock |
| Working Voltage | DC 12V±10% |
| Working Current | 440mA / 220mA |
| Power Consumption | 5W |
| Static Pull Force | 180 / 280 / 360 / 500 KG |
| Indicator Light | RED (Power On), OFF (Power Off) |
| Material | Silicon steel, Pure copper wire, Aluminum alloy |
🏢
Profile

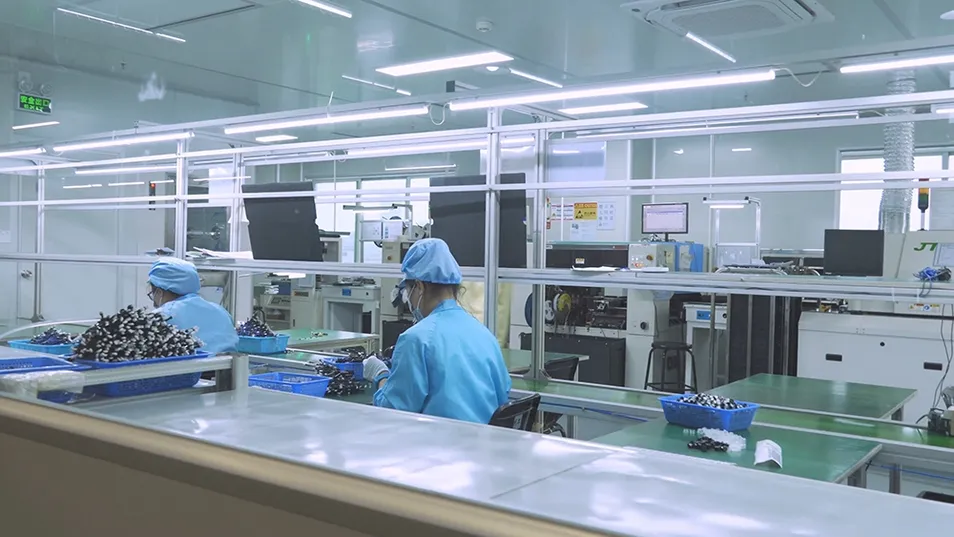

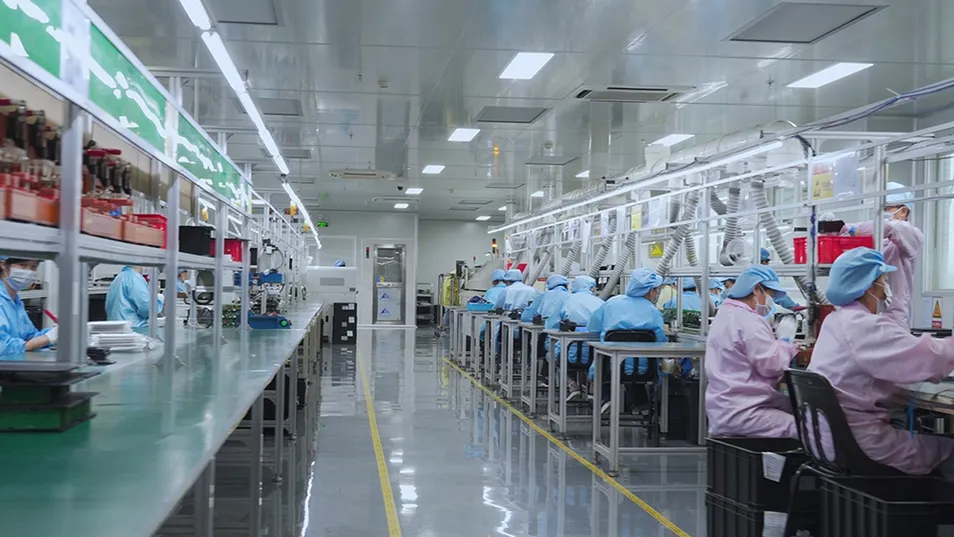

Dedicated to the R&D and manufacturing of automatic door control systems since 2006. The product range includes Motion & Safety Sensors, touchless switches, and advanced access control solutions integrating AI image sensing and IoT technology.
❓
Frequently Asked Questions
What is the "Fail-Safe" function?
Fail-safe means that the lock requires power to remain locked. In the event of a power outage, the lock automatically releases, allowing people to exit safely during emergencies.

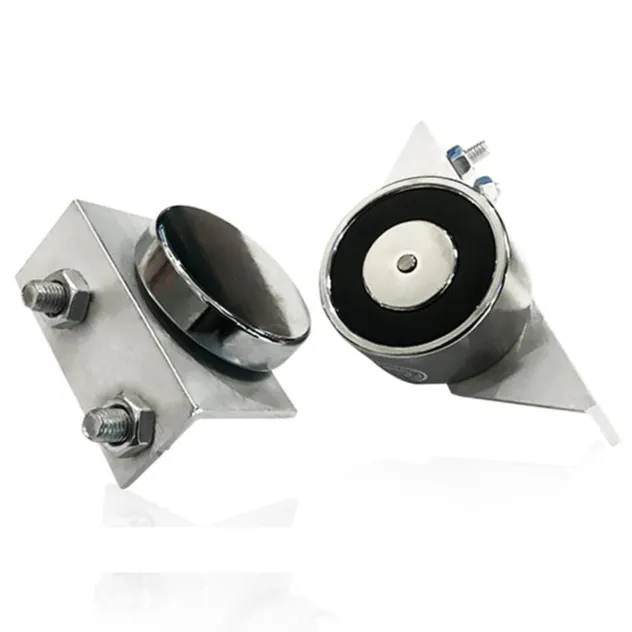

Can I install this on a double door?
Yes. For double door setups, two electromagnetic locks can be synchronized through a single control system to secure both door leaves effectively.
Is the installation complicated?

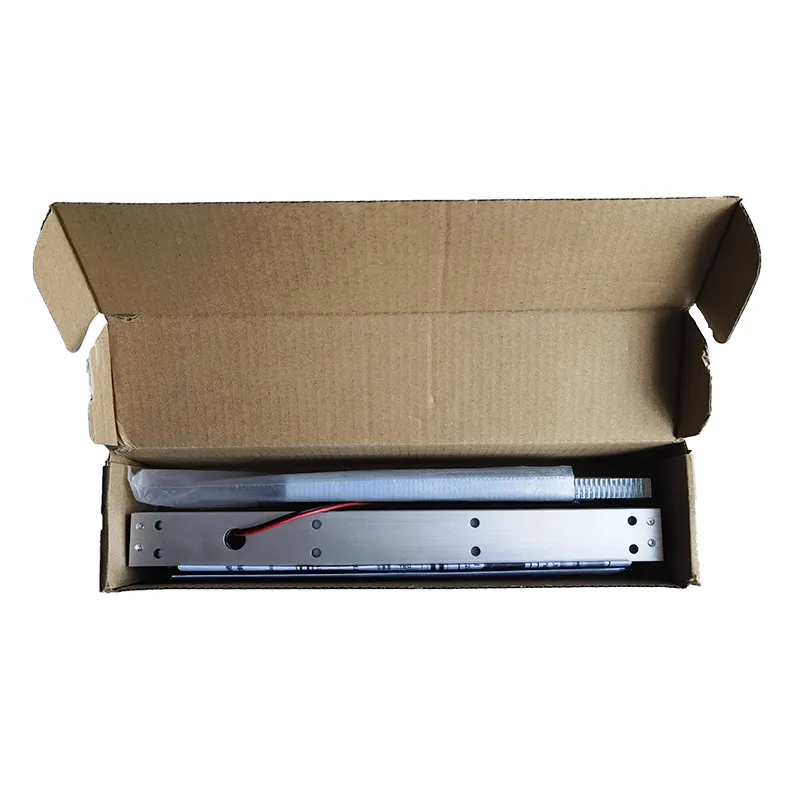

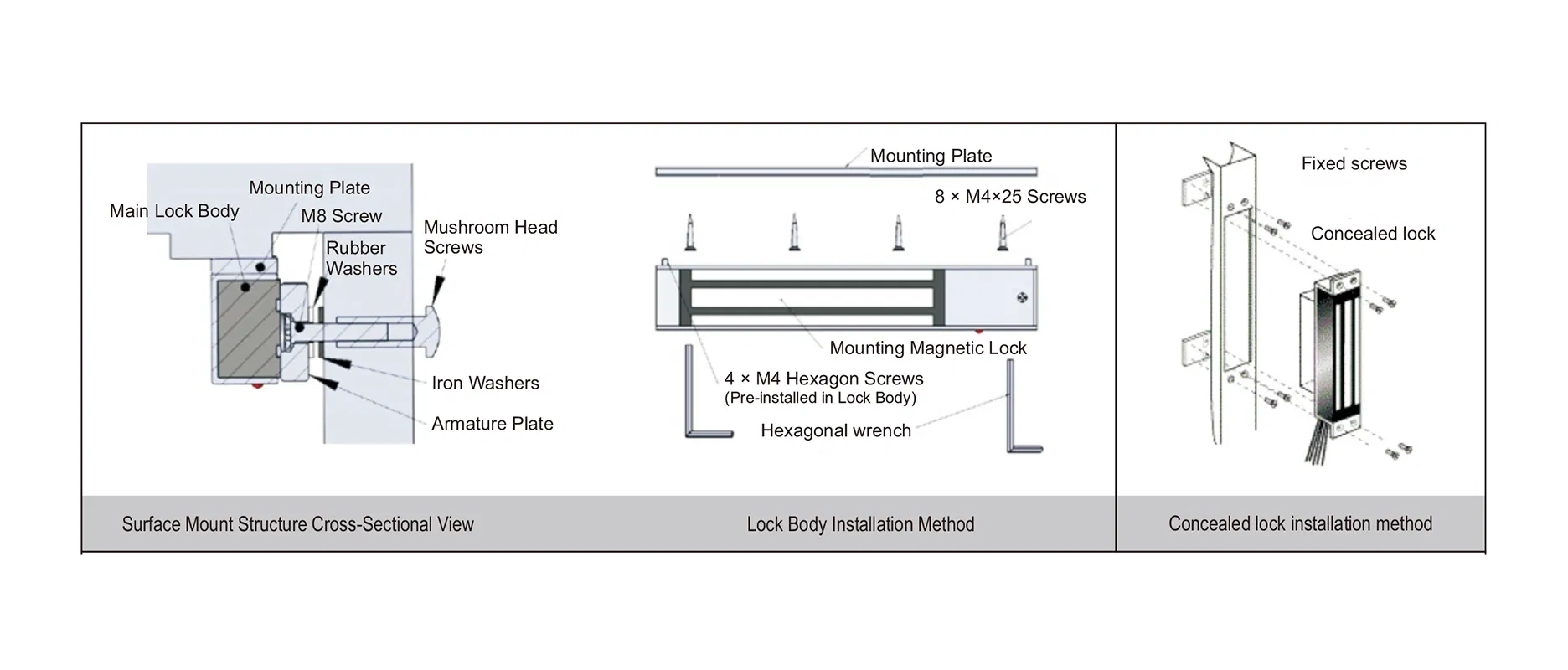

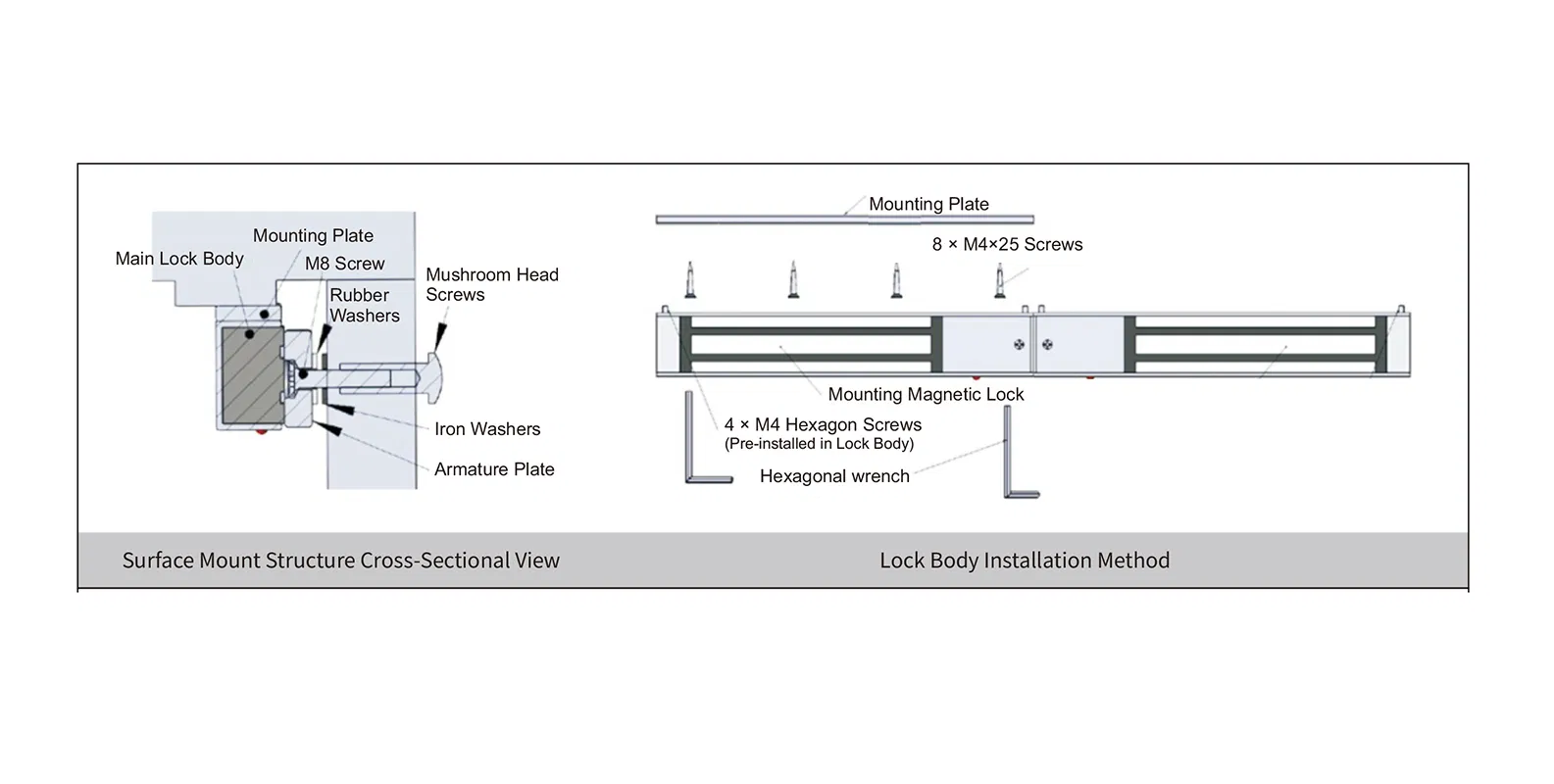

The installation is straightforward. Each unit includes a complete kit with the lock, armature plate, mounting brackets, and guidance instructions. It supports both surface and concealed mounting.
What voltage does the lock require?
The lock operates on a standard DC 12V power supply, making it compatible with most access control power units.
What materials are used in construction?

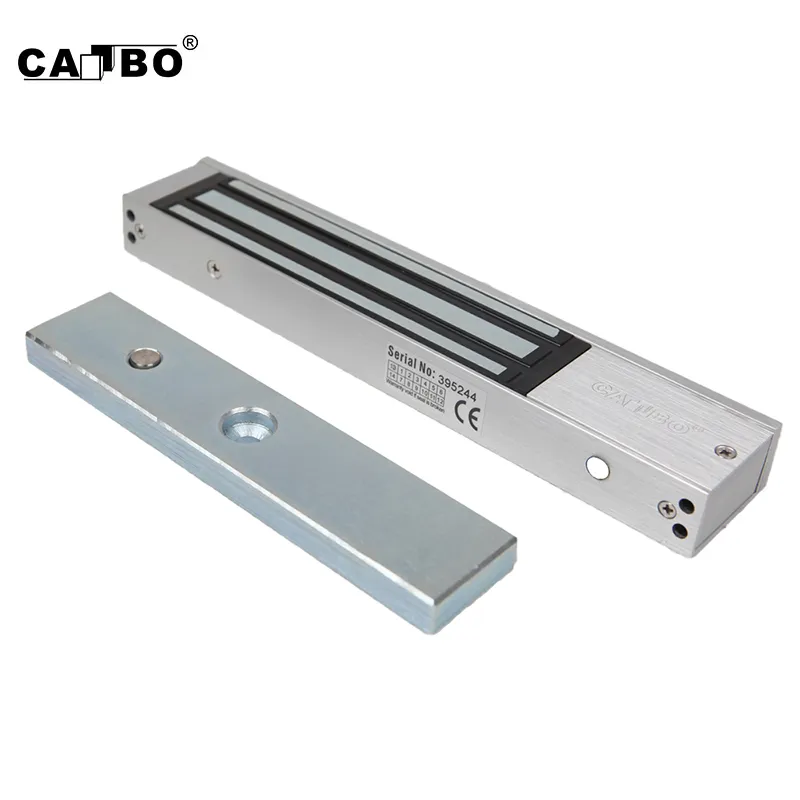

The lock body is made of silicon steel sheets and pure copper enameled wire housed in a high-strength aluminum alloy casing. The armature plate is made of pure electric iron for maximum magnetic efficiency.
How do I know if the lock is powered?
The lock includes an indicator light. A RED light indicates the power is on and the lock is active. The light turns off when power is disconnected.
