280kg Magnetic Door Lock Waterproof IP P68 for Outdoor Installation
Product Description
i
Basic Specifications
Model NO.
DW-280FW
Type
Electronic
Style
European
Part
Lock
Usage
Household Door Locks, Bedroom
Holding Force
280kg / 600lbs
Voltage
12V
Current
500mA
Color
Silver
Weight
2kg
Waterproof Level
IP-68
HS Code
8471900090
★

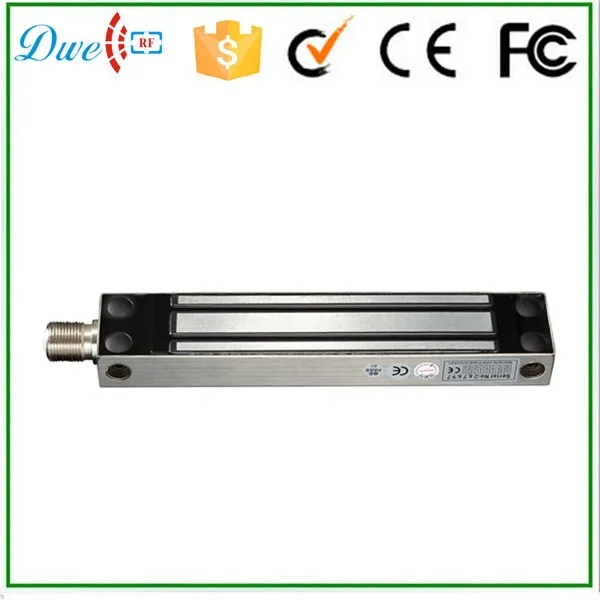

Waterproof Magnetic Door Lock 280KG
This professional-grade magnetic lock is designed for high-security access control in both indoor and outdoor environments. With its IP-68 waterproof rating and stainless steel shell, it ensures durability and reliability under various weather conditions.
| Product Parameter | Parameter Description |
|---|---|
| Size | 220L x 42W x 25.5H (mm) |
| Holding Force | 280kg (600Lbs) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/500mA or 24V/250mA |
| Suitable For | Wooden, Glass, Metal, and Fireproof doors |
| Signal Output | Door Signal NO/COM |
| Waterproof Level | IP-68 |
| Operating Temp | -10 ~ +55ºC (14-131F) |
| Weight | 2.1kg |
●
Key Features
- High Security: Collinear Load Test of 280kg (600lbs) verified.
- Advanced Protection: MOV provides reverse current protection.
- Premium Build: Finished with a stainless steel shell for increased strength and durability.
- Full Weatherproofing: 100% waterproof with all parts pressurized in resin.
- Versatile Installation: Suitable for indoor and outdoor use.
- Zero Mechanical Failure: Design depends purely on powerful magnetic force.
- Dual Voltage: Supports 12V or 24VDC (optional).
📷

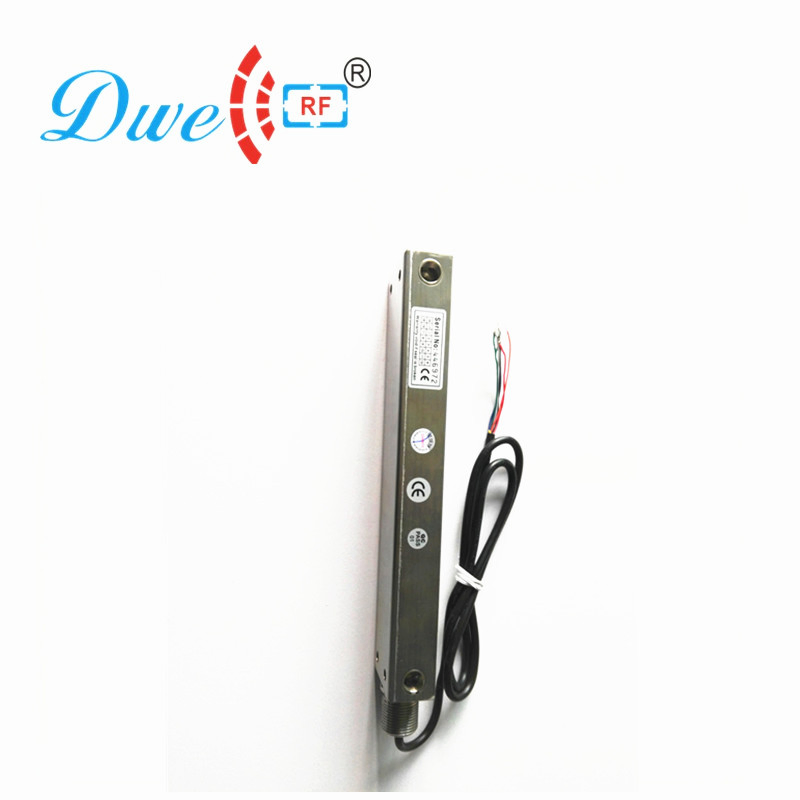

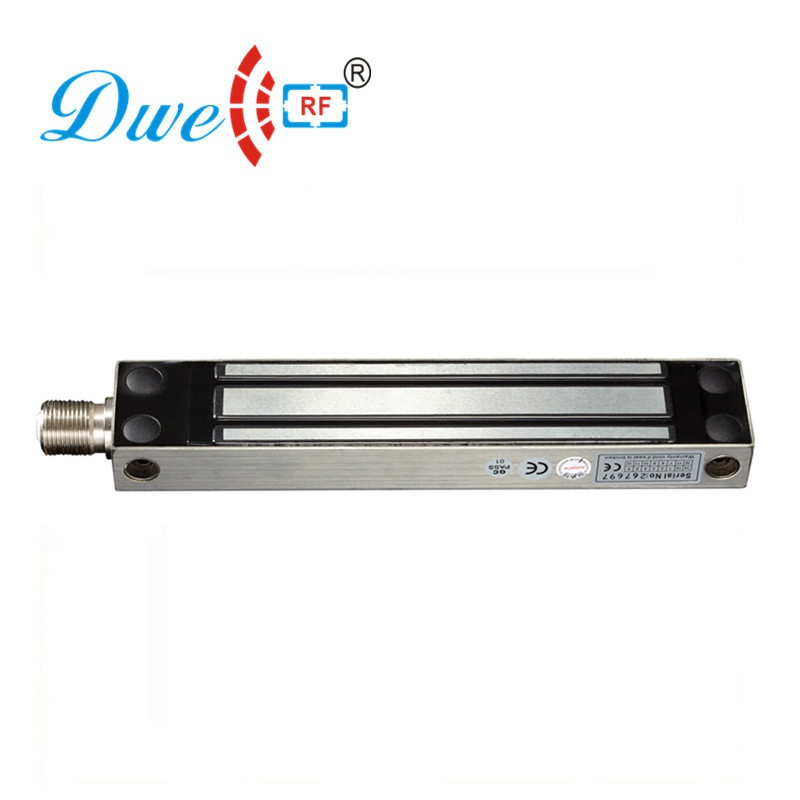

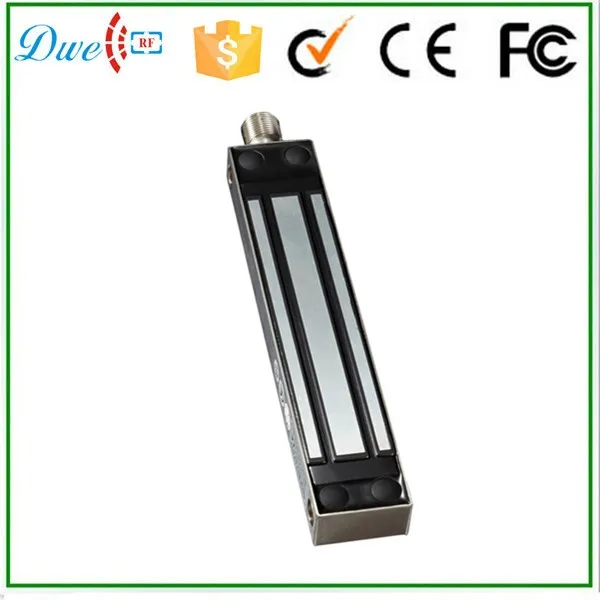

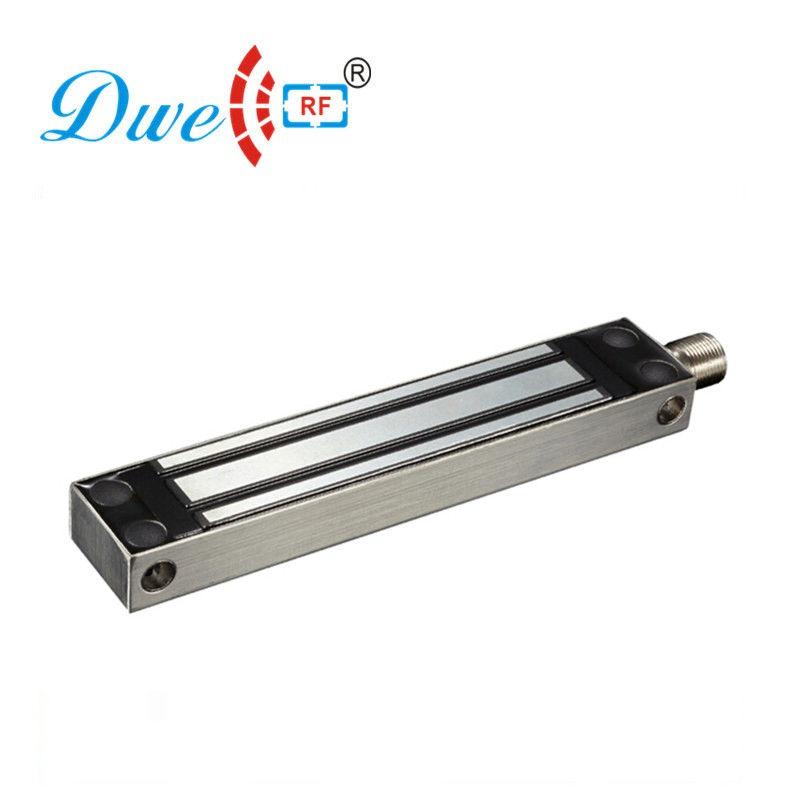

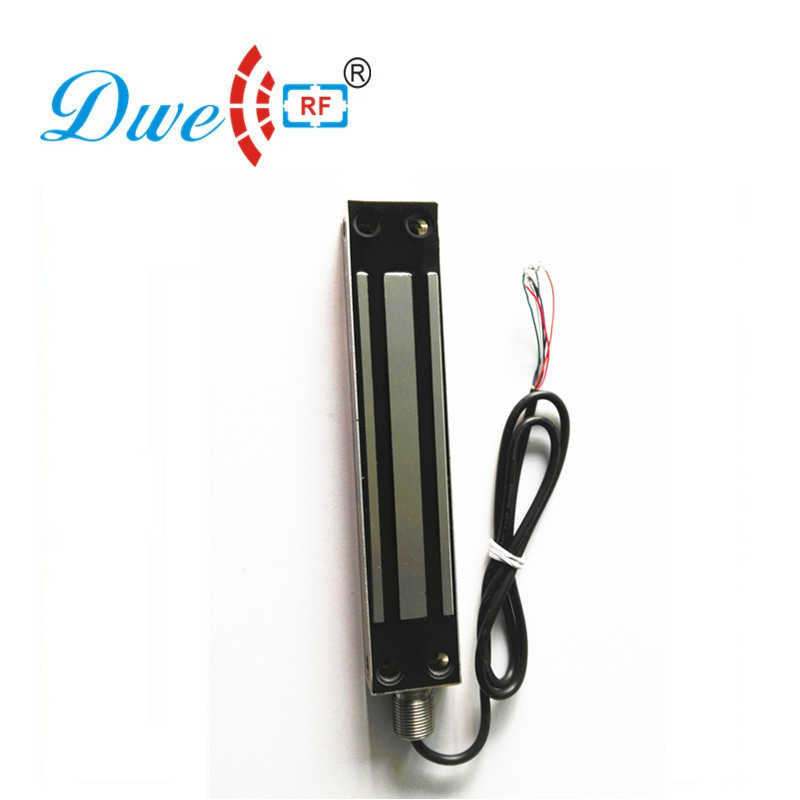

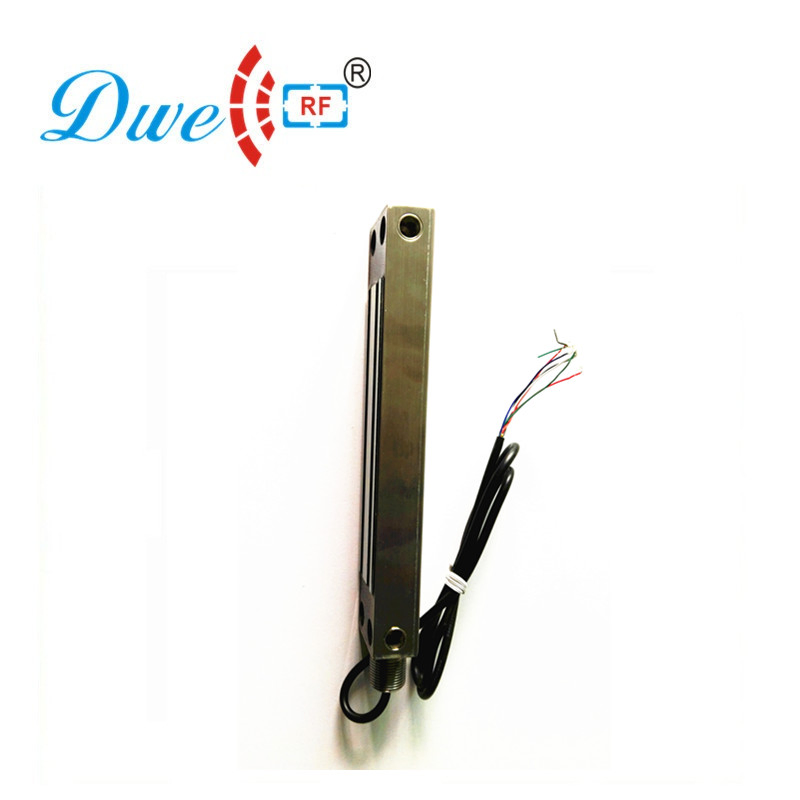

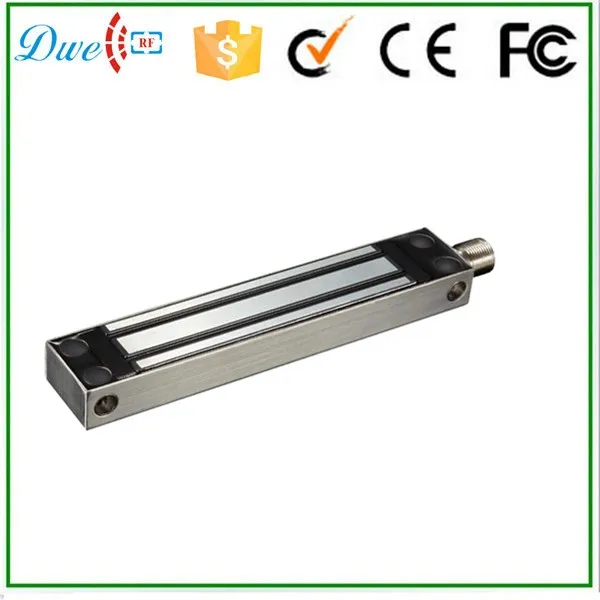

Product Gallery
✔
Certifications
❤
Why Choose Our Solutions?
High Quality Control
High Reputation
Professional Sales Team
24 Hours On-time Service
Competitive Pricing
Fast Delivery
?
Frequently Asked Questions
Q1: What is the maximum holding force of this lock?
The lock has a collinear load test capacity of 280kg (600lbs).
Q2: Can this magnetic lock be used for outdoor gates?
Yes, it features an IP-68 waterproof rating and all parts are pressurized in resin, making it ideal for both indoor and outdoor installation.
Q3: Which door types are compatible with this device?
It is suitable for wooden doors, glass doors, metal doors, and fireproof doors.
Q4: Does the lock include surge protection?
Yes, it includes MOV (Metal Oxide Varistor) protection which provides reverse current protection to safeguard the system.
Q5: What power supply is required for operation?
The lock operates on 12VDC (500mA) by default, but it can also be configured for 24VDC (250mA).
Q6: Is it durable for high-traffic use?
Absolutely. The stainless steel shell and the design without mechanical failure parts ensure long-term durability even in demanding environments.
