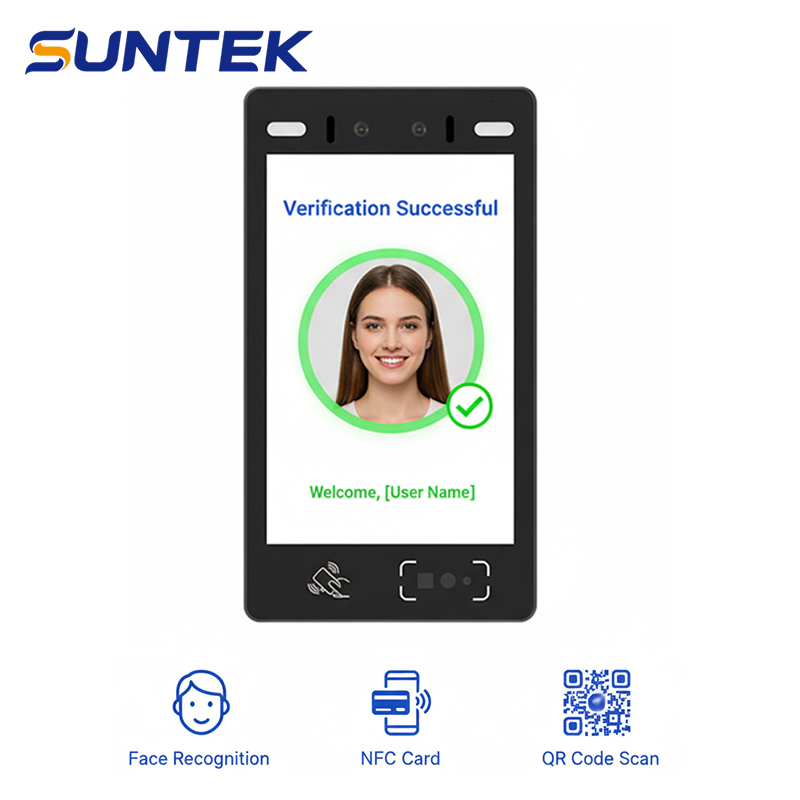

30, 000 User/Face Capacity Suntek Facial Recognition System Door Access Terminal for Airports and High-Traffic Security Zones

Customization: Available
Screen: Color Screen
Application: Community, Hotel, Hospital, Campus, Supermarket, Enterprise, Factory, Data Center/Subway/Airport

Product Description

i

Overview & Basic Info

Model NO.
FA8

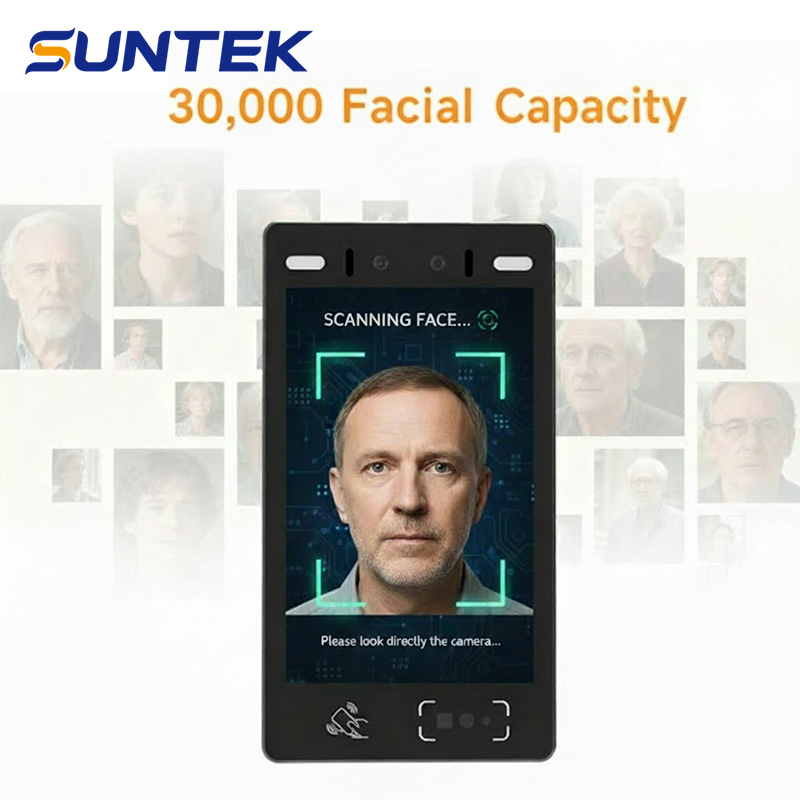

Facial Capacity
Max up to 30,000 Faces
OS
Android 14
CPU
Rk3576, Quad-Core, 2.0GHz
Memory
4GB RAM + 64GB ROM
Display
10-Inch (800X1280)
Camera
Dual-Lens (RGB+IR), 2MP+2MP
Accuracy
>99.99%
Liveness Detection
Prevents Masks, Photos, Videos Spoofing
IP Rate
IP65 (Screen/Outdoor Ready)

Product Highlights

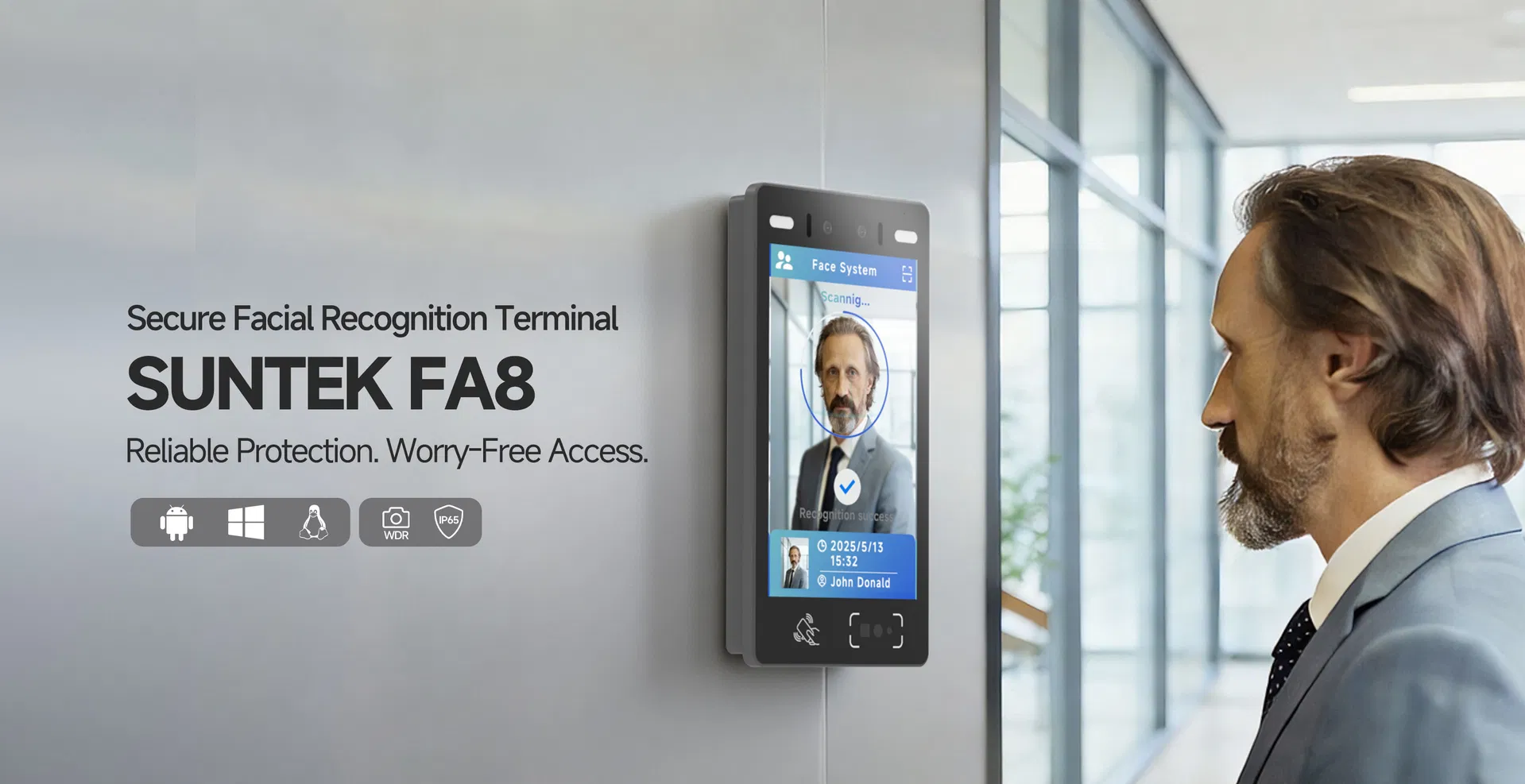

FA8 Secure Facial Recognition Terminal — your ultimate biometric access control solution, built for "Reliable Protection, Worry-Free Access."

  • Powerful Performance: Equipped with an Octa-core 2.2GHz processor, 4GB RAM, and a 6 TOPS NPU for lag-free operation.
  • High Accuracy: Features a >99.99% accuracy rate and blazing-fast <0.2s matching speed.
  • Dual-Lens Security: Infrared + RGB dual-lens camera ensures precise identity verification in any lighting condition.

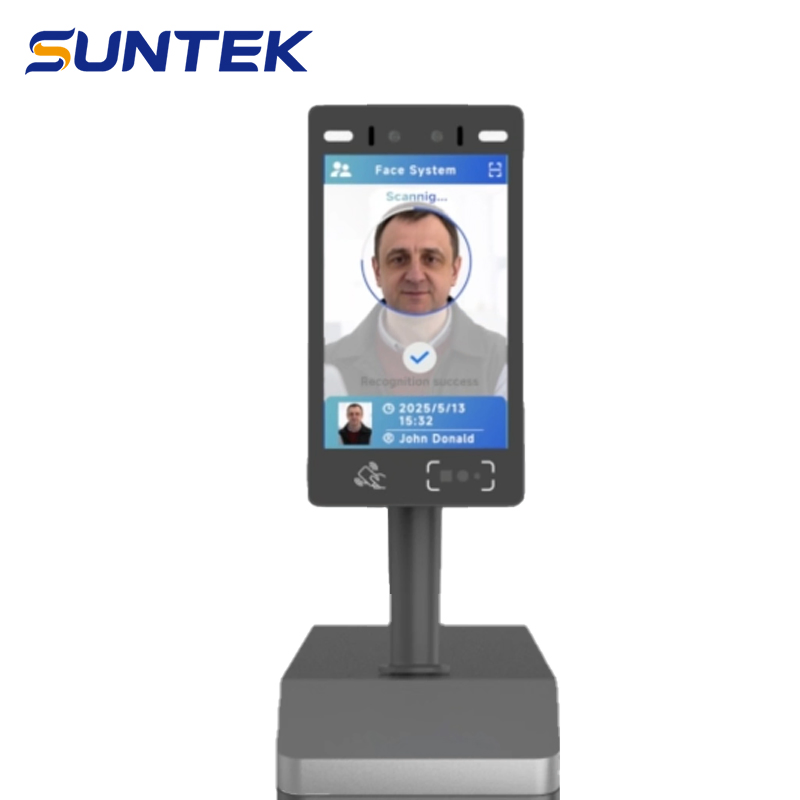

  • All-Weather Ready: Optional turnstile bracket supports an IP65 waterproof rating for outdoor deployment.
  • Advanced Spoofing Protection: Liveness detection technology guards against fake faces and digital media attempts.
📸

Product Details

Technical Specification

FA8 Facial Recognition Terminal
Operating SystemAndroid 14
ProcessorQuad-core, 2.0GHz
Memory4GB RAM + 64GB ROM

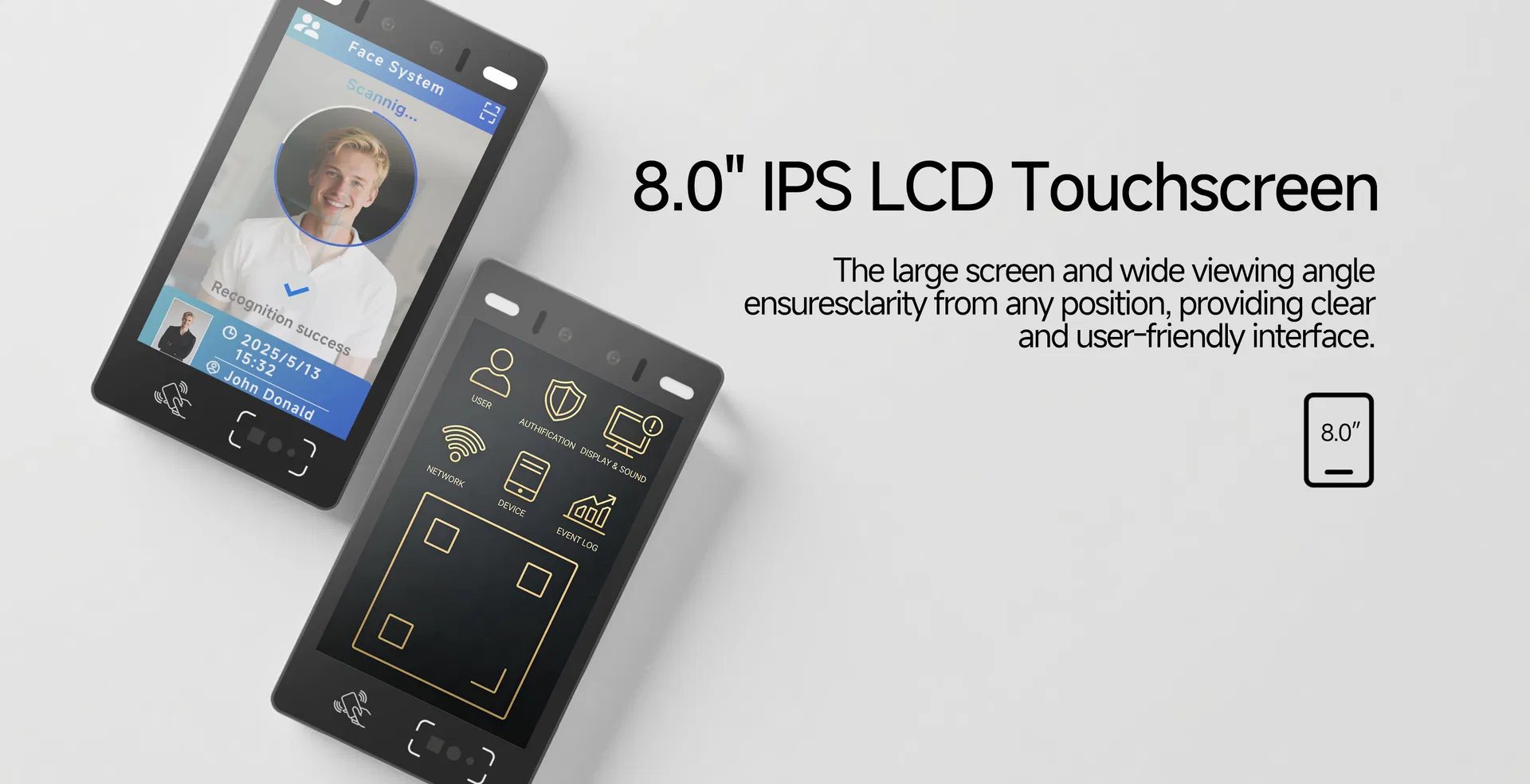

Display8-inch (800x1280) IPS Touchscreen
Front CameraDual-lens Camera (RGB+IR); 2MP+2MP
CommunicationsWIFI, Bluetooth, Ethernet

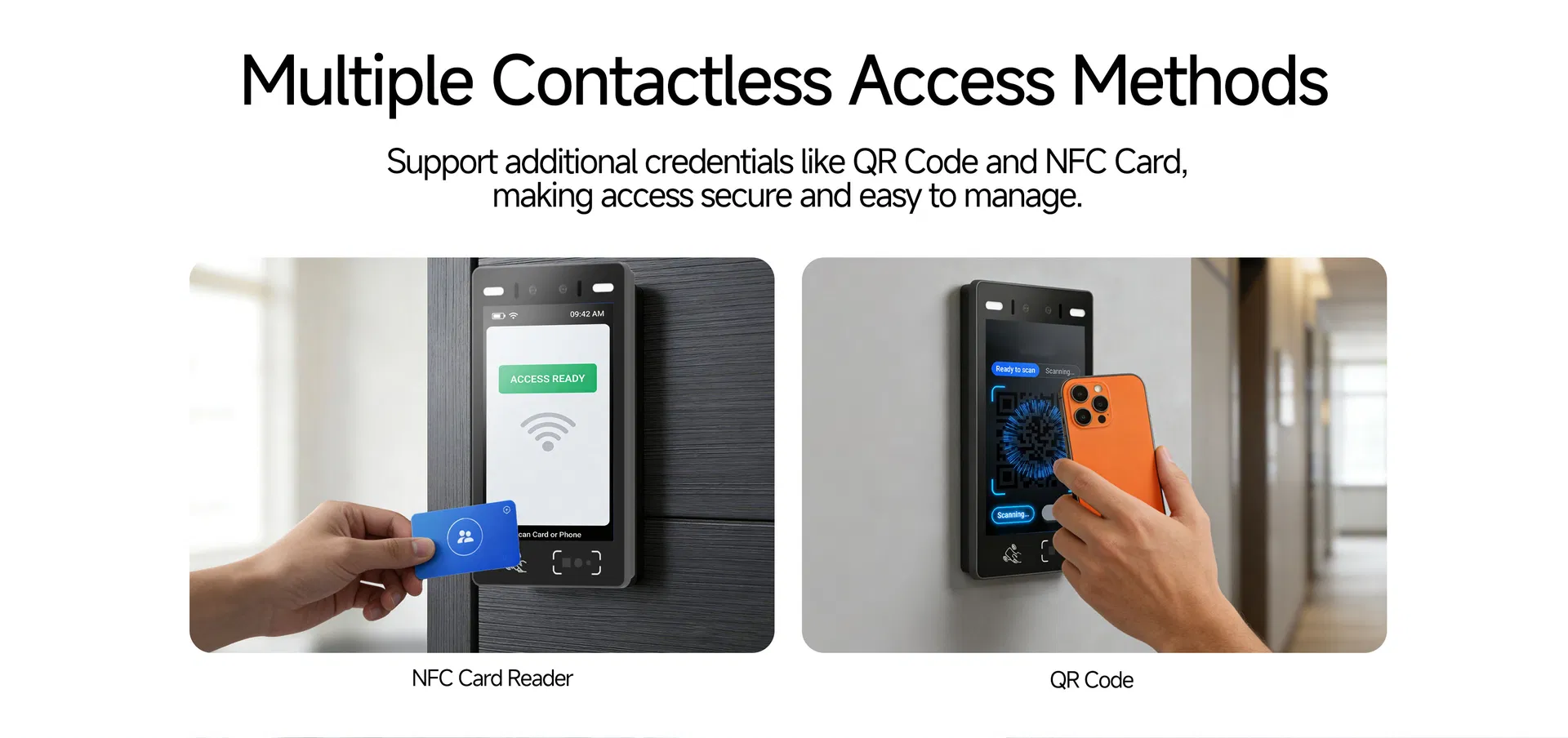

Card ReaderNFC, ISO14443 Type A/B
Fill LightRed, Green, White LED Light
Rich PortsDC, RJ45, USB, UBOOT, Wiegand I/O, RS485, GPIO, Relay
Power Supply12V/2A or POE
Dimensions235 (L)x128 (W)x25 (H)mm
🏢

Industrial Strength

80+ Export Countries
5M+ Shipped Worldwide
15+ Years Experience
300K+ Monthly Capacity
🌍

Applications

Ideal for Corporate Offices, Government Buildings, High-Security Zones (Data Centers), Healthcare Facilities, Transportation Hubs, and Public Venues.

?

Frequently Asked Questions

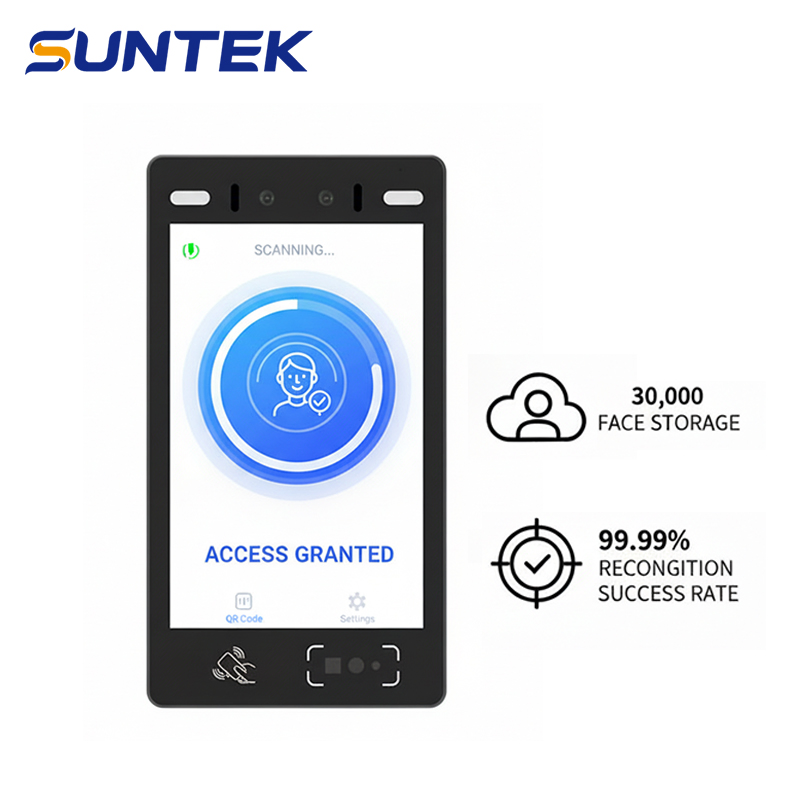

What is the face capacity of the FA8 terminal?
The FA8 terminal supports a massive user capacity of up to 30,000 faces, making it suitable for high-traffic areas and large enterprises.
Does the device support liveness detection to prevent spoofing?
Yes, it uses an advanced infrared + RGB dual-lens camera system and AI algorithms to detect liveness, preventing unauthorized access via photos, videos, or 3D masks.
What operating system does the FA8 run on?
The terminal is powered by Android 14, providing a modern, stable, and flexible platform for various access control applications.

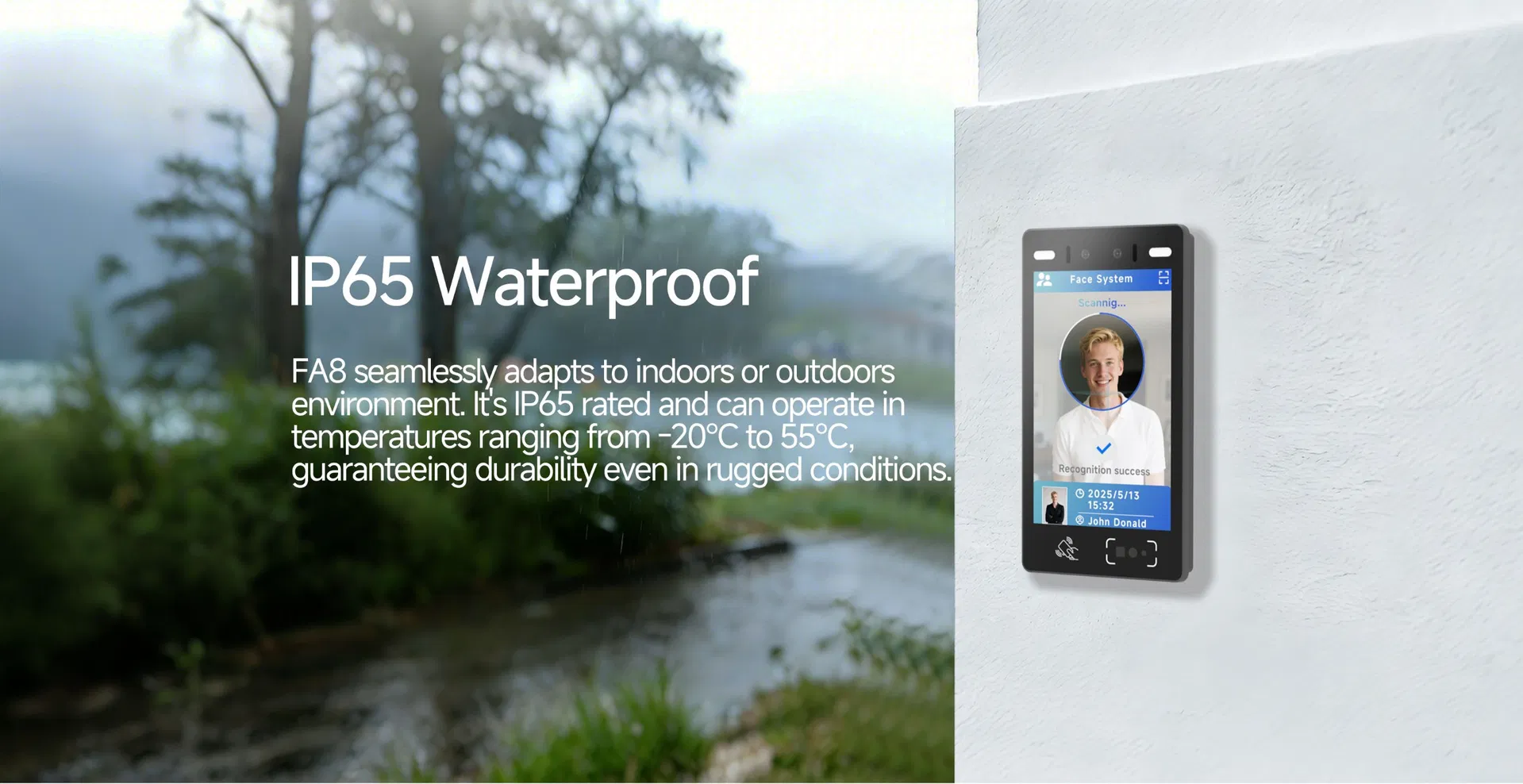

Can this terminal be installed outdoors?
Yes. With the optional turnstile bracket, the device achieves an IP65 waterproof rating, ensuring reliable performance in outdoor and all-weather environments.
How fast is the facial recognition process?
The device features an ultra-fast recognition speed of less than 0.2 seconds with an accuracy rate exceeding 99.99%.
Does it support POE (Power over Ethernet)?
Yes, the FA8 supports both standard 12V/2A DC power and POE, offering flexible installation options for different infrastructure requirements.
